Name: LED Architectural Linear Fixture - 4CCT & Watt Adjustable
Brand: Votatec
SKU: VO-ALW15FT2-347-4WAY-P-W-D-X
Price: 144.9 CAD
Availability: InStock

LED Architectural Linear Fixture - 4CCT & Watt Adjustable

$144.90

Shipping calculated at checkout.

Free shipping on orders over $199

Questions? Call 604-233-1998

Specifications

Model: VO-ALW15FT2-347-4WAY-P-W-D-X

Finish: White

Beam Angle: 120°

Brightness: 130Lm/W

CCT: 3000K/ 3500K/ 4000K/ 5000K ADJ

CRI: >80

Dimension: 23.62" x 2.95" x 2.4"

Input Voltage: AC120-347V

Power: 25W/ 20W/15W ADJ

Power Factor: >0.9

IP Rating: IP20

Size: 2ft

Price List Description: 2FT,25W,1950-3250LM / Dimmable , Linakble , 120-347V / 3000K/ 3500K/ 4000K/ 5000K Adjustable / 25W/20W/10 Adjustable / Include Suspension Kit - 10 ft Cable / White/Black

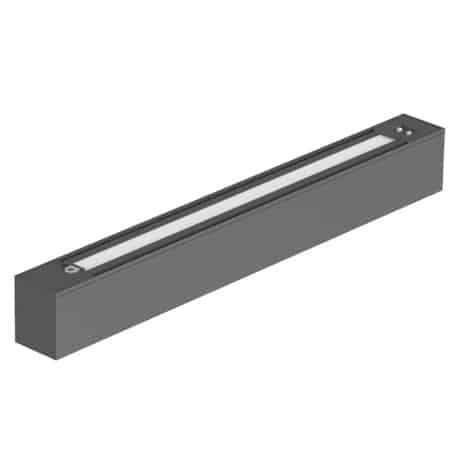

Model: VO-ALW25FT2-347-4WAY-P-B-D-X

Finish: Black

Beam Angle: 120°

Brightness: 130Lm/W

CCT: 3000K/ 3500K/ 4000K/ 5000K ADJ

CRI: >80

Dimension: 23.62" x 2.95" x 2.4"

Input Voltage: AC120-347V

Power: 25W/ 20W/15W ADJ

Power Factor: >0.9

IP Rating: IP20

Size: 2ft

Price List Description: 2FT,25W,1950-3250LM / Dimmable , Linakble , 120-347V / 3000K/ 3500K/ 4000K/ 5000K Adjustable / 25W/20W/10 Adjustable / Include Suspension Kit - 10 ft Cable / White/Black

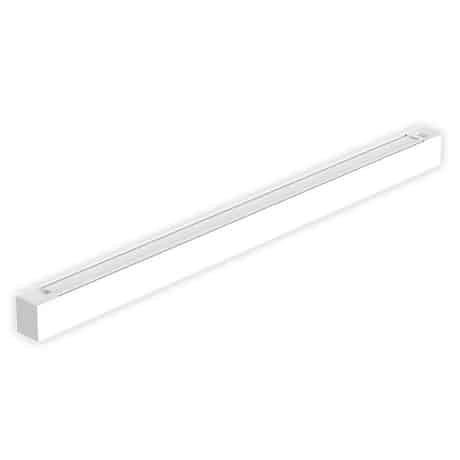

Model: VO-ALW50FT4-347-4WAY-P-W-D-X

Finish: White

Beam Angle: 110°/ 120°

Brightness: 130Lm/W

CCT: 3000K/ 3500K/ 4000K/ 5000K ADJ

CRI: >80

Dimension: 47.24" x 2.95" x 2.4"

Input Voltage: AC120-347V

Power: 50W/ 40W/30W ADJ

Power Factor: >0.9

IP Rating: IP20

Size: 4ft

Price List Description: 4FT,50W, 3900-6500LM / Dimmable , Linakble , 120-347V / 3000K/ 3500K/ 4000K/ 5000K Adjustable / 50W/40W/30W Adjustable / Include Suspension Kit - 10 ft Cable / White/Black

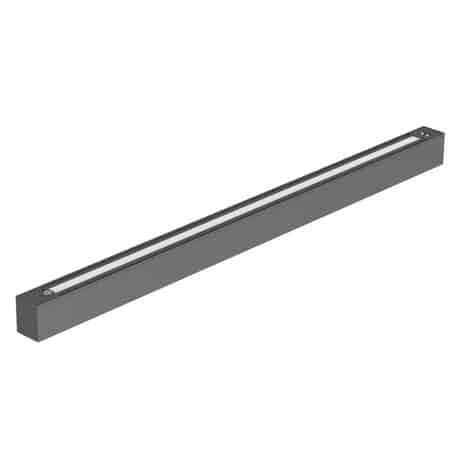

Model: VO-ALW50FT4-347-4WAY-P-B-D-X

Finish: Black

Beam Angle: 110°/ 120°

Brightness: 130Lm/W

CCT: 3000K/ 3500K/ 4000K/ 5000K ADJ

CRI: >80

Dimension: 47.24" x 2.95" x 2.4"

Input Voltage: AC120-347V

Power: 50W/ 40W/30W ADJ

Power Factor: >0.9

IP Rating: IP20

Size: 4ft

Price List Description: 4FT,50W, 3900-6500LM / Dimmable , Linakble , 120-347V / 3000K/ 3500K/ 4000K/ 5000K Adjustable / 50W/40W/30W Adjustable / Include Suspension Kit - 10 ft Cable / White/Black

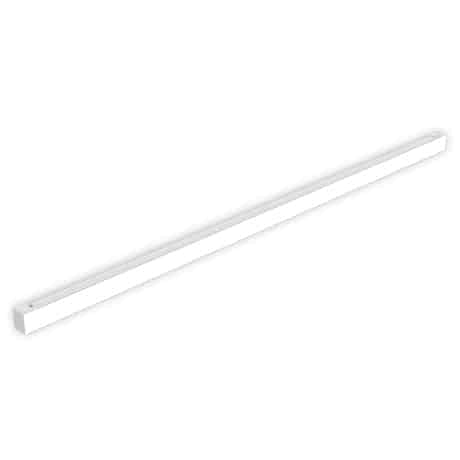

Model: VO-ALW100FT8-347-4WAY-P-W-D-X

Finish: White

Beam Angle: 120°

Brightness: 130Lm/W

CCT: 3000K/ 3500K/ 4000K/ 5000K ADJ

CRI: >80

Dimension: 94.48" x 2.95" x 2.4"

Input Voltage: AC120-347V

Power: 100W/ 80W/60W ADJ

Power Factor: >0.9

IP Rating: IP20

Size: 8ft

Price List Description: 8FT,100W 7800-13000LM / Dimmable , Linkable , 120-347V / 3000K/ 3500K/ 4000K/ 5000K Adjustable / 100W/80W/60W Adjustable / Include Suspension Kit - 10 ft Cable / White/Black

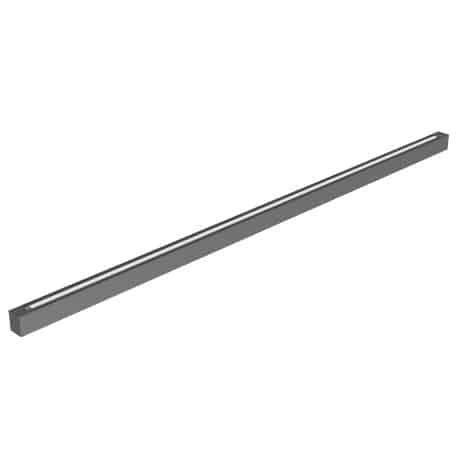

Model: VO-ALW100FT8-347-4WAY-P-B-D-X

Finish: Black

Beam Angle: 120°

Brightness: 130Lm/W

CCT: 3000K/ 3500K/ 4000K/ 5000K ADJ

CRI: >80

Dimension: 94.48" x 2.95" x 2.4"

Input Voltage: AC120-347V

Power: 100W/ 80W/60W ADJ

Power Factor: >0.9

IP Rating: IP20

Size: 8ft

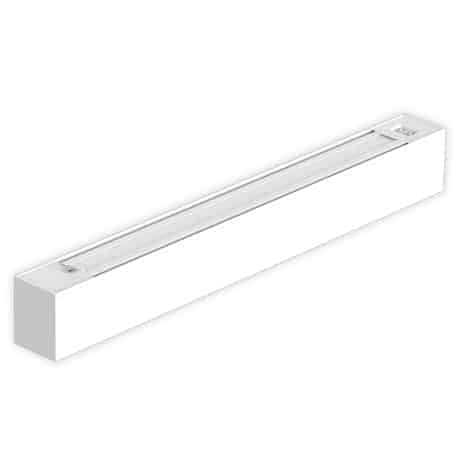

Votatec's 2ft architectural linear fixture puts four colour temperatures and three wattages behind two dip switches, so one SKU covers what you'd otherwise stock four ways.

Pick 15W, 20W or 25W. Pick 3000K, 3500K, 4000K or 5000K. Output lands near 1,930, 2,520 and 3,180 lumens at 4000K, about 130 lm/W, CRI above 80, on AC120-347V.

Extruded aluminum in white or black, 0-10V dimming, cUL listed for damp locations, 5-year warranty.

Select an option above to see its full specifications.

Downloads: Spec Sheet (2ft) | Manual (2ft) | Manual (4ft)

Free shipping on orders over $199. See our full shipping & return policy.

Need an electrician or install tips? Read our install guide or call us at 604-233-1998.
