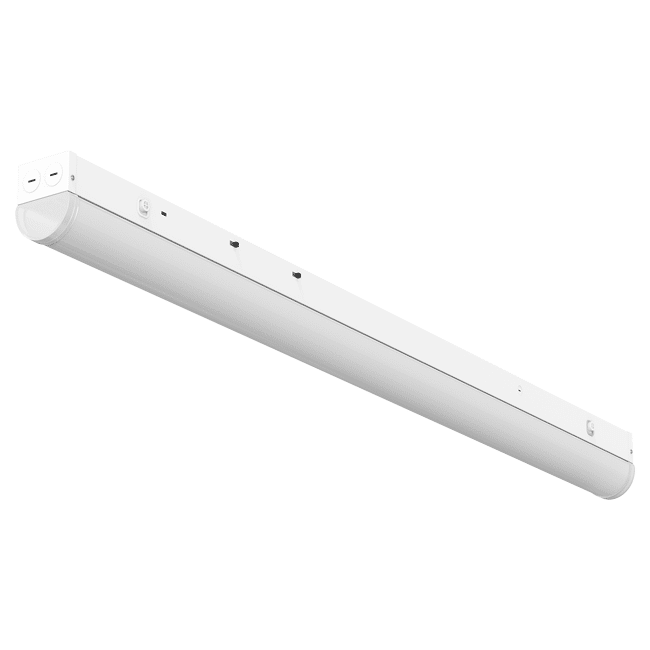

Name: LED CCT & Power Selectable Linear Strip Fixture - ECSTR Series
Brand: Votatec
SKU: VO-ECSTR2FT-347V-5WAY
Price: 67.2 CAD
Availability: InStock

LED CCT & Power Selectable Linear Strip Fixture - ECSTR Series

$67.20

Shipping calculated at checkout.

Size

25W-2ft

40W-4ft

90W-8ft

Free shipping on orders over $199

Questions? Call 604-233-1998

Specifications

A 2ft LED strip light that covers five specs from one part number. Flip the two DIP switches behind the diffuser and you set output and colour on site, after the drawings change.

Five power steps, 10W to 25W. Five CCTs, 3500K to 5700K. Measured output runs 1,370 to 3,309 lumens, CRI above 80, with 0-10V dimming to 10%.

SPCC steel housing, polycarbonate diffuser, 2kV surge protection, cETL damp-listed, five-year warranty.

Select an option above to see its full specifications.

Downloads: Spec Sheet (25W-2ft) | Manual (25W-2ft) | Manual (90W-8ft)

Free shipping on orders over $199. See our full shipping & return policy.

Need an electrician or install tips? Read our install guide or call us at 604-233-1998.
