Specifications
Model: J5218KLDA-UF24W-5P5C-H
Beam Angle: 110°
Brightness: 3480/3190/2900/2465/2175Lm
CCT: 3000K/ 3500K/ 4000K/ 5000K/ 6500K Adj
CRI: >80
Dimension: 23.62"x4.96"x3.6"
Input Voltage: AC120-347V
Power: 24W/ 20W/ 17W/ 13W/10W Adj
Power Factor: >0.9
IP Rating: IP66
Size: 2ft
Price List Description: 2ft , 24W , 2175-3480lm / 3000K/3500/4000K/5000K/6500K Adjustable / 24W/22W/20W/17W/15W Adjustable / 120-347V / SS Clip , Dimmable

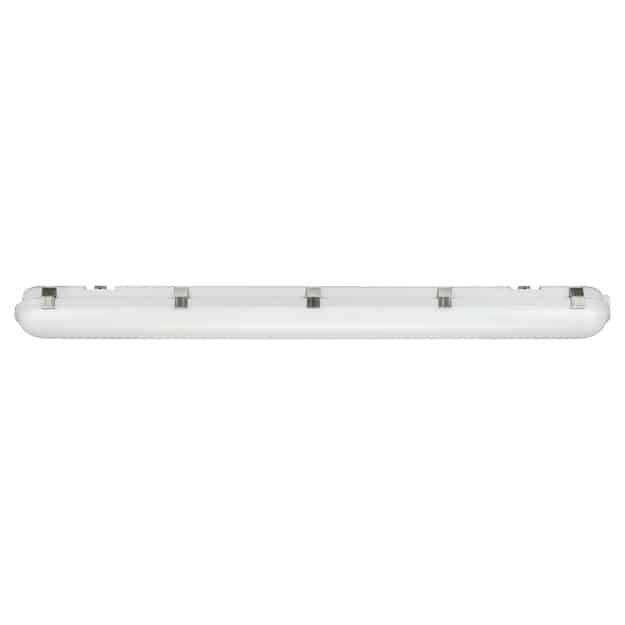

Model: J5236KLDA-UF48W-5P5C-H
Beam Angle: 110°
Brightness: 6960/6525/5800/5075/4350Lm
CCT: 3000K/ 3500K/ 4000K/ 5000K/ 6500K Adj
CRI: >80
Dimension: 47.24"x4.96"x3.6"
Input Voltage: AC120-347V
Power: 48W/ 41W/ 34W/ 27W/20W ADJ
Power Factor: >0.9
IP Rating: IP66
Size: 4ft
Price List Description: 4ft , 48W , 4350-6960Lm / 3000K/3500/4000K/5000K/6500K Adjustable / 48W/45W/40W/35W/30W Adjustable / 120-347V / SS Clip , Dimmable

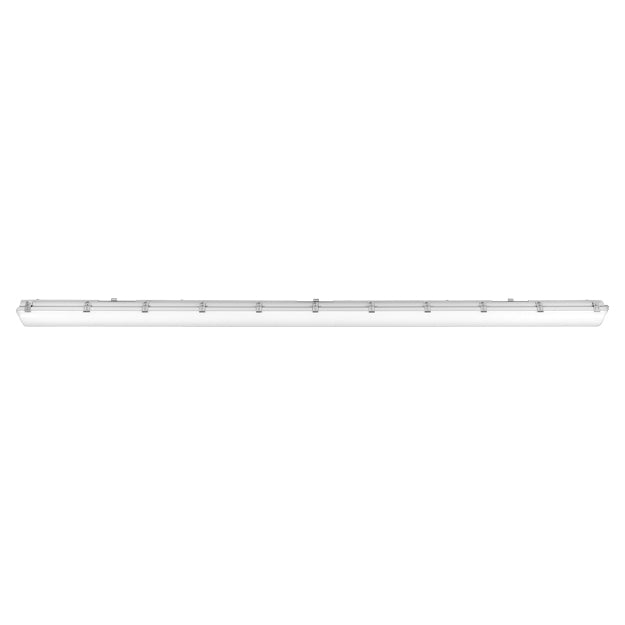

Model: J5250KLEA-UF100W-5P5C-H
Beam Angle: 110°
Brightness: 14500/13050/11600/10150/8700Lm
CCT: 3000K/ 3500K/ 4000K/ 5000K/ 6500K Adj
CRI: >80
Dimension: 94.5"x4.92"x3.94"
Input Voltage: AC120-347V
Power Factor: >0.9
IP Rating: IP66
Power: 100W/ 89W/ 82W/ 75W/68W Adj
Size: 8ft
Price List Description: 8ft , 100W , 8700-14500Lm / 3000K/3500/4000K/5000K/6500K Adjustable / 100W/90W/80W/70W/60W Adjustable / 120-347V / SS Clip , Dimmable

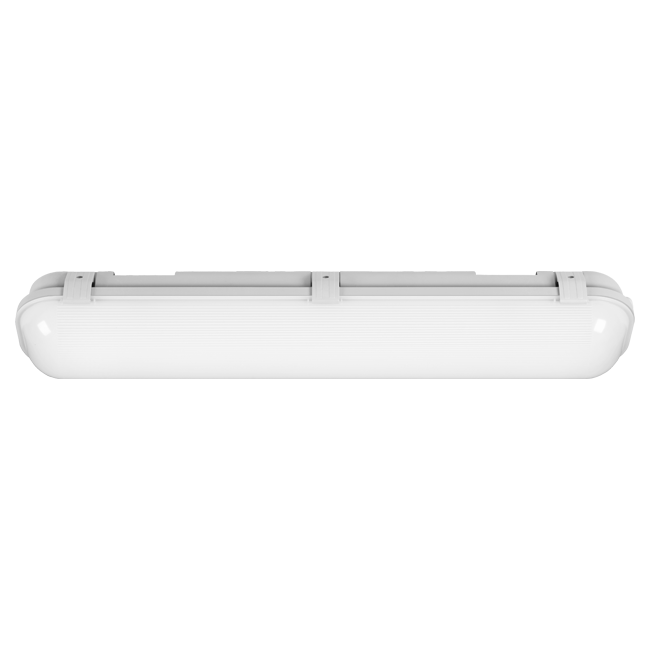

The 2ft Vapor Tight carries five wattage steps and five colour temperatures in one part number, so a single SKU covers 3,400 lm down to 1,500 lm.
Set 24W, 20W, 17W, 13W or 10W. Pick any colour from 3000K to 6500K. Measured output is 3,347 lm at 23.3W actual draw, or 144 lm/W.
IP66, 120-347V, cULus wet location, 0-10V dimming. Grey PC housing, stainless clips and fixings included.
Select an option above to see its full specifications.
Downloads: Spec Sheet (2ft) | Manual (2ft)
Free shipping on orders over $199. See our full shipping & return policy.
Need an electrician or install tips? Read our install guide or call us at 604-233-1998.
