Specifications
CNA Item #: 1123
Wattage: 12W
Voltage: 120VAC
Lumens: 800 lm
Efficiency: 66.7 lm/W
Rated Life: 50,000 Hrs.
Base: Hardwire
Colour Temperature: 5CCT - 2700K / 3000K / 3500K / 4000K / 5000K
Beam Angle: 110°
CRI: ≥ 80
Dimmable: Yes
Operating Temperature: -20°C to 45°C
Environmental Rating: Wet Location, Type IC, Airtight
Certifications: cETLus, 2-Hour Fire-Rated, Wet Location, Type IC, Airtight
2-HR Fire Rating Compliance: UL 263, ASTM E119, CAN ULC S101
Height: 34 mm (1-5/16")
Diameter: 126 mm (4-15/16")
Weight (g): 35
Shape: 4-Inch Round
Warranty: 5 Years
Finish: White
Hole Size Cutout: 4-1/4" Diameter
Driver Dimensions (Inches): 3-5/8” L x 3-7/8” W x 1-5/16’ H
Size: 4"

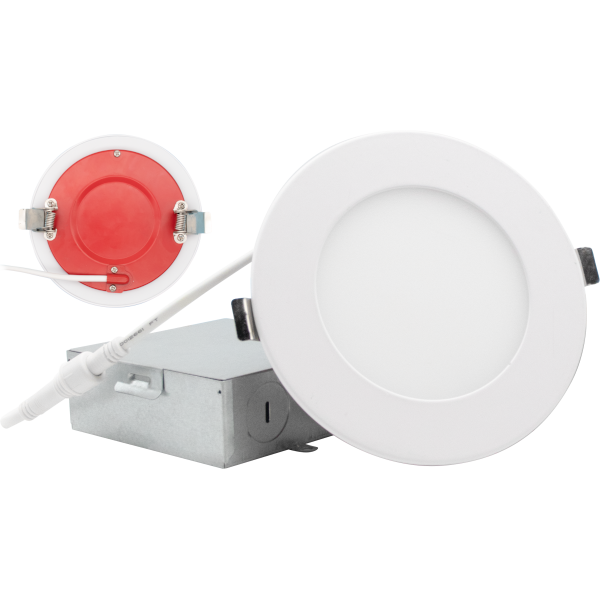

LED 4" Fire Rated Recessed Panel Light - DP4-FR-5CCT from CNA Lighting — 800 lm output, dimmable, 50,000 Hrs. rated life.
Specifications
- Wattage: 12W
- Voltage: 120VAC
- Lumens: 800 lm
- Efficiency: 66.7 lm/W
- Rated Life: 50,000 Hrs.
- Base: Hardwire
- Colour Temperature: 5CCT - 2700K / 3000K / 3500K / 4000K / 5000K
- Beam Angle: 110°
- CRI: ≥ 80
- Dimmable: Yes
- Operating Temperature: -20°C to 45°C
- Environmental Rating: Wet Location, Type IC, Airtight
- Certifications: cETLus, 2-Hour Fire-Rated, Wet Location, Type IC, Airtight
- 2-HR Fire Rating Compliance: UL 263, ASTM E119, CAN ULC S101
- Height: 34 mm (1-5/16")
- Diameter: 126 mm (4-15/16")
- Weight (g): 35
- Shape: 4-Inch Round
- Warranty: 5 Years
- Finish: White
- Hole Size Cutout: 4-1/4" Diameter
- Driver Dimensions (Inches): 3-5/8” L x 3-7/8” W x 1-5/16’ H
- Size: 4"
Downloads: Spec Sheet
