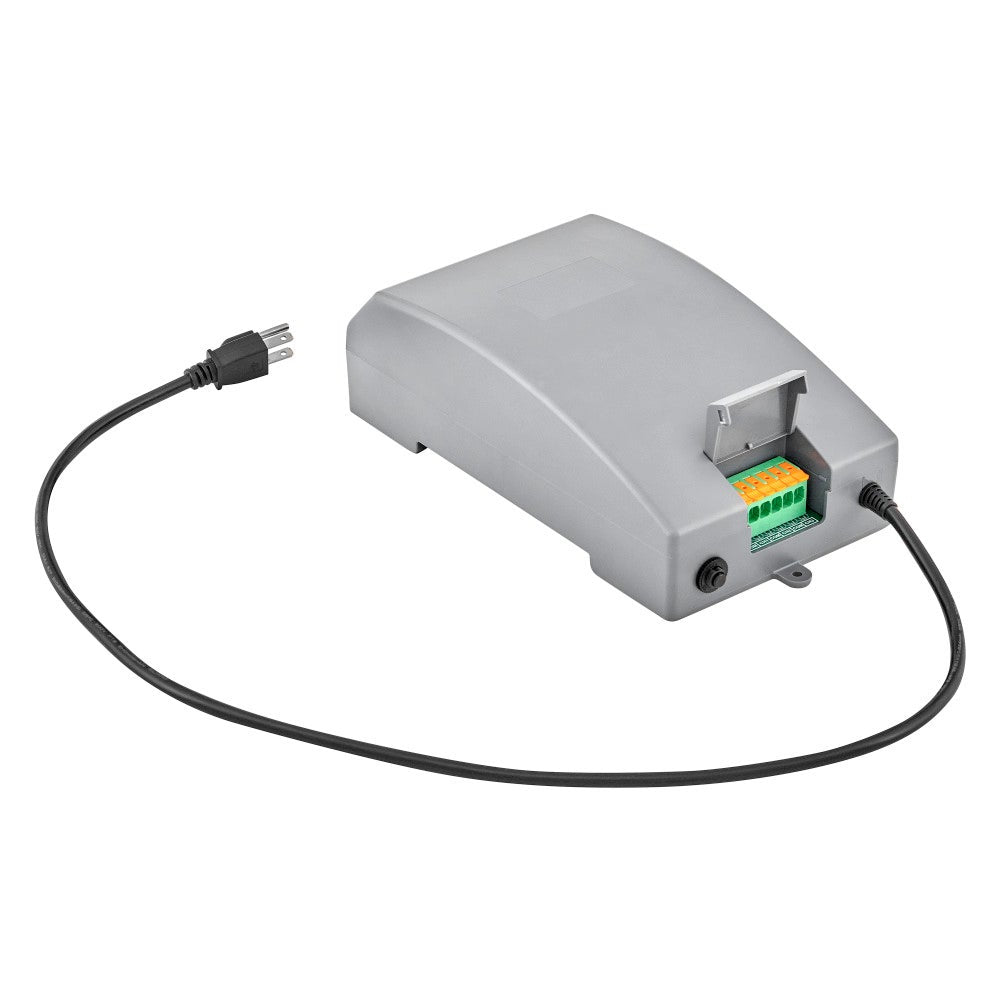

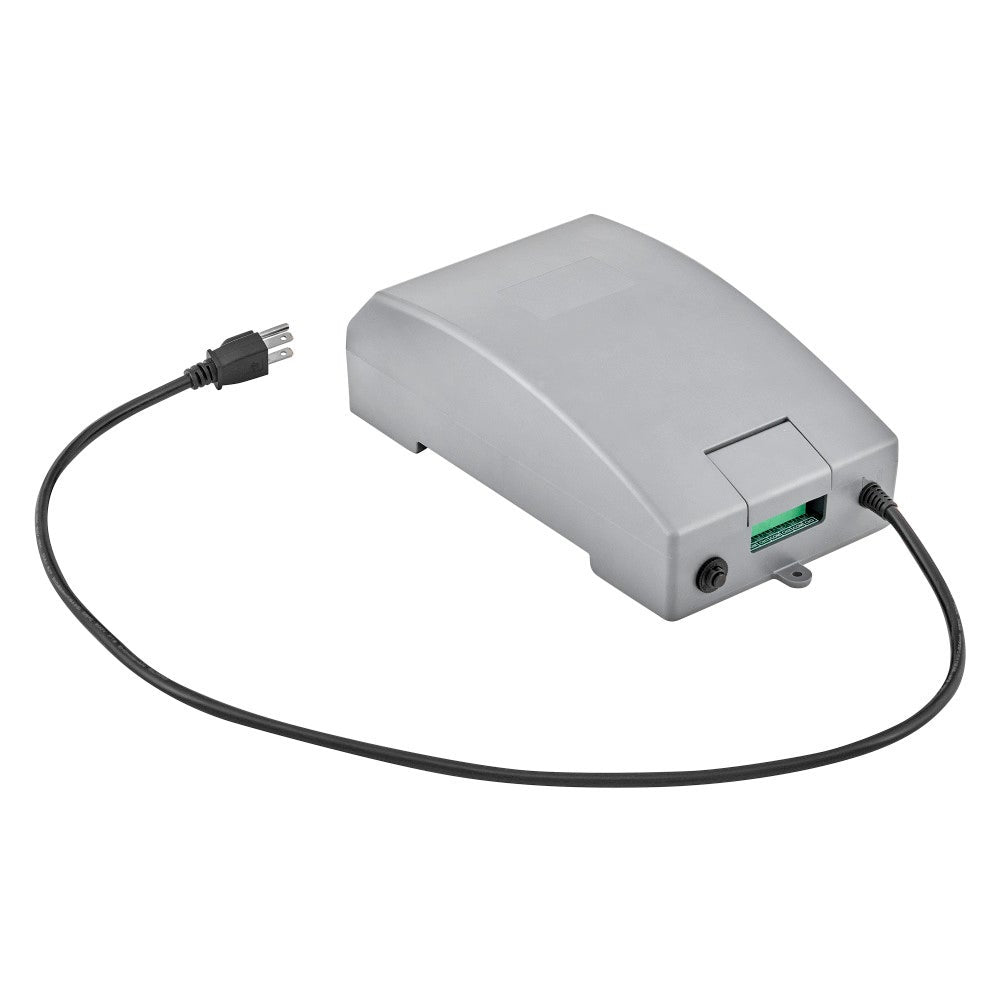

200w Smart Landscape Transformer

Developed specifically for low-voltage LED lighting systems, the Hinkley 200W Smart Landscape Transformer combines the power of a transformer with the convenience of smart-home connectivity to provide complete control over your home’s exterior lighting via the Hinkley Home Automation App. Protected by a robust composite resin housing designed for maximum resiliency, the Smart Transformer’s ceramic toroid core is engineered for energy efficiency and noise reduction. A full 200-watt load supports three independent lighting zones. Control voltage settings, grouping, timing, and programming at the swipe of a finger on the Hinkley App. Compatible with Amazon Alexa and Google Home systems.

• Not compatible with Hinkley transformer accessories
• A full 200-watt (240VA) maximum loading supports three independent zones, with a 5W total minimum load required
• Controlled via the Hinkley Home Automation App, featuring easy commissioning with LBE pairing and a 2.4GHz operating connection
• Control scheduling, grouping, timers, and dusk-to-dawn programming. Select between 12V and 15V output
• Composite resin housing designed for maximum resiliency in harsh climates
• Ceramic toroid core is engineered for energy efficiency and noise reduction, and can be run at 100% capacity

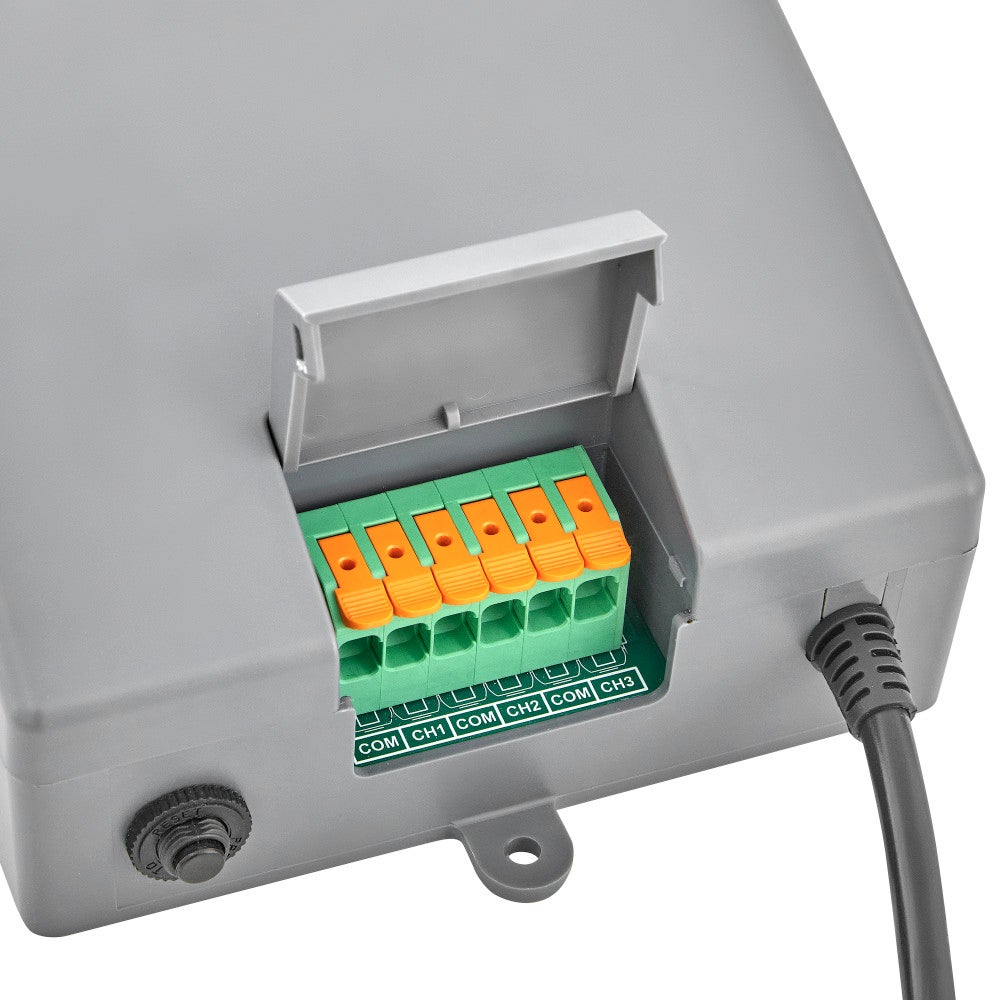

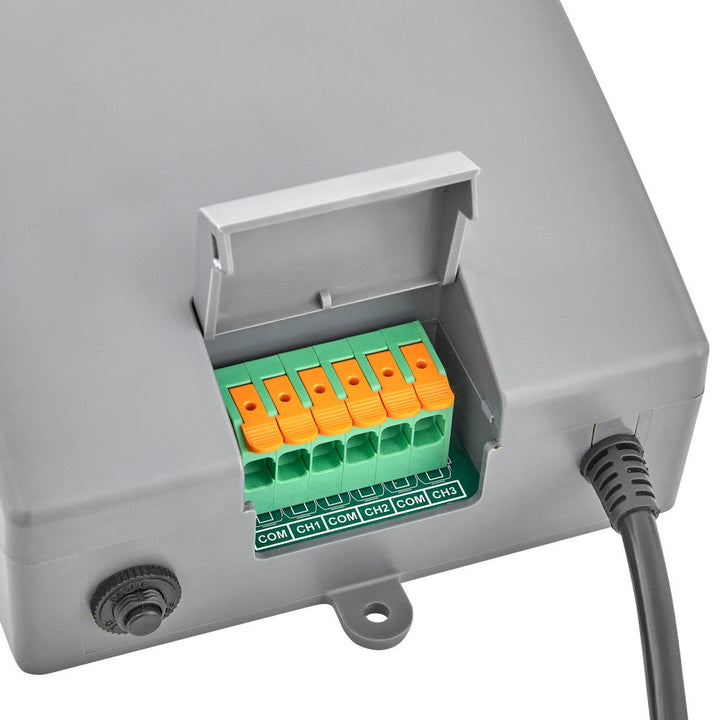

• 10 AWG lock lever terminal blocks
• Compatible with Amazon Alexa and Google Home systems
• DOE Efficiency Level VI – Less than 0.3-watt load-off power consumption
• Hinkley App reports live loads per zone and total load
• Easy-to-install design with included wire
• Carries a 10-year limited warranty

Downloads: Instruction Sheet
