Specifications
Model: MSD30
Collection: Magna
System: MAGNA Slim-Trac Magnetic Track
Finish: MSD30
Overall Height: 1 in
Overall width: 6.5 in
Overall depth: 3.6 in
Dimmable: Yes
Voltage: 24V DC
Certification: cUL Listed
Warranty: 5 Years
LED: 30 watts
CRI: Unaffected
Model: MSD60
Collection: Magna
System: MAGNA Slim-Trac Magnetic Track
Finish: MSD60
Overall Height: 1 in
Overall width: 7.5 in
Overall depth: 3.6 in
Dimmable: Yes
Voltage: 24V DC
Certification: cUL Listed
Warranty: 5 Years
LED: 60 watts
CRI: Unaffected
Model: MSD96
Collection: Magna
System: MAGNA Slim-Trac Magnetic Track
Finish: MSD96
Overall Height: 1.6 in
Overall width: 8.7 in
Overall depth: 3.6 in
Dimmable: Yes
Voltage: 24V DC
Certification: cUL Listed
Warranty: 5 Years
LED: 96 watts
CRI: Unaffected
Model: MSD192
Collection: Magna
System: MAGNA Slim-Trac Magnetic Track
Finish: MSD192
Overall Height: 1.7 in
Overall width: 10.9 in
Overall depth: 4.3 in
Dimmable: Yes
Voltage: 24V DC
Certification: cUL Listed
Warranty: 5 Years
LED: 192 watts
CRI: Unaffected
Model: MSD288
Collection: Magna
System: MAGNA Slim-Trac Magnetic Track
Finish: MSD288
Overall Height: 1.7 in
Overall width: 11.9 in
Overall depth: 4.3 in
Dimmable: Yes
Voltage: 24V DC
Certification: cUL Listed
Warranty: 5 Years
LED: 288 watts
CRI: Unaffected
Model: MSD384
Collection: Magna
System: MAGNA Slim-Trac Magnetic Track
Finish: MSD384
Overall Height: 1.9 in
Overall width: 12.8 in
Overall depth: 5.5 in
Dimmable: Yes
Voltage: 24V DC
Certification: cUL Listed
Warranty: 5 Years
LED: 384 watts
CRI: Unaffected

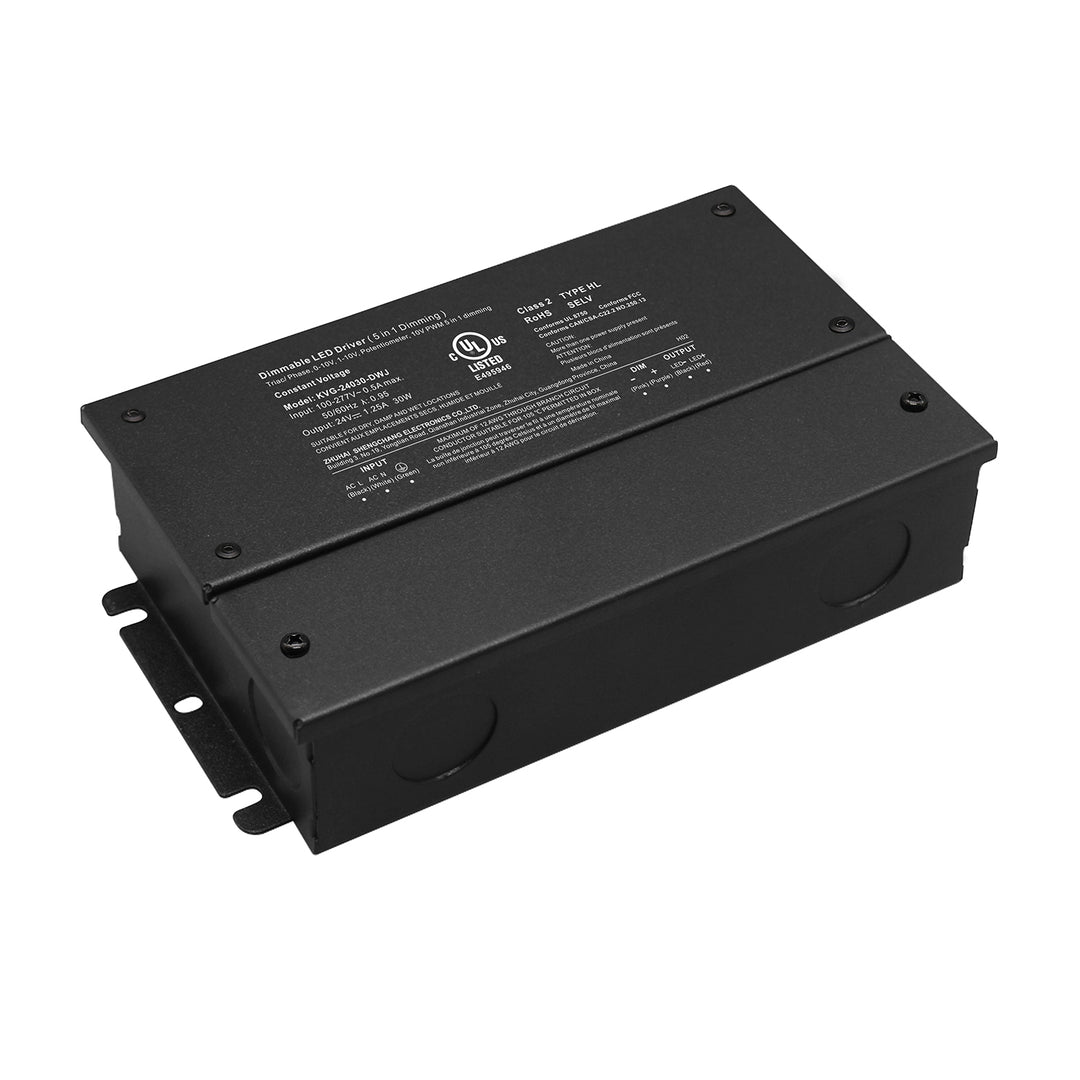

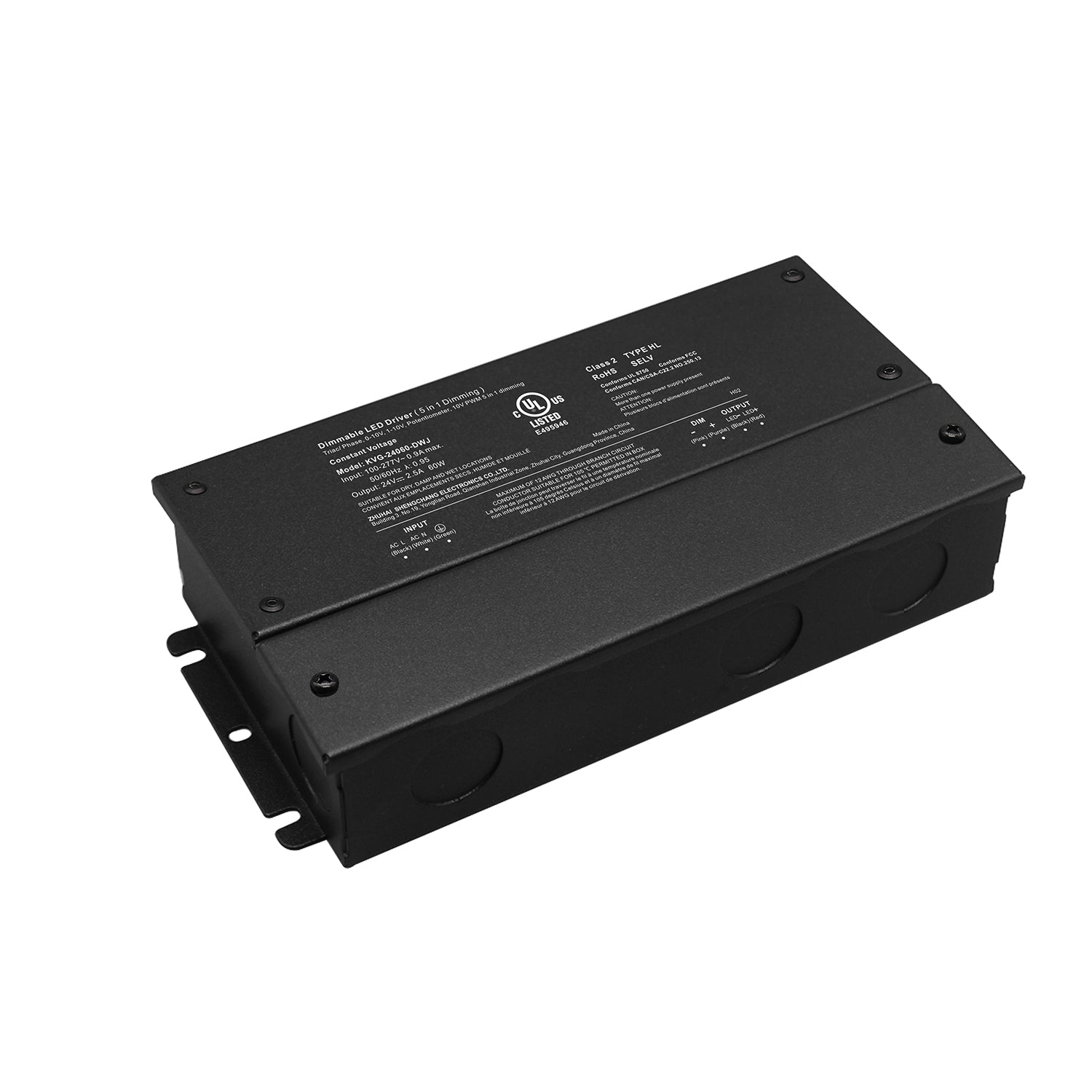

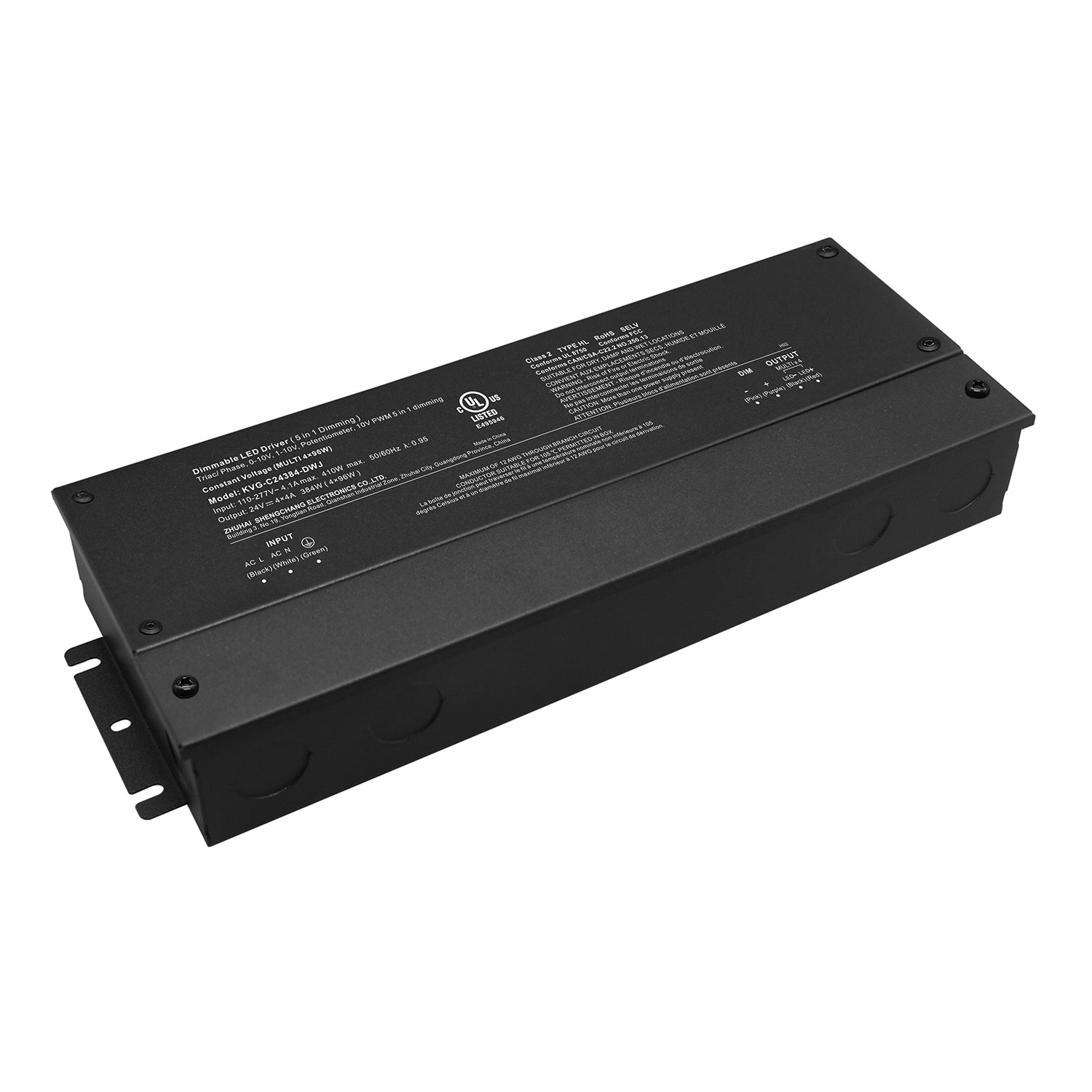

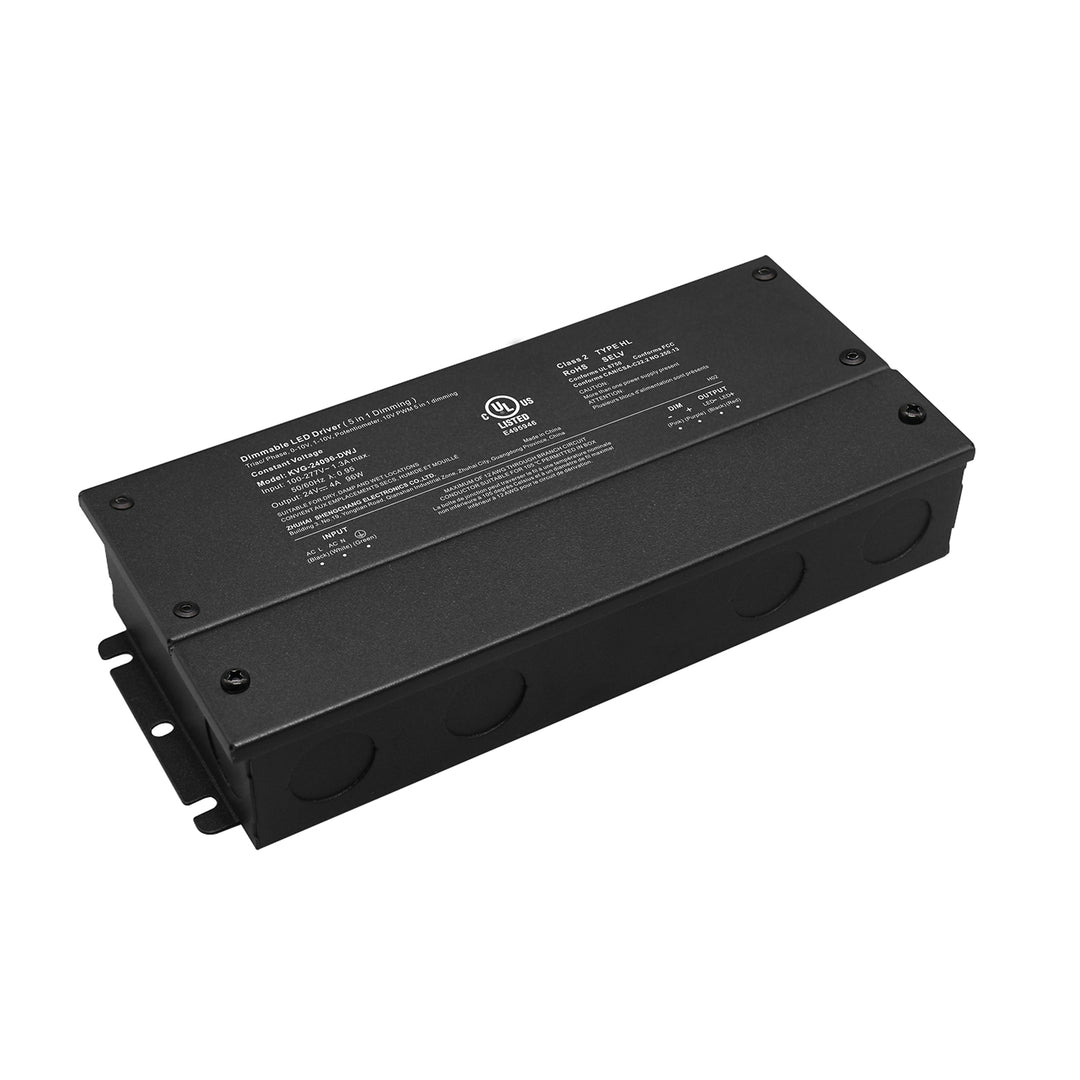

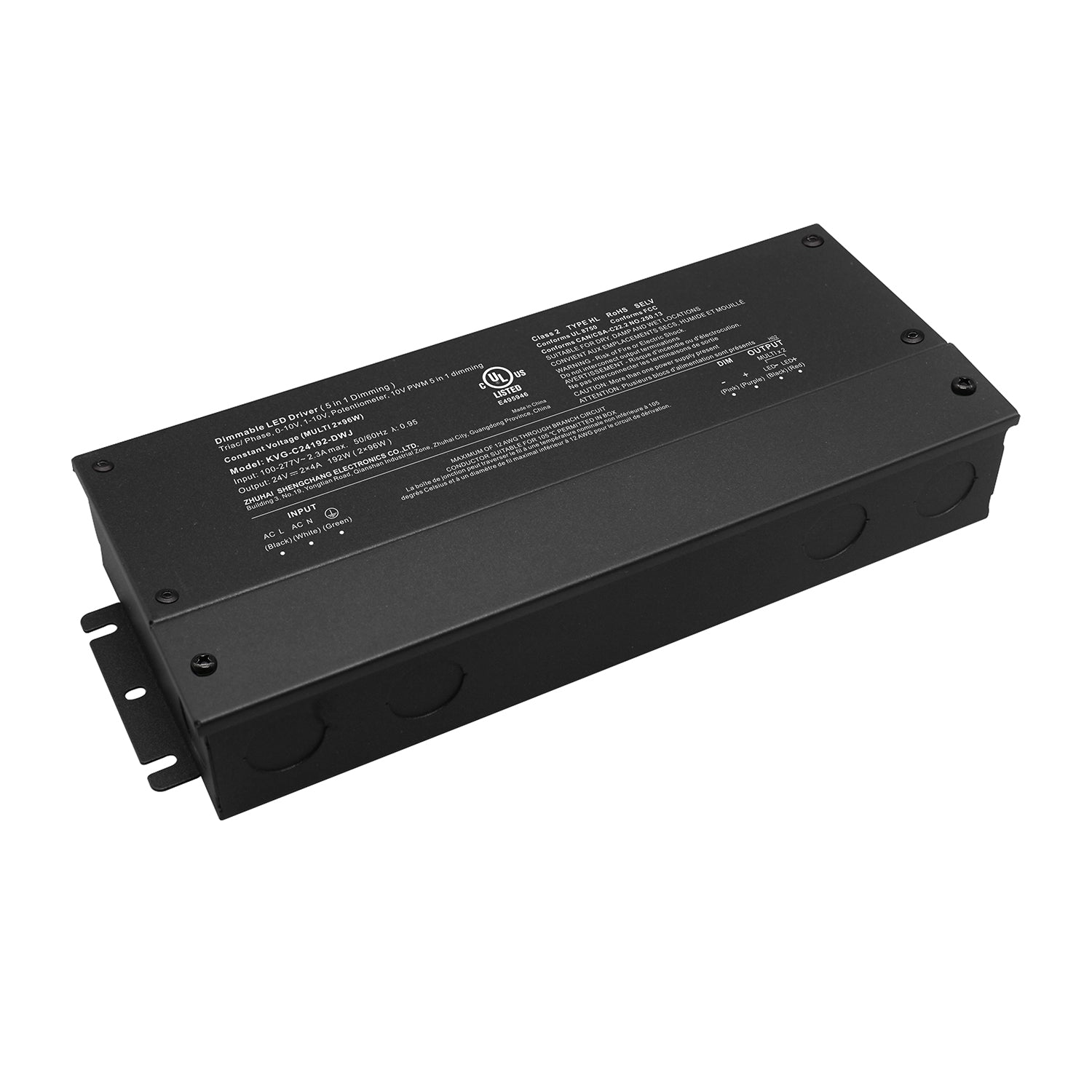

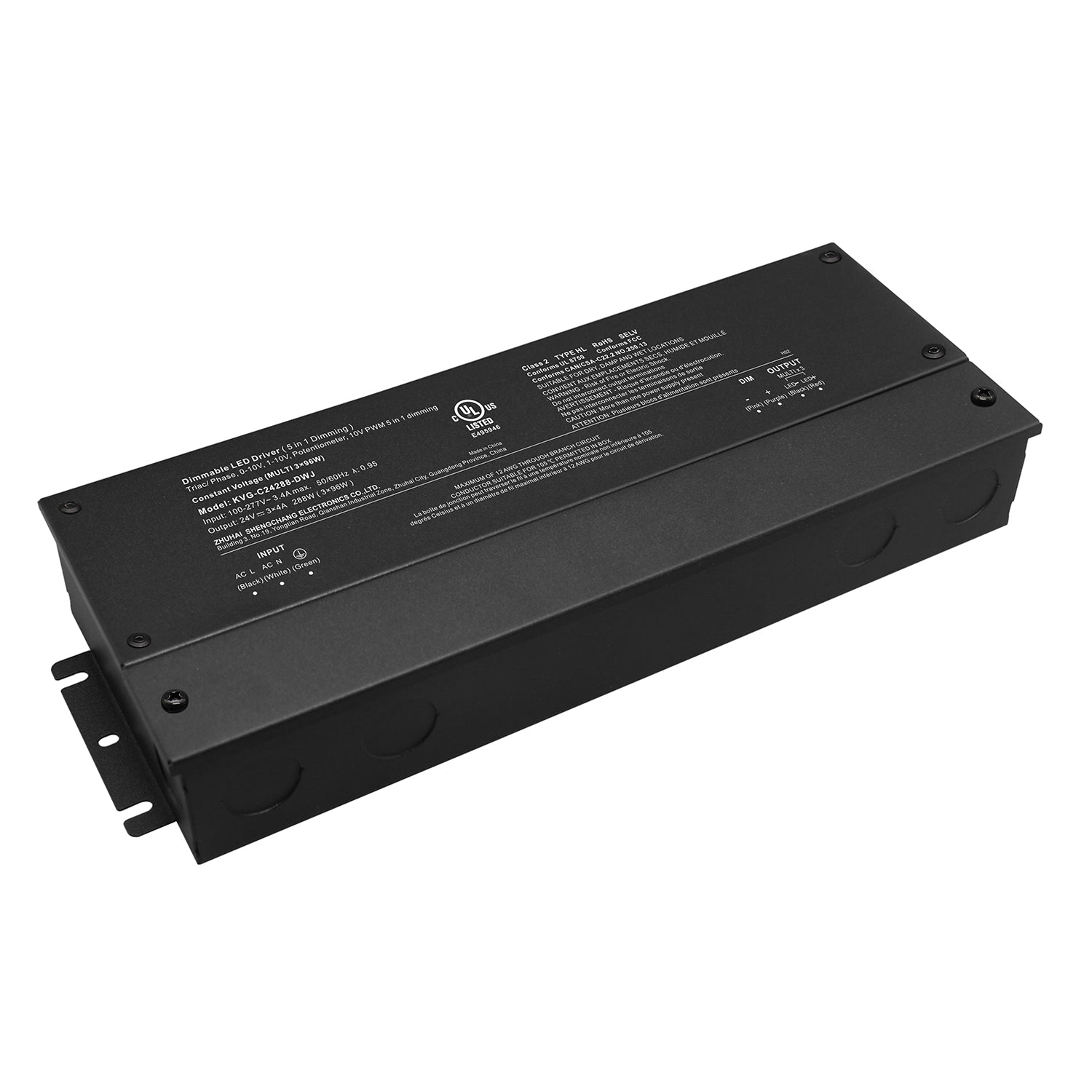

MAGNA Slim-Trac Magnetic Lighting System Magnetic track Driver (30W)
- Constant Voltage Output
- UL, cUL listed, Class 2 unit, Type HL rated. FCC
- Universal AC input 100-277VAC
- Power Factor: up to 0.98
- High efficiency: up to 86%
- Short Circuit, Over Loading and Over Temperature Protection
- PWM output, does not change color index
- Full Protection metal case for Dry, Damp or Wet Location
- Flicker Free Dimming - Range 0-100%
- Phase Dimming: Phase dimming - works with forward phase / leading edge, MLV and Reverse phase / trailing edge, ELV, TRIAC dimmers (0-10V dimming: 0-10V/1-0V/Potentiometer/10V PWM 4 in 1
Available finishes: MSD30, MSD60, MSD96, MSD192, MSD288, MSD384
Select an option above to see its full specifications.
Downloads: Instruction Manual
