Specifications

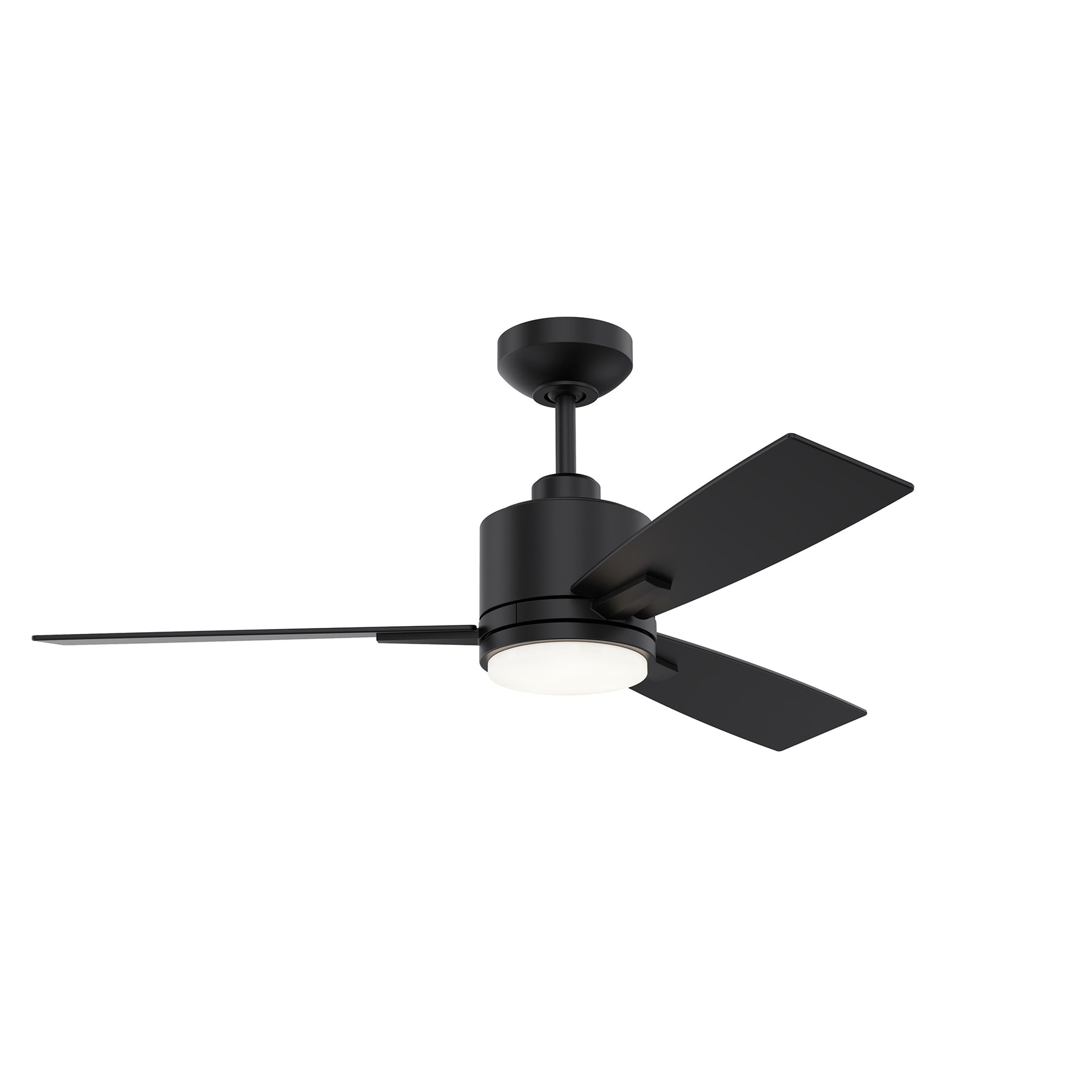

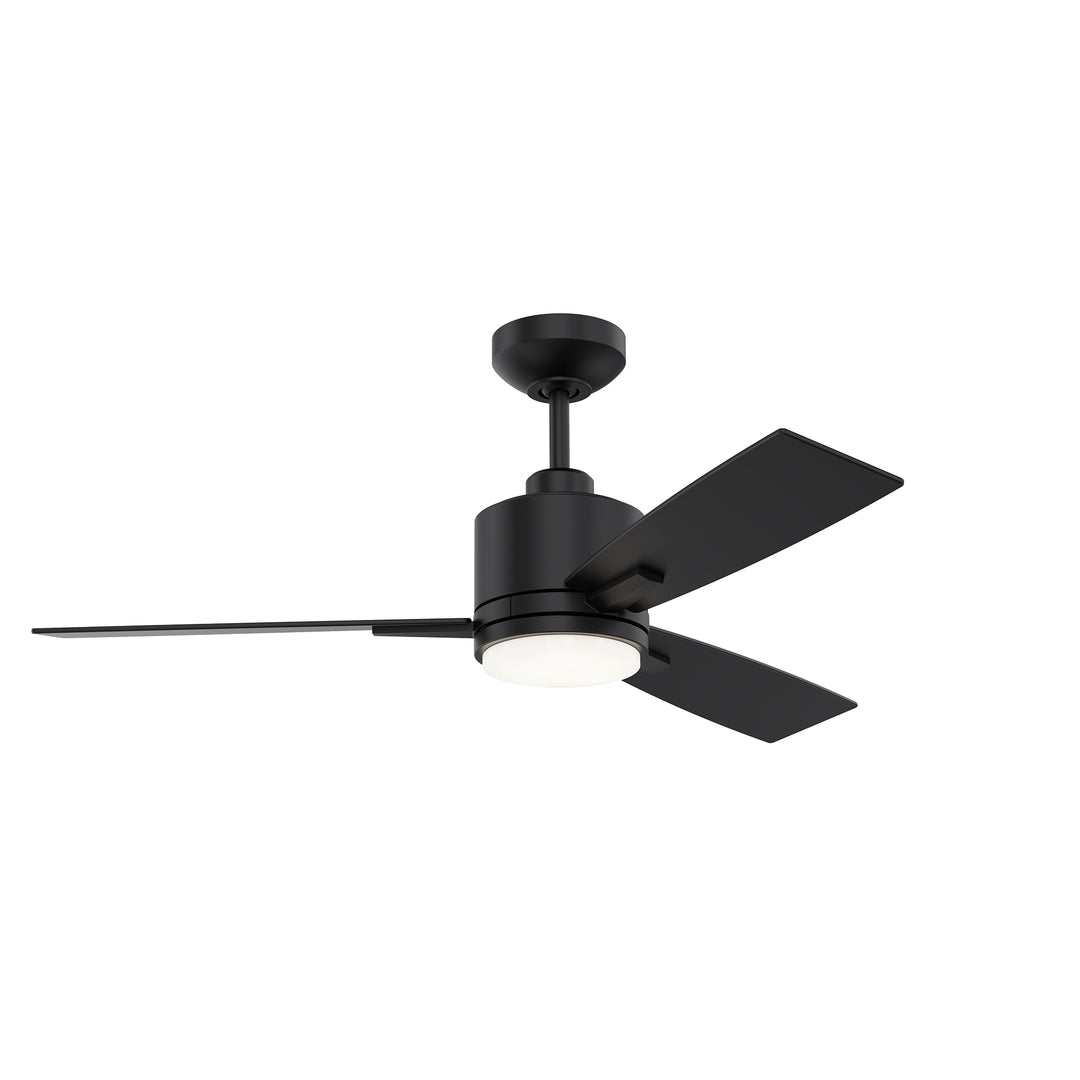

Model: AC30842-BLK
Collection: Nuvel
Finish: Matte Black
Motor Housing Finish: Black
Blade Finish: Black
Blade Span: 42"
Number of Blades: 3
Fan Blade Material: PLYWOOD
Overall Height: 14.7"
Blade to Ceiling Height: 12.4"
Blade Length: 17.4"
Blade Width: 4.9"
Blade Pitch: 14 degrees
Hanging System: Downrod
Included Downrod Length: 6"
Downrod Diameter: 0.75" Outside Diameter, 0.5" Inside Diameter
Max Slope: 30 degrees
Number of Speeds: 3
Reverse Control: Manual
Motor Size: 153 x 10mm
Motor Amps (High): 0.47
Airflow CFM (High): 3980
Airflow CFM (Low): 1598
Motor Watts (High): 54
Efficiency CFM/Watt (High): 74
RPM (High): 224
RPM (Low): 121
Weight: 11.4 lb
Light Kit Included: Yes
Light Kit Adaptable: Yes
Bulb Type: Integrated LED
Dimmable: Yes
Shade Finish: White
Shade Material: PC
Light Cap Included: No
Color Temperature: 3000K
CRI: 80
Certification: UL / cUL Listed
Location Rating: Dry
Warranty: Lifetime on Motor, 5 years on Light Kit, 1 year on all other parts
LED: 17 Watts, 1600 Lumens, 95 lm/w

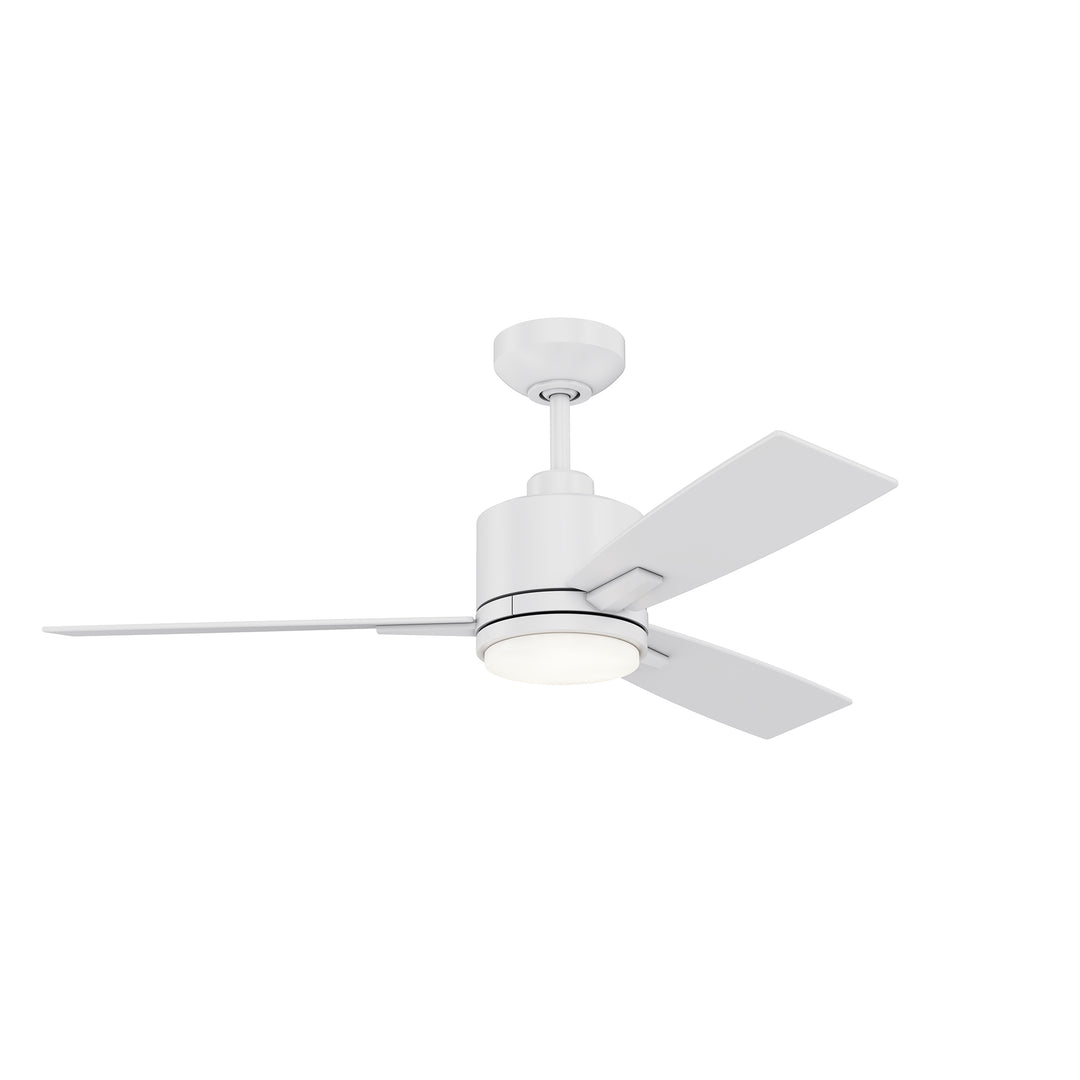

Model: AC30842-MWH
Collection: Nuvel
Finish: Matte White
Motor Housing Finish: White
Blade Finish: White
Blade Span: 42"
Number of Blades: 3
Fan Blade Material: PLYWOOD
Overall Height: 14.7"
Blade to Ceiling Height: 12.4"
Blade Length: 17.4"
Blade Width: 4.9"
Blade Pitch: 14 degrees
Hanging System: Downrod
Included Downrod Length: 6"
Downrod Diameter: 0.75" Outside Diameter, 0.5" Inside Diameter
Max Slope: 30 degrees
Number of Speeds: 3
Reverse Control: Manual
Motor Size: 153 x 10mm
Motor Amps (High): 0.47
Airflow CFM (High): 3980
Airflow CFM (Low): 1598
Motor Watts (High): 54
Efficiency CFM/Watt (High): 74
RPM (High): 224
RPM (Low): 121
Weight: 11.4 lb
Light Kit Included: Yes
Light Kit Adaptable: Yes
Bulb Type: Integrated LED
Dimmable: Yes
Shade Finish: White
Shade Material: PC
Light Cap Included: No
Color Temperature: 3000K
CRI: 80
Certification: UL / cUL Listed
Location Rating: Dry
Warranty: Lifetime on Motor, 5 years on Light Kit, 1 year on all other parts
LED: 17 Watts, 1600 Lumens, 95 lm/w

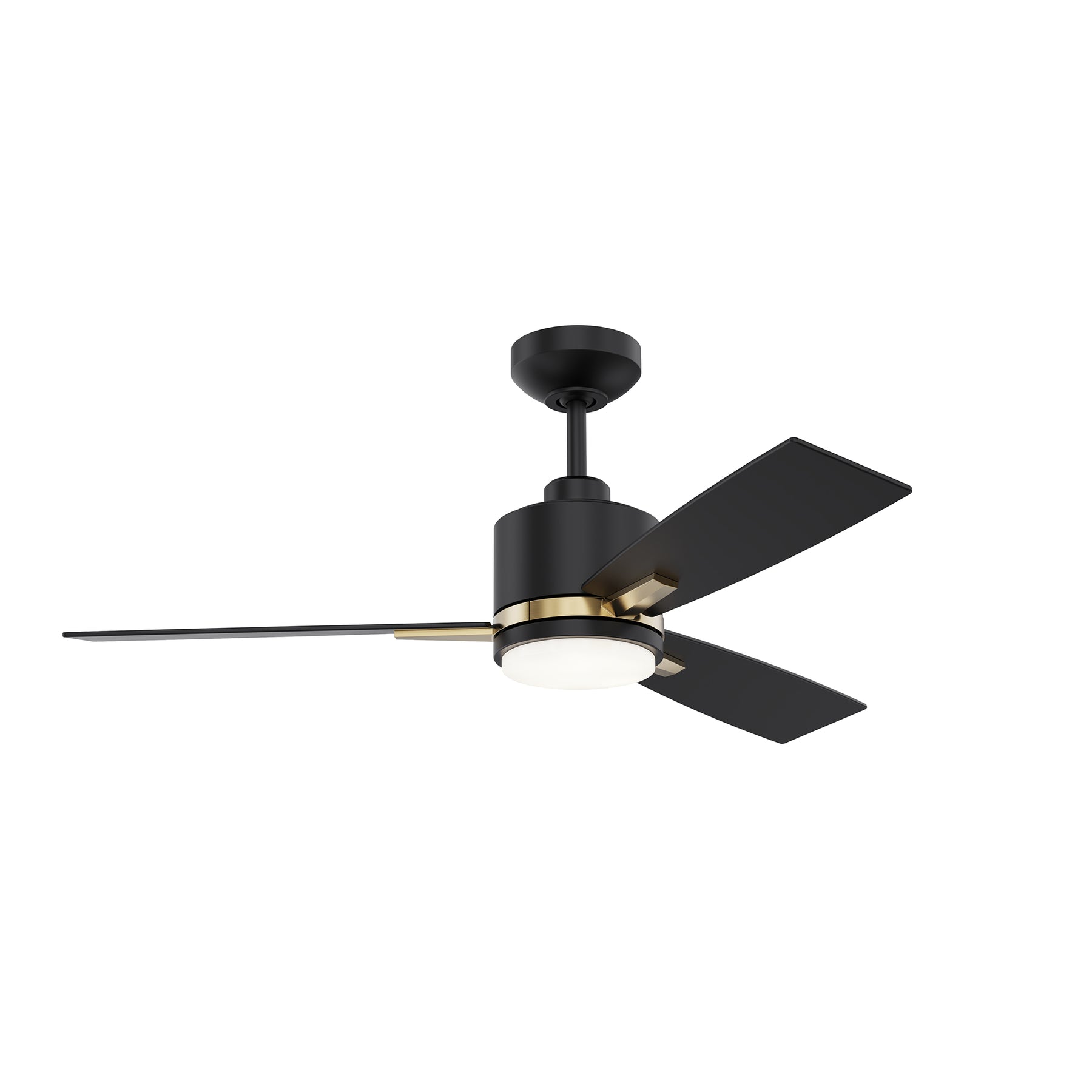

Model: AC30842-BLK/OCB
Collection: Nuvel
Finish: Matte Black & Oilcan Brass
Motor Housing Finish: Black & Brass
Blade Finish: Black
Blade Span: 42"
Number of Blades: 3
Fan Blade Material: PLYWOOD
Overall Height: 14.7"
Blade to Ceiling Height: 12.4"
Blade Length: 17.4"
Blade Width: 4.9"
Blade Pitch: 14 degrees
Hanging System: Downrod
Included Downrod Length: 6"
Downrod Diameter: 0.75" Outside Diameter, 0.5" Inside Diameter
Max Slope: 30 degrees
Number of Speeds: 3
Reverse Control: Manual
Motor Size: 153 x 10mm
Motor Amps (High): 0.47
Airflow CFM (High): 3980
Airflow CFM (Low): 1598
Motor Watts (High): 54
Efficiency CFM/Watt (High): 74
RPM (High): 224
RPM (Low): 121
Weight: 11.4 lb
Light Kit Included: Yes
Light Kit Adaptable: Yes
Bulb Type: Integrated LED
Dimmable: Yes
Shade Finish: White
Shade Material: PC
Light Cap Included: No
Color Temperature: 3000K
CRI: 80
Certification: UL / cUL Listed
Location Rating: Dry
Warranty: Lifetime on Motor, 5 years on Light Kit, 1 year on all other parts
LED: 17 Watts, 1600 Lumens, 95 lm/w

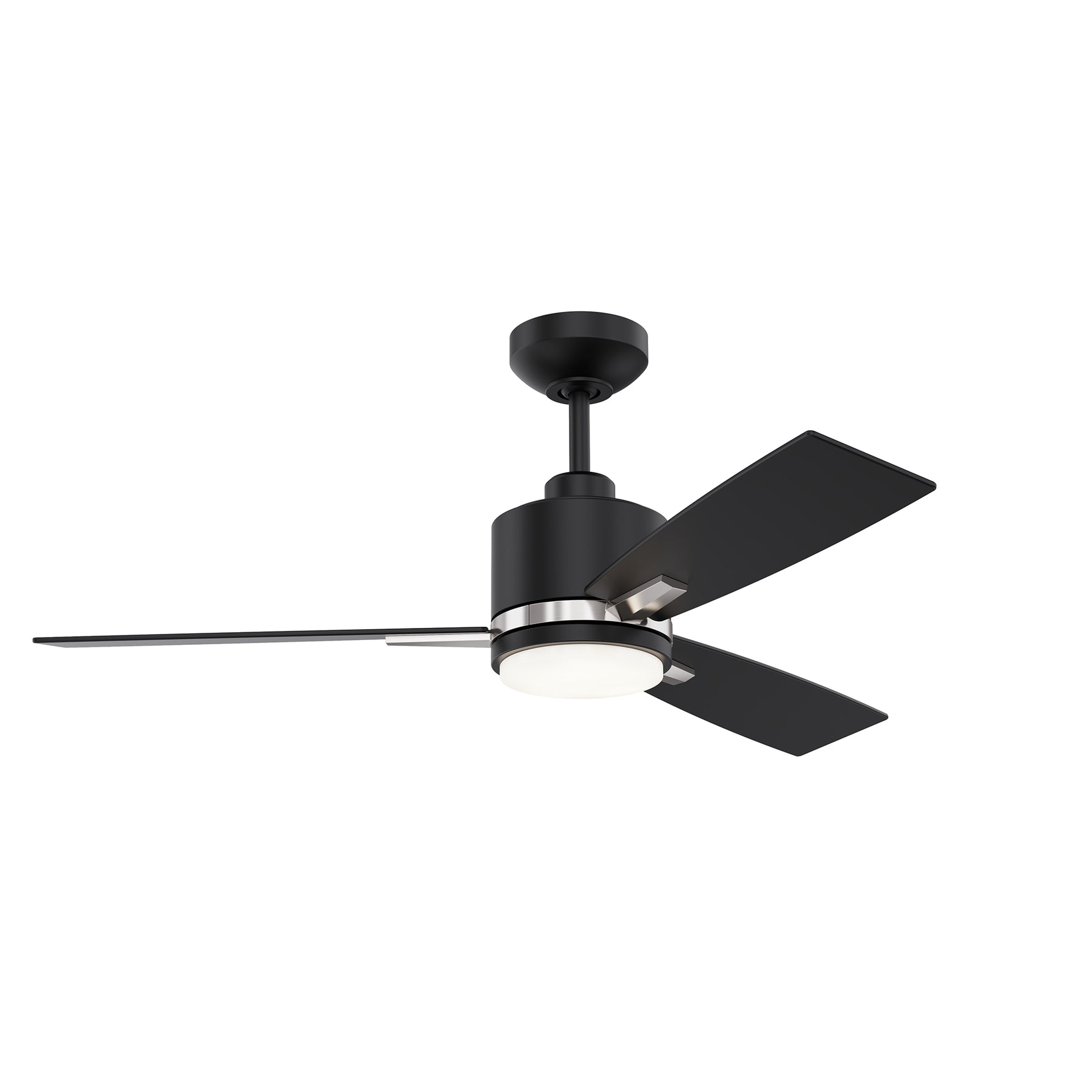

Model: AC30842-BLK/SN
Collection: Nuvel
Finish: Matte Black & Satin Nickel
Motor Housing Finish: Black & Satin Nickel
Blade Finish: Black
Blade Span: 42"
Number of Blades: 3
Fan Blade Material: PLYWOOD
Overall Height: 14.7"
Blade to Ceiling Height: 12.4"
Blade Length: 17.4"
Blade Width: 4.9"
Blade Pitch: 14 degrees
Hanging System: Downrod
Included Downrod Length: 6"
Downrod Diameter: 0.75" Outside Diameter, 0.5" Inside Diameter
Max Slope: 30 degrees
Number of Speeds: 3
Reverse Control: Manual
Motor Size: 153 x 10mm
Motor Amps (High): 0.47
Airflow CFM (High): 3980
Airflow CFM (Low): 1598
Motor Watts (High): 54
Efficiency CFM/Watt (High): 74
RPM (High): 224
RPM (Low): 121
Weight: 11.4 lb
Light Kit Included: Yes
Light Kit Adaptable: Yes
Bulb Type: Integrated LED
Dimmable: Yes
Shade Finish: White
Shade Material: PC
Light Cap Included: No
Color Temperature: 3000K
CRI: 80
Certification: UL / cUL Listed
Location Rating: Dry
Warranty: Lifetime on Motor, 5 years on Light Kit, 1 year on all other parts
LED: 17 Watts, 1600 Lumens, 95 lm/w

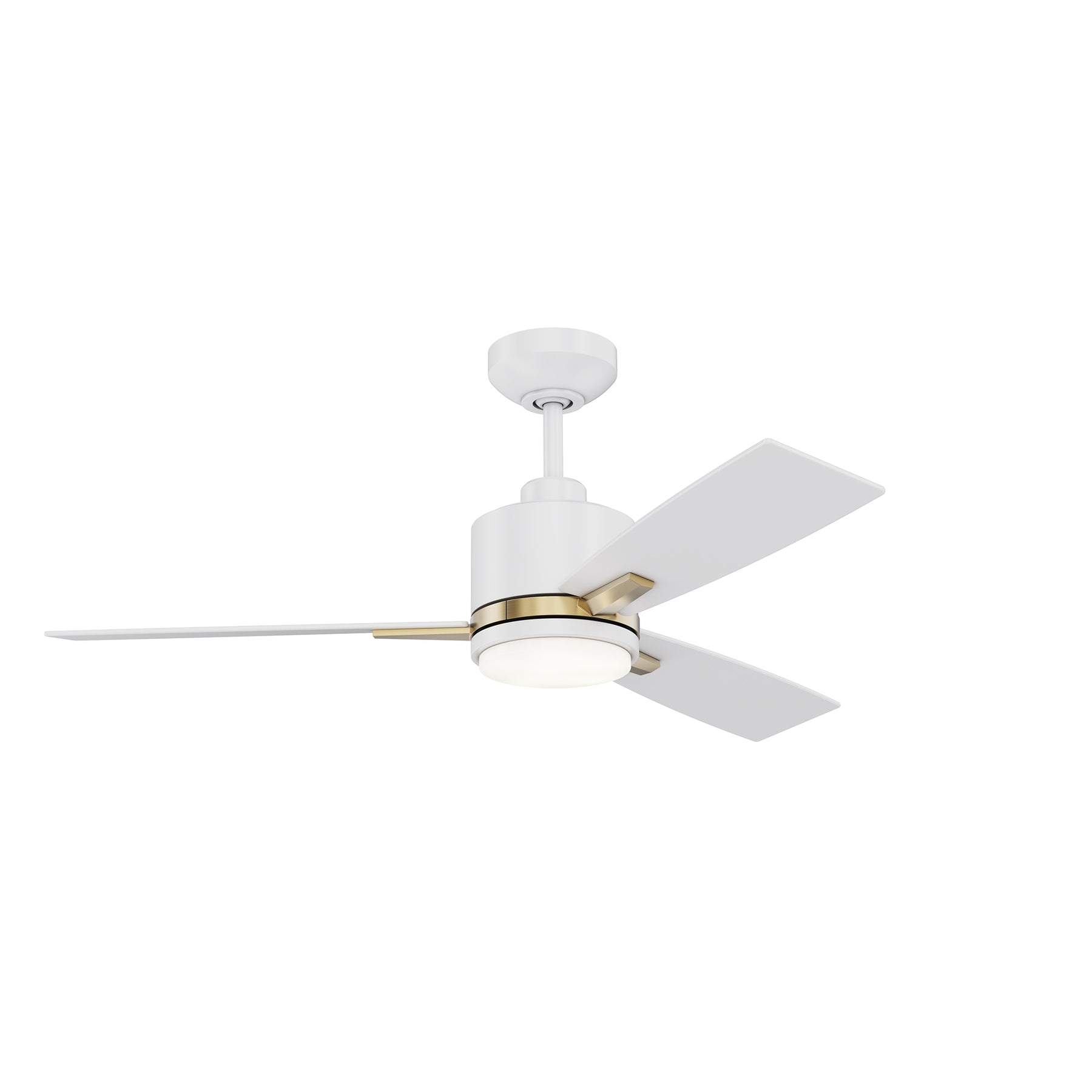

Model: AC30842-MWH/OCB
Collection: Nuvel
Finish: Matte White & Oilcan Brass
Motor Housing Finish: White & Brass
Blade Finish: White
Blade Span: 42"
Number of Blades: 3
Fan Blade Material: PLYWOOD
Overall Height: 14.7"
Blade to Ceiling Height: 12.4"
Blade Length: 17.4"
Blade Width: 4.9"
Blade Pitch: 14 degrees
Hanging System: Downrod
Included Downrod Length: 6"
Downrod Diameter: 0.75" Outside Diameter, 0.5" Inside Diameter
Max Slope: 30 degrees
Number of Speeds: 3
Reverse Control: Manual
Motor Size: 153 x 10mm
Motor Amps (High): 0.47
Airflow CFM (High): 3980
Airflow CFM (Low): 1598
Motor Watts (High): 54
Efficiency CFM/Watt (High): 74
RPM (High): 224
RPM (Low): 121
Weight: 11.4 lb
Light Kit Adaptable: Yes
Bulb Type: Integrated LED
Dimmable: Yes
Shade Finish: White
Shade Material: PC
Light Cap Included: No
Color Temperature: 3000K
CRI: 80
Certification: UL / cUL Listed
Location Rating: Dry
Warranty: Lifetime on Motor, 5 years on Light Kit, 1 year on all other parts
LED: 17 Watts, 1600 Lumens, 95 lm/w
Model: AC30842-MWH/SN
Collection: Nuvel
Finish: Matte White & Satin Nickel
Motor Housing Finish: White & Satin Nickel
Blade Finish: White
Blade Span: 42"
Number of Blades: 3
Fan Blade Material: PLYWOOD
Overall Height: 14.7"
Blade to Ceiling Height: 12.4"
Blade Length: 17.4"
Blade Width: 4.9"
Blade Pitch: 14 degrees
Hanging System: Downrod
Included Downrod Length: 6"
Downrod Diameter: 0.75" Outside Diameter, 0.5" Inside Diameter
Max Slope: 30 degrees
Number of Speeds: 3
Reverse Control: Manual
Motor Size: 153 x 10mm
Motor Amps (High): 0.47
Airflow CFM (High): 3980
Airflow CFM (Low): 1598
Motor Watts (High): 54
Efficiency CFM/Watt (High): 74
RPM (High): 224
RPM (Low): 121
Weight: 11.4 lb
Light Kit Included: Yes
Light Kit Adaptable: Yes
Bulb Type: Integrated LED
Dimmable: Yes
Shade Finish: White
Shade Material: PC
Light Cap Included: No
Color Temperature: 3000K
CRI: 80
Certification: UL / cUL Listed
Location Rating: Dry
Warranty: Lifetime on Motor, 5 years on Light Kit, 1 year on all other parts
LED: 17 Watts, 1600 Lumens, 95 lm/w

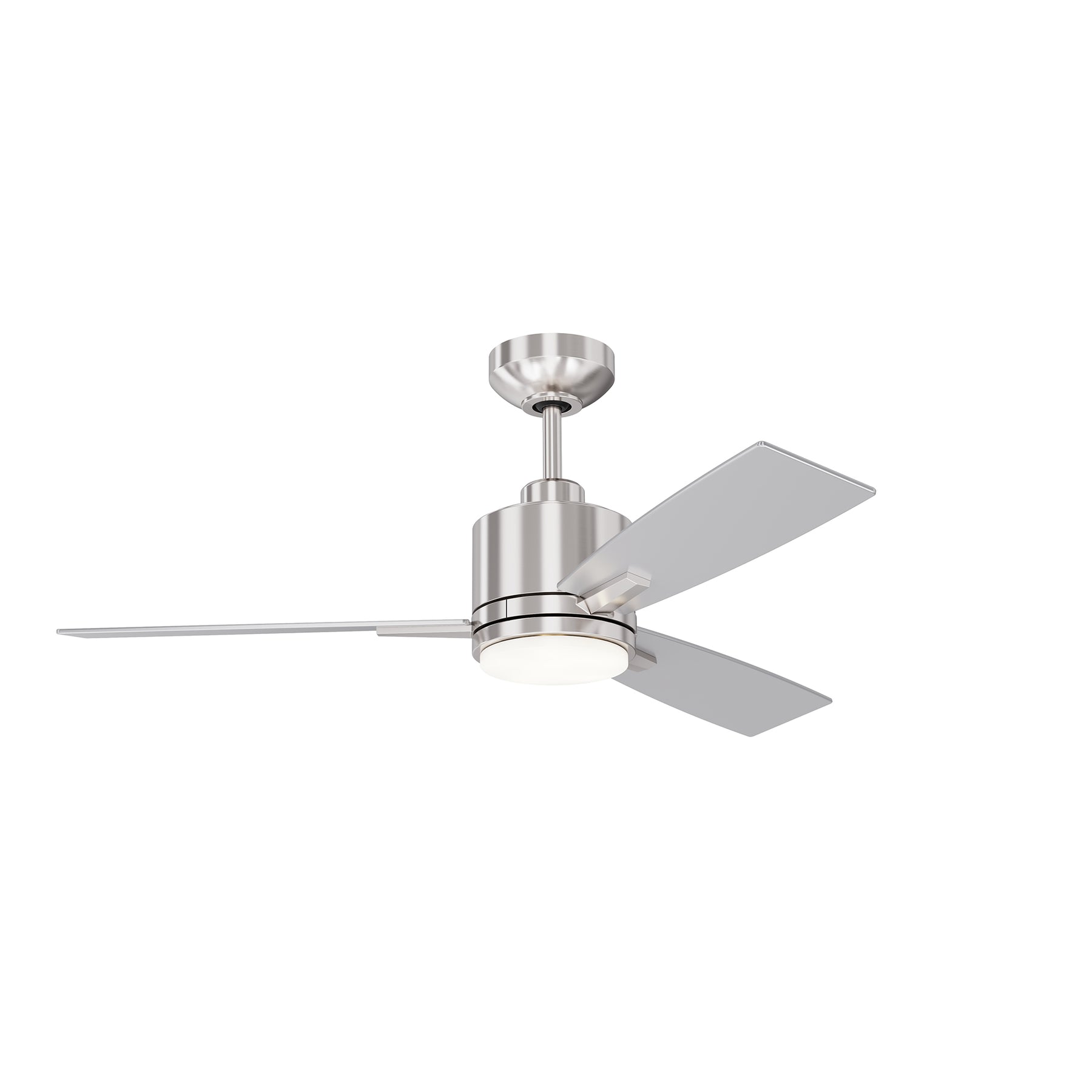

Model: AC30842-SN
Collection: Nuvel
Finish: Matte Satin Nickel
Motor Housing Finish: Satin Nickel
Blade Finish: Satin Nickel
Blade Span: 42"
Number of Blades: 3
Fan Blade Material: PLYWOOD
Overall Height: 14.7"
Blade to Ceiling Height: 12.4"
Blade Length: 17.4"
Blade Width: 4.9"
Blade Pitch: 14 degrees
Hanging System: Downrod
Included Downrod Length: 6"
Downrod Diameter: 0.75" Outside Diameter, 0.5" Inside Diameter
Max Slope: 30 degrees
Number of Speeds: 3
Reverse Control: Manual
Motor Size: 153 x 10mm
Motor Amps (High): 0.47
Airflow CFM (High): 3980
Airflow CFM (Low): 1598
Motor Watts (High): 54
Efficiency CFM/Watt (High): 74
RPM (High): 224
RPM (Low): 121
Weight: 11.4 lb
Light Kit Included: Yes
Light Kit Adaptable: Yes
Bulb Type: Integrated LED
Dimmable: Yes
Shade Finish: White
Shade Material: PC
Light Cap Included: No
Color Temperature: 3000K
CRI: 80
Certification: UL / cUL Listed
Location Rating: Dry
Warranty: Lifetime on Motor, 5 years on Light Kit, 1 year on all other parts
LED: 17 Watts, 1600 Lumens, 95 lm/w

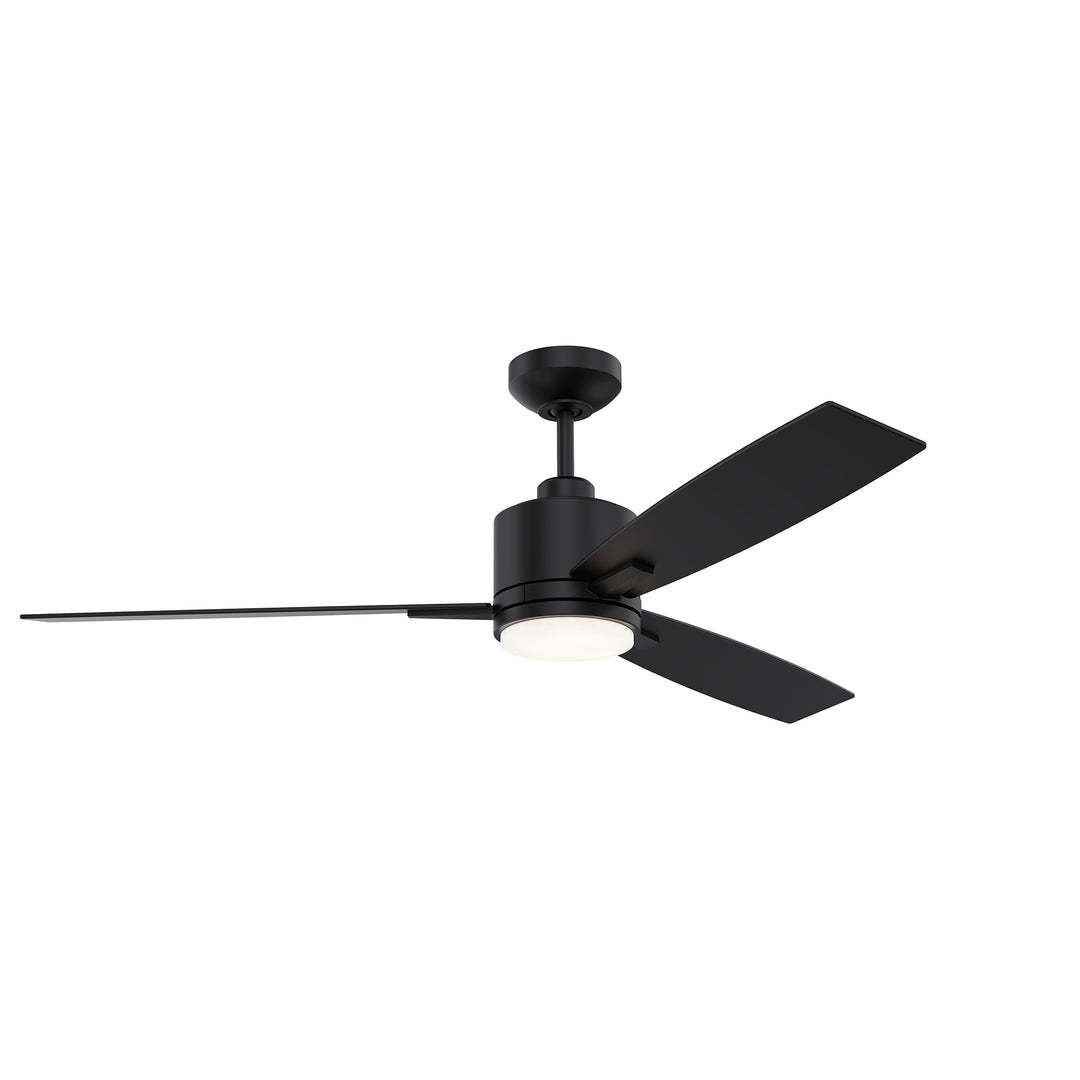

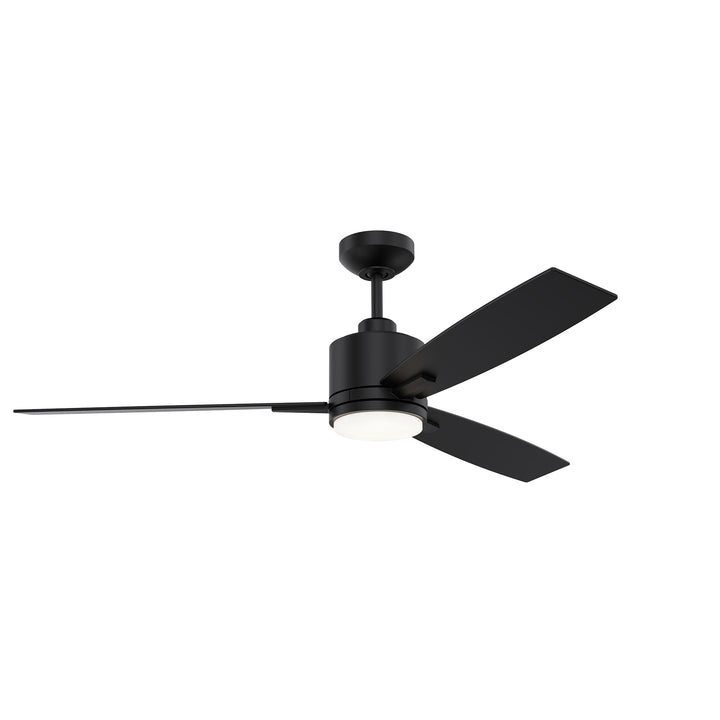

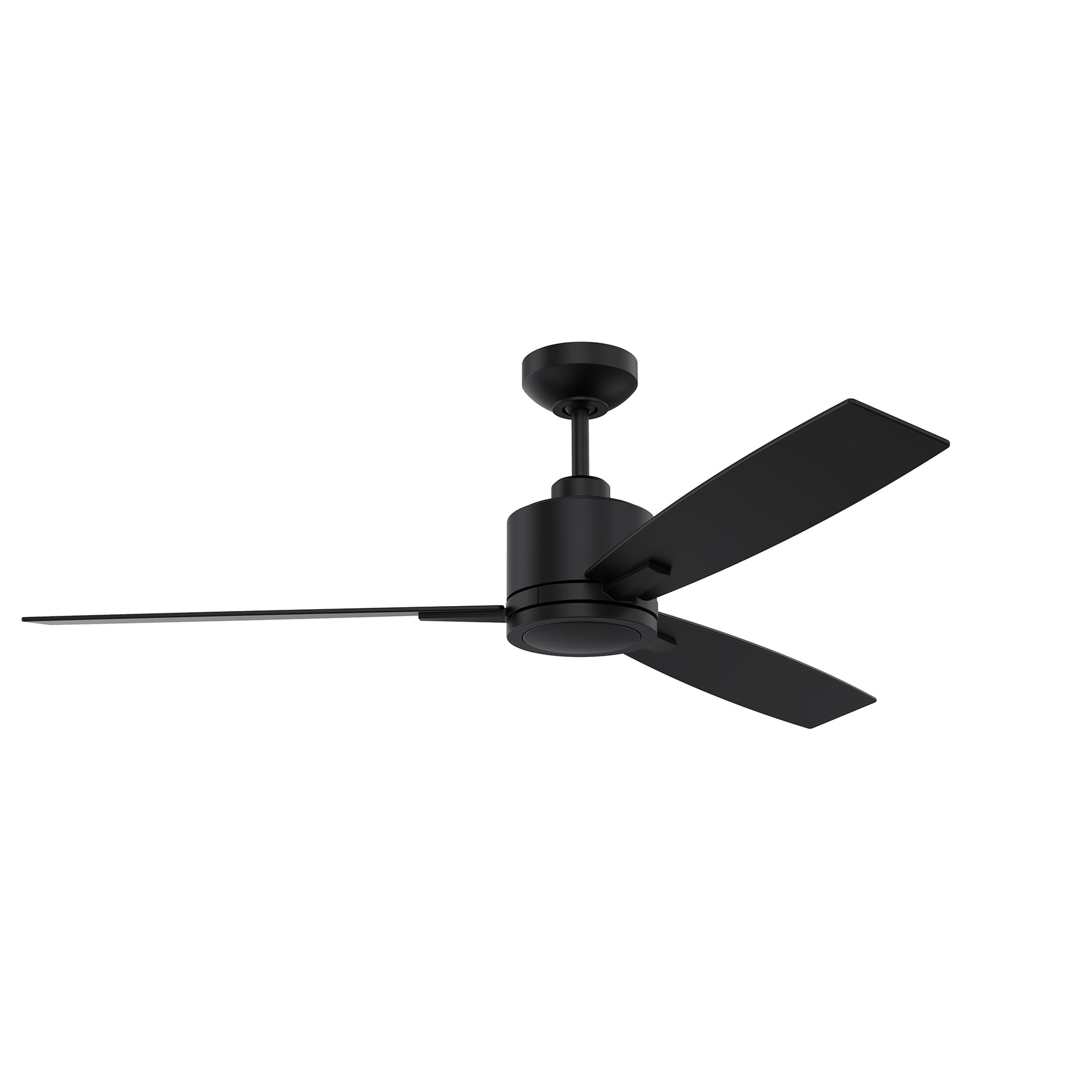

Model: AC30852-BLK
Collection: Nuvel
Finish: Matte Black
Motor Housing Finish: Black
Blade Finish: Black
Blade Span: 52"
Number of Blades: 3
Fan Blade Material: PLYWOOD
Overall Height: 14.7"
Blade to Ceiling Height: 12.4"
Blade Length: 22.4"
Blade Width: 4.9"
Blade Pitch: 14 degrees
Hanging System: Downrod
Included Downrod Length: 6"
Downrod Diameter: 0.75" Outside Diameter, 0.5" Inside Diameter
Max Slope: 30 degrees
Number of Speeds: 3
Reverse Control: Manual
Motor Size: 153 x 16mm
Motor Amps (High): 0.51
Airflow CFM (High): 5025
Airflow CFM (Low): 2160
Motor Watts (High): 60
Efficiency CFM/Watt (High): 84
RPM (High): 176
RPM (Low): 93
Weight: 13.6 lb
Light Kit Included: Yes
Light Kit Adaptable: Yes
Bulb Type: Integrated LED
Dimmable: Yes
Shade Finish: White
Shade Material: PC
Light Cap Included: Yes
Color Temperature: 3000K
CRI: 80
Certification: UL / cUL Listed
Location Rating: Damp
Warranty: Lifetime on Motor, 5 years on Light Kit, 1 year on all other parts
LED: 17 Watts, 1600 Lumens, 95 lm/w

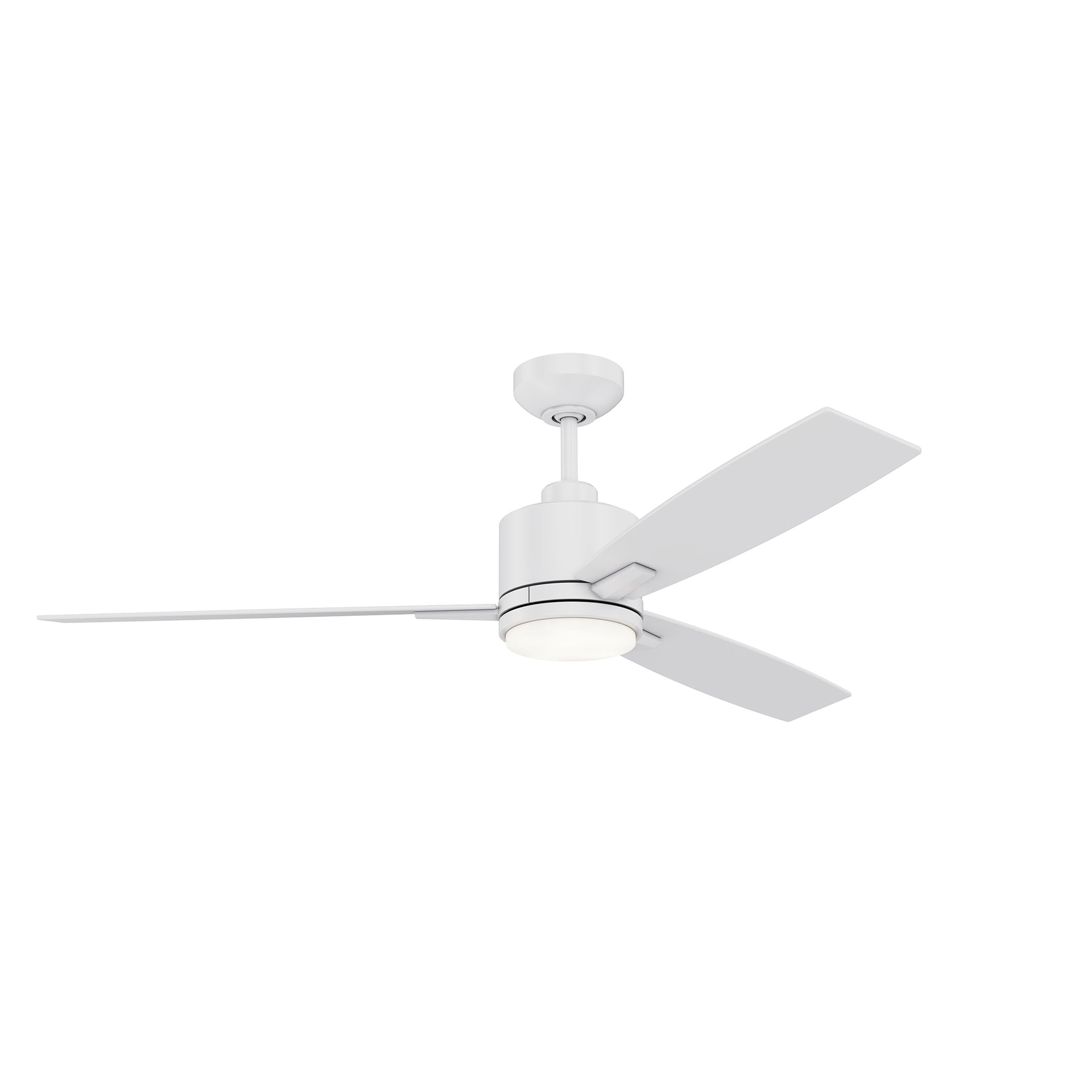

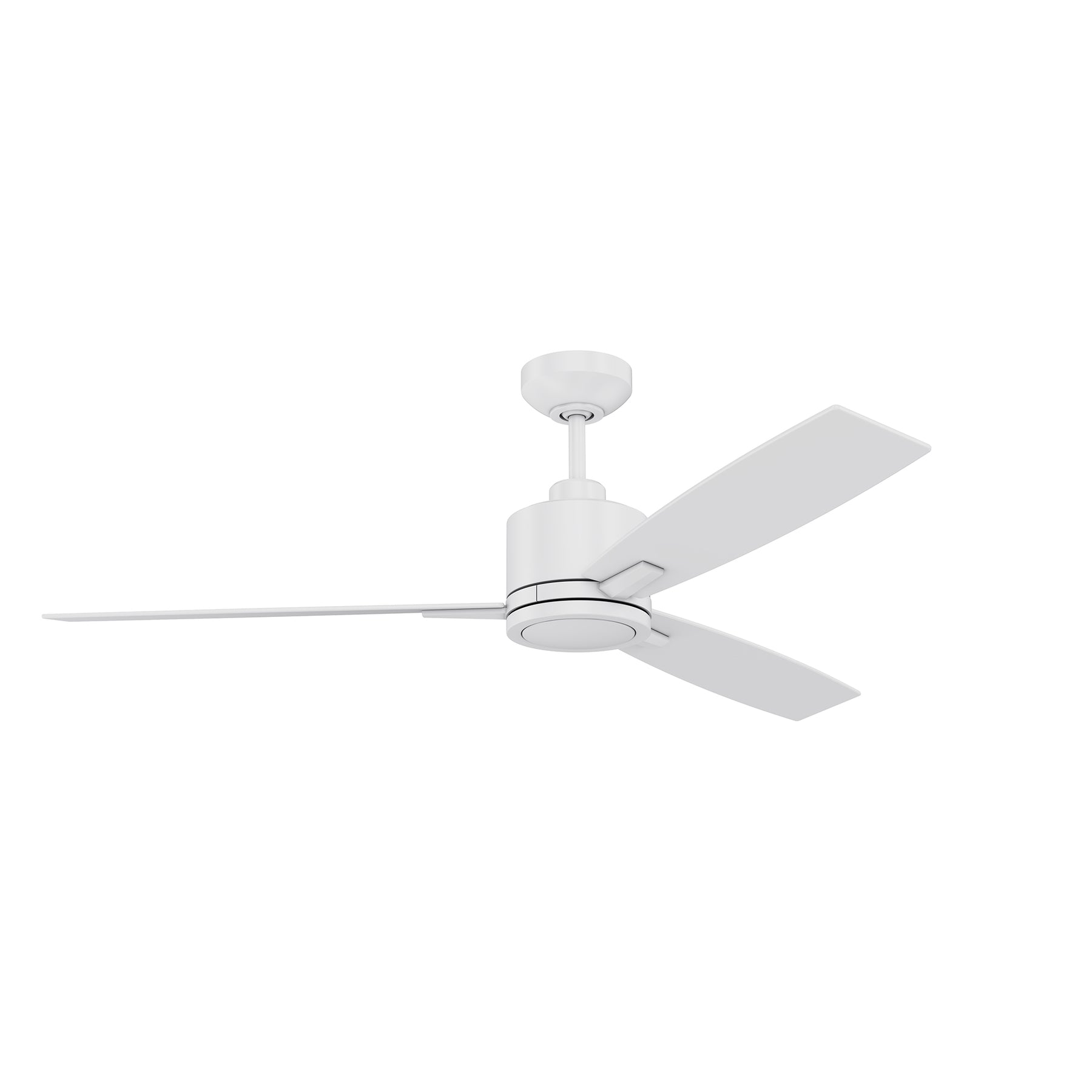

Model: AC30852-MWH
Collection: Nuvel
Finish: Matte White
Motor Housing Finish: White
Blade Finish: White
Blade Span: 52"
Number of Blades: 3
Fan Blade Material: PLYWOOD
Overall Height: 14.7"
Blade to Ceiling Height: 12.4"
Blade Length: 22.4"
Blade Width: 4.9"
Blade Pitch: 14 degrees
Hanging System: Downrod
Included Downrod Length: 6"
Downrod Diameter: 0.75" Outside Diameter, 0.5" Inside Diameter
Max Slope: 30 degrees
Number of Speeds: 3
Reverse Control: Manual
Motor Size: 153 x 16mm
Motor Amps (High): 0.51
Airflow CFM (High): 5025
Airflow CFM (Low): 2160
Motor Watts (High): 60
Efficiency CFM/Watt (High): 84
RPM (High): 176
RPM (Low): 93
Weight: 13.6 lb
Light Kit Included: Yes
Light Kit Adaptable: Yes
Bulb Type: Integrated LED
Dimmable: Yes
Shade Finish: White
Shade Material: PC
Light Cap Included: Yes
Color Temperature: 3000K
CRI: 80
Certification: UL / cUL Listed
Location Rating: Damp
Warranty: Lifetime on Motor, 5 years on Light Kit, 1 year on all other parts
LED: 17 Watts, 1600 Lumens, 95 lm/w

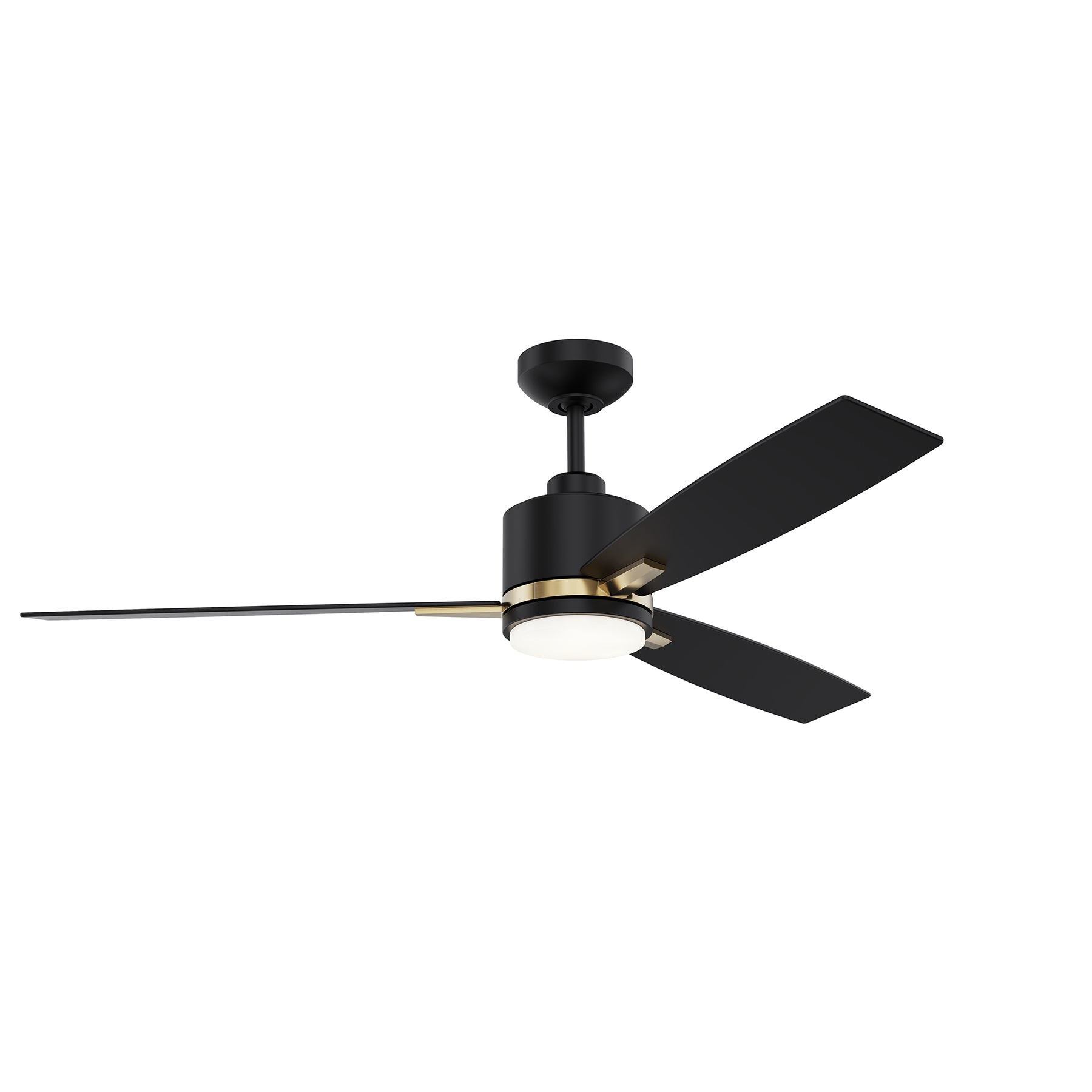

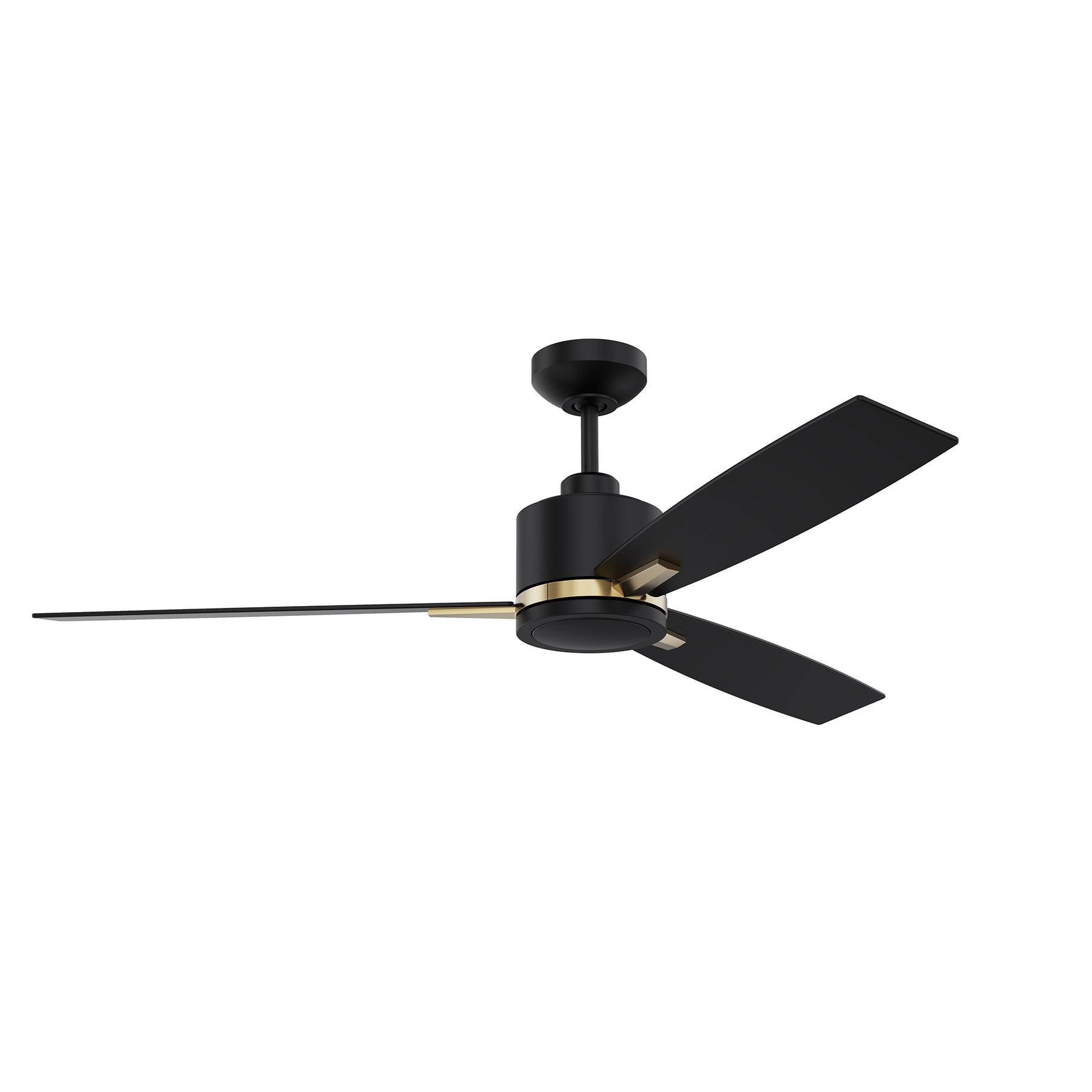

Model: AC30852-BLK/OCB
Collection: Nuvel
Finish: Matte Black & Oilcan Brass
Motor Housing Finish: Black & Brass
Blade Finish: Black
Blade Span: 52"
Number of Blades: 3
Fan Blade Material: PLYWOOD
Overall Height: 14.7"
Blade to Ceiling Height: 12.4"
Blade Length: 22.4"
Blade Width: 4.9"
Blade Pitch: 14 degrees
Hanging System: Downrod
Included Downrod Length: 6"
Downrod Diameter: 0.75" Outside Diameter, 0.5" Inside Diameter
Max Slope: 30 degrees
Number of Speeds: 3
Reverse Control: Manual
Motor Size: 153 x 16mm
Motor Amps (High): 0.51
Airflow CFM (High): 5025
Airflow CFM (Low): 2160
Motor Watts (High): 60
Efficiency CFM/Watt (High): 84
RPM (High): 176
RPM (Low): 93
Weight: 13.6 lb
Light Kit Included: Yes
Light Kit Adaptable: Yes
Bulb Type: Integrated LED
Dimmable: Yes
Shade Finish: White
Shade Material: PC
Light Cap Included: Yes
Color Temperature: 3000K
CRI: 80
Certification: UL / cUL Listed
Location Rating: Damp
Warranty: Lifetime on Motor, 5 years on Light Kit, 1 year on all other parts
LED: 17 Watts, 1600 Lumens, 95 lm/w

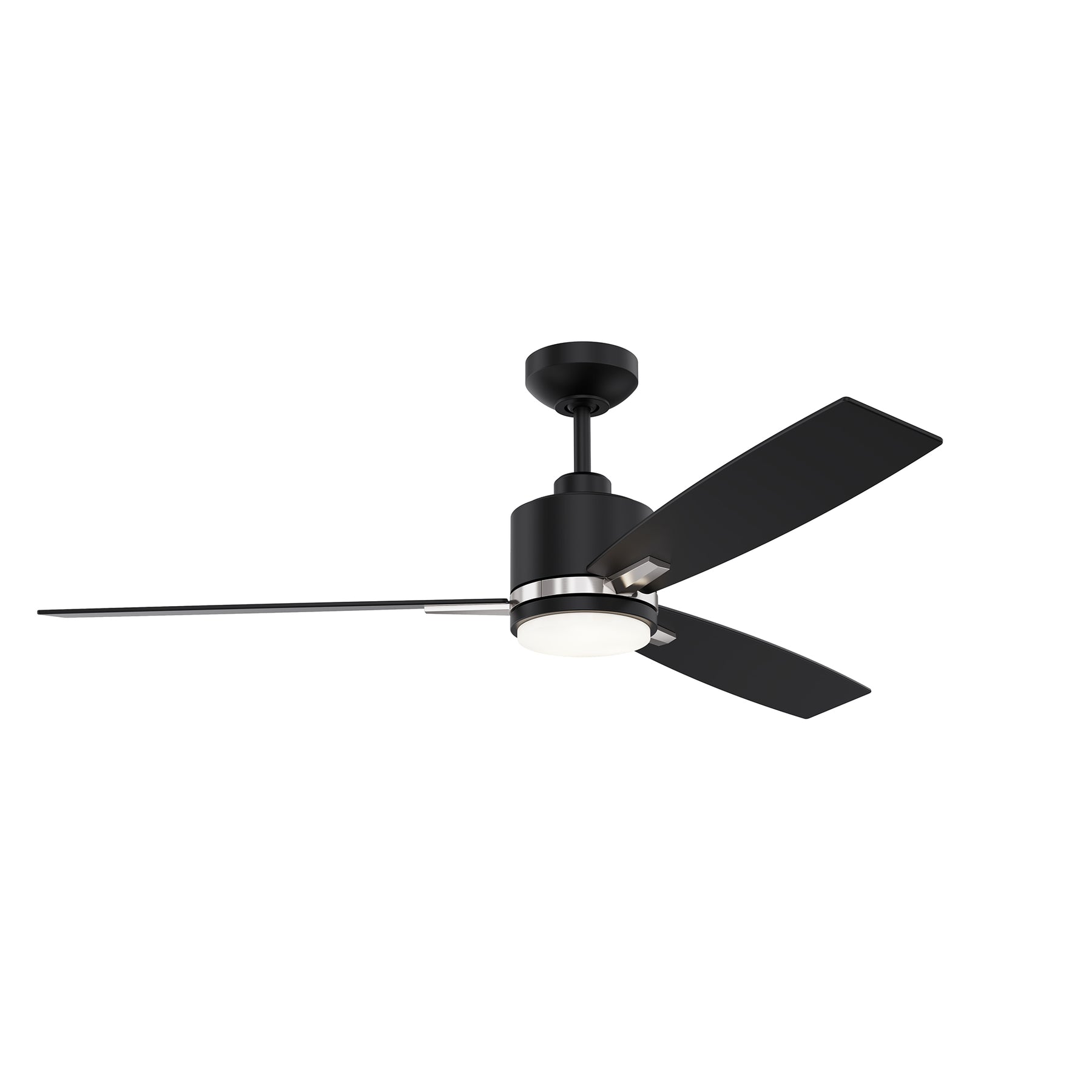

Model: AC30852-BLK/SN
Collection: Nuvel
Finish: Matte Black & Satin Nickel
Motor Housing Finish: Black & Satin Nickel
Blade Finish: Black
Blade Span: 52"
Number of Blades: 3
Fan Blade Material: PLYWOOD
Overall Height: 14.7"
Blade to Ceiling Height: 12.4"
Blade Length: 22.4"
Blade Width: 4.9"
Blade Pitch: 14 degrees
Hanging System: Downrod
Included Downrod Length: 6"
Downrod Diameter: 0.75" Outside Diameter, 0.5" Inside Diameter
Max Slope: 30 degrees
Number of Speeds: 3
Reverse Control: Manual
Motor Size: 153 x 16mm
Motor Amps (High): 0.51
Airflow CFM (High): 5025
Airflow CFM (Low): 2160
Motor Watts (High): 60
Efficiency CFM/Watt (High): 84
RPM (High): 176
RPM (Low): 93
Weight: 13.6 lb
Light Kit Included: Yes
Light Kit Adaptable: Yes
Bulb Type: Integrated LED
Dimmable: Yes
Shade Finish: White
Shade Material: PC
Light Cap Included: Yes
Color Temperature: 3000K
CRI: 80
Certification: UL / cUL Listed
Location Rating: Damp
Warranty: Lifetime on Motor, 5 years on Light Kit, 1 year on all other parts
LED: 17 Watts, 1600 Lumens, 95 lm/w
Model: AC30852-MWH/OCB
Collection: Nuvel
Finish: Matte White & Oilcan Brass
Motor Housing Finish: White & Brass
Blade Finish: White
Blade Span: 52"
Number of Blades: 3
Fan Blade Material: PLYWOOD
Overall Height: 14.7"
Blade to Ceiling Height: 12.4"
Blade Length: 22.4"
Blade Width: 4.9"
Blade Pitch: 14 degrees
Hanging System: Downrod
Included Downrod Length: 6"
Downrod Diameter: 0.75" Outside Diameter, 0.5" Inside Diameter
Max Slope: 30 degrees
Number of Speeds: 3
Reverse Control: Manual
Motor Size: 153 x 16mm
Motor Amps (High): 0.51
Airflow CFM (High): 5025
Airflow CFM (Low): 2160
Motor Watts (High): 60
Efficiency CFM/Watt (High): 84
RPM (High): 176
RPM (Low): 93
Weight: 13.6 lb
Light Kit Included: Yes
Light Kit Adaptable: Yes
Bulb Type: Integrated LED
Dimmable: Yes
Shade Finish: White
Shade Material: PC
Light Cap Included: Yes
Color Temperature: 3000K
CRI: 80
Certification: UL / cUL Listed
Location Rating: Damp
Warranty: Lifetime on Motor, 5 years on Light Kit, 1 year on all other parts
LED: 17 Watts, 1600 Lumens, 95 lm/w

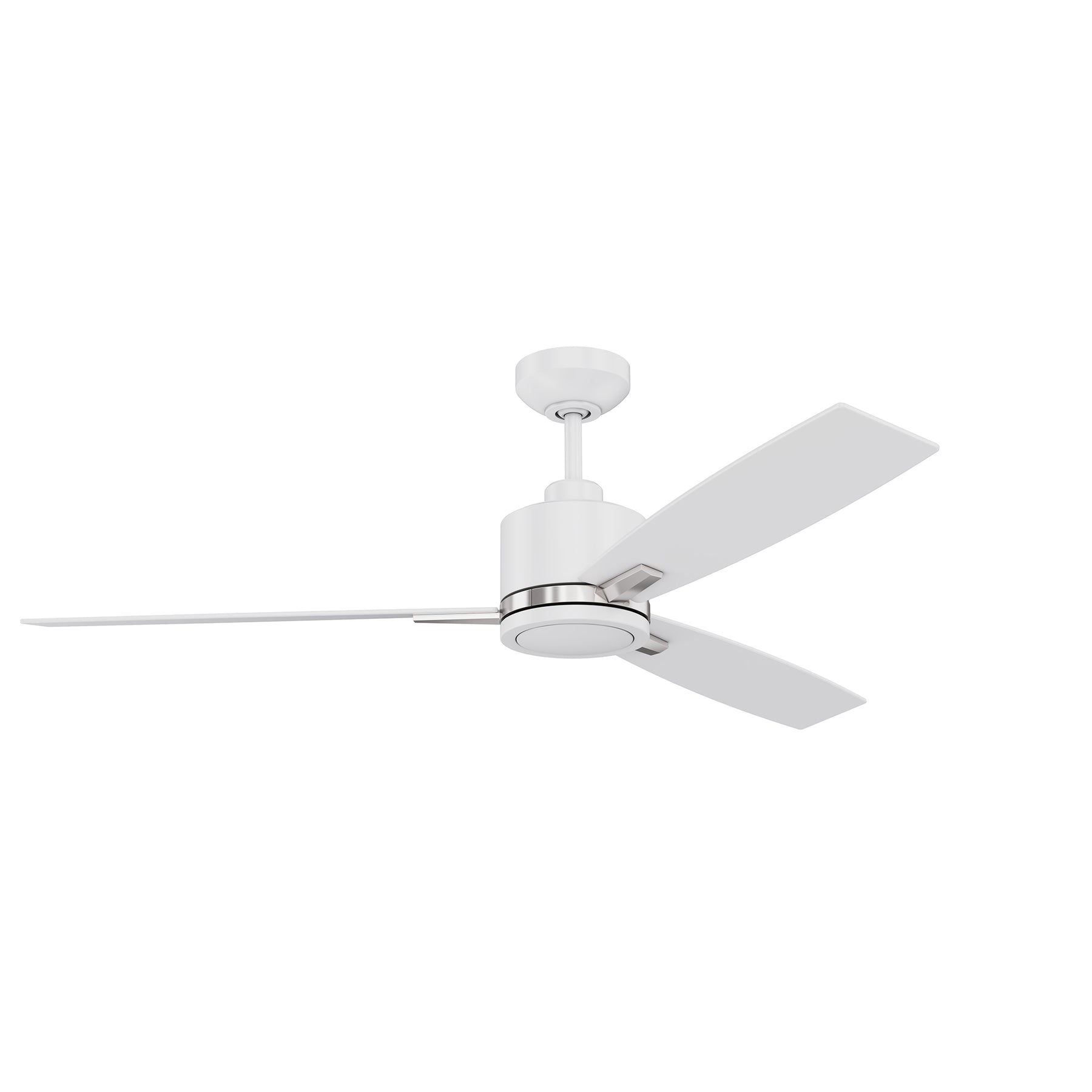

Model: AC30852-MWH/SN
Collection: Nuvel
Finish: Matte White & Satin Nickel
Motor Housing Finish: White & Satin Nickel
Blade Finish: White
Blade Span: 52"
Number of Blades: 3
Fan Blade Material: PLYWOOD
Overall Height: 14.7"
Blade to Ceiling Height: 12.4"
Blade Length: 22.4"
Blade Width: 4.9"
Blade Pitch: 14 degrees
Hanging System: Downrod
Included Downrod Length: 6"
Downrod Diameter: 0.75" Outside Diameter, 0.5" Inside Diameter
Max Slope: 30 degrees
Number of Speeds: 3
Reverse Control: Manual
Motor Size: 153 x 16mm
Motor Amps (High): 0.51
Airflow CFM (High): 5025
Airflow CFM (Low): 2160
Motor Watts (High): 60
Efficiency CFM/Watt (High): 84
RPM (High): 176
RPM (Low): 93
Weight: 11.4 lb
Light Kit Included: Yes
Light Kit Adaptable: Yes
Bulb Type: Integrated LED
Dimmable: Yes
Shade Finish: White
Shade Material: PC
Light Cap Included: Yes
Color Temperature: 3000K
CRI: 80
Certification: UL / cUL Listed
Location Rating: Damp
Warranty: Lifetime on Motor, 5 years on Light Kit, 1 year on all other parts
LED: 17 Watts, 1600 Lumens, 95 lm/w
NUVEL 42 in. 3 Blade Ceiling Fan with LED Light Kit and Remote Control in a Matte Black finish with matching blades
- 153 x 10mm AC motor with 3 blades
- 17W Integrated LED light kit (3000K, 1600 lm)

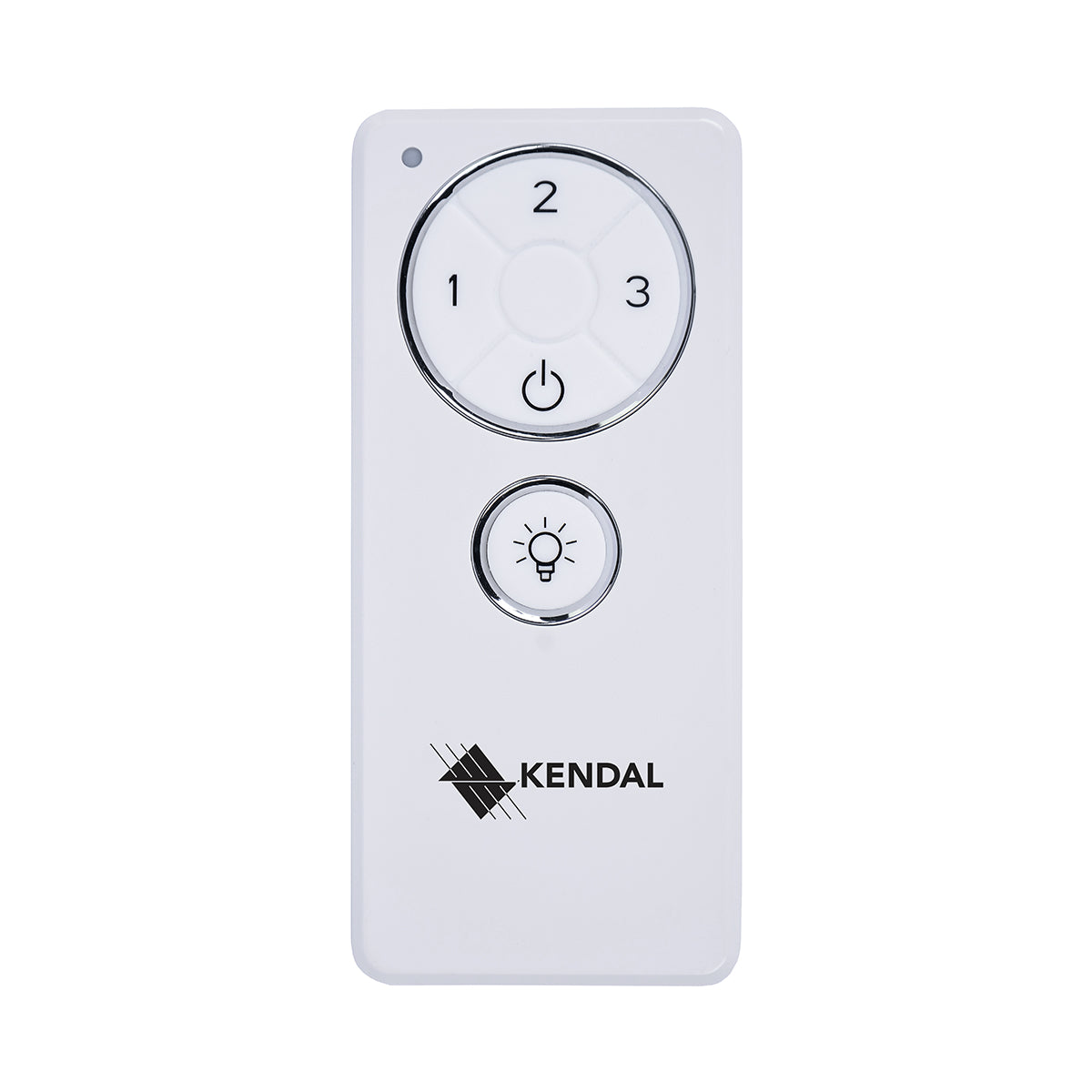

- 3-speed hand-held remote control included with LED dimmer (Manual Reverse)
- Available Wall Control Sold Separately (Model: RCT-22452)
- Included downrod length: 6 in. (3/4 in O.D. - Non Threaded)
Available finishes: Matte Black, Matte White, Matte Black & Oilcan Brass, Matte Black & Satin Nickel, Matte White & Oilcan Brass, Matte White & Satin Nickel, Matte Satin Nickel
Select an option above to see its full specifications.
Downloads: Energy Guide Label · Instruction Manual
Free shipping on orders over $199. See our full shipping & return policy.
Need an electrician or install tips? Read our install guide or call us at 604-233-1998.
