Specifications

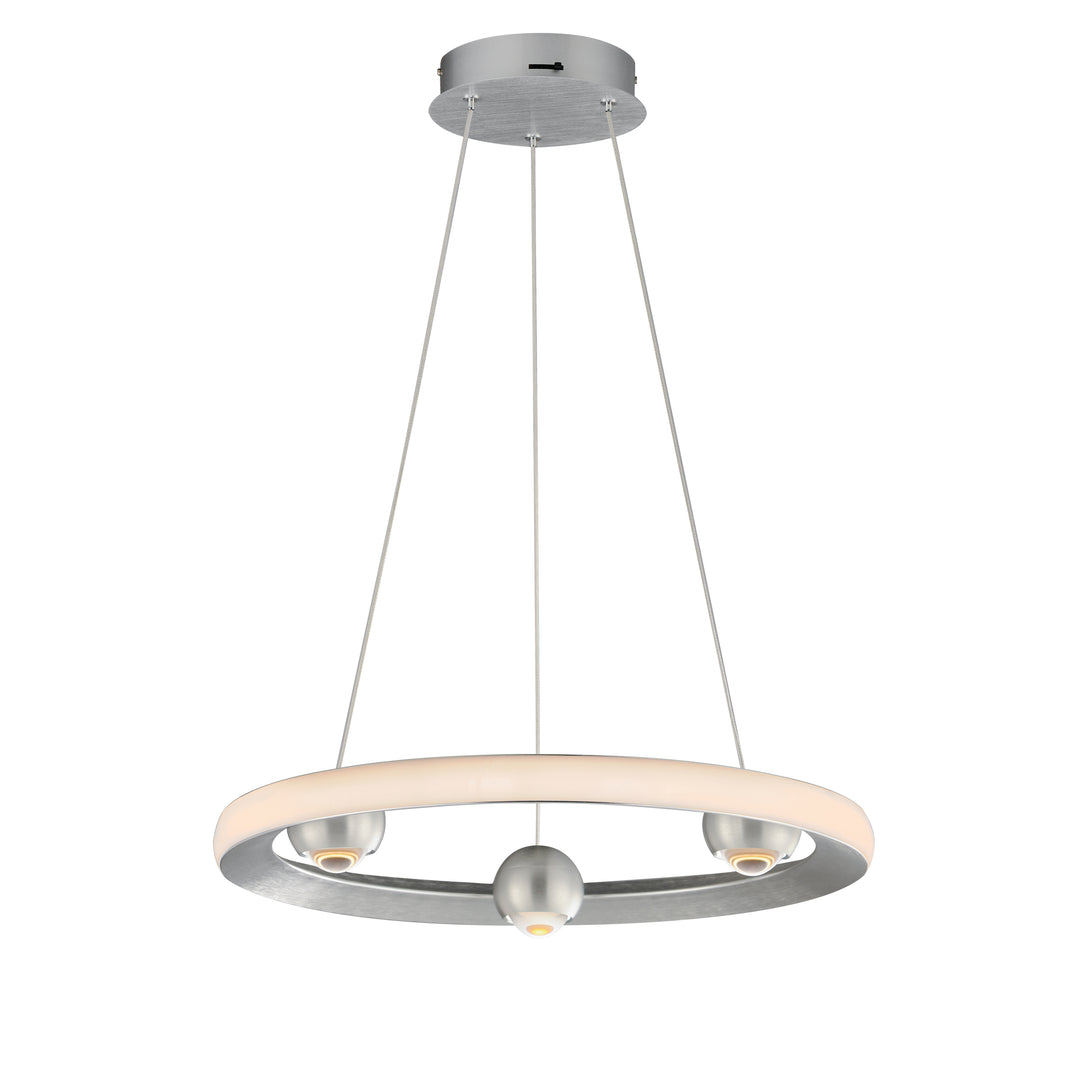

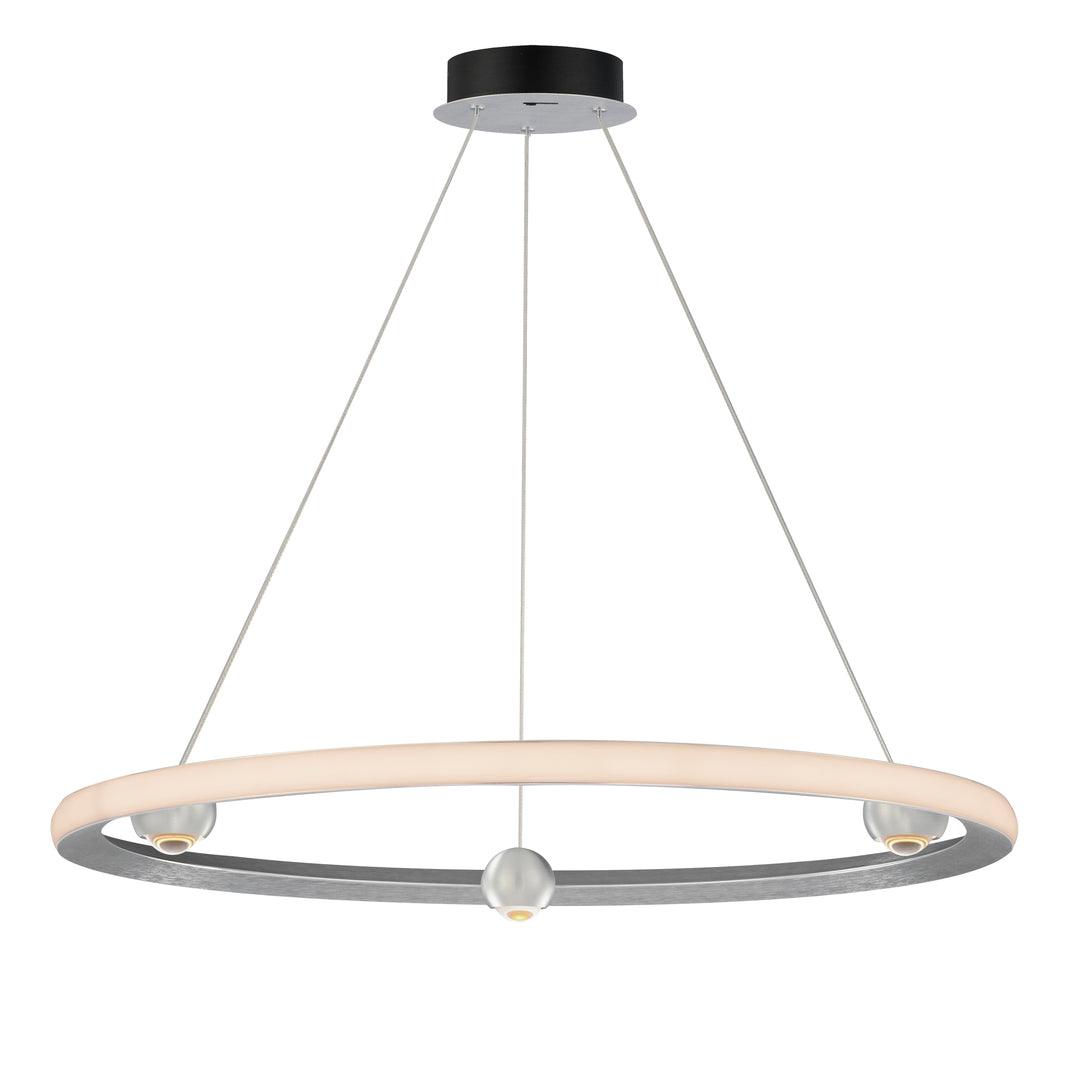

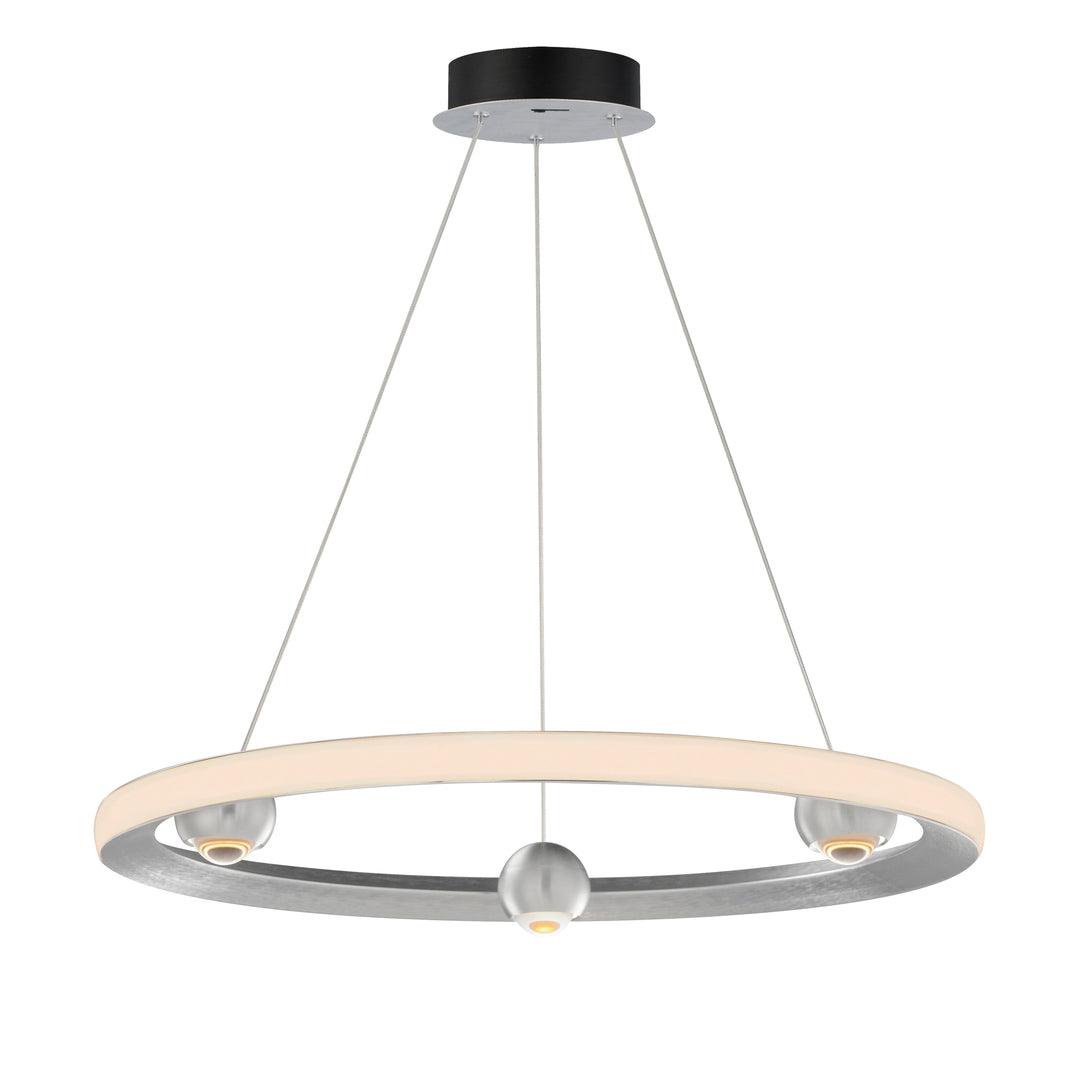

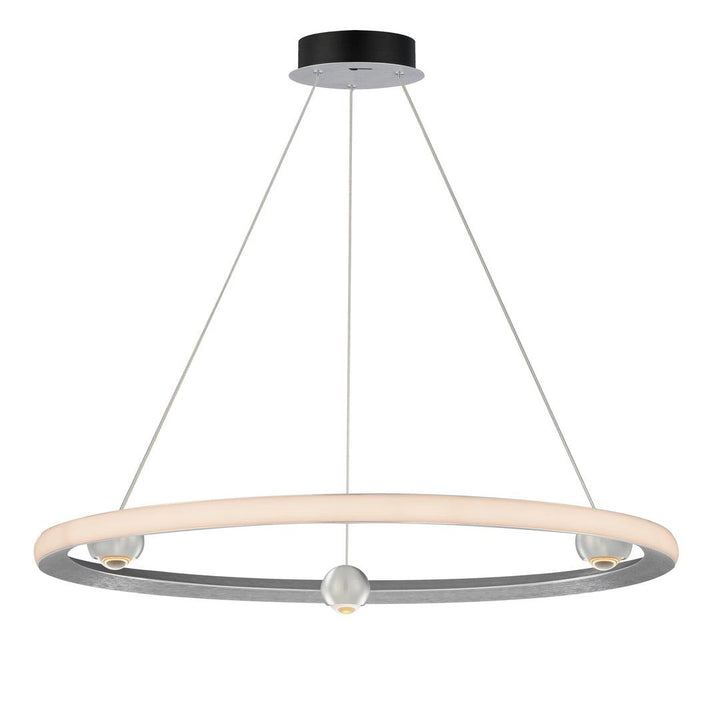

Model: E23511-AL
Collection: Nodes
Category: Ring Pendant
Material: Aluminum, Steel
Finish: Brushed Aluminum
Number of Lights: 1
Light Type: LED
Bulb Type: PCB Integrated
Bulb Max Wattage: 24W
Total Wattage: 24W
Rated Lumens: 1920
Delivered Lumens: 1700
Color Temperature: 27-30-35-40-50 K
Bulbs: Integrated
CRI: 90
Input Voltage: 120-277V
Width: 18"
Height: 2.75"
Length: 18"
Max Overall Height: 120"
Min Overall Height: 10"
Wire Length: 120"
Weight: 2.41 lb.
Safety Rating: Dry Location
UPC: 845094099079
Model: E23513-AL
Collection: Nodes
Category: Ring Pendant
Material: Aluminum, Steel
Finish: Brushed Aluminum
Number of Lights: 1
Light Type: LED
Bulb Type: CCT Select PCB
Bulb Max Wattage: 40W
Total Wattage: 40W
Rated Lumens: 3200
Delivered Lumens: 2800
Color Temperature: 27-30-35-40-50 K
Bulbs: Integrated
CRI: 90
Input Voltage: 120-277V
Width: 32"
Height: 2.75"
Length: 32"
Max Overall Height: 108"
Min Overall Height: 12"
Wire Length: 120"
Weight: 4.12 lb.
Canopy Width: 7"
Canopy Height: 1.5"
Canopy Length: 7"
Safety Rating: Dry Location
UPC: 845094099130
Model: E23514-AL
Collection: Nodes
Category: Ring Pendant
Material: Aluminum, Steel
Finish: Brushed Aluminum
Number of Lights: 1
Light Type: LED
Bulb Type: PCB Integrated
Bulb Max Wattage: 50W
Total Wattage: 50W
Rated Lumens: 4000
Delivered Lumens: 3500
Color Temperature: 27-30-35-40-50 K
Bulbs: Integrated
CRI: 90
Input Voltage: 120-277V
Width: 40"
Height: 2.75"
Length: 40"
Max Overall Height: 104"
Min Overall Height: 15"
Wire Length: 120"
Weight: 5.61 lb.
Safety Rating: Dry Location
UPC: 845094099161

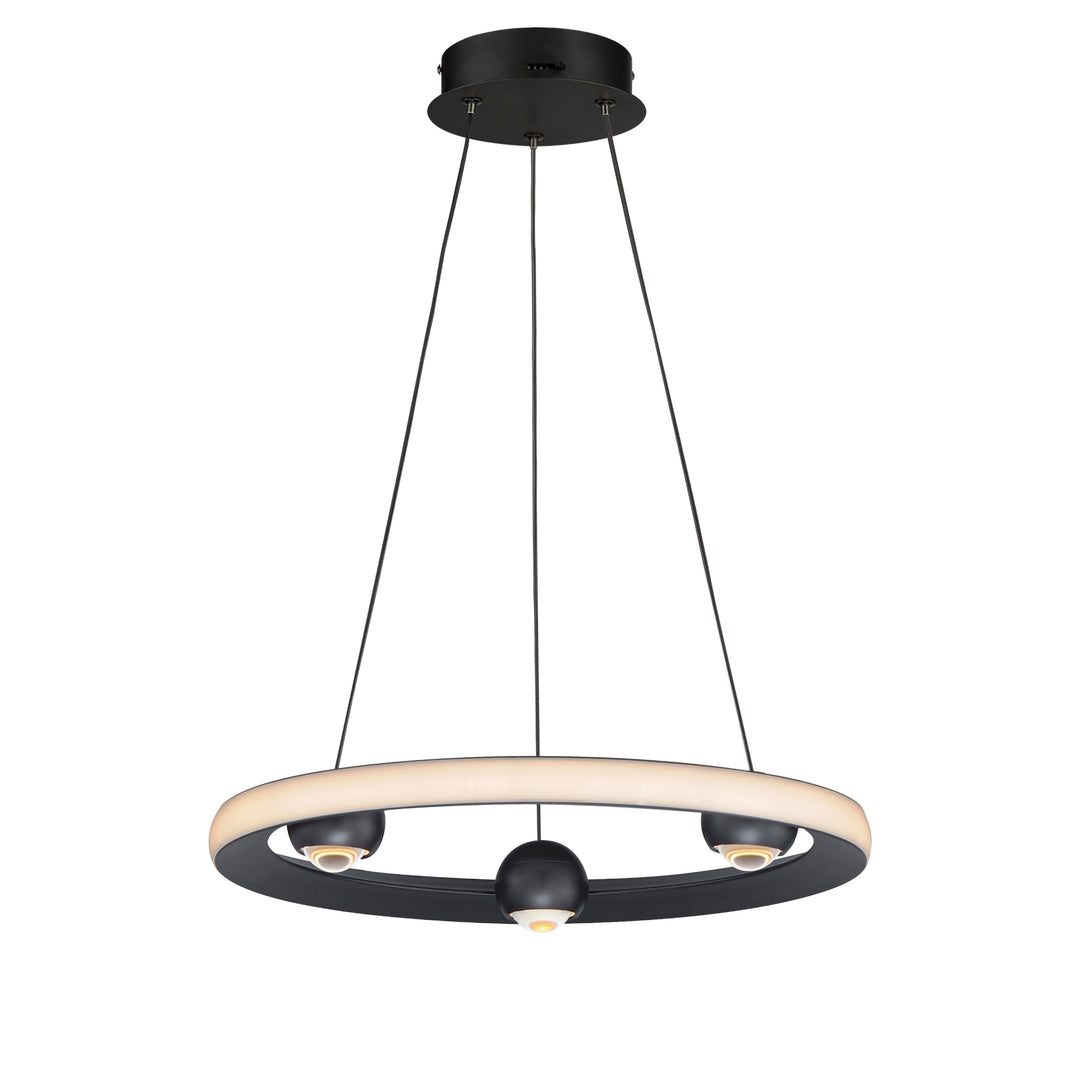

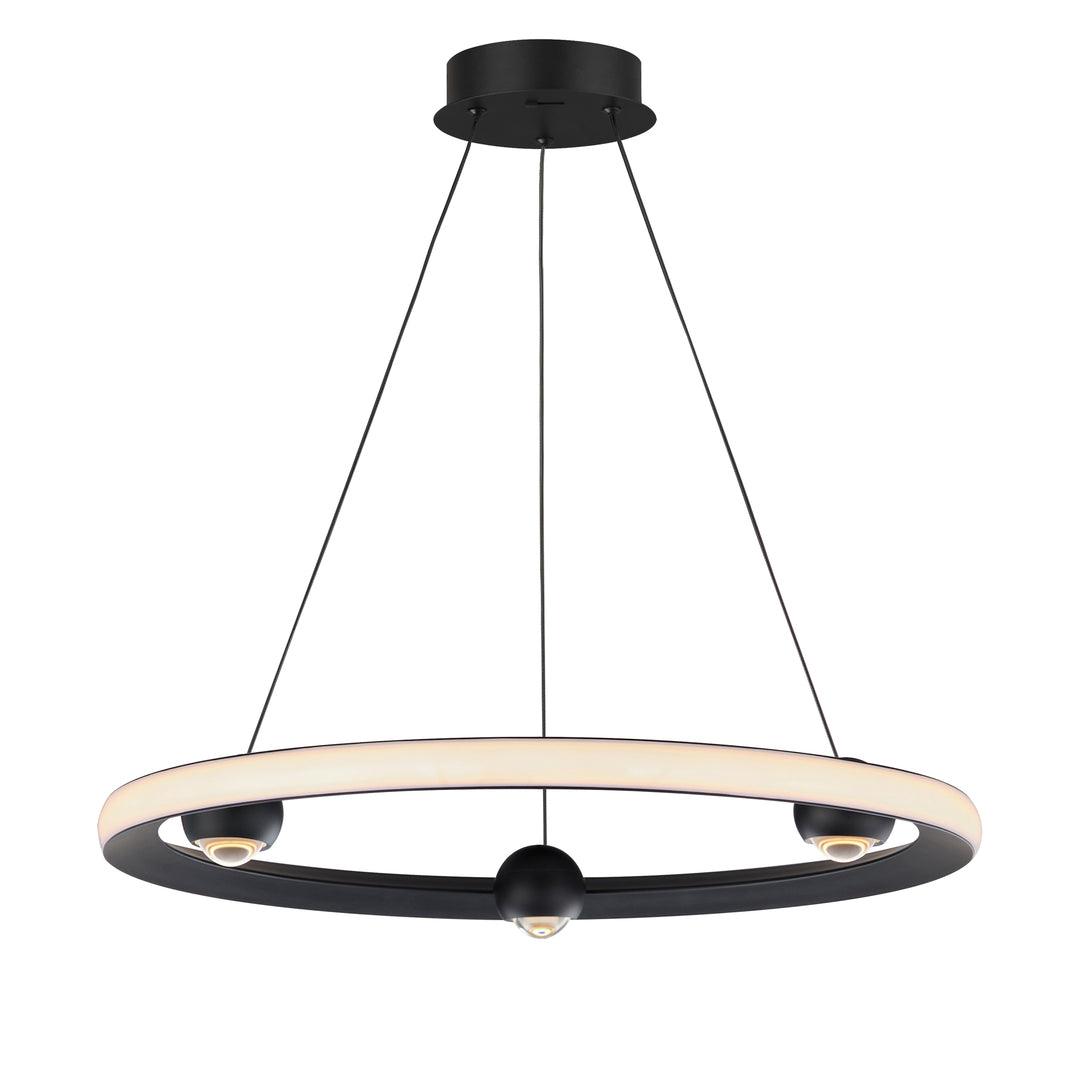

Model: E23511-BK
Collection: Nodes
Category: Ring Pendant
Material: Aluminum, Steel
Finish: Black
Number of Lights: 1
Light Type: LED
Bulb Type: PCB Integrated
Bulb Max Wattage: 24W
Total Wattage: 24W
Rated Lumens: 1920
Delivered Lumens: 1700
Color Temperature: 27-30-35-40-50 K
Bulbs: Integrated
CRI: 90
Input Voltage: 120-277V
Width: 18"
Height: 2.75"
Length: 18"
Max Overall Height: 120"
Min Overall Height: 10"
Wire Length: 120"
Weight: 2.41 lb.
Safety Rating: Dry Location
UPC: 845094099055

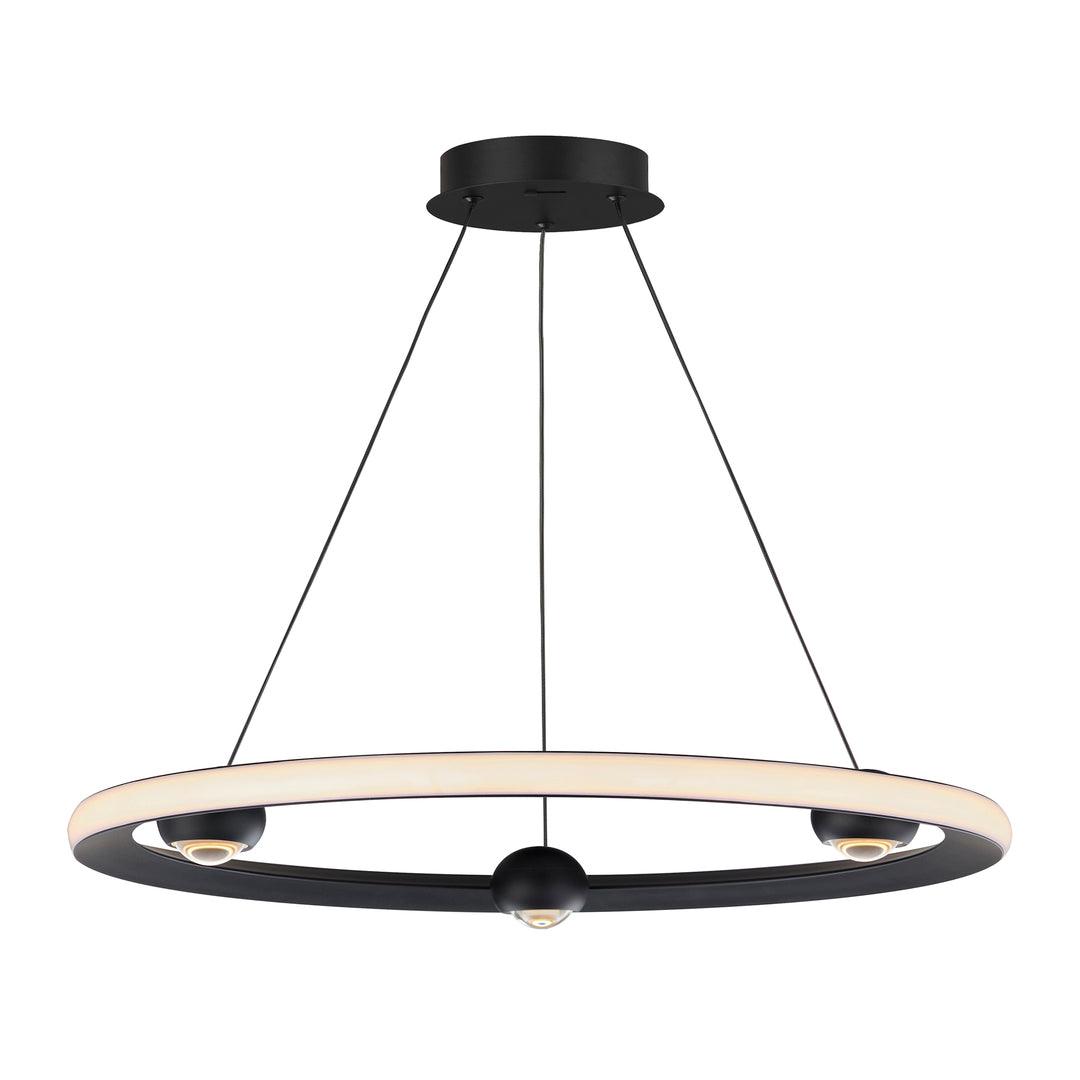

Model: E23512-BK
Collection: Nodes
Category: Ring Pendant
Material: Aluminum, Steel
Finish: Black
Number of Lights: 1
Light Type: LED
Bulb Type: CCT Select PCB
Bulb Max Wattage: 35W
Total Wattage: 35W
Rated Lumens: 2800
Delivered Lumens: 2450
Color Temperature: 27-30-35-40-50 K
Bulbs: Integrated
CRI: 90
Input Voltage: 120-277V
Width: 24"
Height: 2.75"
Length: 24"
Max Overall Height: 110"
Min Overall Height: 10"
Wire Length: 120"
Weight: 3.12 lb.
Safety Rating: Dry Location
UPC: 845094099086

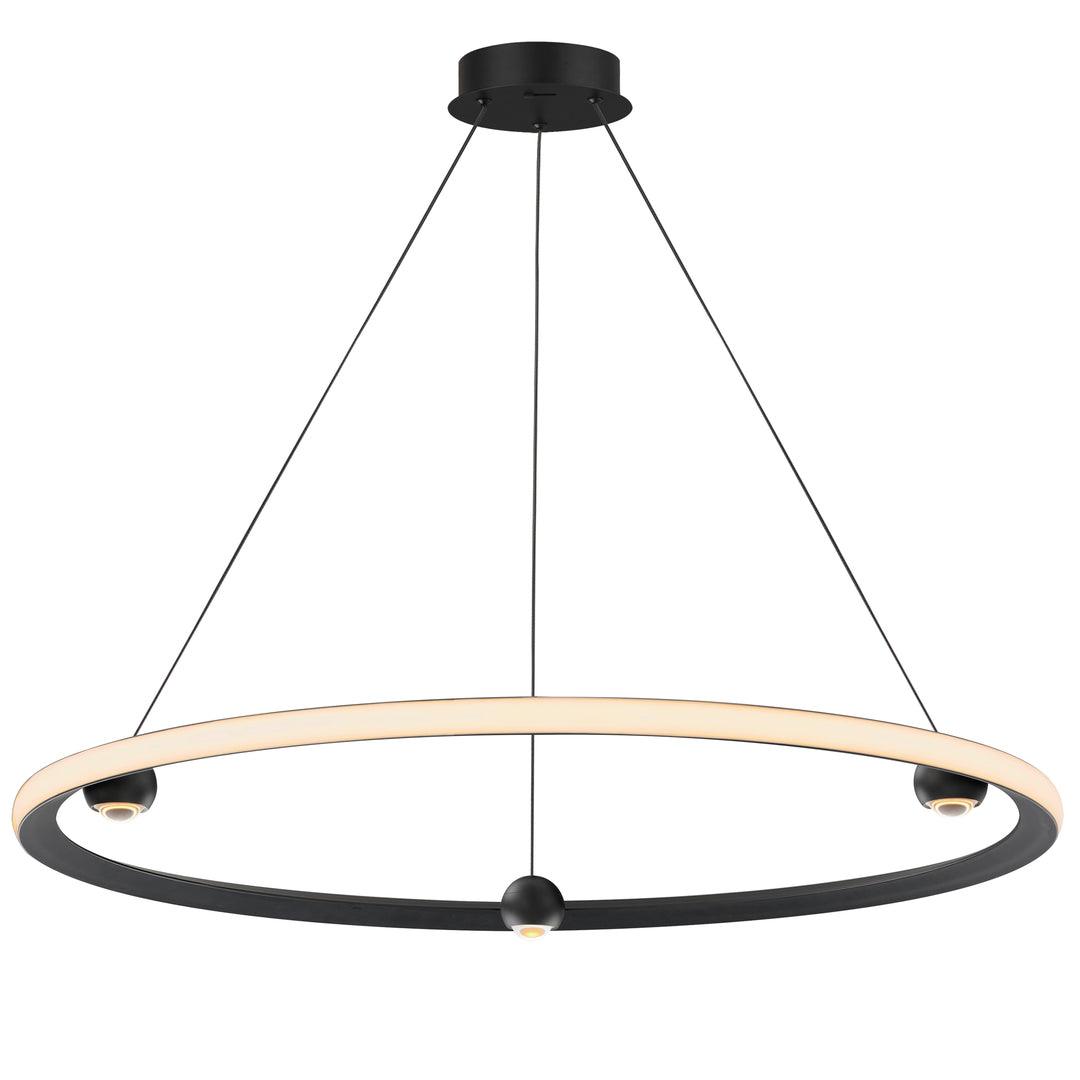

Model: E23513-BK
Collection: Nodes
Category: Ring Pendant
Material: Aluminum, Steel
Finish: Black
Number of Lights: 1
Light Type: LED
Bulb Type: CCT Select PCB
Bulb Max Wattage: 40W
Total Wattage: 40W
Rated Lumens: 3200
Delivered Lumens: 2800
Color Temperature: 27-30-35-40-50 K
Bulbs: Integrated
CRI: 90
Input Voltage: 120-277V
Width: 32"
Height: 2.75"
Length: 32"
Max Overall Height: 108"
Min Overall Height: 12"
Wire Length: 120"
Weight: 4.12 lb.
Canopy Width: 7"
Canopy Height: 1.5"
Canopy Length: 7"
Safety Rating: Dry Location
UPC: 845094099116

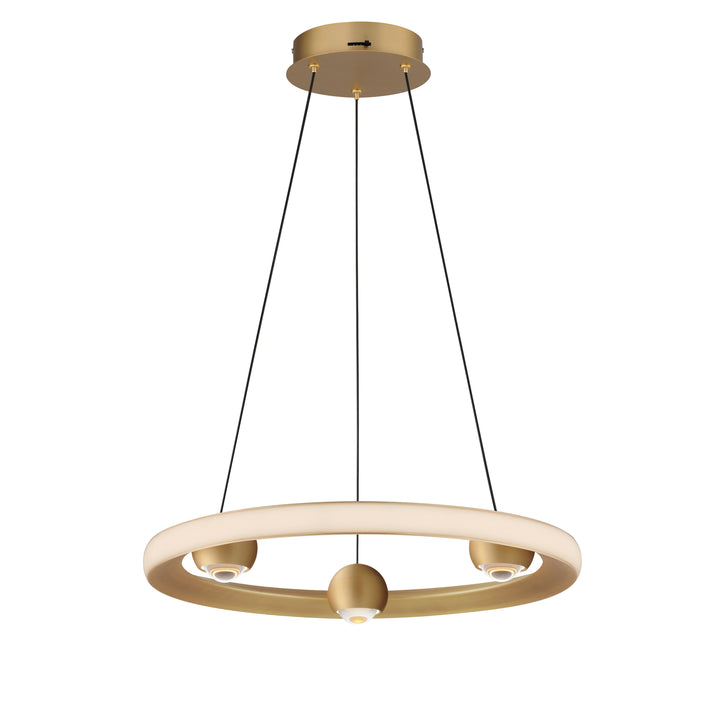

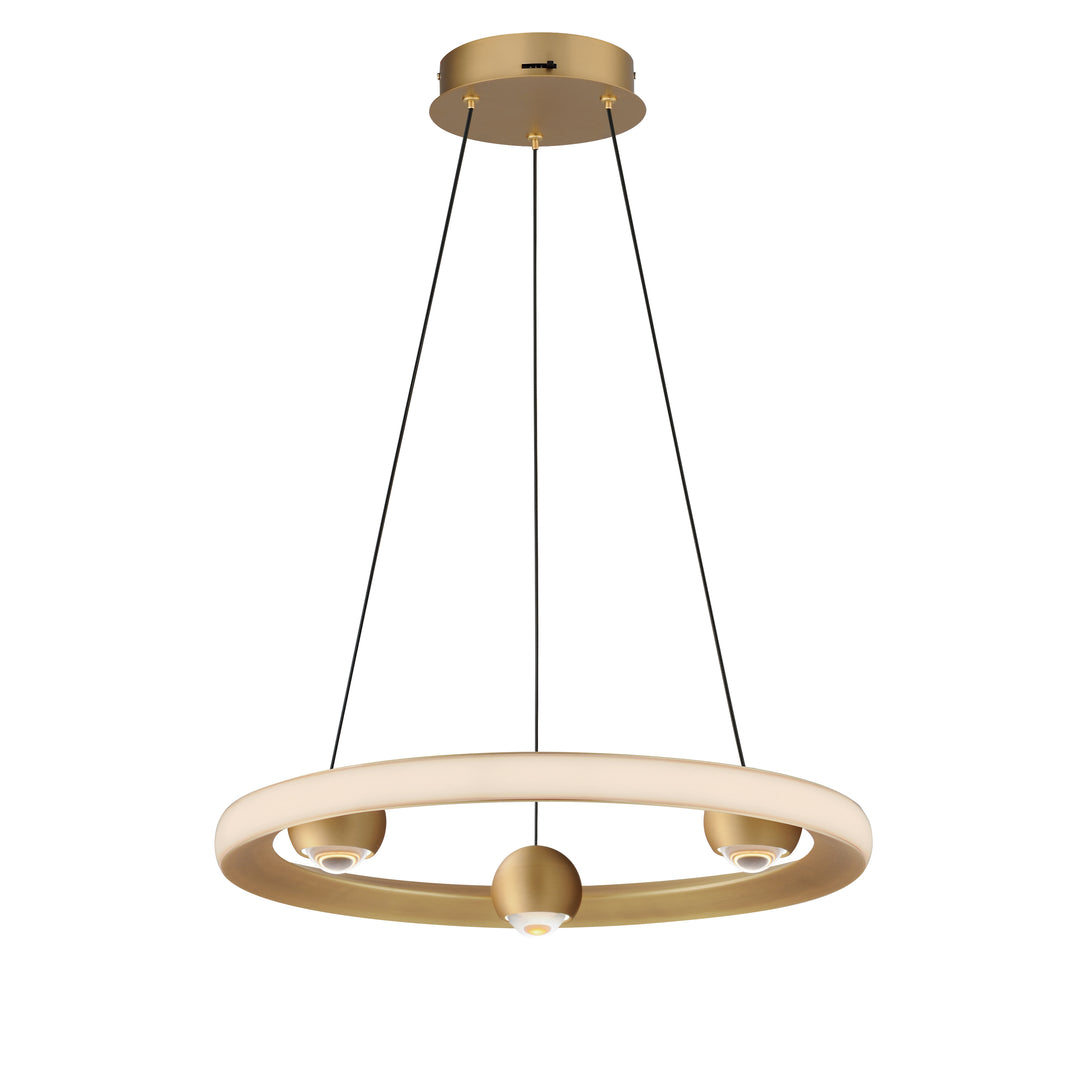

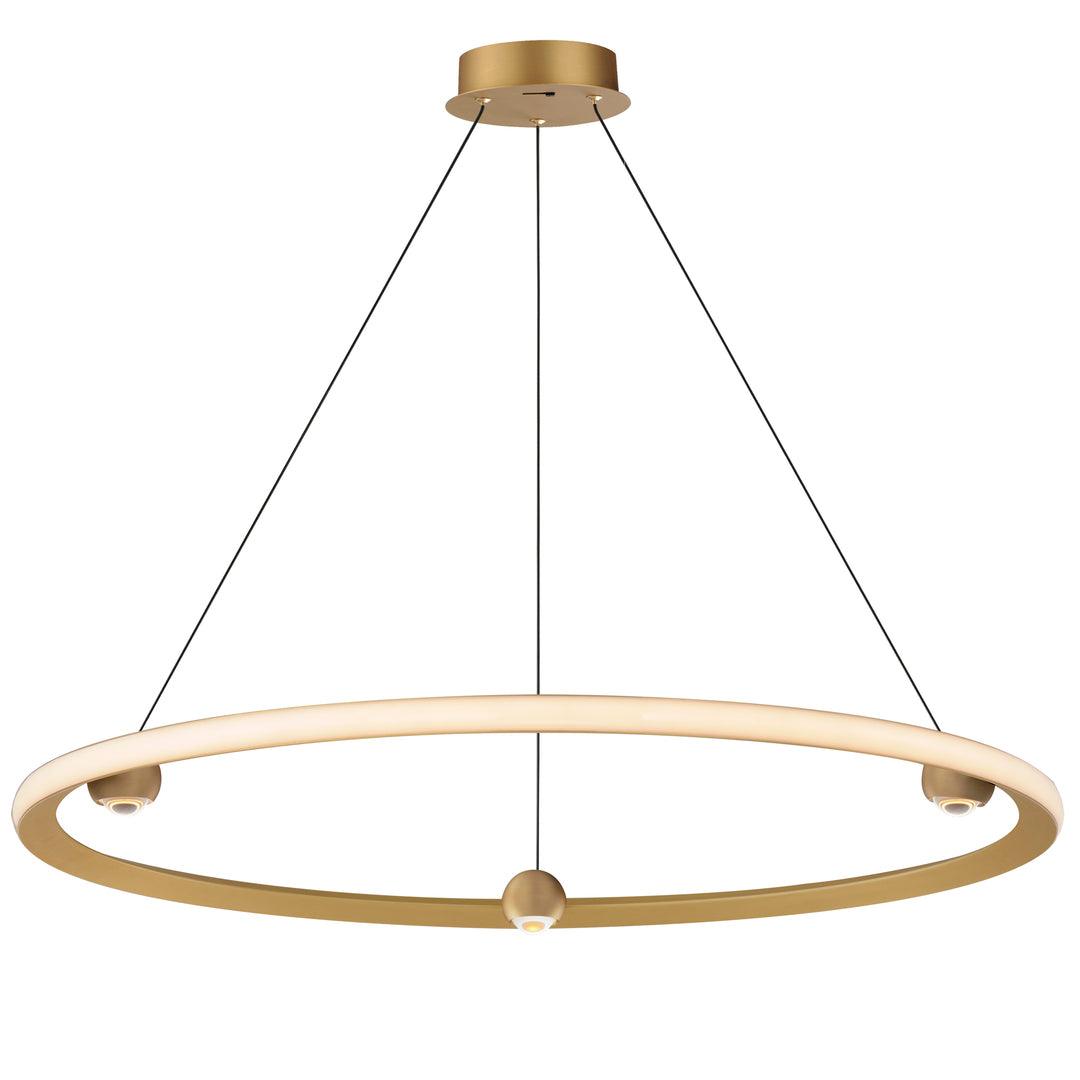

Model: E23511-GLD
Collection: Nodes
Category: Ring Pendant
Material: Aluminum, Steel
Finish: Gold
Number of Lights: 1
Light Type: LED
Bulb Type: PCB Integrated
Bulb Max Wattage: 24W
Total Wattage: 24W
Rated Lumens: 1920
Delivered Lumens: 1700
Color Temperature: 27-30-35-40-50 K
Bulbs: Integrated
CRI: 90
Input Voltage: 120-277V
Width: 18"
Height: 2.75"
Length: 18"
Max Overall Height: 120"
Min Overall Height: 10"
Wire Length: 120"
Weight: 2.41 lb.
Safety Rating: Dry Location
UPC: 845094099062
Model: E23512-GLD
Collection: Nodes
Category: Ring Pendant
Material: Aluminum, Steel
Finish: Gold
Number of Lights: 1
Light Type: LED
Bulb Type: CCT Select PCB
Bulb Max Wattage: 35W
Total Wattage: 35W
Rated Lumens: 2800
Delivered Lumens: 2450
Color Temperature: 27-30-35-40-50 K
Bulbs: Integrated
CRI: 90
Input Voltage: 120-277V
Width: 24"
Height: 2.75"
Length: 24"
Max Overall Height: 110"
Min Overall Height: 10"
Wire Length: 120"
Weight: 3.12 lb.
Safety Rating: Dry Location
UPC: 845094099093

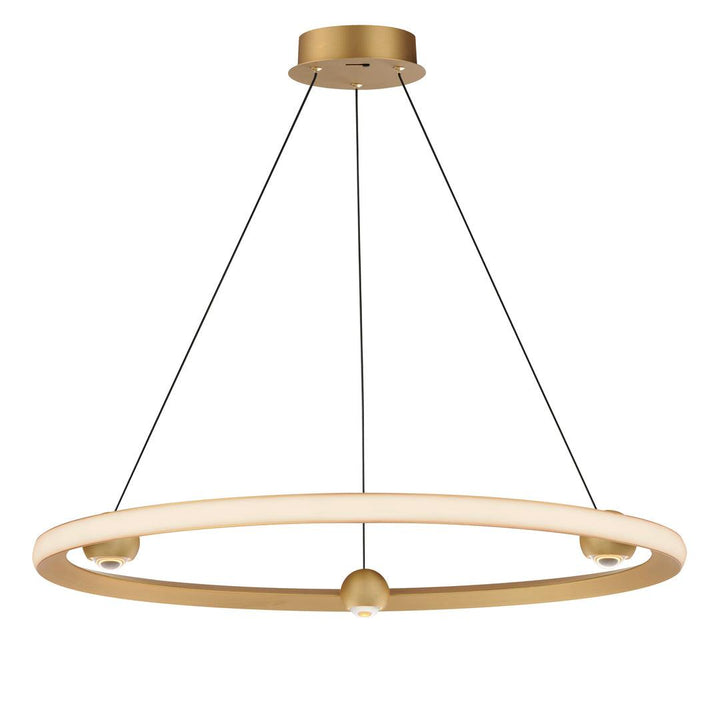

Model: E23513-GLD
Collection: Nodes
Category: Ring Pendant
Material: Aluminum, Steel
Finish: Gold
Number of Lights: 1
Light Type: LED
Bulb Type: CCT Select PCB
Bulb Max Wattage: 40W
Total Wattage: 40W
Rated Lumens: 3200
Delivered Lumens: 2800
Color Temperature: 27-30-35-40-50 K
Bulbs: Integrated
CRI: 90
Input Voltage: 120-277V
Width: 32"
Height: 2.75"
Length: 32"
Max Overall Height: 108"
Min Overall Height: 12"
Wire Length: 120"
Weight: 4.12 lb.
Canopy Width: 7"
Canopy Height: 1.5"
Canopy Length: 7"
Safety Rating: Dry Location
UPC: 845094099123

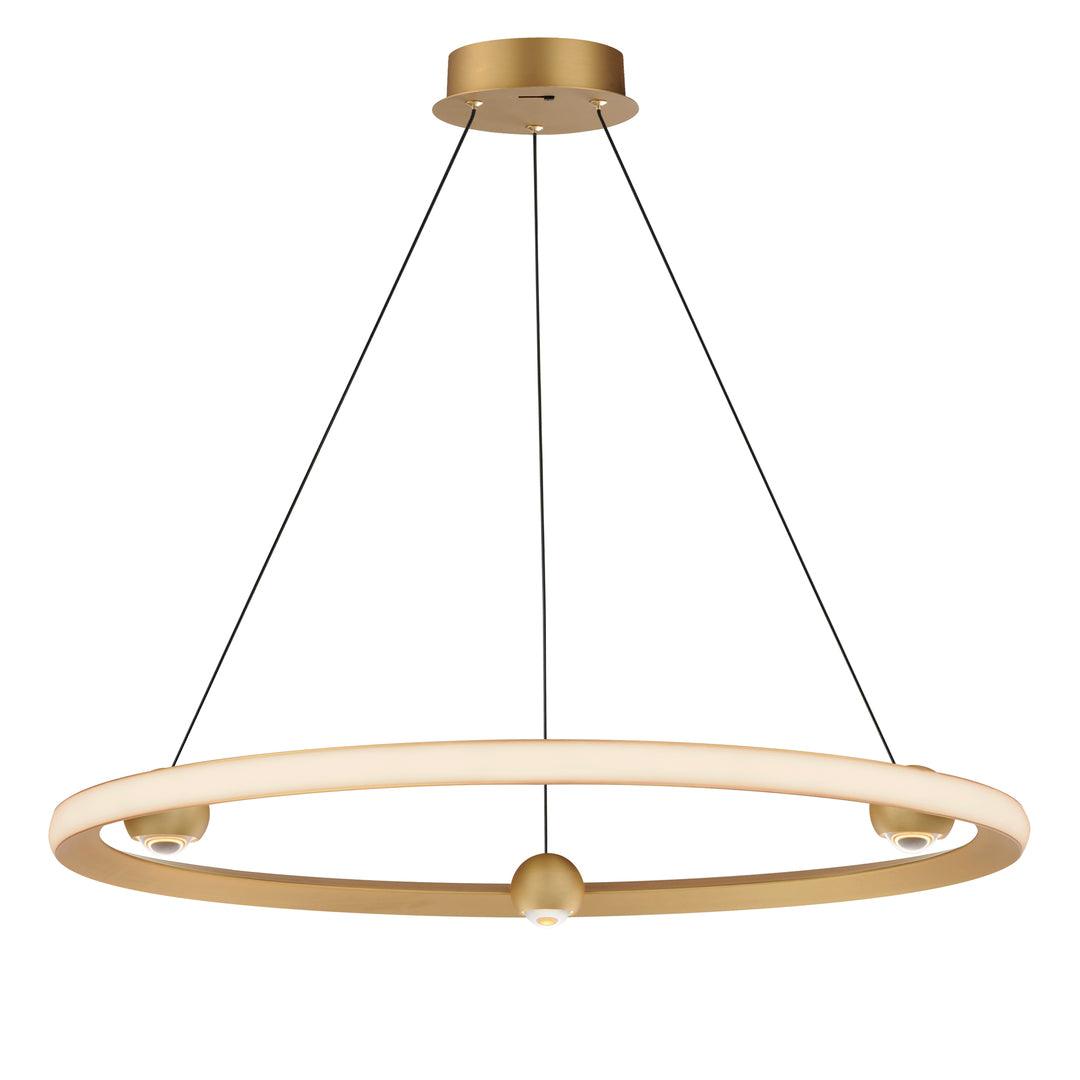

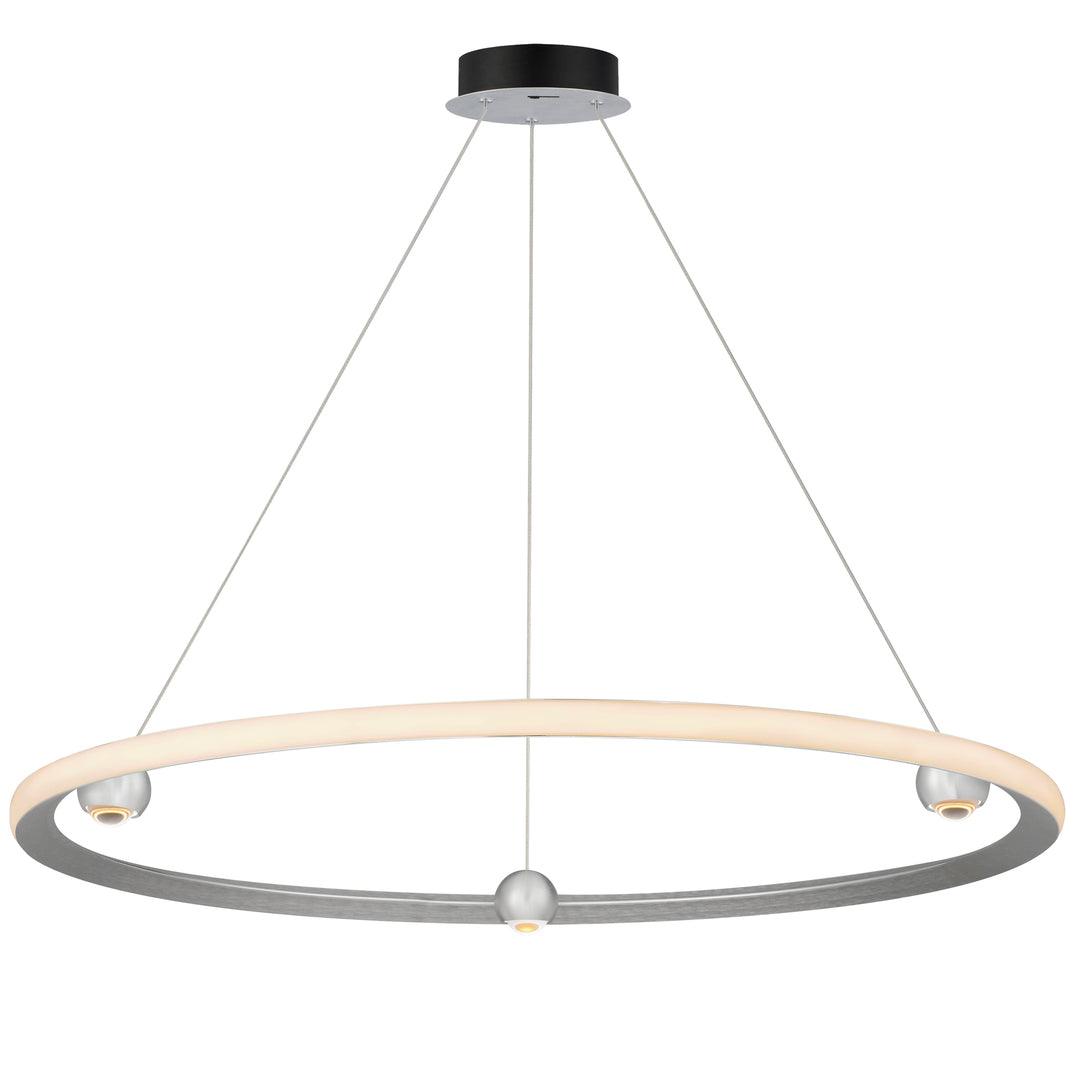

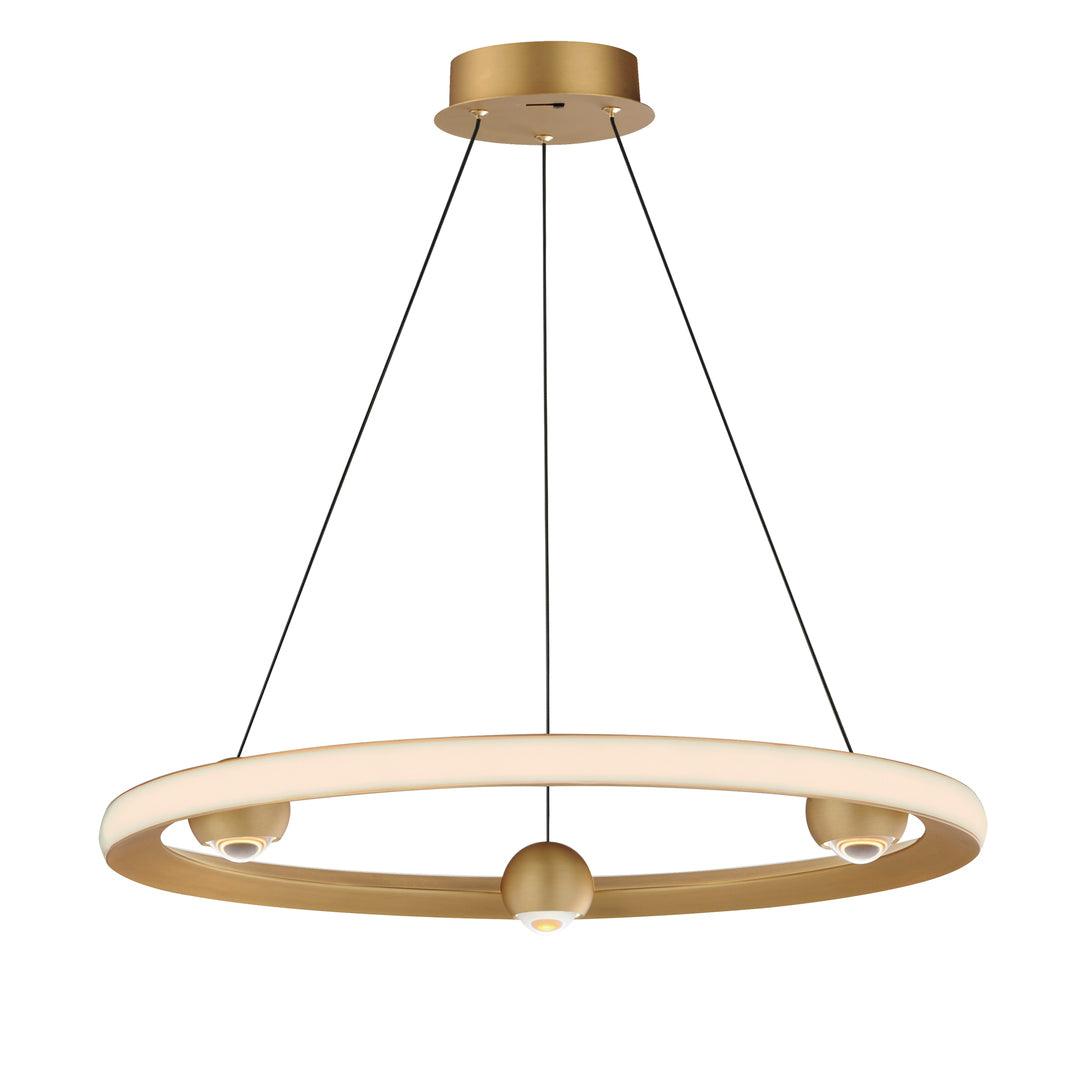

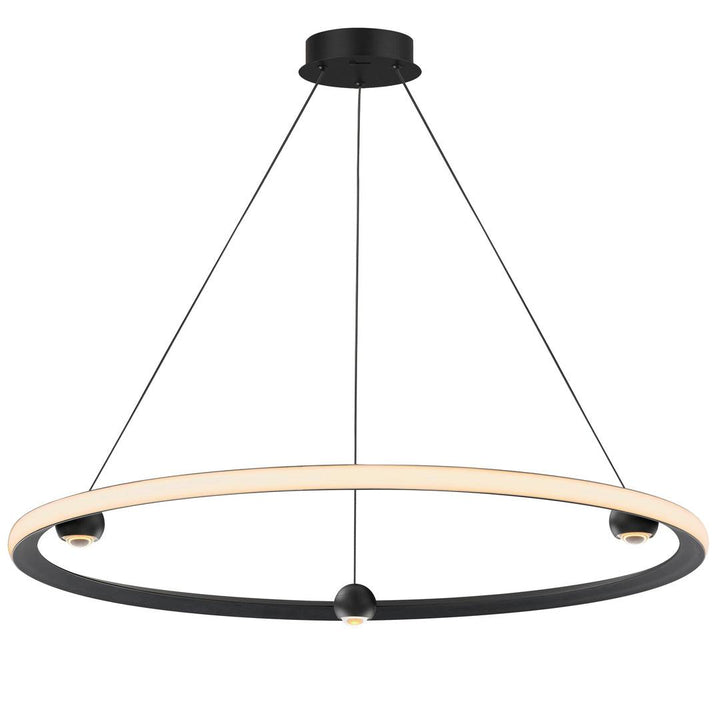

Introducing a new take on the now classically modern LED ring, large illuminated spheres act as "nodes" to support the tapered aluminum channel while also providing additional down light. Featuring a CCT selectable switch, the collection conveniently allows end users to select from warmer white light to energizing bright white lighting in 5 color temperature options. The convenient functionality is matched with its performance, meeting California's JA8 Title 24 requirements. Rated to deliver higher lumens per watt and power sources that supports range voltage input and 3 in one dimming, this product is designed to meet the requirements of both home and commercial projects.
- Collection: Nodes
- Available finishes: Brushed Aluminum, Black, Gold
Select an option above to see its full specifications.
Downloads: Spec Sheet · Instructions
