Name: LED Running Man Combo Exit Sign with Battery Backup - OE-316
Brand: Ortech
SKU: OE-316
Price: 75.16 CAD
Availability: InStock

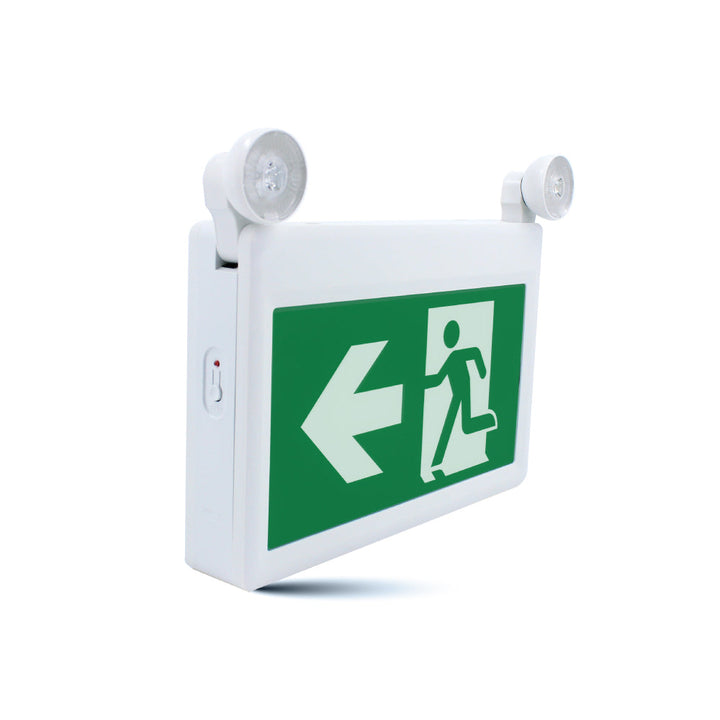

LED Running Man Combo Exit Sign with Battery Backup - OE-316

$75.16

Shipping calculated at checkout.

Free shipping on orders over $199

Questions? Call 604-233-1998

Specifications

Model: OE-316

Description: 4.5W LED combination of running man and exit sign with 120 minutes backup time

Wattage: Total Fixture Wattage: 4.5W

Voltage: 120V AC or 347V AC

Grade of Protection: IP20

Pictogram CCT: AC: 7000K DC: 6500K

Remote Head CCT: AC: 6100K DC: 6300K

Wattage and lumens of the pictogram part: AC: 4.5w and 23 lumens DC: 130 lumens

Insulation: II, Range: 80m²

Frequency Range: 60Hz

Conversion Time: <0.2 seconds

Emergency Duration Time: ≥120 min

Battery: 3.6V 1800mAh

Lamp Head Lumens & Wattage (per head): AC: 1w/head, 90 lumens (total) DC: 170 lumens (total)

Material: Injection molded thermoplastic ABS housing

Operating Temperature: 0°C ~ +40°C

Warranty: 3 Years

4.5W LED running man combo exit sign with 120-minute emergency backup.

UL-94V-0 Flame Rating: Built with fire-retardant materials to meet stringent safety standards.
Functional Features: Includes a test button and charge indicator light for easy maintenance and monitoring.
Battery Protection: Offers reliable overcharge and over-discharge protection to extend battery life.
Durable Housing: Injection-molded thermoplastic ABS construction with universal mounting options—wall, side, or ceiling.
LED Edge-Lit Exit Sign: Features a modern Running Man design and an innovative snap-together system for fast, tool-free installation.
As per CSA recommendations, batteries should be replaced every 4 years

Downloads: OE-316.Spec Sheet | OE-316 Instruction Manual

Free shipping on orders over $199. See our full shipping & return policy.

Need an electrician or install tips? Read our install guide or call us at 604-233-1998.
