Name: Aether 3.5" Color Changing Adjustable Trim Square w/ Housing
Brand: WAC
SKU: R3ASAT-FCC24-BK
Price: 1103.95 CAD
Availability: InStock

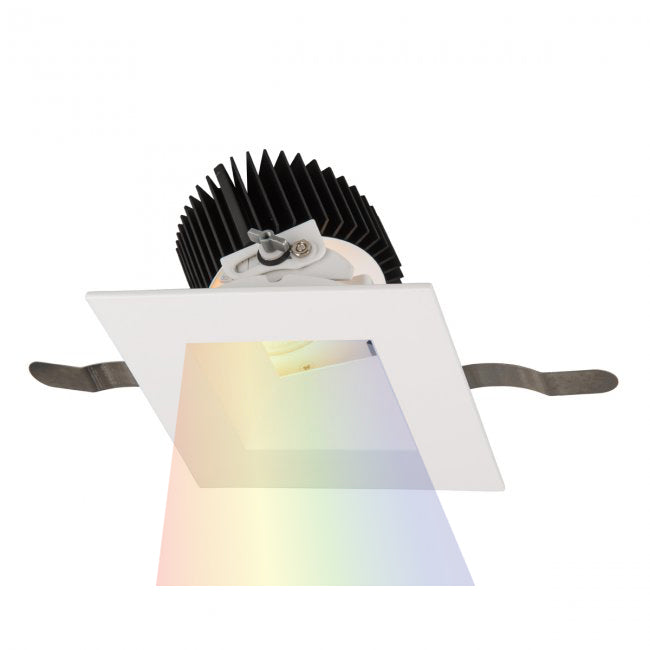

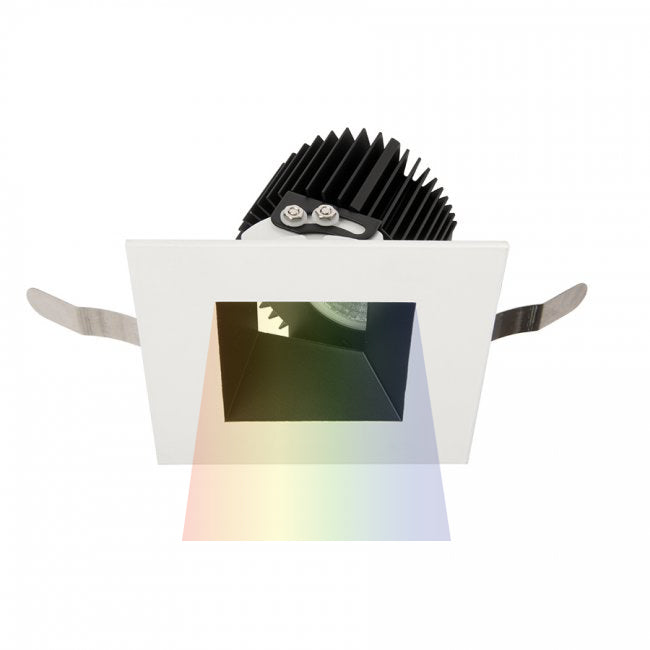

Aether 3.5" Color Changing Adjustable Trim Square w/ Housing

$1,103.95

Shipping calculated at checkout.

Free shipping on orders over $199

Questions? Call 604-233-1998

Specifications

Model: R3ASAT-FCC24-BK

Model: R3ASAT

Beam: F - 40°

Color Temp & CRI: CC - Color Changing - 90

Lumens: 650

CBCP: 1330

Finish: Black

Description: AETHER 3IN SQ ADJ TRIM FL COLOR TUNING

Model: R3ASAT-FCC24-BKWT

Model: R3ASAT

Beam: F - 40°

Color Temp & CRI: CC - Color Changing - 90

Lumens: 650

CBCP: 1330

Finish: Black/White

Description: AETHER 3IN SQ ADJ TRIM FL COLOR TUNING

Model: R3ASAT-FCC24-HZWT

Model: R3ASAT

Beam: F - 40°

Color Temp & CRI: CC - Color Changing - 90

Lumens: 650

CBCP: 1330

Finish: Haze/White

Description: AETHER 3IN SQ ADJ TRIM FL COLOR TUNING

Model: R3ASAT-FCC24-WT

Model: R3ASAT

Beam: F - 40°

Color Temp & CRI: CC - Color Changing - 90

Lumens: 650

CBCP: 1330

Finish: White

Availability: Limited Availability

Description: AETHER 3IN SQ ADJ TRIM FL COLOR TUNING

Model: R3ASAT-NCC24-BK

Model: R3ASAT

Beam: N - 25°

Color Temp & CRI: CC - Color Changing - 90

Lumens: 535

CBCP: 2860

Finish: Black

Availability: Limited Availability

Description: AETHER 3IN SQ ADJ TRIM NF COLOR TUNING

Model: R3ASAT-NCC24-BKWT

Model: R3ASAT

Beam: N - 25°

Color Temp & CRI: CC - Color Changing - 90

Lumens: 535

CBCP: 2860

Finish: Black/White

Availability: Limited Availability

Description: AETHER 3IN SQ ADJ TRIM NF COLOR TUNING

Model: R3ASAT-NCC24-HZWT

Model: R3ASAT

Beam: N - 25°

Color Temp & CRI: CC - Color Changing - 90

Lumens: 535

CBCP: 2860

Finish: Haze/White

Availability: Limited Availability

Description: AETHER 3IN SQ ADJ TRIM NF COLOR TUNING

Model: R3ASAT-NCC24-WT

Model: R3ASAT

Beam: N - 25°

Color Temp & CRI: CC - Color Changing - 90

Lumens: 535

CBCP: 2860

Finish: White

Availability: Limited Availability

Description: AETHER 3IN SQ ADJ TRIM NF COLOR TUNING

Features

Delivered Lumens: Up to 650lm
CBCP: Up to 2860
CCT: Color Changing
CRI: 90
Power: 22W
Input: 120-277 VAC, 50/60Hz
IC Rated, Airtight
0-10V Dimming: 100-1%
Rated Life: 50000 Hours
Construction: 20 gauge cold rolled steel wiring box with Die-cast aluminum trim and heat sink
Shallow housing that is designed to fit in tight plenum spaces without sacrificing lumen output

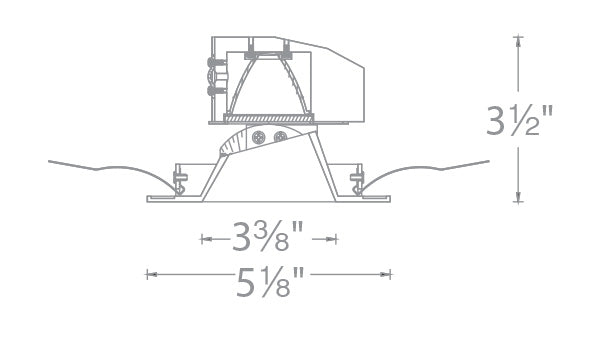

3.5" trim aperture and 3.5" housing height
0° - 30° vertical adjustable range
Full color gamut control through gradients of saturated colors from 1-100%
Tunable White (CCT) Range: 1650-8000K
DMX512-A CCT and color control with commissioning via RDM; dimming via DMX-512A or 0-10V
Dimming: 100%-1% intensity control in CCT & color via DMX or 0-10V
Sold as a complete unit; housing and trim included
Driver concealed within the fixture

Select an option above to see its full specifications.

Free shipping on orders over $199. See our full shipping & return policy.

Need an electrician or install tips? Read our install guide or call us at 604-233-1998.
