Name: Large Stealth Framing Projector Fixed Wide Beam 24W Monopoint Luminaire
Brand: WAC
SKU: MO-1224-F940-BK
Price: 1460.95 CAD
Availability: InStock

Large Stealth Framing Projector Fixed Wide Beam 24W Monopoint Luminaire

$1,460.95

Shipping calculated at checkout.

Color Temp & CRI — F40 - 4000K - 90

F27 - 2700K - 90

F30 - 3000K - 90

F35 - 3500K - 90

F40 - 4000K - 90

Finish

Black

White

Free shipping on orders over $199

Questions? Call 604-233-1998

Specifications

Model: MO-1224-F927-BK

System Type: MO

Model: 1224

Color Temp & CRI: F27 - 2700K - 90

Lumens: 795

CBCP: 1375

Finish: Black

Description: STEALTH FRAMING PROJ MONOPT 24W FIX 927

Model: MO-1224-F927-WT

System Type: MO

Model: 1224

Color Temp & CRI: F27 - 2700K - 90

Lumens: 795

CBCP: 1375

Finish: White

Description: STEALTH FRAMING PROJ MONOPT 24W FIX 927

Model: MO-1224-F930-BK

System Type: MO

Model: 1224

Color Temp & CRI: F30 - 3000K - 90

Lumens: 840

CBCP: 1450

Finish: Black

Description: STEALTH FRAMING PROJ MONOPT 24W FIX 930

Model: MO-1224-F930-WT

System Type: MO

Model: 1224

Color Temp & CRI: F30 - 3000K - 90

Lumens: 840

CBCP: 1450

Finish: White

Description: STEALTH FRAMING PROJ MONOPT 24W FIX 930

Model: MO-1224-F935-BK

System Type: MO

Model: 1224

Color Temp & CRI: F35 - 3500K - 90

Lumens: 880

CBCP: 1520

Finish: Black

Description: STEALTH FRAMING PROJ MONOPT 24W FIX 935

Model: MO-1224-F935-WT

System Type: MO

Model: 1224

Color Temp & CRI: F35 - 3500K - 90

Lumens: 880

CBCP: 1520

Finish: White

Description: STEALTH FRAMING PROJ MONOPT 24W FIX 935

Model: MO-1224-F940-BK

System Type: MO

Model: 1224

Color Temp & CRI: F40 - 4000K - 90

Lumens: 905

CBCP: 1565

Finish: Black

Description: STEALTH FRAMING PROJ MONOPT 24W FIX 940

Model: MO-1224-F940-WT

System Type: MO

Model: 1224

Color Temp & CRI: F40 - 4000K - 90

Lumens: 905

CBCP: 1565

Finish: White

Description: STEALTH FRAMING PROJ MONOPT 24W FIX 940

Features

Delivered Lumens: Up to 905lm
CBCP: 1565
CCT: 2700K, 3000K, 3500K, 4000K
CRI: 90
Power: 24W
Input: 120-277 VAC, 50/60Hz
ELV Dimming: 100-5%
0-10V Dimming: 100-5%
TRIAC Dimming: 100-5%
Rated Life: 50000 Hours
Construction: Die-cast aluminum
Precise, high definition wide projection
Stealth armature with 360° horizontal rotation and 90° vertical aiming
Accepts one glass or metal gobo
Custom gobo size: Outside Diameter 24.5mm, Thickness ≤ 1.5mm, Image Size ≤ 19mm

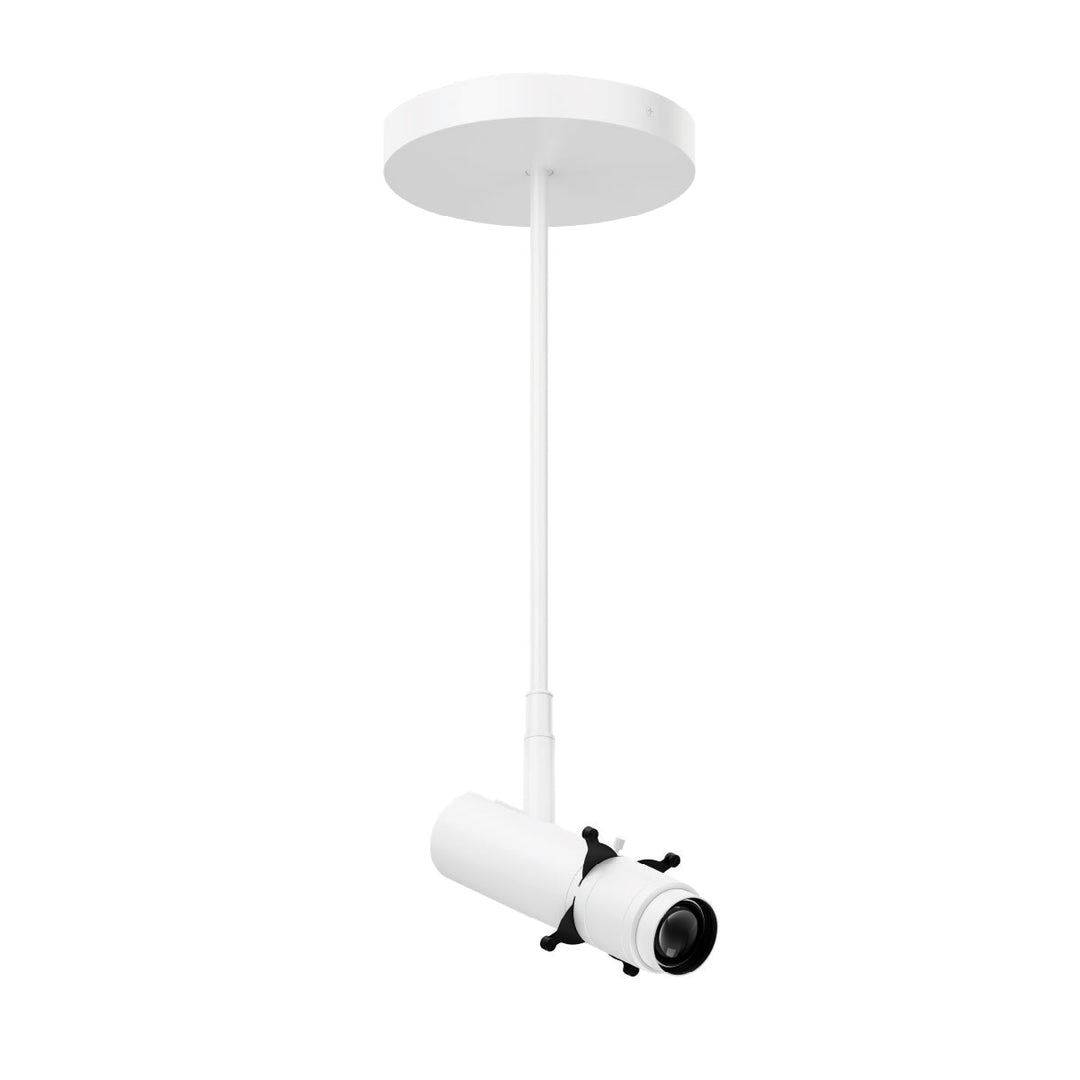

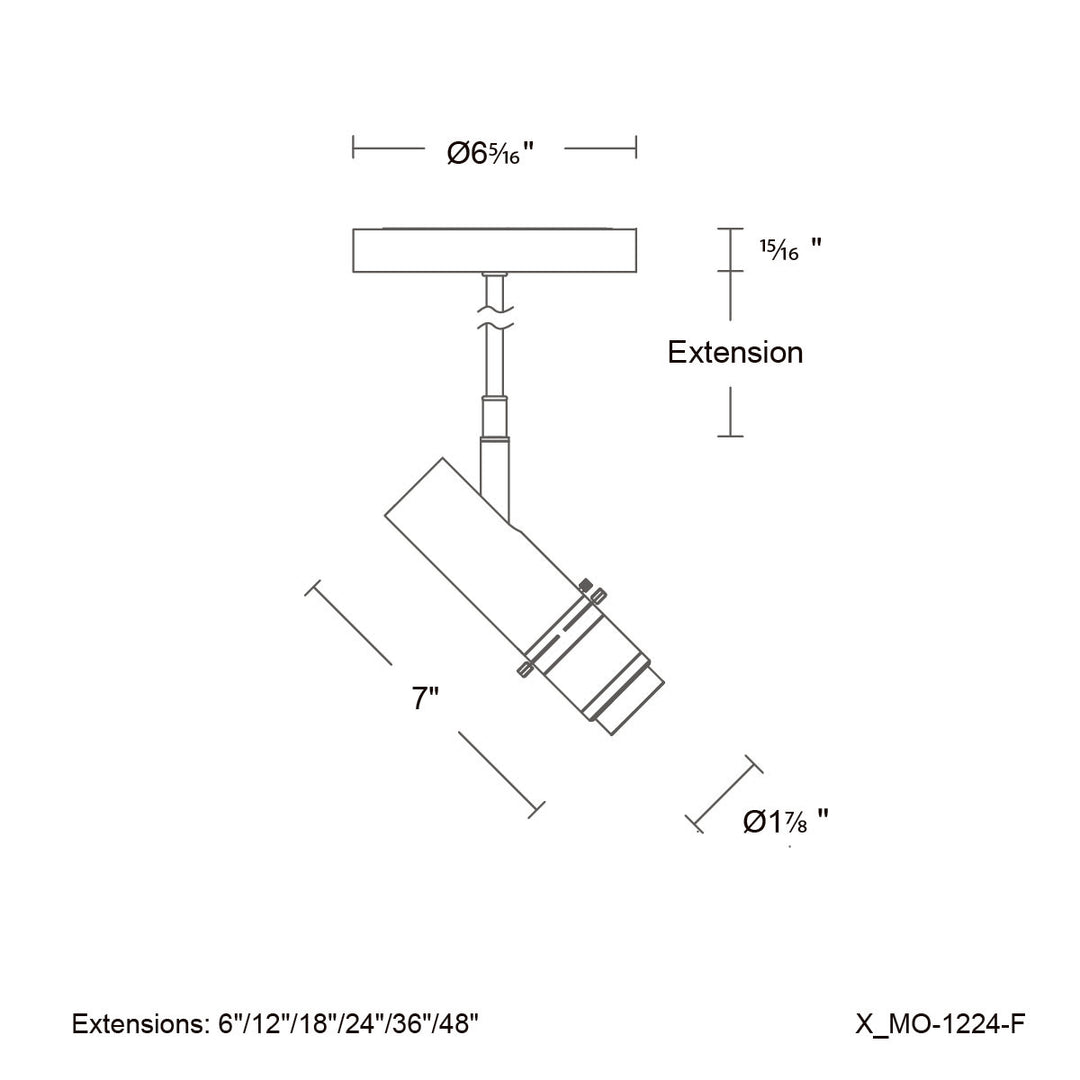

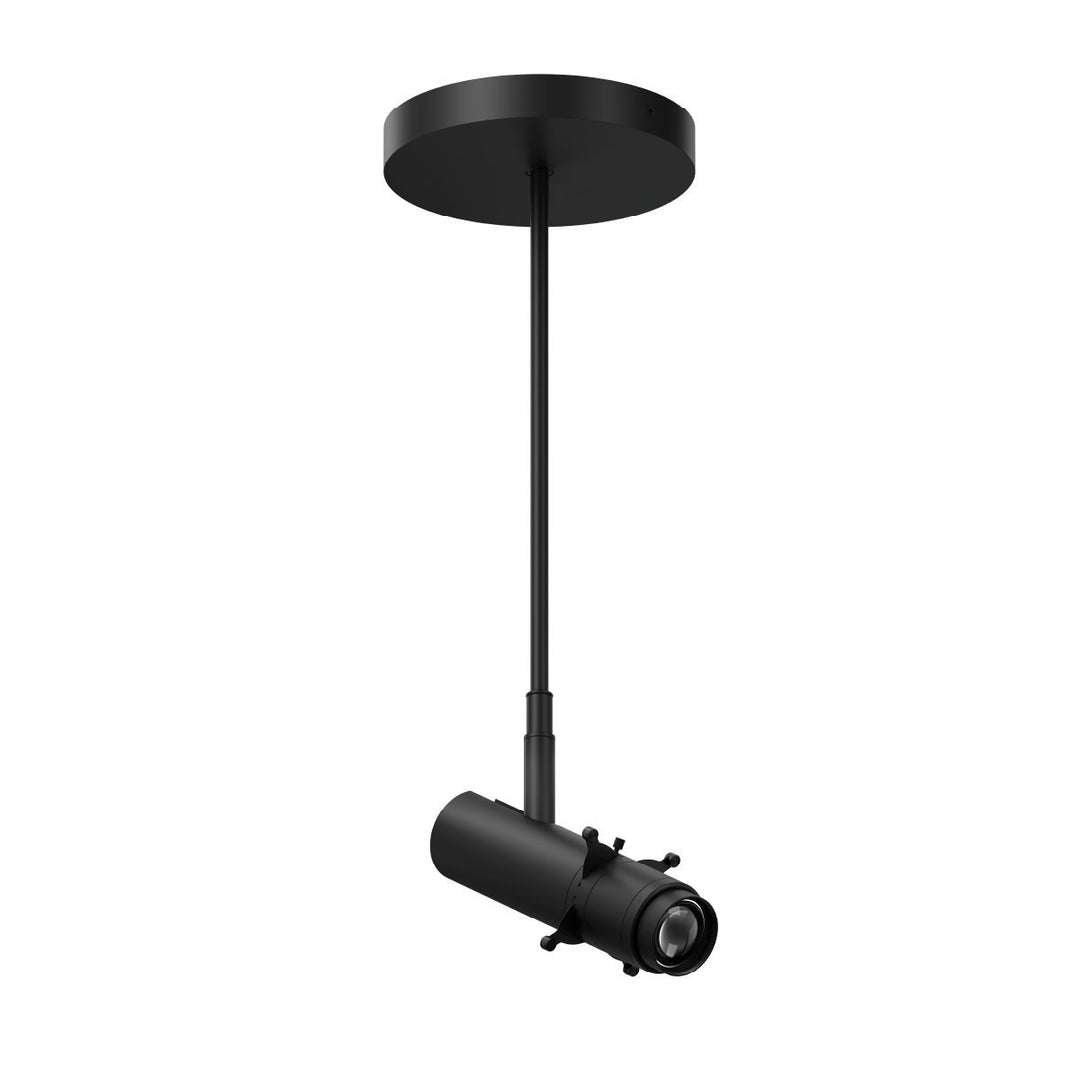

Extensions are custom order as a complete unit, ceiling mount only
Driver concealed within the canopy
Can be mounted on ceiling or wall in all orientations

Select an option above to see its full specifications.

Free shipping on orders over $199. See our full shipping & return policy.

Need an electrician or install tips? Read our install guide or call us at 604-233-1998.
