Specifications
Model: AST-HB28-150WS1AT2C2-WH35/40/50WD
Beam Angle: 90°
Brightness: 22000/15000/12000Lm
CCT: 3500K/ 4000K/ 5000K ADJ
CRI: >80
Dimension: 10.83"x6.82"
Input Voltage: AC120-347V
Power Factor: >0.9
Special Features: Remote Control/ Sensor
IP Rating: IP65
Hardware included: 6' power cable and 1' dimming cable included in all luminaires
Power: 150W/ 100W/80W ADJ
IK Rating: IK08
Price List Description: 150W, 12000-22000LM / 3500/4000K/5000K Adjustable / 150W/100W/80W Adjustable / Dimmable, 6ft Cable / White / With Plug for Sensor

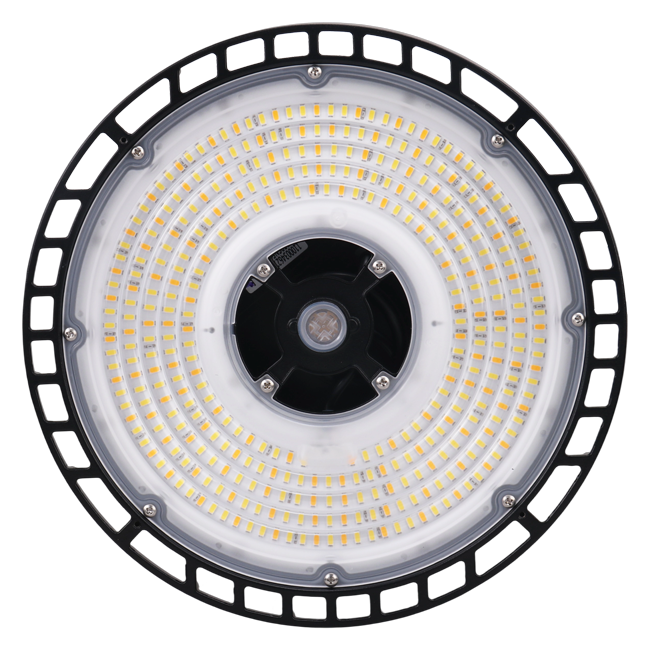

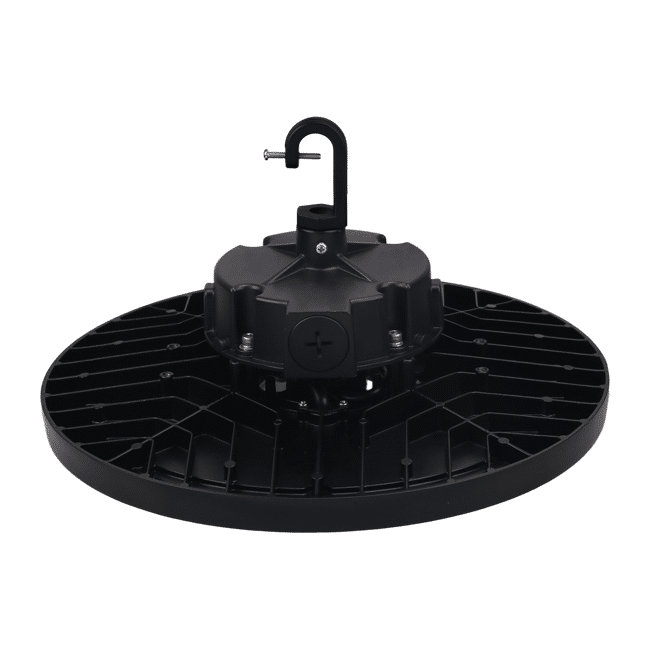

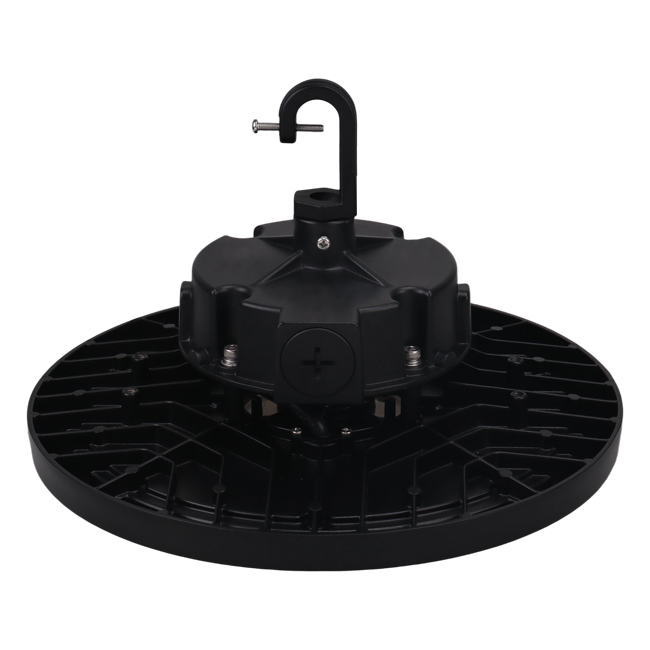

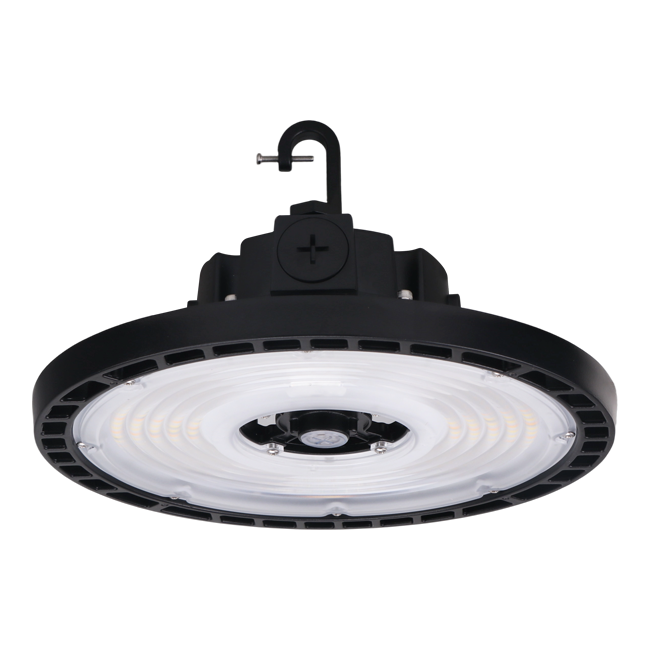

Model: AST-HB28-150WS1AT2C2-BH35/40/50WD
Beam Angle: 90°
Brightness: 22000/15000/12000Lm
CCT: 3500K/ 4000K/ 5000K ADJ
CRI: >80
Dimension: 10.83"x6.82"
Input Voltage: AC120-347V
Power Factor: >0.9
Special Features: Remote Control/ Sensor
IP Rating: IP65
Hardware included: 6' power cable and 1' dimming cable included in all luminaires
Power: 150W/ 100W/80W ADJ
IK Rating: IK08
Price List Description: 150W, 12000-22000LM / 3500/4000K/5000K Adjustable / 150W/100W/80W Adjustable / Dimmable, 6ft Cable / Black / With Plug for Sensor

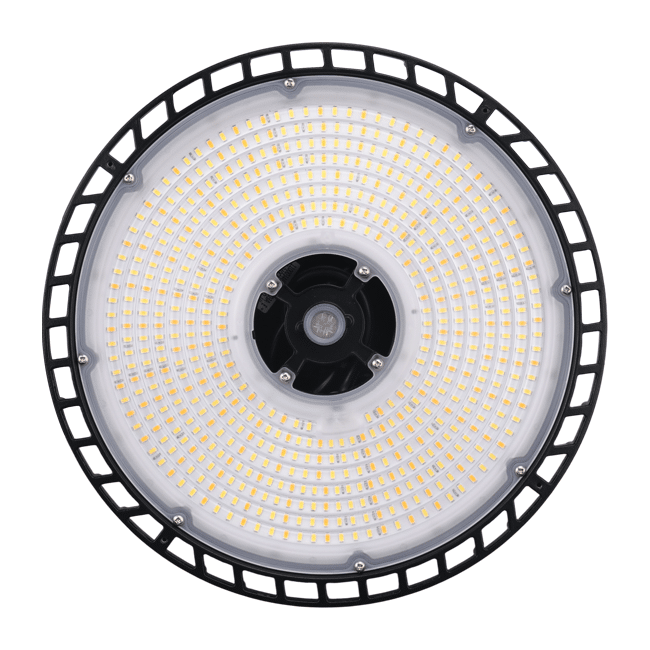

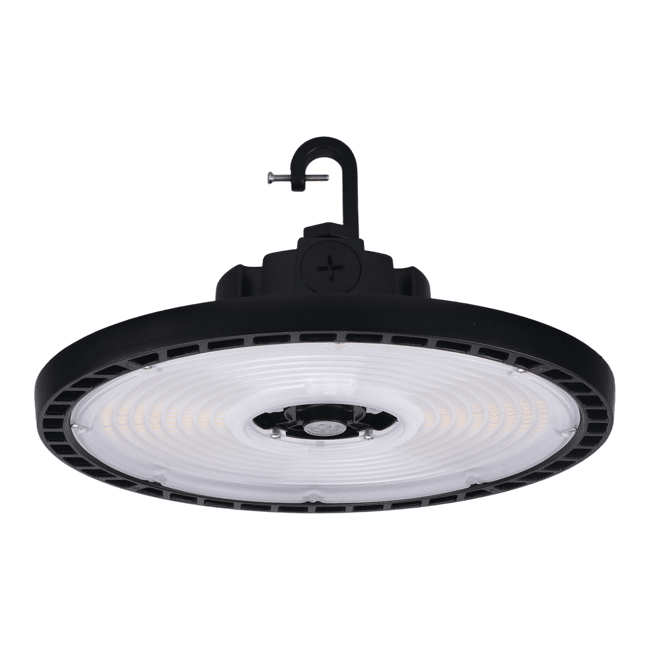

Model: AST-HB28-240WS1AT2C2-BH35/40/50KWD
Beam Angle: 90°
Brightness: 27000/31000/35000Lm
CCT: 3500K/ 4000K/ 5000K ADJ
CRI: >80
Dimension: 12.6"x6.82"
Input Voltage: AC120-347V
Power Factor: >0.9
Special Features: Remote Control/ Sensor
IP Rating: IP65
Hardware included: 6' power cable and 1' dimming cable included in all luminaires
Power: 240W/ 210W/180W Adj
IK Rating: IK08
Price List Description: 240W, 27000-35000LM , / 3500/4000K/5000K Adjustable / 240W/210W/180W Adjustable / Dimmable ,6ft Cable / With Plug for Sensor

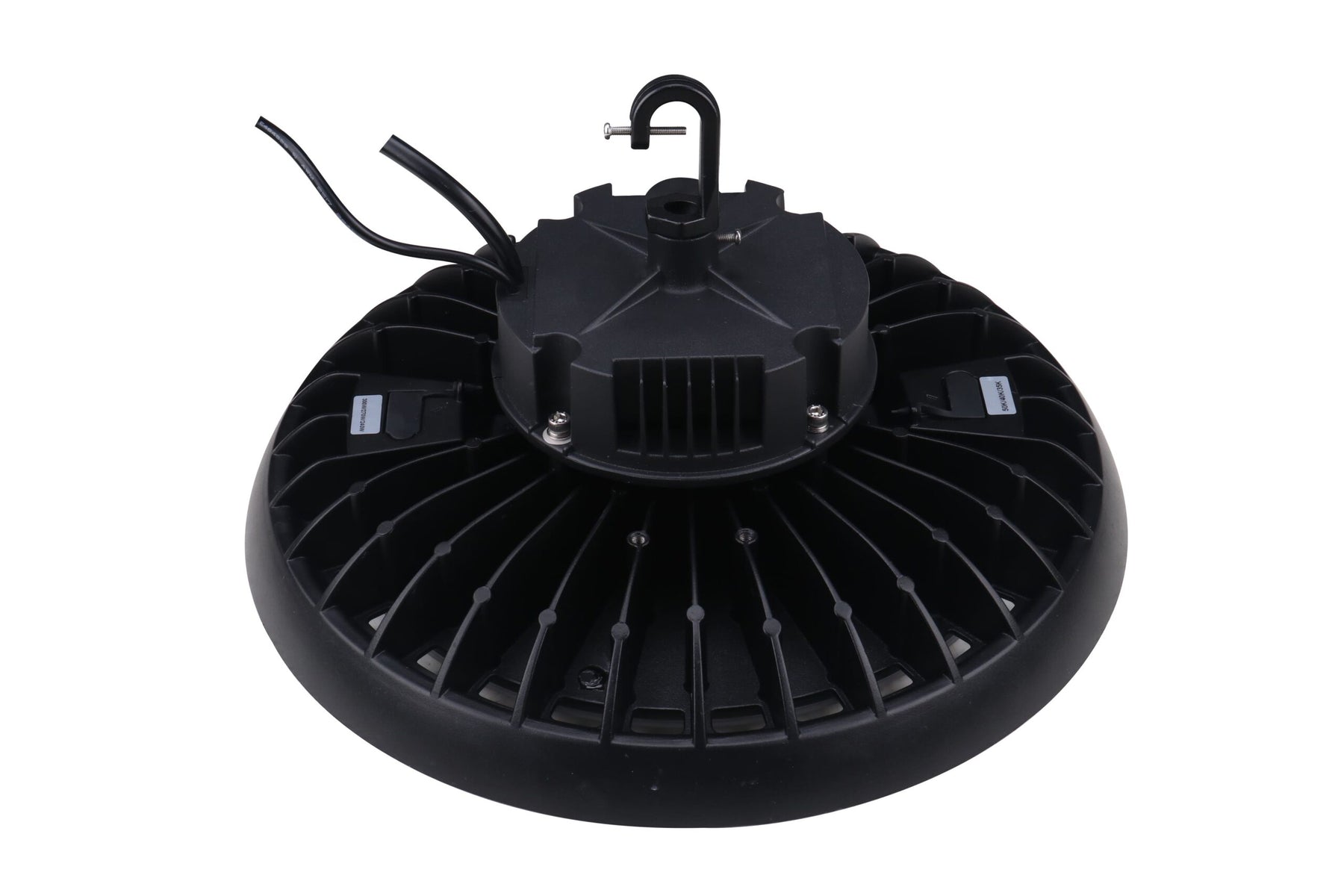

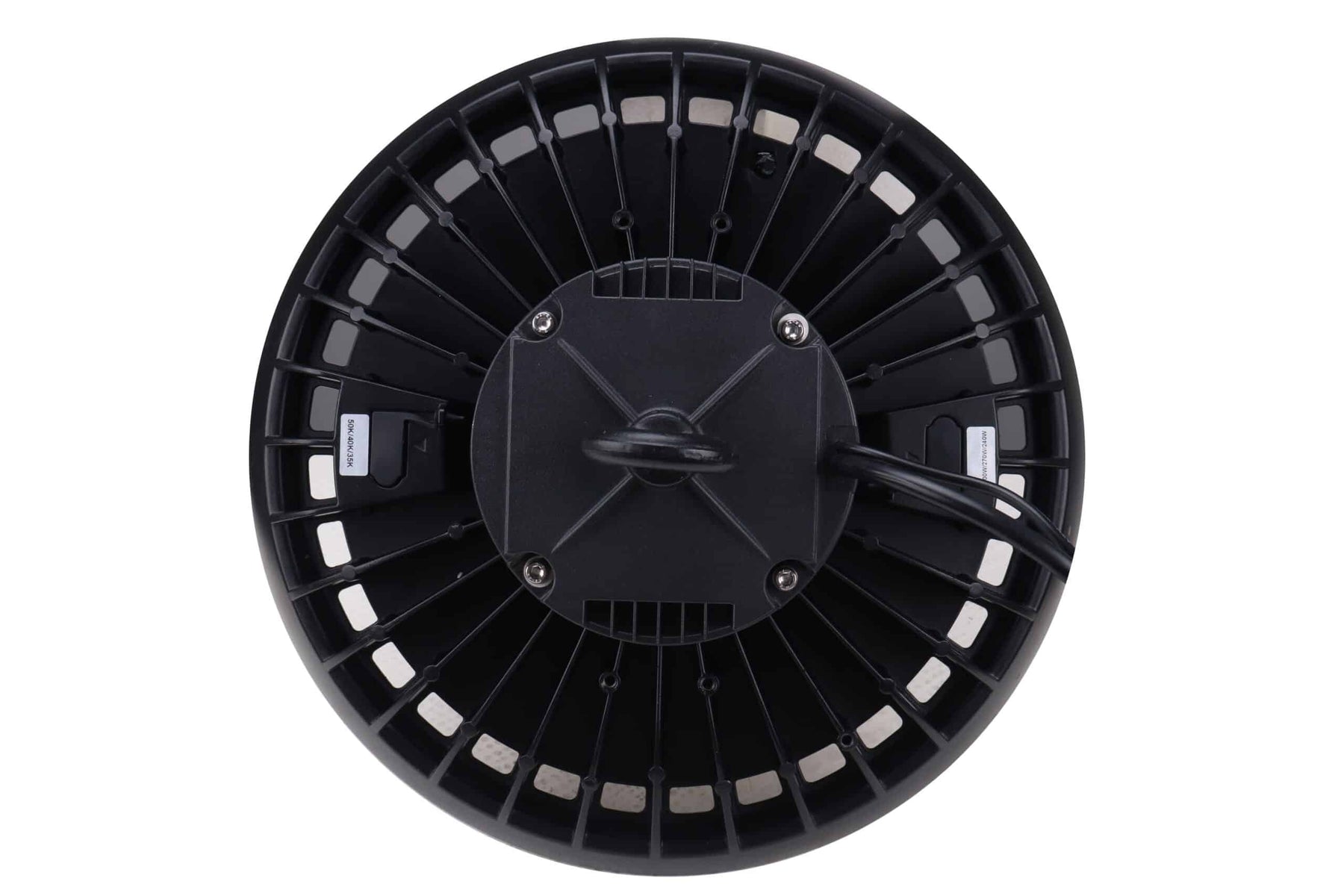

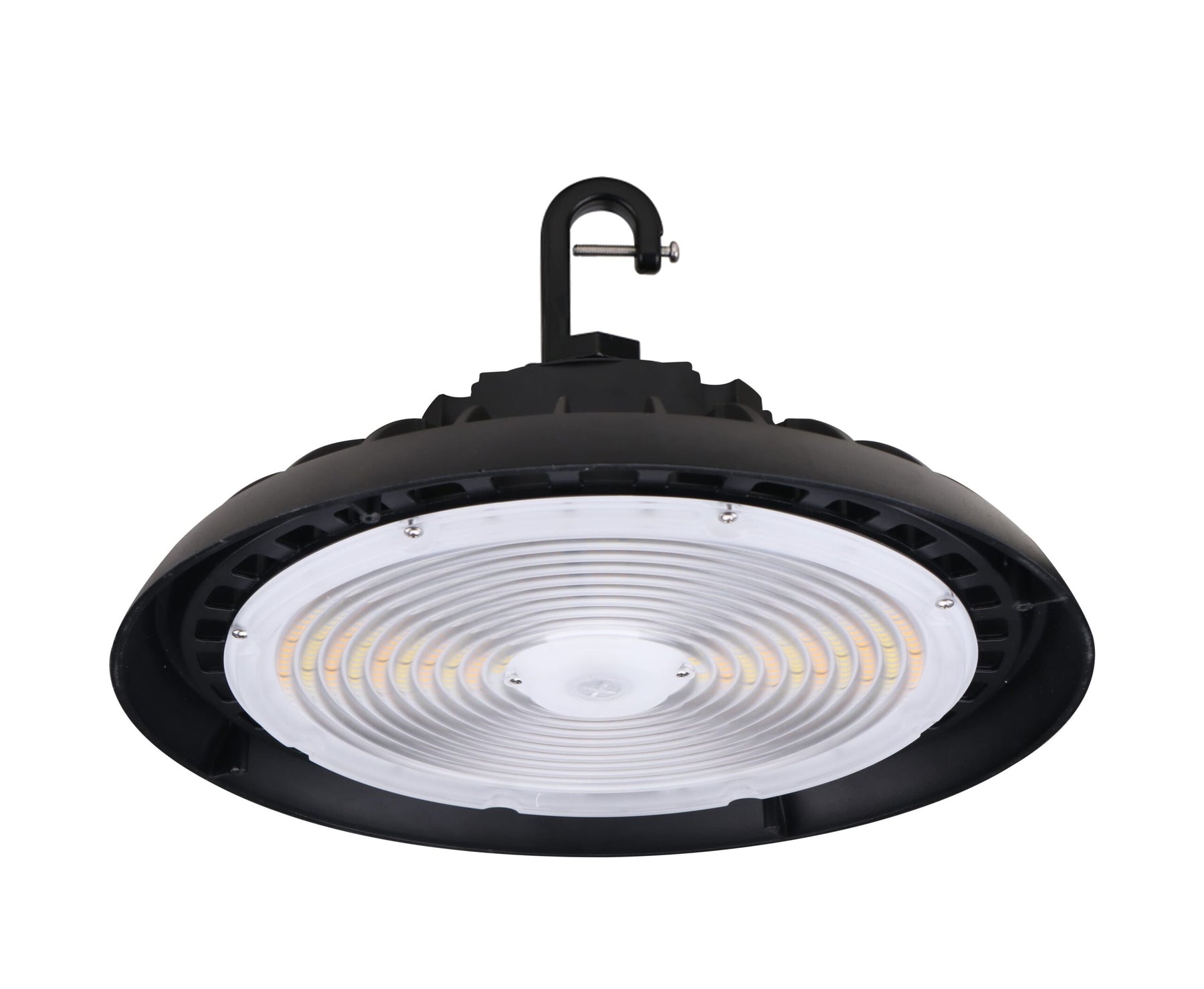

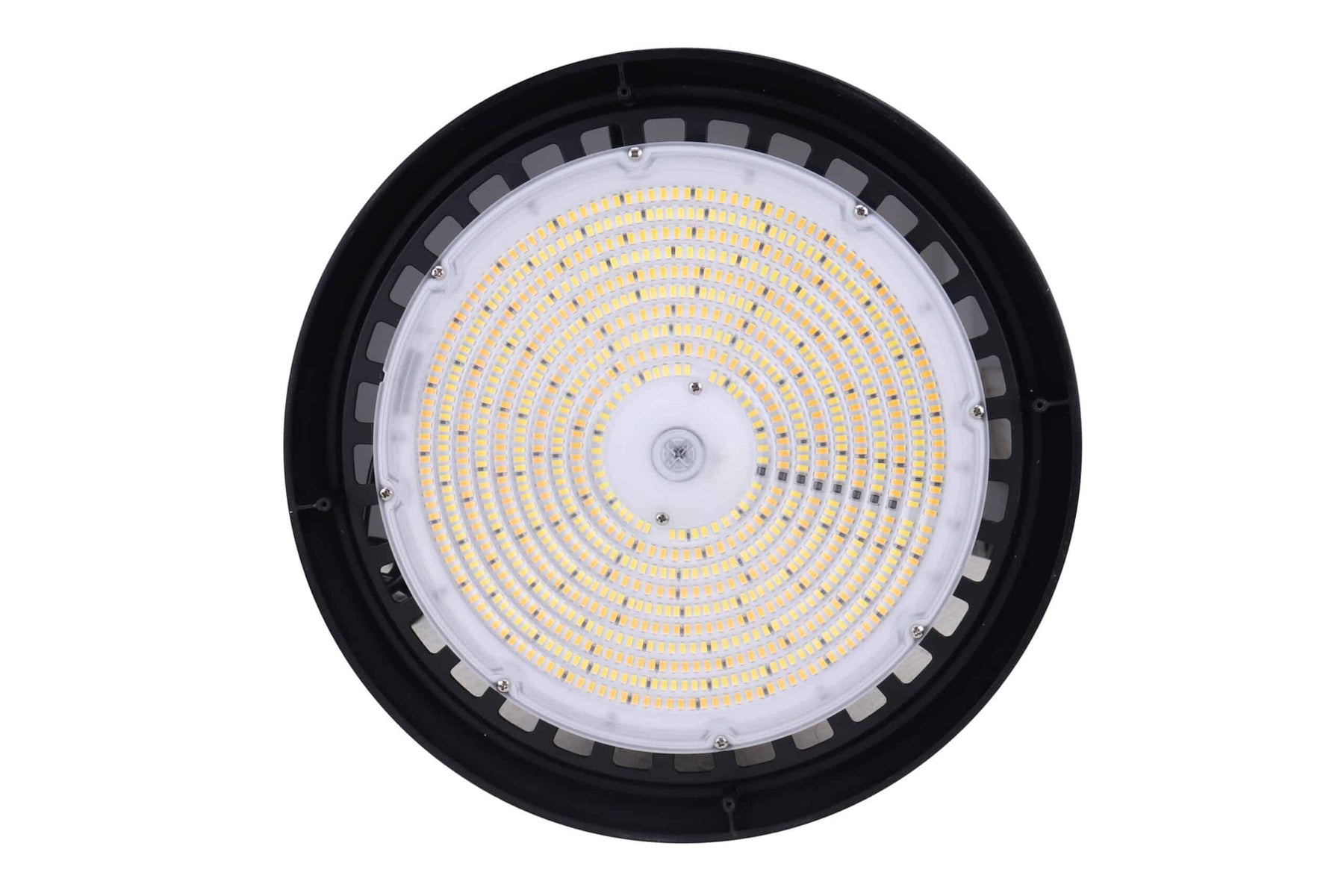

Model: AST-HB23-300WF1BT2C1-BH35/40/50WD
Beam Angle: 90°
Brightness: 35500/40000/44400Lm
CCT: 3500K/ 4000K/ 5000K ADJ
CRI: >80
Dimension: 13.8"x7.6"
Input Voltage: AC120-347V
Power Factor: >0.9
Special Features: Remote Control/ Sensor
IP Rating: IP65
Hardware included: 6" power cable and 6" dimming cable included in all luminaires
Power: 300W/ 270W/240W Adj
Price List Description: 300W, 35500-44400LM , / 3500/4000K/5000K Adjustable / 300W/270W/240W Adjustable / Dimmable ,6ft Cable / With Plug for Sensor

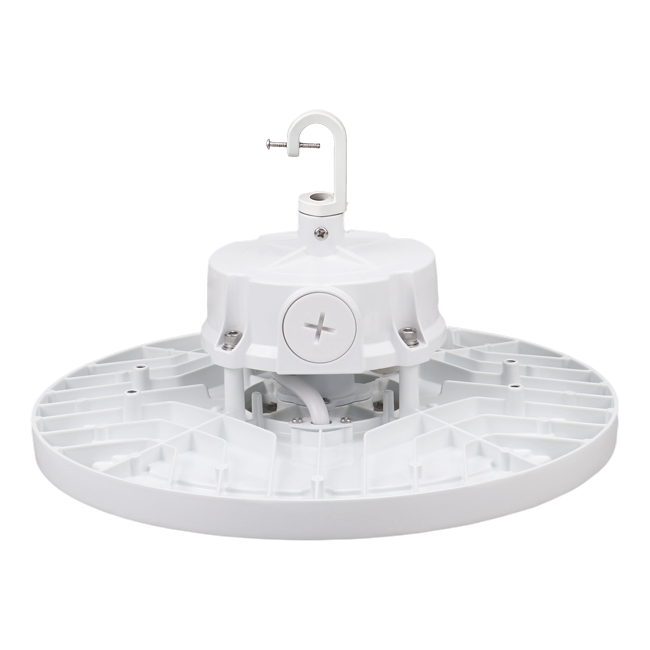

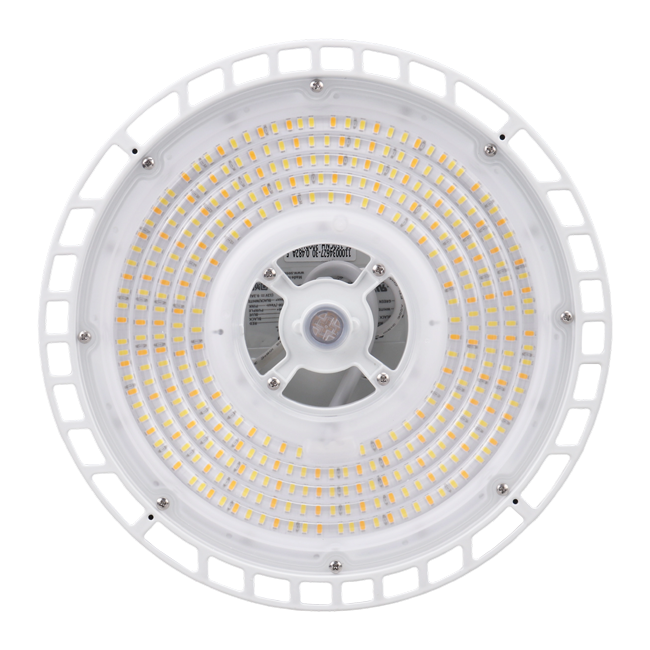

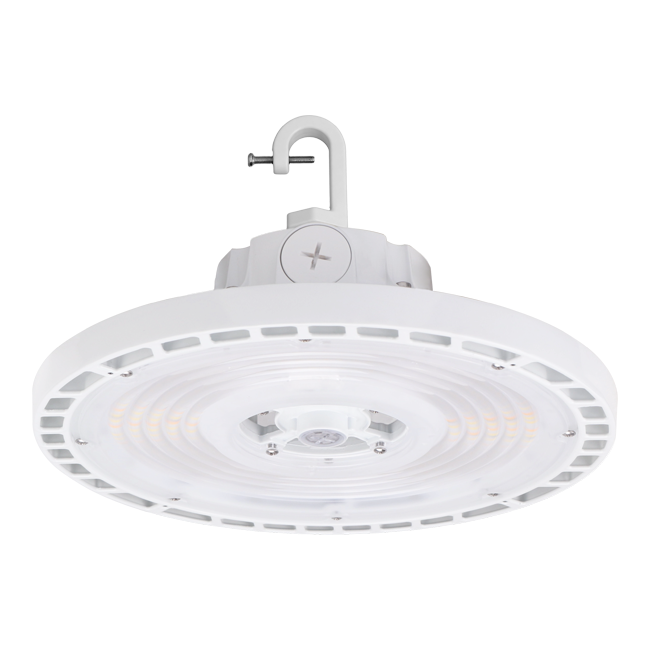

Same fixture as the black HB28, in a white housing. Votatec lists both finishes side by side and every spec line matches, so the choice is cosmetic.
One switch sets 150W, 100W or 80W. A second sets 3500K, 4000K or 5000K. That's 22,000 down to 12,000 lumens on AC120-347V, at 80+ CRI, 90 degree beam.
Polycarbonate lens, IK08, IP65, cULus wet location, 6kV surge protection. Five year warranty.
Select an option above to see its full specifications.
Downloads: Spec Sheet (150W/WH) | Manual (150W/WH) | Spec Sheet (300W) | Manual (300W)
