Specifications
Model: VO-COM4W16-347-5WAY
Beam Angle: 90°
Brightness: 125Lm/W
CCT: 2700K/ 3000K/ 3500K/ 4000K/ 5000K ADJ
CRI: >90
Dimension: 5.2"x3.7"
Input Voltage: AC120-347V
Power: 16W/ 12W/ 10W/ 8W/6W ADJ
Power Factor: 0.9
Special Features: Suitable for Wet location
Size: 4"
Price List Description: 16W-1968LM / 2700K/3000K/3500K/4000K/5000K Adj / 16W/12W/10W/8W/6W Adj / 120-347V / Wet Location - CRI90 / Dimmable

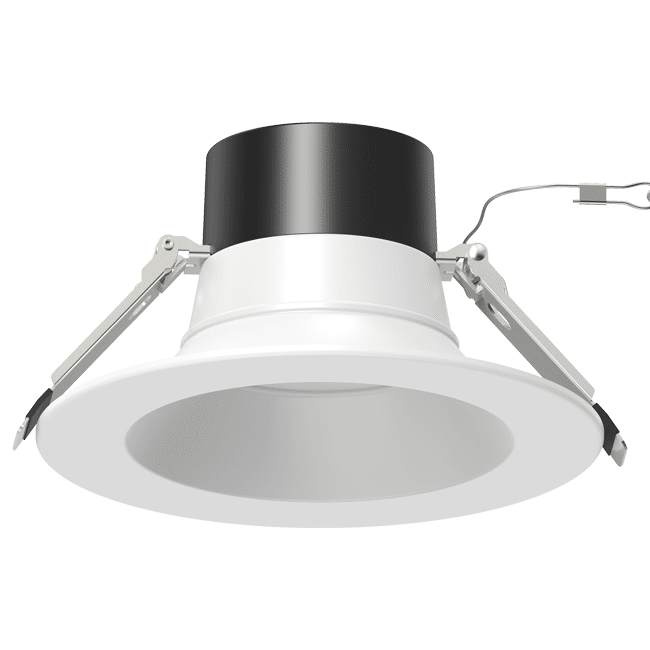

Model: VO-COM6W30-347-5WAY
Beam Angle: 90°
Brightness: 125Lm/W
CCT: 2700K/ 3000K/ 3500K/ 4000K/ 5000K ADJ
CRI: >90
Dimension: 7.8"x4.33"
Input Voltage: AC120-347V
Power: 30W/ 26W/ 22W/ 16W/12W ADJ
Power Factor: 0.9
Special Features: Suitable for Wet location
Size: 6"
Price List Description: 30W-3840LM / 2700K/3000K/3500K/4000K/5000K Adj / 12W/16W/22W/26W/30W Adj / 120-347V / Wet Location - CRI90 / Dimmable

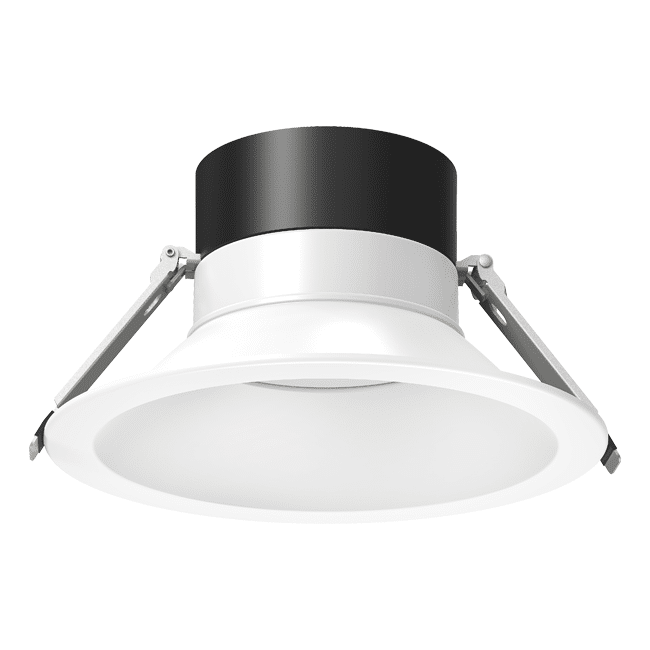

Model: VO-COM8W40-347-5WAY
Beam Angle: 90°
Brightness: 125Lm/W
CCT: 2700K/ 3000K/ 3500K/ 4000K/ 5000K ADJ
CRI: >90
Dimension: 9.37"x4.9"
Input Voltage: AC120-347V
Power: 40W/ 35W/ 30W/ 26W/22W ADJ
Power Factor: 0.9
Special Features: Suitable for Wet location
Size: 8"
Price List Description: 40W-4900LM / 2700K/3000K/3500K/4000K/5000K Adj / 40W/35W/30W/26W/22W Adj / 120-347V / Wet Location - CRI90 / Dimmable

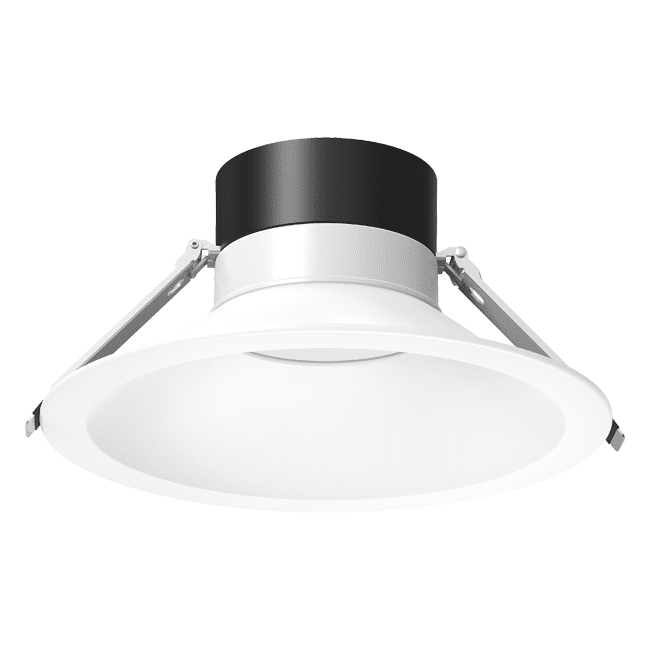

Model: VO-COM10W45-347-5WAY
Beam Angle: 90°
Brightness: 125Lm/W
CCT: 2700K/ 3000K/ 3500K/ 4000K/ 5000K ADJ
CRI: >90
Dimension: 9.37"x4.9"
Input Voltage: AC120-347V
Power: 45W/ 40W/ 35W/ 30W/26W Adj
Power Factor: 0.9
Special Features: Suitable for Wet location
Size: 10"
Price List Description: 45W-5395LM / 2700K/3000K/3500K/4000K/5000K Adj / 45W/40W/35W/30W/26W Adj / 120-347V / Wet Location - CRI90 / Dimmable

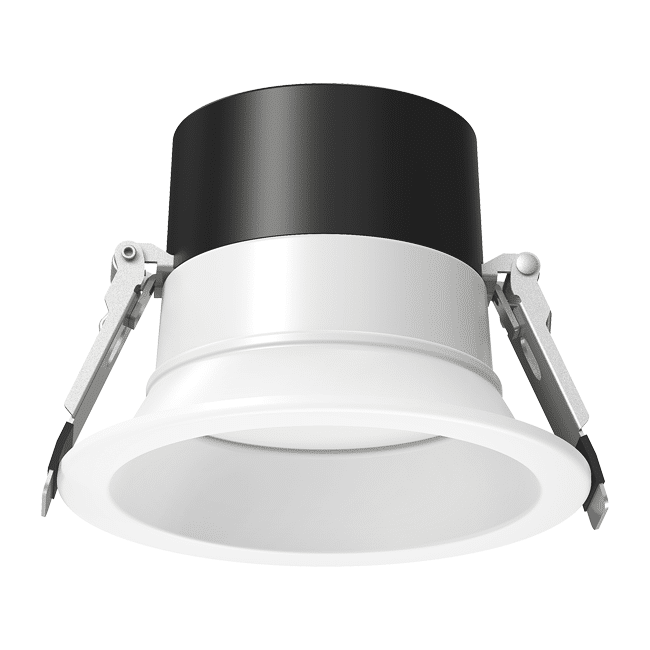

The 4" Commercial Downlight runs native 120-347V, so one part number covers the 120V tenant fit-out and the 347V base building.
Set the wattage on site: 6W, 8W, 10W, 12W or 16W. Five colour temperatures switch the same way, 2700K through 5000K. ENERGY STAR certified at 1,920 lumens, CRI 94, power factor 0.99.
Aluminum housing, 0-10V dimming, wet location listed, 5-year warranty.
Select an option above to see its full specifications.
Downloads: Spec Sheet (4″) | Manual (4″) | Spec Sheet (6″) | Manual (6″) | Manual (8″) | Manual (10″)
