Specifications
Model: CM-212B-RA(36W)
Power: 36W
CCT: 6000-6500K
Input Voltage: AC120-347V
Dimension: 11.9"x3"x10.1"
Housing material: Steel housing and thermal plastic remote heads
Charging time: 24hr
Emergency Time: 2W-9 hours
Battery: 6V 6Ah lead acid battery
Remote capable: 36W-30minutes
Output Voltage: 6V
Beam Angle: 30°
Hardware included: 3ft power cord
Price List Description: Steel Battery Unit(36W Remote Capable) / 2x2W, 12V Lead Acid Battery , 30Hr / 120/347V / Material:Steel Housing,Thermal Plastic Heads / CSA, 2 years warranty
Model: CM-216C-72W-F
Power: 72W
CCT: 6000-6500K
Input Voltage: AC120-347V
Dimension: 12"x3"x12.4"
Housing material: Steel housing and thermal plastic remote heads
Charging time: 24hr
Emergency Time: 4W- 9hours
Battery: 12V 7Ah lead acid battery
Remote capable: 72W-30min
Output Voltage: 12V
Beam Angle: 30°
Hardware included: 3ft power cord
Price List Description: Steel Battery Unit(72W Remote Capable) / 2x2W, 12V Lead Acid Battery , 30Hr / 120V/277V/347V / CSA, 2 years warranty
Model: CM-251-140W-2*5W
Power: 140W
CCT: 6000-6500K
Input Voltage: AC120-347V
Dimension: 13.5"x4.2"x12.8"
Housing material: Steel housing and thermal plastic remote heads
Charging time: 24hr
Emergency Time: 7W - 9hours
Battery: 12V 12Ah lead acid battery
Remote capable: 140W-30min
Output Voltage: 12V
Beam Angle: 30°
Hardware included: 3ft power cord
Price List Description: Steel Battery Unit(140W Remote Capable) / 2x5W, 12V Lead Acid Battery , 30Hr / 120V/277V/347V / cUL, 2 years warranty
Model: CM-265-144W
Power: 144W
CCT: 6000-6500K
Input Voltage: AC120-347V
Dimension: 13.9"x3.1"x13.7"
Housing material: Steel housing and thermal plastic remote heads
Charging time: 24hr
Emergency Time: 8W- 9hours
Battery: 2x12V 8Ah lead acid battery
Remote capable: 144W-30min
Output Voltage: 24V
Beam Angle: 30°
Hardware included: 3ft power cord
Price List Description: Steel Battery Unit(144W Remote Capable) / 2x5W, Lead Acid Battery / 120V/347V / CSA, 2 years warranty
Model: BY-Z2250U-N
Power: 2x2W LED heads
CCT: 6000K
Input Voltage: 120/277/347 VAC
Dimension: 13.98"x9.06"x3.46"
Housing material: Steel housing and thermal plastic remote heads
Charging time: 24hr
Emergency Time: 4W-50hrs
Battery: 2pcs 6V 12Ah Lead Acid battery
Temperature: 0°C~40°C
Remote capable: 150W-30min
Price List Description: Steel Battery Unit(150W Remote Capable) / 2x 6V 12000mAh Lead Acid Battery , 50Hr / 120V/277V/347V / cUL
Model: CM-252-275W-2*5W
Power: 2x5W LED HEADS
CCT: 6000K
Input Voltage: 120/347 VAC
Dimension: 13.98"x9.06"x3.46"
Housing material: Steel housing and thermal plastic remote heads
Charging time: 24hr
Emergency Time: 4W-50hrs
Battery: 2pcs 6V 12Ah Lead Acid battery
Remote capable: 275W-30minutes
Price List Description: Steel Battery Unit(275W Remote Capable) / 2x5W, 12V Lead Acid Battery / 120V/277V/347V / 3.5ft Power Cord

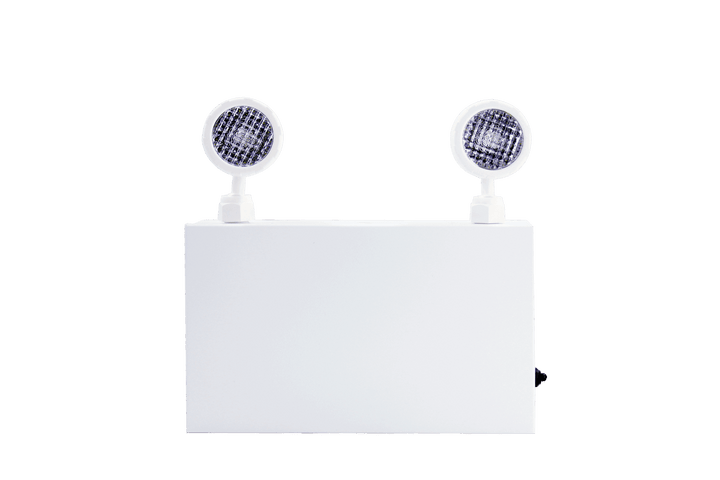

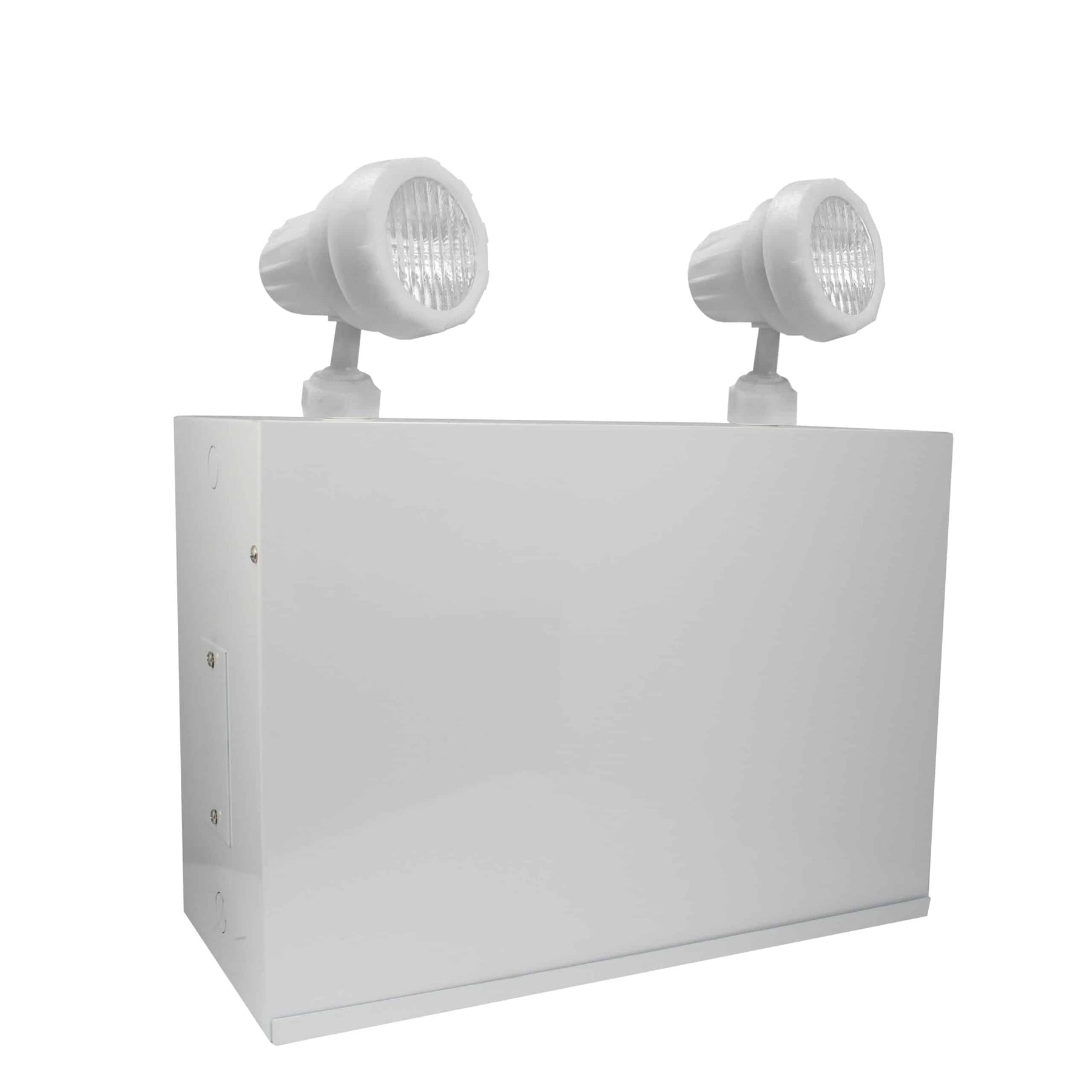

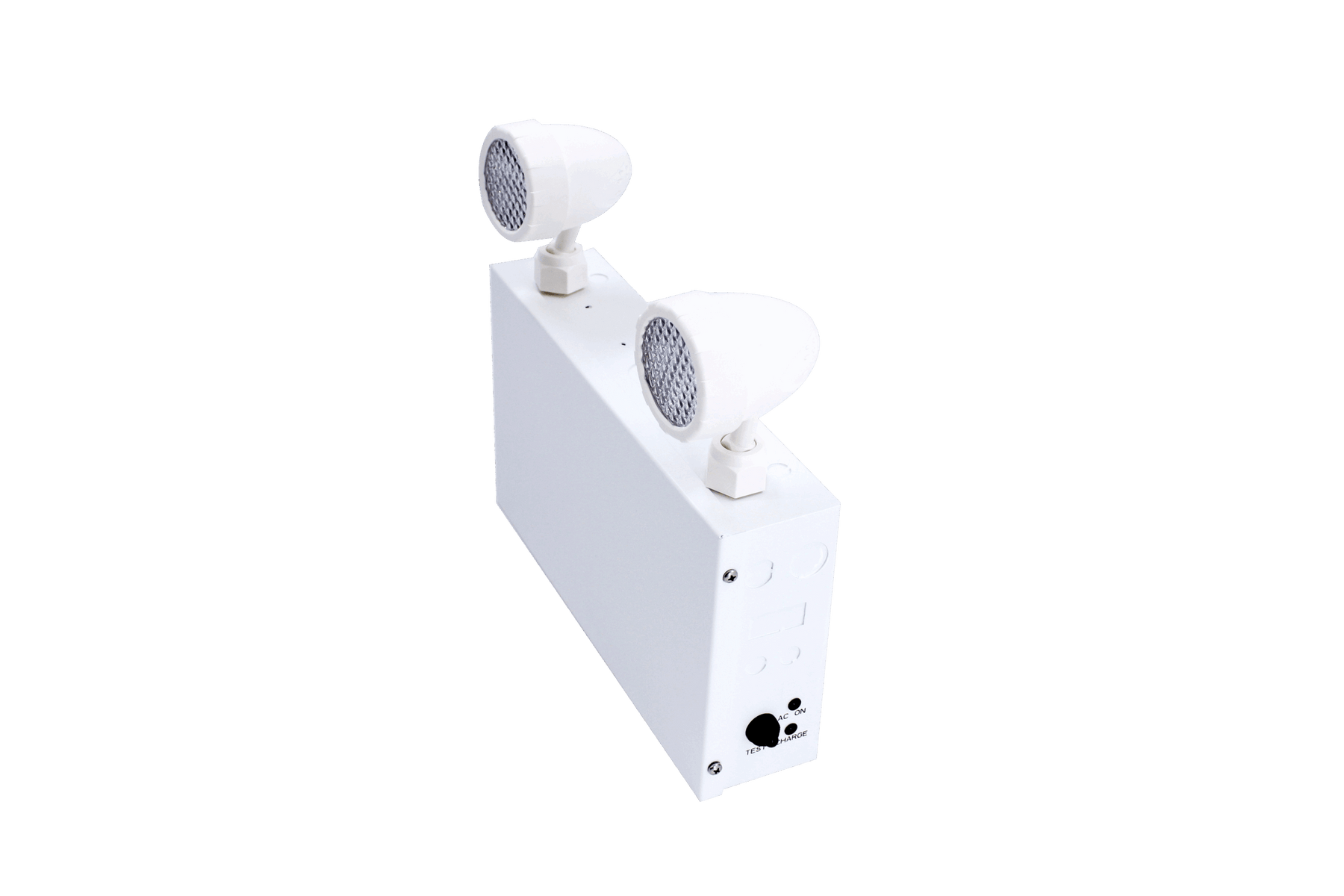

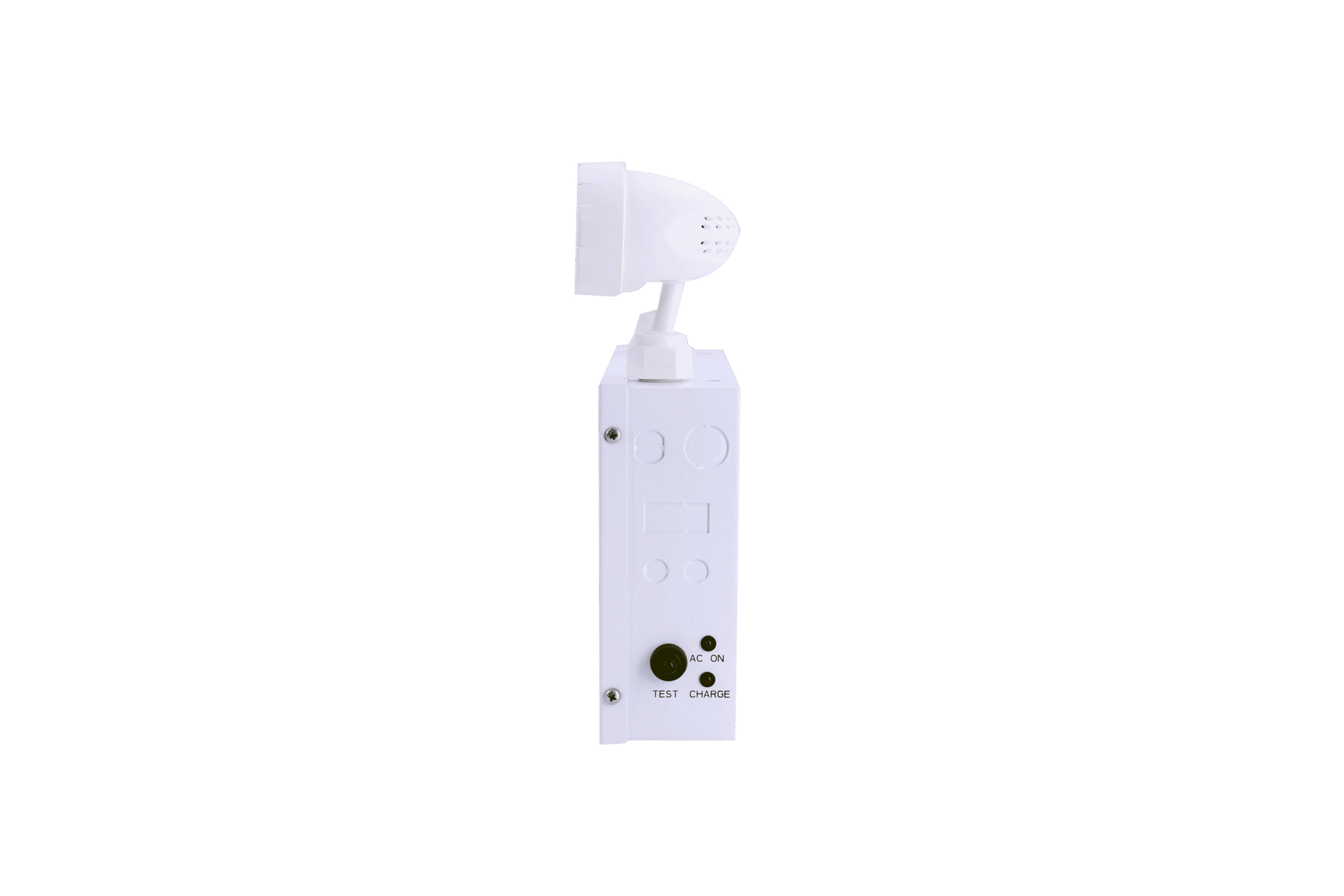

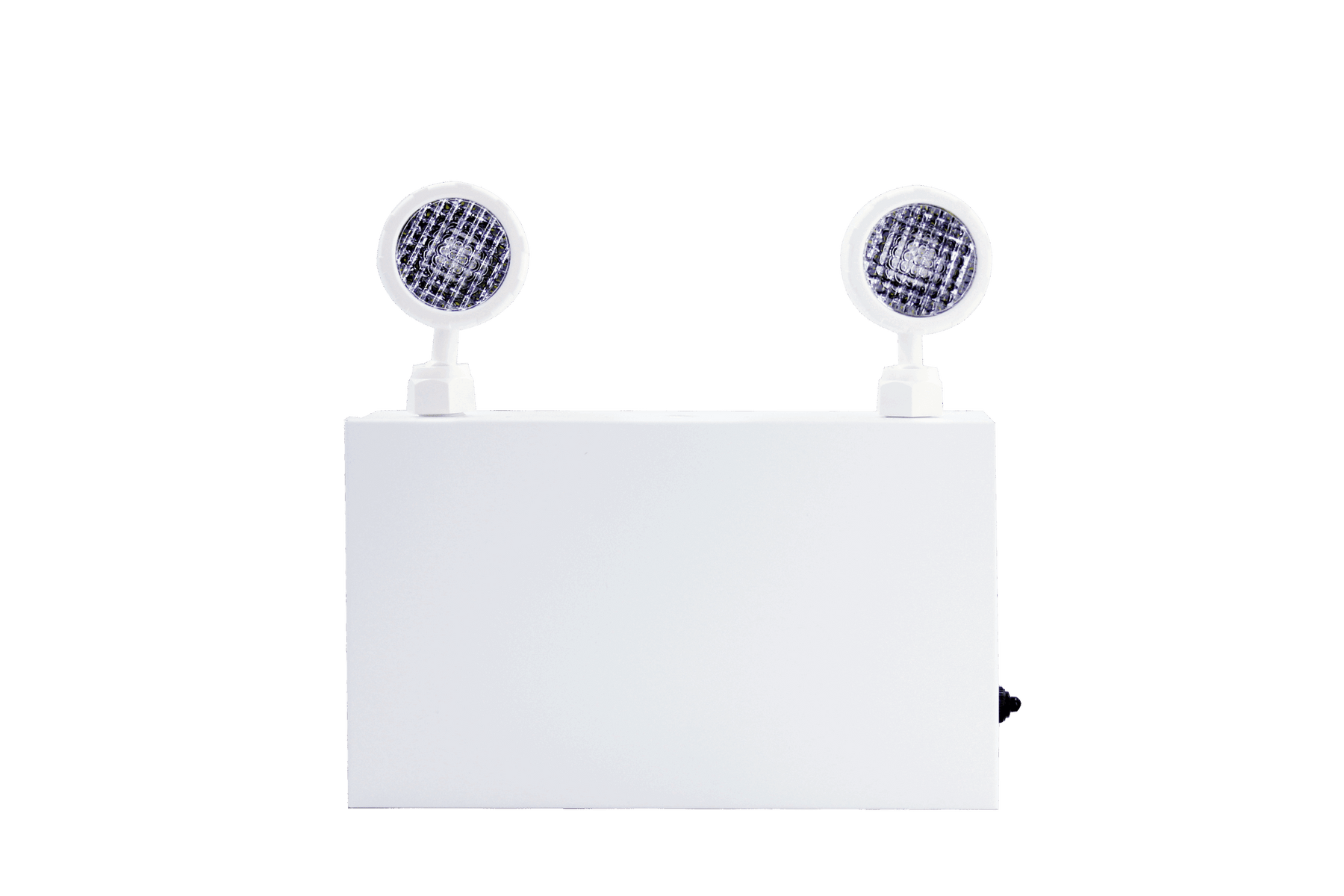

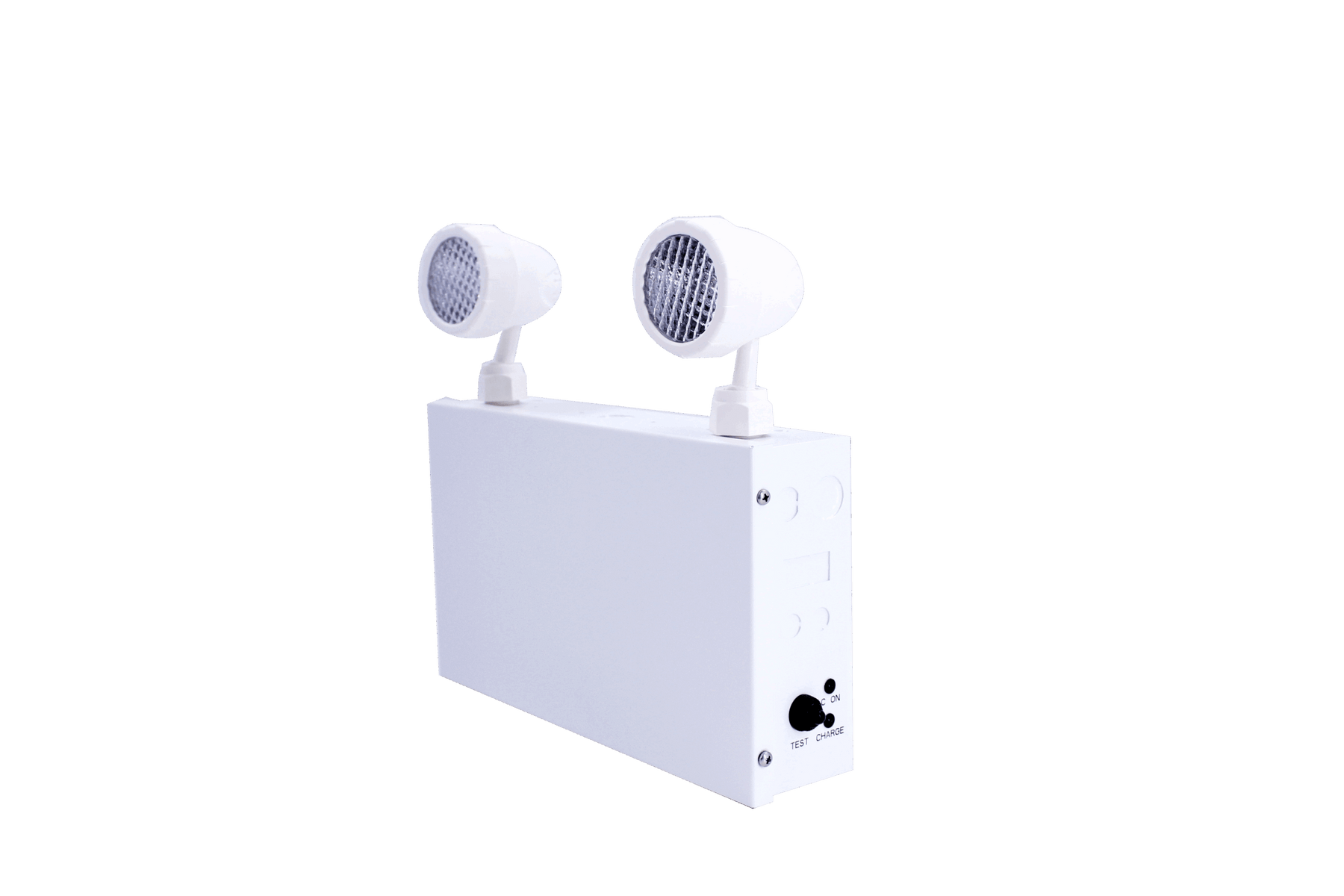

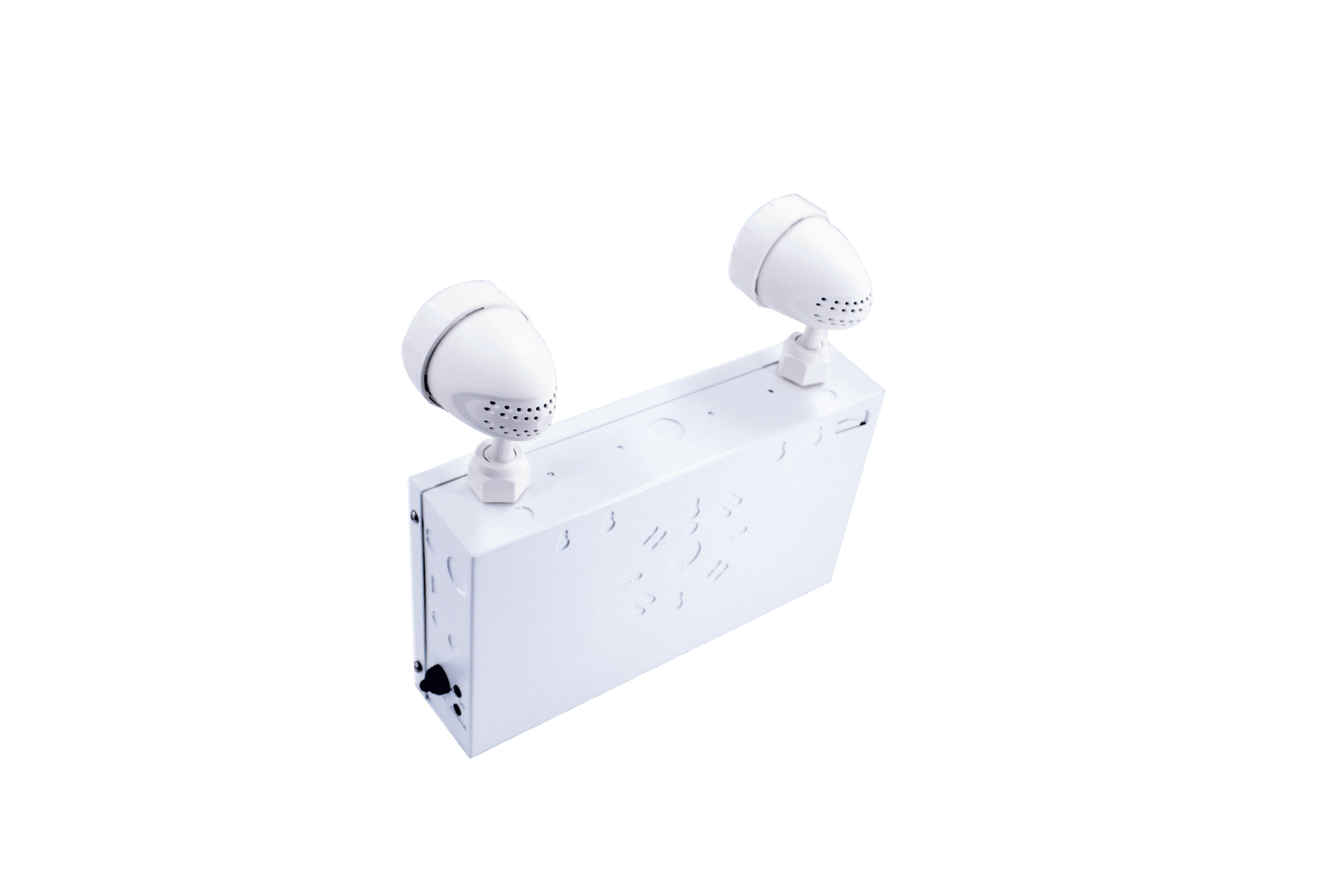

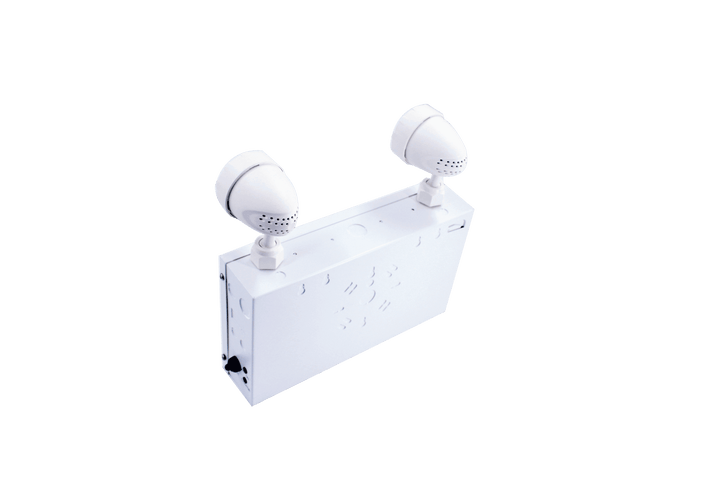

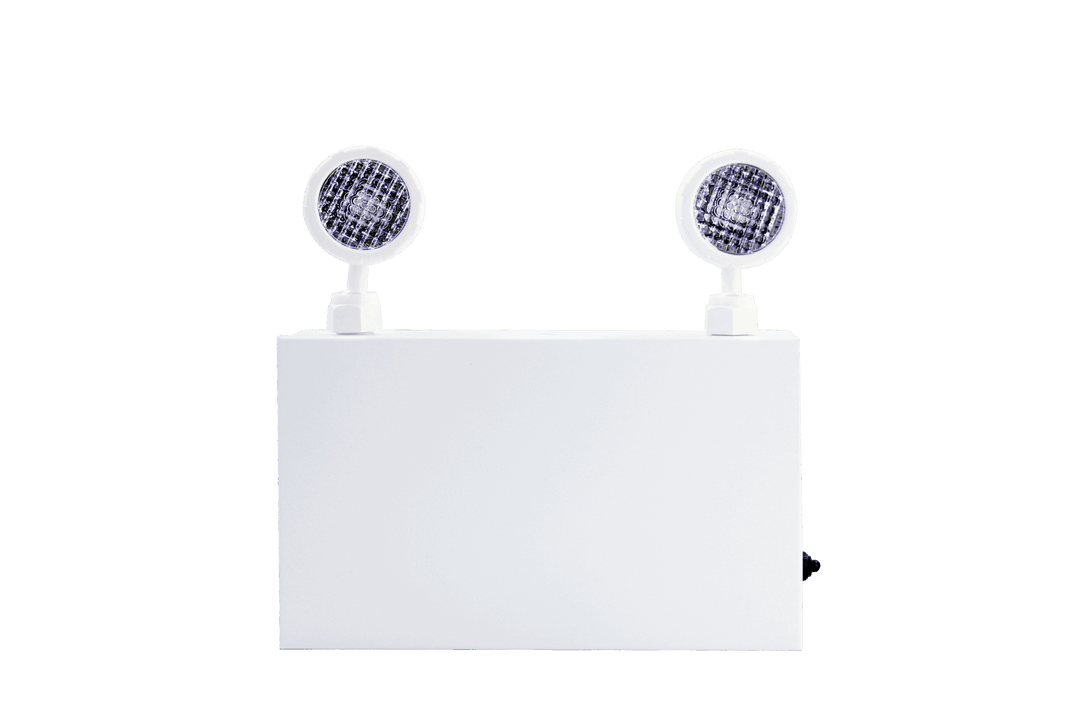

This steel emergency battery unit drives two integral lamp heads plus remote heads on one 6V DC circuit, so a single unit can cover a corridor and the rooms off it.
Rated 36W, with 30 minutes of runtime at full load from a 6V 6Ah lead-acid battery. Input is AC120-347V. Output runs 6000-6500K at CRI above 80, on a 30 degree beam.
Body's 20-gauge powder-coated steel with thermal plastic heads. CSA listed to C22.2 No. 141-15, 5-year warranty.
Select an option above to see its full specifications.
Downloads: Spec Sheet (36W) | Manual (36W) | Spec Sheet (72W) | Manual (72W) | Spec Sheet (140W) | Manual (140W) | Manual (144W) | Spec Sheet (150W) | Manual (150W) | Spec Sheet (275W)
