Specifications

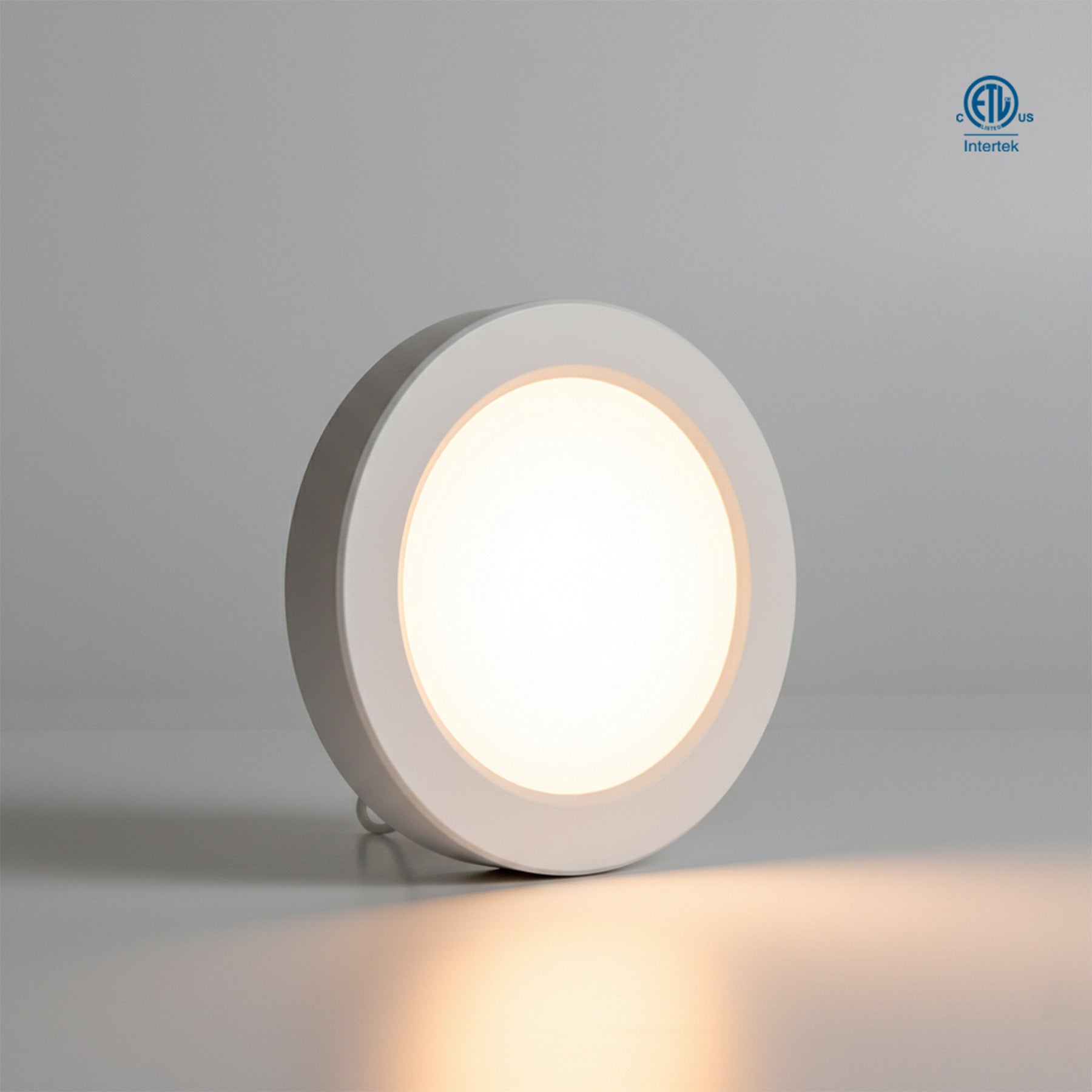

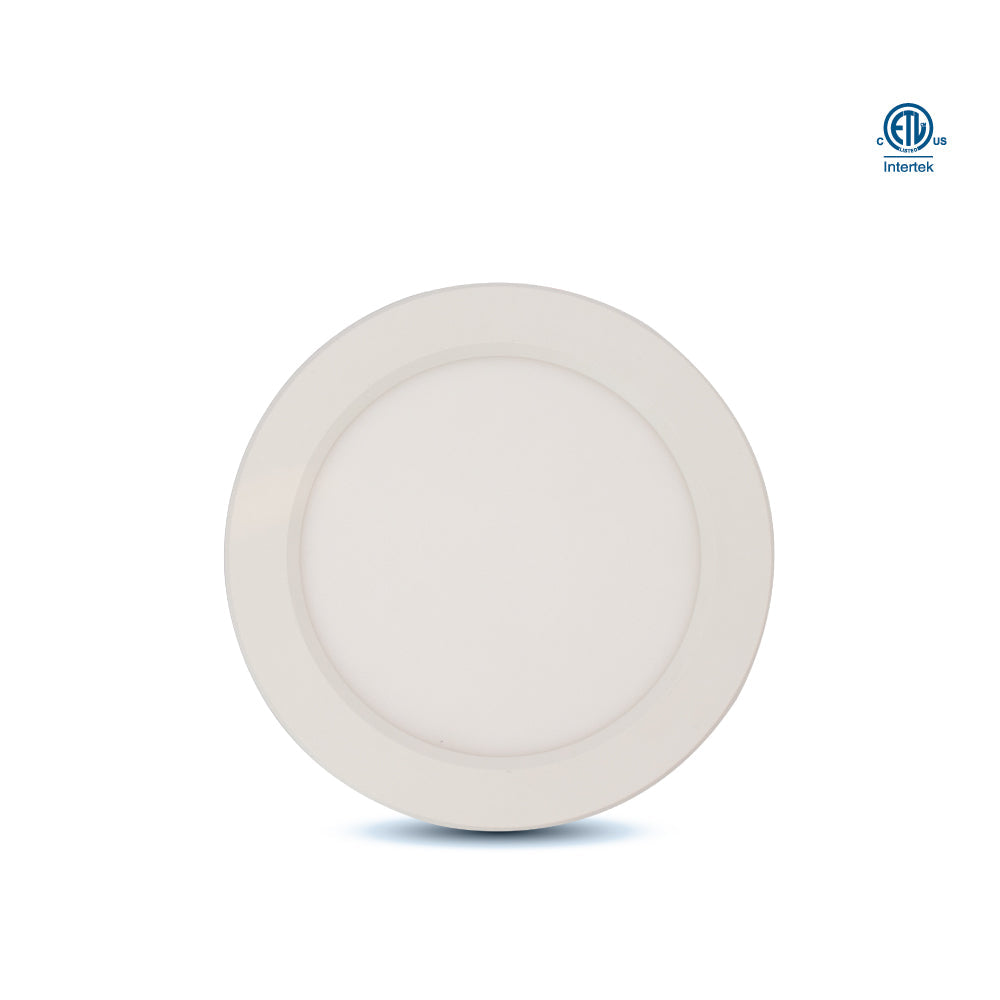

Model: FM1-5-5CCT-010V
Description: 5" Flush Mounts With Adjustable CCT. 10W, 600lmns, 120-277v, 0-10v Dimming, 5CCT (2700k, 3000k, 3500k, 4000k, 5000K), Wet Location Rated (Indoor Only)
Wattage: 10W
Voltage: 120-277V AC
Lumens: 600 lmn
Beam Angle: 120°
Lifetime: 50,000 hours
CRI: 80Ra
Dimmable: Yes (0-10V dimming)
Colour Temperature: 5CCT [2700K/3000K/3500K/4000K/5000K]
Grade of Protection: IP54
Rating: IC rated/ Wet location / Indoor use

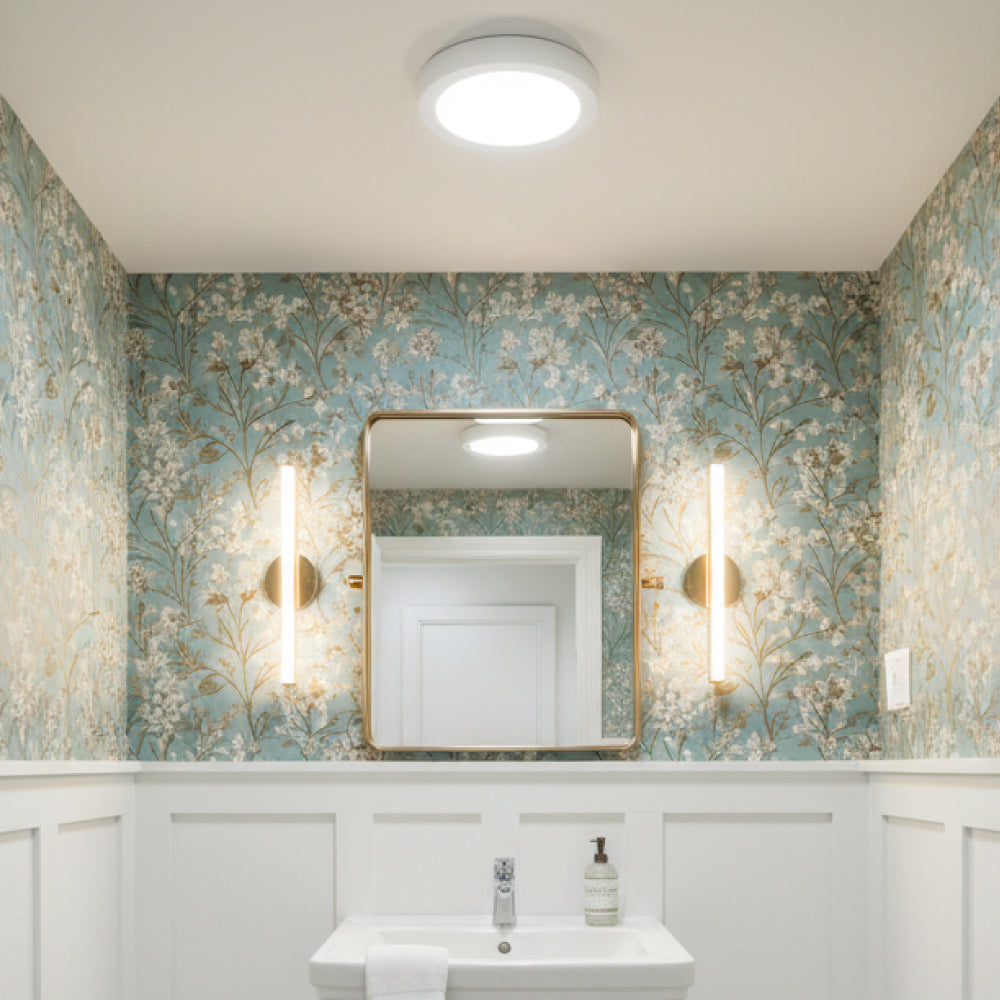

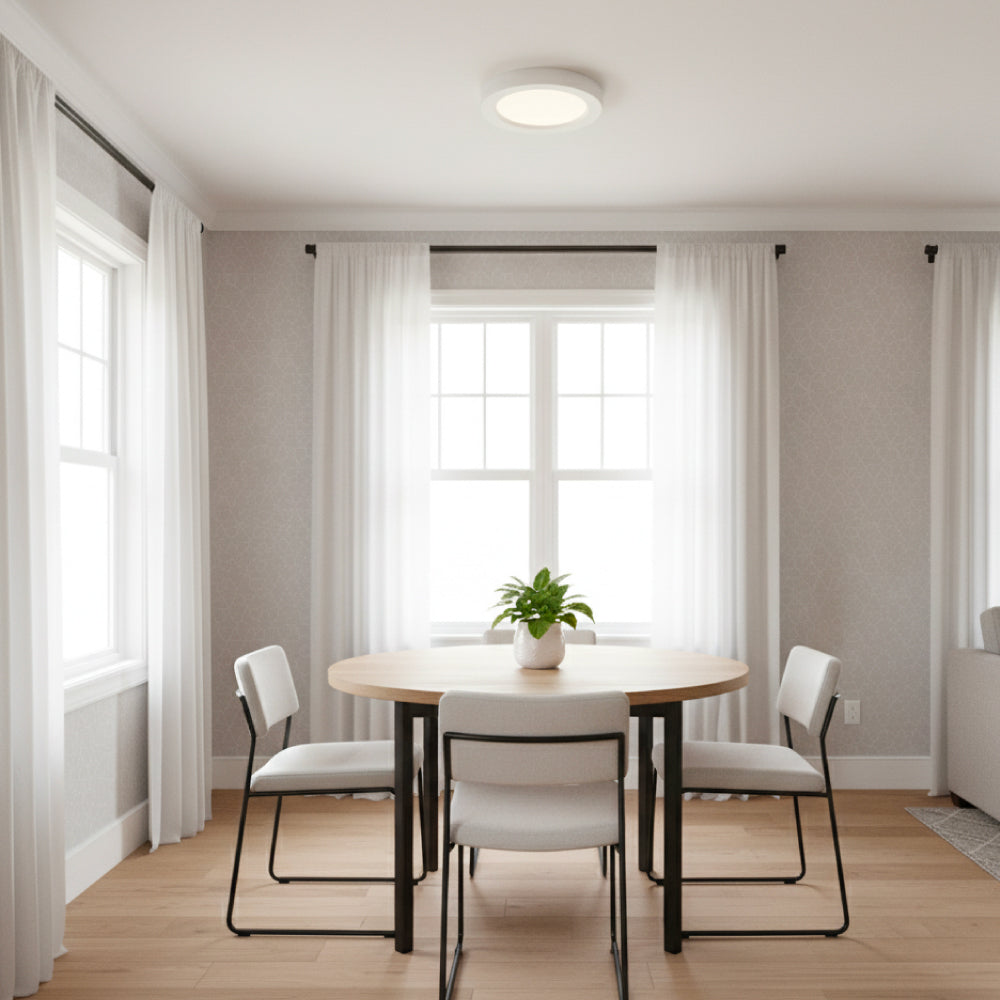

Application: Corridors / Lobbies / Kitchens / Bathrooms / Bedrooms
Operating Temperature: -20°C ~ +40°C
Warranty: 5 Years
Model: FM1-7-5CCT-010V
Description: 7" Flush Mounts With Adjustable CCT. 15W, 1000lmns, 120-277v, 0-10v Dimming, (2700k, 3000k, 3500k, 4000k, 5000K), Wet Location Rated (Indoor Only)
Wattage: 15W
Voltage: 120-277V AC
Lumens: 1000 lmn
Beam Angle: 120°
Lifetime: 50,000 hours
CRI: 80Ra
Dimmable: Yes (0-10V dimming)
Colour Temperature: 5CCT [2700K/3000K/3500K/4000K/5000K]
Grade of Protection: IP54
Rating: IC rated/ Wet location / Indoor use
Application: Corridors / Lobbies / Kitchens / Bathrooms / Bedrooms
Operating Temperature: -20°C ~ +40°C
Warranty: 5 Years

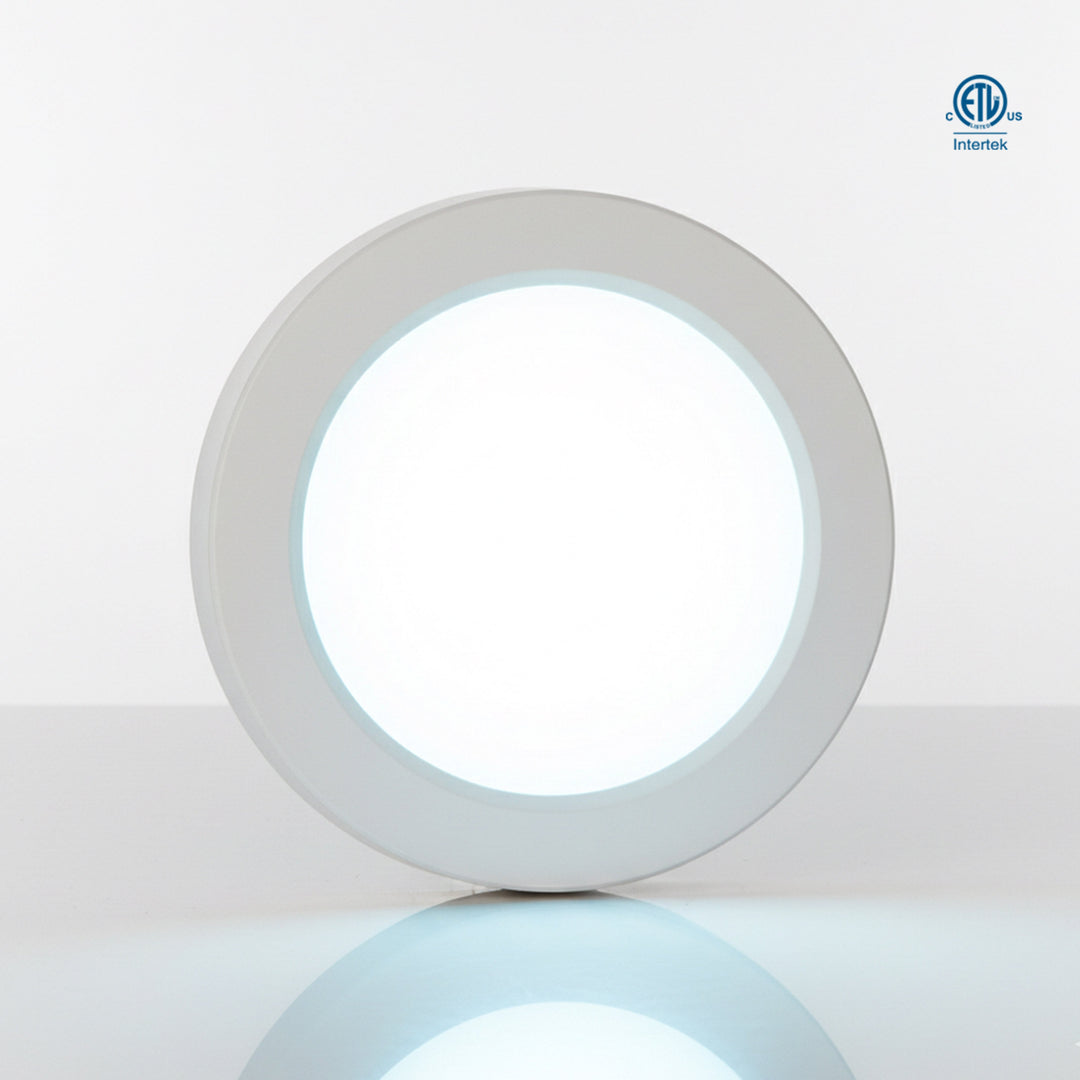

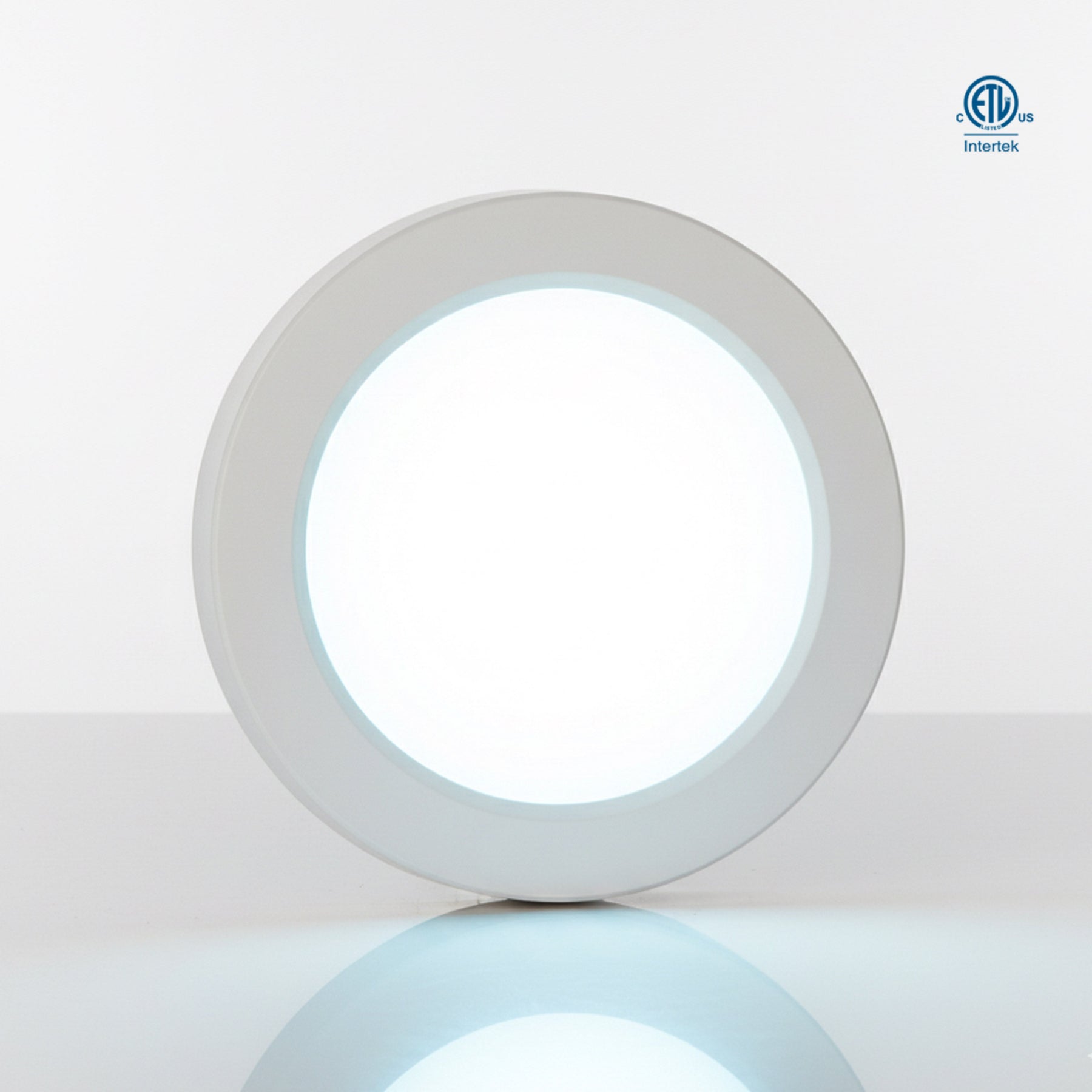

Model: FM1-9-5CCT-010V
Description: 9" Flush Mounts With Adjustable CCT. 18W, 1400lmns, 120-277v, 0-10v Dimming, (2700k, 3000k, 3500k, 4000k, 5000K), Wet Location Rated (Indoor Only)
Wattage: 18W
Voltage: 120-277V AC
Lumens: 1400 lmn
Beam Angle: 120°
Lifetime: 50,000 hours
CRI: 80Ra
Dimmable: Yes (0-10V dimming)
Colour Temperature: 5CCT [2700K/3000K/3500K/4000K/5000K]
Grade of Protection: IP54
Rating: IC rated/ Wet location / Indoor use
Application: Corridors / Lobbies / Kitchens / Bathrooms / Bedrooms
Operating Temperature: -20°C ~ +40°C
Warranty: 5 Years

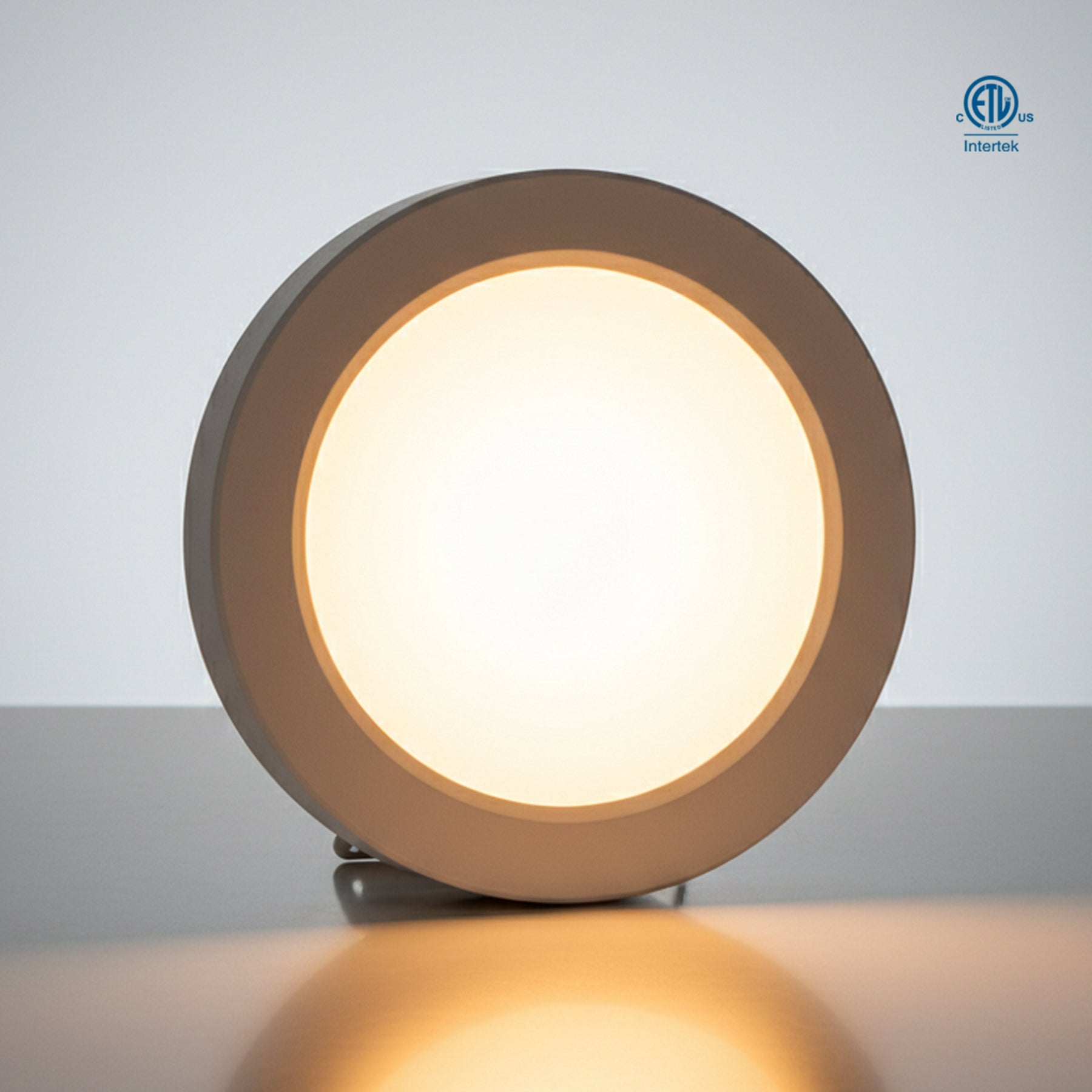

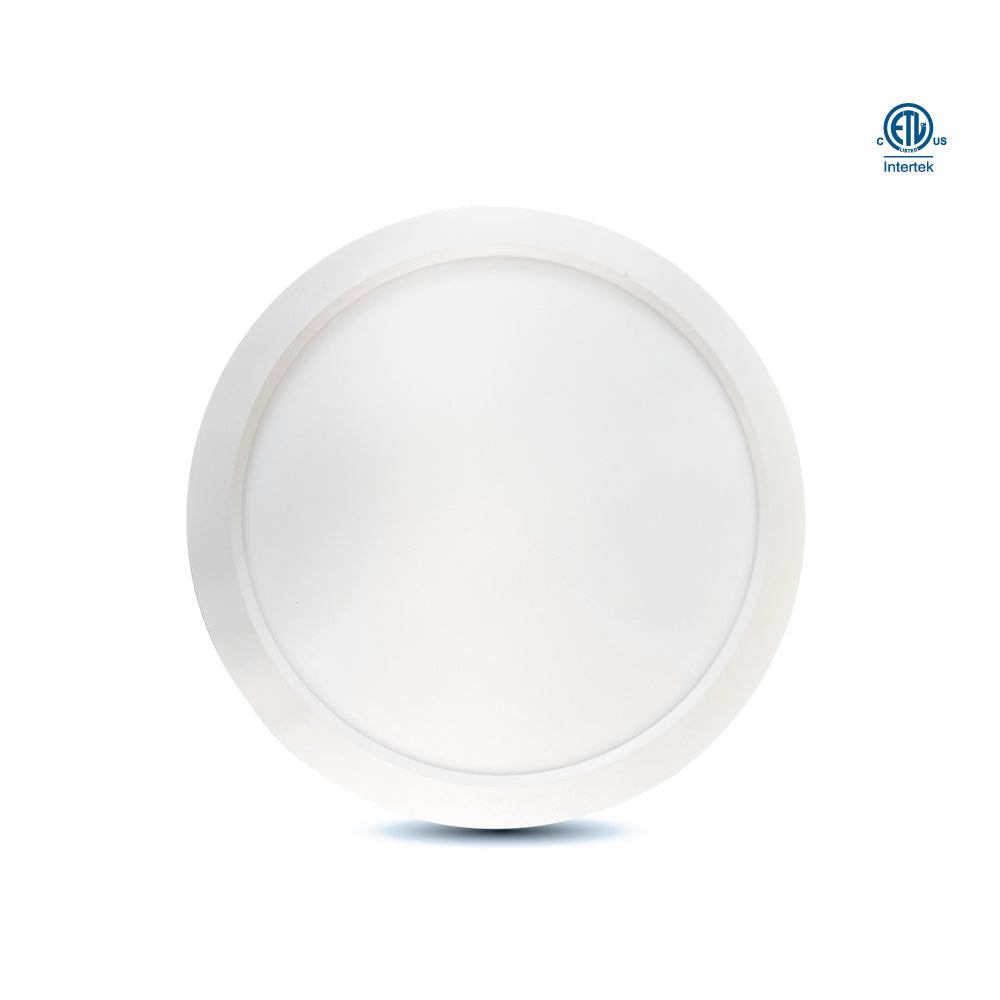

Model: FM1-12-5CCT-010V
Description: 12" Flush Mounts With Adjustable CCT. 24W, 1950lmns, 120-277v, 0-10v Dimming, (2700k, 3000k, 3500k, 4000k, 5000K), Wet Location Rated (Indoor Only)
Wattage: 20W
Voltage: 120-277V AC
Lumens: 1900 lmn
Beam Angle: 120°
Lifetime: 50,000 hours
CRI: 80Ra
Dimmable: Yes (0-10V dimming)
Colour Temperature: 5CCT [2700K/3000K/3500K/4000K/5000K]
Grade of Protection: IP54
Rating: IC rated/ Wet location / Indoor use
Application: Corridors / Lobbies / Kitchens / Bathrooms / Bedrooms
Operating Temperature: -20°C ~ +40°C
Warranty: 5 Years

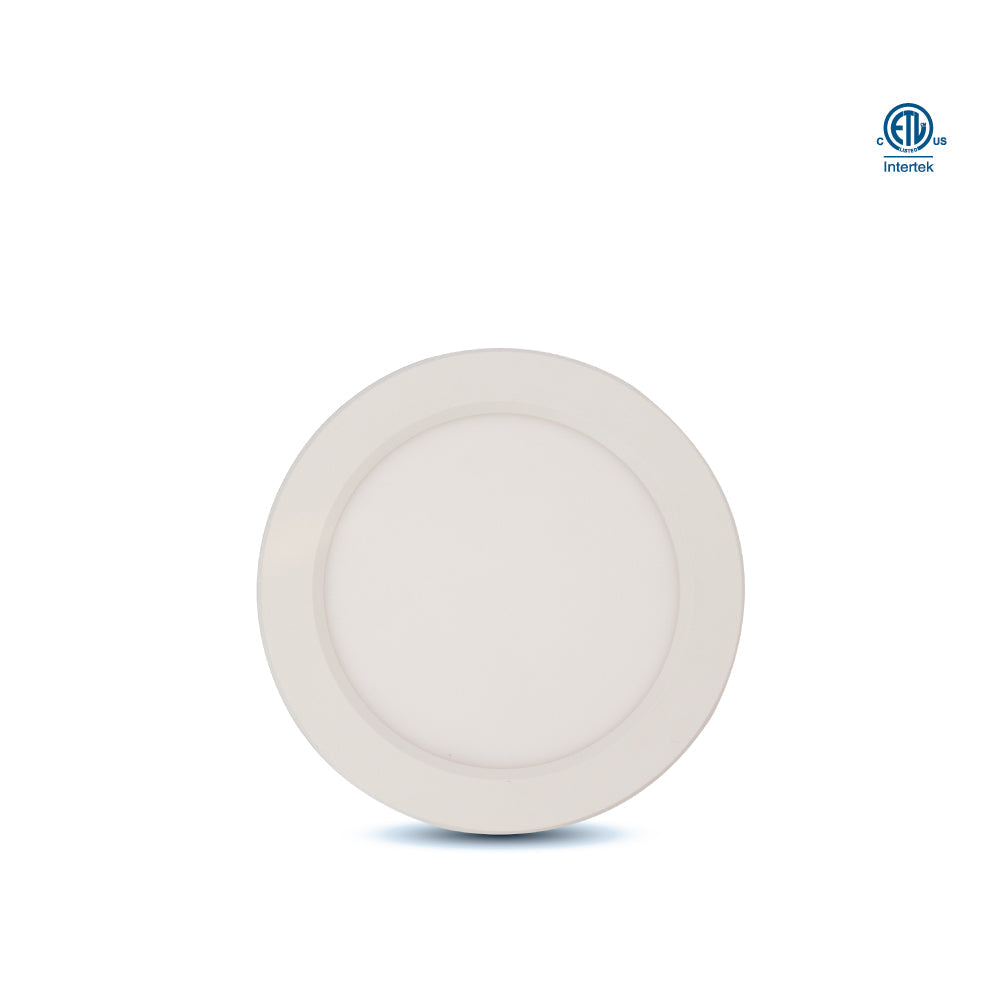

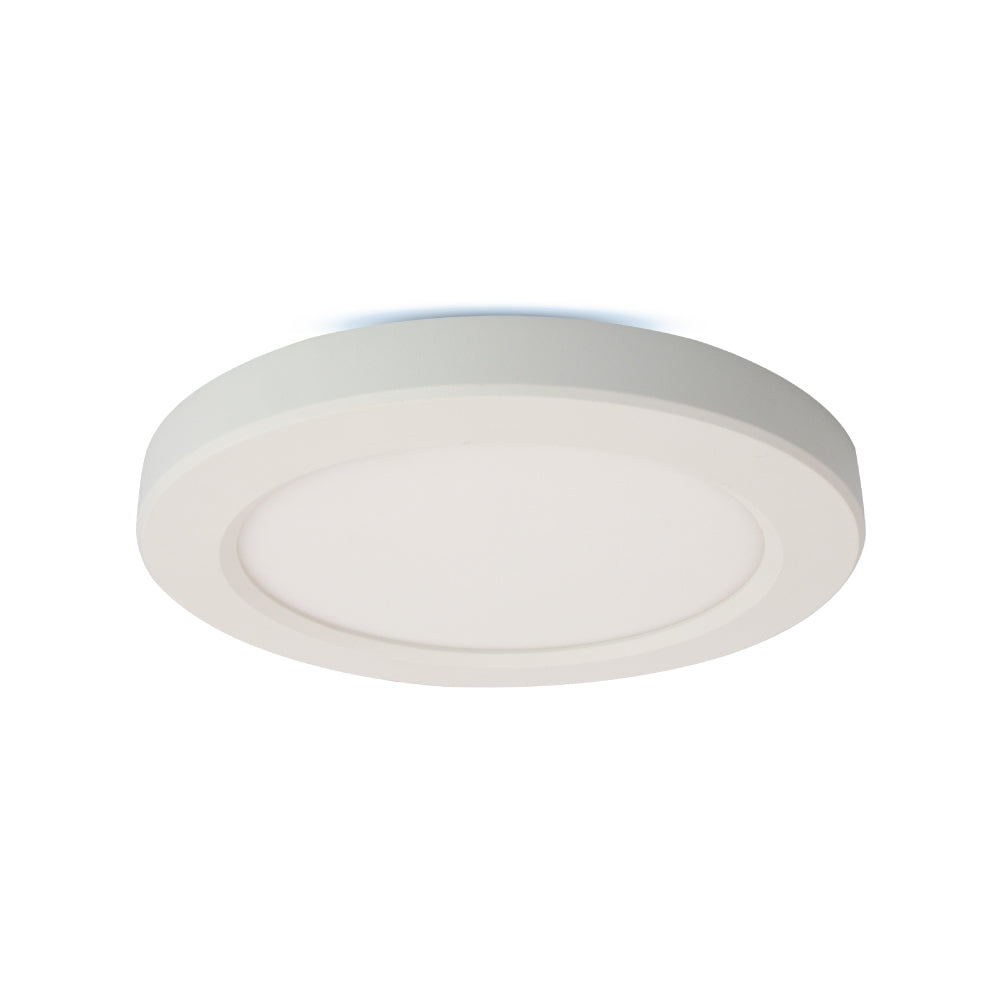

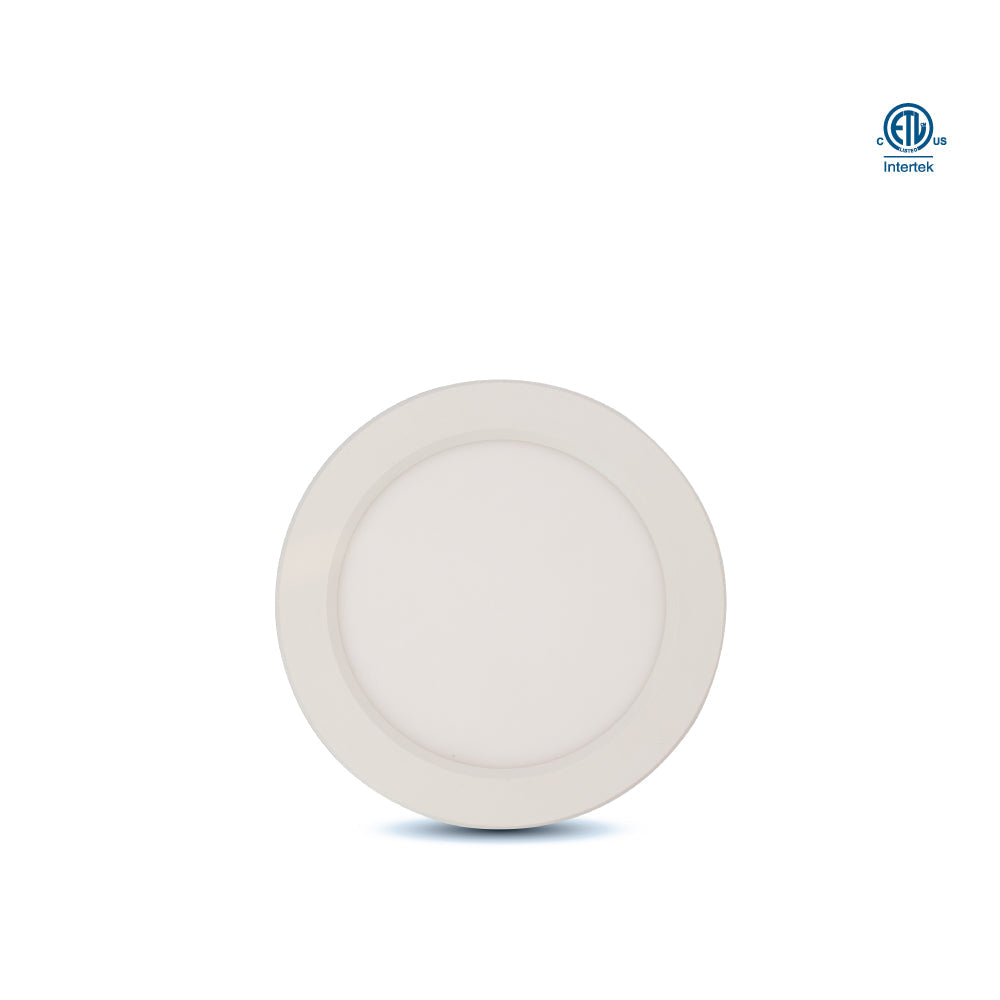

5" Super Slim LED Flush Mount - Features clippable trims, 0-10V dimming and selectable color temperature (CCT) for a sleek, customizable lighting solution.

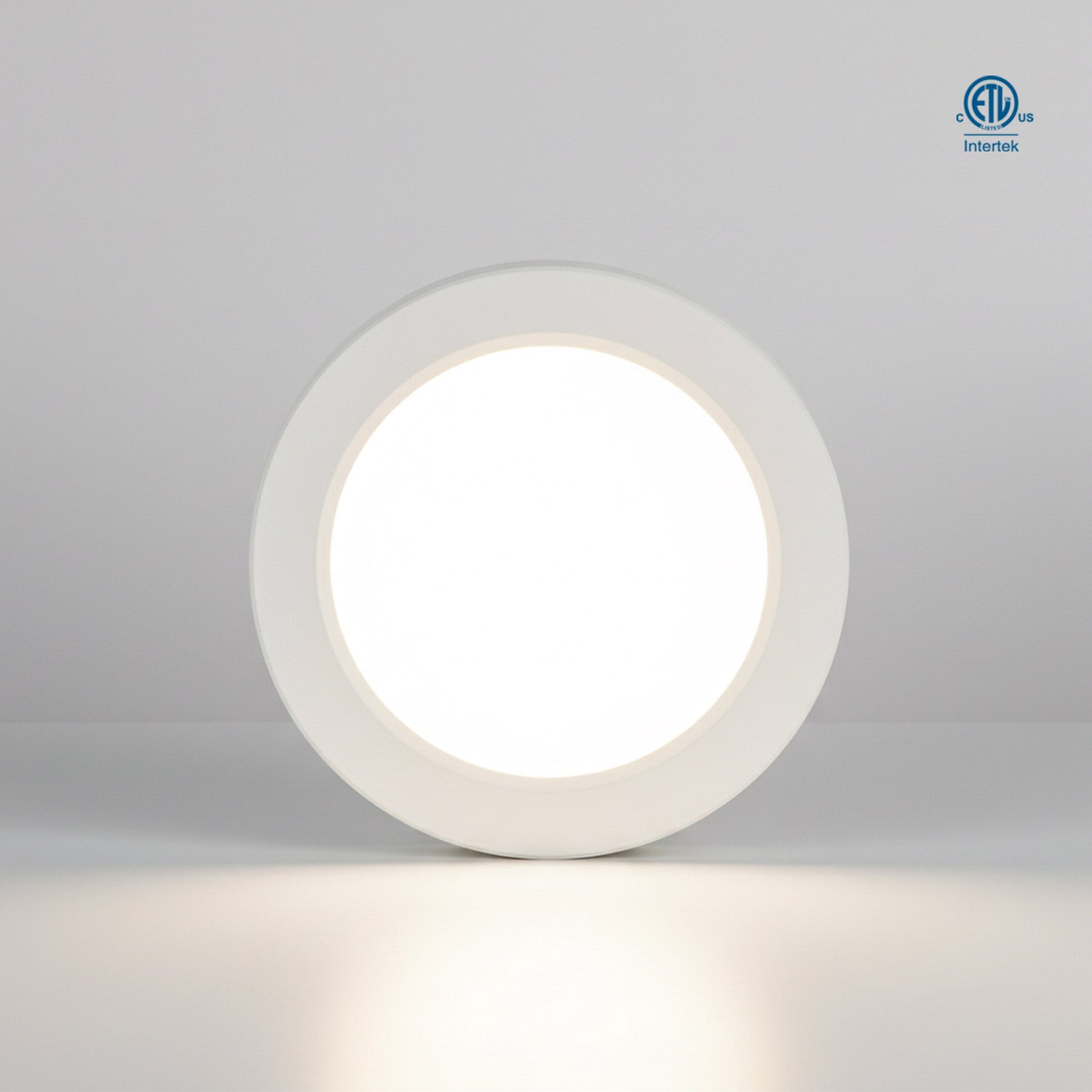

- Edge-Lit Technology: Provides instant-on illumination with no glare or dark spots for comfortable lighting.

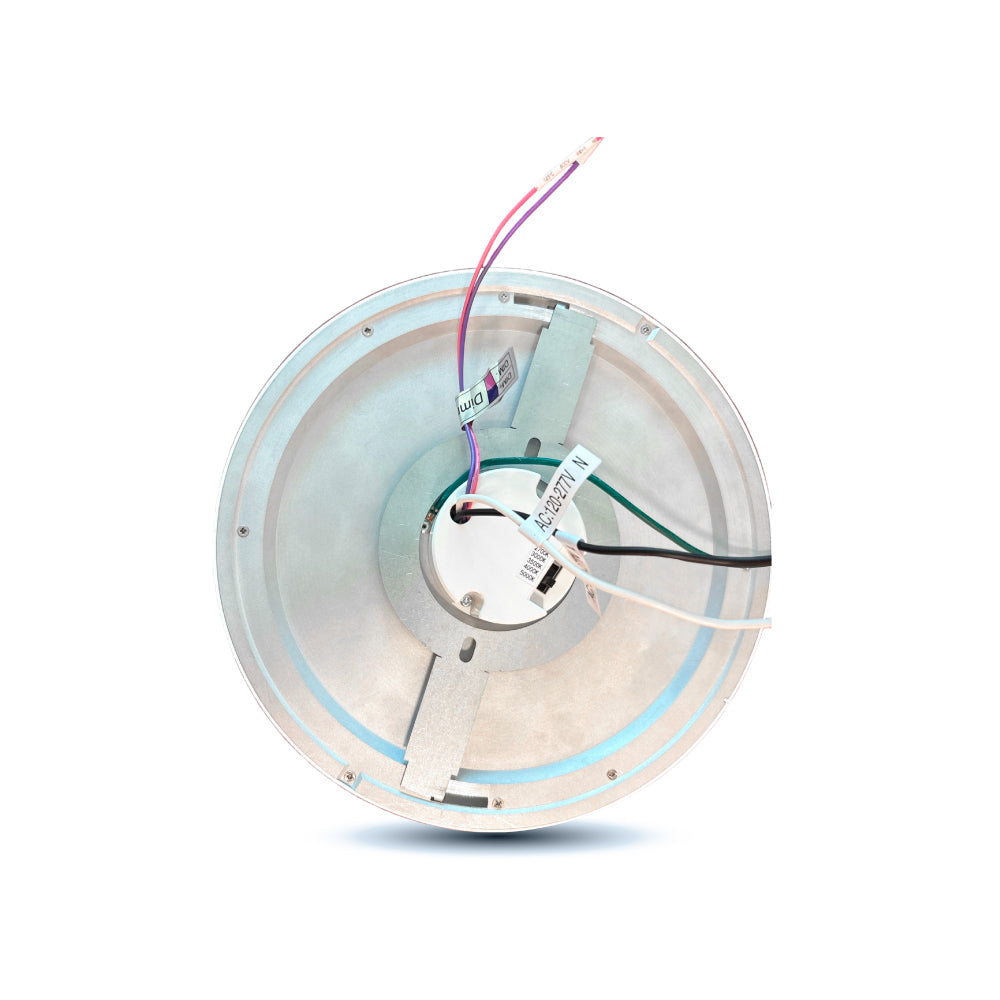

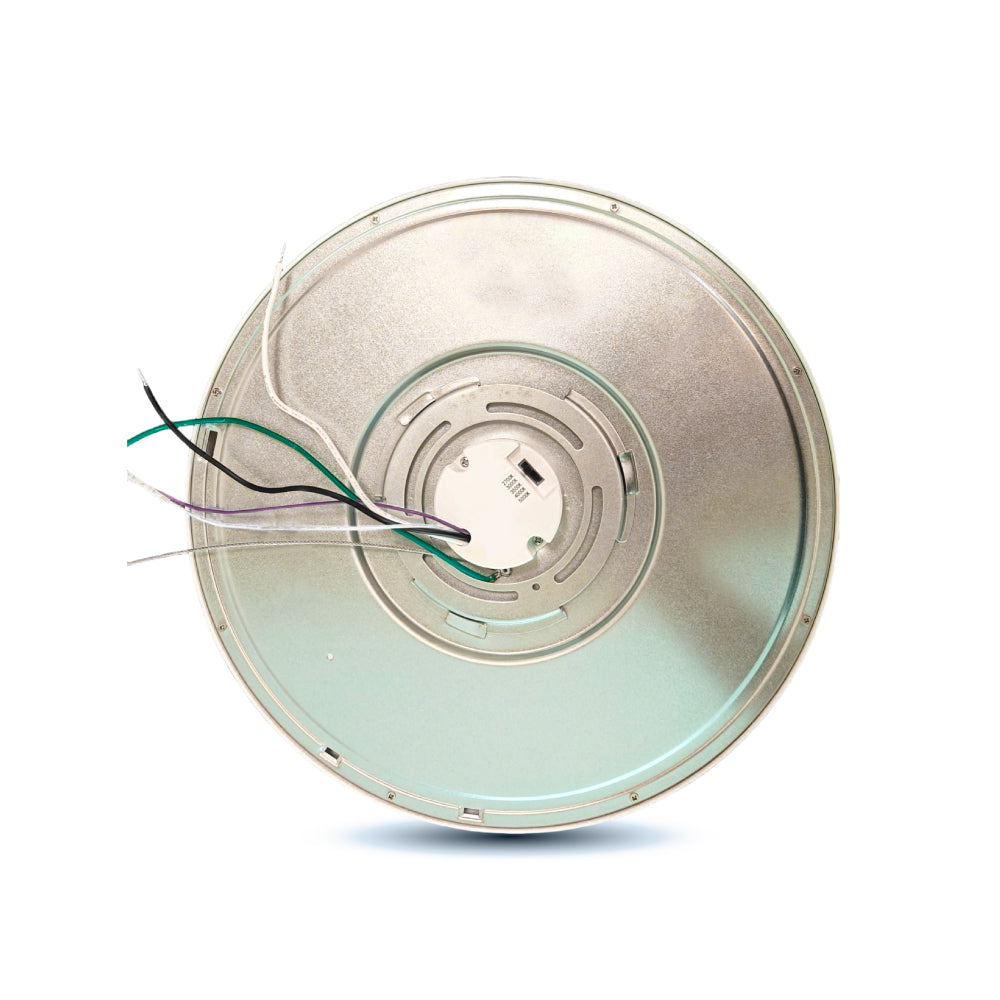

- Ultra-Slim Profile: At just 0.7" thick, it installs easily on standard J-boxes using the included mounting bracket.
- Durable Construction: Made with a PC lamp body and a white translucent acrylic lens for long-lasting performance.
- Advanced Dimming & Safety: 0-10V dimming, certified airtight, and IC rated for safe and efficient operation.

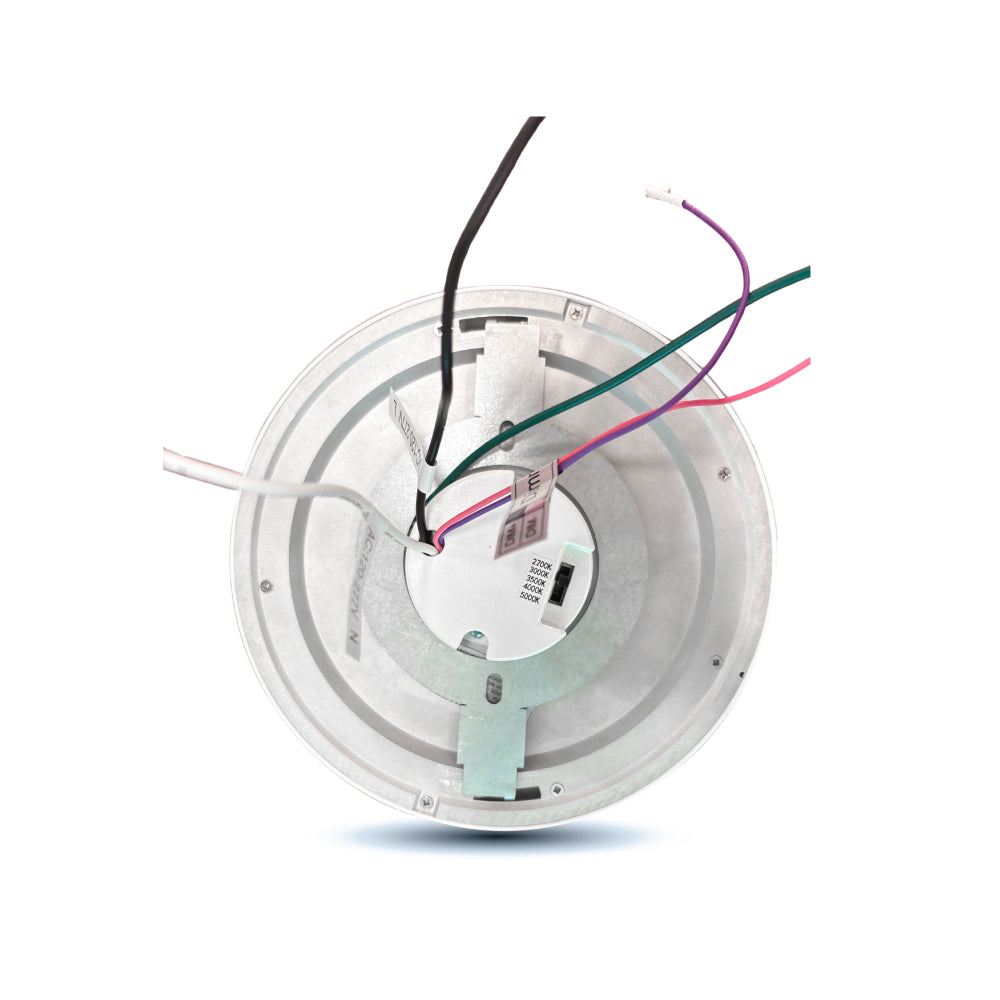

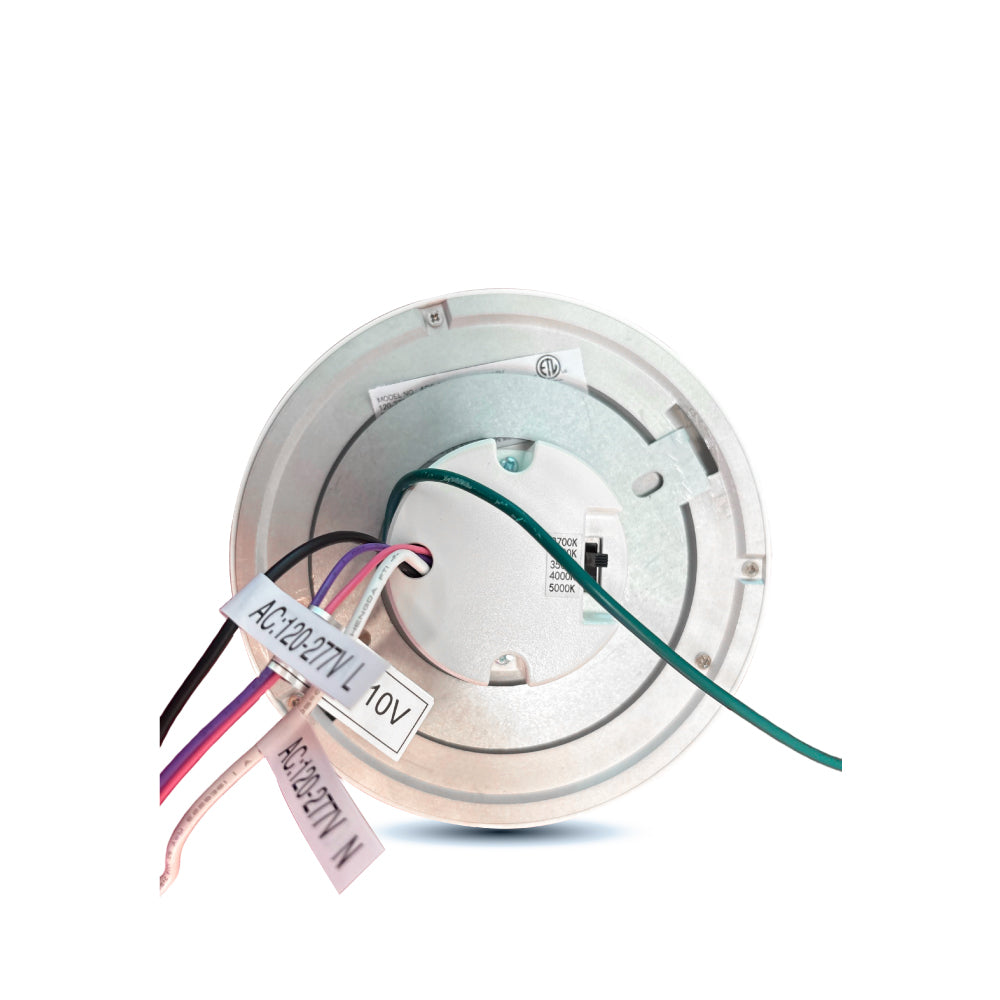

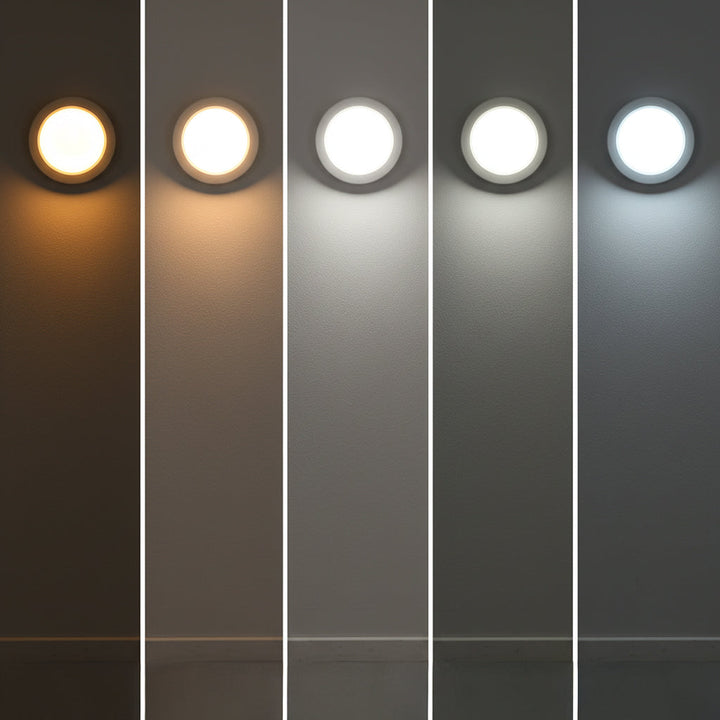

- Selectable Color Temperature: Offers five CCT options: 2700K, 3000K, 3500K, 4000K, and 5000K to suit any setting.
- Extended Lifespan: Engineered for longevity with a rated life of over 50,000 hours.
Select an option above to see its full specifications.
Downloads: FM1-5-5CCT-010V Spec Sheet | FM1-5-5CCT-010V Instruction Manual (English) | FM1-5-5CCT-010V Instruction Manual (French) | FM1-7-5CCT-010V Instruction Manual (English) | FM1-7-5CCT-010V Instruction Manual (French) | FM1-12-5CCT-010V Instruction Manual (English) | FM1-12-5CCT-010V Instruction Manual (French)
