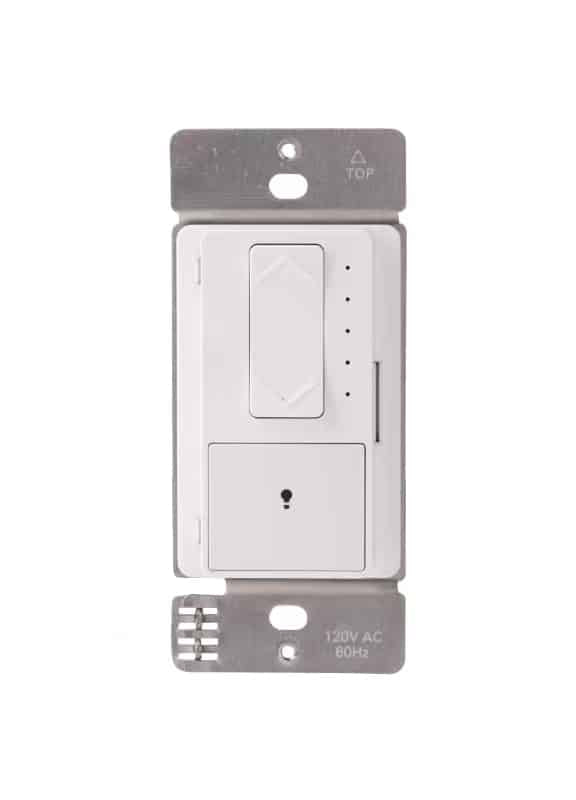

Name: 0-10V Dimmer Switch
Brand: Votatec
SKU: BAK-010A
Price: 30.0 CAD
Availability: InStock

$30.00

Shipping calculated at checkout. Ships to Canada & the USA.

Free shipping on orders over $199

Questions? Call 604-233-1998

Specifications

Model: BAK-010A

Standard: UL1472

Rated Voltage: 120V/60Hz

Rated Power: 500W

Application: Indoor

Temperature: 0°C~40°C

Size: 4.13"x1.69"x1.77"

Type: 3Way

Mechanical Life: >20,000 times (one reciprocating time for each switch)

Power Supply: Neutral & Live Wire

Electrical: Max. Load 600W LED/300W incand, Neutral & Live Wire, this product supports an external 3way

Voltage: 0-10V voltage output

Features: 1-100% dimming, Range, Isolated power supply, 5 LED dimming progress indicators, Dual control: Support dual control function, Switch.

Finish: White

Certification: cETL

The BAK-010A sends an analog 0-10V signal to your LED driver, so it dims commercial fixtures a standard dimmer can't touch. Wire it single-pole or 3-way.

Dimming runs 1 to 100%. Short-press the rocker for 20% steps, long-press for stepless. Five blue indicators show the level at a glance, and the relay drops out fully at 0%.

ETL listed to UL1472. Neutral required, indoor rated, 2-year warranty.

Downloads: Spec Sheet | Manual

Free shipping on orders over $199. See our full shipping & return policy.

Need an electrician or install tips? Read our install guide or call us at 604-233-1998.
