Specifications
Model: BCG-003U/WH
Finish: White
Rated Power: 1800W~2400W
Rated Voltage: 125V/60Hz
Mechanical Life: 6000 times
Tripping Threshold &Tripping time: 5mA & <25mS
Wire Specifications: 12-14 AWG
Power Supply: Neutral & Live Wire & Grounding
Application: Indoor
Material: Plastic + Metal
Standard: UL943 / UL948 / UL1310
Type: A+C
Rated Current: 15A
Dimension: 4.13"x1.61"x1.87"
Electrical: 15AMP GFCI + TYPE A+C USB, Neutral & Live Wire & Grounding
Features: Tamper Resistance, Self tests for Safety, LED Guide Light
USB Output: 5V 4.8A
Certification: cETL
Warranty: 2 Years
Model: BCG-003U/BK
Finish: Black
Rated Power: 1800W~2400W
Rated Voltage: 125V/60Hz
Mechanical Life: 6000 times
Tripping Threshold &Tripping time: 5mA & <25mS
Wire Specifications: 12-14 AWG
Power Supply: Neutral & Live Wire & Grounding
Application: Indoor
Material: Plastic + Metal
Standard: UL943 / UL948 / UL1310
Type: A+C
Rated Current: 15A
Dimension: 4.13"x1.61"x1.87"
Electrical: 15AMP GFCI + TYPE A+C USB, Neutral & Live Wire & Grounding
Features: Tamper Resistance, Self tests for Safety, LED Guide Light
USB Output: 5V 4.8A
Certification: cETL
Warranty: 2 Years
Model: BCG-004U/WH
Finish: White
Rated Power: 1800W~2400W
Rated Voltage: 125V/60Hz
Mechanical Life: 6000 times
Tripping Threshold &Tripping time: 5mA & <25mS
Wire Specifications: 12-14 AWG
Power Supply: Neutral & Live Wire & Grounding
Application: Indoor
Material: Plastic + Metal
Standard: UL943 / UL948 / UL1310
Type: A+C
Rated Current: 20A
Dimension: 4.13"x1.61"x1.87"
Electrical: 20AMP GFCI + TYPE A+C USB, Neutral & Live Wire & Grounding
Features: Tamper Resistance, Self tests for Safety, LED Guide Light
USB Output: 5V 4.8A
Certification: cETL
Warranty: 2 Years
Model: BCG-004U/BK
Finish: Black
Rated Power: 1800W~2400W
Rated Voltage: 125V/60Hz
Mechanical Life: 6000 times
Tripping Threshold &Tripping time: 5mA & <25mS
Wire Specifications: 12-14 AWG
Power Supply: Neutral & Live Wire & Grounding
Application: Indoor
Material: Plastic + Metal
Standard: UL943 / UL948 / UL1310
Type: A+C
Rated Current: 20A
Dimension: 4.13"x1.61"x1.87"
Electrical: 20AMP GFCI + TYPE A+C USB, Neutral & Live Wire & Grounding
Features: Tamper Resistance, Self tests for Safety, LED Guide Light
USB Output: 5V 4.8A
Certification: cETL
Warranty: 2 Years

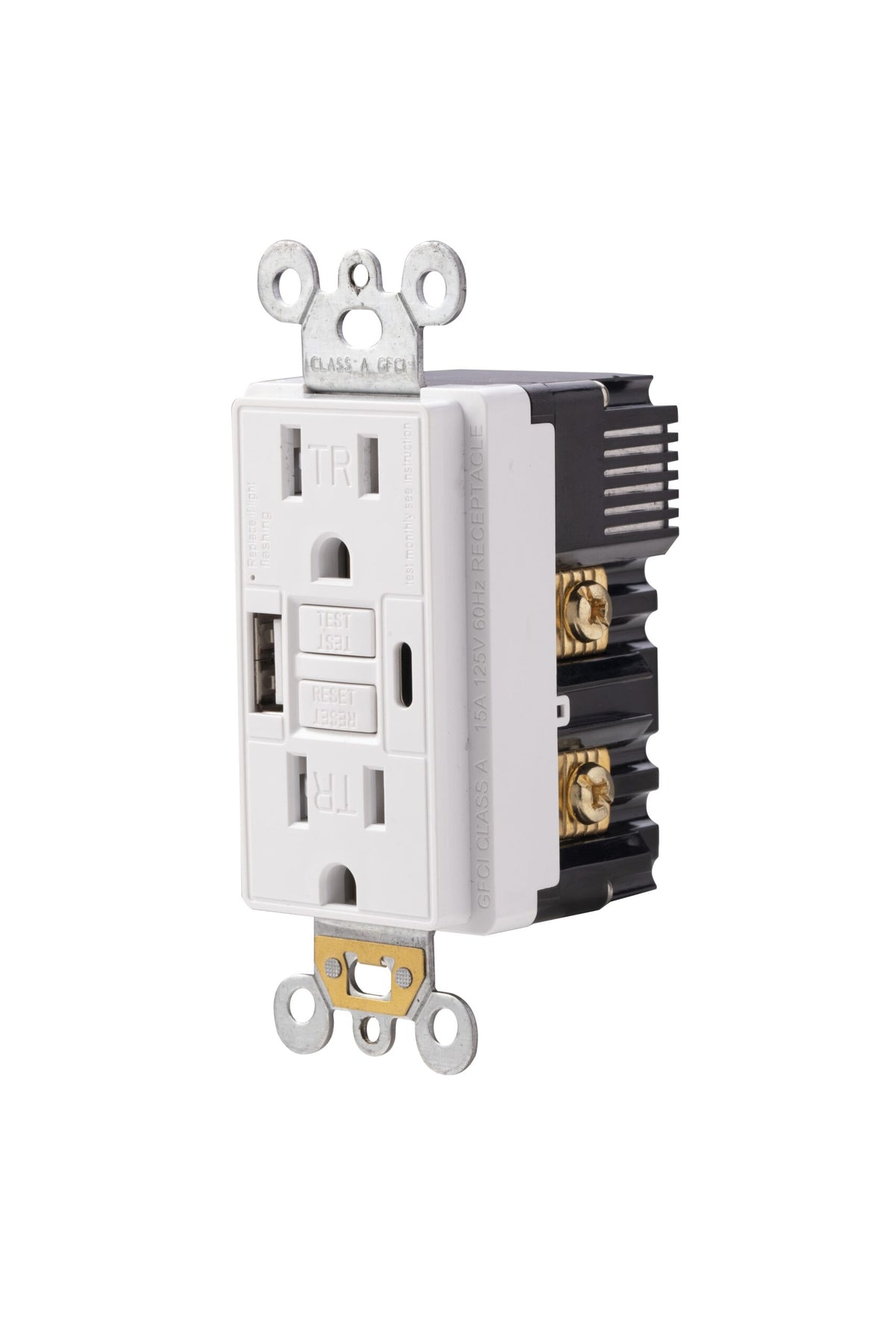

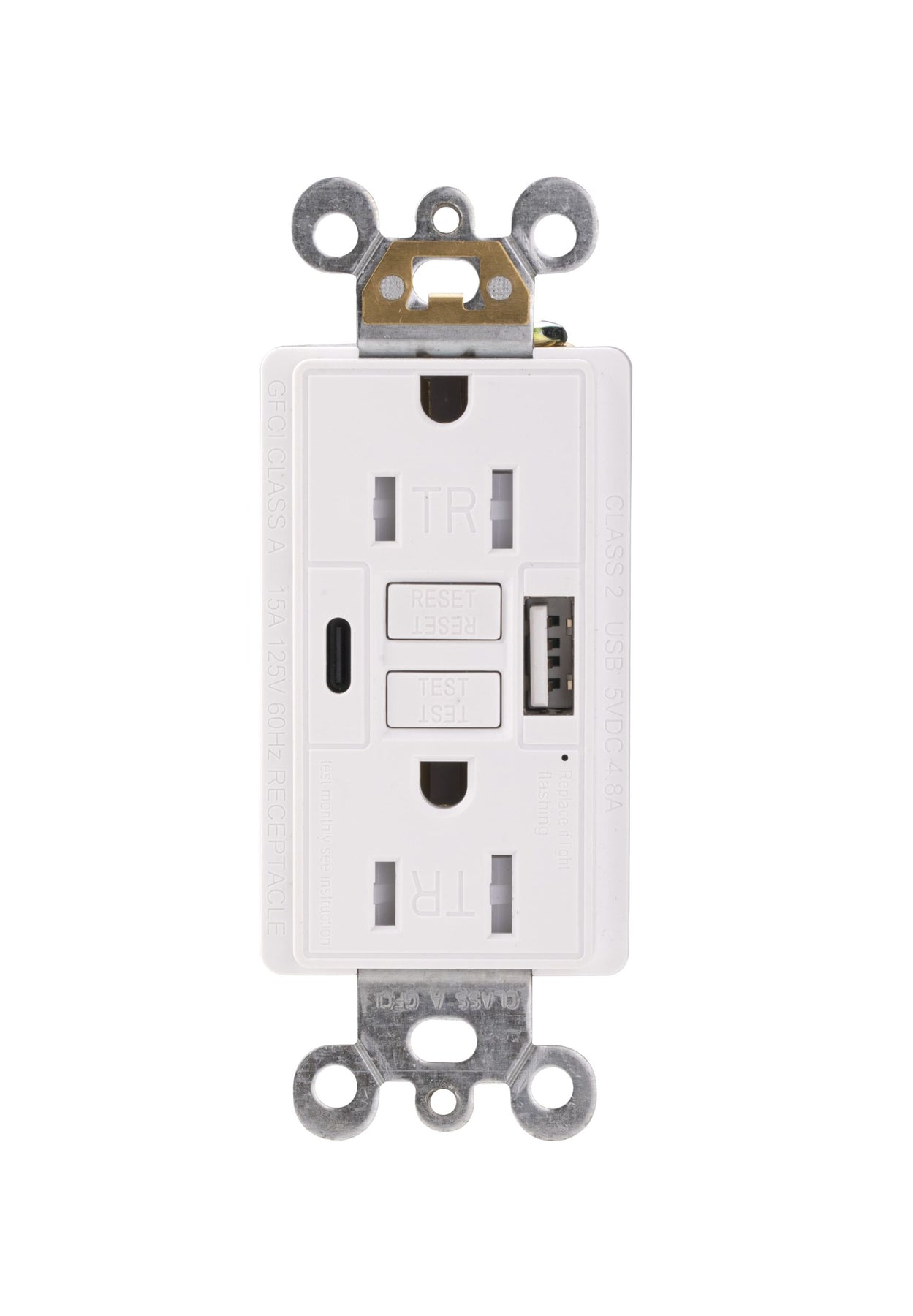

The BCG-003U puts Class A ground fault protection, tamper-resistant shutters and USB-A plus USB-C charging into one 15A device, so a protected receptacle keeps both plug slots free.
Rated 15A at 125V, 60 Hz. Trips at 5 mA in under 25 mS. The two USB ports share 4.8A at 5VDC, about 24W. Self-test runs continuously and still trips on a real fault mid-test.
Plastic and metal build, ETL listed, indoor use, 2-year warranty.
Select an option above to see its full specifications.
Downloads: Spec Sheet (15A) | Manual (15A) | Manual (20A)
