Specifications

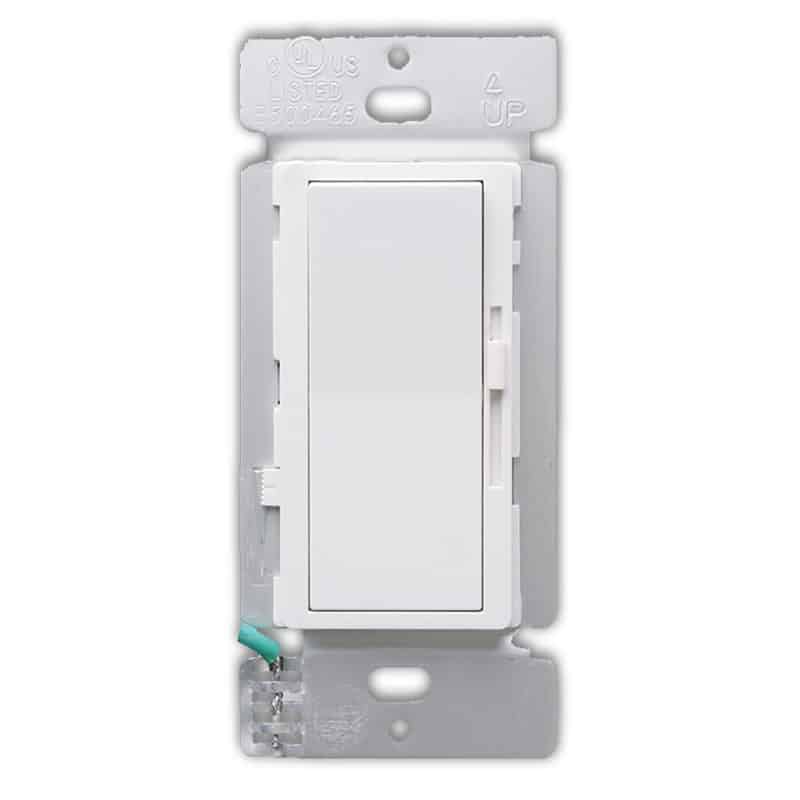

Model: BAK-004AG/WH
Finish: White
Standard: UL1472
Rated Power: 600W Incandescent / 150W CFL & LED
Rated Voltage: 120V/60Hz
Insulation Resistance: >10MΩ (DC500V)
Mechanical Life: 40/000 times
Cable Specification: 18AWG
Temperature: -20°C~60°C
Option: Class A
Type: 3Way
Electrical clearance: 1.2mm between live parts & 3mm between live parts & other parts
Creepage distance: ≥3mm
Price List Description: Universal Dimmer / 150W Dimmable CFL & LED / White/Black / cUL / CLASS A

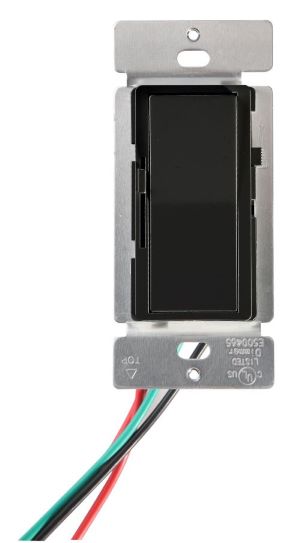

Model: BAK-004AG/BK
Finish: Black
Standard: UL1472
Rated Power: 600W Incandescent / 150W CFL & LED
Rated Voltage: 120V/60Hz
Insulation Resistance: >10MΩ (DC500V)
Mechanical Life: 40/000 times
Cable Specification: 18AWG
Temperature: -20°C~60°C
Option: Class A
Type: 3Way
Electrical clearance: 1.2mm between live parts & 3mm between live parts & other parts
Creepage distance: ≥3mm
Price List Description: Universal Dimmer / 150W Dimmable CFL & LED / White/Black / cUL / CLASS A
The BAK-004AG slide dimmer wires as either a single-pole or a 3-way control, so one part number covers both positions on a job.
It takes 600W of incandescent or halogen, or 150W of dimmable LED or CFL at 2A, on 120VAC 60Hz. Minimum load is 7W.
Built for the trade: cULus Listed to UL 1472, 40,000-cycle mechanical life, a UL94-V2 shell, and a low-end trim you set at install.
Select an option above to see its full specifications.
Downloads: Spec Sheet | Manual
