Specifications

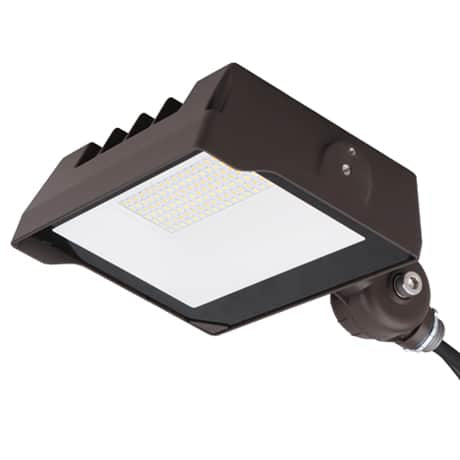

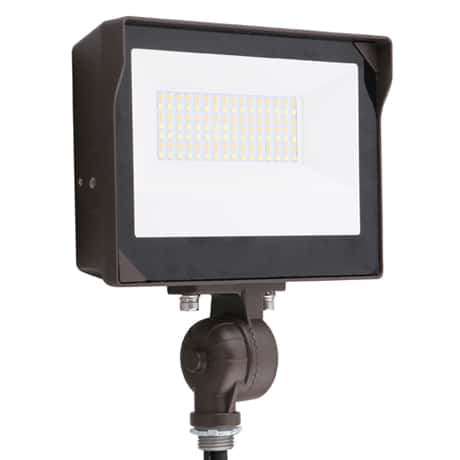

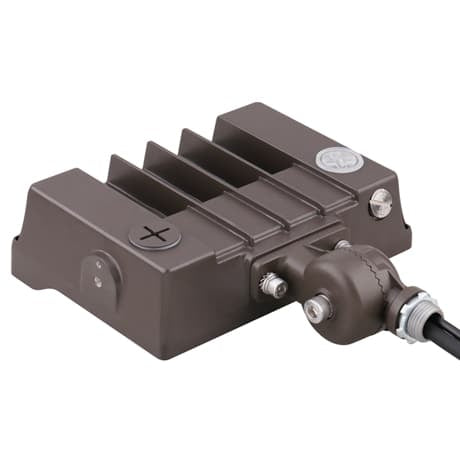

Model: AST-FL19-35WBH8DC1-BRPAMW30/40/50
Beam Angle: 115*100°
Brightness: 4375Lm-4900Lm
CCT: 3000K/ 4000K/ 5000K ADJ
CRI: 80
Dimension: 8.67"X7.21"X2.2"
Input Voltage: AC120-347V
Power: 35W/ 25W/15W ADJ
Power Factor: >0.9
IP Rating: IP65
Price List Description: 35W , 2000lm-4900lm / 3000K/4000K/5000K Adjustable / 35W/25W/15W Adjustable / cUL & DLC 5.1 Premium / Photocell / AM Bracket Installed/YM Bracket in BOX

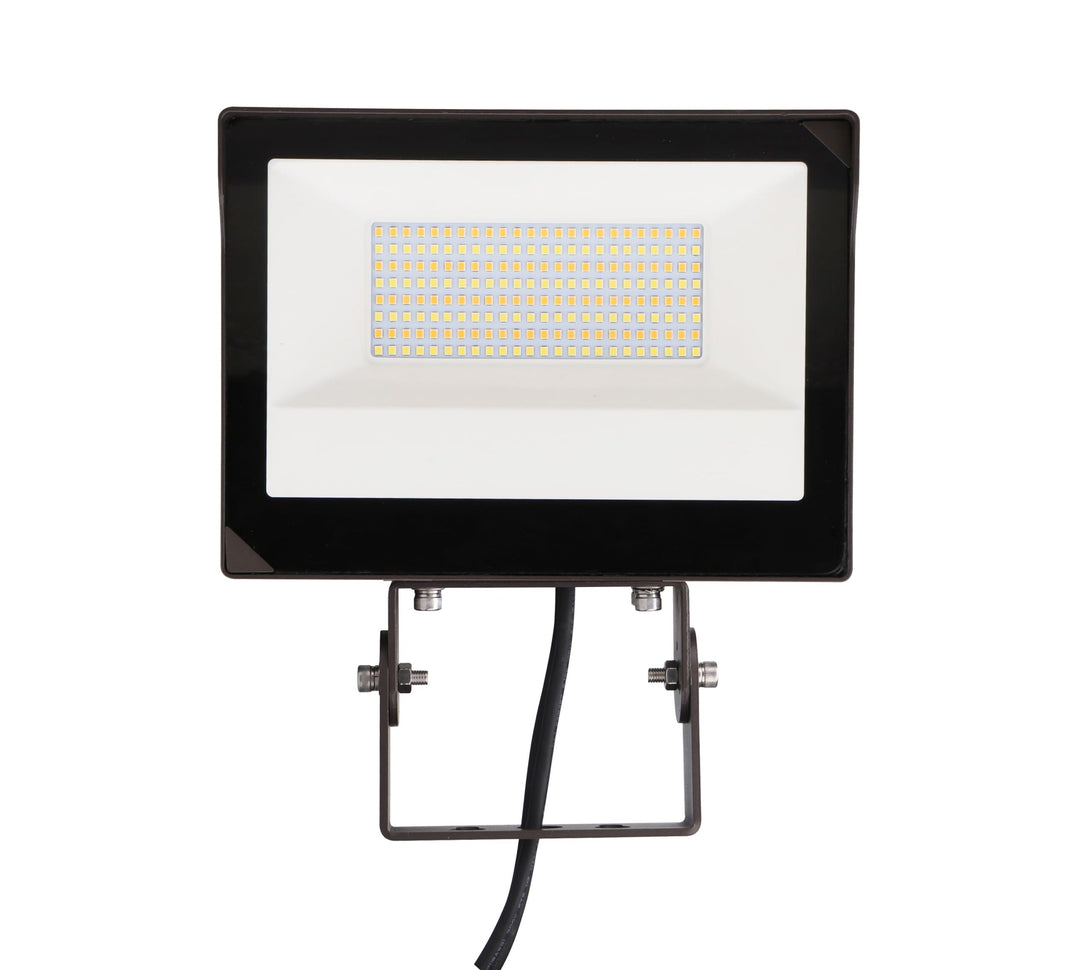

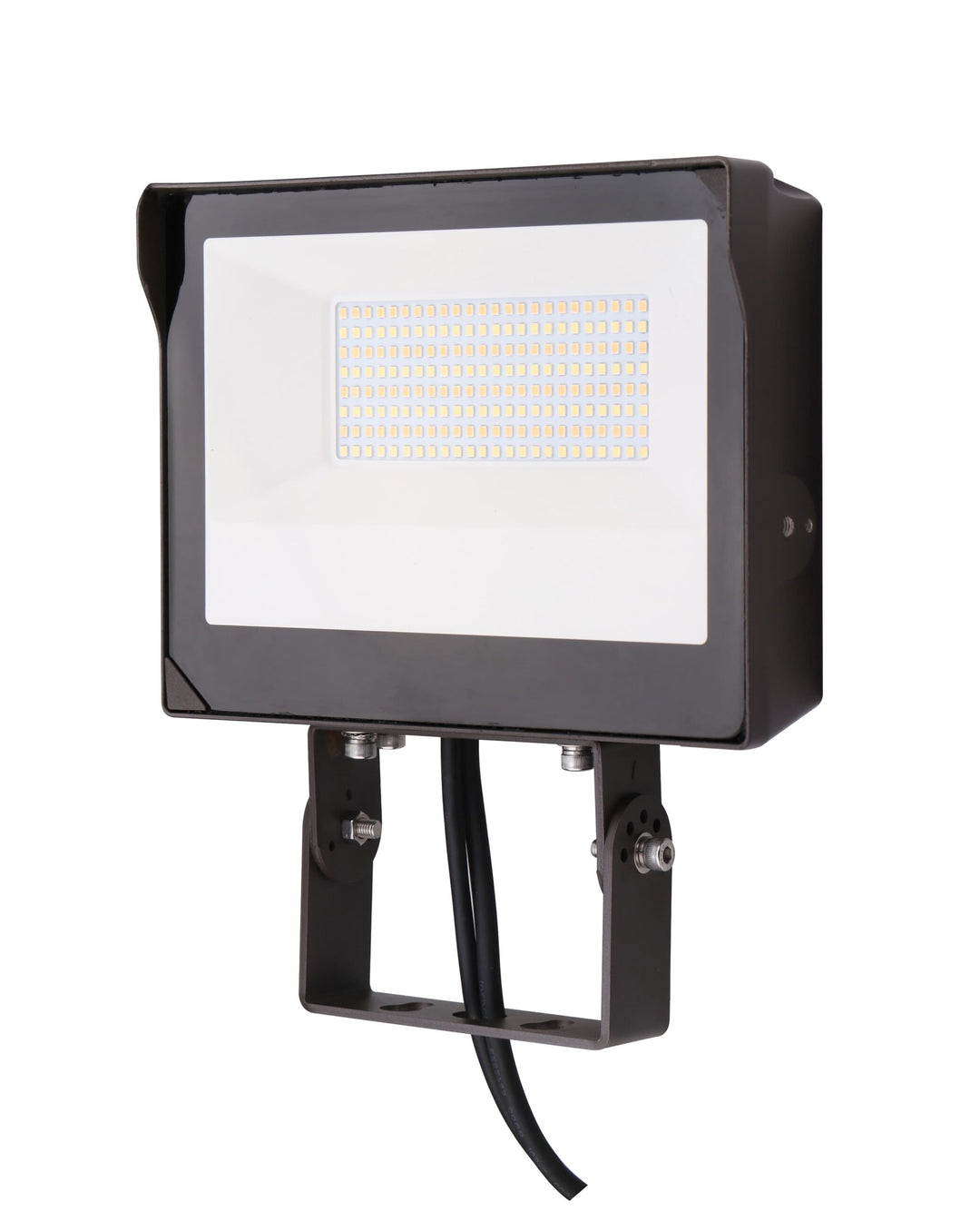

Model: AST-FL19-80WBH8DC2-BRPYMW30/40/50
Beam Angle: 115*100°
Brightness: 10000Lm-11200Lm
CCT: 3500K/ 4000K/ 5000K ADJ
CRI: 80
Dimension: 8.7"X8.7"X2.3"
Input Voltage: AC120-347V
Power: 80W/ 60W/50W ADJ
Power Factor: 0.9
IP Rating: IP65
Price List Description: 80W , 6750-10800lm / 3000K/4000K/5000K Adjustable / 80W/60W/50W Adjustable / Dimmable / Photocell / YM Bracket Installed/AM Bracket in BOX
Model: AST-FL19-120WBH8DC1-BRPYMW30/40/50
Beam Angle: 115*100°
Brightness: 15000Lm-16800Lm
CCT: 3500K/ 4000K/ 5000K ADJ
CRI: 80
Dimension: 12.28"X10.28"X2.7"
Input Voltage: AC120-347V
Power Factor: >0.9
Power: 120W/ 100W/80W ADJ
IP Rating: IP65
Price List Description: 120W , 10800-16200lm / 3000K/4000K/5000K Adjustable / 120W/100W/80W Adjustable / Dimmable / Photocell / YM Bracket Installed

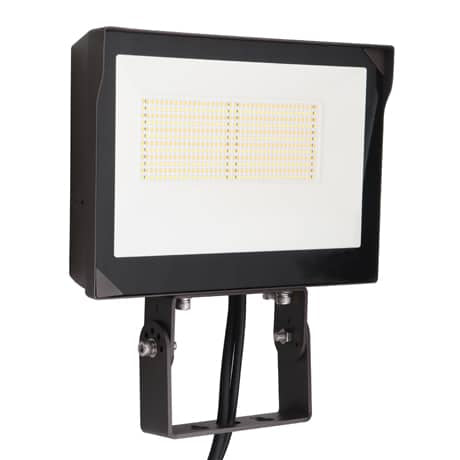

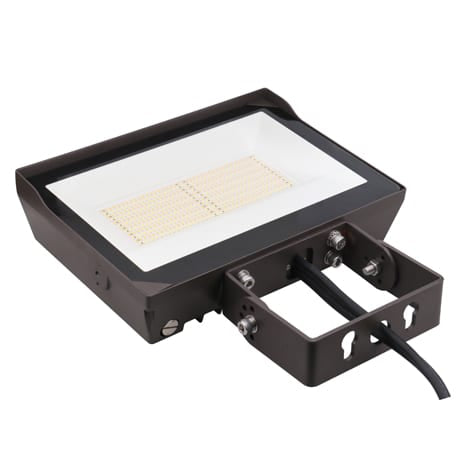

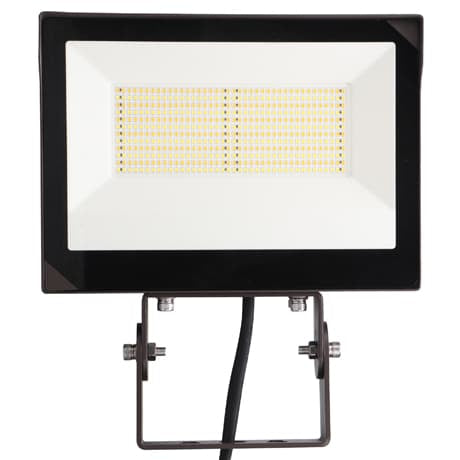

Model: AST-FL19-150WBH8DC1-BRPYMW30/40/50
Beam Angle: 115*100°
CCT: 3500K/ 4000K/ 5000K ADJ
Brightness: 19500Lm-21750Lm
CRI: 80
Dimension: 13.11"X11.45"X2.87"
Input Voltage: AC120-347V
Power: 150W/ 130W/120W ADJ
Power Factor: >0.9
IP Rating: IP65
Price List Description: 150W , 16800-21000lm , / 3000K/4000K/5000K Adjustable / 150W/130W/120W Adjustable / Dimmable , / Photocell / YM Bracket Installed
Switch this flood light between 80W, 60W and 50W at the fixture, so one SKU covers three lighting schedules. A second switch sets 3500K, 4000K or 5000K.
Output runs 6,250 to 11,200 lumens depending on the setting. CRI is above 80, input is AC120-347V, and an on/off photocell is built in.
Die-cast aluminium housing, tempered glass lens, IP65, cULus wet location listing, 4kV surge protection, five-year warranty.
Select an option above to see its full specifications.
Downloads: Spec Sheet (35W) | Manual (35W)
