Specifications
Model: LEDPL-9-G24Q-8SC1-HYB
Power: 9W
Input Voltage: 120-277VAC
Power Factor: 0.9
Brightness: 1100Lm
CCT: 2700K/ 3000K/ 3500K/ 4000K/ 5000K ADJ
Beam Angle: 120°
Base: G24Q
Dimension: 2-7/16"x6-3/4"
Suitable for Enclosed Fixtures: Yes
Type: A+B
IP Rating: IP20
CRI: >80
Price List Description: 9W-TYPE A+B-1100LM / 2700K/3000K/3500K/4000K/5000K Adj / 120V-277V / G24q/GX24q - 4Pin - Not Dimmable / 120 Degree Beam Angle / Lamp Head 90° & Lamp Body ±90° / Adjustable - Lamp Body Extendable
Model: LEDPL-16-G24Q-8SC1-HYB
Power: 16W
Input Voltage: 120-277VAC
Power Factor: 0.9
Brightness: 1850Lm
CCT: 2700K/ 3000K/ 3500K/ 4000K/ 5000K ADJ
Beam Angle: 120°
Base: G24Q
Dimension: 2-7/16"x6-3/4"
Suitable for Enclosed Fixtures: Yes
Type: A+B
IP Rating: IP20
CRI: >80
Price List Description: 16W-TYPE A+B-1850LM / 2700K/3000K/3500K/4000K/5000K Adj / 120V-277V / G24q/GX24q - 4Pin - Not Dimmable / 120 Degree Beam Angle / Lamp Head 90° & Lamp Body ±90° / Adjustable - Lamp Body Extendable

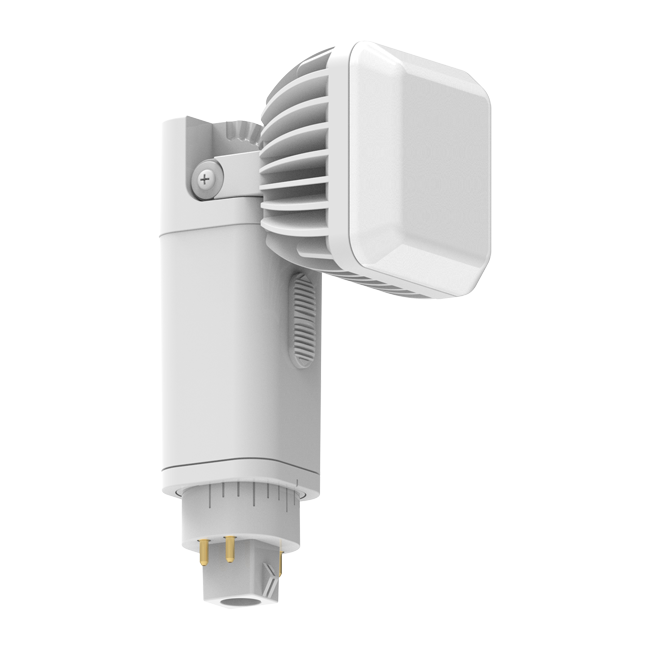

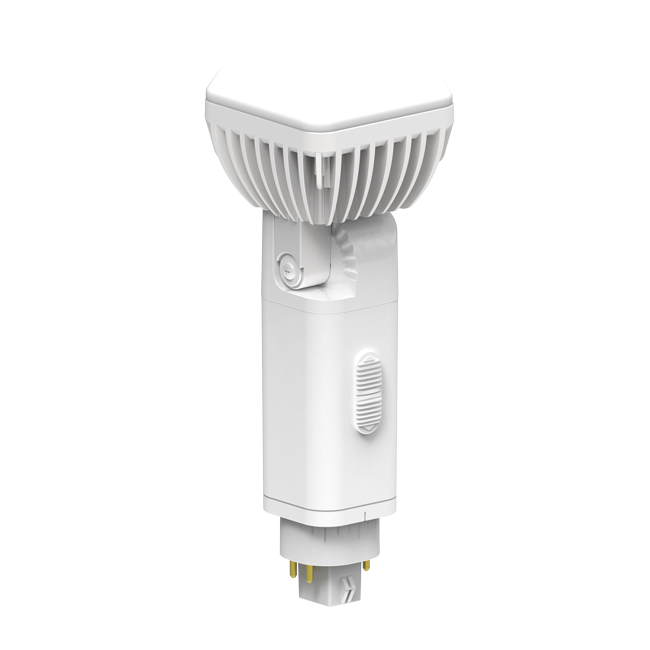

The 9W LED PL lamp runs either way. Keep the fixture's electronic ballast and
plug it in, or bypass the ballast and wire straight to line voltage. One Type
A+B lamp covers both retrofits.
Select an option above to see its full specifications.
Downloads: Spec Sheet (9W) | Manual (9W)
