Specifications
Model: MNLED-2202S-3K/WH
Finish: White
Colour Temperature: 3000K
Power: 1W
Input Voltage: 12V
Brightness: 18Lm
IP Rating: IP20
Size: 2"
CRI: >80
Material: Die-cast aluminum
Color: Black/ Brushed Nickel/ White
Power Factor: >0.9
Price List Description: Die-casting Aluminum / 30CM wire / 3-Years Warranty - cETL

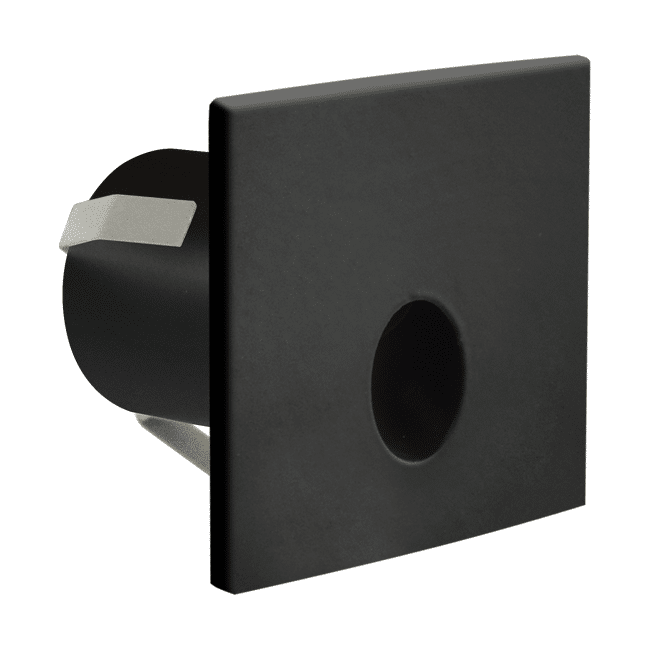

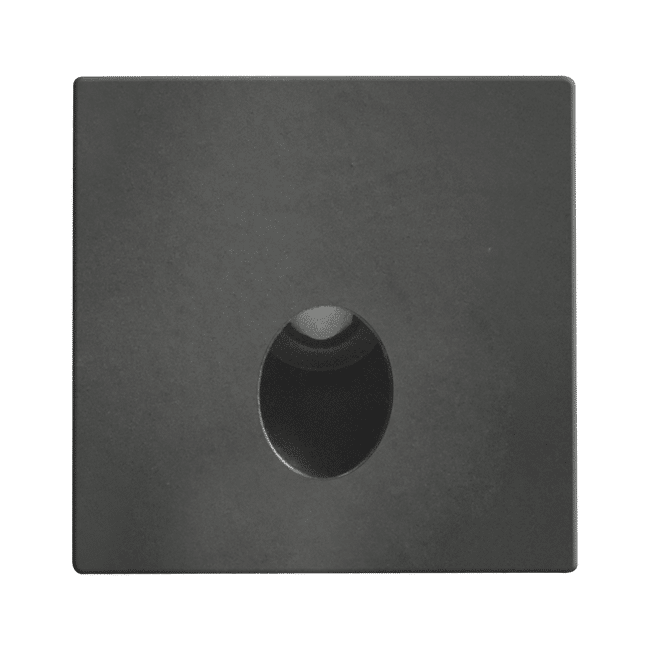

Model: MNLED-2202S-3K/BK
Finish: Black
Colour Temperature: 3000K
Power: 1W
Input Voltage: 12V
Brightness: 18Lm
IP Rating: IP20
Size: 2"
CRI: >80
Material: Die-cast aluminum
Color: Black/ Brushed Nickel/ White
Power Factor: >0.9
Price List Description: Die-casting Aluminum / 30CM wire / 3-Years Warranty - cETL

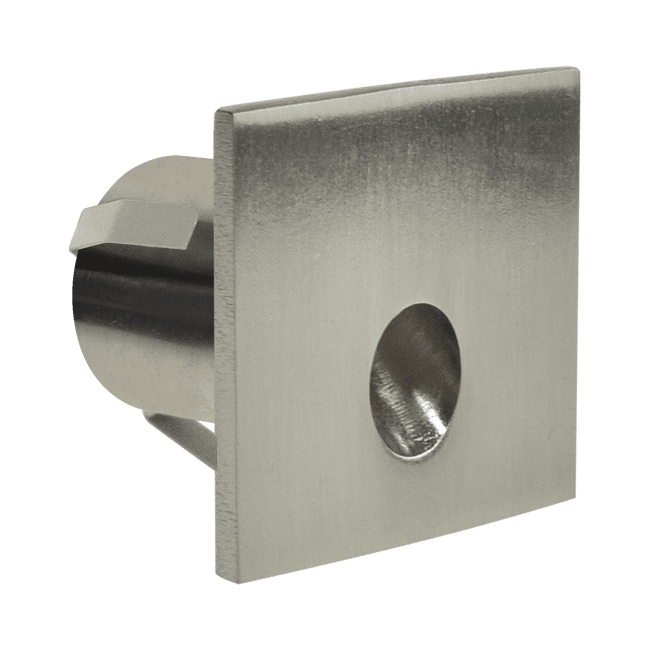

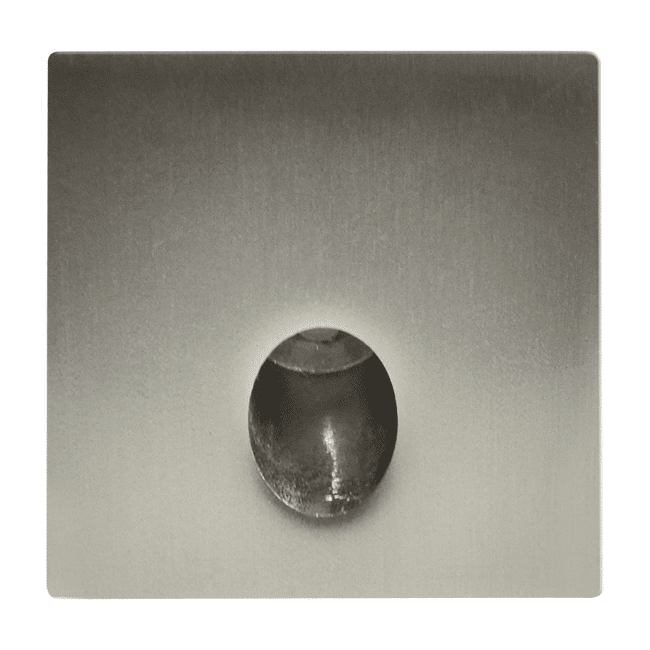

Model: MNLED-2202S-3K/BN
Finish: Brushed Nickel
Colour Temperature: 3000K
Power: 1W
Input Voltage: 12V
Brightness: 18Lm
IP Rating: IP20
Size: 2"
CRI: >80
Material: Die-cast aluminum
Color: Black/ Brushed Nickel/ White
Power Factor: >0.9
Price List Description: Die-casting Aluminum / 30CM wire / 3-Years Warranty - cETL
Model: MNLED-2202S-5K/WH
Finish: White
Colour Temperature: 5000K
Power: 1W
Input Voltage: 12V
Brightness: 20Lm
IP Rating: IP20
Size: 2"
CRI: >80
Material: Die-cast aluminum
Color: Black/ Brushed Nickel/ White
Power Factor: >0.9
Price List Description: Die-casting Aluminum / 30CM wire / 3-Years Warranty - cETL
Model: MNLED-2202S-5K/BK
Finish: Black
Colour Temperature: 5000K
Power: 1W
Input Voltage: 12V
Brightness: 20Lm
IP Rating: IP20
Size: 2"
CRI: >80
Material: Die-cast aluminum
Color: Black/ Brushed Nickel/ White
Power Factor: >0.9
Price List Description: Die-casting Aluminum / 30CM wire / 3-Years Warranty - cETL
Model: MNLED-2202S-5K/BN
Finish: Brushed Nickel
Colour Temperature: 5000K
Power: 1W
Input Voltage: 12V
Brightness: 20Lm
IP Rating: IP20
Size: 2"
CRI: >80
Material: Die-cast aluminum
Color: Black/ Brushed Nickel/ White
Power Factor: >0.9
Price List Description: Die-casting Aluminum / 30CM wire / 3-Years Warranty - cETL

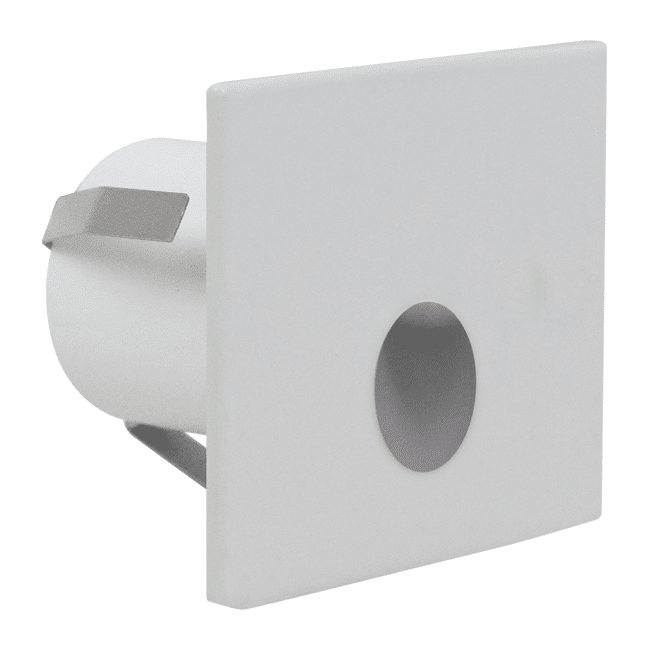

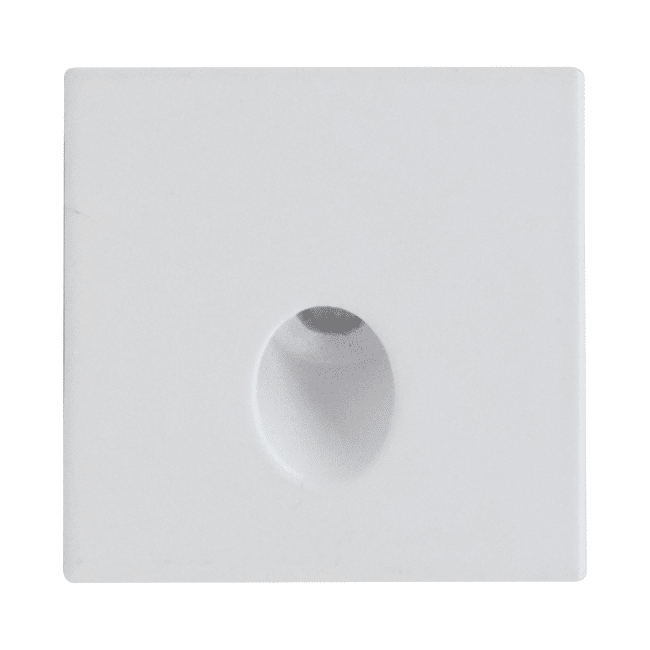

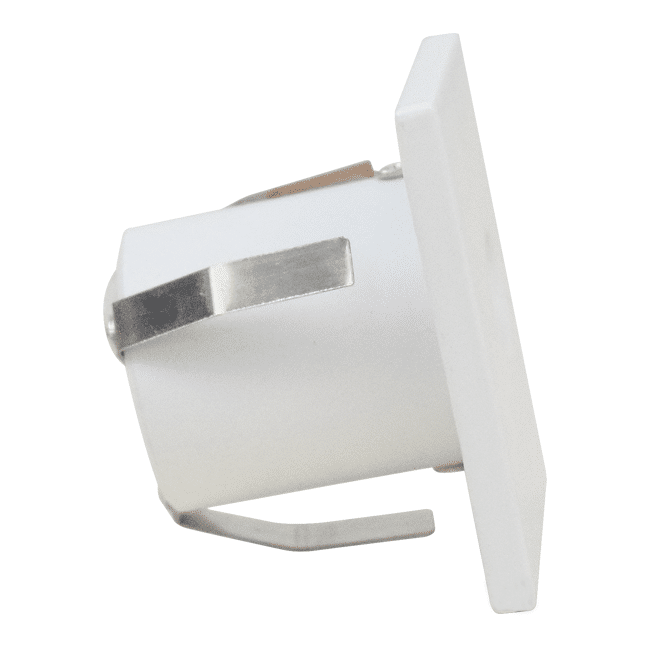

This is an interior step light, not an outdoor one. The 2" square die-cast aluminum trim recesses into a wall or stair riser and washes light down through a deep-set 60° optic, so you see the tread, not the source.
1W draws 18 lumens at 3000K, CRI above 80, on a 12V DC low-voltage feed. One fixed colour temperature. Not dimmable.

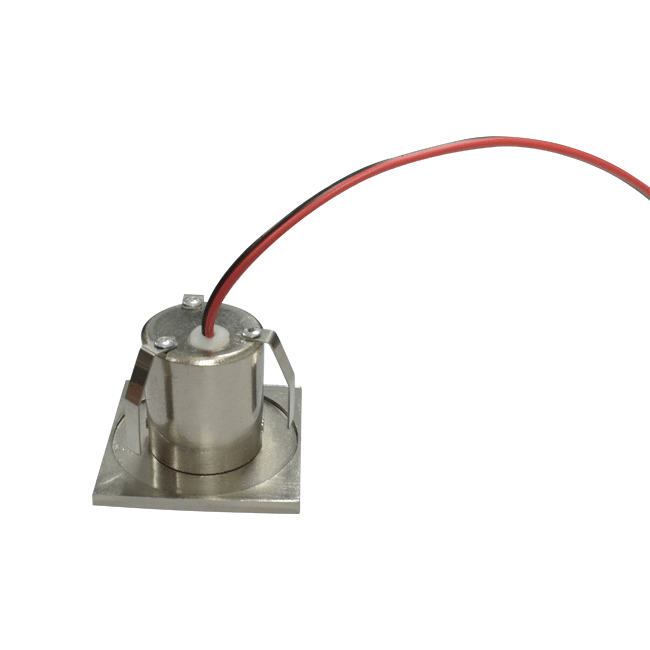

One-piece die-cast body, cETL listed for damp locations, IP20, three finishes, 3 year warranty.
Select an option above to see its full specifications.
Downloads: Spec Sheet (Mini Step LED Light - Square) | Manual (Mini Step LED Light - Square) | Spec Sheet (Mini Step LED Light - Square)
