Specifications
Model: BAA-023/WH
Finish: White
Insulation Resistance: >50MΩ (DC500V)
Temperature: -20°C~60°C
Electric strength: Pressure resistance 1500V 50Hz Duration 1 Min
Wire Specifications: #14- #10AWG
USB Voltage & Current: 5VDC 4A
Rated Voltage: 125V/60Hz
Rated Current: 15A/20A
Housing material: flame retardant grades UL94-V2
Standard: UL498 UL943 CSA-C22.2 No.42 USB1.0/2.0/3.0
Unloaded plug: ≥5000Sec Loop detection
Type: A
Price List Description: 15AMP / TYPE A+A / 5V DC 4.0A / Tamper Resistance / White/Black / cUL - 2 Year Warranty

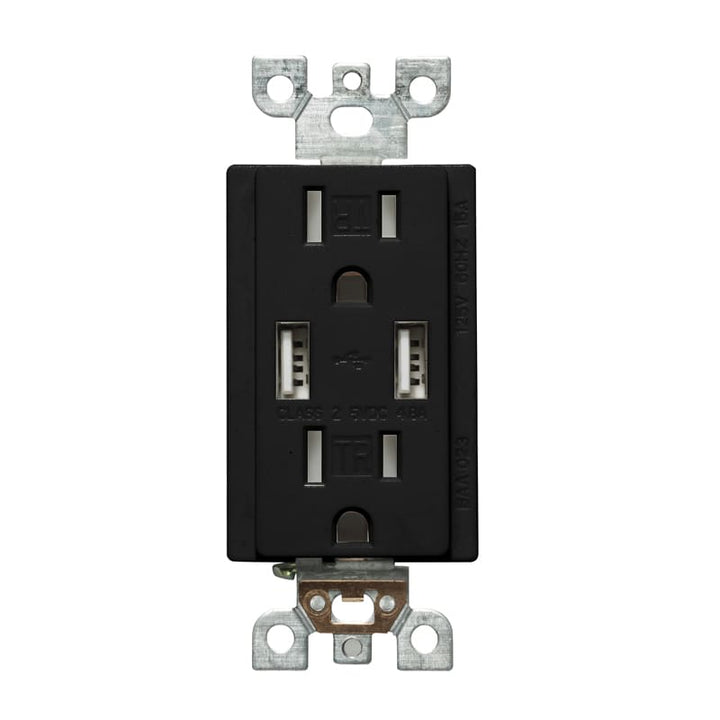

Model: BAA-023/BK
Finish: Black
Insulation Resistance: >50MΩ (DC500V)
Temperature: -20°C~60°C
Electric strength: Pressure resistance 1500V 50Hz Duration 1 Min
Wire Specifications: #14- #10AWG
USB Voltage & Current: 5VDC 4A
Rated Voltage: 125V/60Hz
Rated Current: 15A/20A
Housing material: flame retardant grades UL94-V2
Standard: UL498 UL943 CSA-C22.2 No.42 USB1.0/2.0/3.0
Unloaded plug: ≥5000Sec Loop detection
Type: A
Price List Description: 15AMP / TYPE A+A / 5V DC 4.0A / Tamper Resistance / White/Black / cUL - 2 Year Warranty

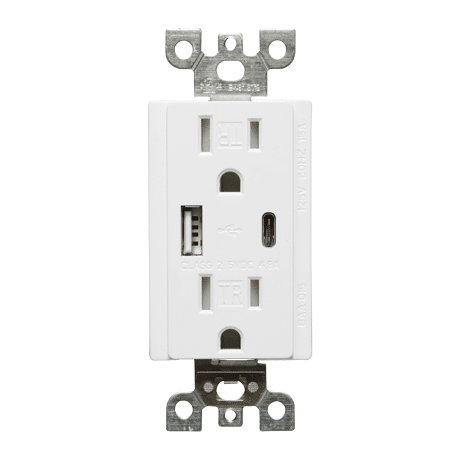

Model: BAA-015/WH
Finish: White
Type: A+C
Insulation Resistance: >50MΩ (DC500V)
Temperature: -20°C~60°C
Electric strength: Pressure resistance 1500V 50Hz Duration 1 Min
Wire Specifications: #14- #10AWG
USB Voltage & Current: 5VDC 4A
Rated Voltage: 125V/60Hz
Rated Current: 15A
Housing material: flame retardant grades UL94-V2
Standard: UL498 UL943 CSA-C22.2 No.42 USB1.0/2.0/3.0
Unloaded plug: ≥5000Sec Loop detection
Price List Description: 15AMP / TYPE A+C / 5V DC 4.8A / Tamper Resistance / White/Black / cUL - 2 Year Warranty

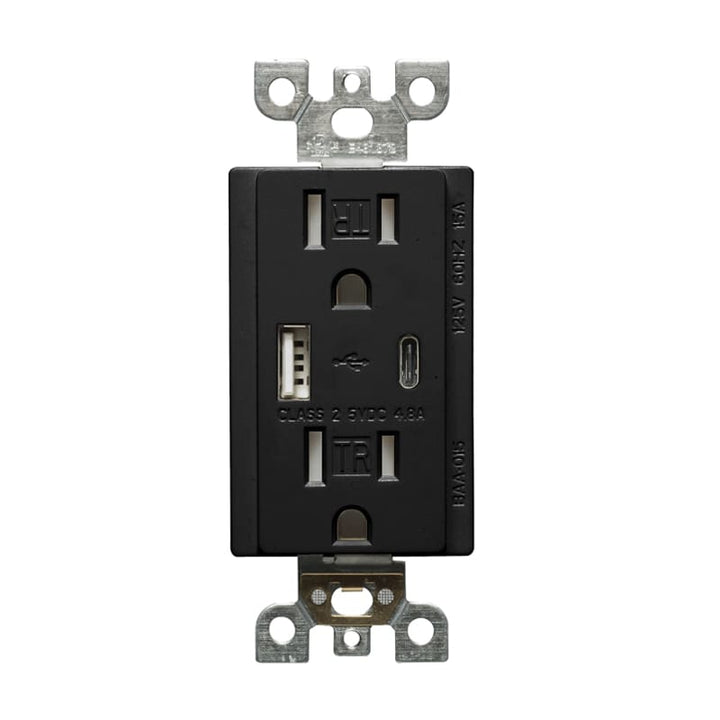

Model: BAA-015/BK
Finish: Black
Type: A+C
Insulation Resistance: >50MΩ (DC500V)
Temperature: -20°C~60°C
Electric strength: Pressure resistance 1500V 50Hz Duration 1 Min
Wire Specifications: #14- #10AWG
USB Voltage & Current: 5VDC 4A
Rated Voltage: 125V/60Hz
Rated Current: 15A
Housing material: flame retardant grades UL94-V2
Standard: UL498 UL943 CSA-C22.2 No.42 USB1.0/2.0/3.0
Unloaded plug: ≥5000Sec Loop detection
Price List Description: 15AMP / TYPE A+C / 5V DC 4.8A / Tamper Resistance / White/Black / cUL - 2 Year Warranty
Model: BAA-015D/WH
Finish: White
Rated Current: 20A
Insulation Resistance: >50MΩ (DC500V)
Temperature: -20°C~60°C
Electric strength: Pressure resistance 1500V 50Hz Duration 1 Min
Wire Specifications: #14- #10AWG
USB Voltage & Current: 5VDC 4A
Rated Voltage: 125V/60Hz
Housing material: flame retardant grades UL94-V2
Standard: UL498 UL943 CSA-C22.2 No.42 USB1.0/2.0/3.0
Unloaded plug: ≥5000Sec Loop detection
Type: A+C
Price List Description: 20AMP / TYPE A+C / 5V DC 4.8A / Tamper Resistance / White/Black / cUL - 2 Year Warranty
Model: BAA-015D/BK
Finish: Black
Rated Current: 20A
Insulation Resistance: >50MΩ (DC500V)
Temperature: -20°C~60°C
Electric strength: Pressure resistance 1500V 50Hz Duration 1 Min
Wire Specifications: #14- #10AWG
USB Voltage & Current: 5VDC 4A
Rated Voltage: 125V/60Hz
Housing material: flame retardant grades UL94-V2
Standard: UL498 UL943 CSA-C22.2 No.42 USB1.0/2.0/3.0
Unloaded plug: ≥5000Sec Loop detection
Type: A+C
Price List Description: 20AMP / TYPE A+C / 5V DC 4.8A / Tamper Resistance / White/Black / cUL - 2 Year Warranty
Model: BAA-025
Rated Current: 15A
Insulation Resistance: >50MΩ (DC500V)
Temperature: -20°C~60°C
Electric strength: Pressure resistance 1500V 50Hz Duration 1 Min
Wire Specifications: #14- #10AWG
USB Voltage & Current: 5VDC 4A
Rated Voltage: 125V/60Hz
Housing material: flame retardant grades UL94-V2
Standard: UL498 UL943 CSA-C22.2 No.42 USB1.0/2.0/3.0
Unloaded plug: ≥5000Sec Loop detection
Type: C+C
Color: Black/ White
Price List Description: 15AMP / TYPE C+C / 5V DC 4.8A / Tamper Resistance / White/Black / cUL - 2 Year Warranty

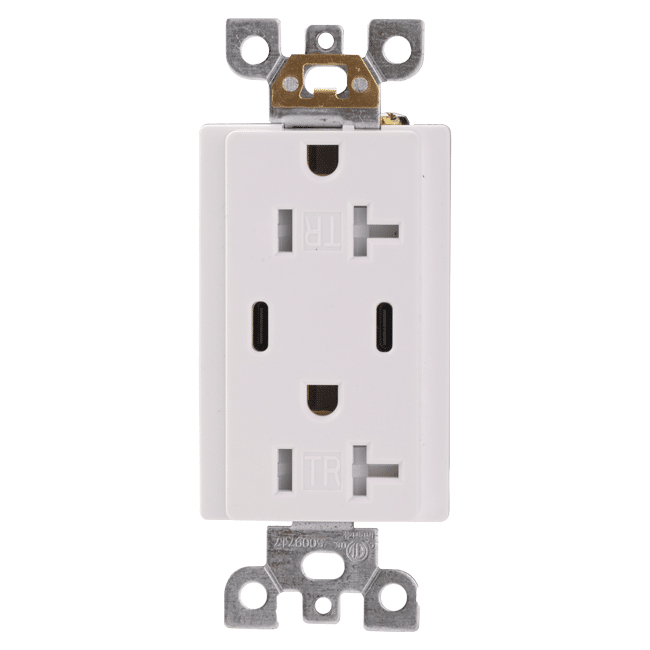

Model: BAA-025D
Rated Current: 20A
Insulation Resistance: >50MΩ (DC500V)
Temperature: -20°C~60°C
Electric strength: Pressure resistance 1500V 50Hz Duration 1 Min
Wire Specifications: #14- #10AWG
USB Voltage & Current: 5VDC 4A
Rated Voltage: 125V/60Hz
Housing material: flame retardant grades UL94-V2
Standard: UL498 UL943 CSA-C22.2 No.42 USB1.0/2.0/3.0
Unloaded plug: ≥5000Sec Loop detection
Type: C+C
Color: Black/ White
Price List Description: 20AMP / TYPE C+C / 5V DC 4.8A / Tamper Resistance / White/Black / cUL - 2 Year Warranty

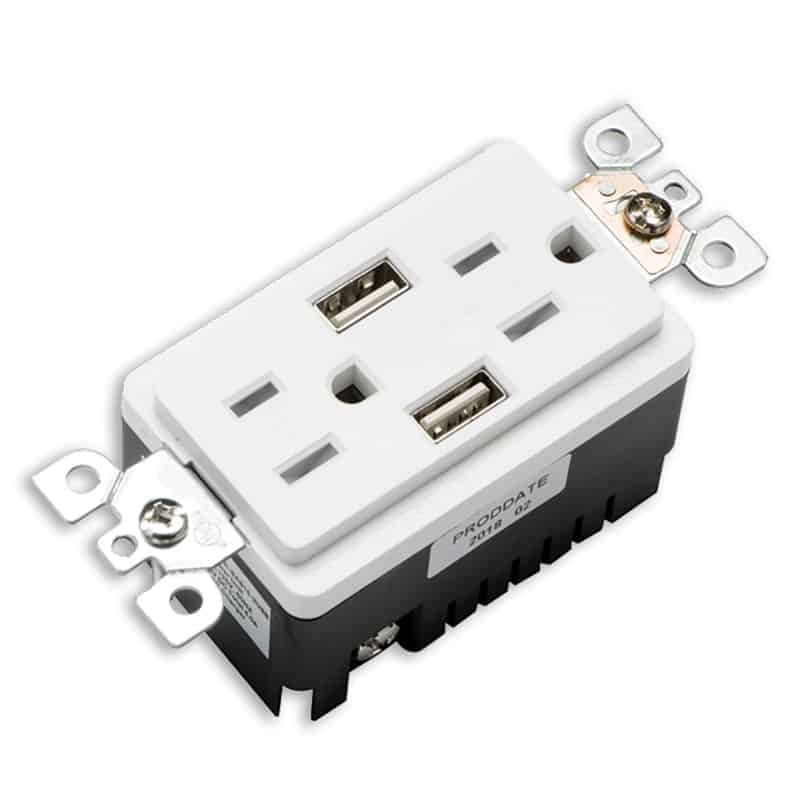

Two USB-A charging ports on a 15A tamper-resistant duplex receptacle, so a standard wall box charges phones and tablets without a plug-in adapter.
Both outlets are NEMA 5-15R, 125V, 60Hz, with tamper-resistant shutters. The USB ports share one Class 2 5VDC supply. Back and side wire terminals take #14 to #10AWG copper.
Polycarbonate cover, zinc-plated mounting brackets, UL94-V2 housing. UL listed to UL 498 and CSA C22.2 No. 42. Two-year warranty.
Select an option above to see its full specifications.
Downloads: Spec Sheet (Type A+A - 15A) | Manual (Type A+A - 15A) | Spec Sheet (Type A+C - 15A) | Manual (Type A+C - 15A) | Spec Sheet (Type A+C - 20A) | Spec Sheet (Type C+C - 15A) | Manual (Type C+C - 15A)
