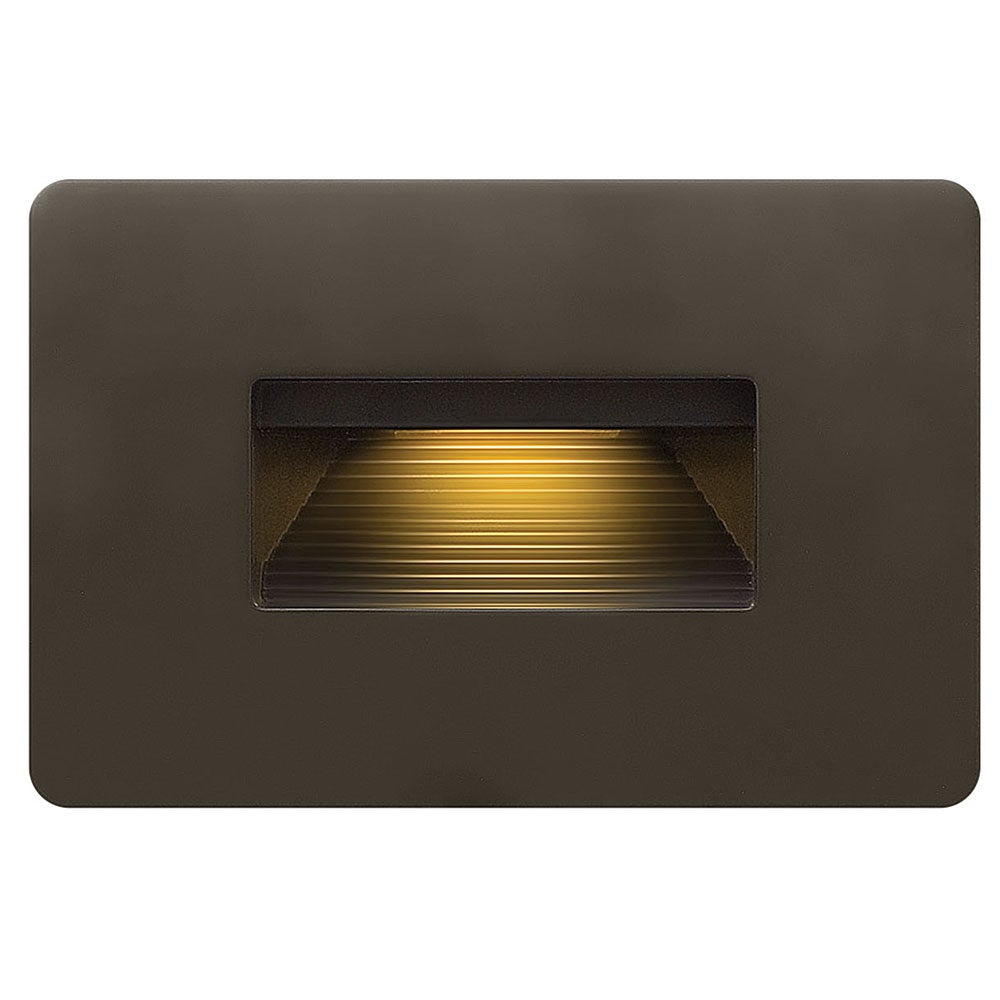

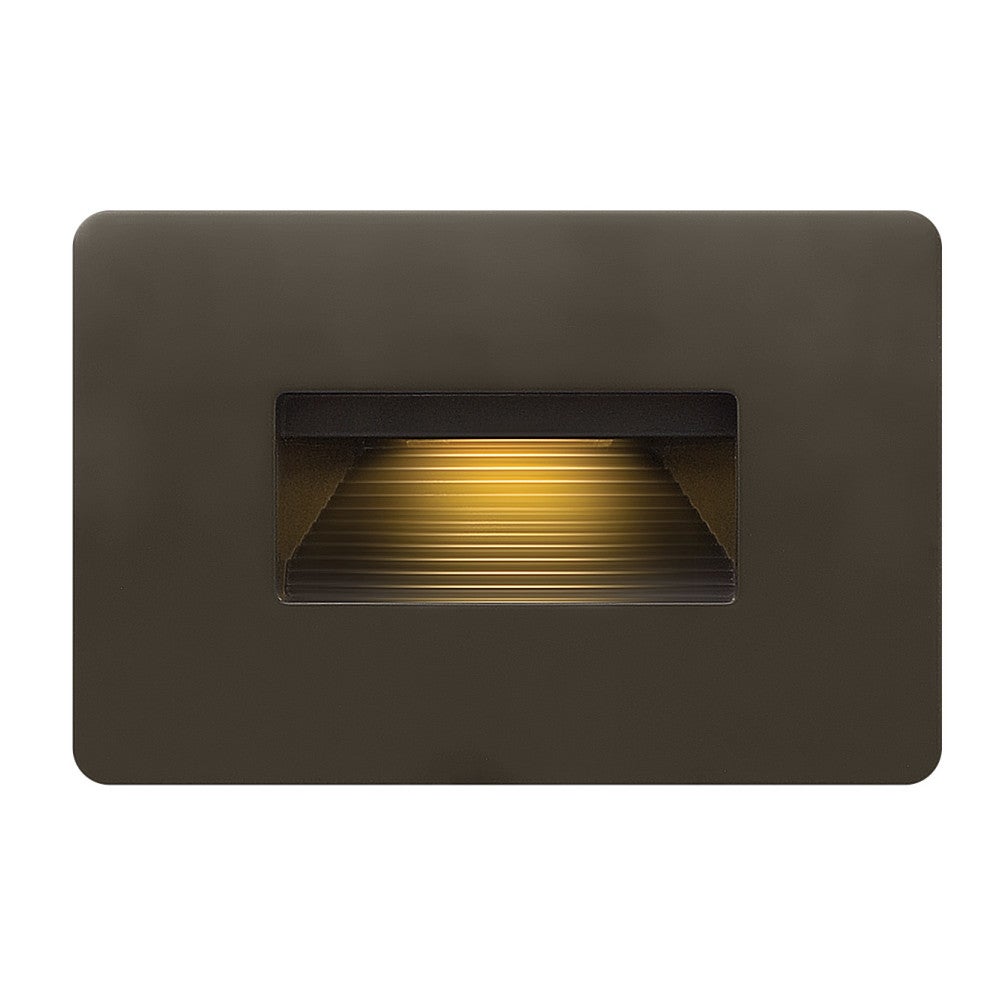

Specifications
Model: 58508BZ
Collection: Luna
Description: LED 2700K Step Light 120V Horizontal

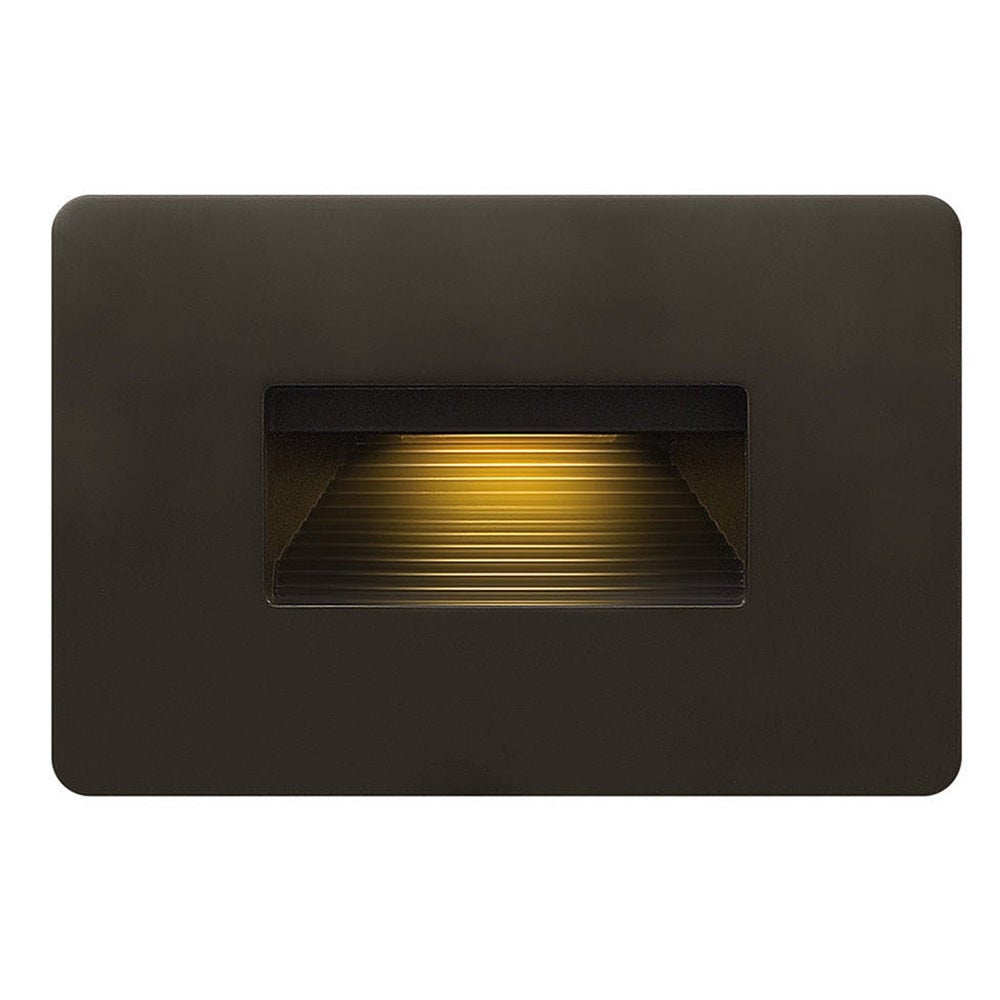

Finish: Bronze
Material: Zinc-Aluminum Alloy

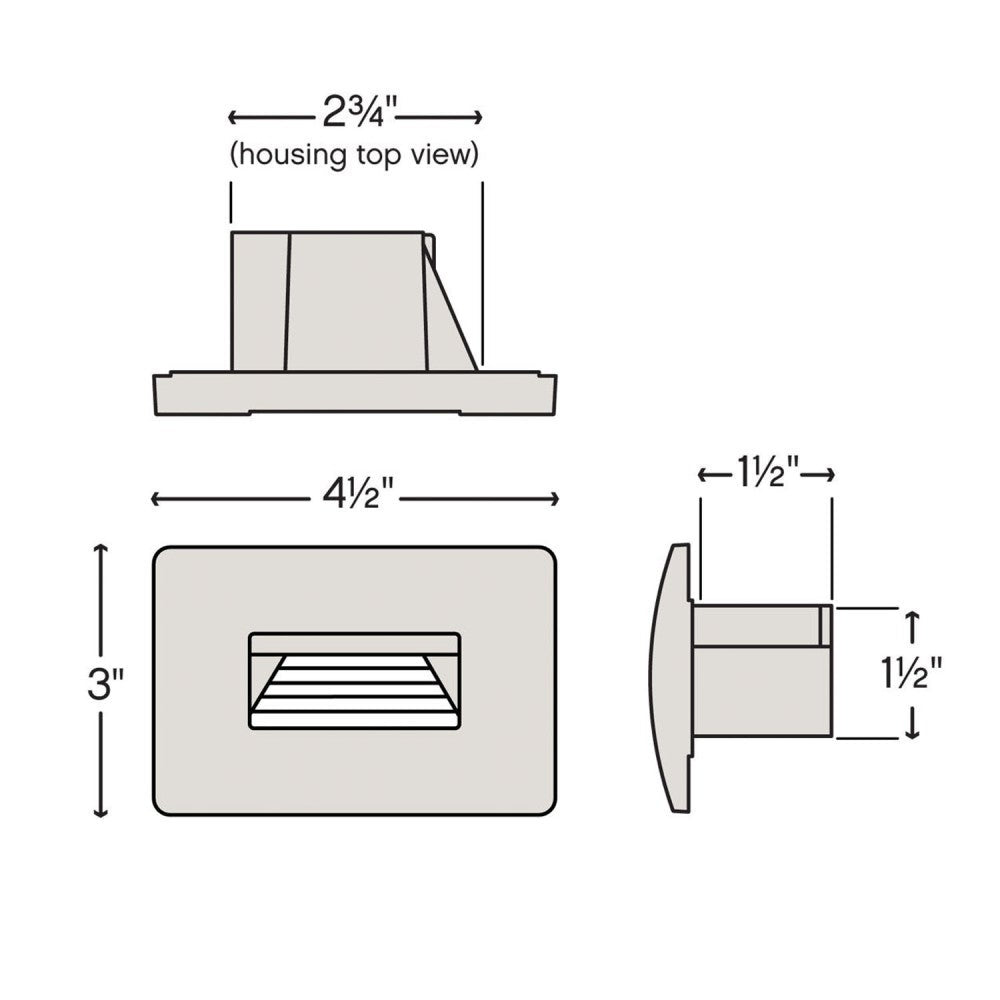

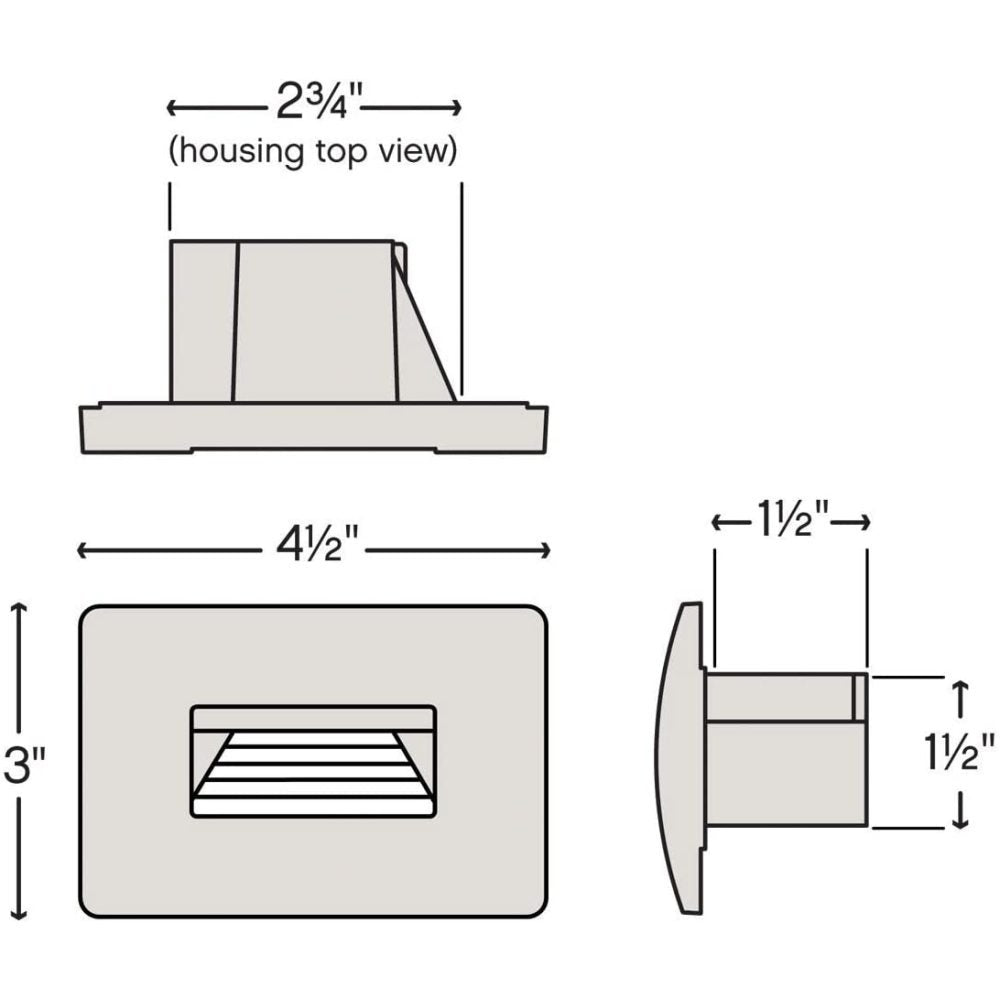

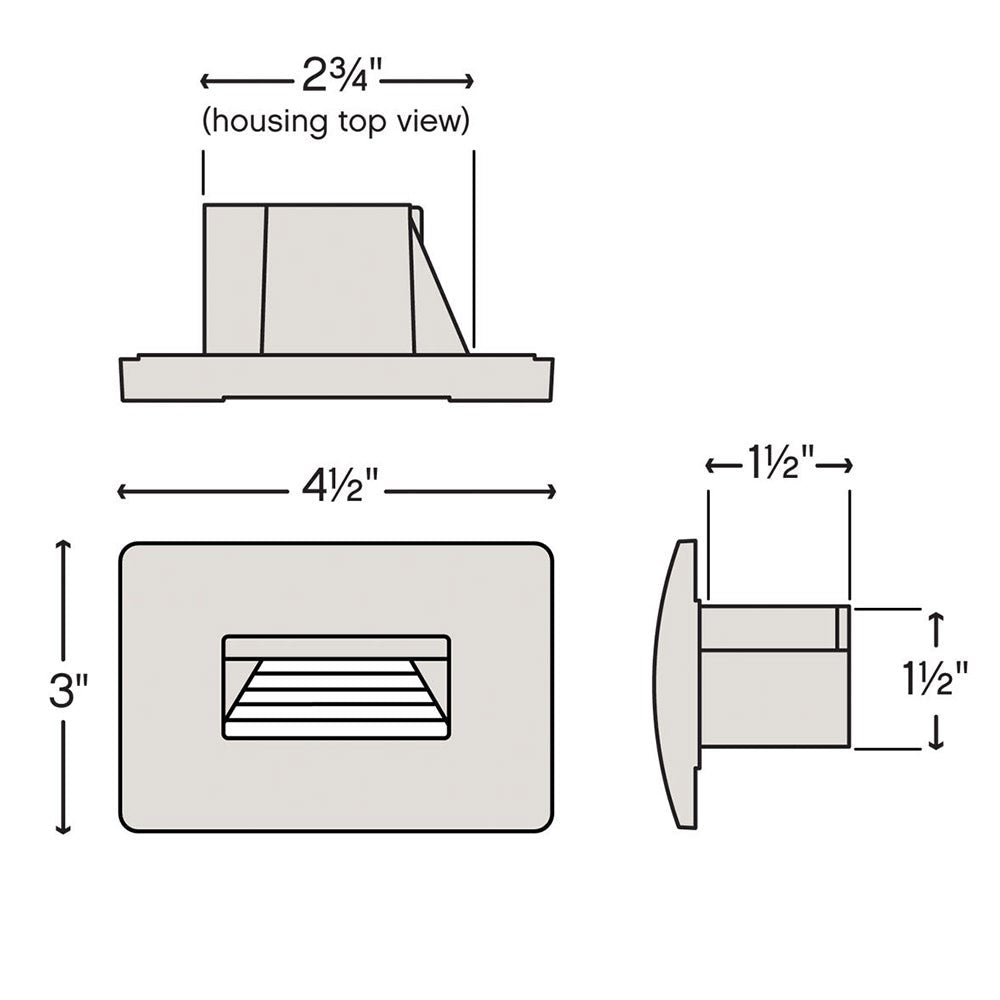

Width: 4.5"
Height: 3"
Light Source: Integrated LED
LED Name: LS-20
Wattage: 4w LED *Included
Voltage: 120v
Length: 2"
LED Color Temp: 2700
LED Lumens: 240
Number of lights: LED
Depth: 2
LED CRI: 90
Incandescent Equivalency: 1 x 20w
LED Lifespan: 40,000 hrs
Dimmable: Yes - CL Type Dimmer (SSL7A)
Leadwire: 1 X 6"
Extension: 0.5”
Weight: 0.7lb
Patent: US PATENT D736 987 S
UPC Code: 640665585063
Rating: C-US Wet Rated
ADA Compliant: Yes
Model: 58508BZ3K
Collection: Luna
Description: LED 3000K Step Light 120V Horizontal
Finish: Bronze
Material: Zinc-Aluminum Alloy
Width: 4.5"
Height: 3"
Light Source: Integrated LED
LED Name: LS-20-30
Wattage: 4w LED *Included
Voltage: 120v
Length: 2"
LED Color Temp: 3000
LED Lumens: 240
Number of lights: LED
Depth: 2
LED CRI: 90
Incandescent Equivalency: 1 x 20w
LED Lifespan: 40,000 hrs
Dimmable: Yes - CL Type Dimmer (SSL7A)
Leadwire: 1 X 6"
Extension: 0.5”
Weight: 0.7lb
UPC Code: 640665585292
Rating: C-US Wet Rated
ADA Compliant: Yes
Model: 58508SK
Collection: Luna
Description: LED 2700K Step Light 120V Horizontal

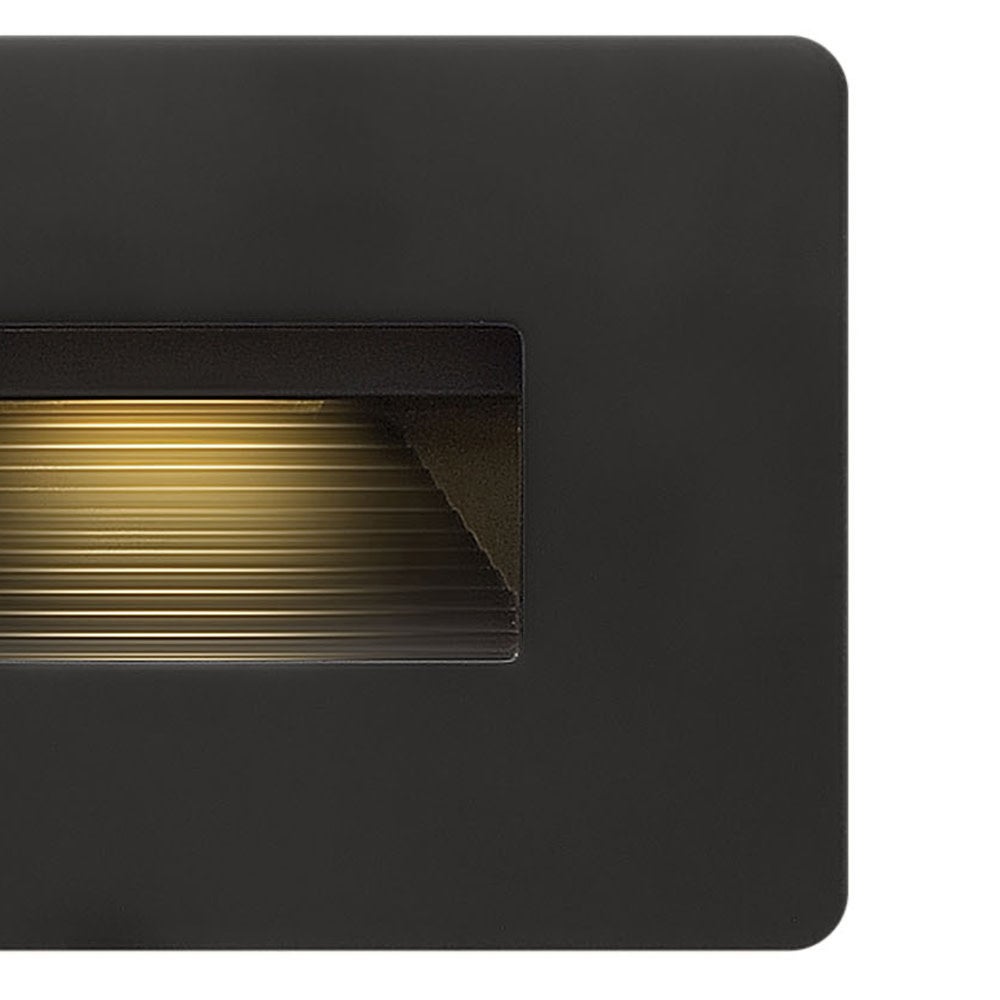

Finish: Satin Black
Material: Zinc-Aluminum Alloy
Width: 4.5"
Height: 3"
Light Source: Integrated LED
LED Name: LS-20
Wattage: 4w LED *Included
Voltage: 120v
Length: 2"
LED Color Temp: 2700
LED Lumens: 240
Number of lights: LED
Depth: 2
LED CRI: 90
Incandescent Equivalency: 1 x 20w
LED Lifespan: 40,000 hrs
Dimmable: Yes - CL Type Dimmer (SSL7A)
Leadwire: 1 X 6"
Extension: 0.5”
Weight: 0.7lb
Patent: US PATENT D736 987 S
UPC Code: 640665585346
Rating: C-US Wet Rated
ADA Compliant: Yes
Model: 58508SK3K
Collection: Luna
Description: LED 3000K Step Light 120V Horizontal
Finish: Satin Black
Material: Zinc-Aluminum Alloy
Width: 4.5"
Height: 3"
Light Source: Integrated LED
LED Name: LS-20-30
Wattage: 4w LED *Included
Voltage: 120v
Length: 2"
LED Color Temp: 3000
LED Lumens: 240
Number of lights: LED
Depth: 2
LED CRI: 90
Incandescent Equivalency: 1 x 20w
LED Lifespan: 40,000 hrs
Dimmable: Yes - CL Type Dimmer (SSL7A)
Leadwire: 1 X 6"
Extension: 0.5”
Weight: 0.7lb
UPC Code: 640665585353
Rating: C-US Wet Rated
ADA Compliant: Yes

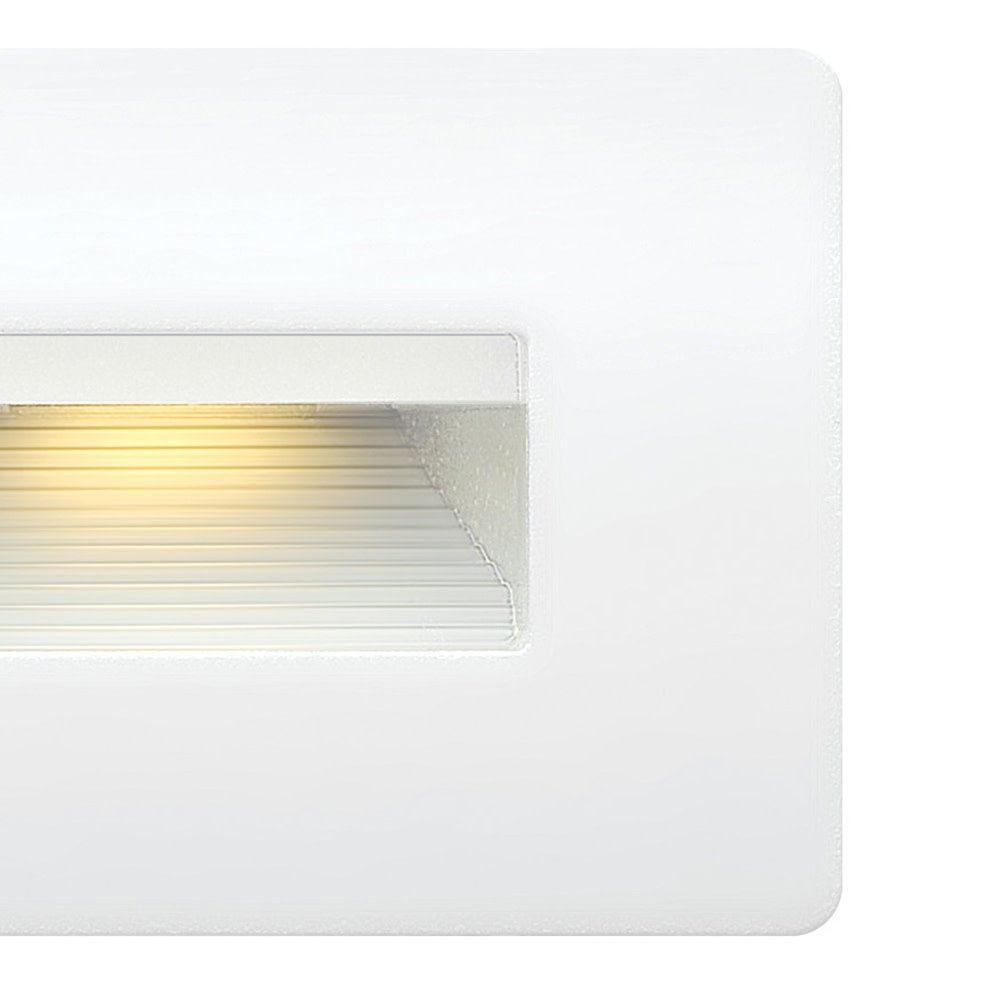

Model: 58508SW
Collection: Luna
Description: LED 2700K Step Light 120V Horizontal

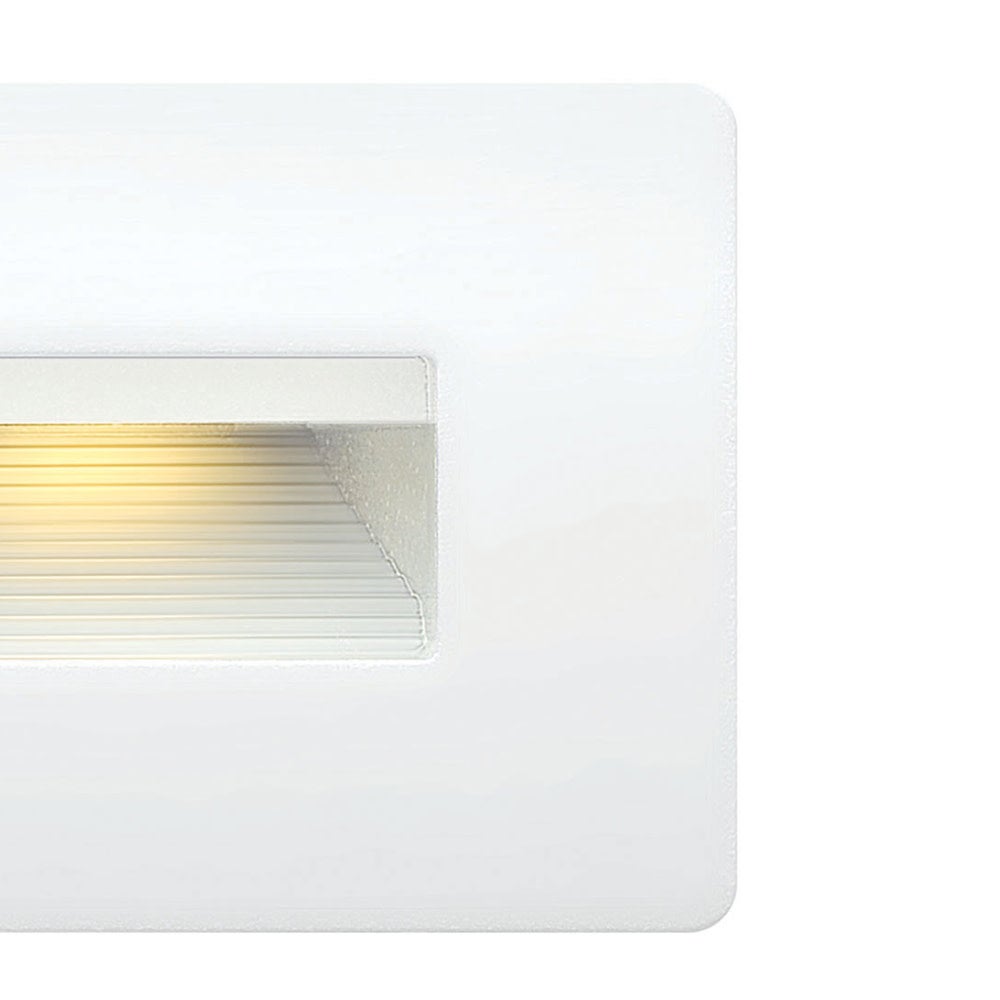

Finish: Satin White
Material: Zinc-Aluminum Alloy
Width: 4.5"
Height: 3"
Light Source: Integrated LED
LED Name: LS-20
Wattage: 4w LED *Included
Voltage: 120v
Length: 2"
LED Color Temp: 2700
LED Lumens: 240
Number of lights: LED
Depth: 2
LED CRI: 90
Incandescent Equivalency: 1 x 20w
LED Lifespan: 40,000 hrs
Dimmable: Yes - CL Type Dimmer (SSL7A)
Leadwire: 1 X 6"
Extension: 0.5”
Weight: 0.7lb
Patent: US PATENT D736 987 S
UPC Code: 640665585070
Rating: C-US Wet Rated
ADA Compliant: Yes
Model: 58508SW3K
Collection: Luna
Description: LED 3000K Step Light 120V Horizontal
Finish: Satin White
Material: Zinc-Aluminum Alloy
Width: 4.5"
Height: 3"
Light Source: Integrated LED
LED Name: LS-20-30
Wattage: 4w LED *Included
Voltage: 120v
Length: 2"
LED Color Temp: 3000
LED Lumens: 240
Number of lights: LED
Depth: 2
LED CRI: 90
Incandescent Equivalency: 1 x 20w
LED Lifespan: 40,000 hrs
Dimmable: Yes - CL Type Dimmer (SSL7A)
Leadwire: 1 X 6"
Extension: 0.5”
Weight: 0.7lb
UPC Code: 640665585360
Rating: C-US Wet Rated
ADA Compliant: Yes
Model: 58504TT
Collection: Luna
Description: LED 2700K Step Light 120V Vertical
Finish: Titanium
Material: Zinc-Aluminum Alloy

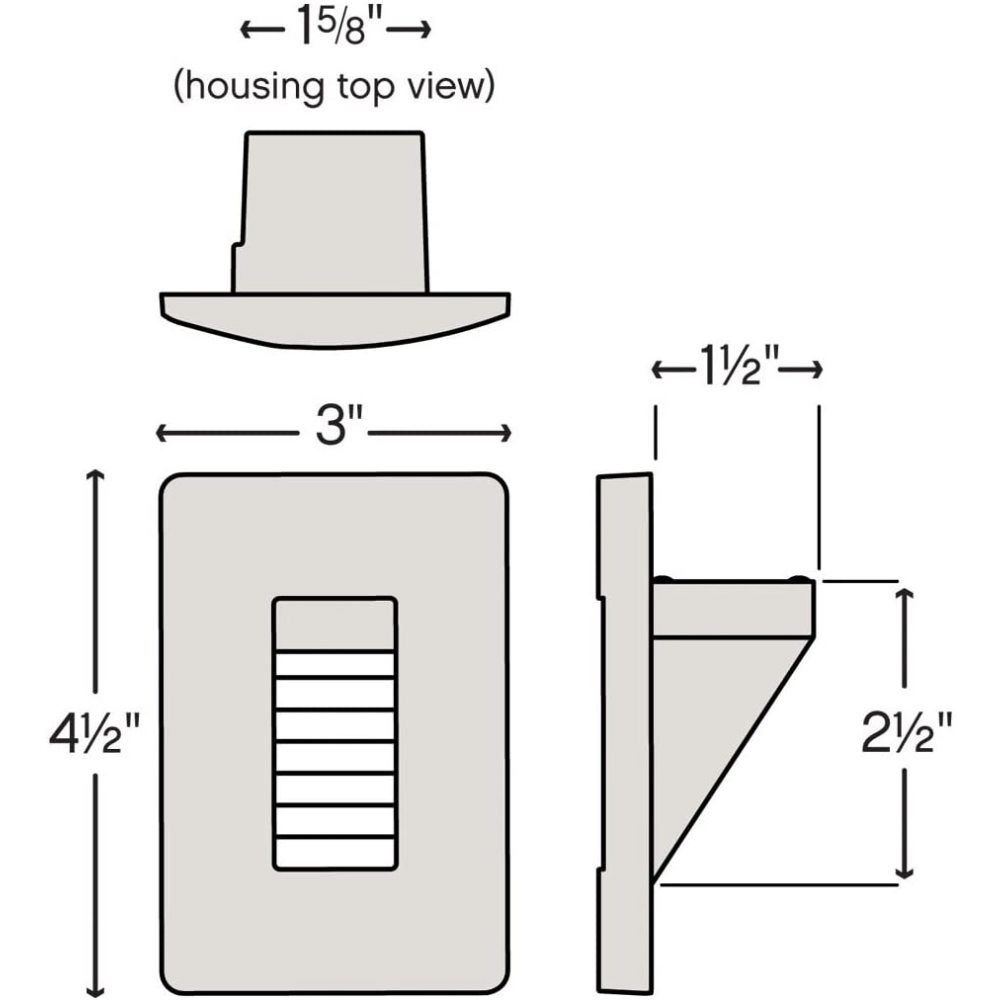

Width: 3"
Height: 4.5"
Light Source: Integrated LED
LED Name: LS-20
Wattage: 4w LED *Included
Voltage: 120v
Length: 0.5"
LED Color Temp: 2700
LED Lumens: 240
Number of lights: LED
LED CRI: 90
Incandescent Equivalency: 1 x 20w
LED Lifespan: 40,000 hrs
Dimmable: Yes - CL Type Dimmer (SSL7A)
Leadwire: 1 X 6"
Extension: 0.5”
Weight: 0.7lb
UPC Code: 640665585056
Rating: C-US Wet Rated
ADA Compliant: Yes
Model: 58508TT
Collection: Luna
Description: LED 2700K Step Light 120V Horizontal
Finish: Titanium
Material: Zinc-Aluminum Alloy
Width: 4.5"
Height: 3"
Light Source: Integrated LED
LED Name: LS-20
Wattage: 4w LED *Included
Voltage: 120v
Length: 2"
LED Color Temp: 2700
LED Lumens: 240
Number of lights: LED
Depth: 2
LED CRI: 90
Incandescent Equivalency: 1 x 20w
LED Lifespan: 40,000 hrs
Dimmable: Yes - CL Type Dimmer (SSL7A)
Leadwire: 1 X 6"
Extension: 0.5”
Weight: 0.7lb
Patent: US PATENT D736 987 S
UPC Code: 640665585087
Rating: C-US Wet Rated
ADA Compliant: Yes
Model: 58504MZ
Collection: Luna
Description: Hardy Island LED 2700K Step Light 120V Vertical

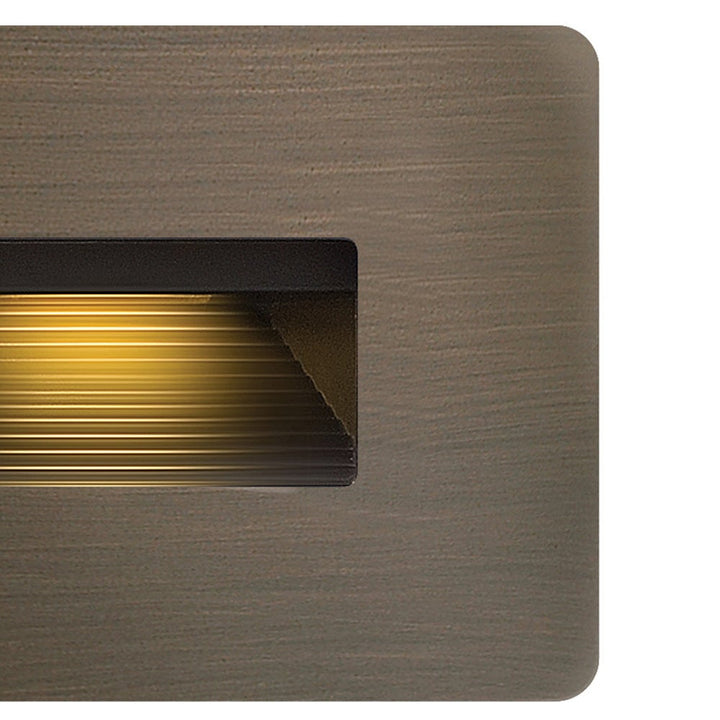

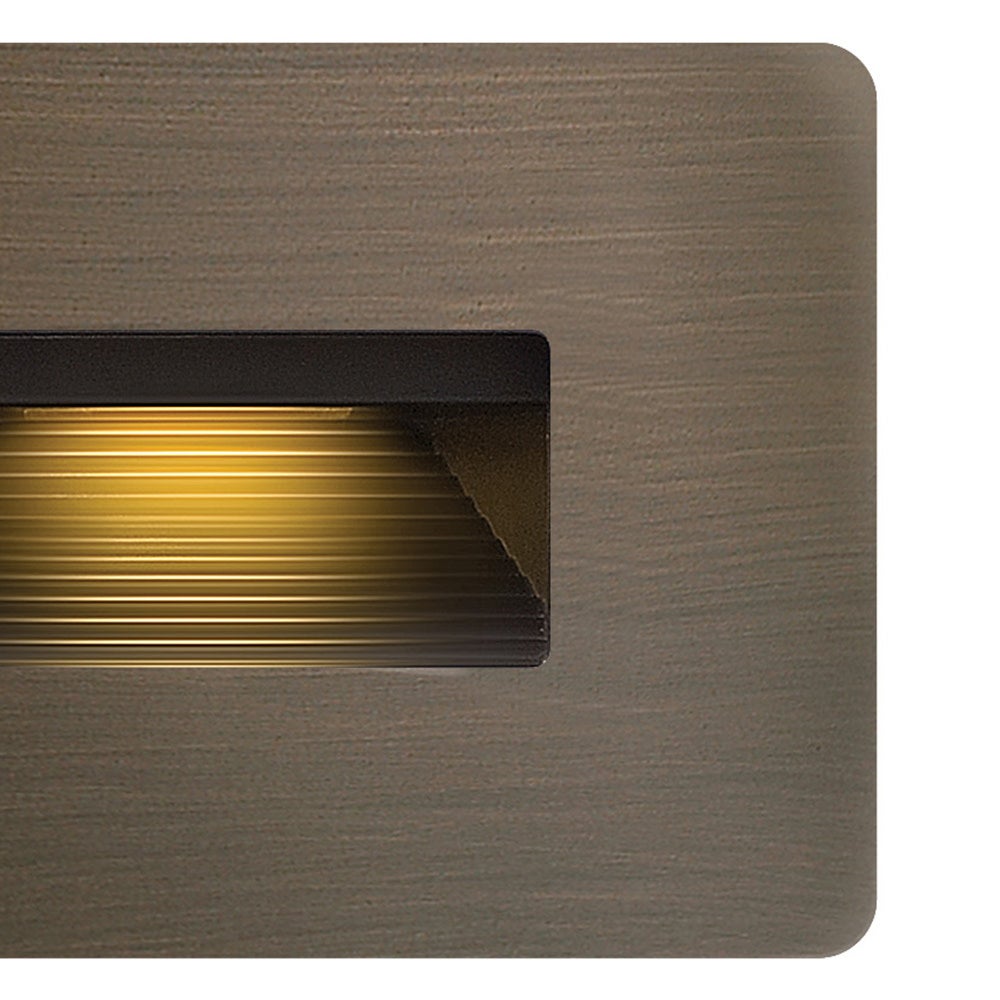

Finish: Matte Bronze
Material: Cast Brass
Width: 3"
Height: 4.5"
Light Source: Integrated LED
LED Name: LS-20
Wattage: 4w LED *Included
Voltage: 120v
Length: 0.5"
LED Color Temp: 2700
LED Lumens: 240
Number of lights: LED
LED CRI: 90
Incandescent Equivalency: 1 x 20w
LED Lifespan: 40,000 hrs
Dimmable: Yes - CL Type Dimmer (SSL7A)
Leadwire: 1 X 6"
Extension: 0.5”
Weight: 0.7lb
UPC Code: 640665585155
Rating: C-US Wet Rated
ADA Compliant: Yes
Model: 58508MZ
Collection: Luna
Description: Hardy Island LED 2700K Step Light 120V Horizontal
Finish: Matte Bronze
Material: Cast Brass
Width: 4.5"
Height: 3"
Light Source: Integrated LED
LED Name: LS-20
Wattage: 4w LED *Included
Voltage: 120v
Length: 2"
LED Color Temp: 2700
LED Lumens: 240
Number of lights: LED
Depth: 2
LED CRI: 90
Incandescent Equivalency: 1 x 20w
LED Lifespan: 40,000 hrs
Dimmable: Yes - CL Type Dimmer (SSL7A)
Leadwire: 1 X 6"
Extension: 0.5”
Weight: 0.7lb
Patent: US PATENT D736 987 S
UPC Code: 640665585162
Rating: C-US Wet Rated
ADA Compliant: Yes
Model: 15508BZ
Collection: Luna
Description: LED 2700K Step Light 12v Horizontal
Finish: Bronze
Material: Zinc-Aluminum Alloy
Transformer Required: Yes
Width: 4.5"
Height: 3"
Light Source: Integrated LED
LED Name: LS-4
Wattage: 3.80w LED *Included
Voltage: 12v
Volt-Amps: 6.5
Length: 1.5"
LED Color Temp: 2700
LED Lumens: 200
Number of lights: LED
Depth: 1.5
LED CRI: 90
Incandescent Equivalency: 1 x 20w
LED Lifespan: 40,000 hrs
Dimmable: Yes - with MLV on Transformer Primary
Leadwire: 1 X 6"
Extension: 0.5”
Weight: 0.7lb
Patent: US PATENT D736 987 S
UPC Code: 640665155006
Rating: C-US Wet Rated
ADA Compliant: Yes
Model: 15508SK
Collection: Luna
Description: LED 2700K Step Light 12v Horizontal
Finish: Satin Black
Material: Zinc-Aluminum Alloy
Transformer Required: Yes
Width: 4.5"
Height: 3"
Light Source: Integrated LED
LED Name: LS-4
Wattage: 3.80w LED *Included
Voltage: 12v
Volt-Amps: 6.5
Length: 1.5"
LED Color Temp: 2700
LED Lumens: 200
Number of lights: LED
Depth: 1.5
LED CRI: 90
Incandescent Equivalency: 1 x 20w
LED Lifespan: 40,000 hrs
Dimmable: Yes - with MLV on Transformer Primary
Leadwire: 1 X 6"
Extension: 0.5”
Weight: 0.7lb
Patent: US PATENT D736 987 S
UPC Code: 640665155907
Rating: C-US Wet Rated
ADA Compliant: Yes
Model: 15508SW
Collection: Luna
Description: LED 2700K Step Light 12v Horizontal
Finish: Satin White
Material: Zinc-Aluminum Alloy
Transformer Required: Yes
Width: 4.5"
Height: 3"
Light Source: Integrated LED
LED Name: LS-4
Wattage: 3.80w LED *Included
Voltage: 12v
Volt-Amps: 6.5
Length: 1.5"
LED Color Temp: 2700
LED Lumens: 200
Number of lights: LED
Depth: 1.5
LED CRI: 90
Incandescent Equivalency: 1 x 20w
LED Lifespan: 40,000 hrs
Dimmable: Yes - with MLV on Transformer Primary
Leadwire: 1 X 6"
Extension: 0.5”
Weight: 0.7lb
Patent: US PATENT D736 987 S
UPC Code: 640665155037
Rating: C-US Wet Rated
ADA Compliant: Yes
Model: 15508TT
Collection: Luna
Description: LED 2700K Step Light 12v Horizontal
Finish: Titanium
Material: Zinc-Aluminum Alloy
Transformer Required: Yes
Width: 4.5"
Height: 3"
Light Source: Integrated LED
LED Name: LS-4
Wattage: 3.80w LED *Included
Voltage: 12v
Volt-Amps: 6.5
Length: 1.5"
LED Color Temp: 2700
LED Lumens: 200
Number of lights: LED
Depth: 1.5
LED CRI: 90
Incandescent Equivalency: 1 x 20w
LED Lifespan: 40,000 hrs
Dimmable: Yes - with MLV on Transformer Primary
Leadwire: 1 X 6"
Extension: 0.5”
Weight: 0.7lb
Patent: US PATENT D736 987 S
UPC Code: 640665155044
Rating: C-US Wet Rated
ADA Compliant: Yes
Model: 15508MZ
Collection: Luna
Description: Hardy Island LED 2700K Step Light 12v Horizontal
Finish: Matte Bronze
Material: Forged Brass Face Plate
Transformer Required: Yes
Width: 4.5"
Height: 3"
Light Source: Integrated LED
LED Name: LS-4
Wattage: 3.80w LED *Included
Voltage: 12v
Volt-Amps: 6.5
Length: 1.5"
LED Color Temp: 2700
LED Lumens: 200
Number of lights: LED
Depth: 1.5
LED CRI: 90
Incandescent Equivalency: 1 x 20w
LED Lifespan: 40,000 hrs
Dimmable: Yes - with MLV on Transformer Primary
Leadwire: 1 X 6"
Extension: 0.5”
Weight: 0.7lb
Patent: US PATENT D736 987 S
UPC Code: 640665155013
Rating: C-US Wet Rated
ADA Compliant: Yes

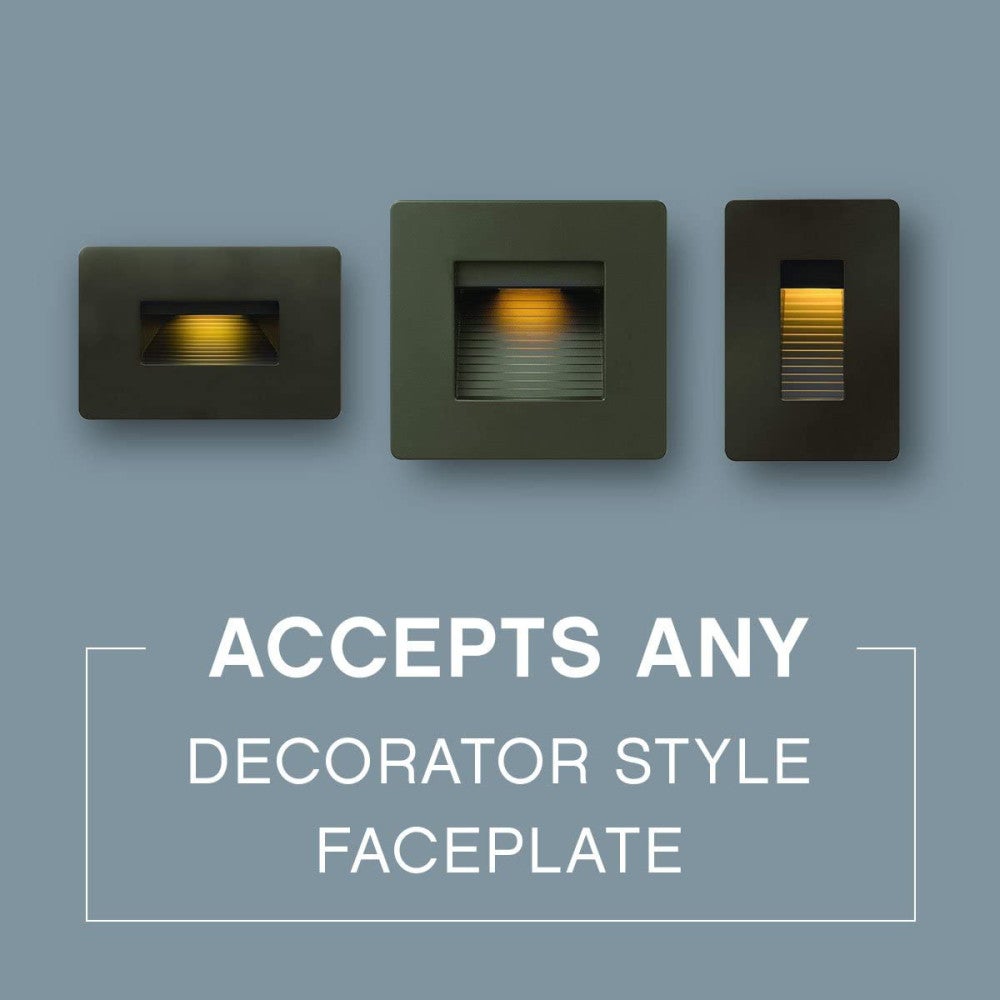

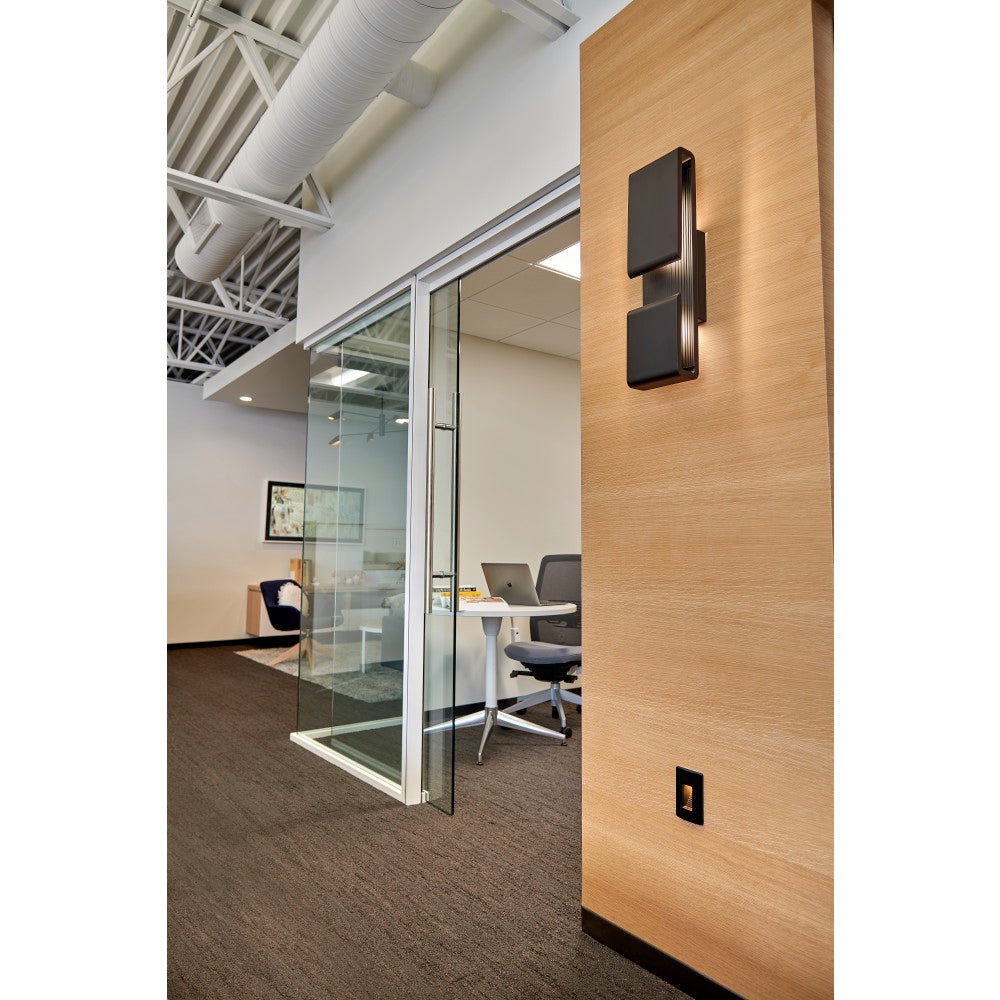

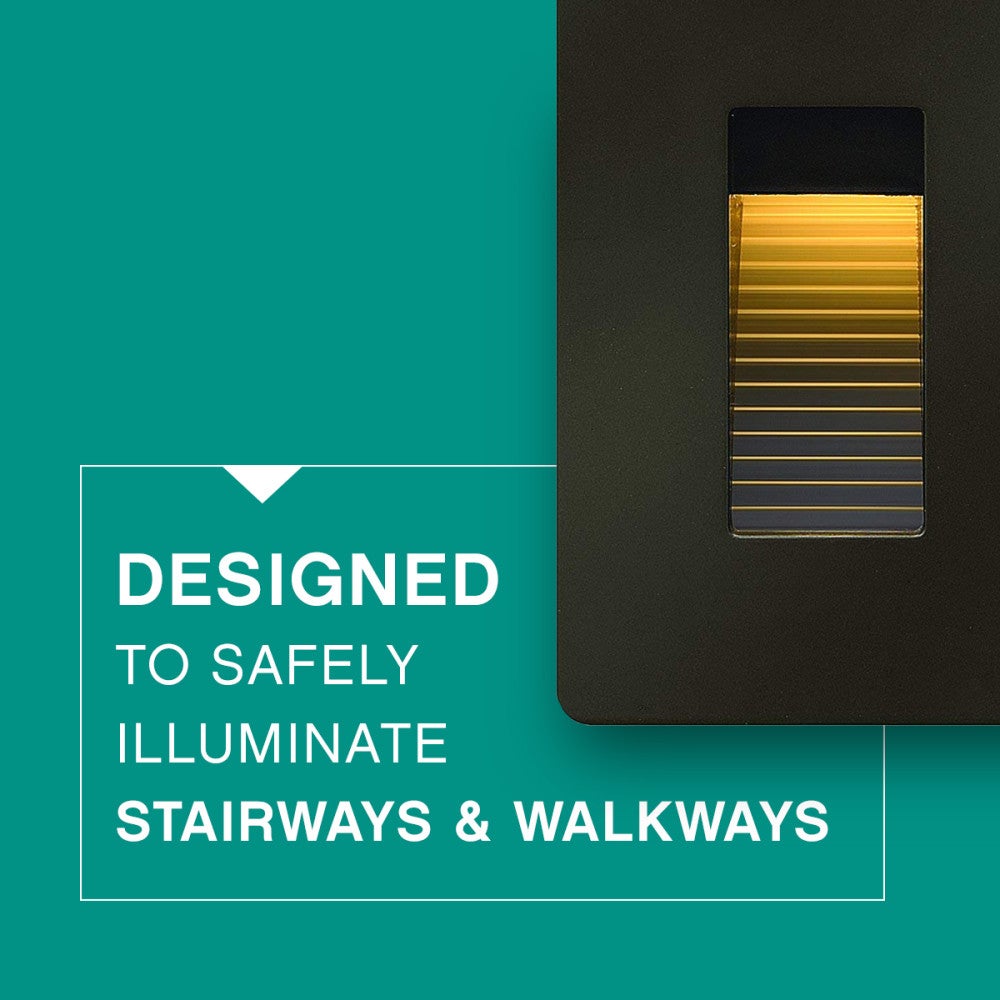

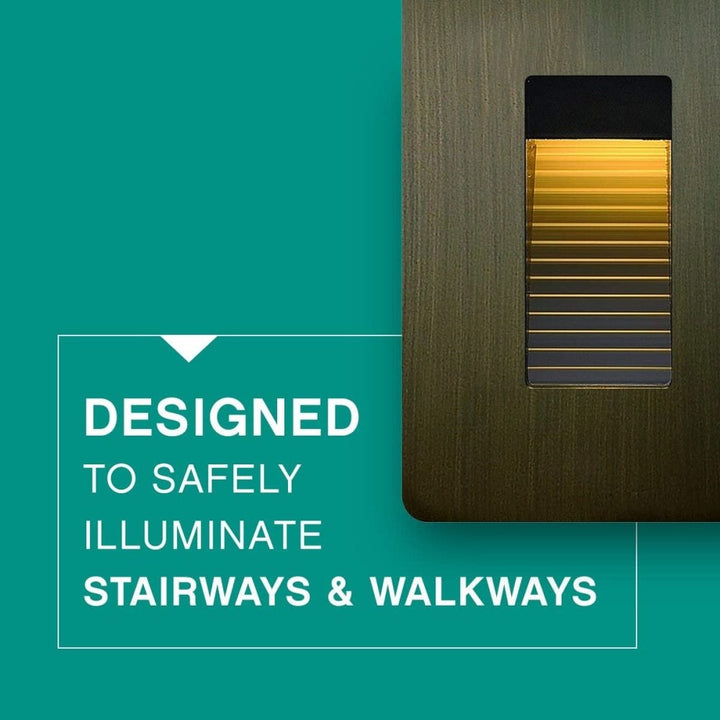

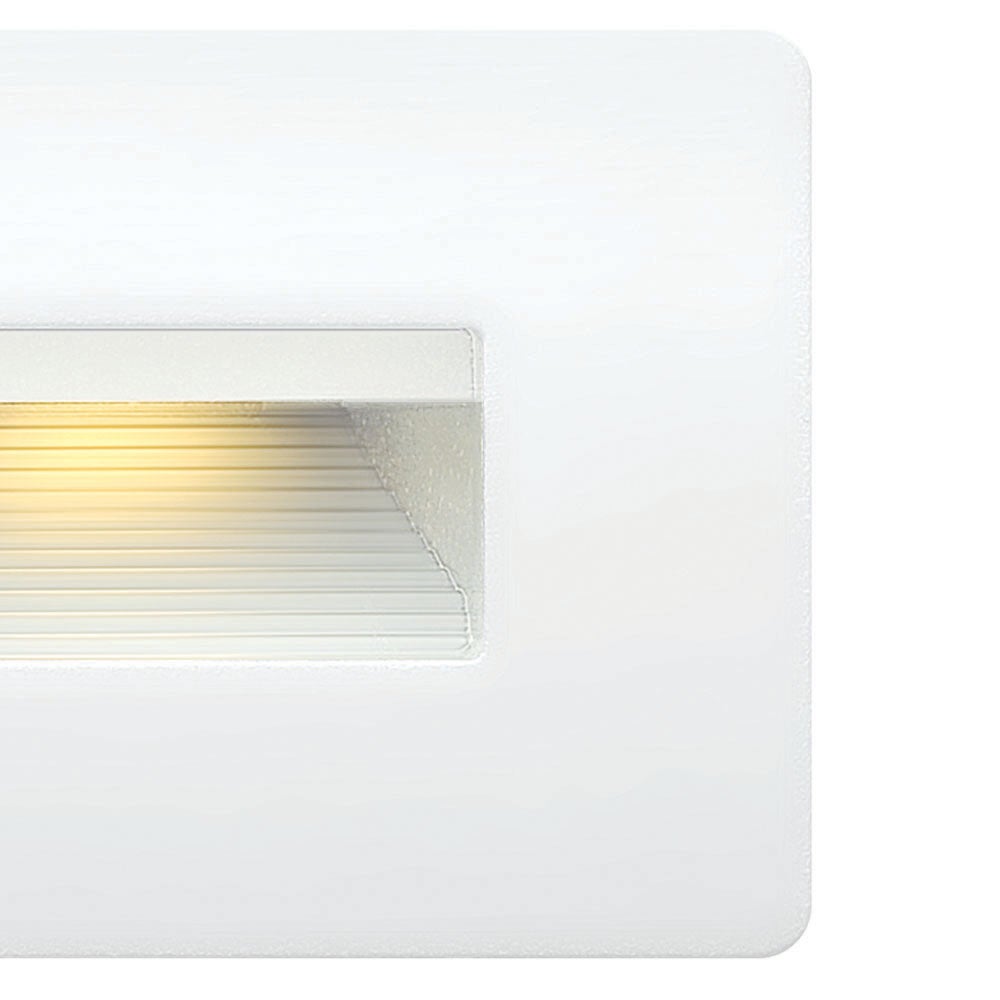

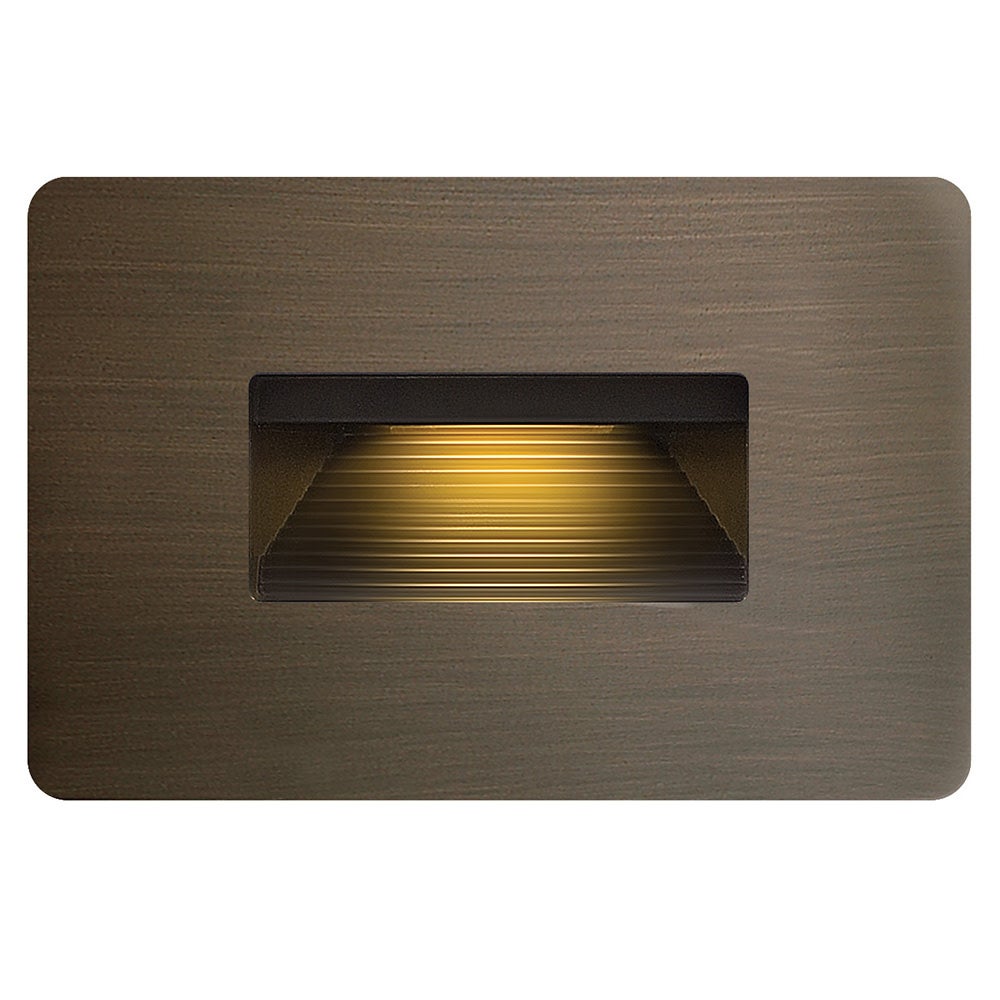

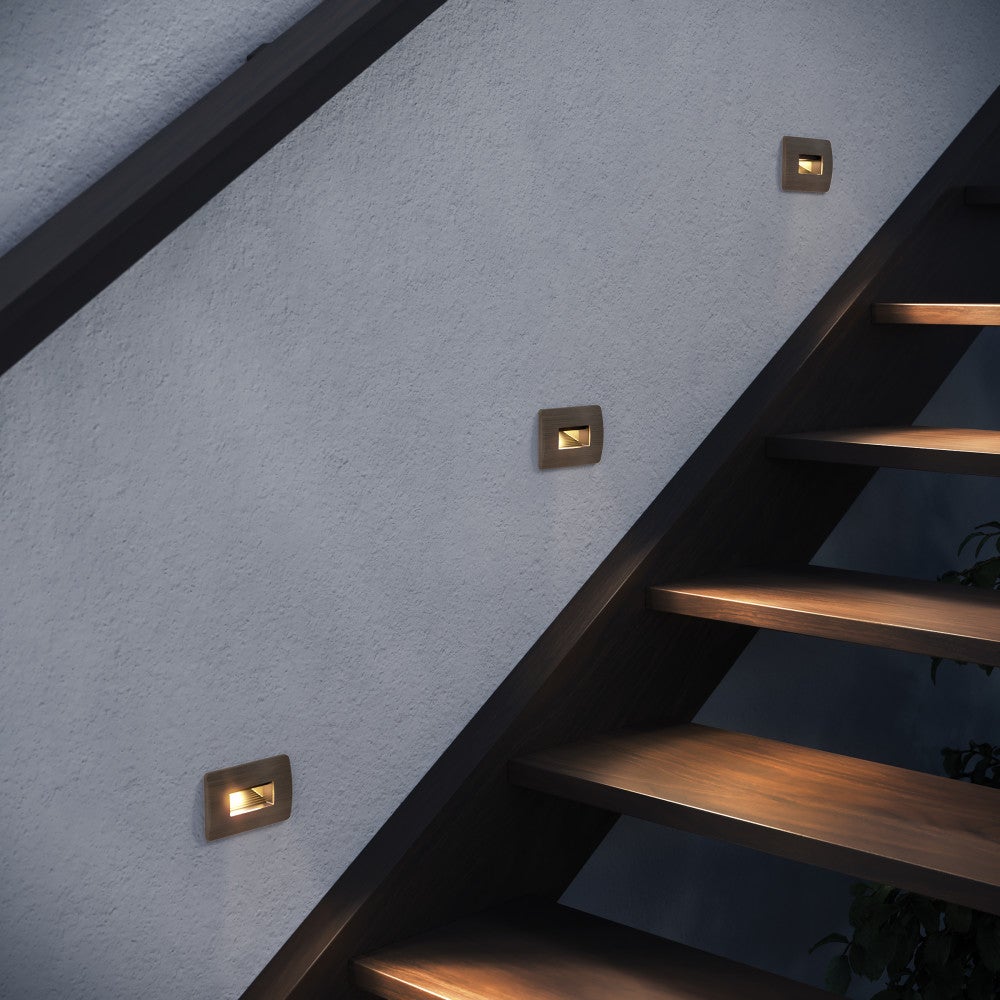

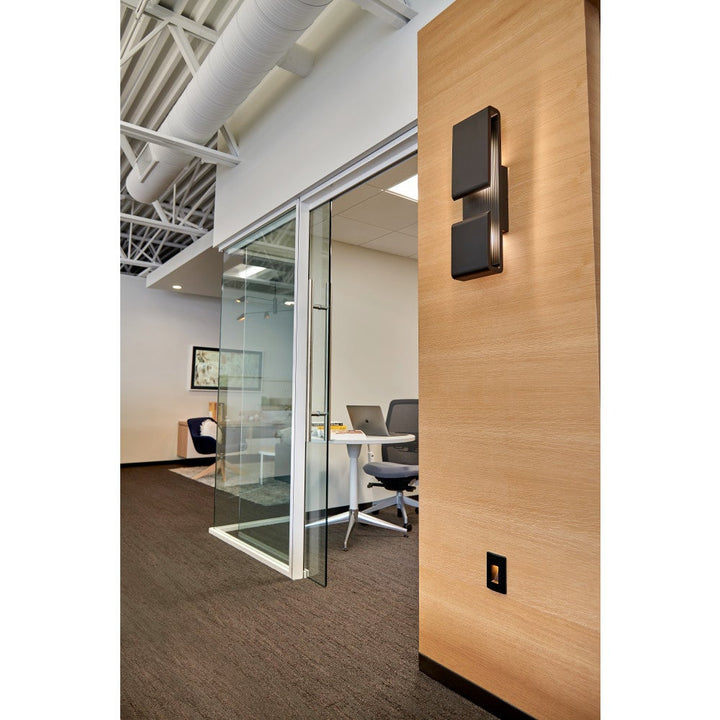

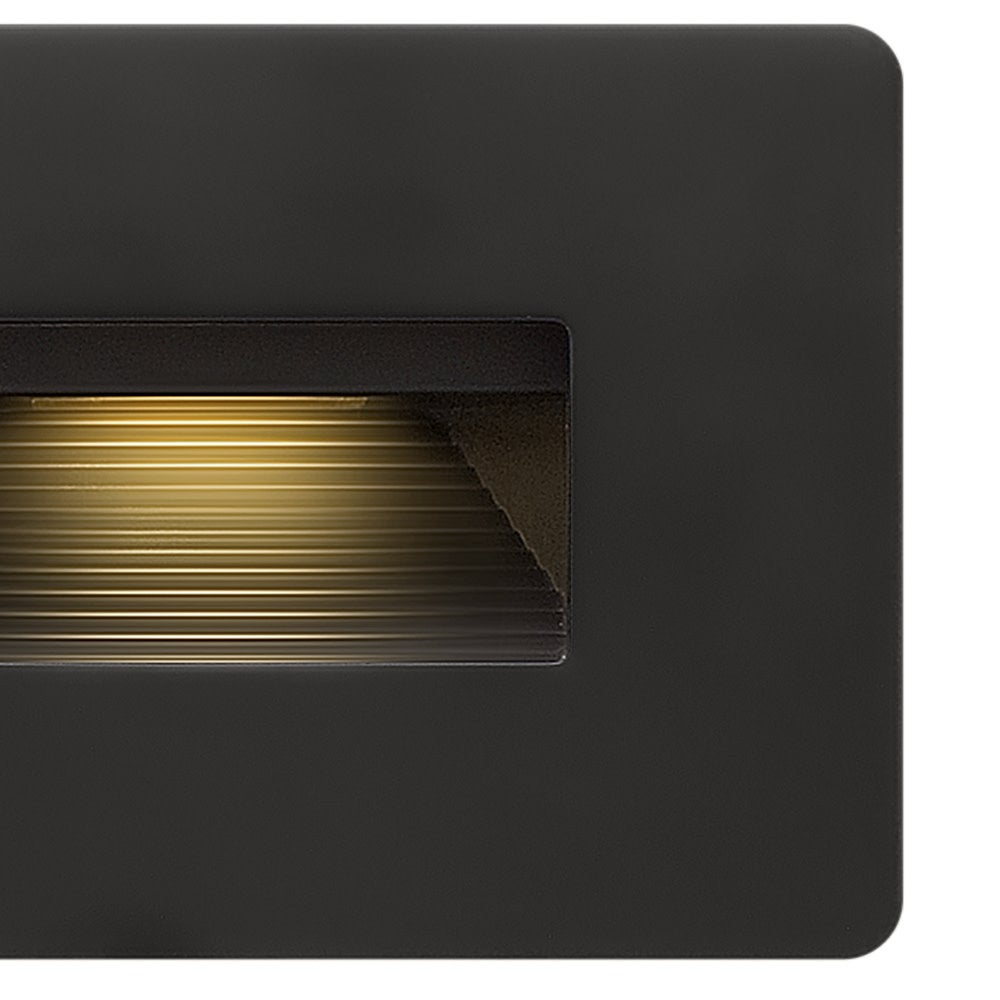

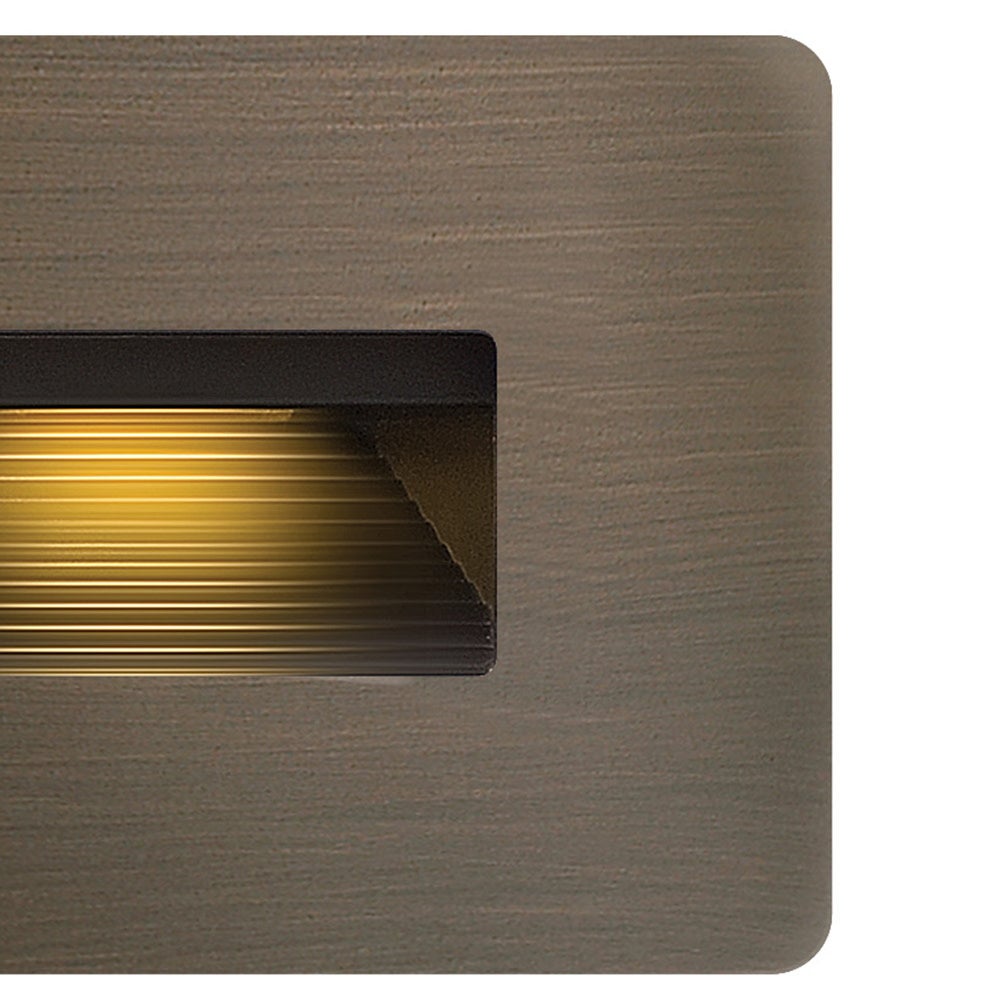

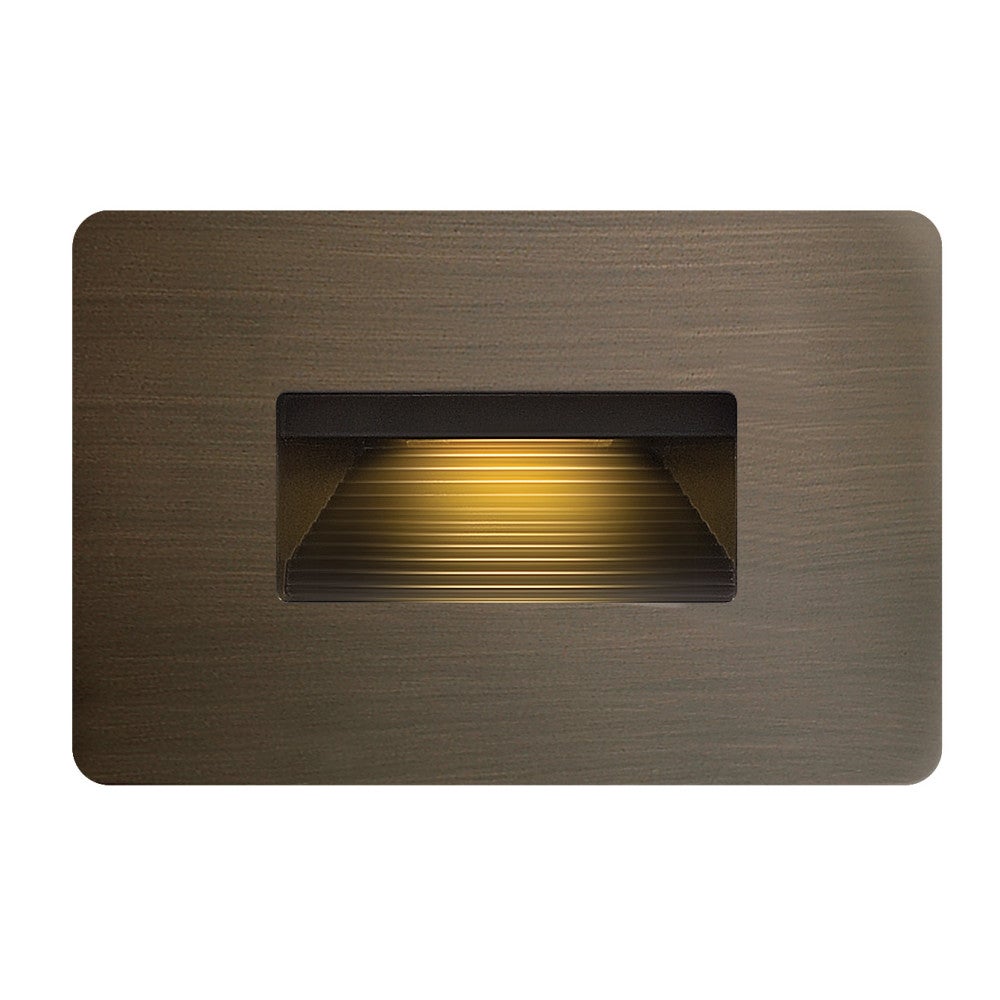

The Luna step light is the perfect addition to any interior or exterior lighting plan and complements the Hinkley Luna outdoor lantern collection. A contemporary styled radius front die cast faceplate is included. The Luna step light is compatible with any decorator style faceplate and is easily retrofitted to any gang/receptacle location.
- Line voltage fixture that accommodates higher wattage and light output (ideal for commercial and public spaces)

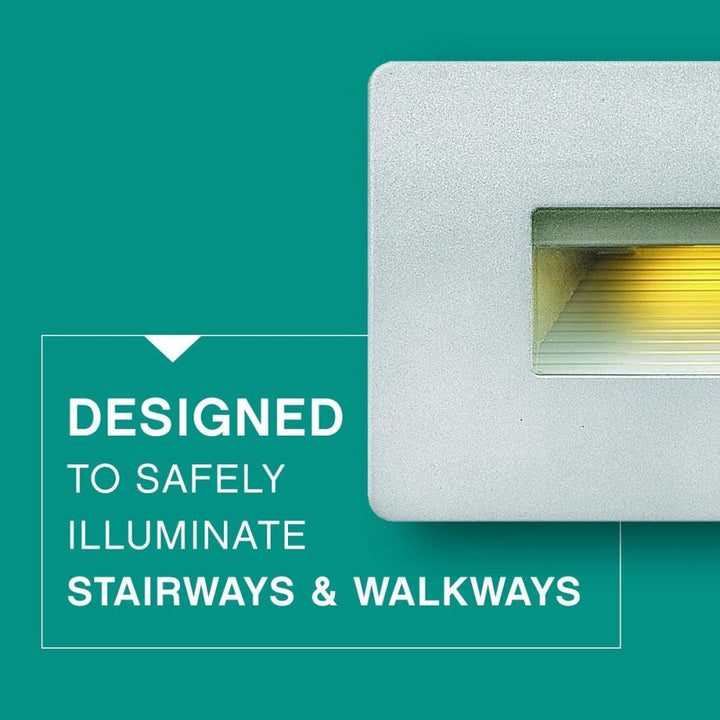

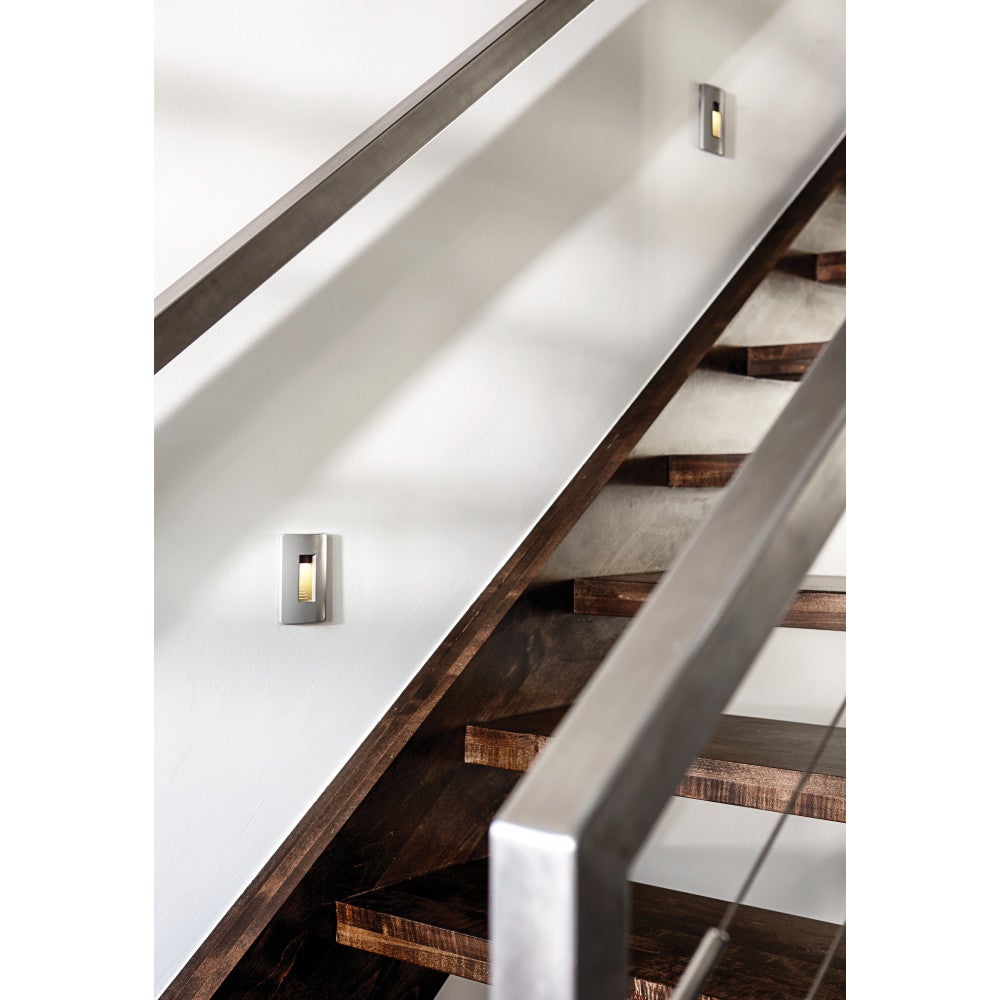

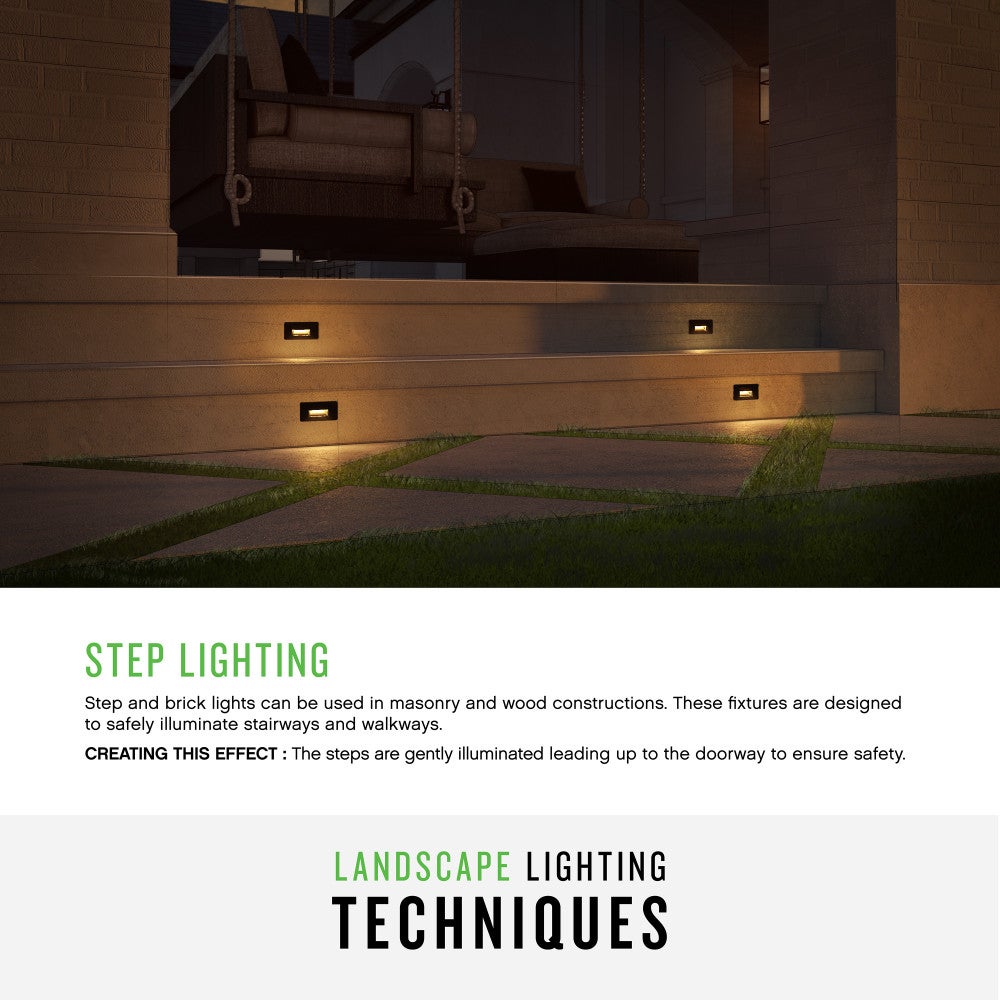

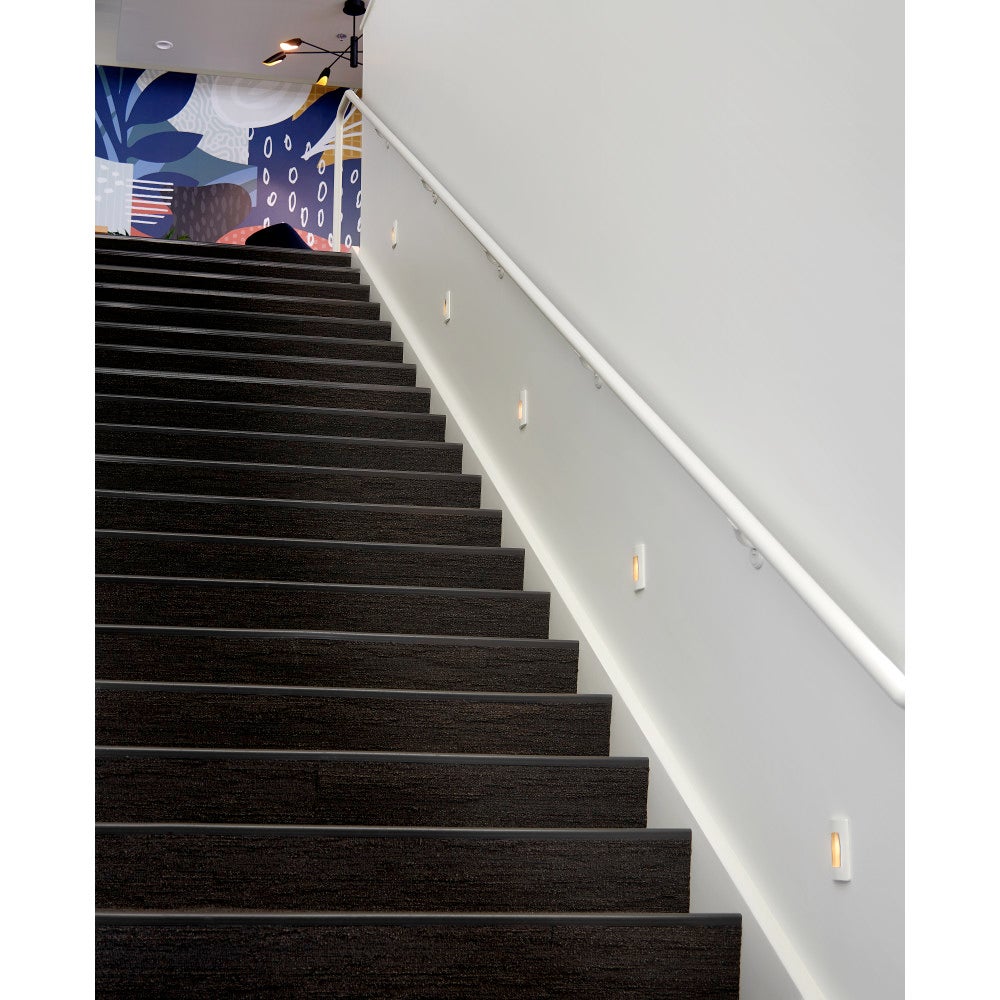

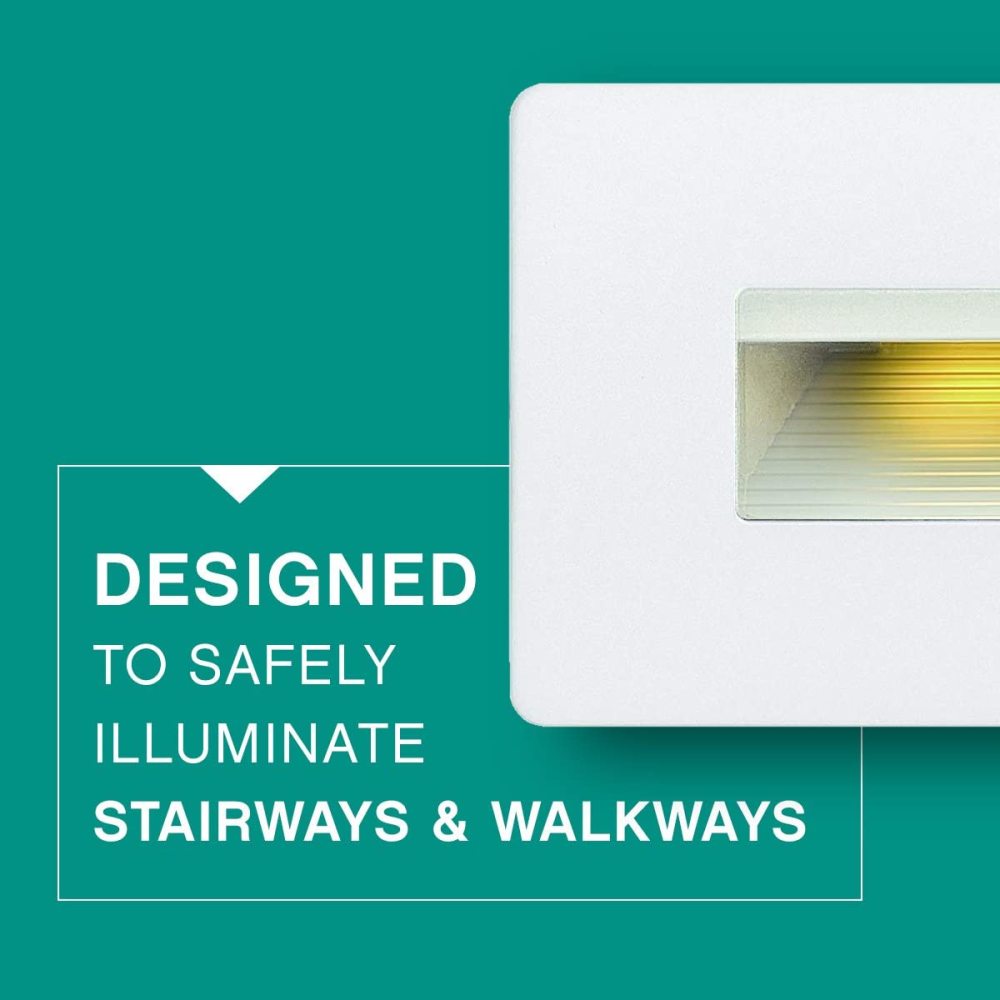

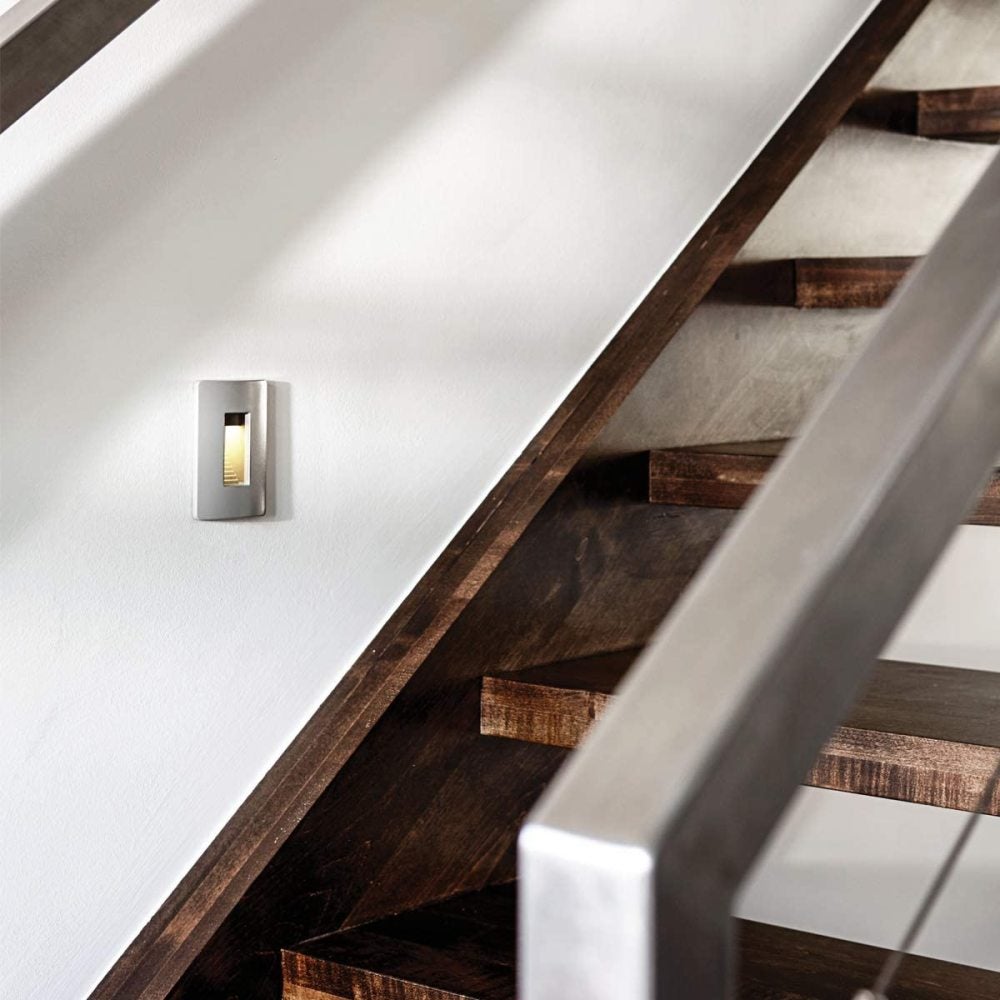

- Step lights are a versatile way to illuminate areas of foot traffic
- Bold lines and a clean, minimalist style complement contemporary architecture
- ADA compliant design provides added accessibility and maximum clearance
- Energy-efficient integrated LED - safer for the environment and low maintenance
- LED integrated components carry a 5-year limited warranty
- Wet Rated
- Fits a standard gang junction box

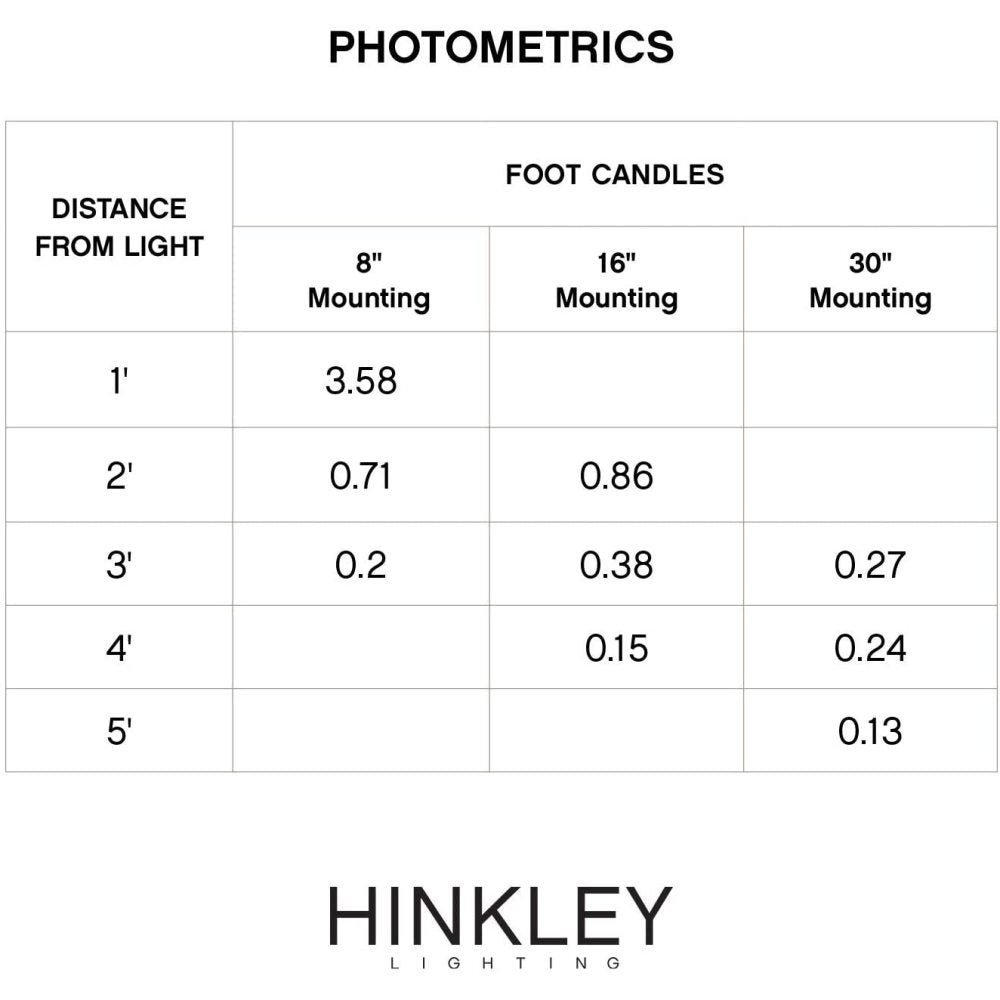

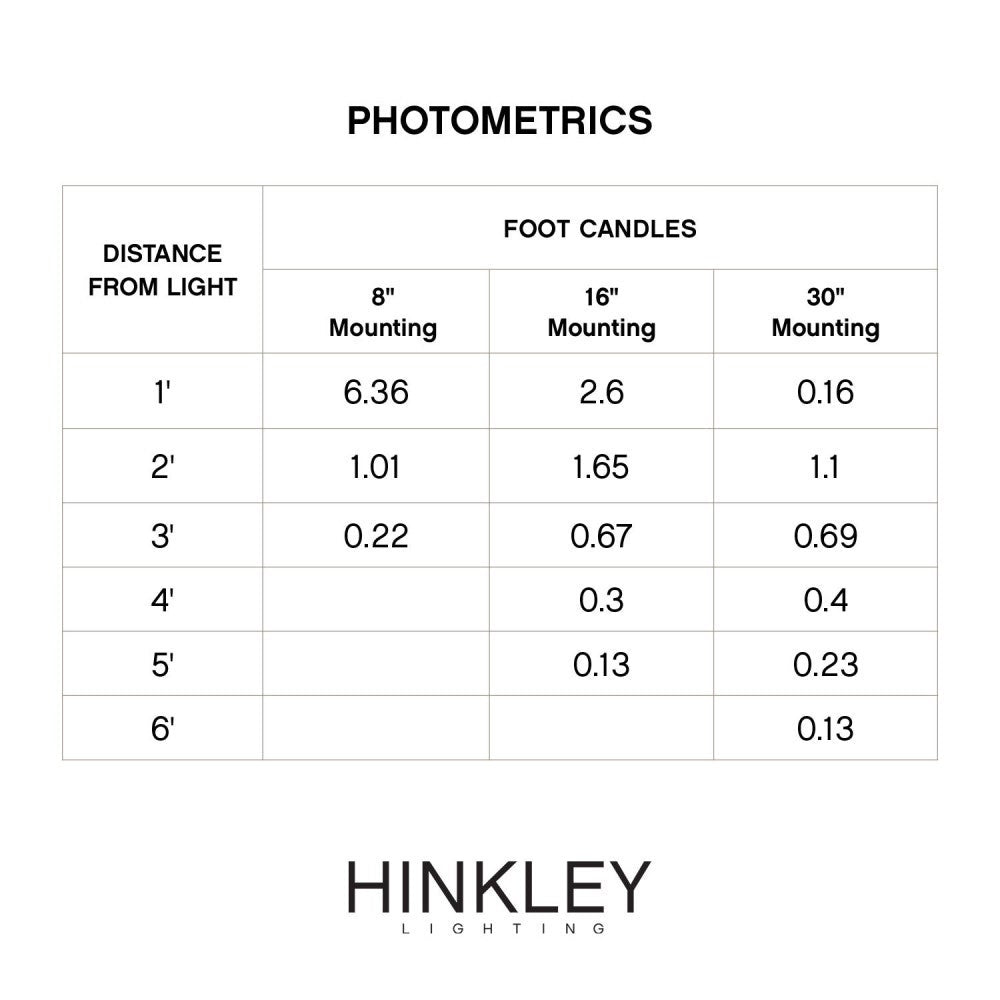

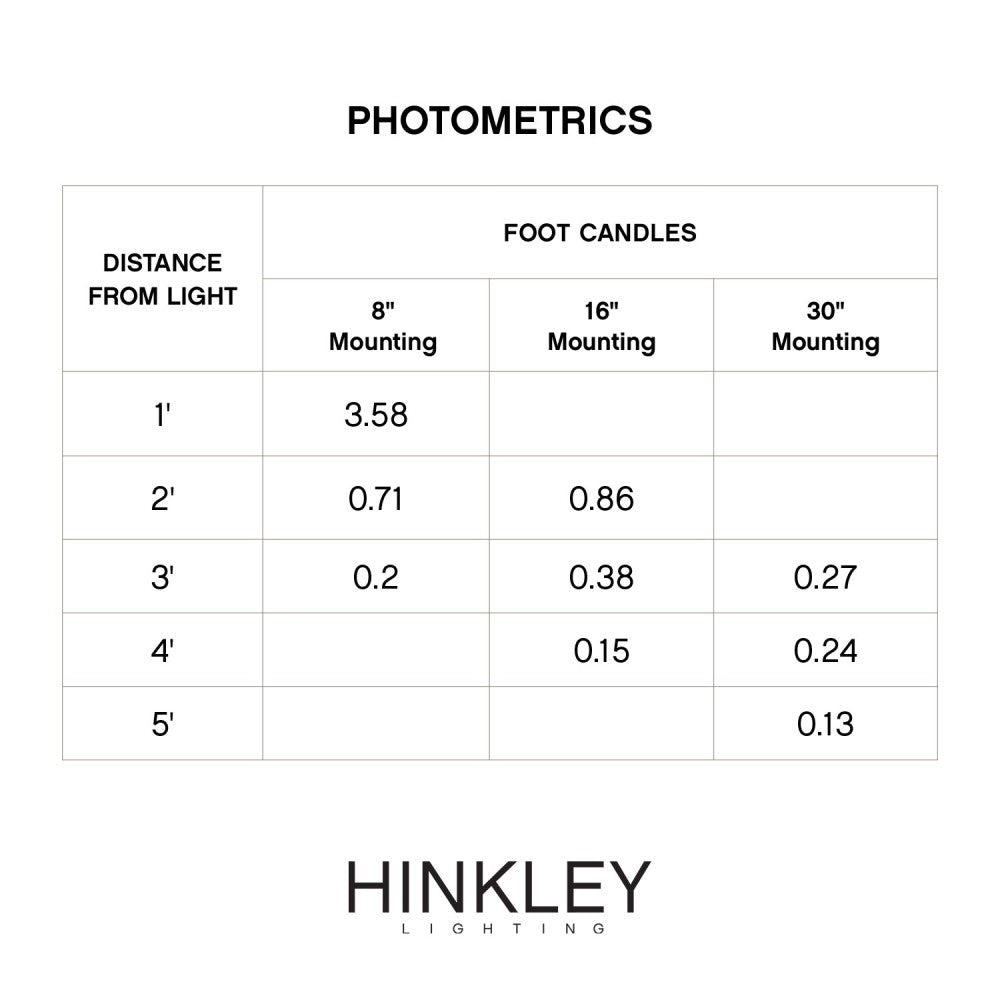

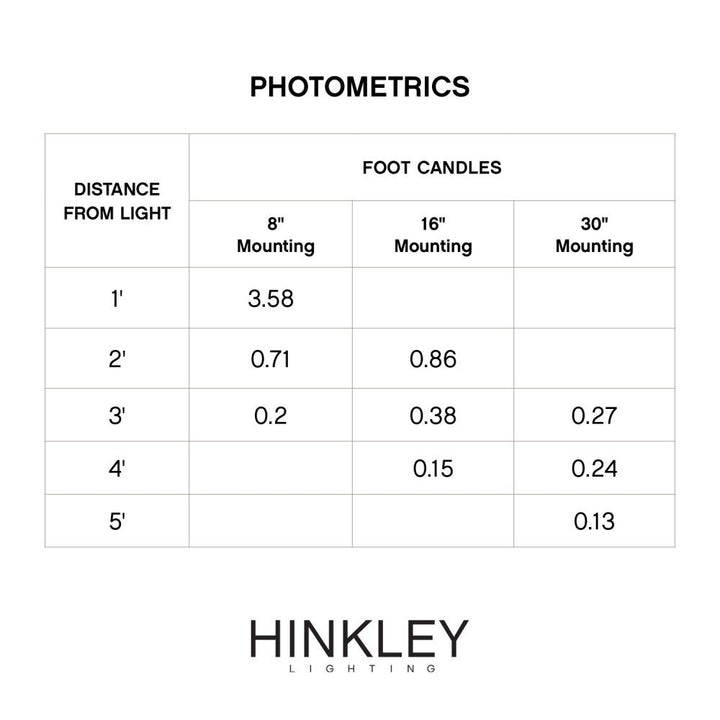

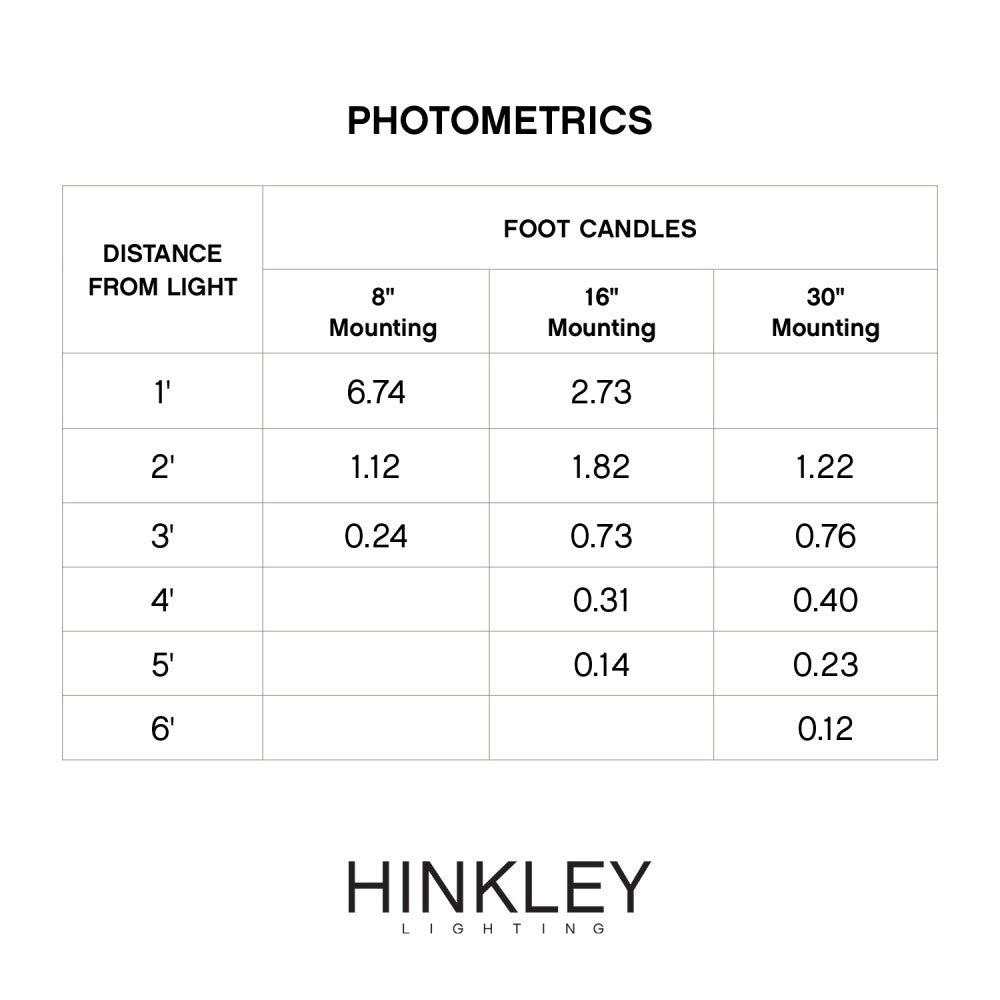

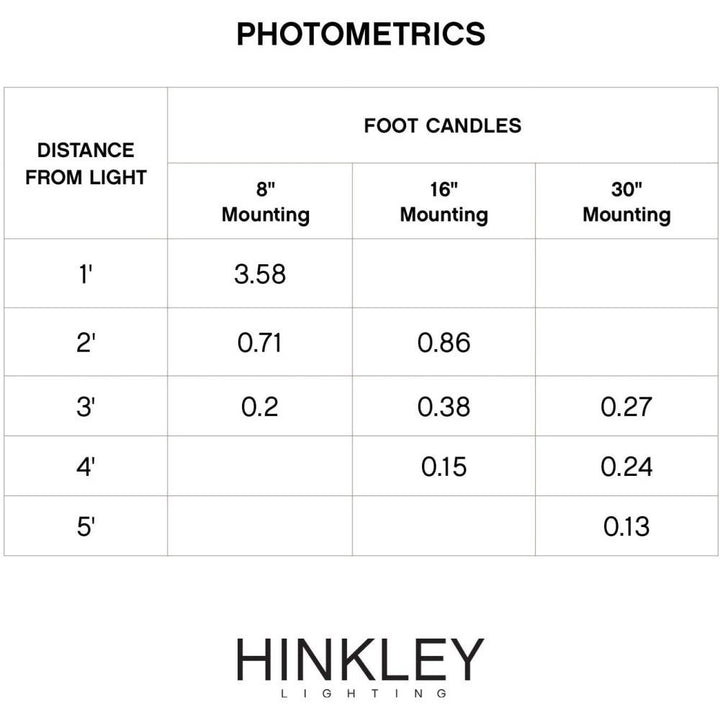

- Photometrics are based off engine/bulb photometrics at various mounting heights
Available finishes: Bronze, Satin Black, Satin White, Titanium, Matte Bronze
Select an option above to see its full specifications.
Downloads: Instruction Sheet
