Specifications

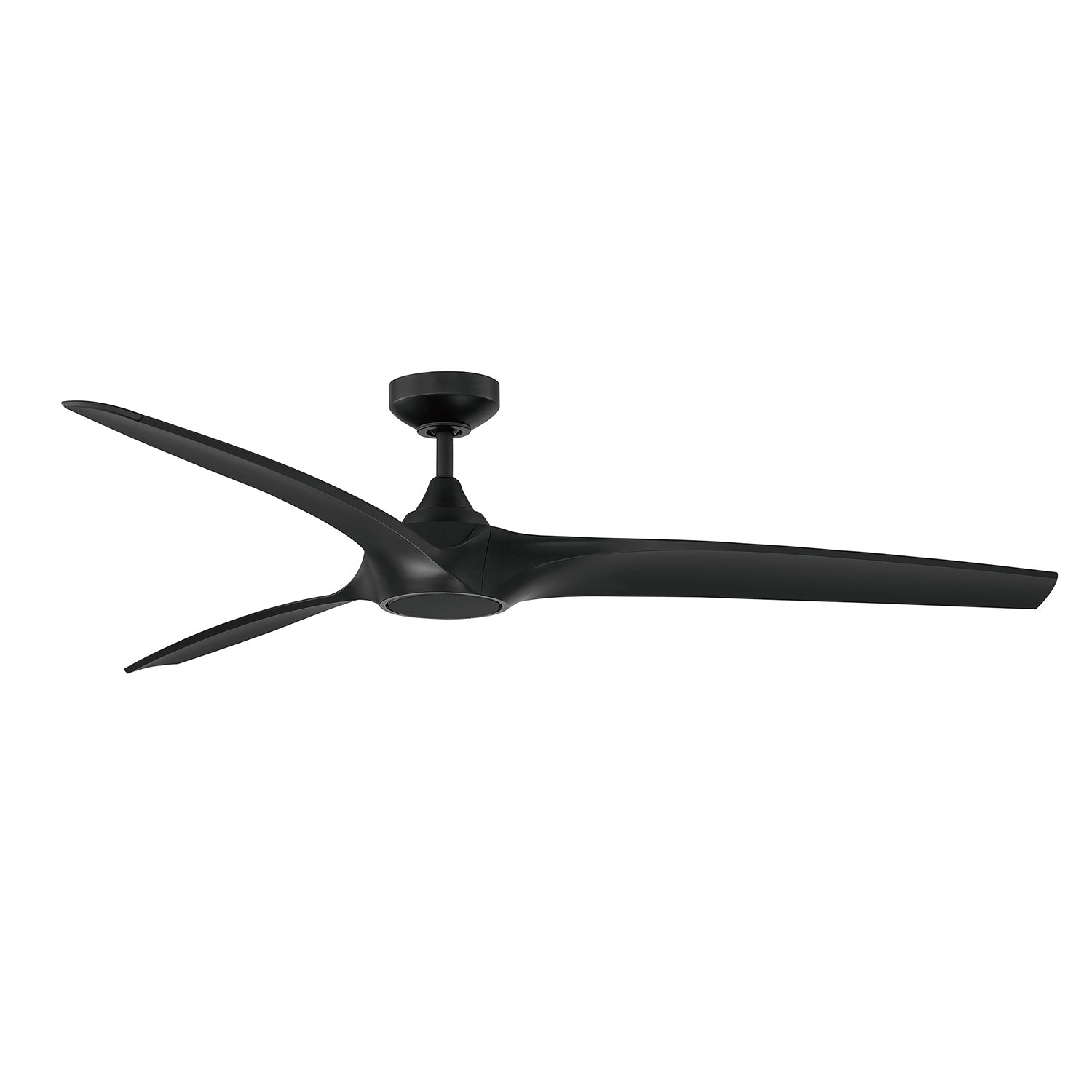

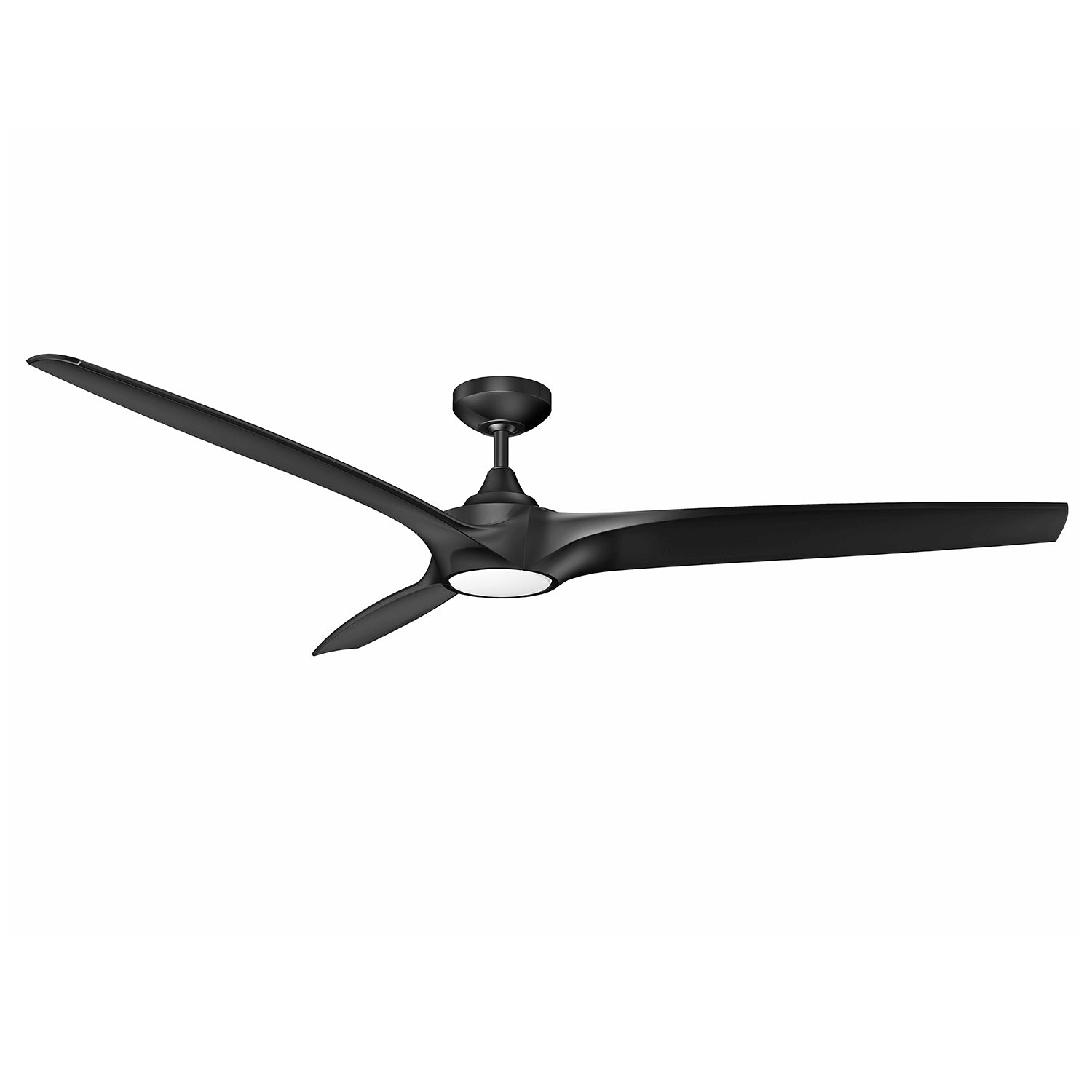

Model: AC23660-BLK
Collection: Paladin
Finish: Black
Motor Housing Finish: Black
Blade Finish: Black
Blade Span: 60"
Number of Blades: 3
Reversible Blades: No
Fan Blade Material: ABS
Overall Height: 13.1"
Blade to Ceiling Height: 12"
Blade Length: 28.1"
Blade Width: 5.7"
Blade Pitch: 16 degrees
Hanging System: Downrod
Included Downrod Length: 4.5"
Downrod Diameter: 0.75" Outside Diameter, 0.5" Inside Diameter
Max Slope: 30 degrees
Number of Speeds: 6
Reverse Control: Remote
Motor Size: 120DC x 25mm
Motor Amps (High): 0.43
Airflow CFM (High): 6050
Airflow CFM (Low): 1332
Motor Watts (High): 30.4
Efficiency CFM/Watt (High): 199
RPM (High): 150
RPM (Low): 51
Weight: 10.3 lb
Light Kit Included: Yes
Bulb Type: Integrated LED
Dimmable: Yes
Shade Finish: White
Shade Material: PC
Light Cap Included: Yes
Color Temperature: 3000K
CRI: >80
Certification: ETL / cETL listed
Location Rating: Damp
Warranty: Lifetime on Motor, 5 years on Light Kit, 1 year on all other parts
LED: 15 Watts, 1005 Lumens, 67 lm/w

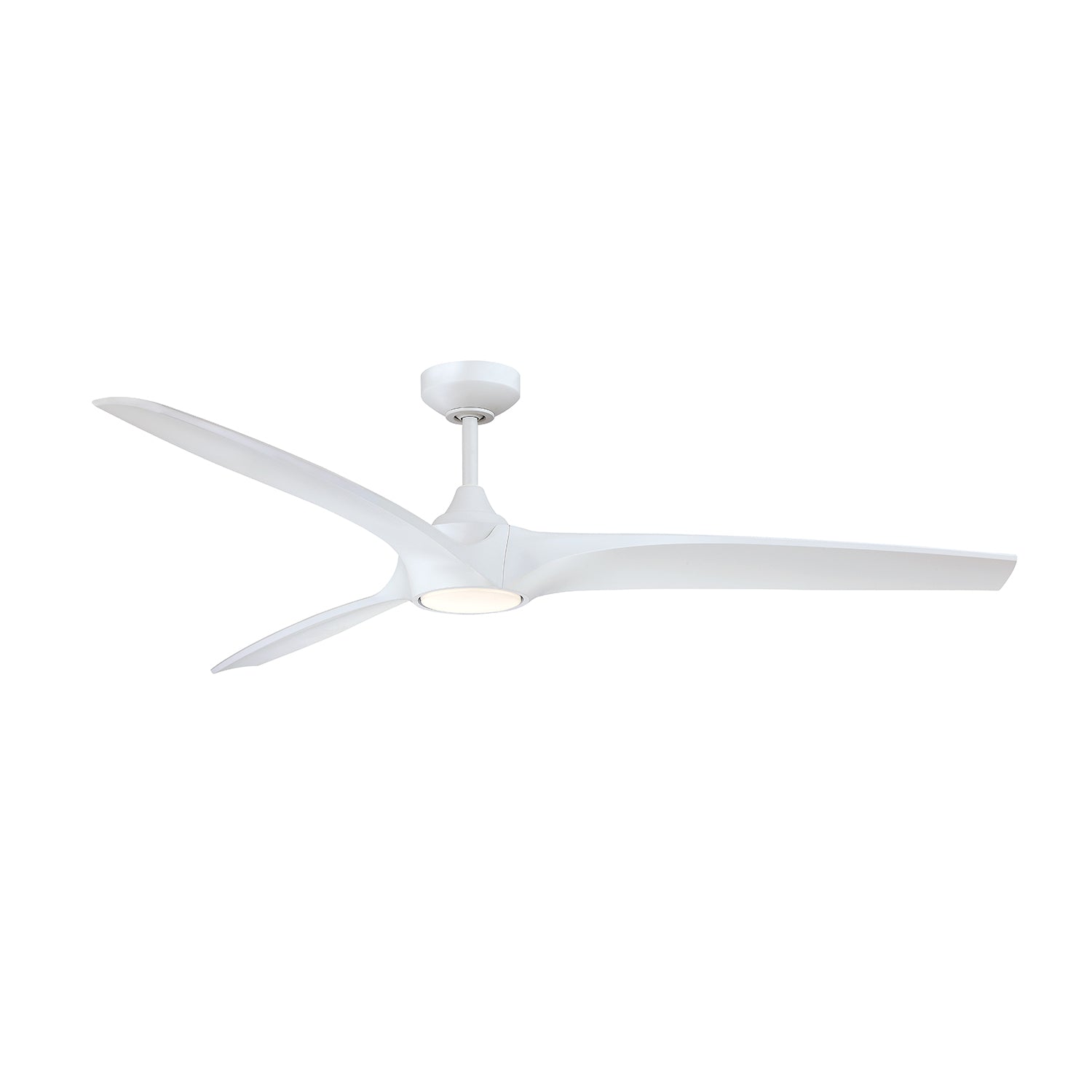

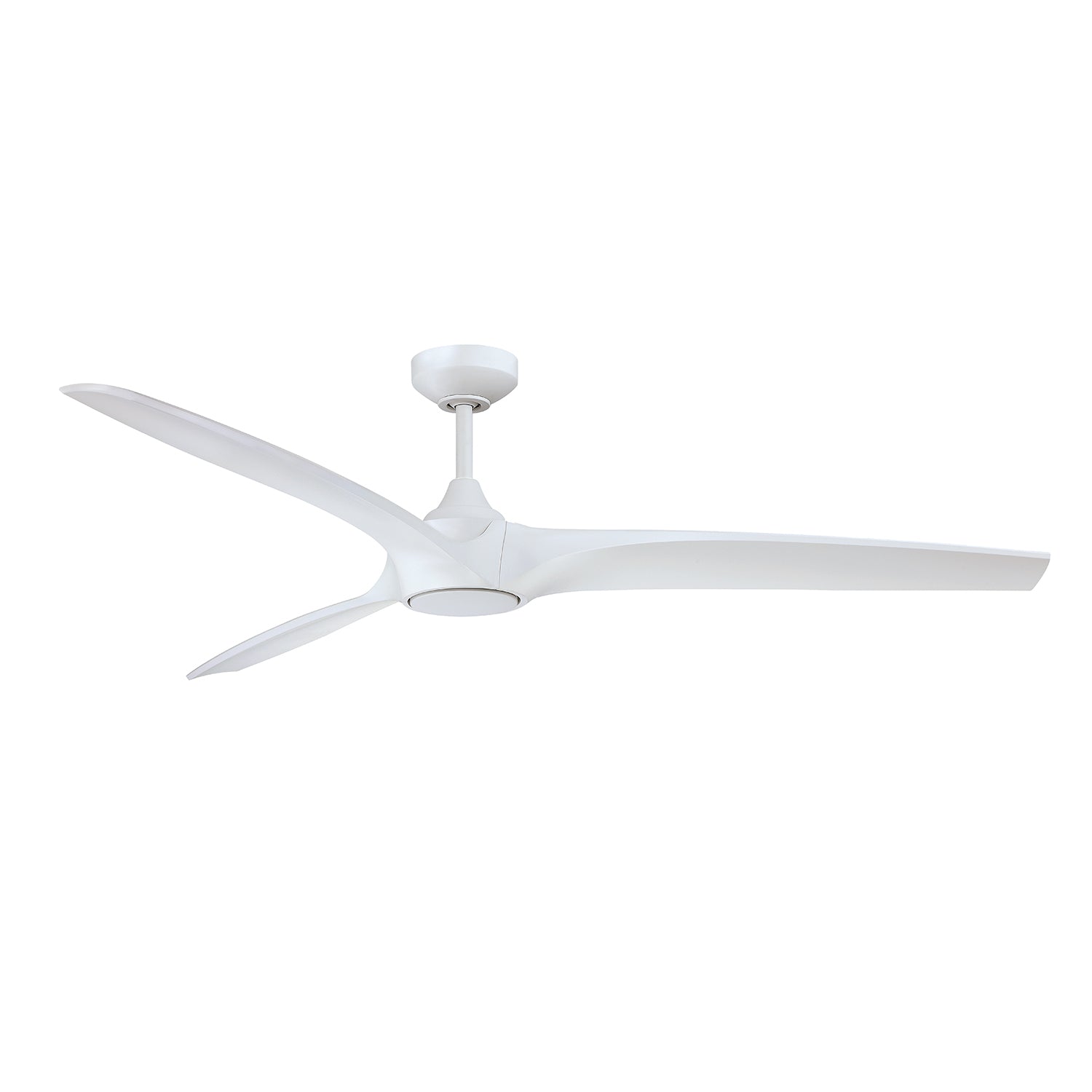

Model: AC23660-MWH
Collection: Paladin
Finish: Matte White
Motor Housing Finish: Matte White
Blade Finish: Matte White
Blade Span: 60"
Number of Blades: 3
Reversible Blades: No
Fan Blade Material: ABS
Overall Height: 13.1"
Blade to Ceiling Height: 12"
Blade Length: 28.1"
Blade Width: 5.7"
Blade Pitch: 16 degrees
Hanging System: Downrod
Included Downrod Length: 4.5"
Downrod Diameter: 0.75" Outside Diameter, 0.5" Inside Diameter
Max Slope: 30 degrees
Number of Speeds: 6
Reverse Control: Remote
Motor Size: 120DC x 25mm
Motor Amps (High): 0.43
Airflow CFM (High): 6050
Airflow CFM (Low): 1332
Motor Watts (High): 30.4
Efficiency CFM/Watt (High): 199
RPM (High): 150
RPM (Low): 51
Weight: 10.3 lb
Light Kit Included: Yes
Bulb Type: Integrated LED
Dimmable: Yes
Shade Finish: White
Shade Material: PC
Light Cap Included: Yes
Color Temperature: 300K
CRI: >80
Certification: ETL / cETL listed
Location Rating: Damp
Warranty: Lifetime on Motor, 5 years on Light Kit, 1 year on all other parts
LED: 15 Watts, 1005 Lumens, 67 lm/w

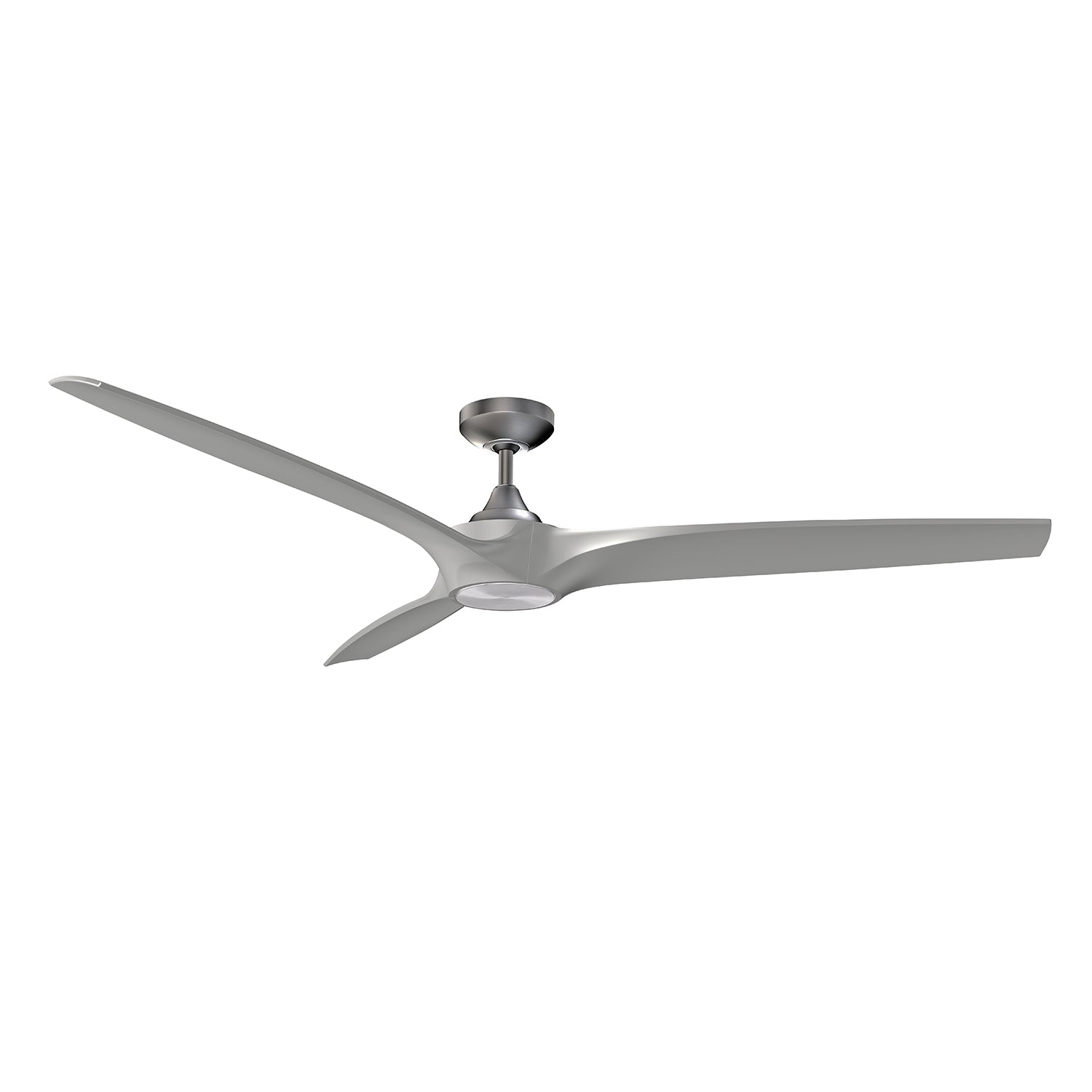

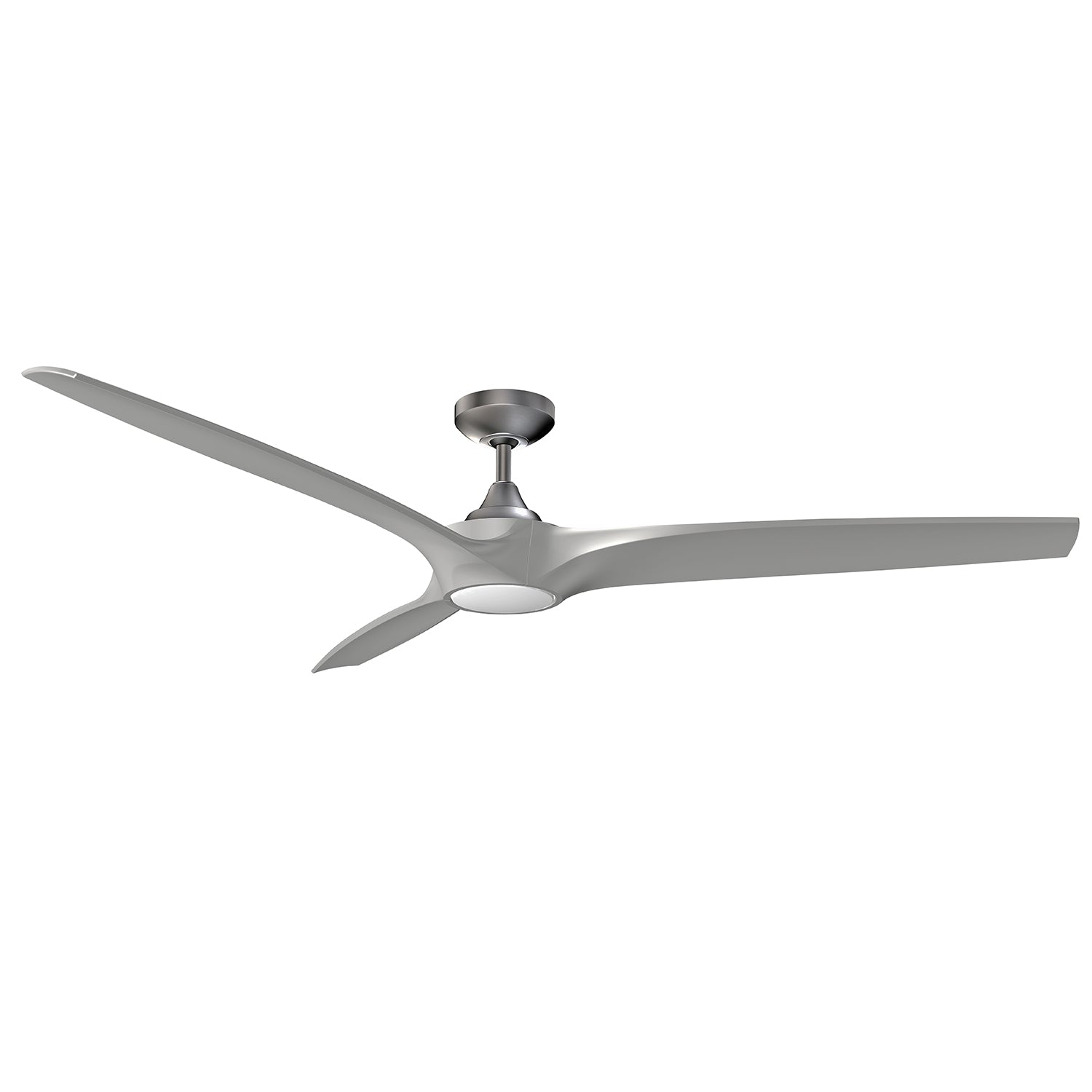

Model: AC23660-SN
Collection: Paladin
Finish: Satin Nickel
Motor Housing Finish: Satin Nickel
Blade Finish: Satin Nickel
Blade Span: 60"
Number of Blades: 3
Reversible Blades: No
Fan Blade Material: ABS
Overall Height: 13.1"
Blade to Ceiling Height: 12"
Blade Length: 28.1"
Blade Width: 5.7"
Blade Pitch: 16 degrees
Hanging System: Downrod
Included Downrod Length: 4.5"
Downrod Diameter: 0.75" Outside Diameter, 0.5" Inside Diameter
Max Slope: 30 degrees
Number of Speeds: 6
Reverse Control: Remote
Motor Size: 120DC x 25mm
Motor Amps (High): 0.43
Airflow CFM (High): 6050
Airflow CFM (Low): 1332
Motor Watts (High): 30.4
Efficiency CFM/Watt (High): 199
RPM (High): 150
RPM (Low): 51
Weight: 10.3 lb
Light Kit Included: Yes
Bulb Type: Integrated LED
Dimmable: Yes
Shade Finish: White
Shade Material: PC
Light Cap Included: Yes
Color Temperature: 3000K
CRI: >80
Certification: ETL / cETL listed
Location Rating: Damp
Warranty: Lifetime on Motor, 5 years on Light Kit, 1 year on all other parts
LED: 15 Watts, 1005 Lumens, 67 lm/w

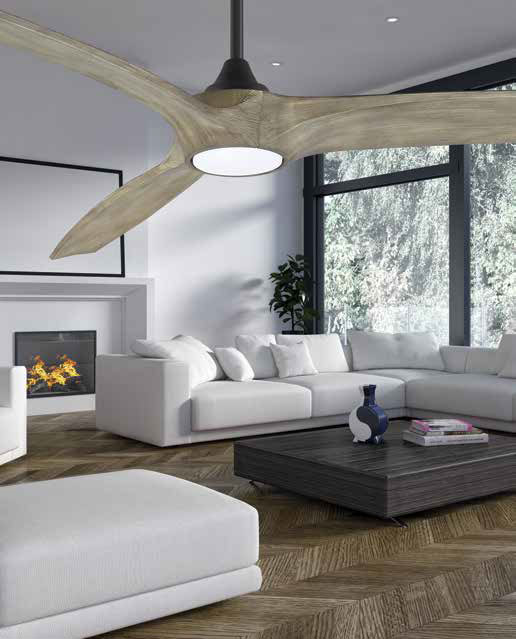

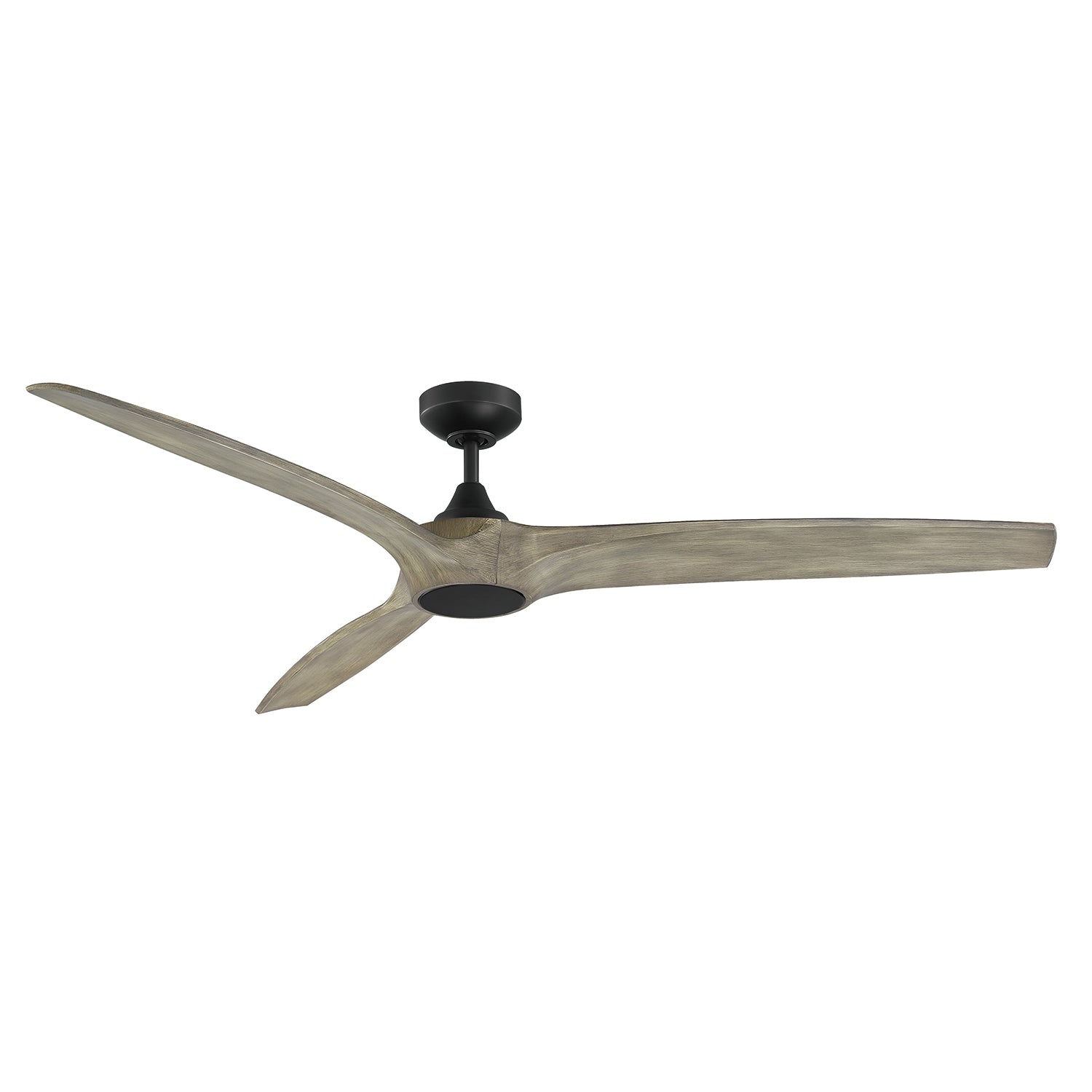

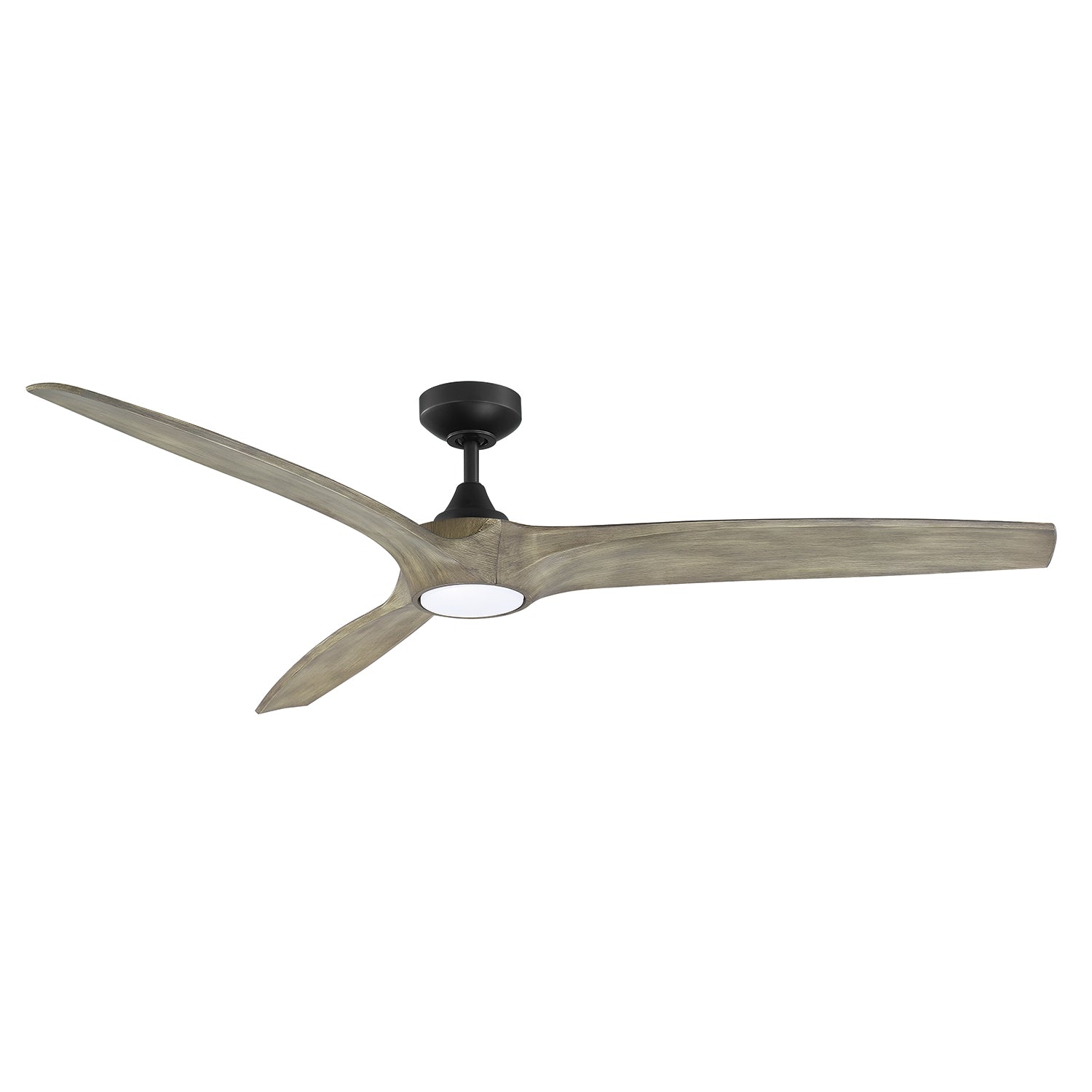

Model: AC23660-BLK/GWO
Collection: Paladin
Finish: Black
Motor Housing Finish: Black
Blade Finish: Grey Weathered Oak
Blade Span: 60"
Number of Blades: 3
Reversible Blades: No
Fan Blade Material: ABS
Overall Height: 13.1"
Blade to Ceiling Height: 12"
Blade Length: 28.1"
Blade Width: 5.7"
Blade Pitch: 16 degrees
Hanging System: Downrod
Included Downrod Length: 4.5"
Downrod Diameter: 0.75" Outside Diameter, 0.5" Inside Diameter
Max Slope: 30 degrees
Number of Speeds: 6
Reverse Control: Remote
Motor Size: 120DC x 25mm
Motor Amps (High): 0.43
Airflow CFM (High): 6050
Airflow CFM (Low): 1332
Motor Watts (High): 30.4
Efficiency CFM/Watt (High): 199
RPM (High): 150
RPM (Low): 51
Weight: 10.3 lb
Light Kit Included: Yes
Bulb Type: Integrated LED
Dimmable: Yes
Shade Finish: White
Shade Material: PC
Light Cap Included: No
Color Temperature: 3000K
CRI: >80
Certification: ETL / cETL listed
Location Rating: Damp
Warranty: Lifetime on Motor, 5 years on Light Kit, 1 year on all other parts
LED: 15 Watts, 1005 Lumens, 67 lm/w

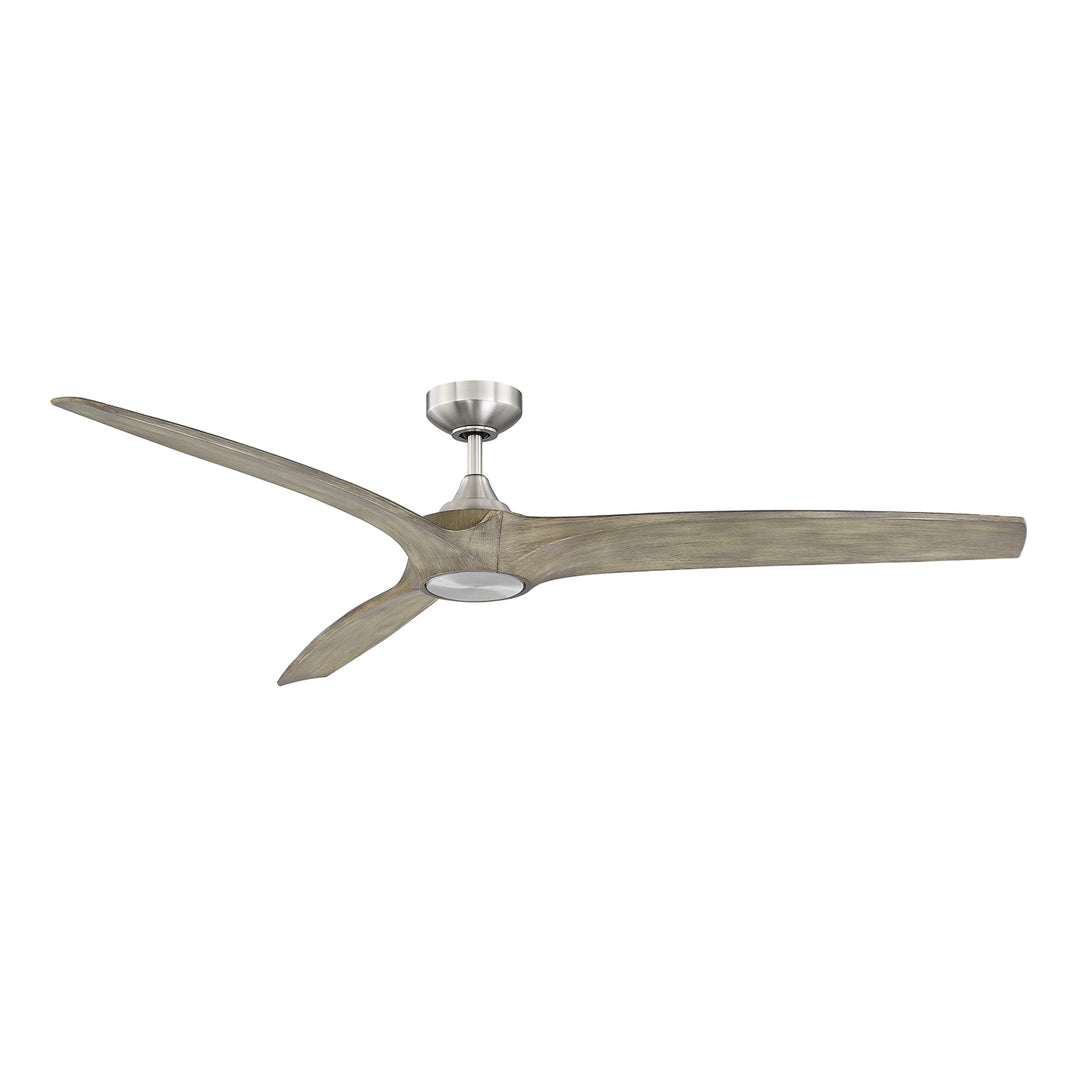

Model: AC23660-SN/GWO
Collection: Paladin
Finish: Satin Nickel
Motor Housing Finish: Satin Nickel
Blade Finish: Grey Weathered Oak
Blade Span: 60"
Number of Blades: 3
Reversible Blades: No
Fan Blade Material: ABS
Overall Height: 13.1"
Blade to Ceiling Height: 12"
Blade Length: 28.1"
Blade Width: 5.7"
Blade Pitch: 16 degrees
Hanging System: Downrod
Included Downrod Length: 4.5"
Downrod Diameter: 0.75" Outside Diameter, 0.5" Inside Diameter
Max Slope: 30 degrees
Number of Speeds: 6
Reverse Control: Remote
Motor Size: 120DC x 25mm
Motor Amps (High): 0.43
Airflow CFM (High): 6050
Airflow CFM (Low): 1332
Motor Watts (High): 30.4
Efficiency CFM/Watt (High): 140.5
RPM (High): 150
RPM (Low): 51
Weight: 10.3 lb
Light Kit Included: Yes
Bulb Type: Integrated LED
Dimmable: Yes
Shade Finish: White
Shade Material: PC
Light Cap Included: Yes
Color Temperature: 3000K
CRI: >80
Certification: ETL / cETL listed
Location Rating: Damp
Warranty: Lifetime on Motor, 5 years on Light Kit, 1 year on all other parts
LED: 15 Watts, 1005 Lumens, 67 lm/w
PALADIN 60″ DC Motor Ceiling Fan with LED Light Kit in a Black finish with matching blades
- Damp Location Rated
- Silent running DC motor optimizes energy efficiency
- 15W Integrated LED Light Kit with White Acrylic Diffuser
- 3 Warp-free ABS Blades spaced to maximize Air Movement

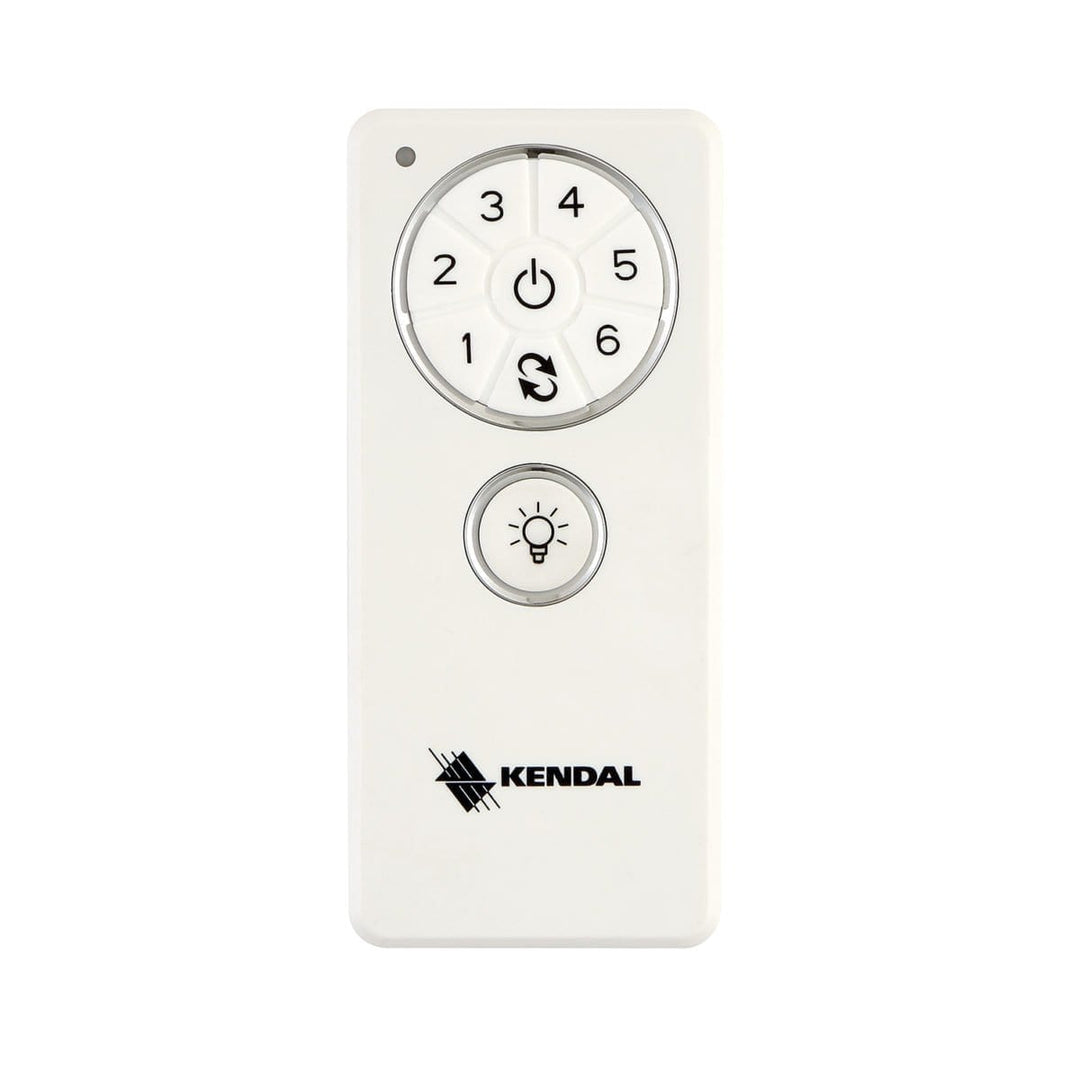

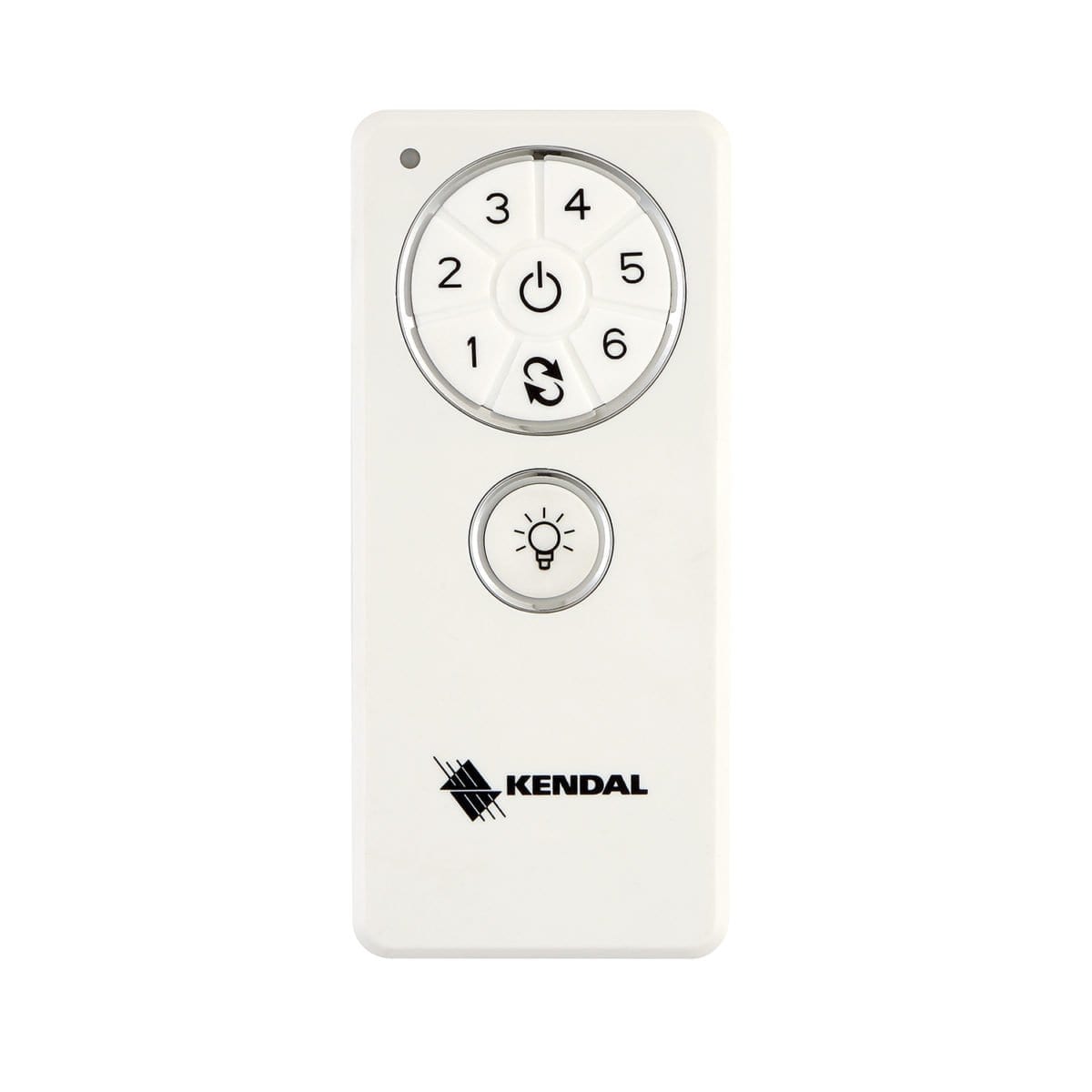

- 6-Speed Hand-Held Remote Control Included with Reverse, and LED Dimmer
- Optional Wall Control also available - Sold Separately - Model no. RCTW-100
- Light Cap included
- ETL Approved and Listed to ensure both safety and quality
- 78 inches of lead wire to accommodate Downrods of up to 6 feet in length
- Included downrod length: 4.5 in. (3/4 in O.D. - Non Threaded)
Available finishes: Black, Matte White, Satin Nickel
Select an option above to see its full specifications.
Downloads: Energy Guide Label · Instruction Manual
