Specifications
Model: 4WA-3CCT+W

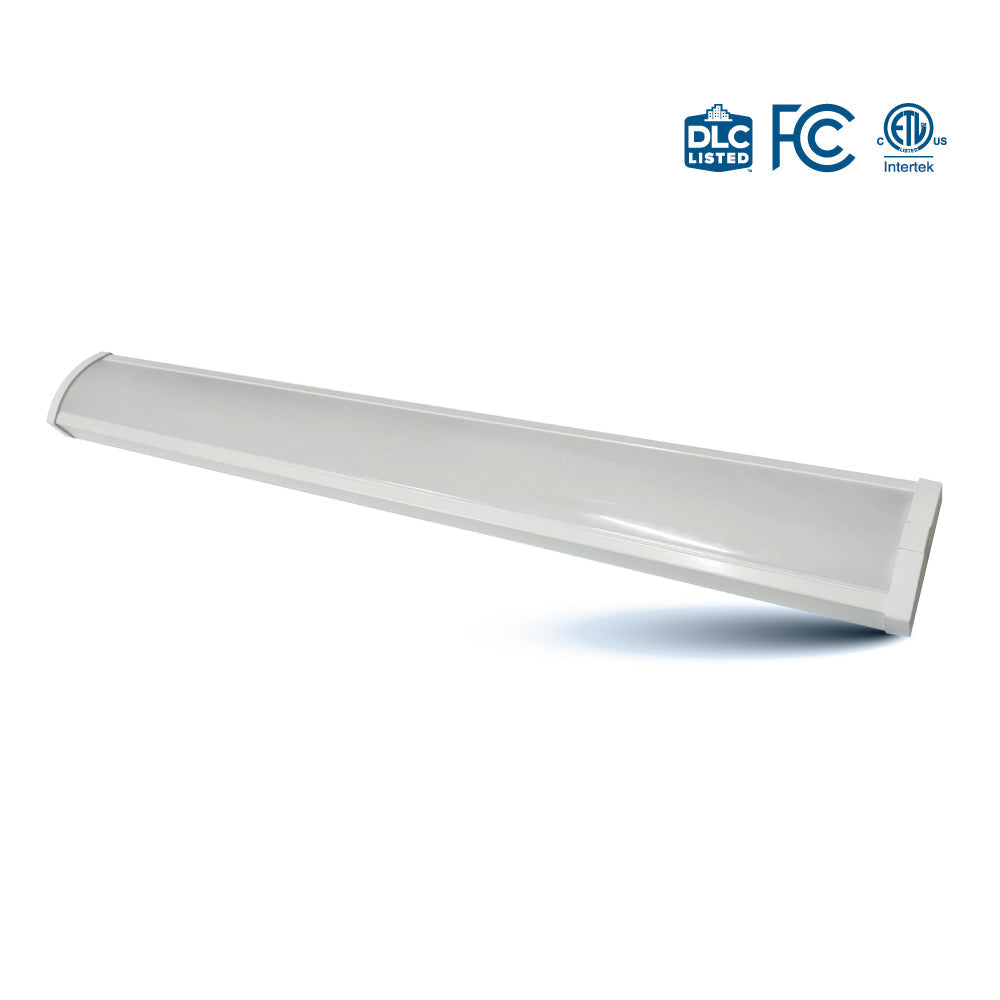

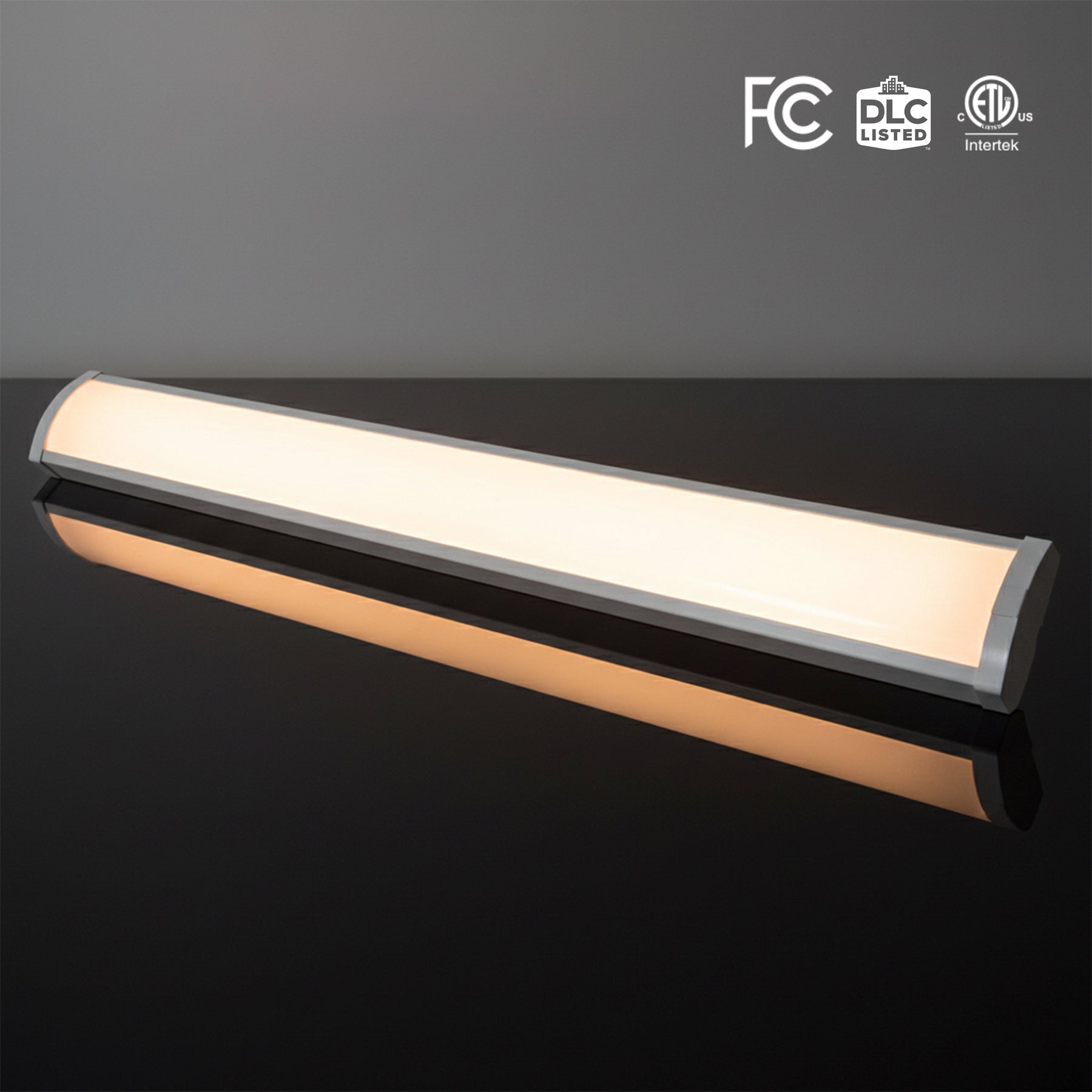

Description: 4FT. WRAP AROUND LED Luminaire, 3CCT (3000K,4000K, 5000K) and Wattage (30W,40W,50W) selectable. 110Lms/Watt, 120-347V, DIMMABLE
Wattage: 30W/40W/50W
Voltage: AC 120-347V
Lumens: 3750 lmn / 5000 lmn / 6250 lmn
Beam Angle: 110°
CRI: 80Ra+
Power Factor: >0.9
Luminous Efficacy: 130 lmn/W
Dimmable: Yes (only 0-10V dimming available)
Lifetime: 50,000 Hours
Rating: Dry Location
Grade of Protection: IP20
Colour Temperature: 3CCT [3500K/4000K/5000K]
Diffuser/Lens Material: PC
THD (Total Harmonic Distortion): <20%
Operating Temperature: -20°C ~ +45°C
Warranty: 5 Years
4FT wrap-around LED light fixture featuring selectable CCT and wattage, ideal for commercial or residential applications.
- Installation Type: Available with surface-mounted installation

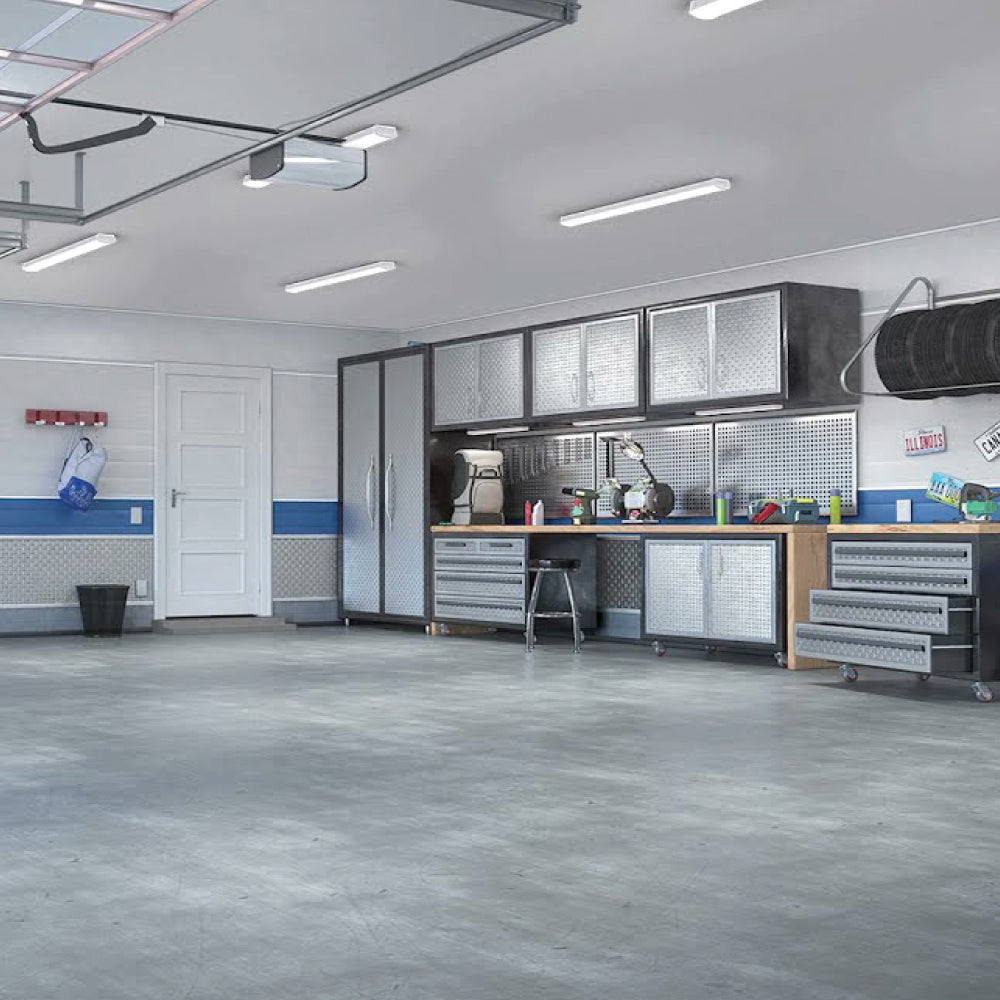

- Versatile Use: Ideal for schools, hospitals, supermarkets, offices, parking garages, and warehouses
- Light Quality: Diffused light with polycarbonate lens, rated for damp locations
- Dimming Feature: Supports 0–10V dimming for adjustable brightness
- Adjustable Settings: Power and CCT selectable in three levels
Downloads: 4WA-3CCT+W Spec Sheet | 4WA-3CCT+W Instruction Manual
