Name: Back-Lit Slim LED Panel 3CCT + Wattage Selectable 120-347V - OD
Brand: Ortech
SKU: OD-1X4-3CCT+3WT
Price: 70.44 CAD
Availability: InStock

Back-Lit Slim LED Panel 3CCT + Wattage Selectable 120-347V - OD

$70.44

Shipping calculated at checkout.

Size

1x4 ft

2x2 ft

2x4 ft

Free shipping on orders over $199

Questions? Call 604-233-1998

Specifications

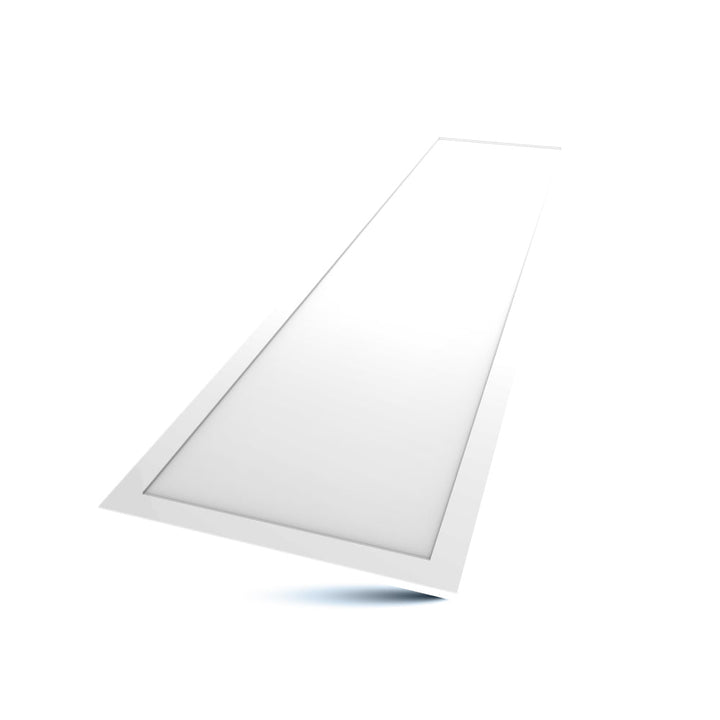

Model: OD-1X4-3CCT+3WT

Description: 1X4 LED BACK LIT Panel 120-347v, 3CCT interchangeable (3500K,4000K,5000K) Wattage selectable (30w,35w,40w), 125lumens/watt , Dimmable 0-10v

Wattage: 30W/35W/40W

Voltage: 120-347V AC

Lumens: 125 lmn/W

Beam Angle: 120°

CRI: 80Ra+

Dimmable: Yes (only 0-10V dimming available)

Lifetime: 50,000 hours

Rating: IC Rated / Dry and damp location

Grade of Protection: IP20

Application: Office / Factory / Supermarket, etc.

Colour Temperature: 3CCT [3500K/4000K/5000K]

Working Current: 0.44A

THD (Total Harmonic Distortion): <20%

Operating Temperature: -20°C ~ 45°C

Warranty: 5 Years

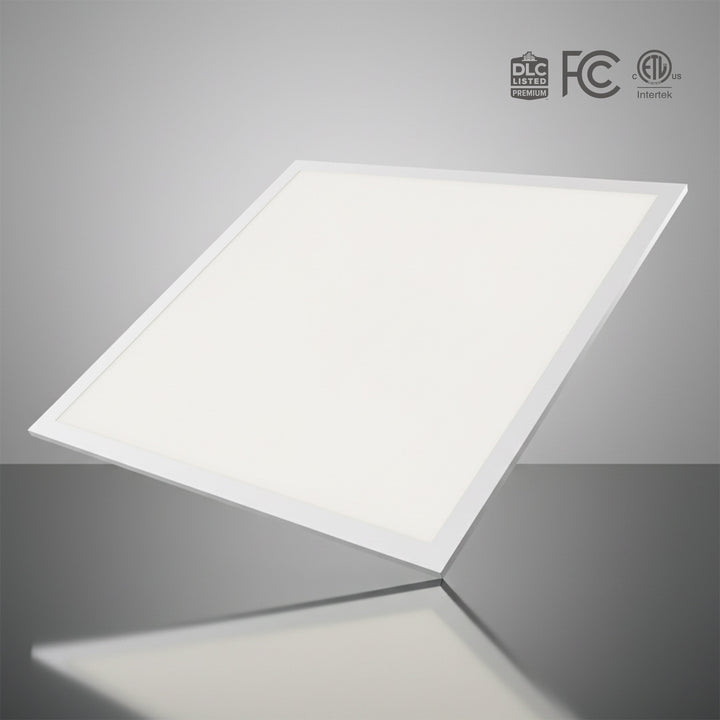

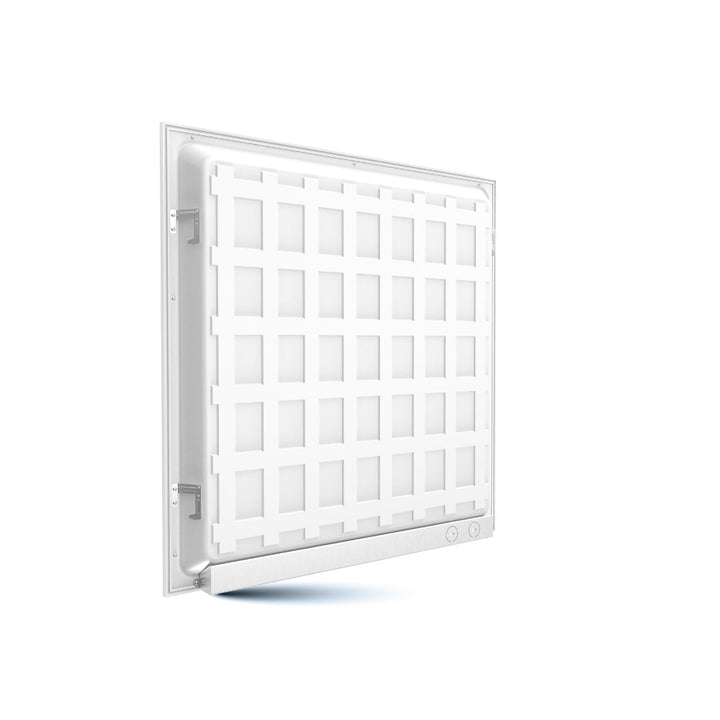

Model: OD-2X2-3CCT+3WT

Description: 2x2 LED BACK LIT Panel 120-347v, 3CCT interchangeable (3500K,4000K,5000K) Wattage selectable (30w,35w,40w), 125lumens/watt , Dimmable 0-10v

Wattage: 30W/35W/40W

Voltage: 120-347V AC

Lumens: 125 lmn/W

Beam Angle: 120°

CRI: 80Ra+

Dimmable: Yes (only 0-10V dimming available)

Lifetime: 50,000 hours

Rating: IC Rated / Dry and damp location

Grade of Protection: IP20

Application: Office / Factory / Supermarket, etc.

Colour Temperature: 3CCT [3500K/4000K/5000K]

Working Current: 0.44A

THD (Total Harmonic Distortion): <20%

Operating Temperature: -20°C ~ 45°C

Warranty: 5 Years

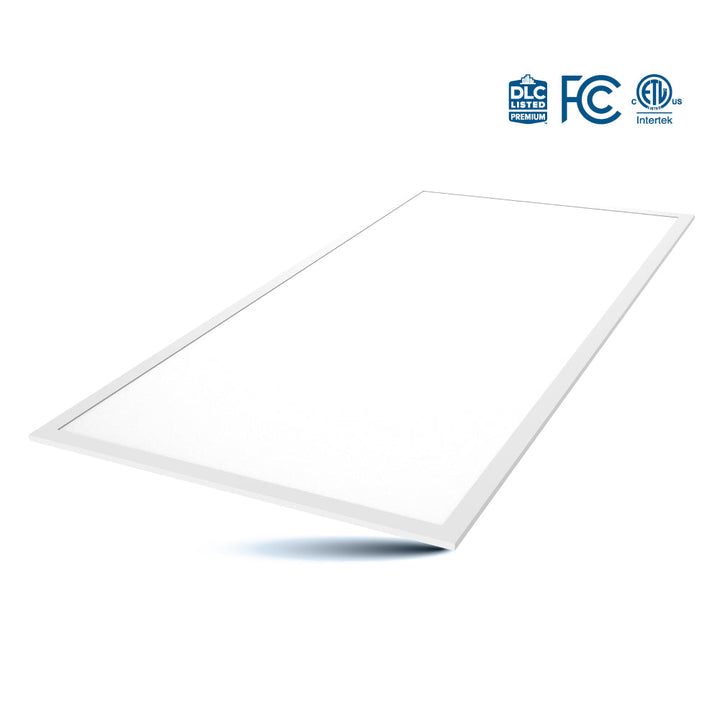

Model: OD-2X4-3CCT+3WT

Description: 2X4 LED BACK LIT Panel 120-347v, 3CCT interchangeable (3500K,4000K,5000K) Wattage selectable (30w,40w,50w), 125lumens/watt , Dimmable 0-10v

Wattage: 30W/40W/50W

Voltage: 120-347V AC

Lumens: 125 lmn/W

Beam Angle: 120°

CRI: 80Ra+

Dimmable: Yes (only 0-10V dimming available)

Lifetime: 50,000 hours

Rating: IC Rated / Dry and damp location

Grade of Protection: IP20

Application: Office / Factory / Supermarket, etc.

Colour Temperature: 3CCT [3500K/4000K/5000K]

Working Current: 0.55A

THD (Total Harmonic Distortion): <20%

Operating Temperature: -20°C ~ 45°C

Warranty: 5 Years

1x4 FT. Commercial Grade Back-Lit Slim LED Panel Lights With Great Heat Dissipation And Low Light Degradation, Along With Selectable CCT & Wattage.

Soft, Efficient Illumination: Delivers uniform and gentle light with high luminous efficacy, promoting energy savings and environmental sustainability.
Ultra-Slim Frame Design: Features a sleek 0.38" thick frame for a clean, modern look that complements any space.
Durable Aluminum Construction: High-quality aluminum frame offers excellent heat dissipation and resists light degradation over time.
High-Performance Driver: Equipped with a reliable driver boasting over 86% efficiency and a power factor greater than 0.9 for stable operation.
Universal Dimming Compatibility: Supports 0–10V dimming and works seamlessly with a wide range of brand-name dimmers.
Food Safety and Sanitation Equipment Certificate (click to view)

Select an option above to see its full specifications.

Downloads: OD-1x4-3CCT+3WT Spec Sheet | OD-1x4-3CCT+3WT Instruction Manual | OD-2x2-3CCT+3WT Instruction Manual | OD-2x4-3CCT+3WT Instruction Manual

Free shipping on orders over $199. See our full shipping & return policy.

Need an electrician or install tips? Read our install guide or call us at 604-233-1998.
