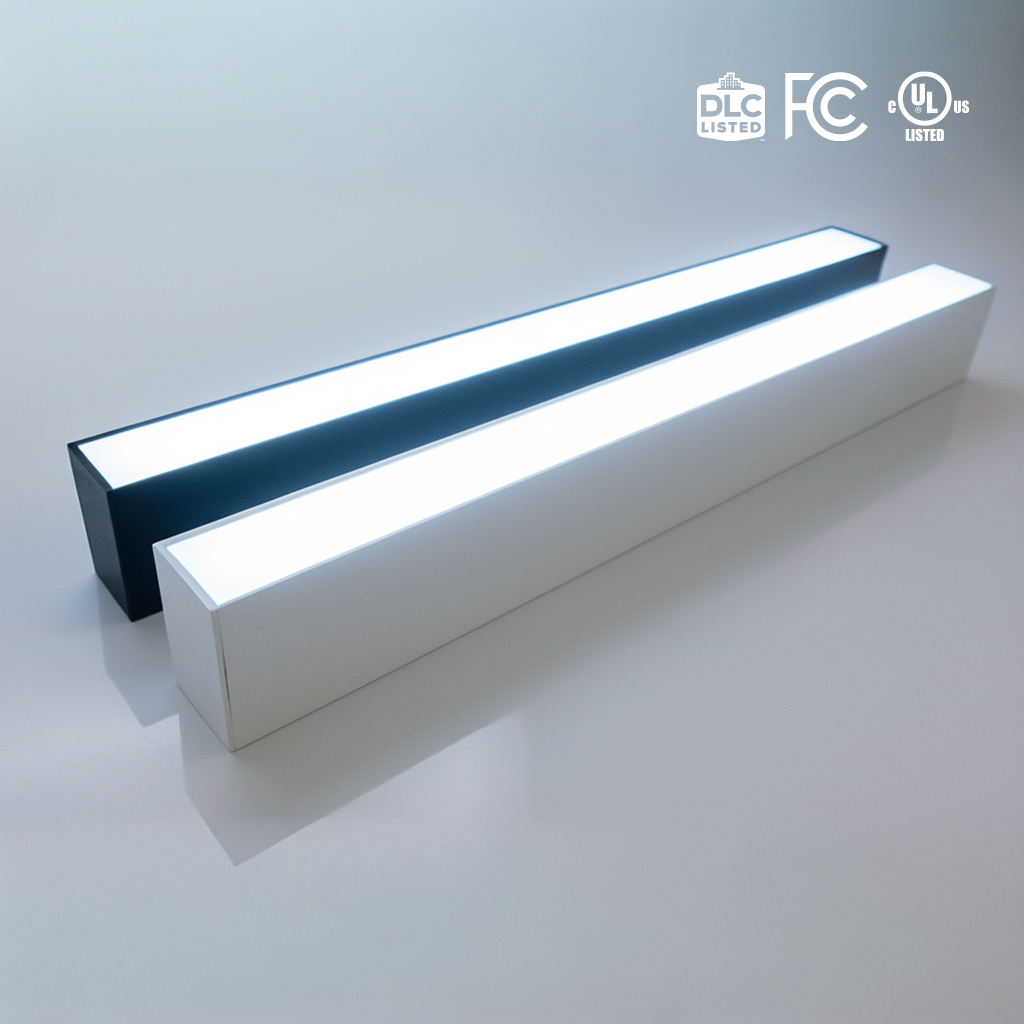

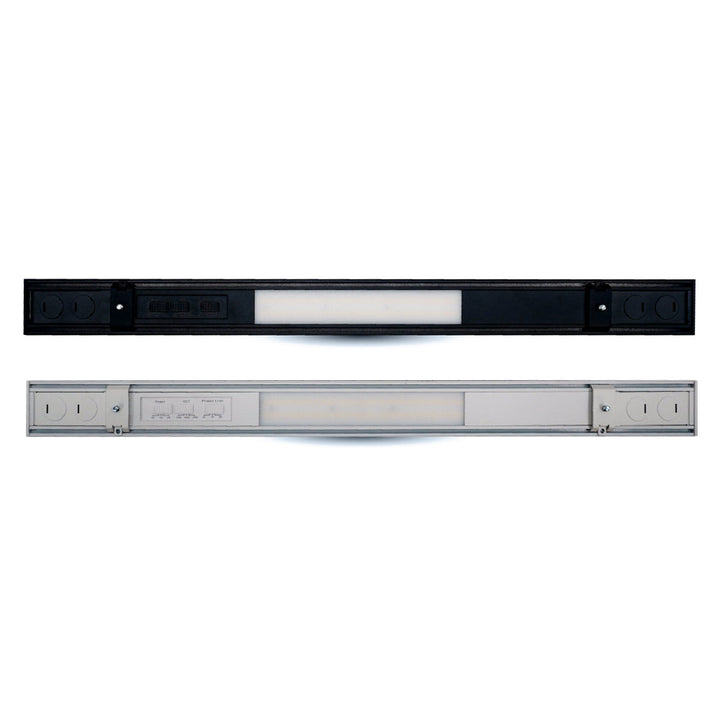

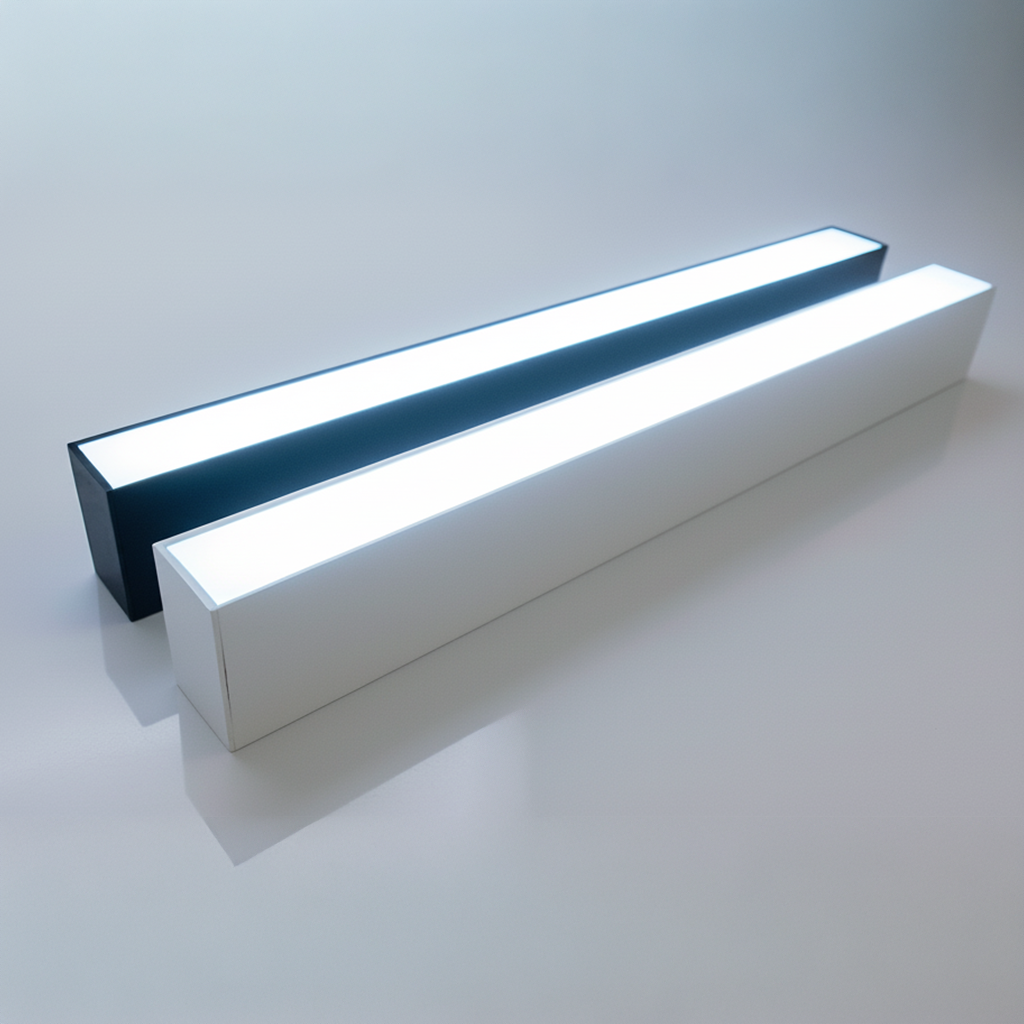

Name: LED Architectural Linear Strip Light 3CCT + Wattage Selectable - ALS
Brand: Ortech
SKU: 2ALS-3CCT+W-BK
Price: 136.99 CAD
Availability: InStock

LED Architectural Linear Strip Light 3CCT + Wattage Selectable - ALS

$136.99

Shipping calculated at checkout.

Free shipping on orders over $199

Questions? Call 604-233-1998

Specifications

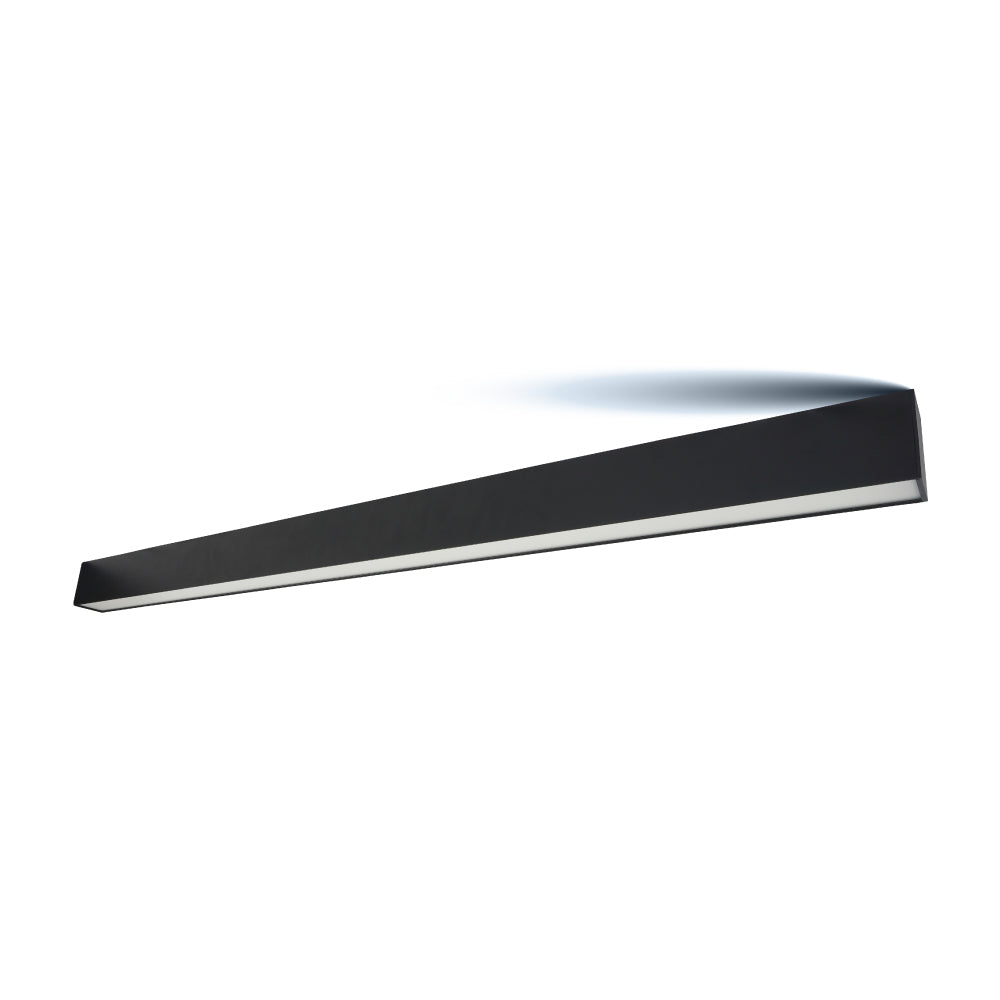

Model: 2ALS-3CCT+W-BK

Description: Black 2-Foot Architecture Linear Strip Lights. Wattage Selectable 15w/20w/25w + 3000K, 4000K, 5000K.

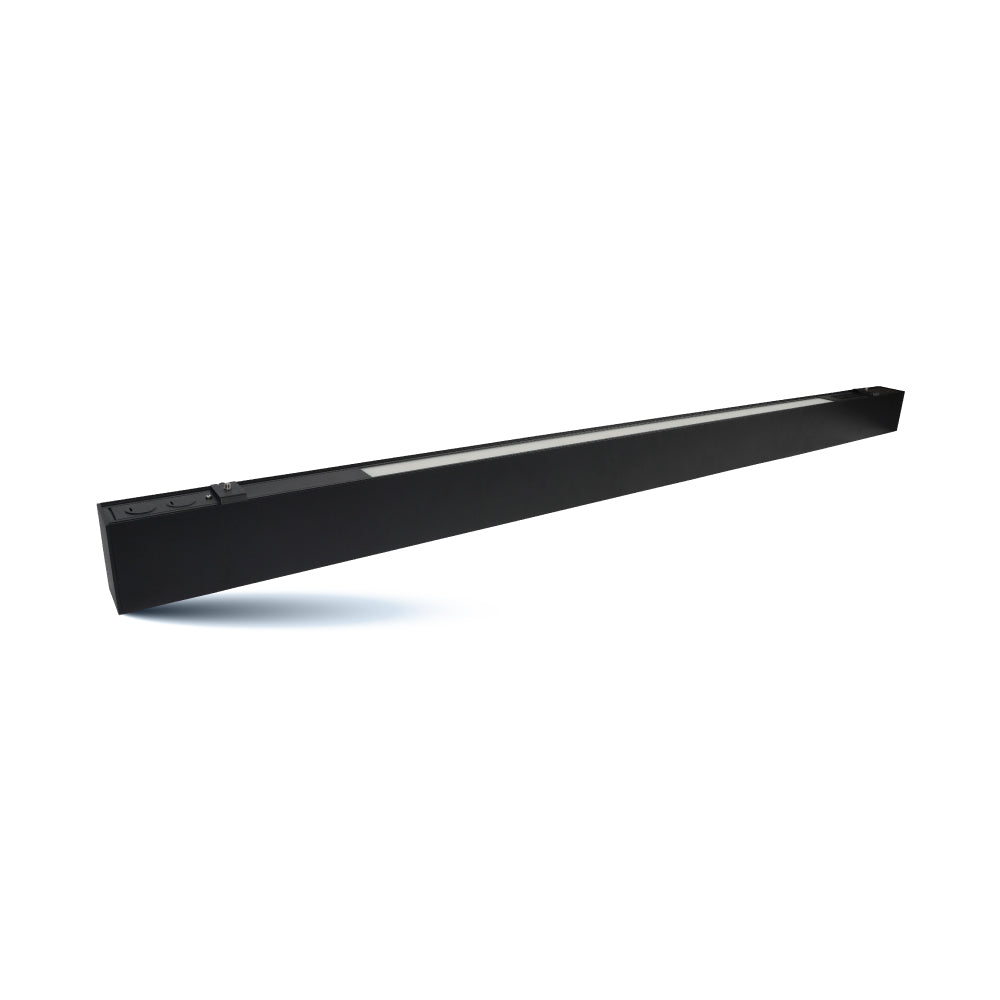

Finish: Black

Wattage: 15W/20W/25W

Voltage: AC120-347V

Lumens: 130 lmn/W

Beam Angle: 120°

CRI: 80Ra+

Dimmable: Yes (only 0-10V dimming available)

Lifetime: 50,000 hours

Rating: IC Rated / Dry and damp location

Grade of Protection: IP40

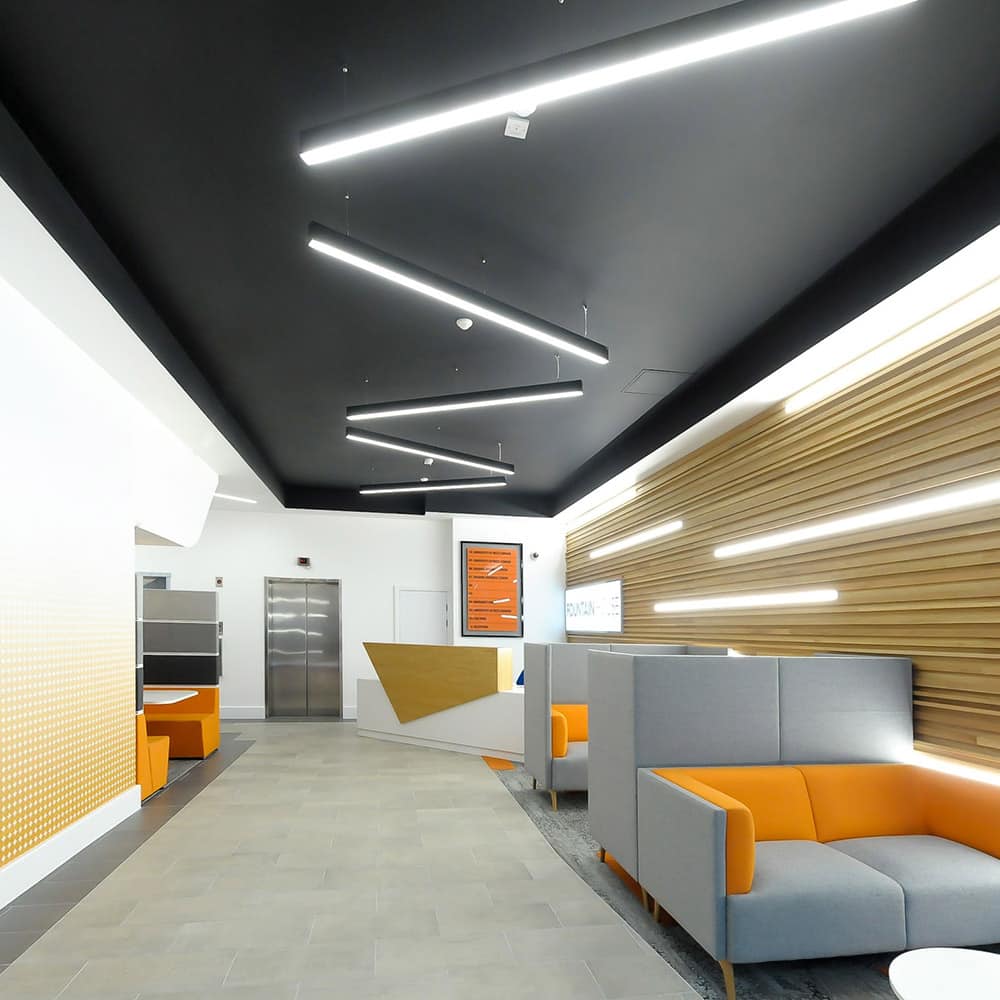

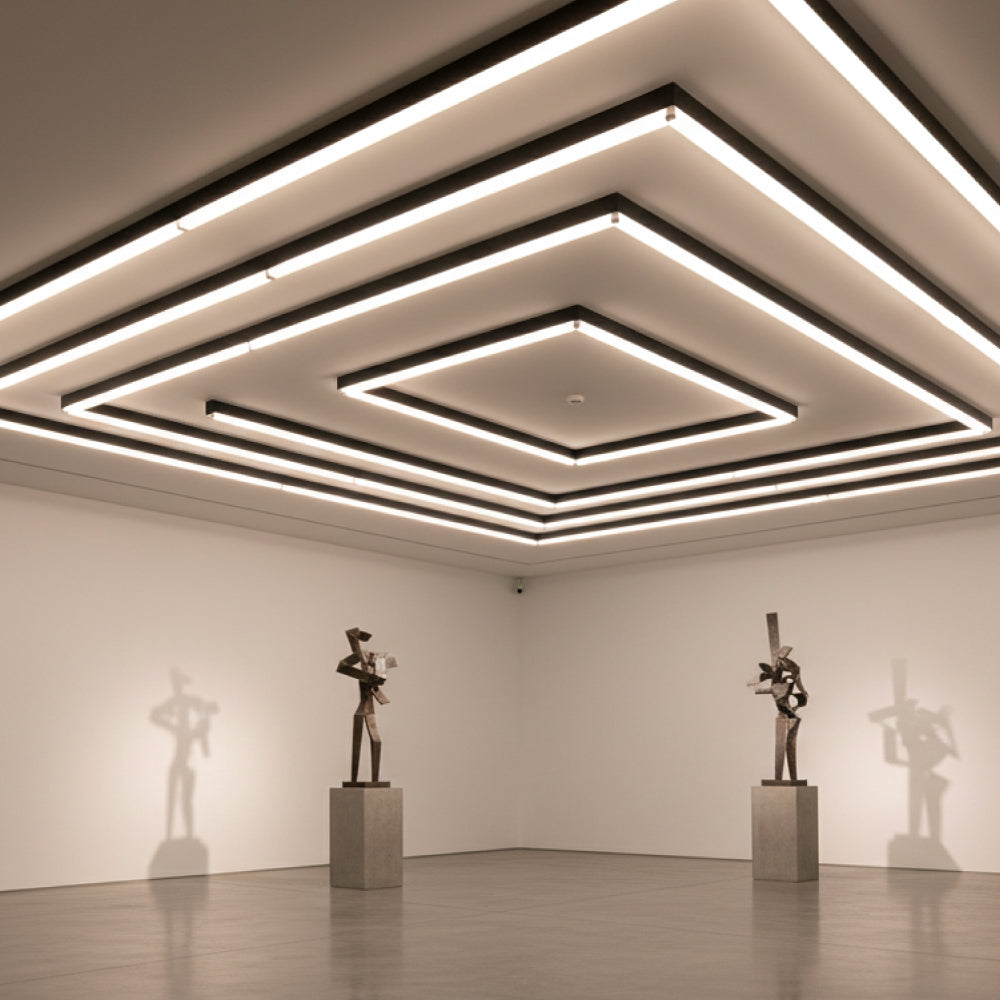

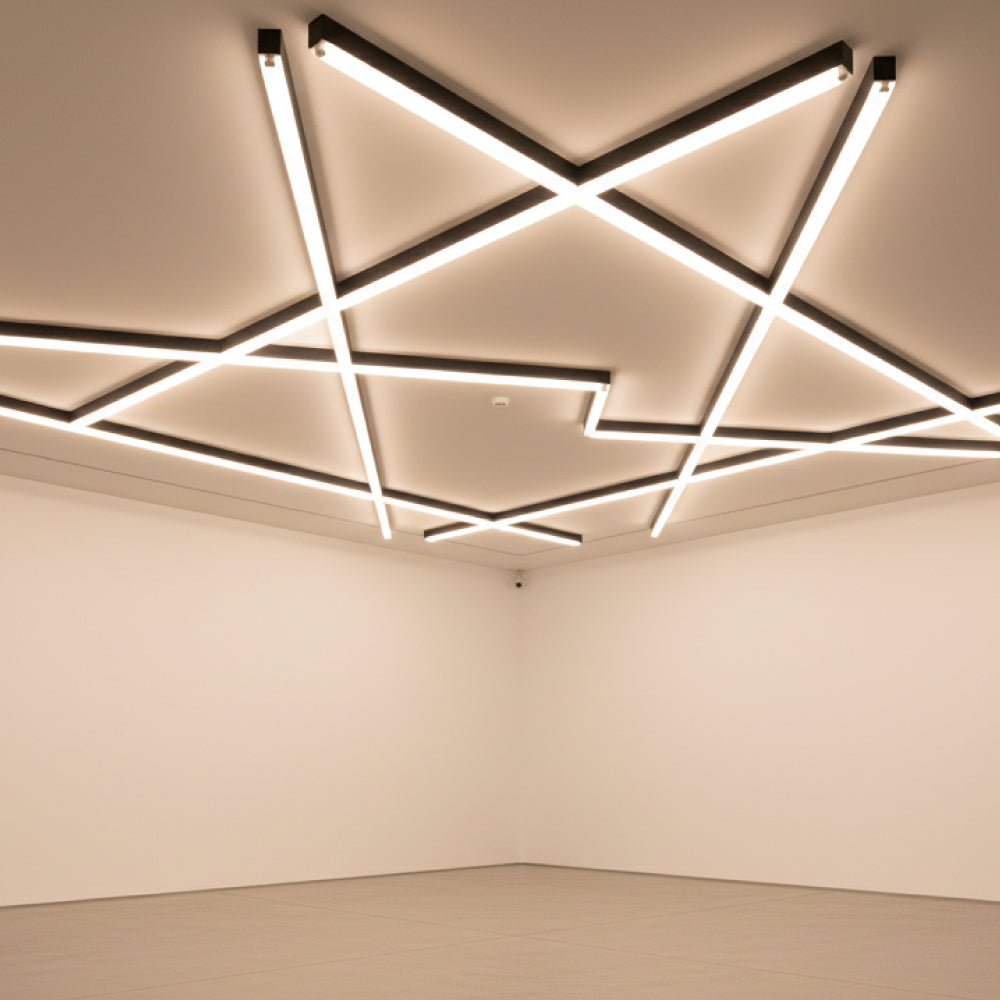

Application: Office / Retail Stores / Restaurants / Hotels / Building Facades / Plazas, etc..

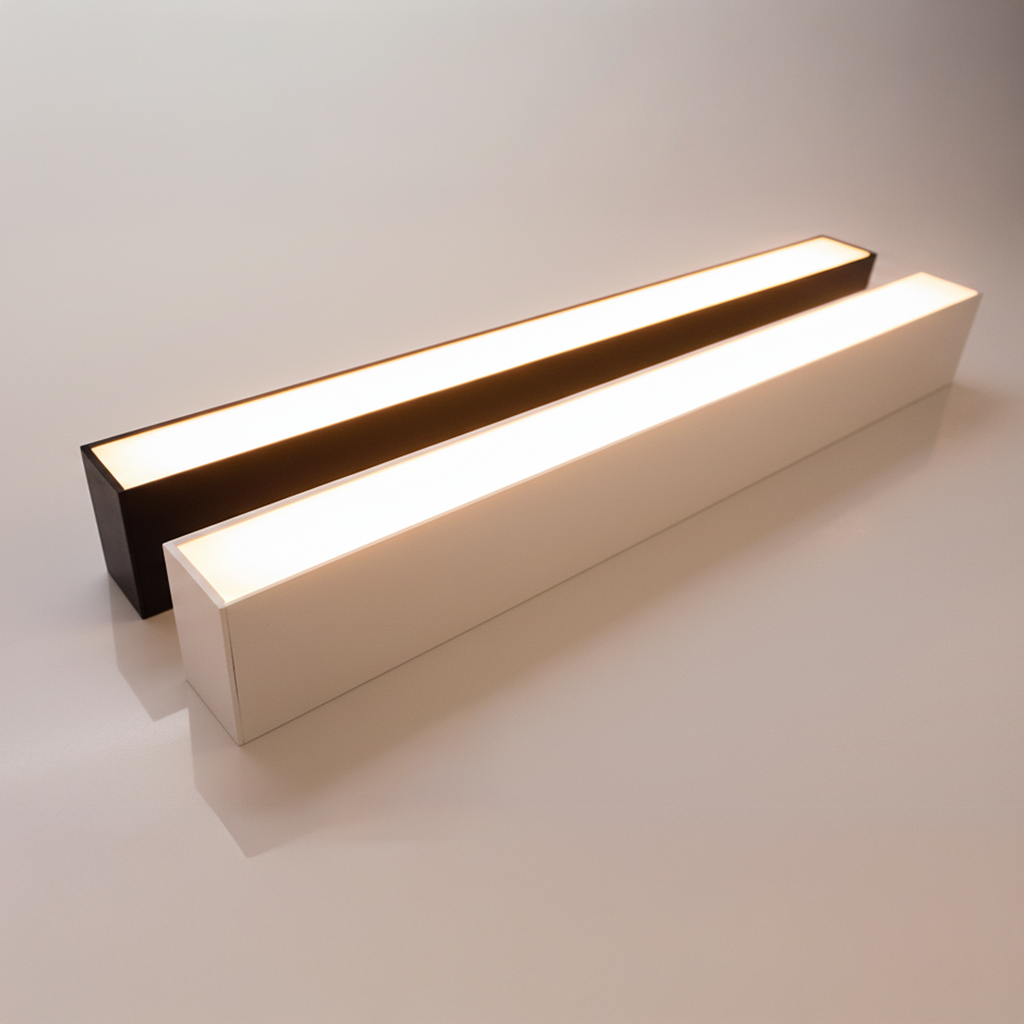

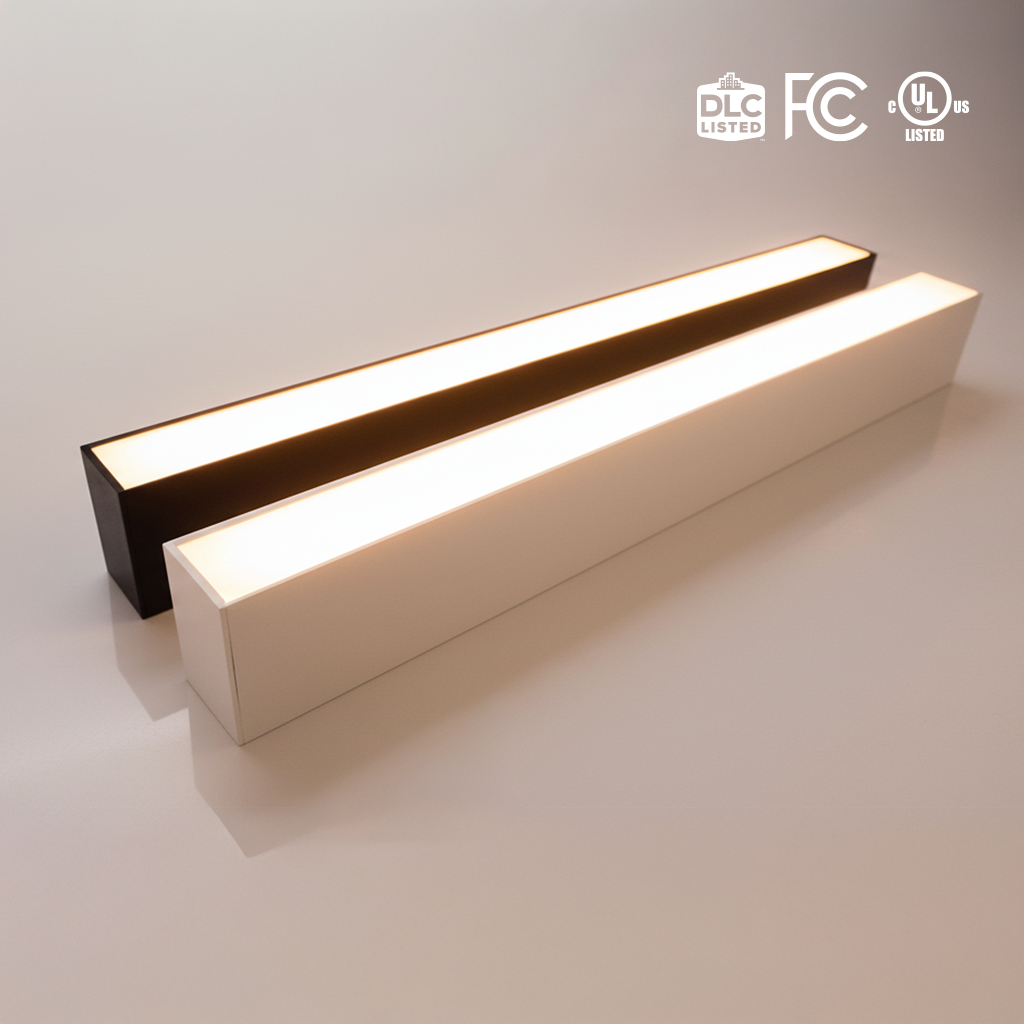

Colour Temperature: 3CCT [3500K/4000K/5000K]

Diffuser/Lens Material: PS(Polystyrene)

THD (Total Harmonic Distortion): <20%

Operating Temperature: -20°C ~ 45°C

Warranty: 5 Years

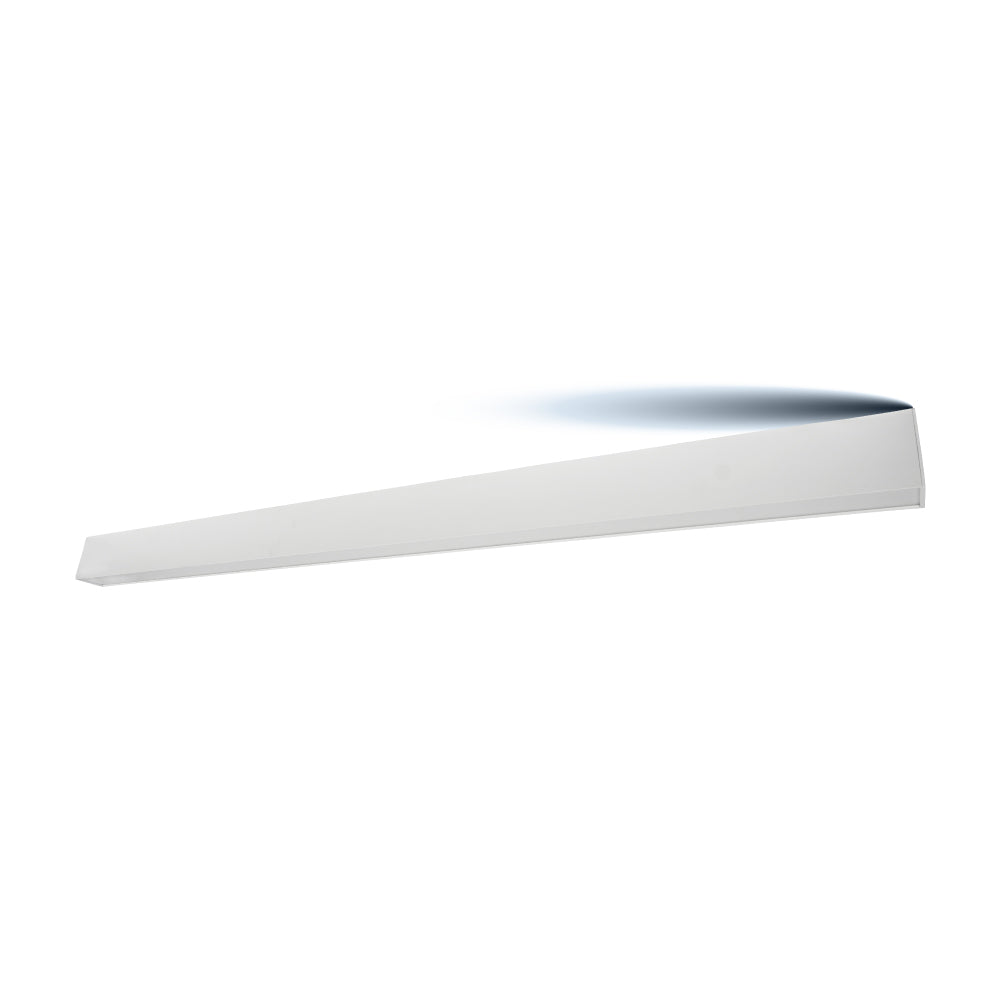

Model: 2ALS-3CCT+W-WH

Description: White 2-Foot Architecture Linear Strip Lights. Wattage Selectable 15w/20w/25w + 3000K, 4000K, 5000K.

Finish: White

Wattage: 15W/20W/25W

Voltage: AC120-347V

Lumens: 130 lmn/W

Beam Angle: 120°

CRI: 80Ra+

Dimmable: Yes (only 0-10V dimming available)

Lifetime: 50,000 hours

Rating: IC Rated / Dry and damp location

Grade of Protection: IP40

Application: Office / Retail Stores / Restaurants / Hotels / Building Facades / Plazas, etc..

Colour Temperature: 3CCT [3500K/4000K/5000K]

Diffuser/Lens Material: PS(Polystyrene)

THD (Total Harmonic Distortion): <20%

Operating Temperature: -20°C ~ 45°C

Warranty: 5 Years

Model: 4ALS-3CCT+W-BK

Description: Black 4-Foot Architecture Linear Strip Lights. Wattage Selectable 30w/40w/50w + 3000K, 4000K, 5000K.

Finish: Black

Wattage: 30W/40W/50W

Voltage: AC120-347V

Lumens: 130 lmn/W

Beam Angle: 120°

CRI: 80Ra+

Dimmable: Yes (only 0-10V dimming available)

Lifetime: 50,000 hours

Rating: IC Rated / Dry and damp location

Grade of Protection: IP40

Application: Office / Retail Stores / Restaurants / Hotels / Building Facades / Plazas, etc..

Colour Temperature: 3CCT [3500K/4000K/5000K]

Diffuser/Lens Material: PS(Polystyrene)

THD (Total Harmonic Distortion): <20%

Operating Temperature: -20°C ~ 45°C

Warranty: 5 Years

Model: 4ALS-3CCT+W-WH

Description: White 4-Foot Architecture Linear Strip Lights. Wattage Selectable 30w/40w/50w + 3000K, 4000K, 5000K.

Finish: White

Wattage: 30W/40W/50W

Voltage: AC120-347V

Lumens: 130 lmn/W

Beam Angle: 120°

CRI: 80Ra+

Dimmable: Yes (only 0-10V dimming available)

Lifetime: 50,000 hours

Rating: IC Rated / Dry and damp location

Grade of Protection: IP40

Application: Office / Retail Stores / Restaurants / Hotels / Building Facades / Plazas, etc..

Colour Temperature: 3CCT [3500K/4000K/5000K]

Diffuser/Lens Material: PS(Polystyrene)

THD (Total Harmonic Distortion): <20%

Operating Temperature: -20°C ~ 45°C

Warranty: 5 Years

Model: 8ALS-3CCT+W-BK

Description: Black 8-Foot Architecture Linear Strip Lights. Wattage Selectable 60w/80w/100w + 3000K, 4000K, 5000K.

Finish: Black

Wattage: 60W/80W/100W

Voltage: AC120-347V

Lumens: 130 lmn/W

Beam Angle: 120°

CRI: 80Ra+

Dimmable: Yes (only 0-10V dimming available)

Lifetime: 50,000 hours

Rating: IC Rated / Dry and damp location

Grade of Protection: IP40

Application: Office / Retail Stores / Restaurants / Hotels / Building Facades / Plazas, etc..

Colour Temperature: 3CCT [3500K/4000K/5000K]

Diffuser/Lens Material: PS(Polystyrene)

THD (Total Harmonic Distortion): <20%

Operating Temperature: -20°C ~ 45°C

Warranty: 5 Years

Model: 8ALS-3CCT+W-WH

Description: White 8-Foot Architecture Linear Strip Lights. Wattage Selectable 60w/80w/100w + 3000K, 4000K, 5000K.

Finish: White

Wattage: 60W/80W/100W

Voltage: AC120-347V

Lumens: 130 lmn/W

Beam Angle: 120°

CRI: 80Ra+

Dimmable: Yes (only 0-10V dimming available)

Lifetime: 50,000 hours

Rating: IC Rated / Dry and damp location

Grade of Protection: IP40

Application: Office / Retail Stores / Restaurants / Hotels / Building Facades / Plazas, etc..

Colour Temperature: 3CCT [3500K/4000K/5000K]

Diffuser/Lens Material: PS(Polystyrene)

THD (Total Harmonic Distortion): <20%

Operating Temperature: -20°C ~ 45°C

Warranty: 5 Years

2-Foot LED Architectural Strip Lights Featuring Selectable Color Temperature and Wattage - Perfect for Enhancing a Variety of Spaces and Layouts.

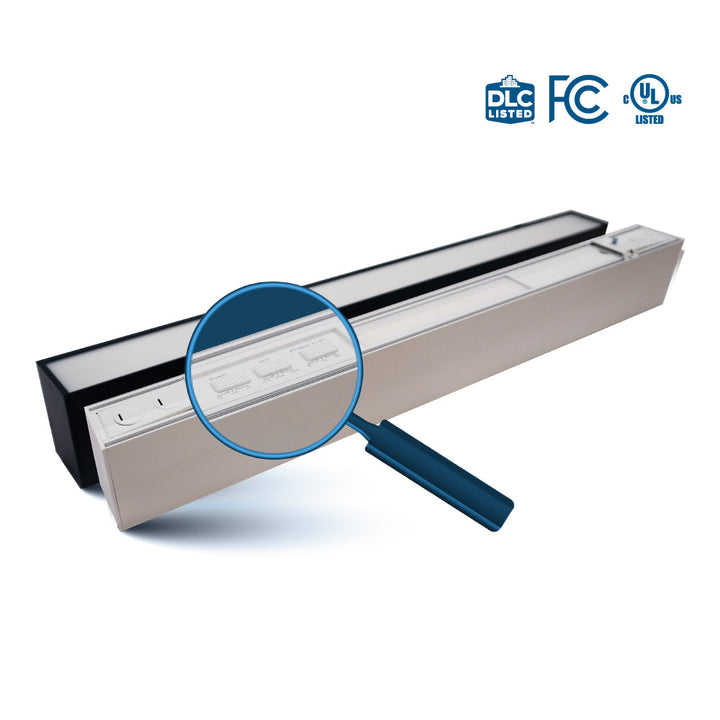

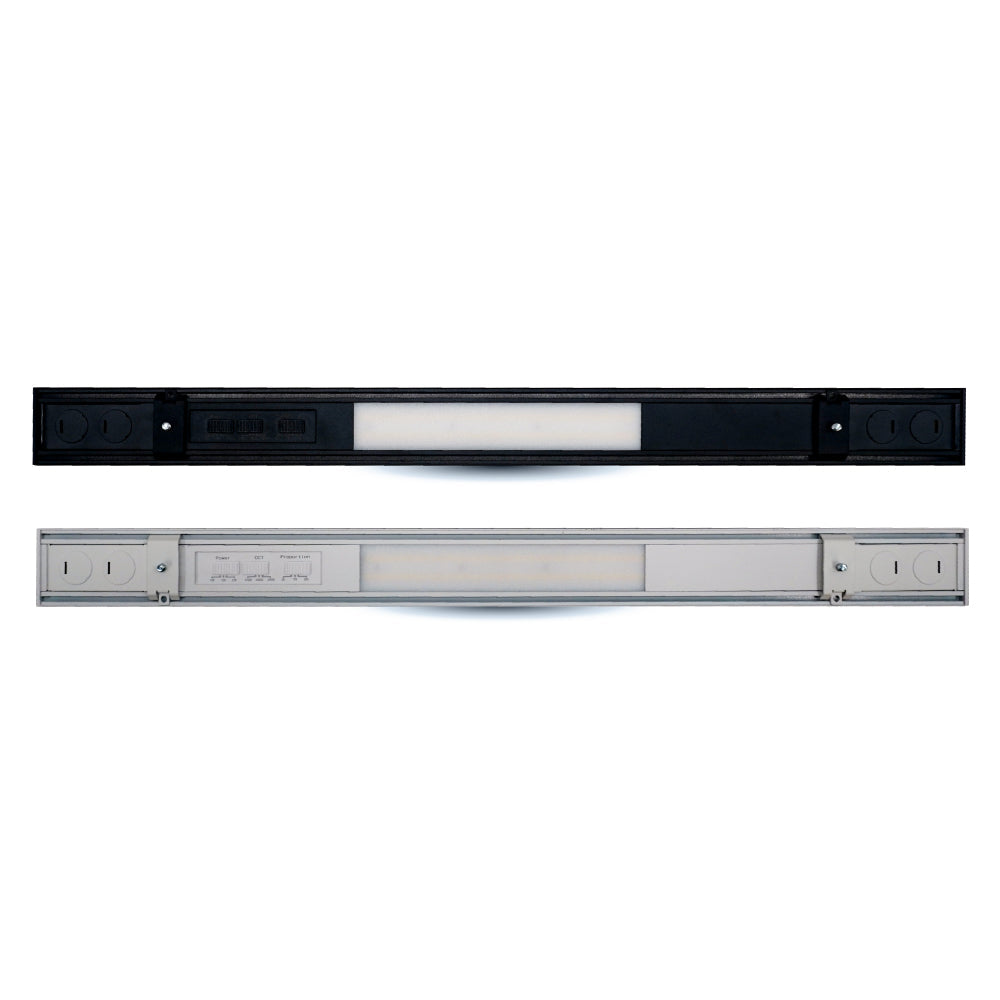

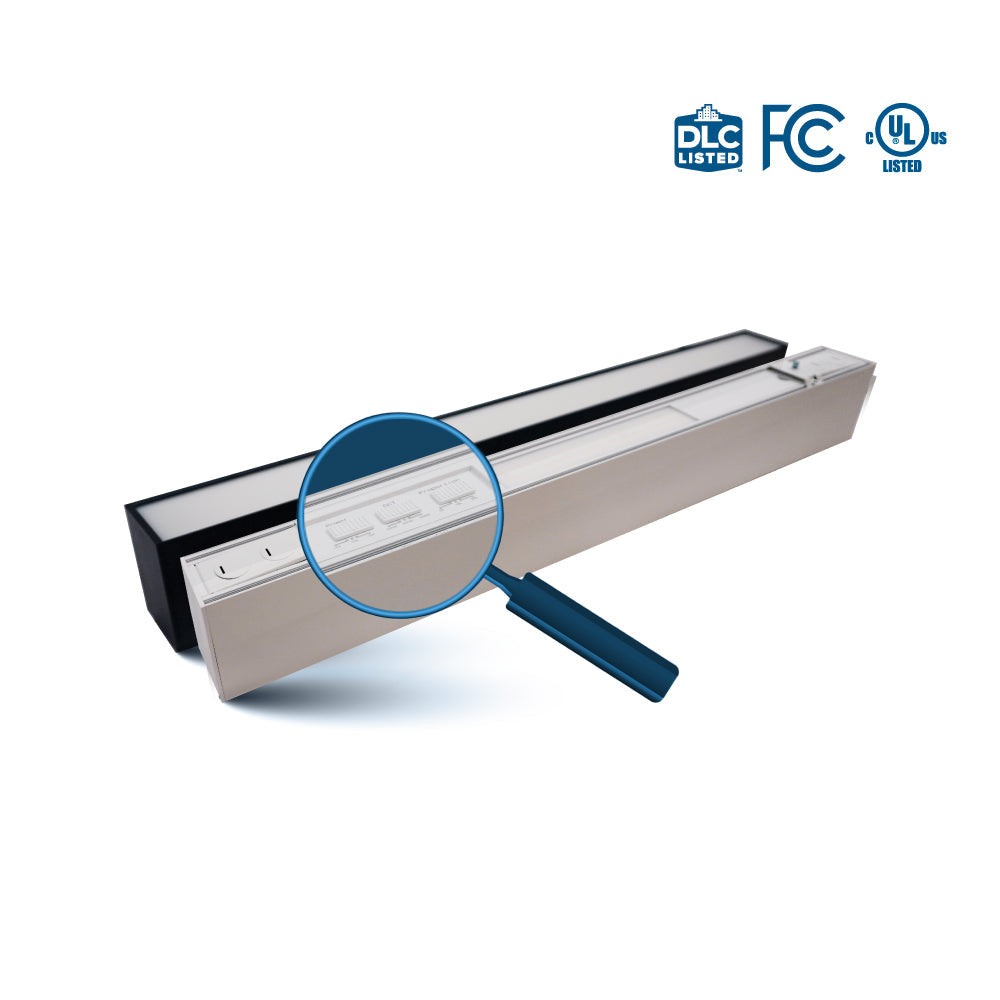

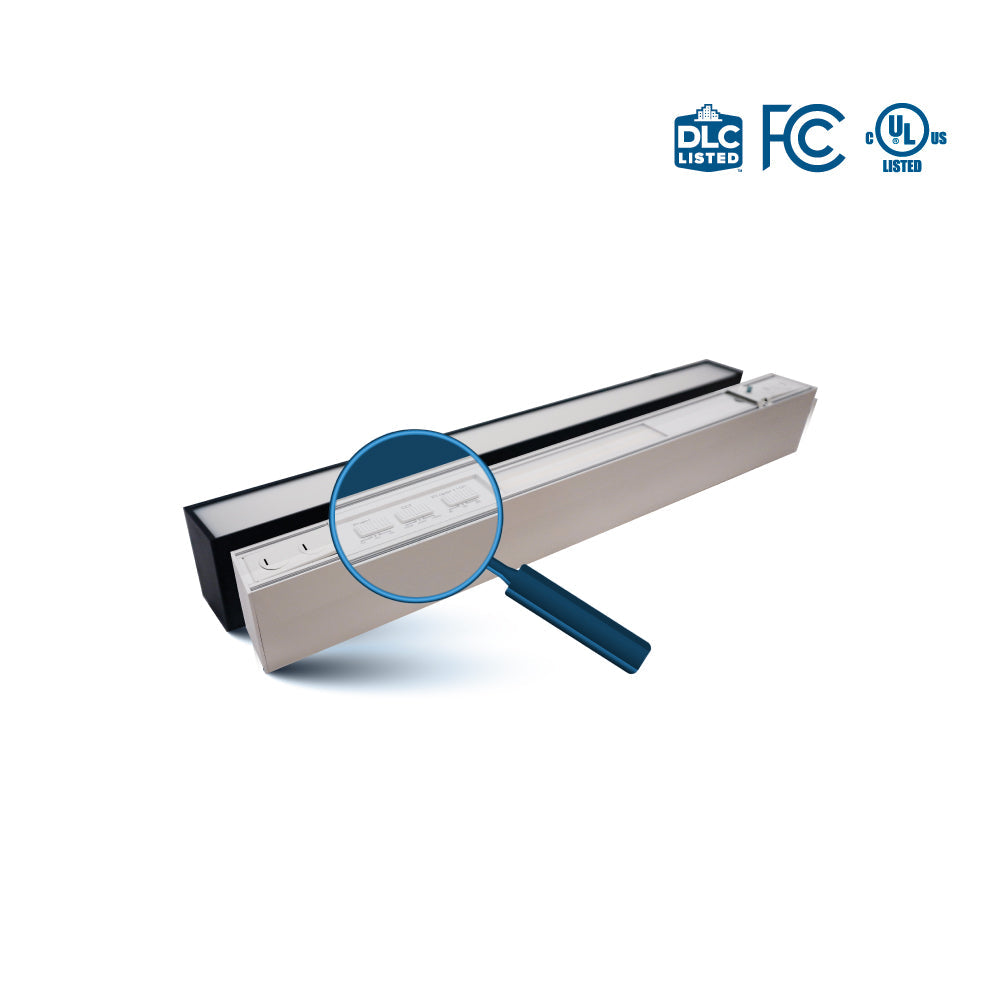

Selectable Power & CCT: Easily adjust power and color temperature across three preset levels to suit your lighting needs.
Customizable Light Distribution: Choose from 70% Downlight / 30% Uplight, 90% Downlight / 10% Uplight, or 100% Downlight for versatile illumination control.

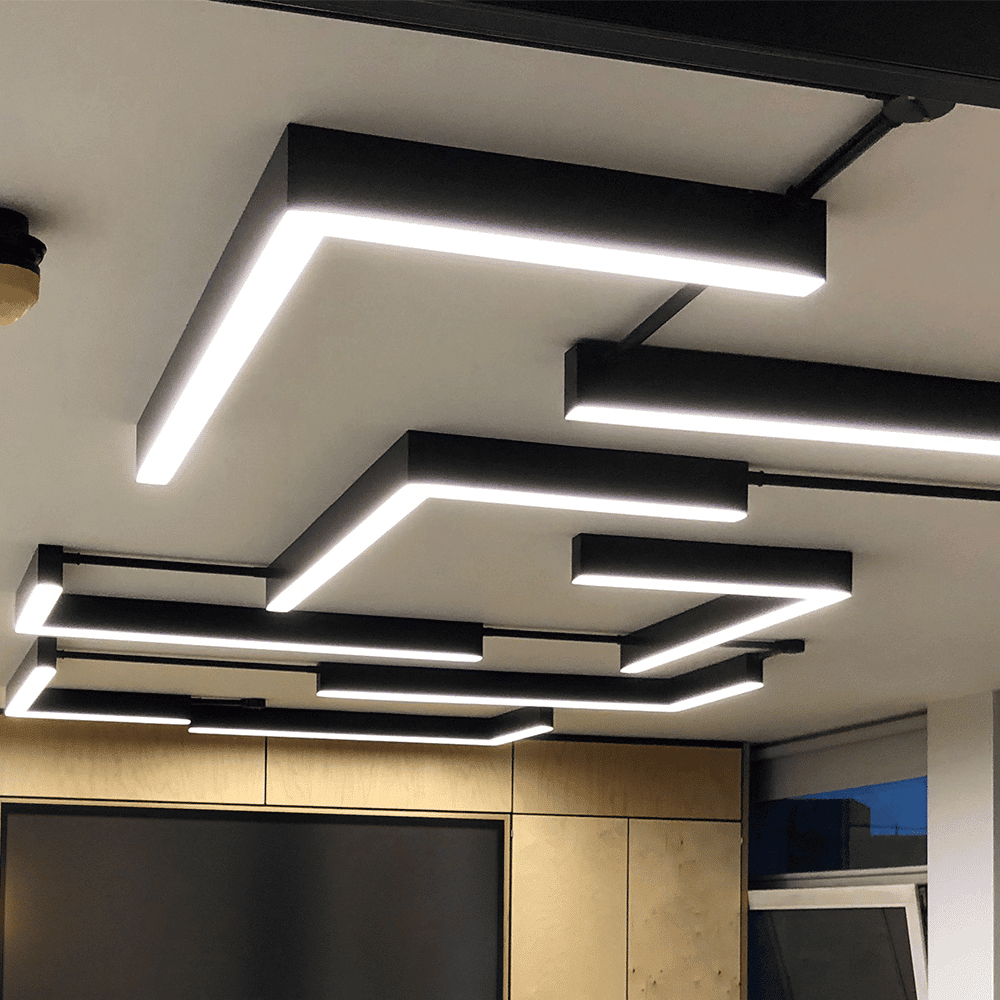

Sleek Aluminum Housing: Durable extruded-aluminum body designed to complement open-plan architectural spaces.
Smooth Dimming: Standard 0–10V dimming for seamless brightness control.
Smart Sensor Control: PIR sensor settings can be easily configured using the PNP-REMOTE. One remote can control multiple sensors. (PIR Sensor & Remote sold separately.)

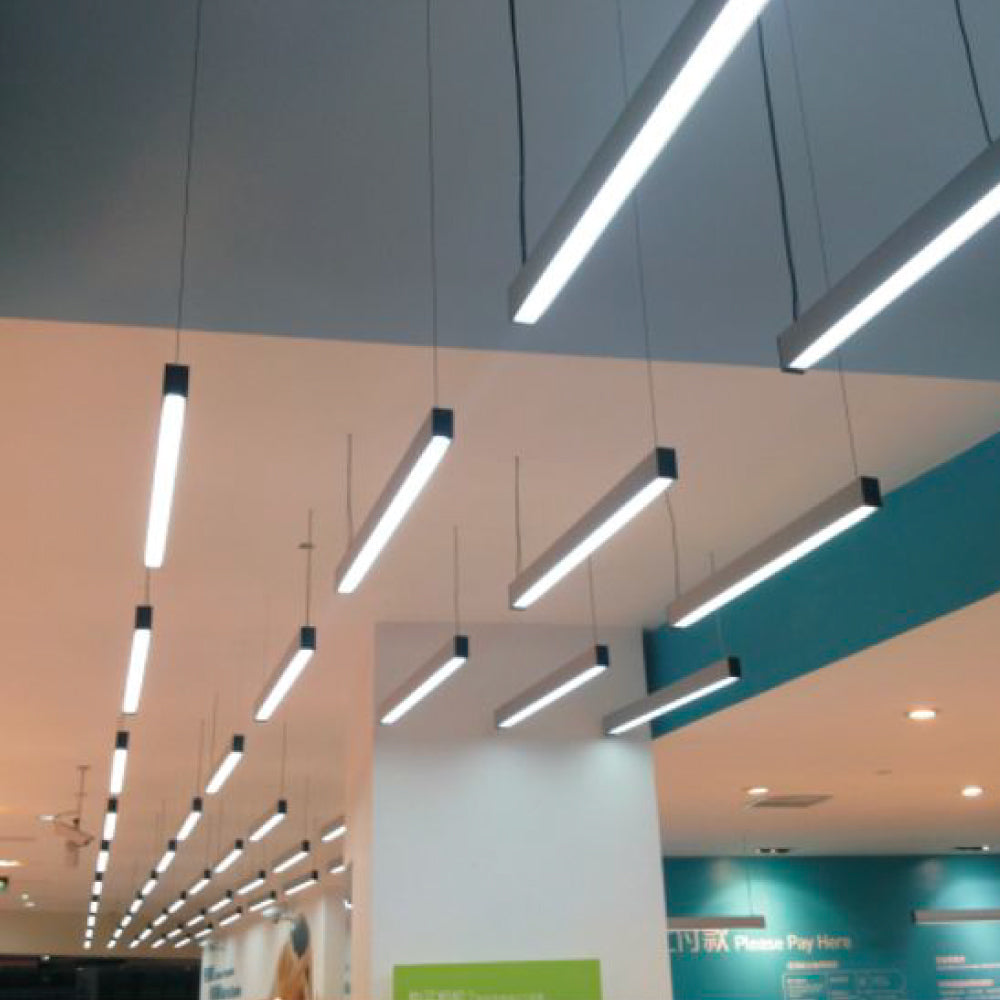

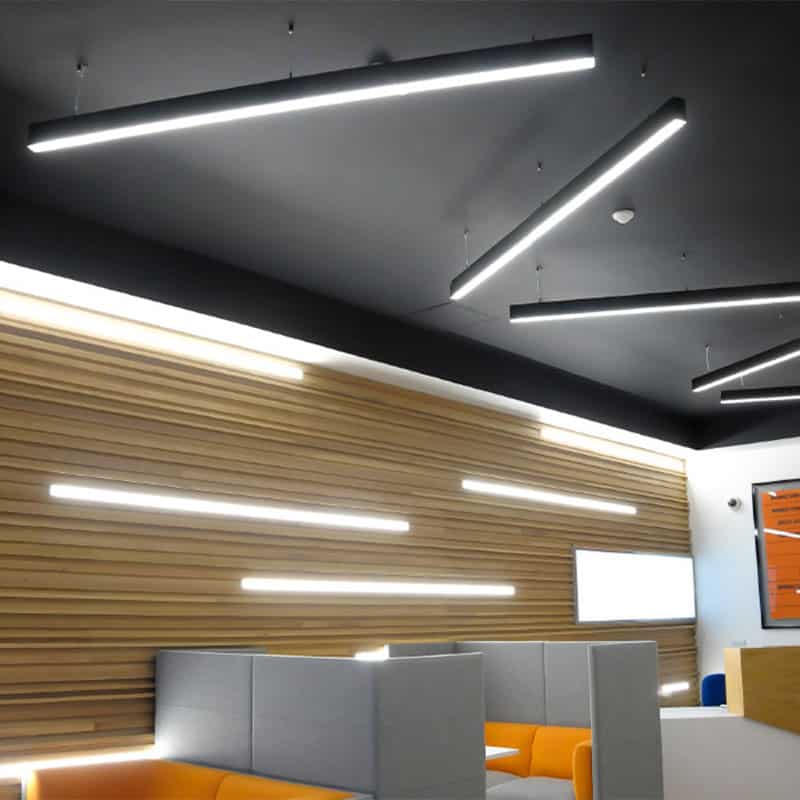

Suspended Mounting Included: Comes with 4.92 ft. aircraft cables for quick and secure suspended installation.

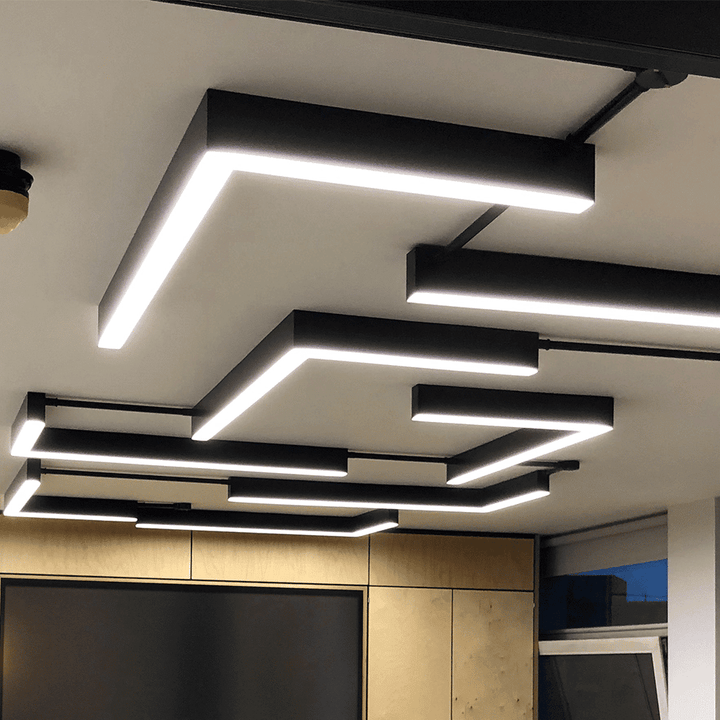

Linkable Design: Only one power cord kit is needed to connect multiple fixtures. (Power cord kit not included. Refer to spec sheet page 3 for connection limits.)

Select an option above to see its full specifications.

Downloads: 2ALS-3CCT+W Spec Sheet
