Name: LED Linear High Bay 3CCT + Wattage Selectable - HB
Brand: Ortech
SKU: 2HB165-3CCT+W+S
Price: 192.62 CAD
Availability: InStock

LED Linear High Bay 3CCT + Wattage Selectable - HB

$192.62

Shipping calculated at checkout.

Size

2 ft (90-165W)

4 ft (200-250W)

Free shipping on orders over $199

Questions? Call 604-233-1998

Specifications

Model: 2HB165-3CCT+W+S

Description: 2 feet Linear High Bay 3CCT interchangeable option (3500K,4000K,5000K) wattage selectable option (90w,120w,165w) 135Lumens/watt, 120v-347V, dimmable 0-10v, 2pcs of Hook + Chain (2 meters) for suspended installation included in packaging (built in socket for sensor option)

Wattage: 90W/120W/165W

Voltage: AC 120-347V

Lumens: 135 lmn/w

Beam Angle: 90°

CRI: 70Ra+

Dimmable: Yes (only 0-10V dimming available)

Lifetime: 50,000 Hours

Rating: Dry Location

Grade of Protection: IP20

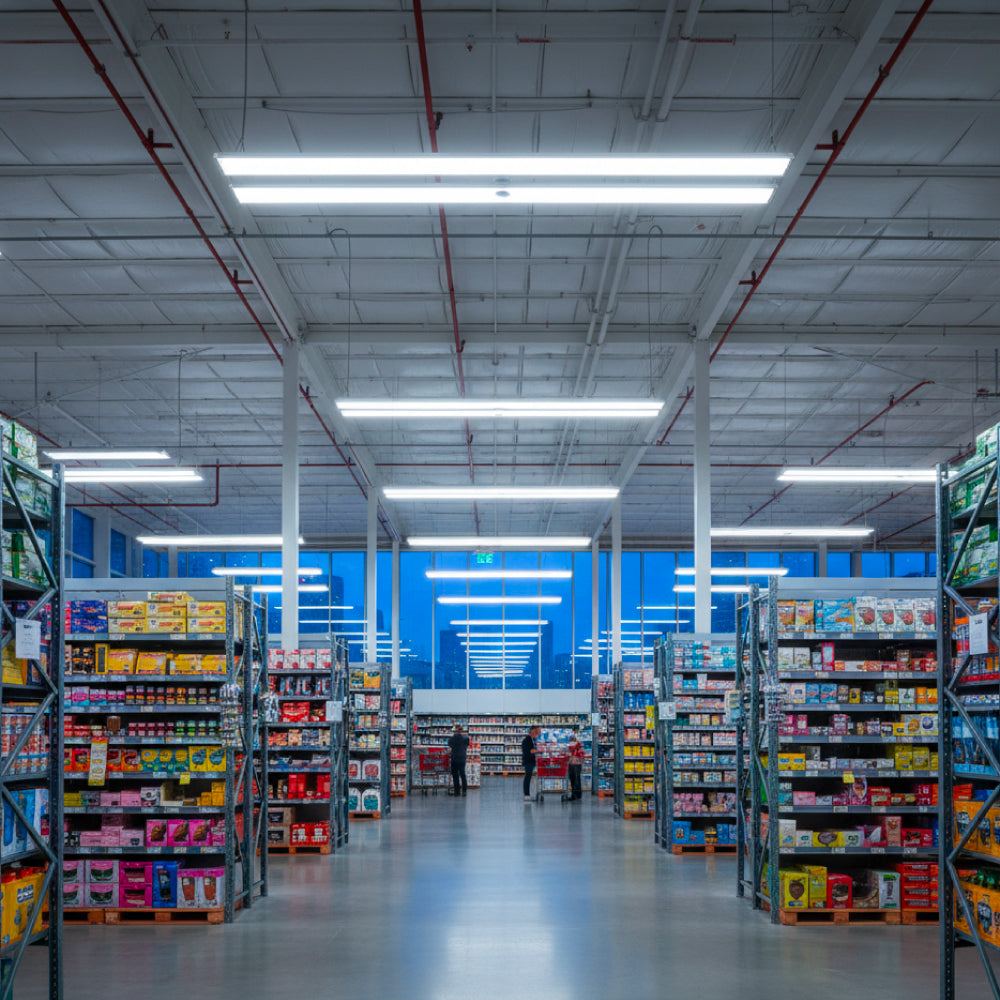

Application: Warehouses / Gymnasiums / Industrial spaces, etc.

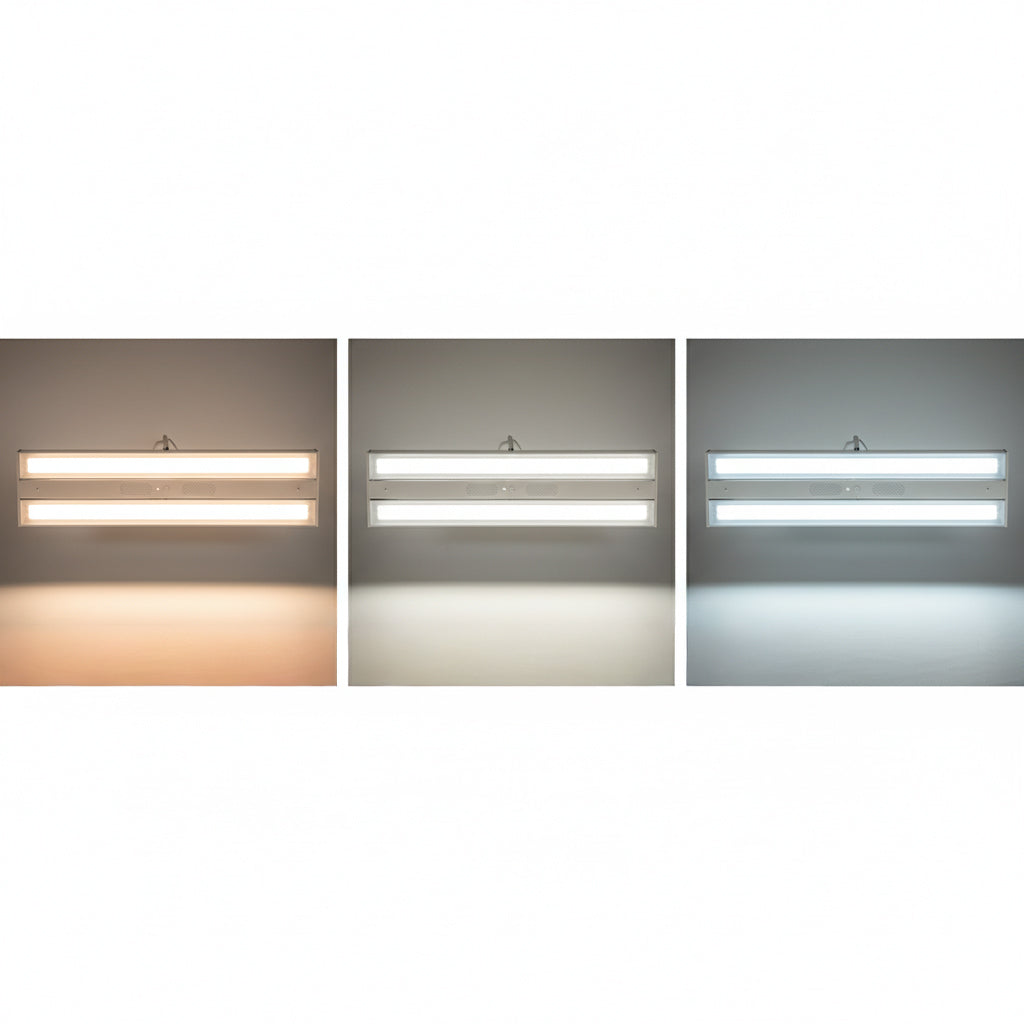

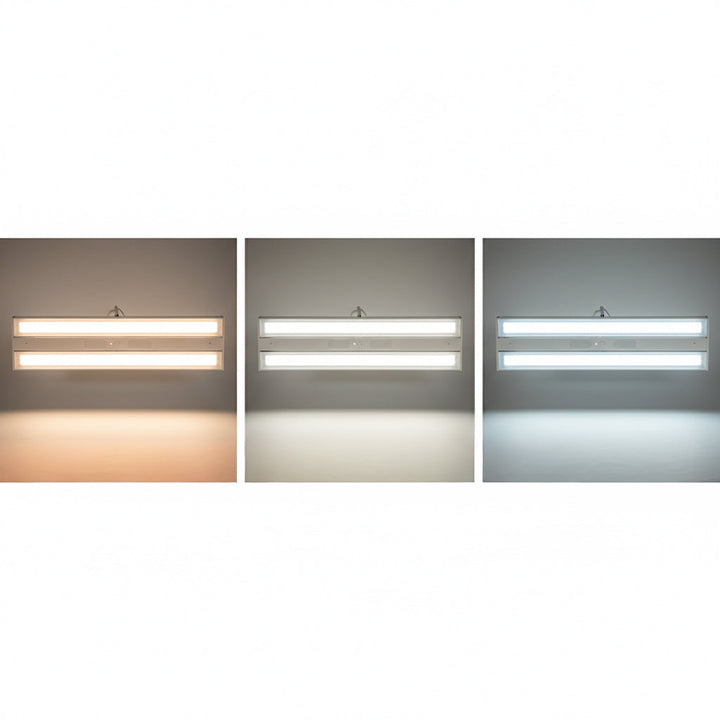

Colour Temperature: 3CCT [3500K/4000K/5000K]

Diffuser/Lens Material: PC

Daisy Connection: 2 pieces, 1 meter in length

Frequency Range: 50/60Hz

THD (Total Harmonic Distortion): <20%

Operating Temperature: -40°C~45°C

Warranty: 5 Years

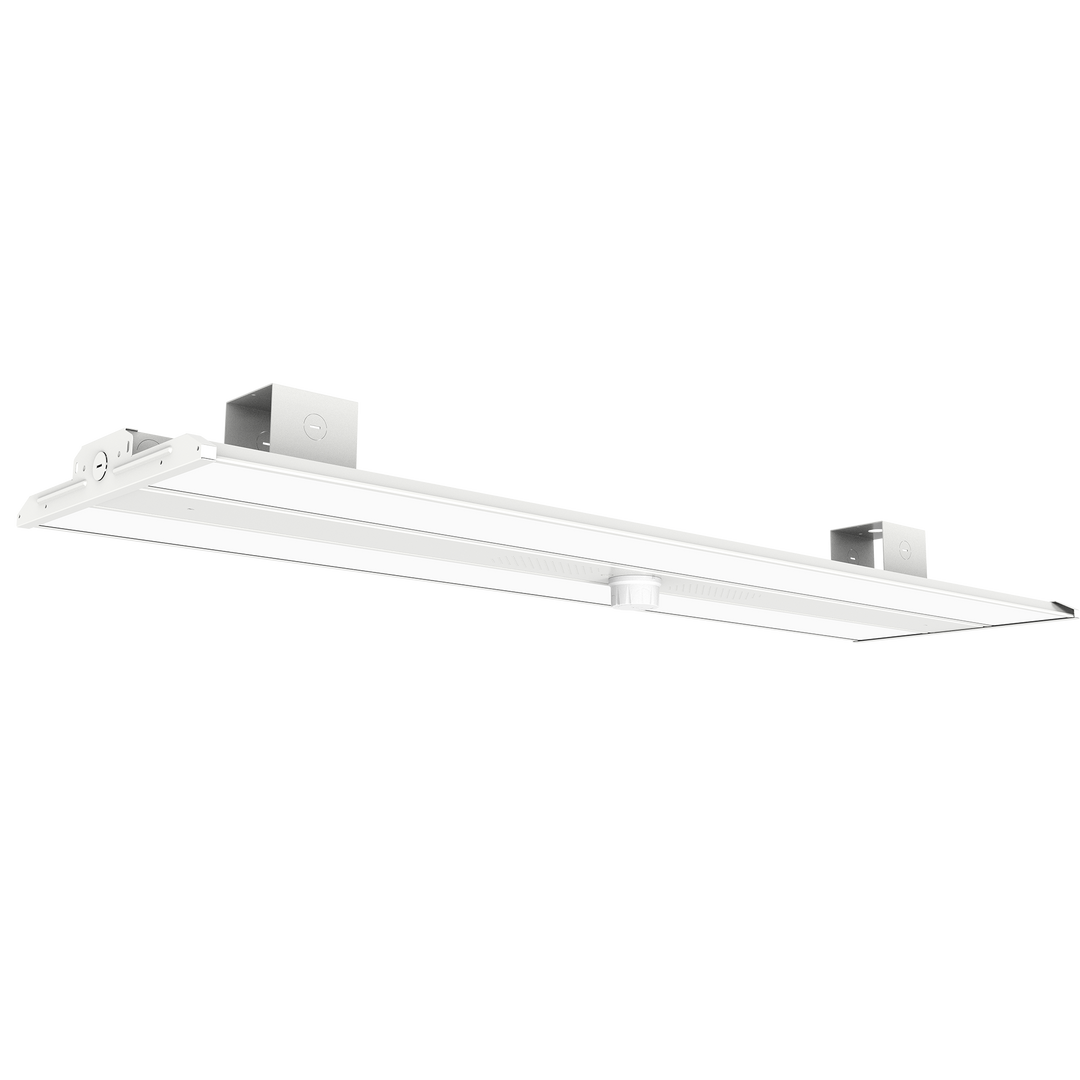

Model: 4HB250-3CCT+W+S

Description: 4 feet Linear High Bay 3CCT interchangeable option (3500K,4000K,5000K) wattage selectable option (200w,225w,250w) 135Lumens/watt, 120v-347V, dimmable 0-10v,2pcs of Hook + Chain (2 meters) for suspended installation included in packaging (built in socket for sensor option)

Wattage: 200W/225W/250W

Voltage: AC 120-347V

Lumens: 135 lmn/w

Beam Angle: 90°

CRI: 70Ra+

Dimmable: Yes (only 0-10V dimming available)

Lifetime: 50,000 Hours

Rating: Dry Location

Grade of Protection: IP20

Application: Warehouses / Gymnasiums / Industrial spaces, etc.

Colour Temperature: 3CCT [3500K/4000K/5000K]

Diffuser/Lens Material: PC

Daisy Connection: 2 pieces, 1 meter in length

Frequency Range: 50/60Hz

THD (Total Harmonic Distortion): <20%

Operating Temperature: -40°C~45°C

Warranty: 5 Years

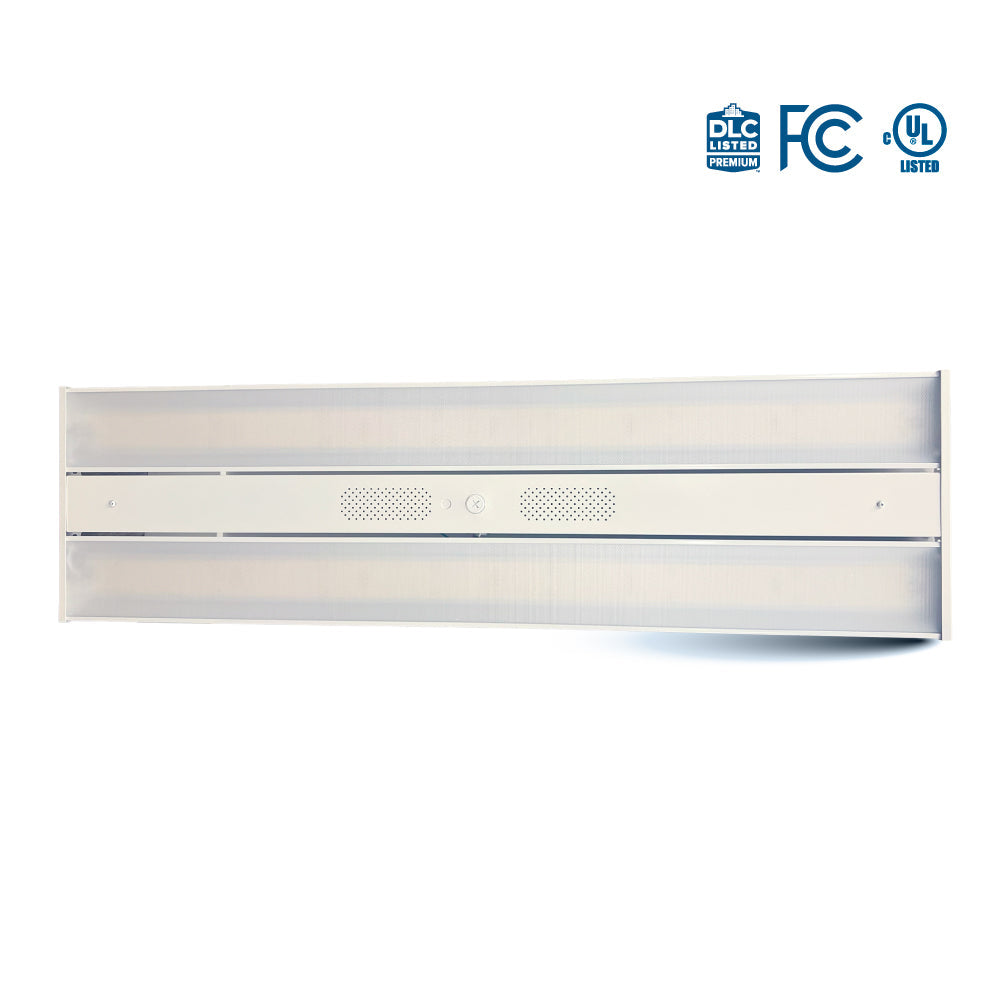

2 FT. Commercial-Grade LED Linear High Bay - Equipped with a built-in sensor, selectable color temperature (CCT), and adjustable wattage for efficient, customizable performance in high-ceiling spaces.

Adjustable Power & CCT: Offers three selectable levels for both wattage and color temperature.

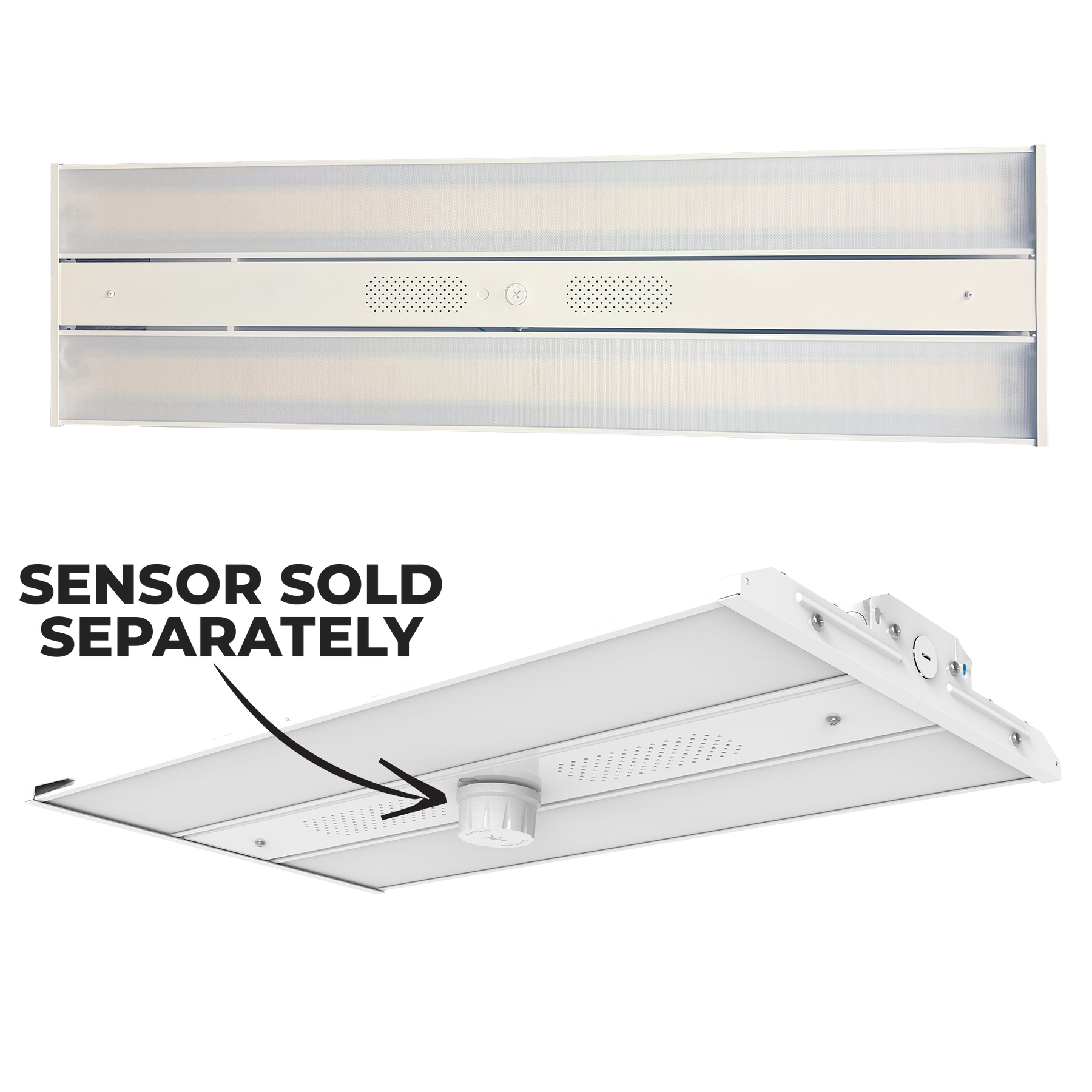

Sensor Compatibility: Plug & play design supports optional sensor integration (sold separately).
Premium Driver Performance: Features 1–10V dimming, flicker-free operation, and high-quality components.
Efficient & Reliable: Power factor >0.90, driver efficiency >90%, and THD <20% for optimal energy use.
Dry Location Rated: Designed for safe and effective use in dry indoor environments.

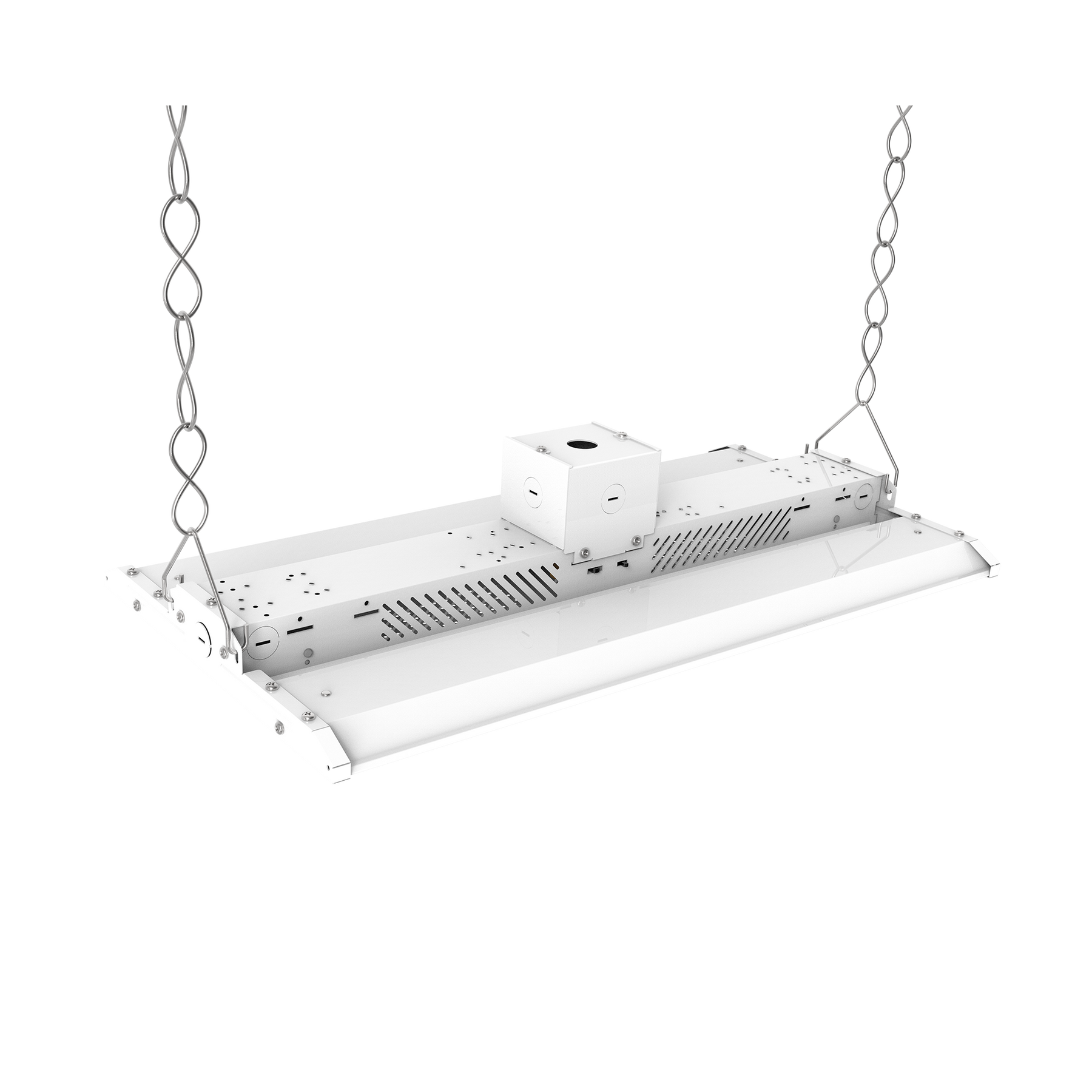

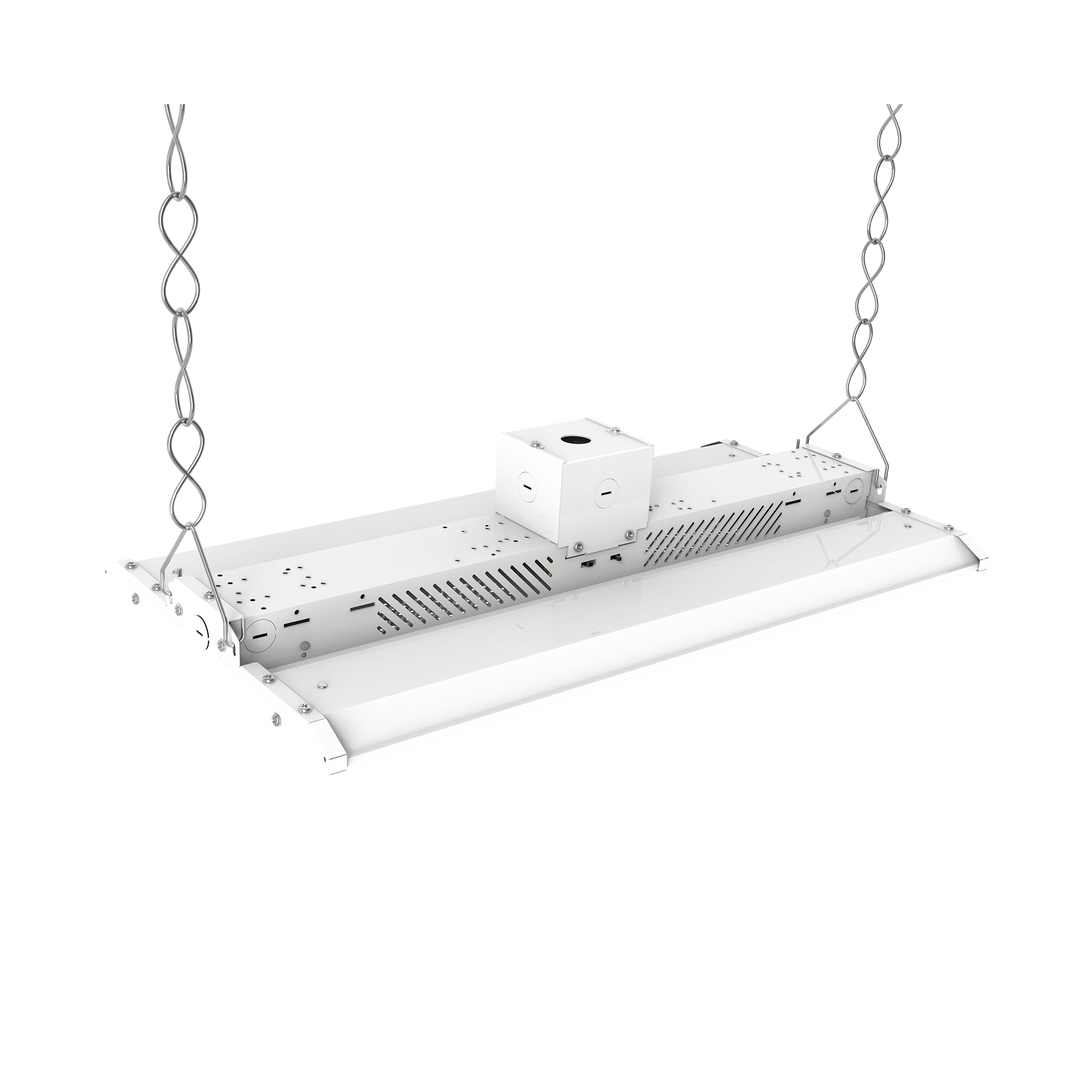

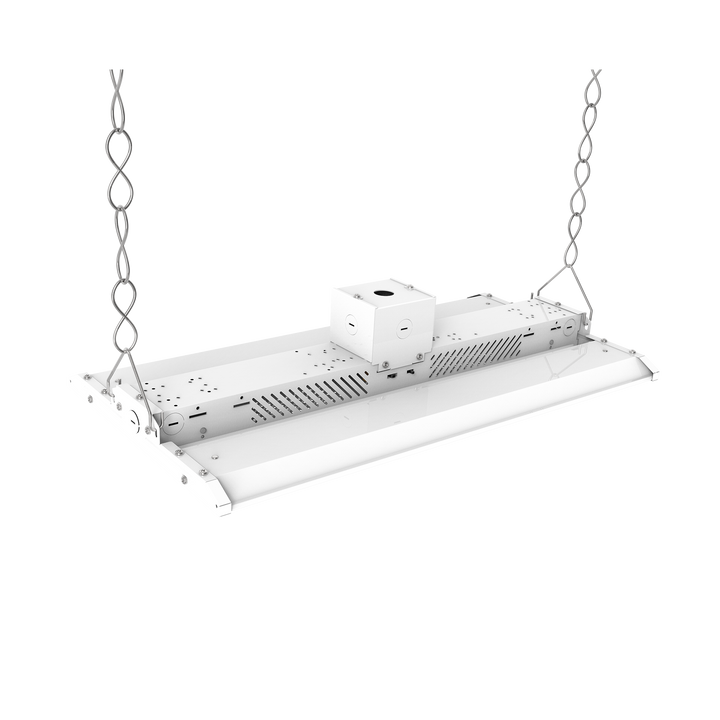

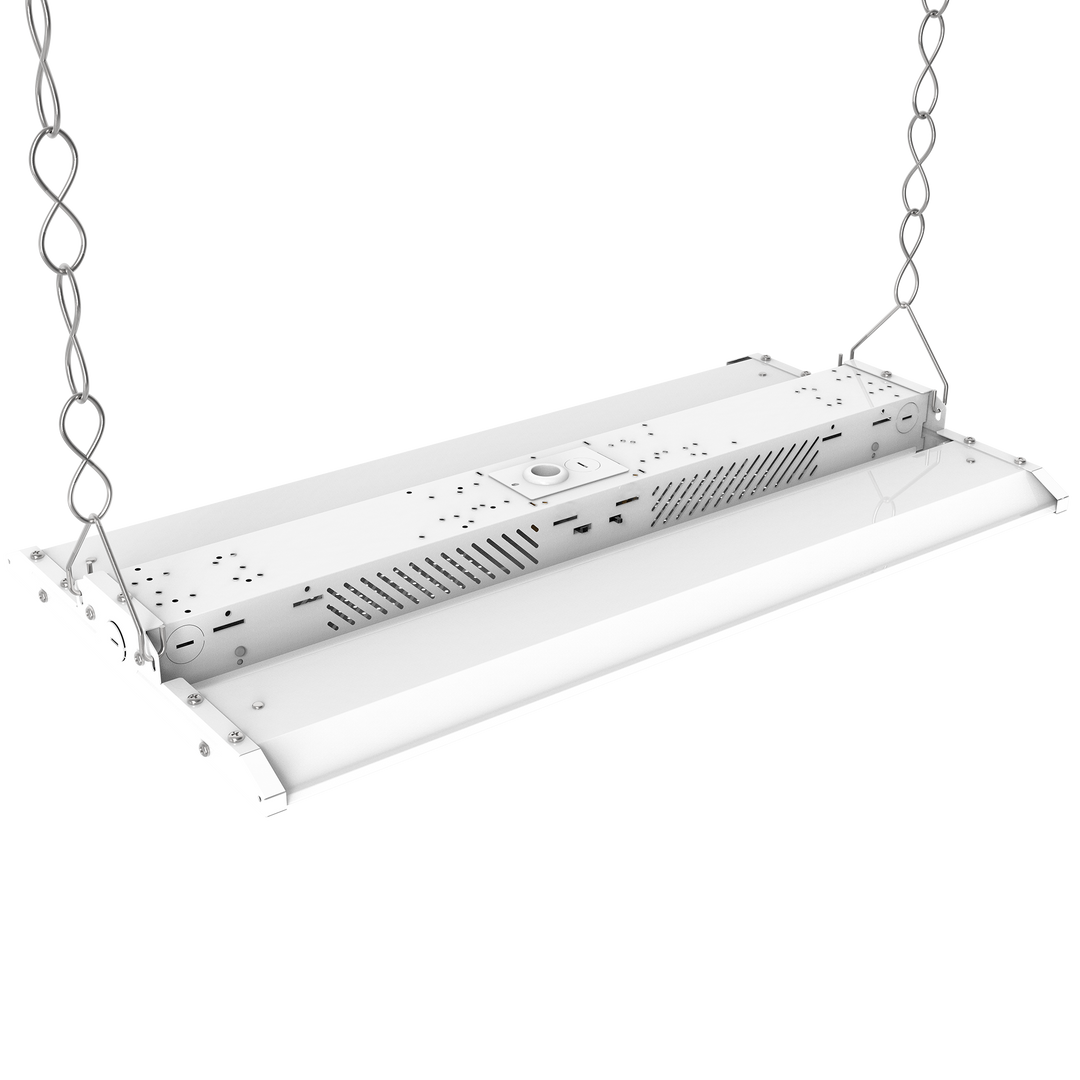

Installation Accessories Included: Comes with two 1-meter chains for easy suspension mounting.

Select an option above to see its full specifications.

Downloads: 2HB165-3CCT+W+S Spec Sheet | PNP-SENSOR Spec Sheet | 2HB165-3CCT+W+S Instruction Manual

Free shipping on orders over $199. See our full shipping & return policy.

Need an electrician or install tips? Read our install guide or call us at 604-233-1998.
