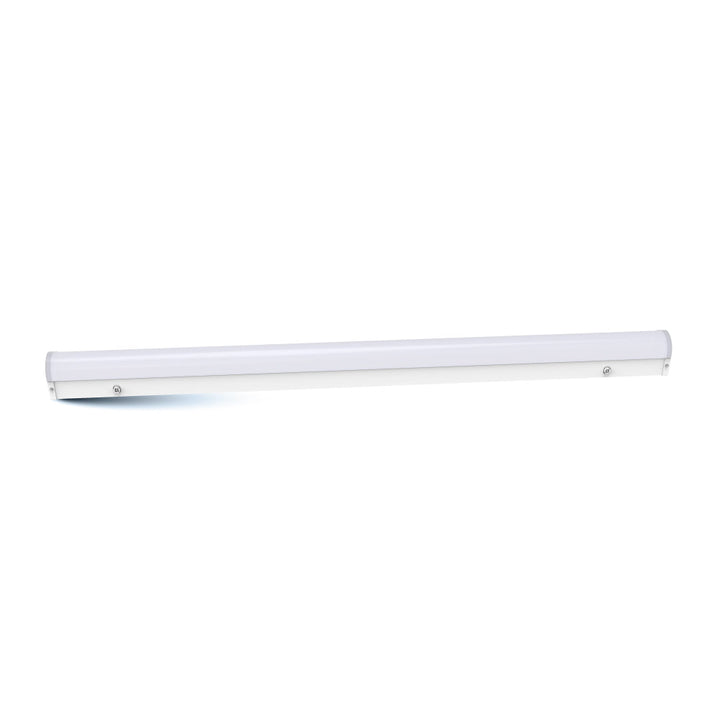

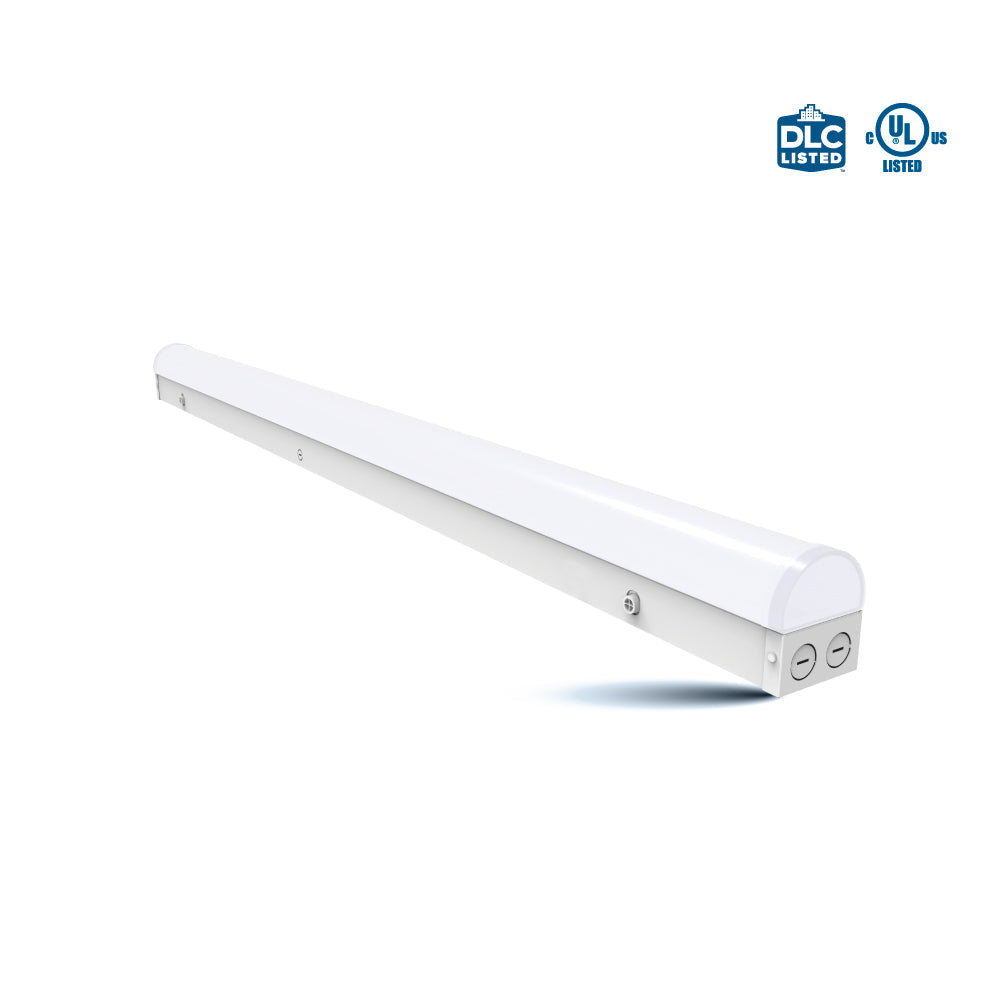

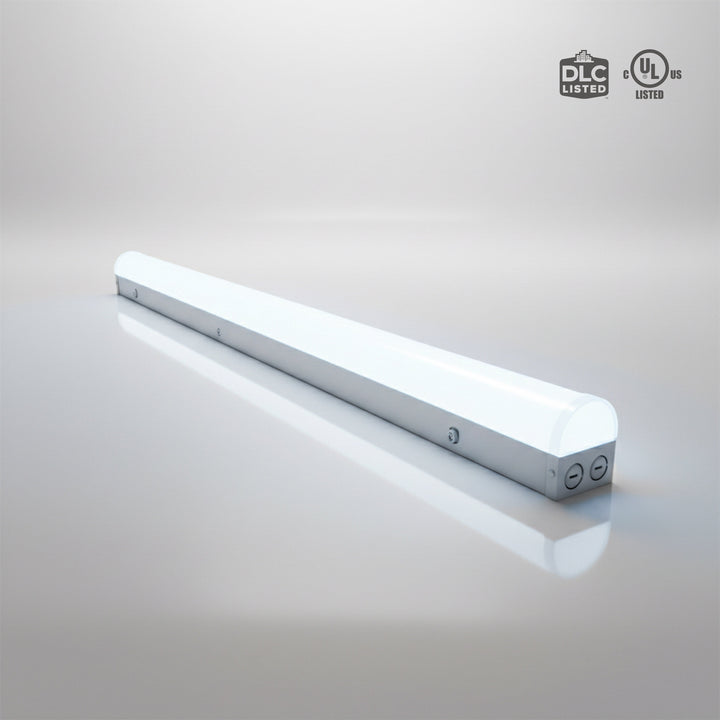

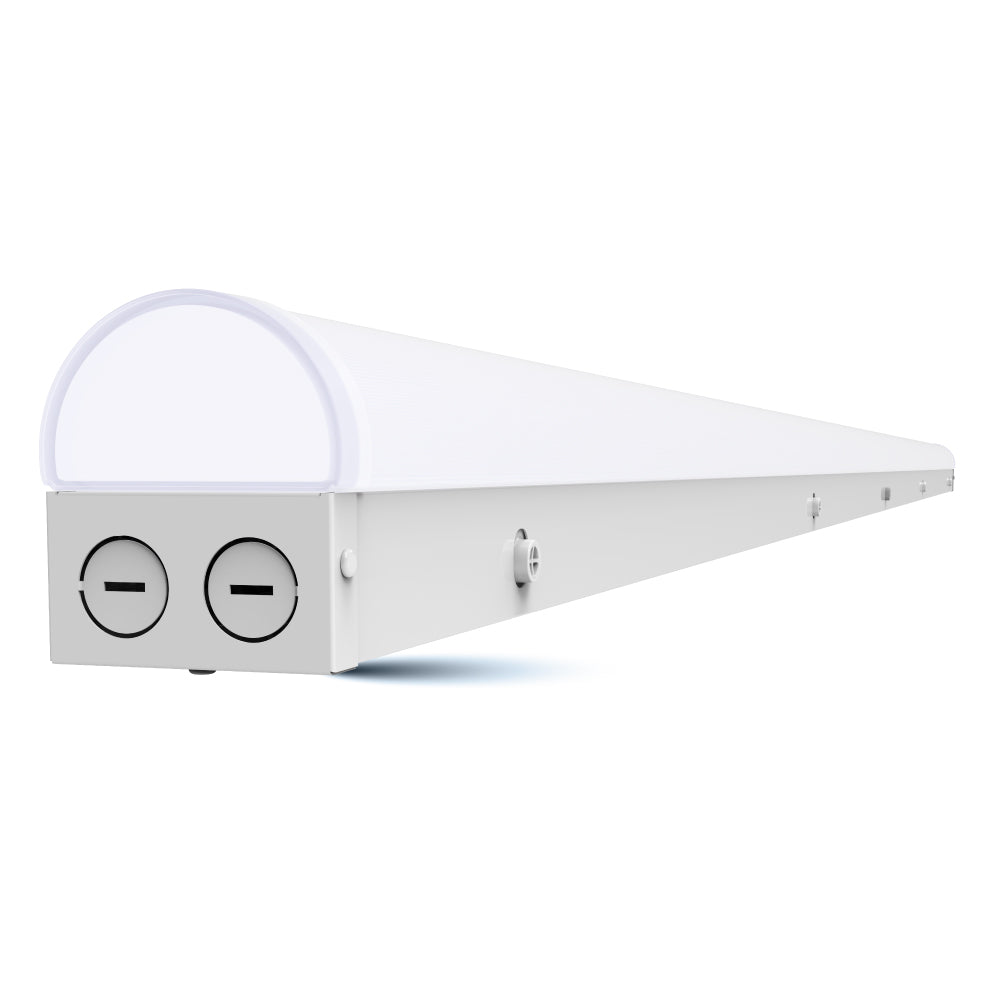

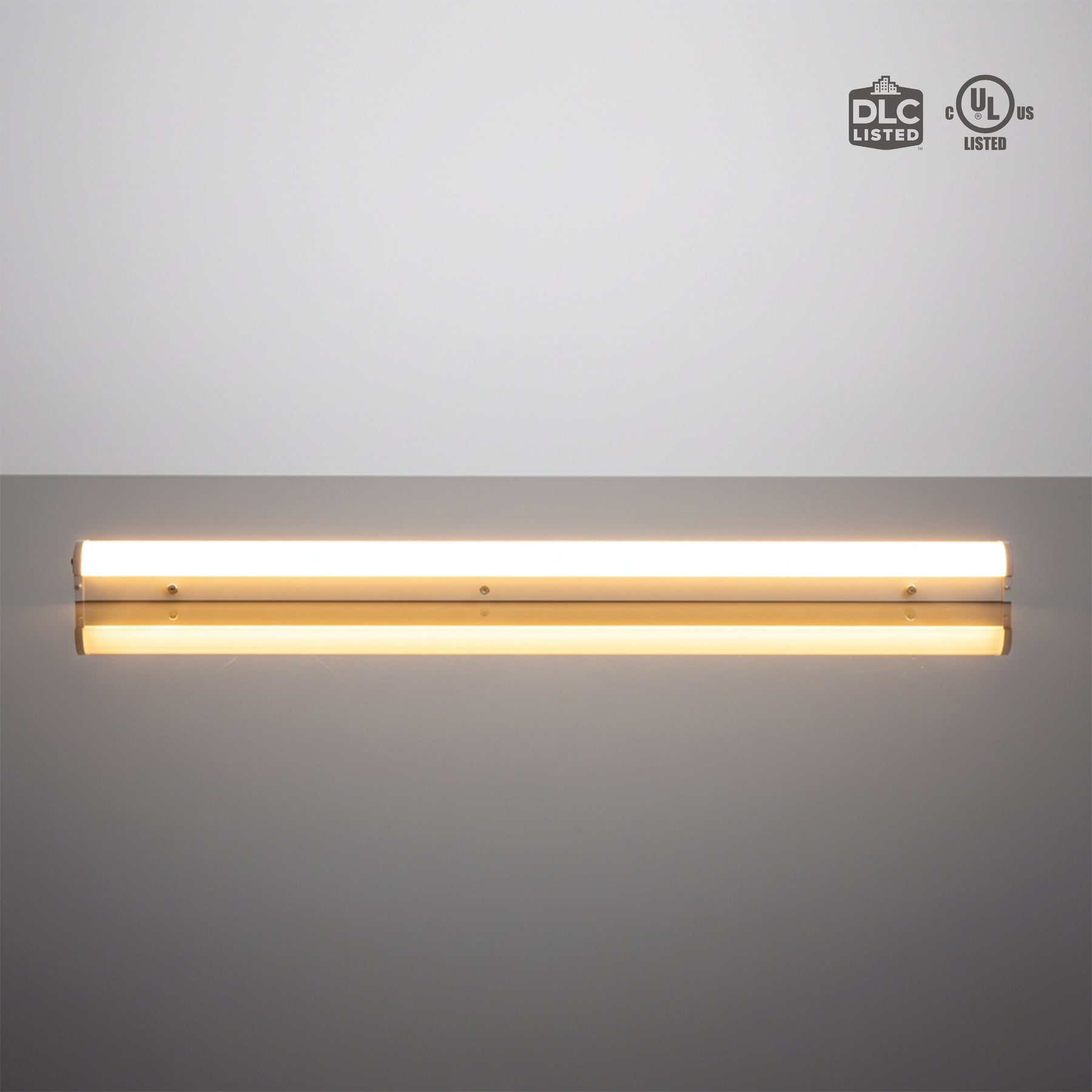

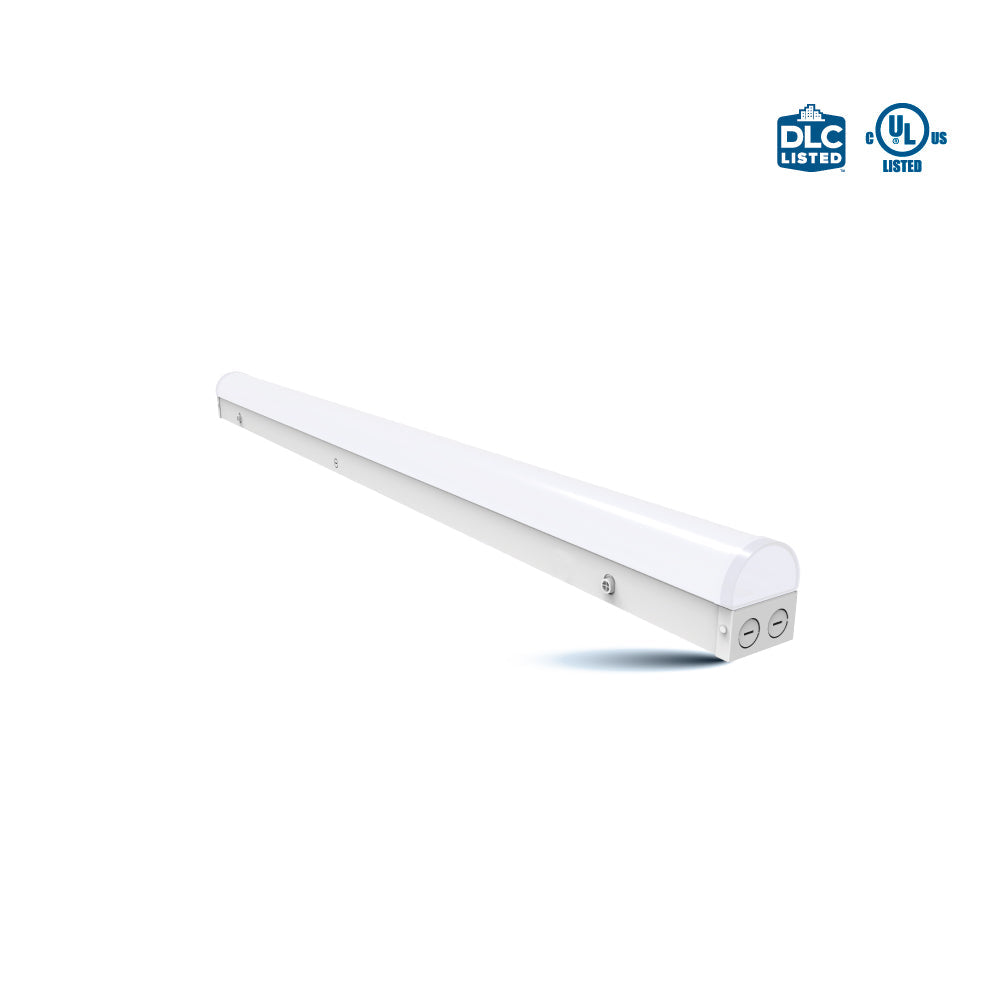

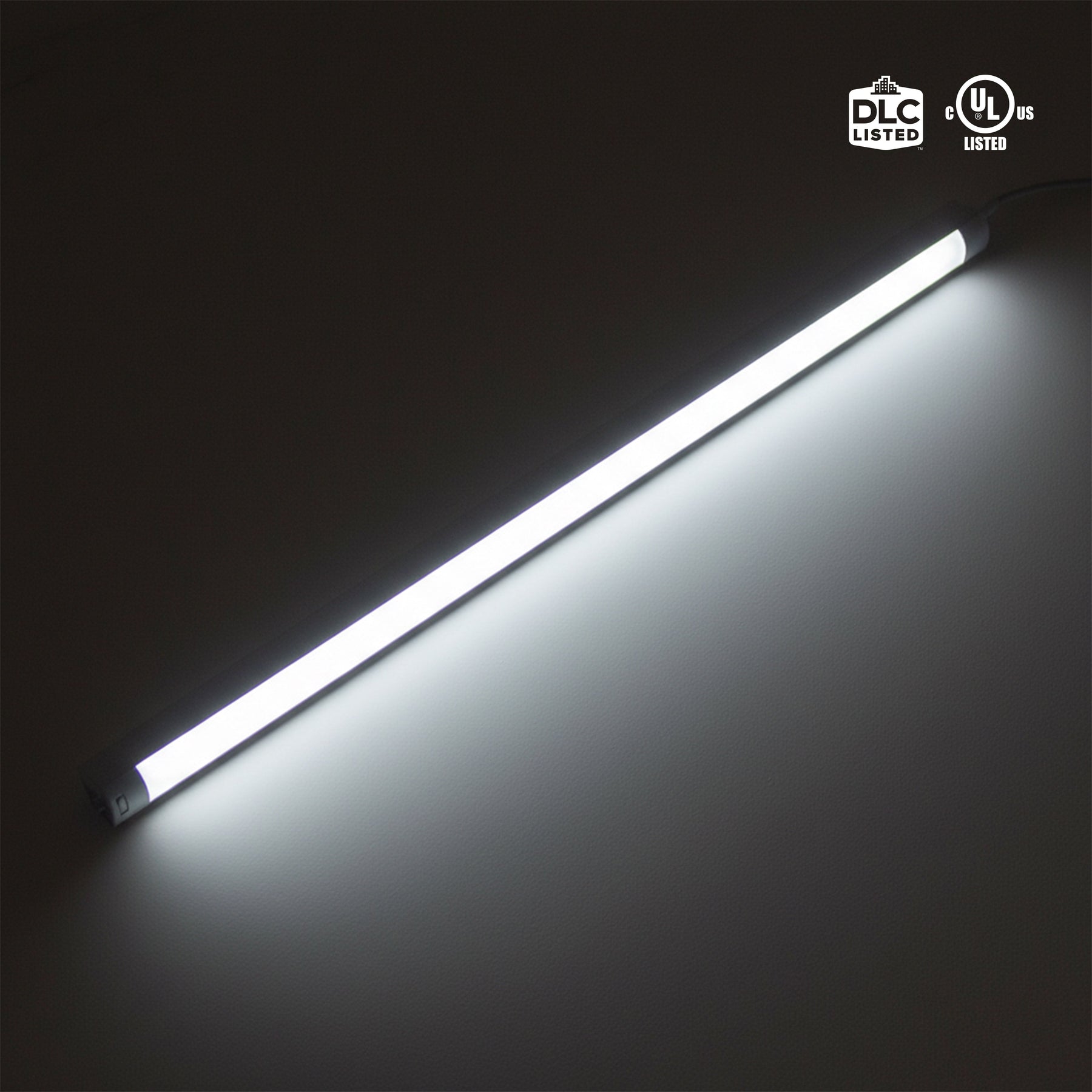

Name: LED Linear Strip Light 3CCT + Wattage Selectable - OL-ST
Brand: Ortech
SKU: OL-ST2-3CCT+W
Price: 58.22 CAD
Availability: InStock

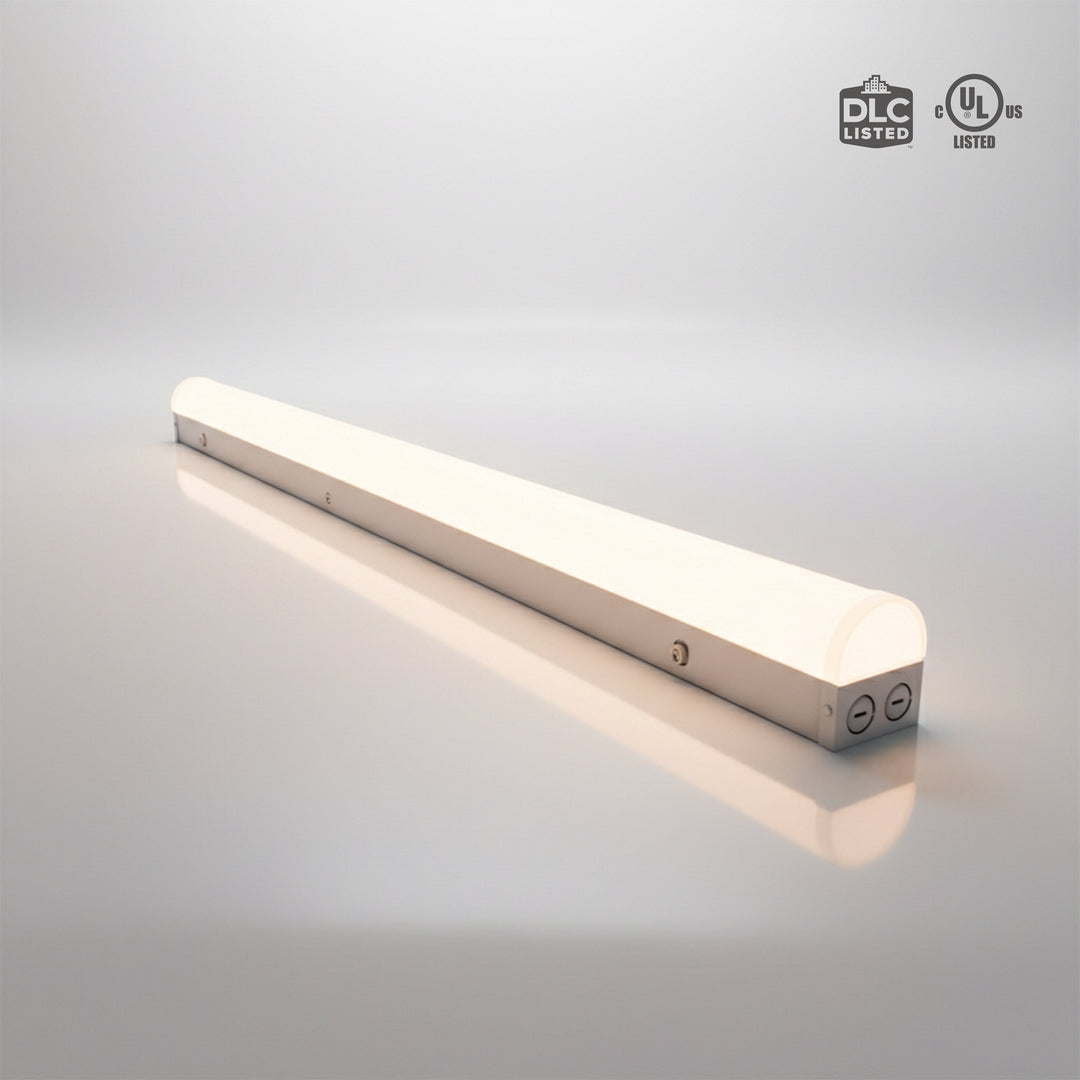

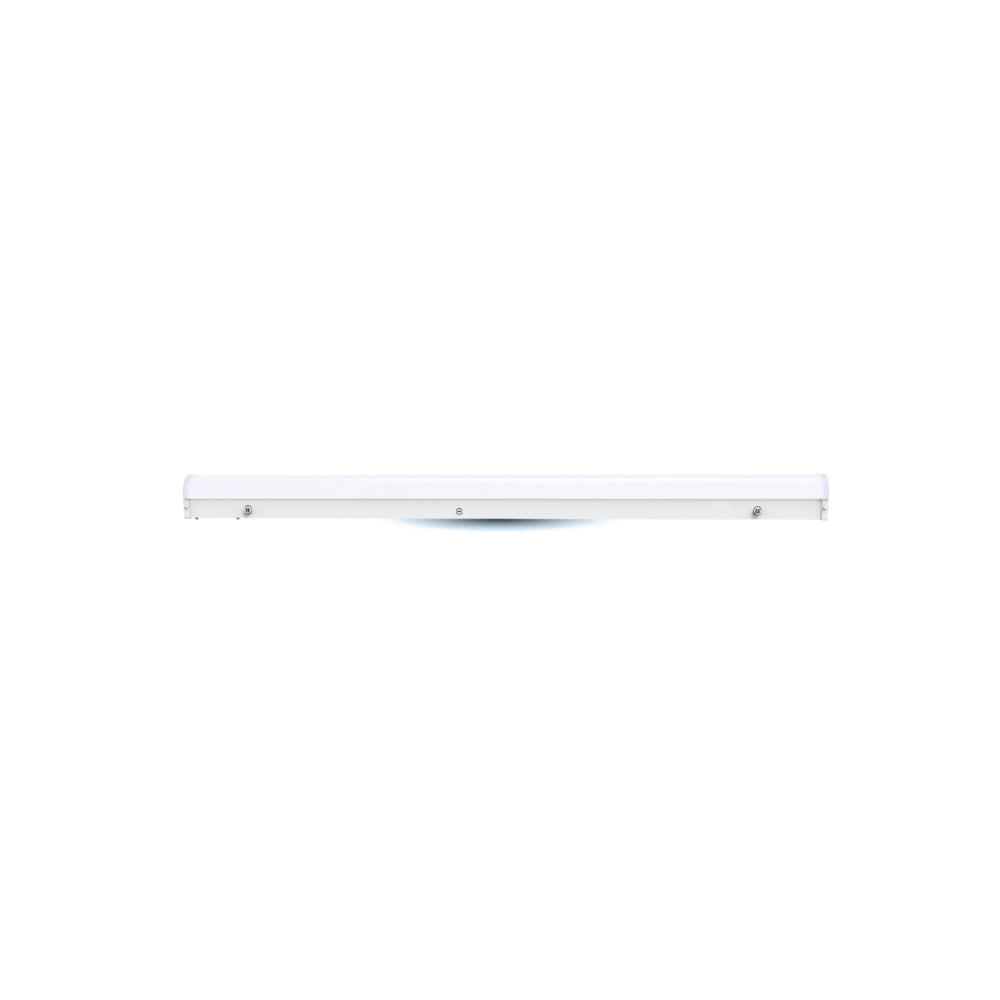

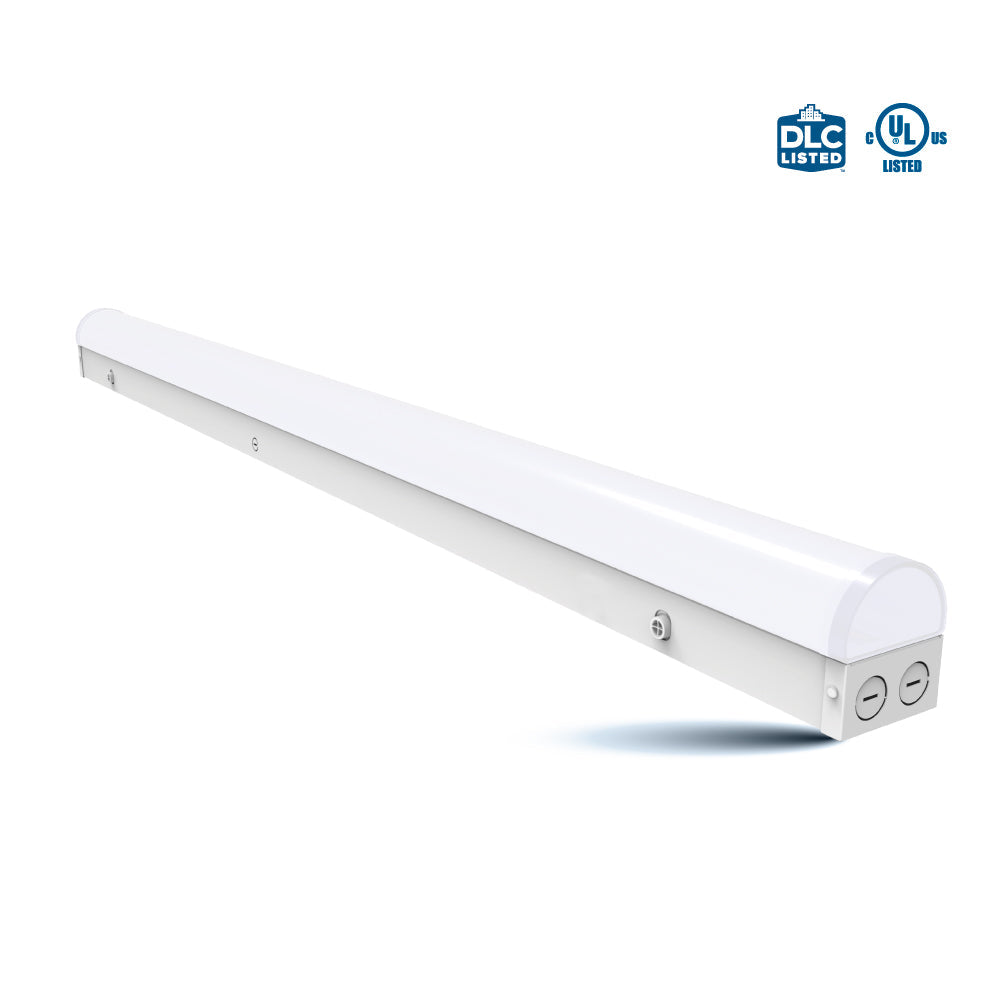

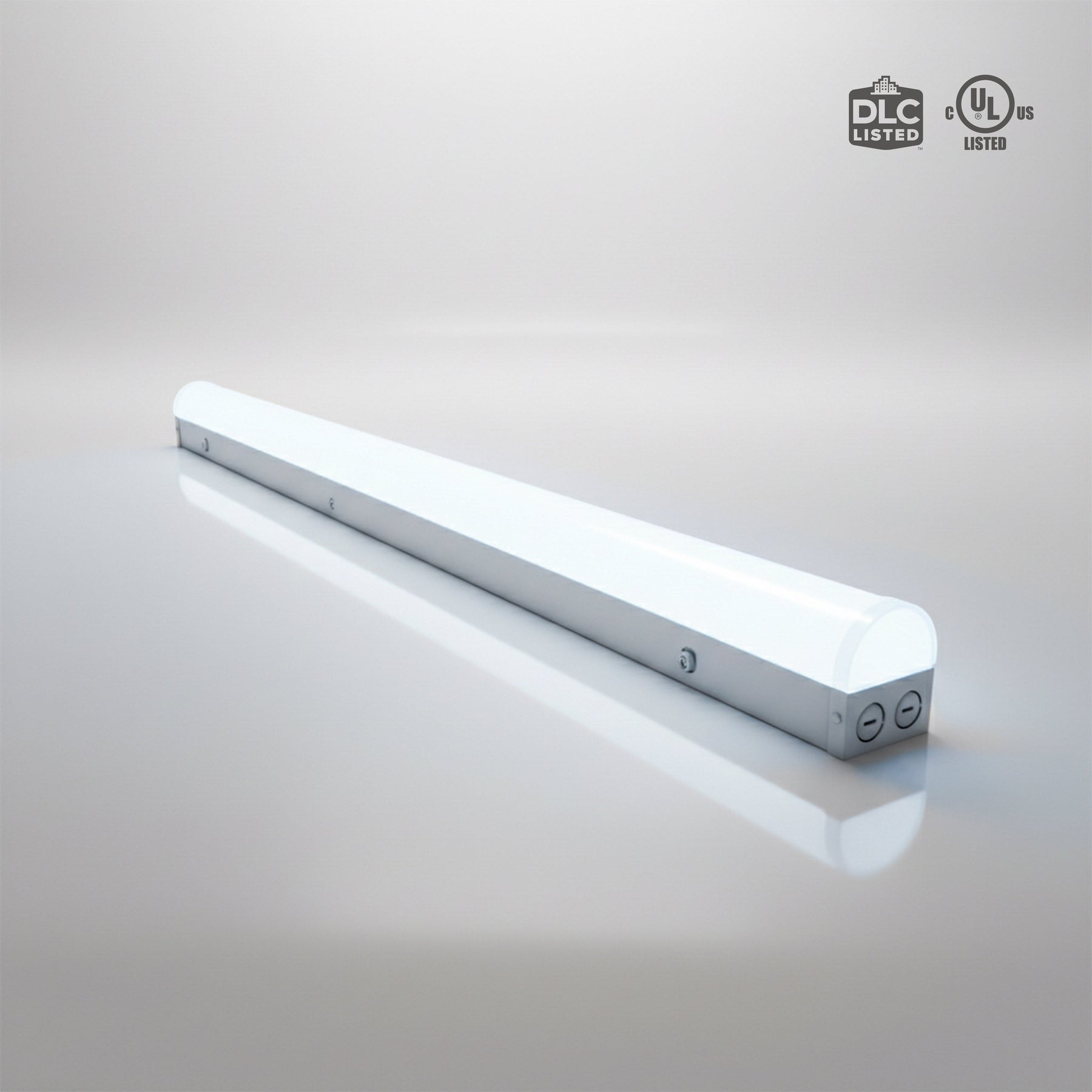

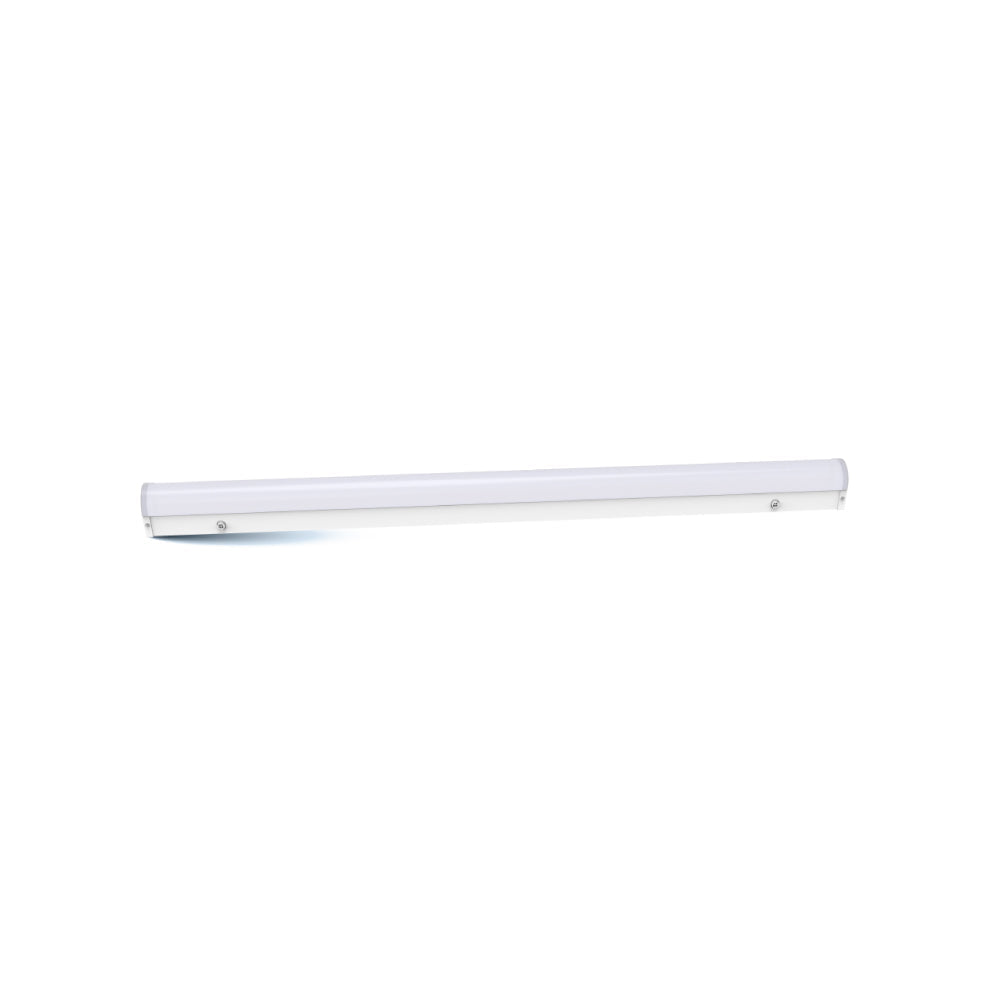

LED Linear Strip Light 3CCT + Wattage Selectable - OL-ST

$58.22

Shipping calculated at checkout.

Free shipping on orders over $199

Questions? Call 604-233-1998

Specifications

Model: OL-ST2-3CCT+W

Description: 2ft Linear Strip LED Luminaire - 3CCT (3500K,4000K and 5000K) + 3 Wattage selectable (15w,20w and 25w), 130lumen/watt or 3250 max lumens, 120-347V, Dimmable

Wattage: 15W/20W/25W

Voltage: AC 120-347V

Lumens: 1950 lmn / 2600 lmn / 3250 lmn

Beam Angle: 120°

CRI: 80

Dimmable: Yes (only 0-10V dimming available)

Lifetime: 50,000 hours

Rating: Dry And Damp Location

Grade of Protection: IP20

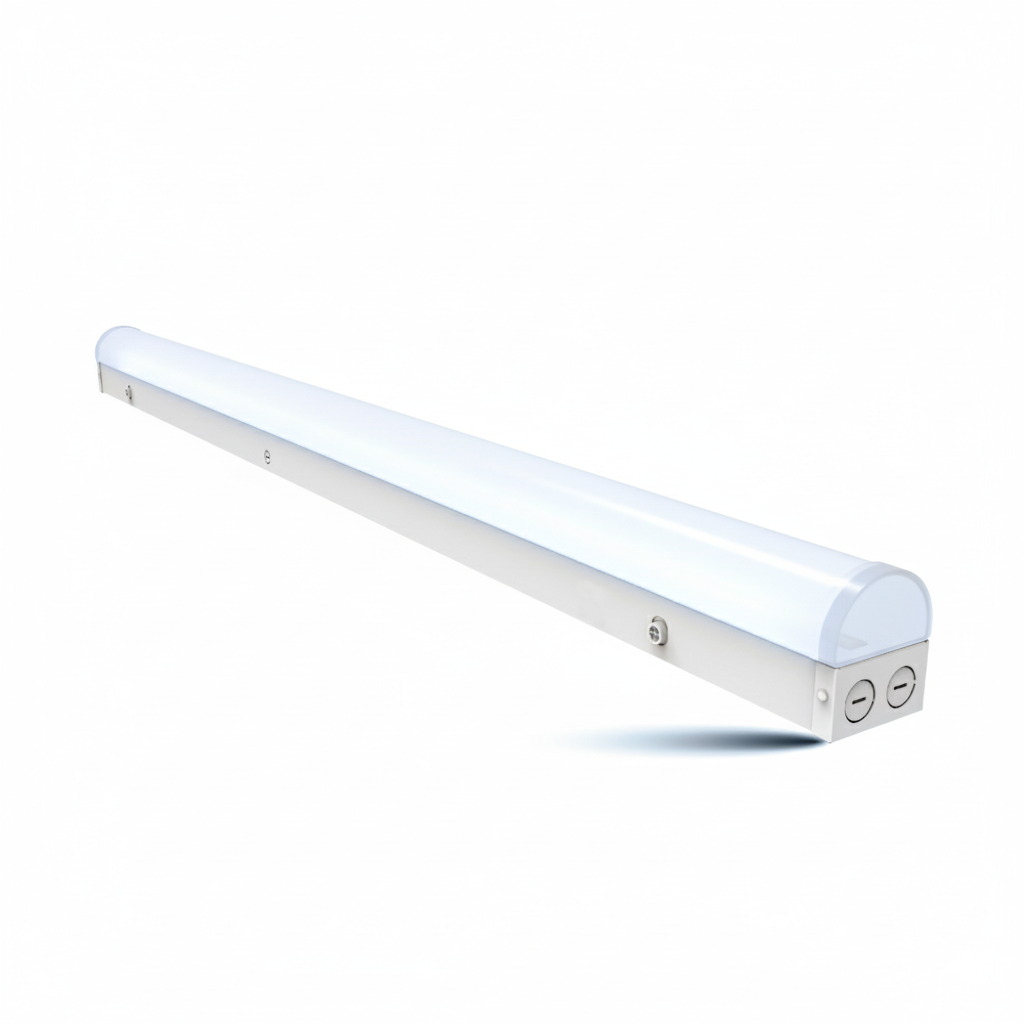

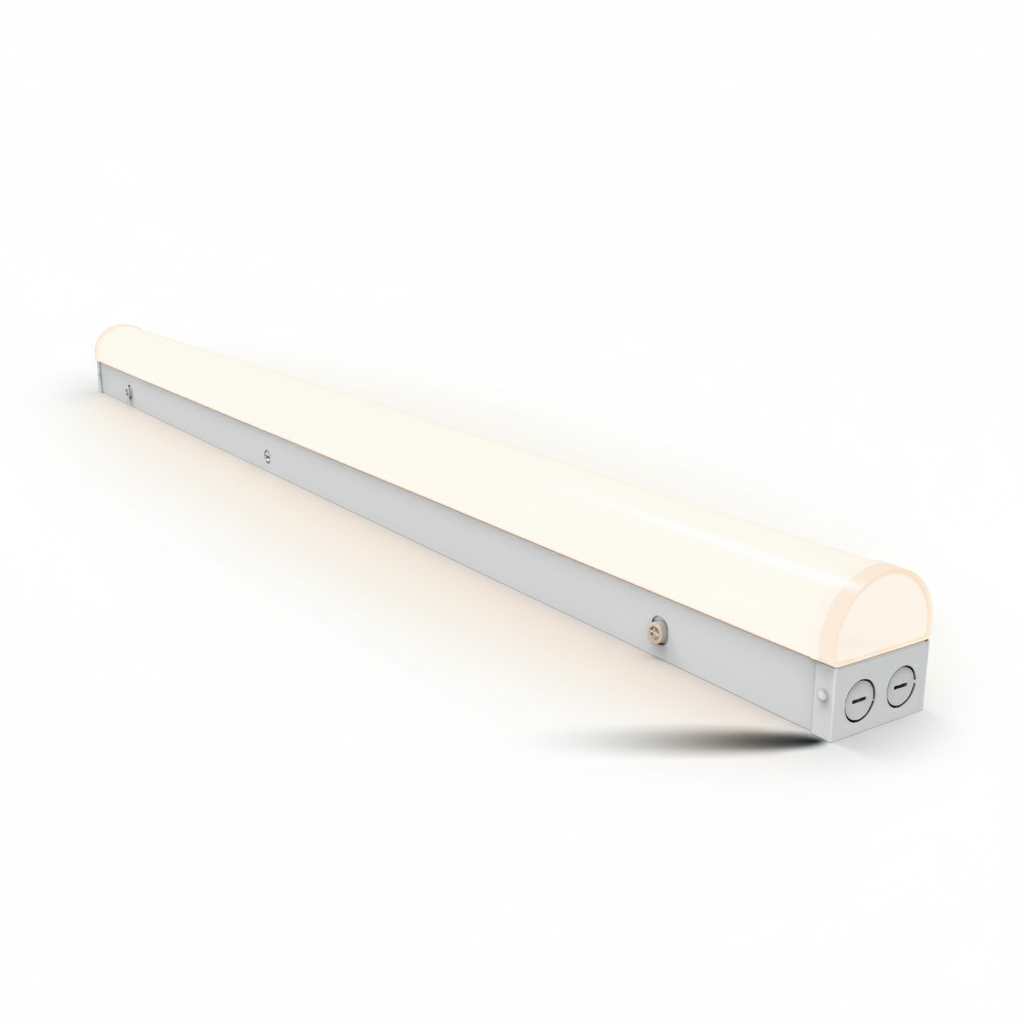

Colour Temperature: 3CCT [3500K/4000K/5000K]

Diffuser/Lens Material: PC

Daisy Connection: 120V: 20 units 277V: 38 units 347V: 48 units

THD (Total Harmonic Distortion): <20%

Operating Temperature: -20°C ~ +40°C

Warranty: 5 Years

Model: OL-ST4-3CCT+W

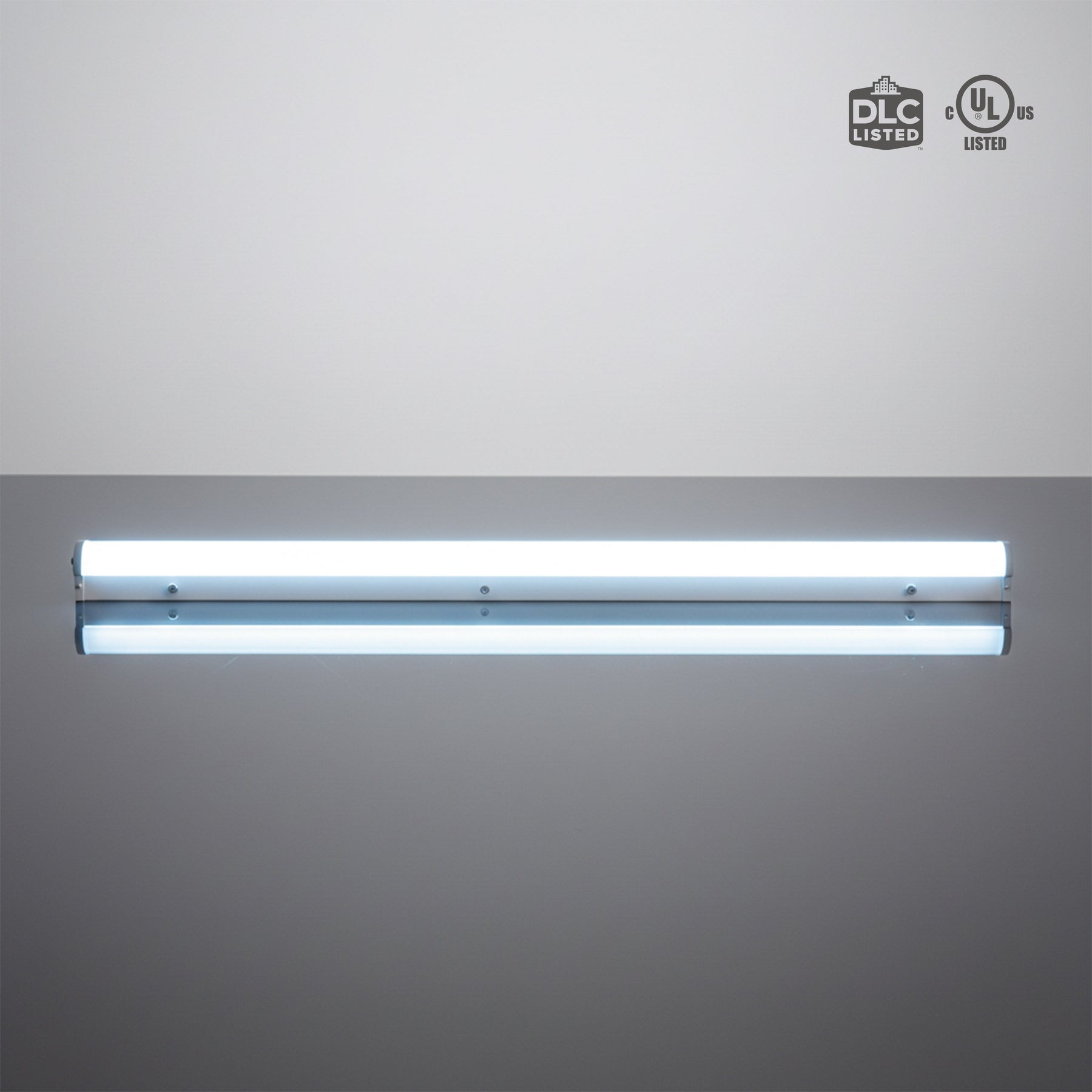

Description: 4ft Linear Strip LED Luminaire - 3CCT (3500K,4000K and 5000K) + 3 Wattage selectable (30w,40w and 50w), 130lumen/watt or 6500 max lumens, 120-347V, Dimmable

Wattage: 30W/40W/50W

Voltage: AC 120-347V

Lumens: 3900 lmn / 5200 lmn / 6500 lmn

Beam Angle: 120°

CRI: 80

Dimmable: Yes (only 0-10V dimming available)

Lifetime: 50,000 hours

Rating: Dry And Damp Location

Grade of Protection: IP20

Colour Temperature: 3CCT [3500K/4000K/5000K]

Diffuser/Lens Material: PC

Daisy Connection: 120V: 10 units 277V: 19 units 347V: 24 units

THD (Total Harmonic Distortion): <20%

Operating Temperature: -20°C ~ +40°C

Warranty: 5 Years

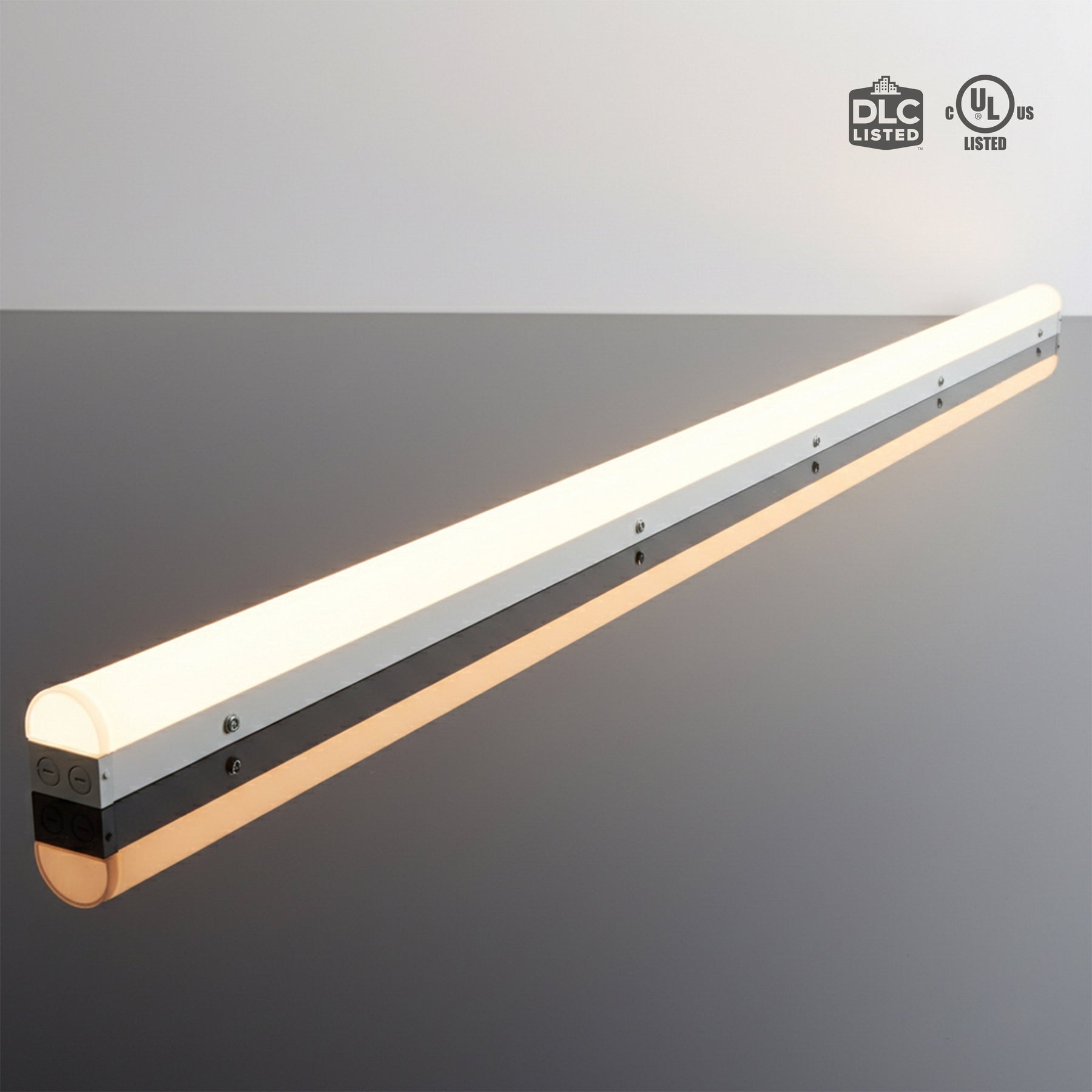

Model: OL-ST8-3CCT+W

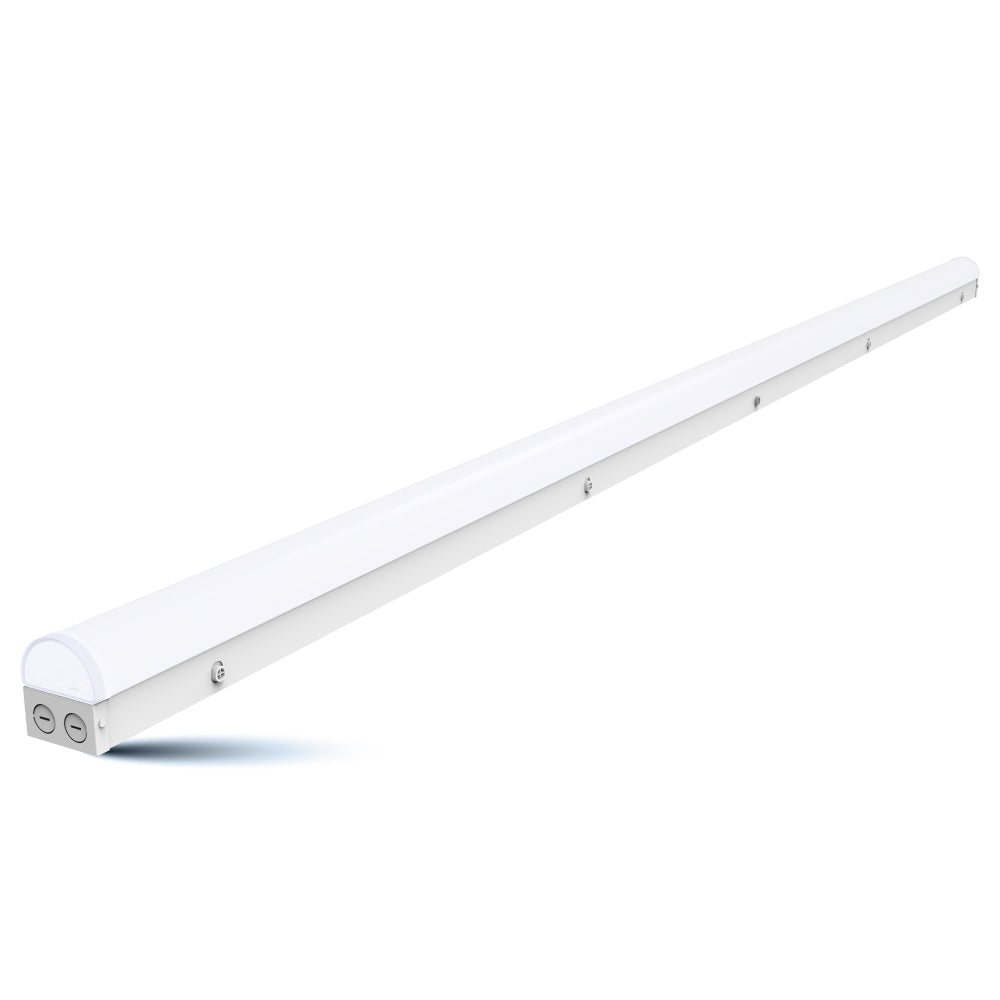

Description: 8ft Linear Strip LED Luminaire - 3CCT (3500K,4000K and 5000K) + 3 Wattage selectable (60w, 70w & 80w), 130lumen/watt or 10400 max lumens, 120-347V, Dimmable

Wattage: 60W/70W/80W

Voltage: AC 120-347V

Lumens: 7800 lmn / 9100 lmn / 10400 lmn

Beam Angle: 120°

CRI: 80

Dimmable: Yes (only 0-10V dimming available)

Lifetime: 50,000 hours

Rating: Dry And Damp Location

Grade of Protection: IP20

Colour Temperature: 3CCT [3500K/4000K/5000K]

Diffuser/Lens Material: PC

Daisy Connection: 120V: 6 units 277V: 12 units 347V: 15 units

THD (Total Harmonic Distortion): <20%

Operating Temperature: -20°C ~ +40°C

Warranty: 5 Years

Model: OL-ST2-3CCT+WMS

Description: 2ft Linear Strip LED Luminaire - 3CCT (3500K,4000K and 5000K) + 3 Wattage selectable (15w,20w and 25w), 130lumen/watt or 3250 max lumens, 120-347V, 0-10v Dimmable, built-in motion sensor with settings

Wattage: 15W/20W/25W

Voltage: AC 120-347V

Lumens: 1950 lmn / 2600 lmn / 3250 lmn

Beam Angle: 120°

CRI: 80

Dimmable: Yes (only 0-10V dimming available)

Lifetime: 50,000 hours

Rating: Dry And Damp Location

Grade of Protection: IP20

Colour Temperature: 3CCT [3500K/4000K/5000K]

Diffuser/Lens Material: PC

Daisy Connection: 120V: 20 units 277V: 38 units 347V: 48 units

THD (Total Harmonic Distortion): <20%

Operating Temperature: -20°C ~ +40°C

Warranty: 5 Years

Model: OL-ST4-3CCT+WMS

Description: 4ft Linear Strip LED Luminaire - 3CCT (3500K,4000K and 5000K) + 3 Wattage selectable (50w,60w and 70w), 130lumen/watt or 6500 max lumens, 120-347V, 0-10v Dimmable, built-in motion sensor with settings

Wattage: 30W/40W/50W

Voltage: AC 120-347V

Lumens: 3900 lmn / 5200 lmn / 6500 lmn

Beam Angle: 120°

CRI: 80

Dimmable: Yes (only 0-10V dimming available)

Lifetime: 50,000 hours

Rating: Dry And Damp Location

Grade of Protection: IP20

Colour Temperature: 3CCT [3500K/4000K/5000K]

Diffuser/Lens Material: PC

Daisy Connection: 120V: 10 units 277V: 19 units 347V: 24 units

THD (Total Harmonic Distortion): <20%

Operating Temperature: -20°C ~ +40°C

Warranty: 5 Years

Model: OL-ST8-3CCT+WMS

Description: 8ft Linear Strip LED Luminaire - 3CCT (3500K,4000K and 5000K) + 3 Wattage selectable (60w, 70w & 80w), 130lumen/watt or 10400 max lumens, 120-347V, 0-10v Dimmable, built-in motion sensor with settings

Wattage: 60W/70W/80W

Voltage: AC 120-347V

Lumens: 7800 lmn / 9100 lmn / 10400 lmn

Beam Angle: 120°

CRI: 80

Dimmable: Yes (only 0-10V dimming available)

Lifetime: 50,000 hours

Rating: Dry And Damp Location

Grade of Protection: IP20

Colour Temperature: 3CCT [3500K/4000K/5000K]

Diffuser/Lens Material: PC

Daisy Connection: 120V: 6 units 277V: 12 units 347V: 15 units

THD (Total Harmonic Distortion): <20%

Operating Temperature: -20°C ~ +40°C

Warranty: 5 Years

24" LED Linear Strip Light - Features selectable color temperature (CCT) and adjustable wattage for versatile, energy-efficient lighting in compact spaces.

Daisy Chain Capability: Connect up to 48 units from a single power source at 347V for streamlined installation.
Flexible Dimming & Voltage Range: Supports 0–10V dimming and operates across 120–347V for broad compatibility.
Multiple Mounting Options: Available for both suspended and surface-mounted installations.

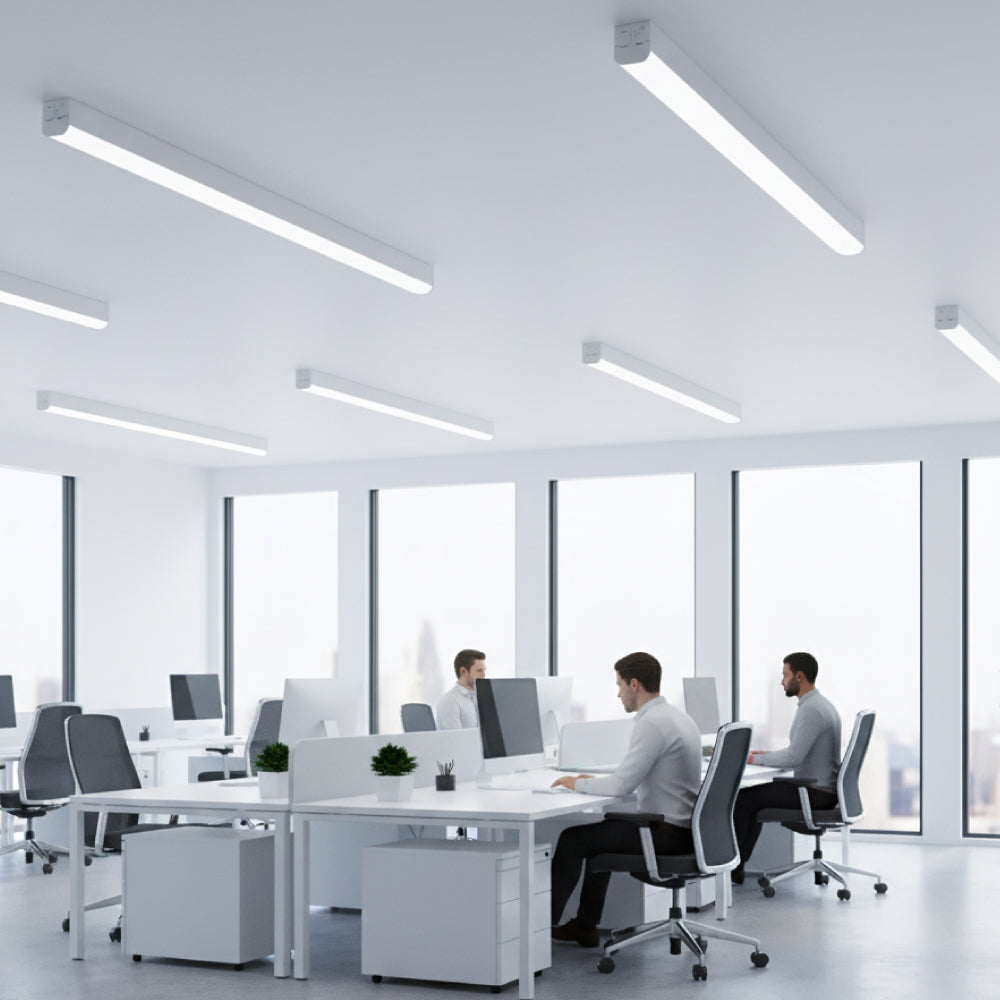

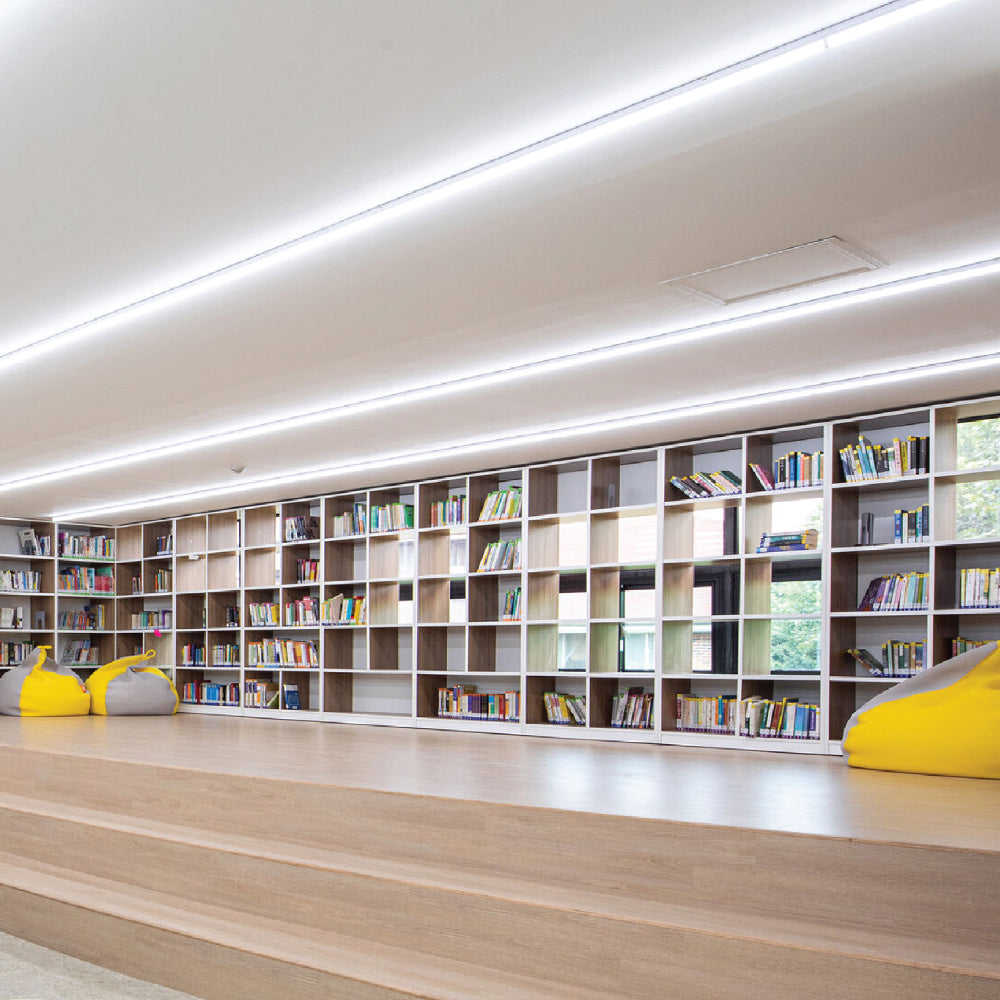

Versatile Applications: Ideal for schools, hospitals, supermarkets, offices, and warehouses.
Motion Sensor Option: For built-in motion sensor functionality, refer to model OL-ST2-3CCT+WMS.

Select an option above to see its full specifications.

Free shipping on orders over $199. See our full shipping & return policy.

Need an electrician or install tips? Read our install guide or call us at 604-233-1998.
