Specifications

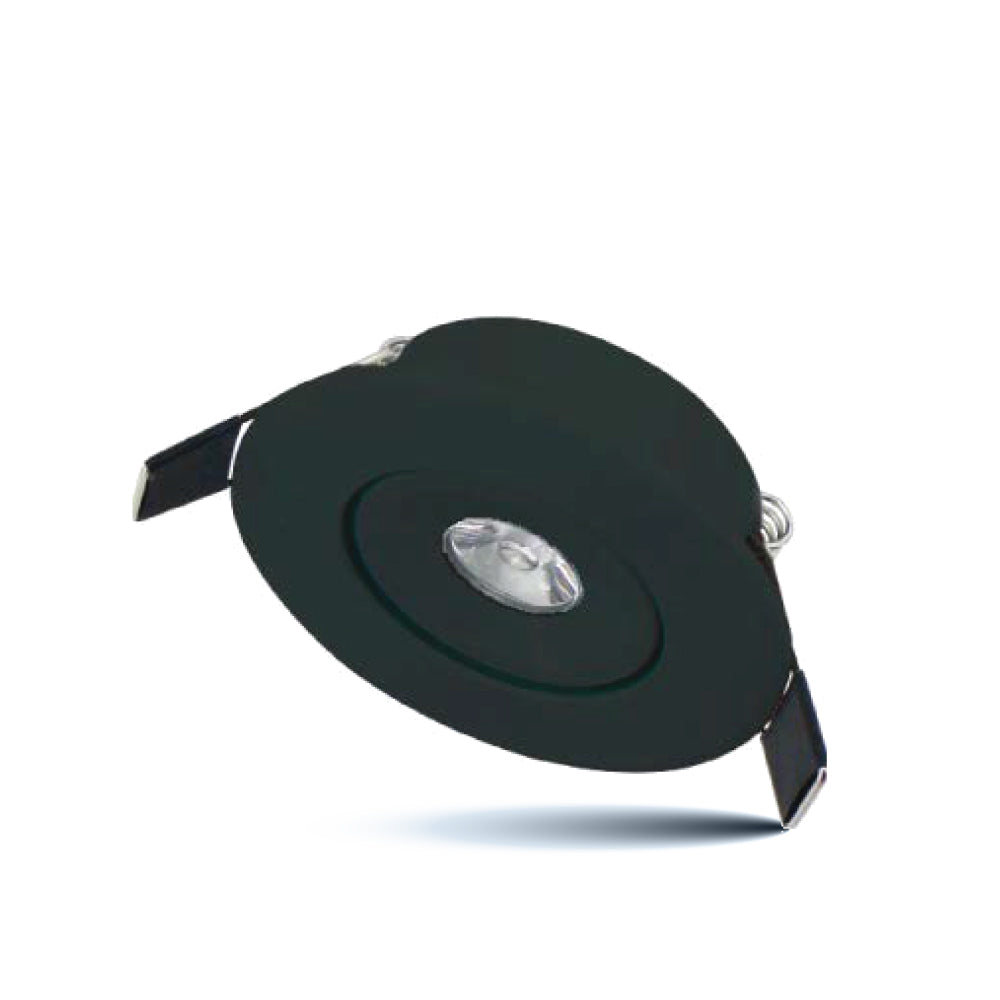

Model: PUK M2G-BK
Description: 2" led Gimbal Puck Light 2W 180lmn, Black trim, SOLD AS 3000K OR 5000K INDIVIDUAL FIXTURES.
Finish: Black
Wattage: 2W
Voltage: 12V DC
Lumens: 160 lmn
Beam Angle: 30°
CRI: 80
Dimmable: Yes (TRIAC dimming)
Lifetime: 50,000 hours
Rating: Non-IC Rated / Indoor use / for Damp location
Grade of Protection: IP54
Application: Under cabinet / Home / Office / Kitchen / Workshop etc.
Cutout: Ø1-49/64" (45mm)
Colour Temperature: 3000K/5000K
Operating Temperature: -20°C ~ +40°C
Warranty: 5 years
Model: PUK M2G-SN
Description: 2" led Gimbal Puck Light 2W 180lmn, Satin Nickel trim, SOLD AS 3000K OR 5000K INDIVIDUAL FIXTURES.
Finish: Satin Nickel
Wattage: 2W
Voltage: 12V DC
Lumens: 160 lmn
Beam Angle: 30°
CRI: 80
Dimmable: Yes (TRIAC dimming)
Lifetime: 50,000 hours
Rating: Non-IC Rated / Indoor use / for Damp location
Grade of Protection: IP54
Application: Under cabinet / Home / Office / Kitchen / Workshop etc.
Cutout: Ø1-49/64" (45mm)
Colour Temperature: 3000K/5000K
Operating Temperature: -20°C ~ +40°C
Warranty: 5 years

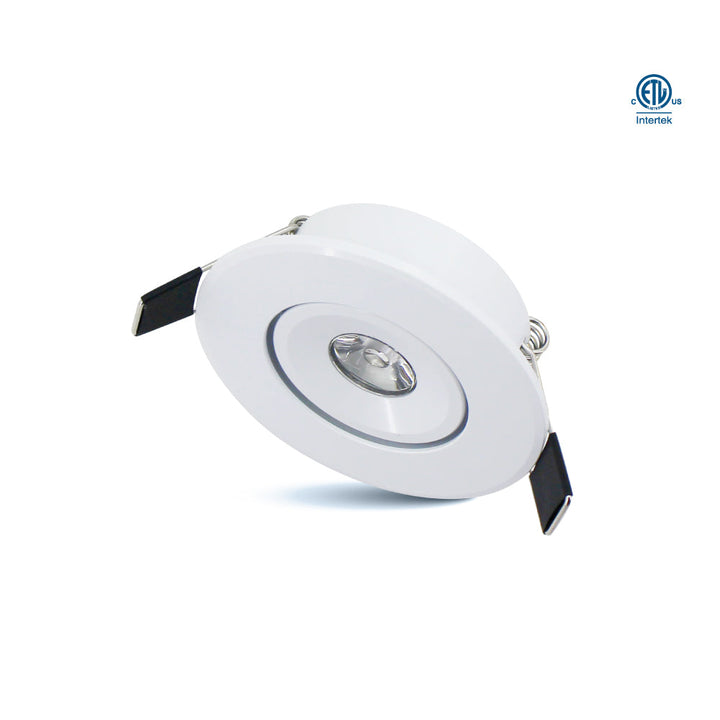

Model: PUK M2G-WH
Description: 2" led Gimbal Puck Light 2W 180lmn, White trim, SOLD AS 3000K OR 5000K INDIVIDUAL FIXTURES.
Finish: White
Wattage: 2W
Voltage: 12V DC
Lumens: 160 lmn
Beam Angle: 30°
CRI: 80
Dimmable: Yes (TRIAC dimming)
Lifetime: 50,000 hours
Rating: Non-IC Rated / Indoor use / for Damp location
Grade of Protection: IP54
Application: Under cabinet / Home / Office / Kitchen / Workshop etc.
Cutout: Ø1-49/64" (45mm)

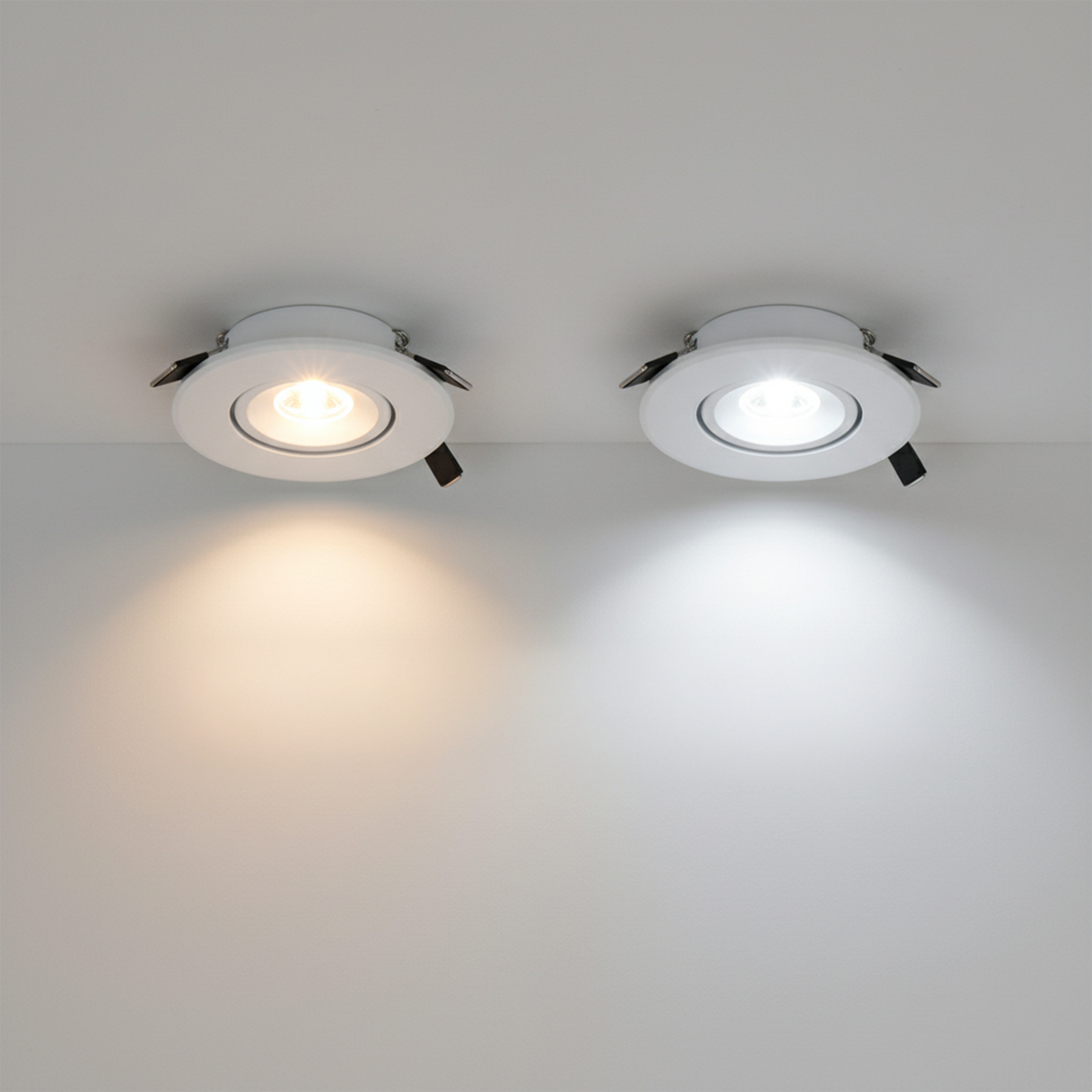

Colour Temperature: 3000K/5000K
Operating Temperature: -20°C ~ +40°C
Warranty: 5 years

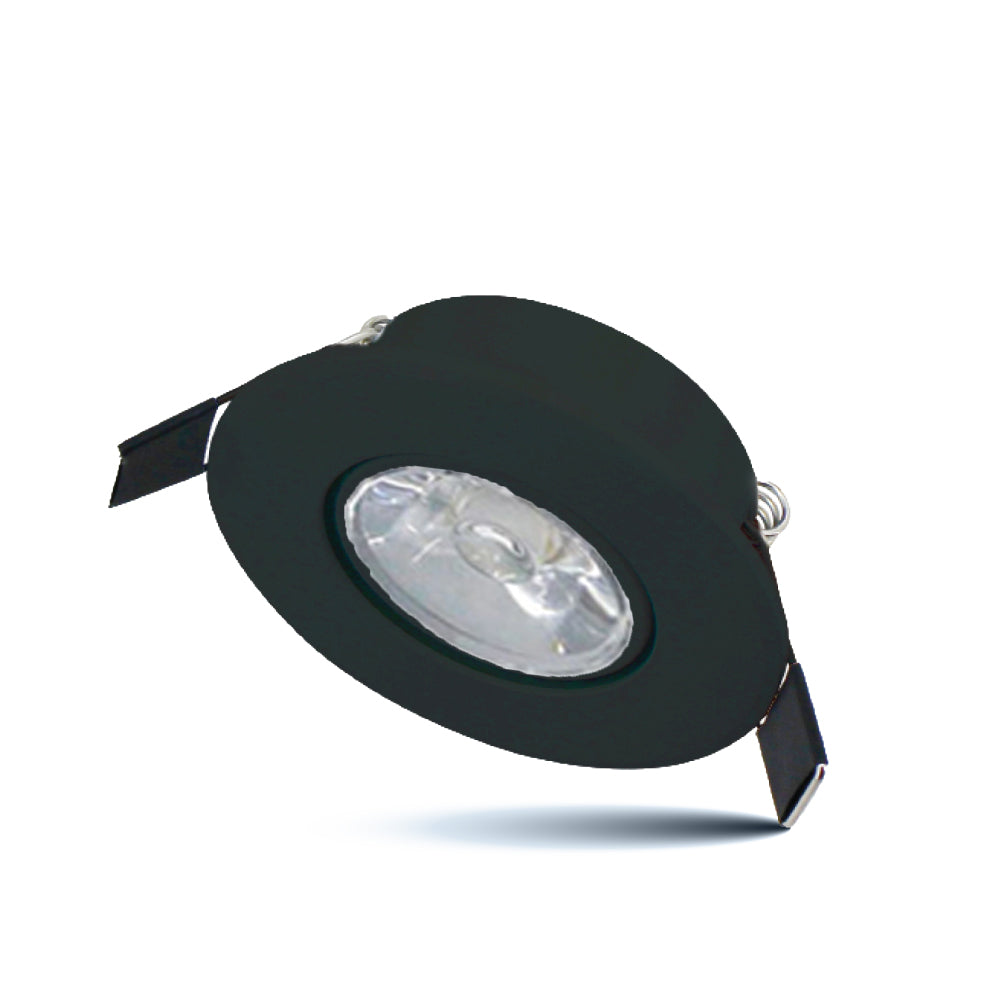

Model: PUK M3G-BK
Description: 3" led Gimbal Puck Light 3W 300lmn, Black, SOLD AS 3000K OR 5000K INDIVIDUAL FIXTURES.
Finish: Black
Wattage: 3W
Voltage: 12V DC
Lumens: 300 lmn
Beam Angle: 21°
CRI: 80
Dimmable: Yes (TRIAC dimming)
Lifetime: 50,000 hours
Rating: Non-IC Rated / Indoor use / for Damp location
Grade of Protection: IP54
Application: Under cabinet / Home / Office / Kitchen / Workshop etc.
Cutout: Ø2-15/16" (58mm)

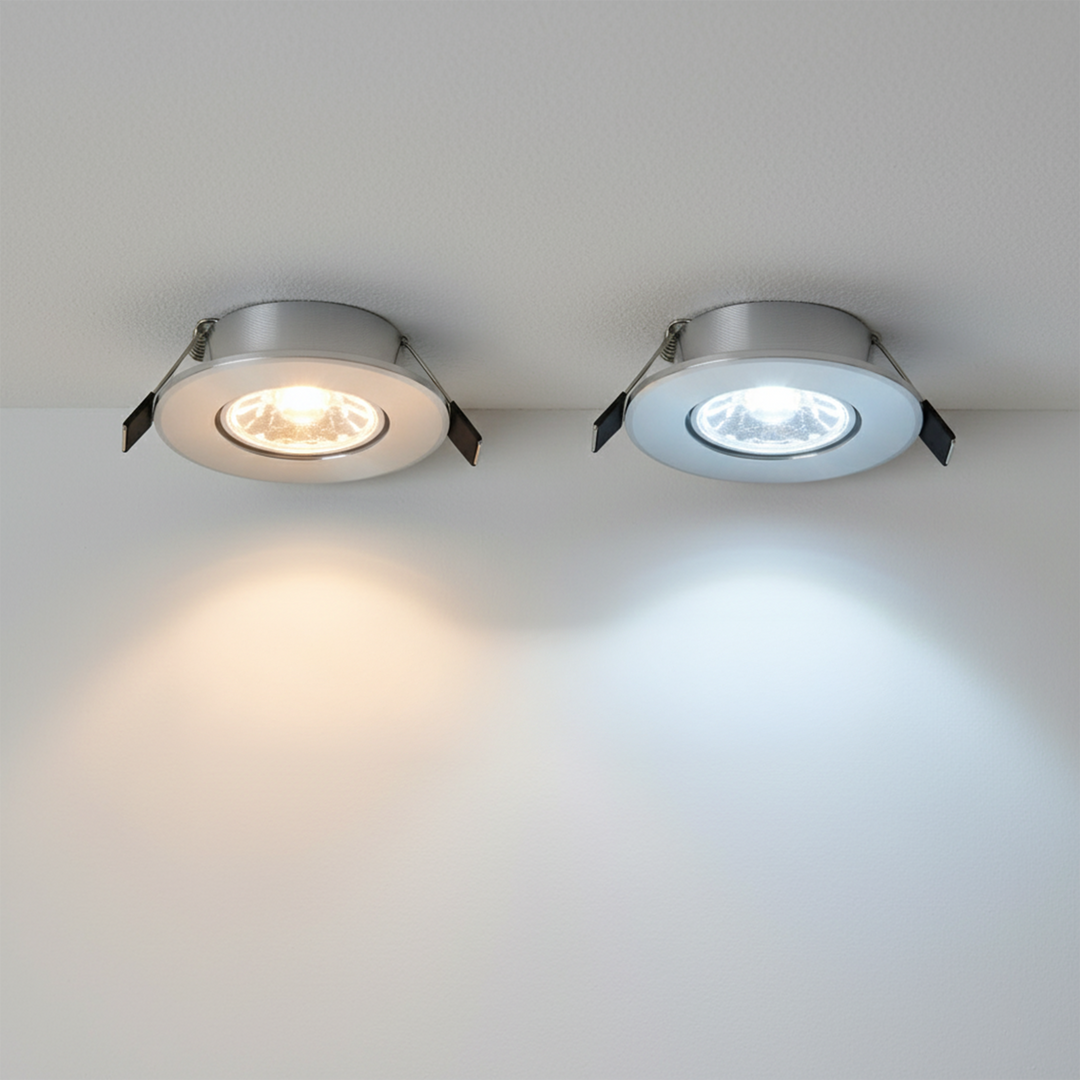

Colour Temperature: 3000K/5000K
Operating Temperature: -20°C ~ +40°C
Warranty: 5 years

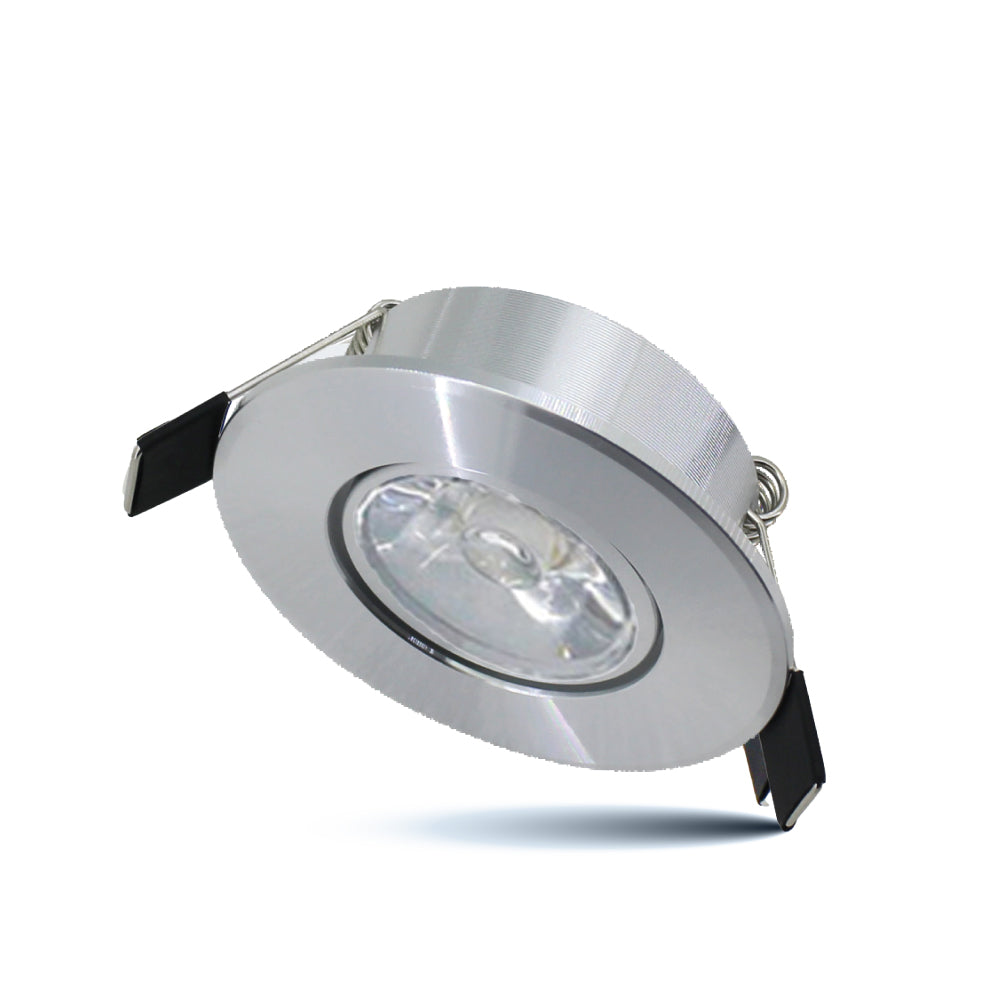

Model: PUK M3G-SN
Description: 3" led Gimbal Puck Light 3W 300lmn, Satin Nickel, SOLD AS 3000K OR 5000K INDIVIDUAL FIXTURES.
Finish: Satin Nickel
Wattage: 3W
Voltage: 12V DC
Lumens: 300 lmn
Beam Angle: 21°
CRI: 80
Dimmable: Yes (TRIAC dimming)
Lifetime: 50,000 hours
Rating: Non-IC Rated / Indoor use / for Damp location
Grade of Protection: IP54
Application: Under cabinet / Home / Office / Kitchen / Workshop etc.
Cutout: Ø2-15/16" (58mm)
Colour Temperature: 3000K/5000K
Operating Temperature: -20°C ~ +40°C
Warranty: 5 years

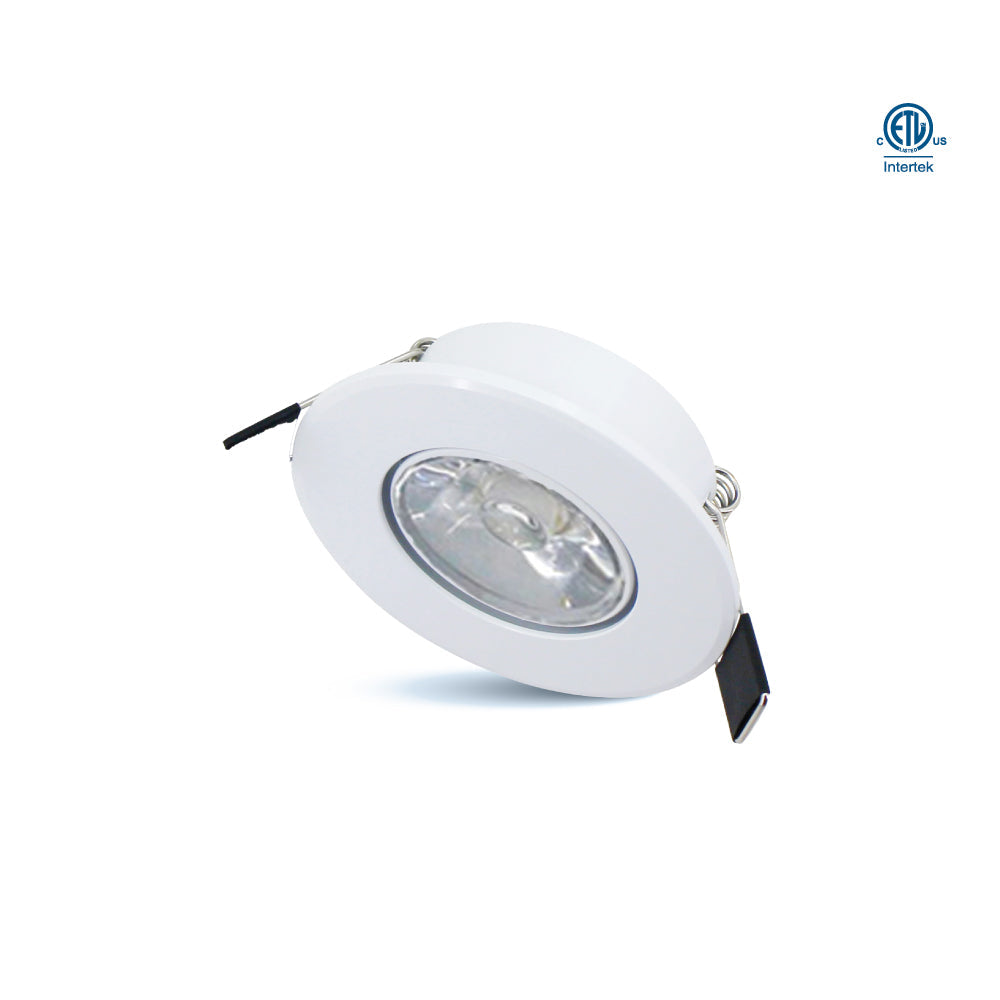

Model: PUK M3G-WH
Description: 3" led Gimbal Puck Light 3W 300lmn, White, SOLD AS 3000K OR 5000K INDIVIDUAL FIXTURES.
Finish: White
Wattage: 3W
Voltage: 12V DC
Lumens: 300 lmn
Beam Angle: 21°
CRI: 80
Dimmable: Yes (TRIAC dimming)
Lifetime: 50,000 hours
Rating: Non-IC Rated / Indoor use / for Damp location
Grade of Protection: IP54
Application: Under cabinet / Home / Office / Kitchen / Workshop etc.
Cutout: Ø2-15/16" (58mm)
Colour Temperature: 3000K/5000K
Operating Temperature: -20°C ~ +40°C
Warranty: 5 years

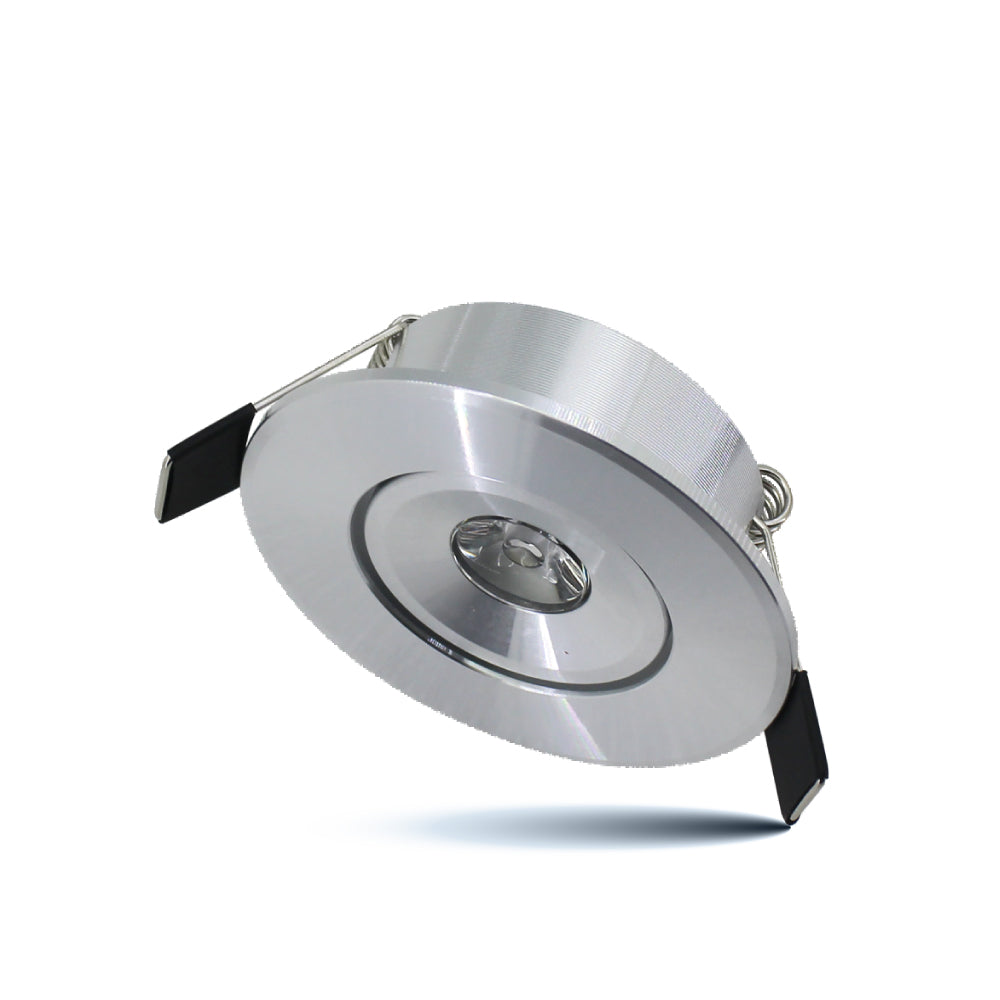

Mini LED gimbal puck lights designed for indoor use only, offering adjustable directional lighting in a compact form.
Select an option above to see its full specifications.
Downloads: PUK M2G Spec Sheet | PUK M2G Instruction Manual | PUK M3G Spec Sheet | PUK M3G Instruction Manual
