Name: Surface Mount Back-Lit LED Panel 5CCT + Wattage Selectable - SM
Brand: Ortech
SKU: SM-1x4-5CCT+W
Price: 109.1 CAD
Availability: InStock

Surface Mount Back-Lit LED Panel 5CCT + Wattage Selectable - SM

$109.10

Shipping calculated at checkout.

Size

1x4 ft

2x2 ft

2x4 ft

Free shipping on orders over $199

Questions? Call 604-233-1998

Specifications

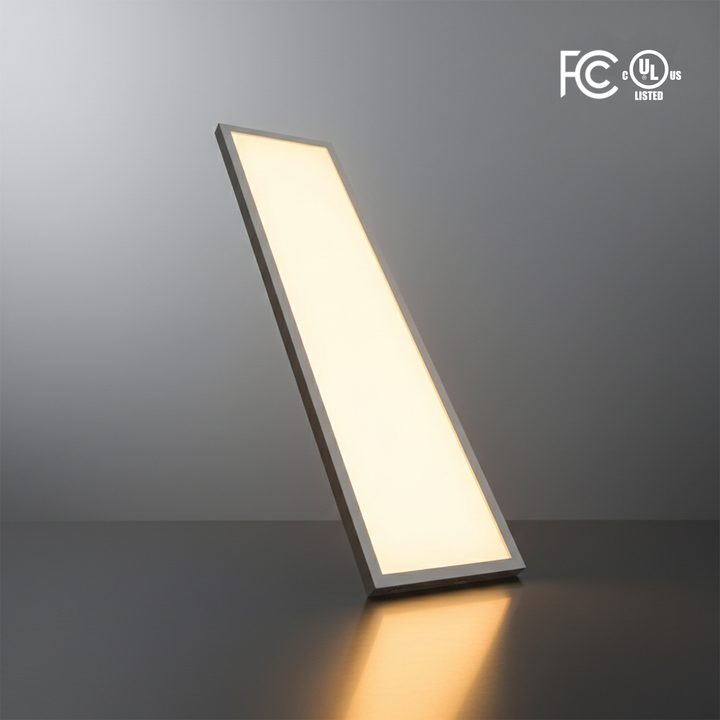

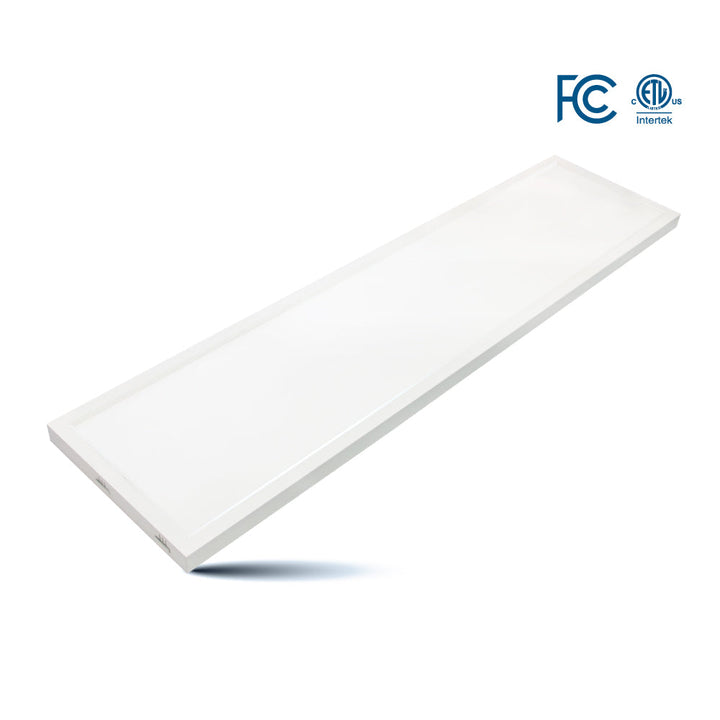

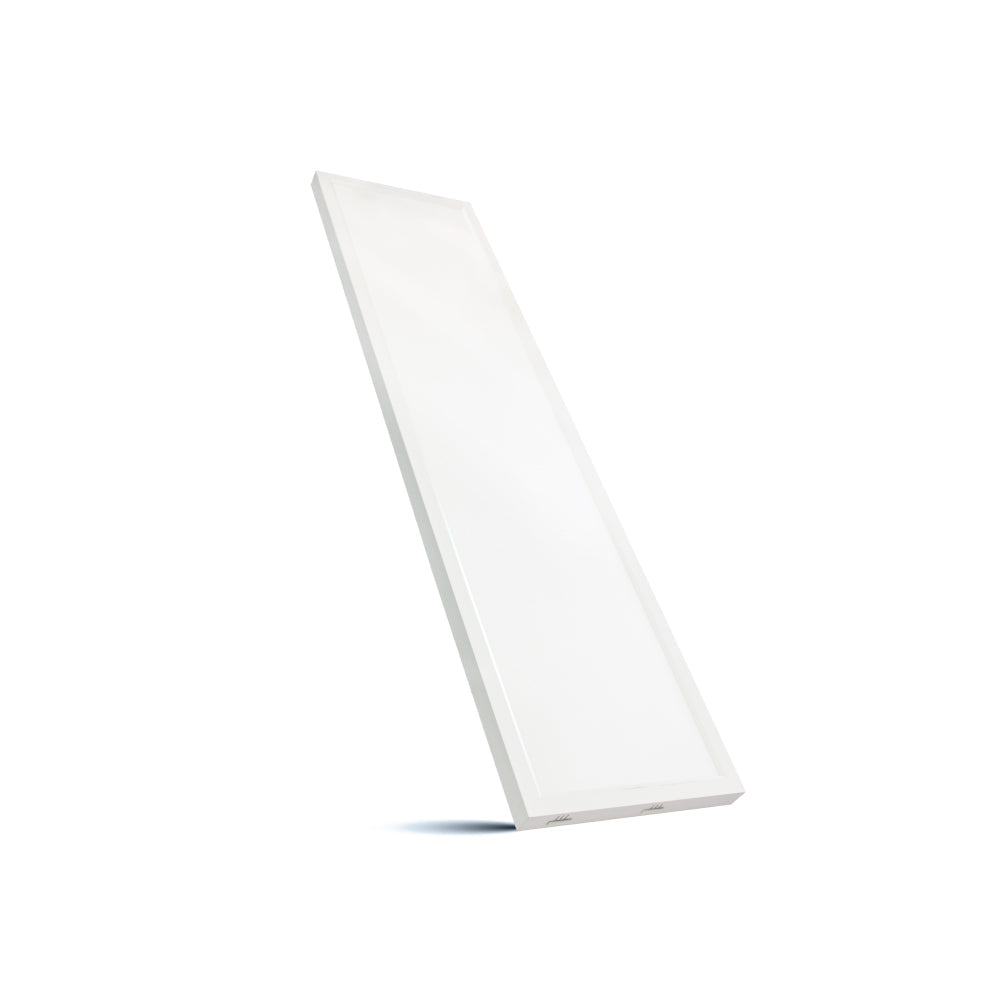

Model: SM-1x4-5CCT+W

Description: 1x4 FT. commercial-grade back-lit LED panel with surface mount design offers selectable color temperature and wattage for versatile indoor lighting. Ideal for offices, shops, and utility spaces.

Wattage: 20W/25W/30W/35W/40W

Voltage: 120-347V AC

Lumens: 115 lmn/W

Beam Angle: 120°

CRI: 80Ra+

Power Factor: >0.9

Dimmable: Yes (only 0-10V dimming available)

Lifetime: 50,000 hours

Rating: Non-IC Rated / Damp location

Grade of Protection: IP20

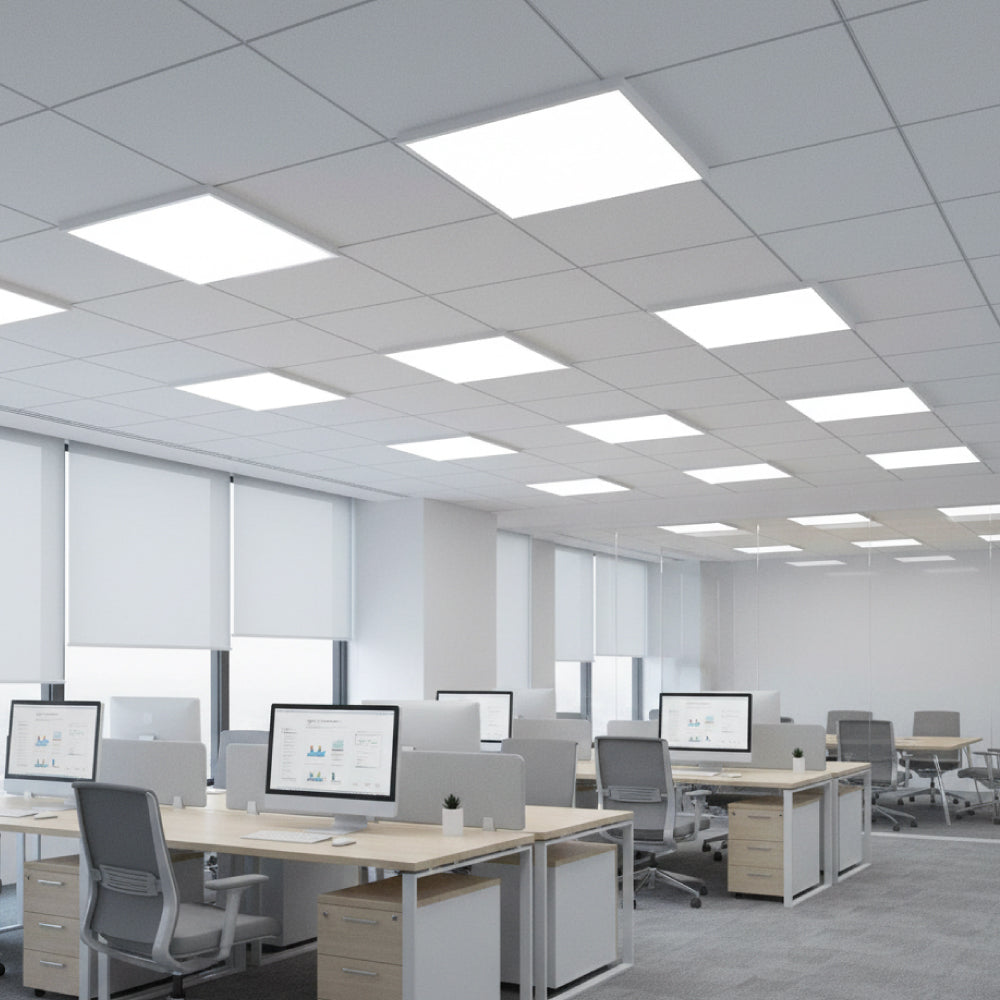

Application: Office / Factory / Supermarket, etc.

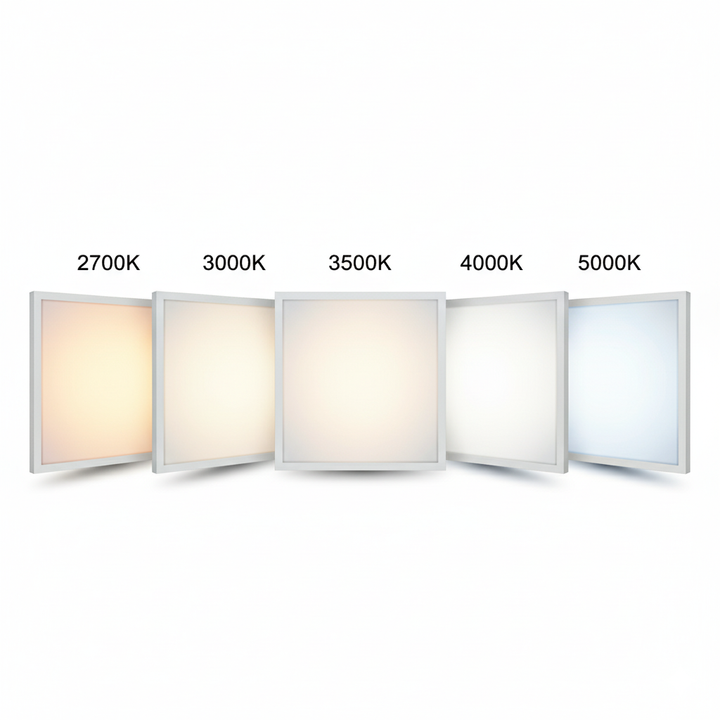

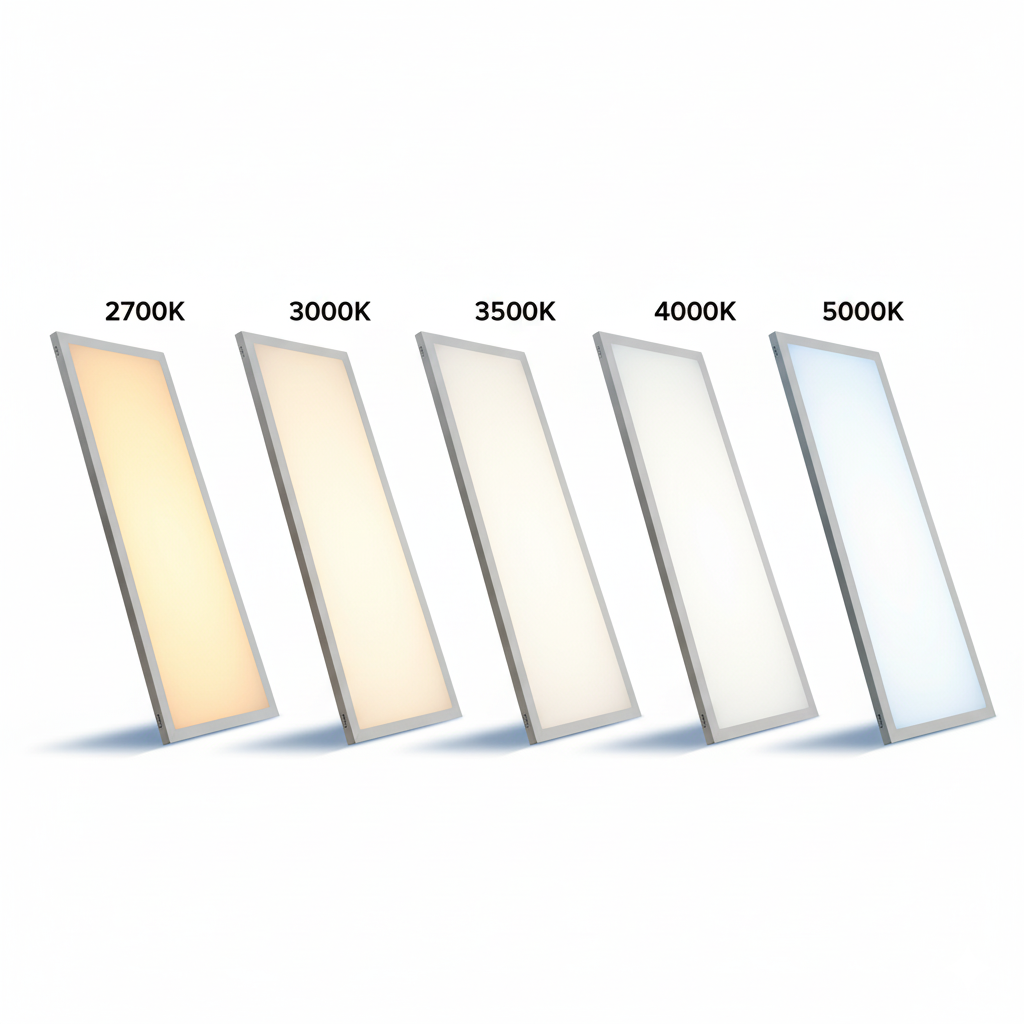

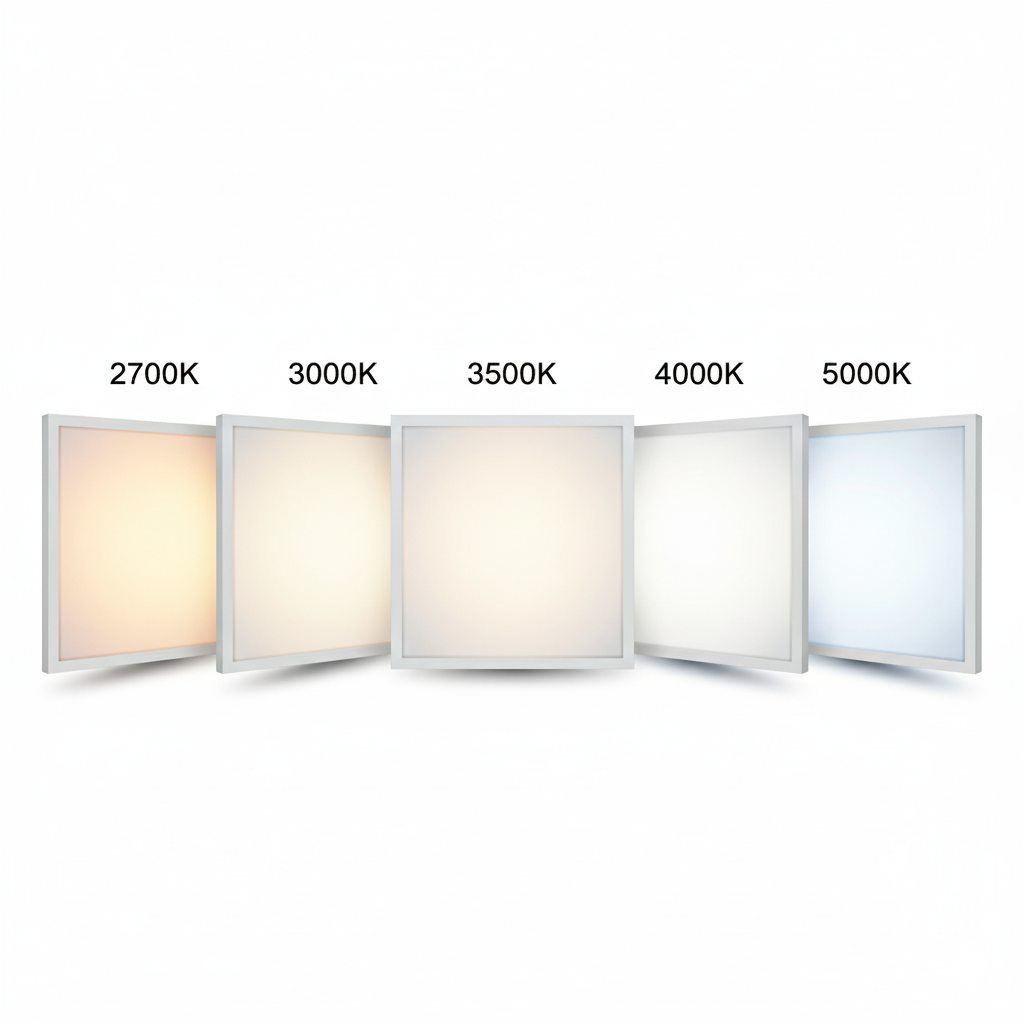

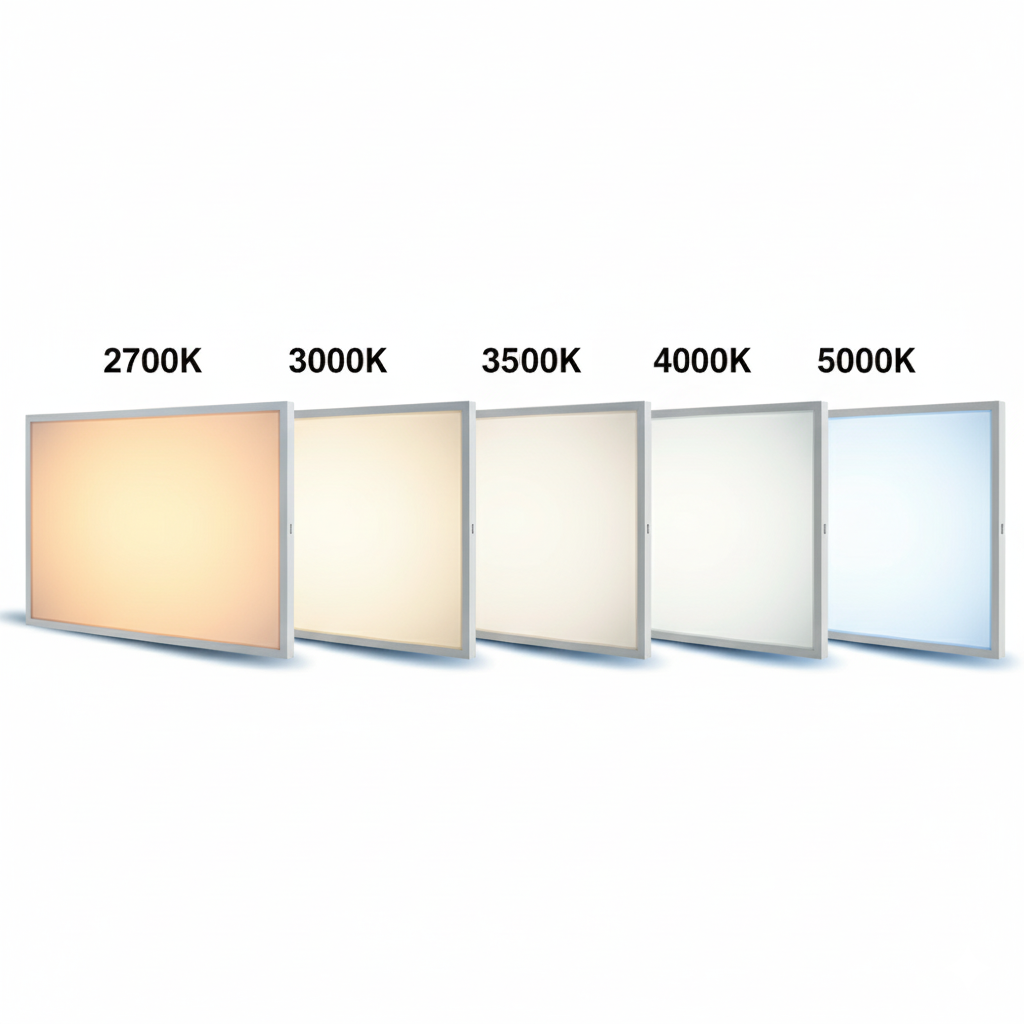

Colour Temperature: 5CCT [3000K/3500K/4000K/5000K/6000K]

Diffuser/Lens Material: PC

Frequency Range: 60Hz

Working Current: 0.367A

Efficiency: >86%

THD (Total Harmonic Distortion): <20%

Operating Temperature: -20°C ~ 45°C

Warranty: 5 Years

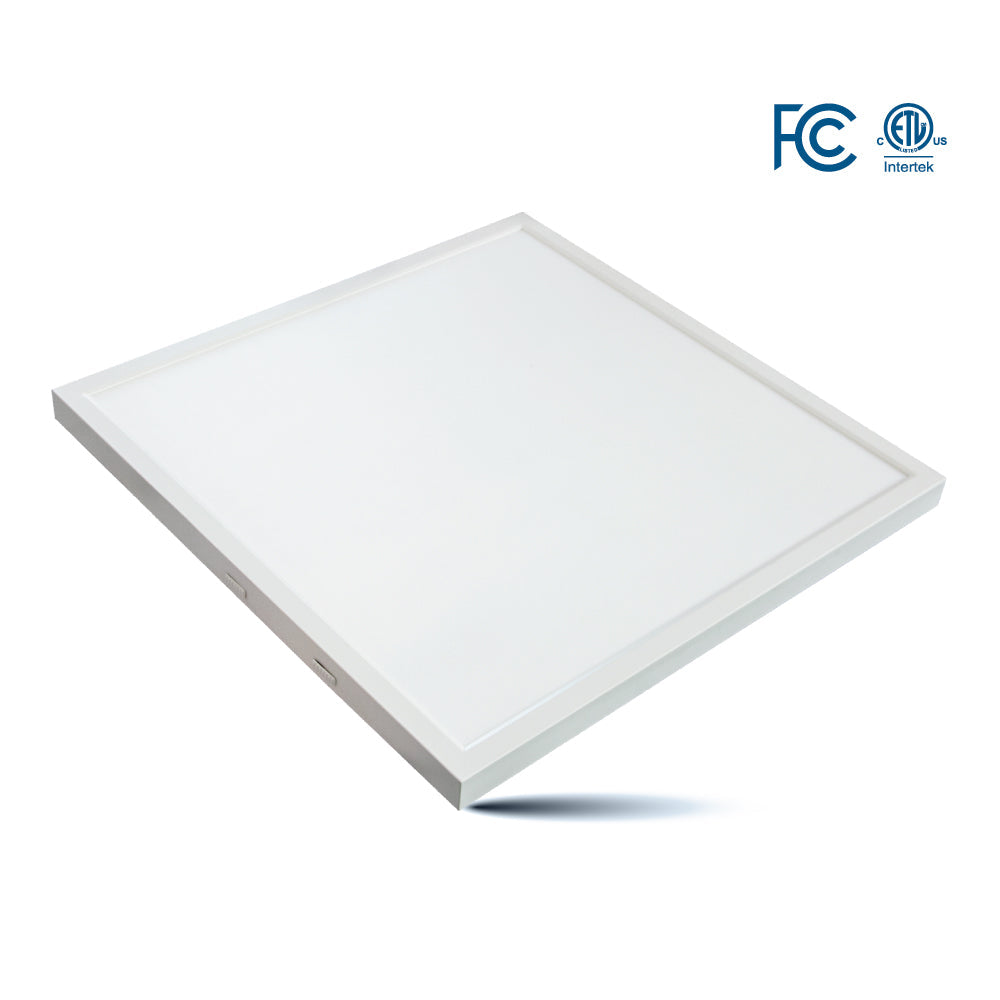

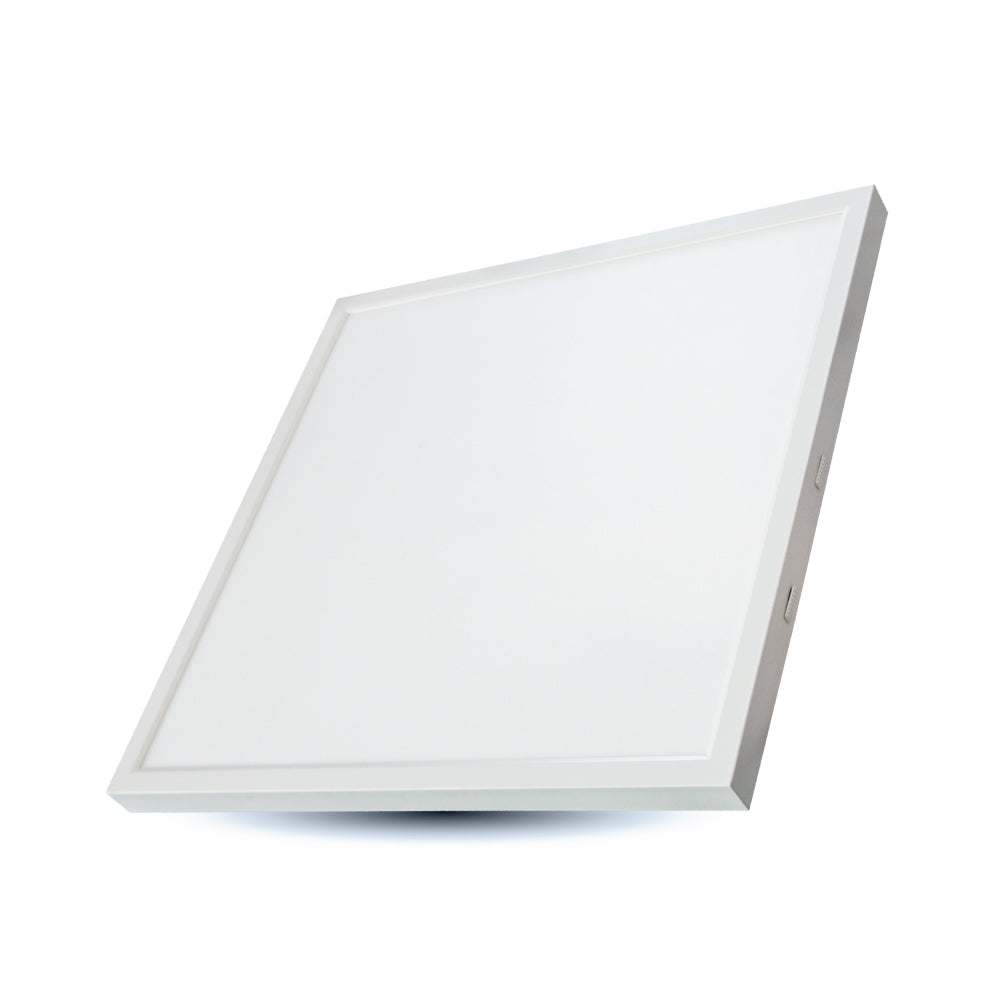

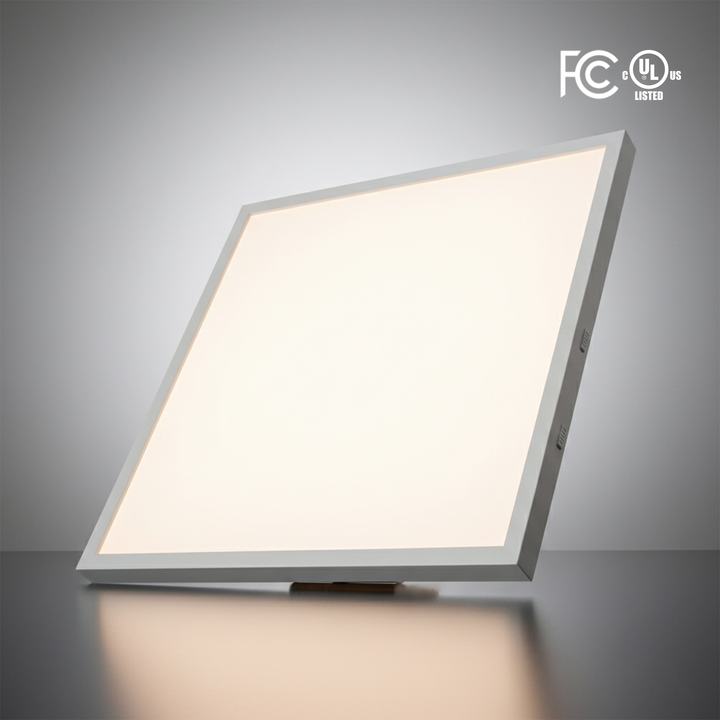

Model: SM-2x2-5CCT+W

Description: 2x2 FT. commercial-grade back-lit LED panel with surface mount design offers selectable color temperature and wattage for versatile indoor lighting. Ideal for offices, shops, and utility spaces.

Wattage: 20W/25W/30W/35W/40W

Voltage: 120-347V AC

Lumens: 115 lmn/W

Beam Angle: 120°

CRI: 80Ra+

Power Factor: >0.9

Dimmable: Yes (only 0-10V dimming available)

Lifetime: 50,000 hours

Rating: Non-IC Rated / Damp location

Grade of Protection: IP20

Application: Office / Factory / Supermarket, etc.

Colour Temperature: 5CCT [3000K/3500K/4000K/5000K/6000K]

Diffuser/Lens Material: PC

Frequency Range: 60Hz

Working Current: 0.458A

Efficiency: >86%

THD (Total Harmonic Distortion): <20%

Operating Temperature: -20°C ~ 45°C

Warranty: 5 Years

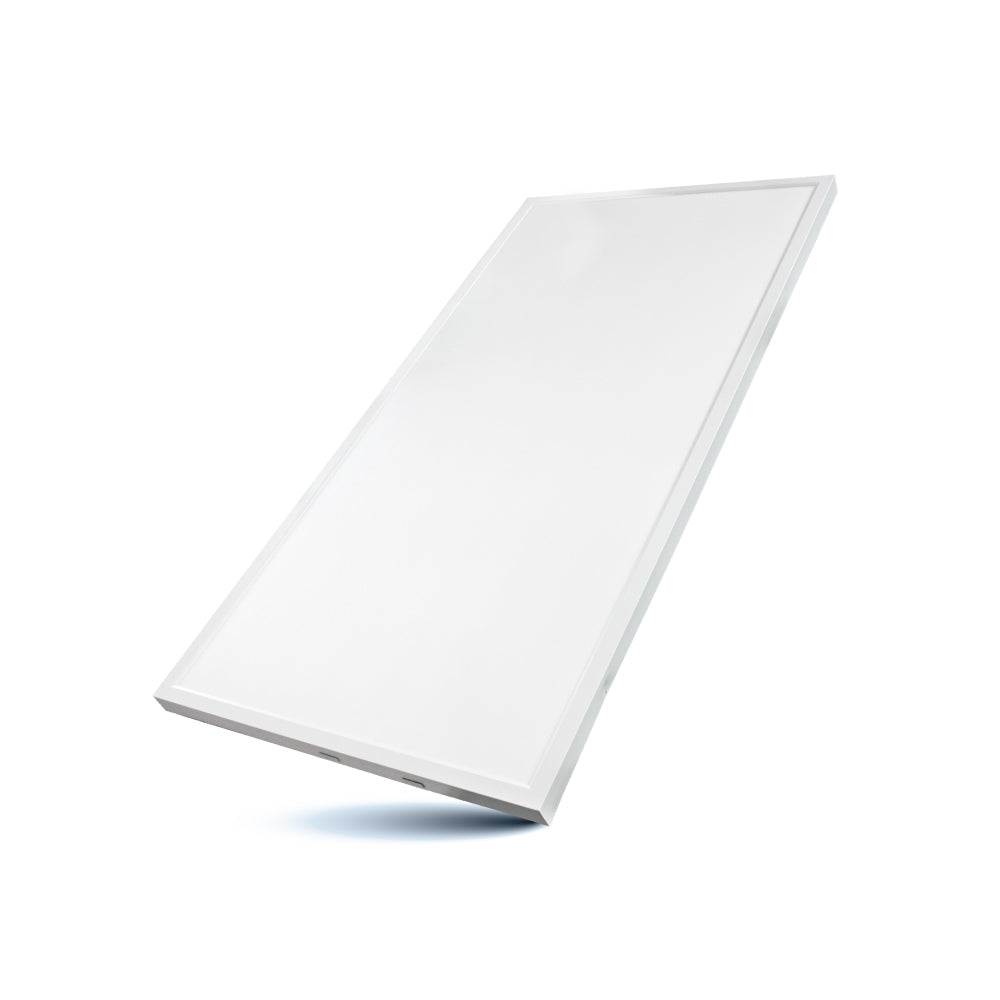

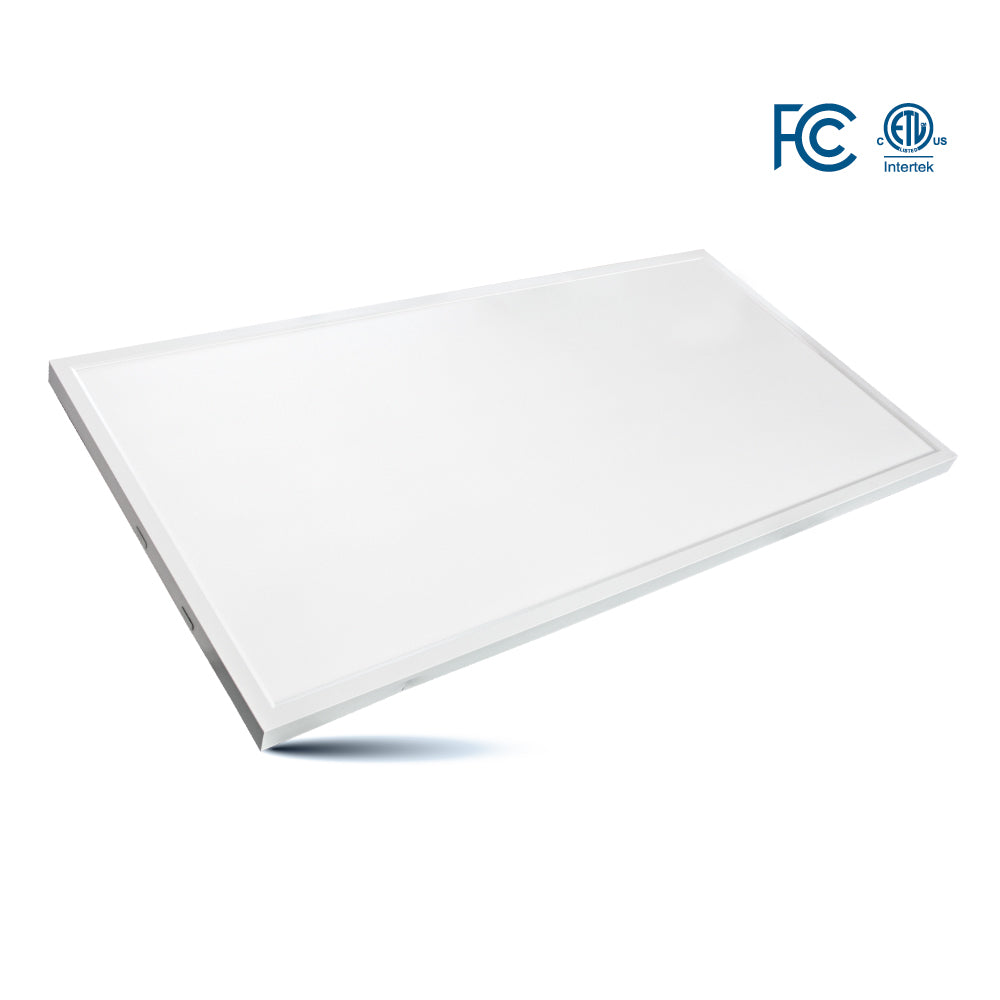

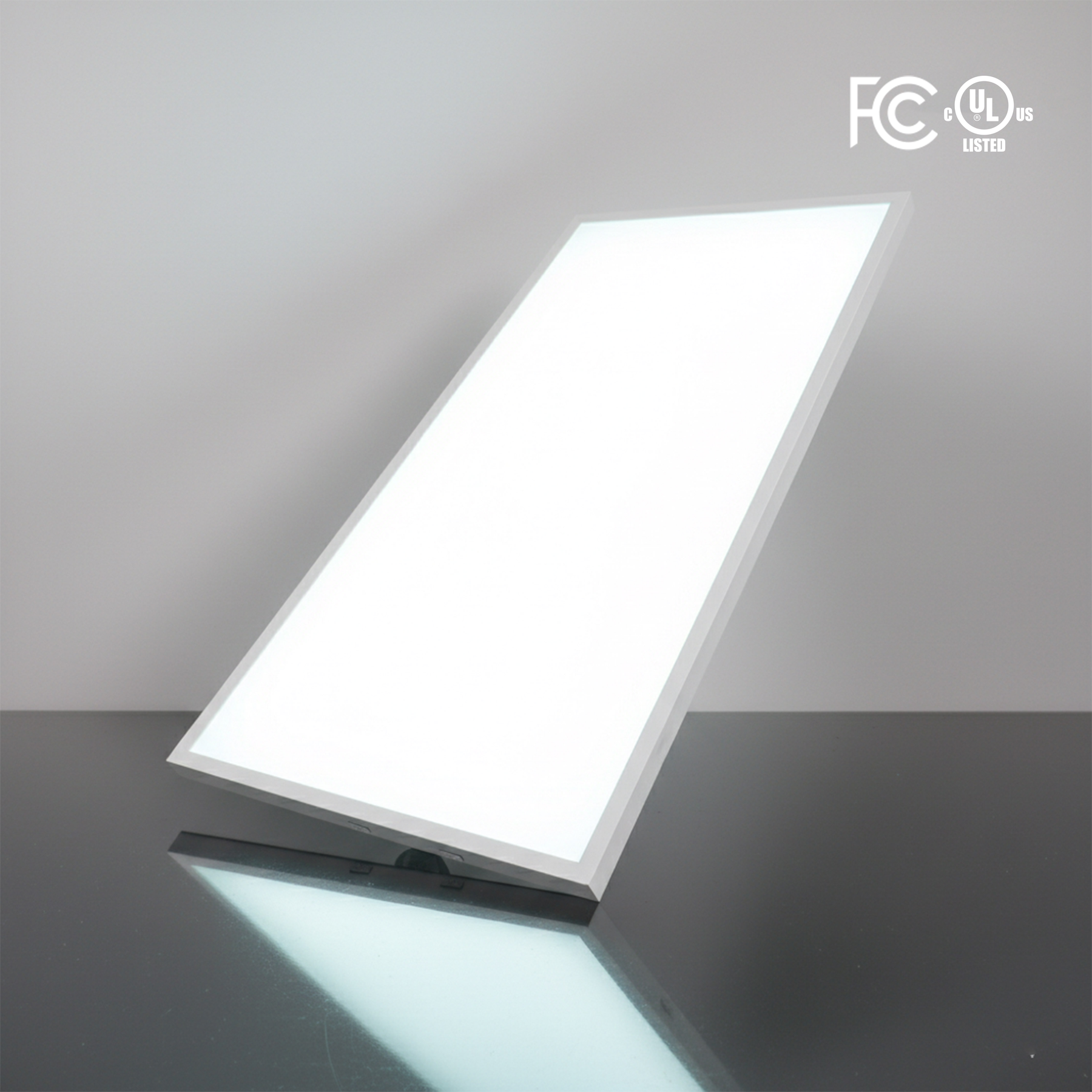

Model: SM-2x4-5CCT+W

Description: 2x4 FT. commercial-grade back-lit LED panel with surface mount design offers selectable color temperature and wattage for versatile indoor lighting. Ideal for offices, shops, and utility spaces.

Wattage: 20W/25W/30W/35W/40W

Voltage: 120-347V AC

Lumens: 115 lmn/W

Beam Angle: 120°

CRI: 80Ra+

Power Factor: >0.9

Dimmable: Yes (only 0-10V dimming available)

Lifetime: 50,000 hours

Rating: Non-IC Rated / Damp location

Grade of Protection: IP20

Application: Office / Factory / Supermarket, etc.

Colour Temperature: 5CCT [3000K/3500K/4000K/5000K/6000K]

Diffuser/Lens Material: PC

Frequency Range: 60Hz

Working Current: 0.458A

Efficiency: >86%

THD (Total Harmonic Distortion): <20%

Operating Temperature: -20°C ~ 45°C

Warranty: 5 Years

1x4 FT. commercial-grade back-lit LED panel with surface mount design offers selectable color temperature and wattage for versatile indoor lighting. Ideal for offices, shops, and utility spaces.

Uniform & Soft LuminanceDelivers smooth, glare-free lighting with high luminous efficiency for optimal brightness.
Energy Saving & Eco-Friendly: Designed to reduce power consumption and support sustainable energy use.
High-Quality Materials: Built with durable components that offer excellent heat dissipation and minimal light degradation over time.
0–10V Dimming Driver: Supports adjustable brightness levels for enhanced lighting control and energy efficiency.
Easy Surface Mount Installation: Mounts directly to the ceiling using brackets — no frame kit required, simplifying setup.

Select an option above to see its full specifications.

Downloads: SM-1x4-5CCT+W Spec Sheet | SM-1x4-5CCT+W Instruction Manual (english) | SM-1x4-5CCT+W Instruction Manual (french)

Free shipping on orders over $199. See our full shipping & return policy.

Need an electrician or install tips? Read our install guide or call us at 604-233-1998.
