Name: Large Stealth Framing Projector Adjustable Beam 24W Monopoint Luminaire
Brand: WAC
SKU: MO-1224-927-BK
Price: 1460.95 CAD
Availability: InStock

Large Stealth Framing Projector Adjustable Beam 24W Monopoint Luminaire

$1,460.95

Shipping calculated at checkout.

Color Temp & CRI — 927 - 2700K - 90

927 - 2700K - 90

930 - 3000K - 90

935 - 3500K - 90

940 - 4000K - 90

Finish

Black

White

Free shipping on orders over $199

Questions? Call 604-233-1998

Specifications

Model: MO-1224-927-BK

System Type: MO

Model: 1224

Color Temp & CRI: 927 - 2700K - 90

Lumens: 13°: 330 / 35°: 565

CBCP: 13°: 8400 / 35°: 2010

Finish: Black

Description: STEALTH FRAMING PROJ MONOPOINT 24W 927

Model: MO-1224-927-WT

System Type: MO

Model: 1224

Color Temp & CRI: 927 - 2700K - 90

Lumens: 13°: 330 / 35°: 565

CBCP: 13°: 8400 / 35°: 2010

Finish: White

Description: STEALTH FRAMING PROJ MONOPOINT 24W 927

Model: MO-1224-930-BK

System Type: MO

Model: 1224

Color Temp & CRI: 930 - 3000K - 90

Lumens: 13°: 355 / 35°: 605

CBCP: 13°: 8935 / 35°: 2140

Finish: Black

Description: STEALTH FRAMING PROJ MONOPOINT 24W 930

Model: MO-1224-930-WT

System Type: MO

Model: 1224

Color Temp & CRI: 930 - 3000K - 90

Lumens: 13°: 355 / 35°: 605

CBCP: 13°: 8935 / 35°: 2140

Finish: White

Description: STEALTH FRAMING PROJ MONOPOINT 24W 930

Model: MO-1224-935-BK

System Type: MO

Model: 1224

Color Temp & CRI: 935 - 3500K - 90

Lumens: 13°: 370 / 35°: 635

CBCP: 13°: 9385 / 35°: 2245

Finish: Black

Description: STEALTH FRAMING PROJ MONOPOINT 24W 935

Model: MO-1224-935-WT

System Type: MO

Model: 1224

Color Temp & CRI: 935 - 3500K - 90

Lumens: 13°: 370 / 35°: 635

CBCP: 13°: 9385 / 35°: 2245

Finish: White

Description: STEALTH FRAMING PROJ MONOPOINT 24W 935

Model: MO-1224-940-BK

System Type: MO

Model: 1224

Color Temp & CRI: 940 - 4000K - 90

Lumens: 13°: 380 / 35°: 650

CBCP: 13°: 9650 / 35°: 2310

Finish: Black

Description: STEALTH FRAMING PROJ MONOPOINT 24W 940

Model: MO-1224-940-WT

System Type: MO

Model: 1224

Color Temp & CRI: 940 - 4000K - 90

Lumens: 13°: 380 / 35°: 650

CBCP: 13°: 9650 / 35°: 2310

Finish: White

Description: STEALTH FRAMING PROJ MONOPOINT 24W 940

Features

Delivered Lumens: Up to 650lm
CBCP: 9650
CCT: 2700K, 3000K, 3500K, 4000K
CRI: 90
Power: 24W
Input: 120-277 VAC, 50/60Hz
ELV Dimming: 100-5%
0-10V Dimming: 100-5%
TRIAC Dimming: 100-5%
Rated Life: 50000 Hours
Construction: Die-cast aluminum
Precise, high definition zoomable projection
Stealth armature with 360° horizontal rotation and 90° vertical aiming
Accepts one glass or metal gobo
Custom gobo size: Outside Diameter 24.5mm, Thickness ≤ 1.5mm, Image Size ≤ 19mm

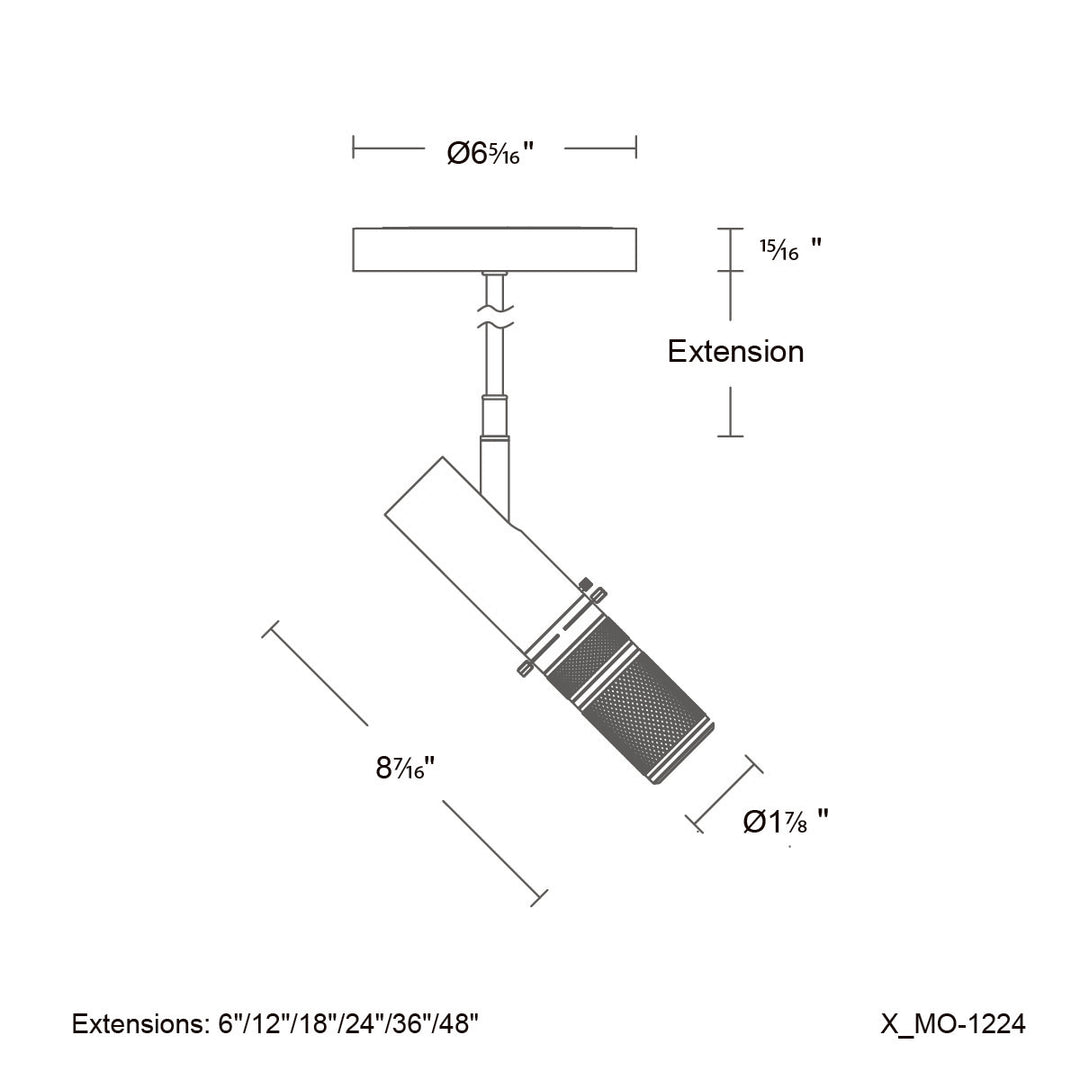

Extensions are custom order as a complete unit, ceiling mount only
Driver concealed within the canopy
Can be mounted on ceiling or wall in all orientations

Select an option above to see its full specifications.
