Name: Fire Rated Floating Gimbal LED Recessed Light 5CCT - SLIM FL+FR
Brand: Ortech
SKU: SLIM4FL+FR-5CCT
Price: 40.0 CAD
Availability: InStock

Fire Rated Floating Gimbal LED Recessed Light 5CCT - SLIM FL+FR, 4", by Ortech

Fire Rated Floating Gimbal LED Recessed Light 5CCT - SLIM FL+FR, 6", by Ortech

Fire Rated Floating Gimbal LED Recessed Light 5CCT - SLIM FL+FR by Ortech - view 3

Fire Rated Floating Gimbal LED Recessed Light 5CCT - SLIM FL+FR by Ortech - view 4

Fire Rated Floating Gimbal LED Recessed Light 5CCT - SLIM FL+FR by Ortech - view 5

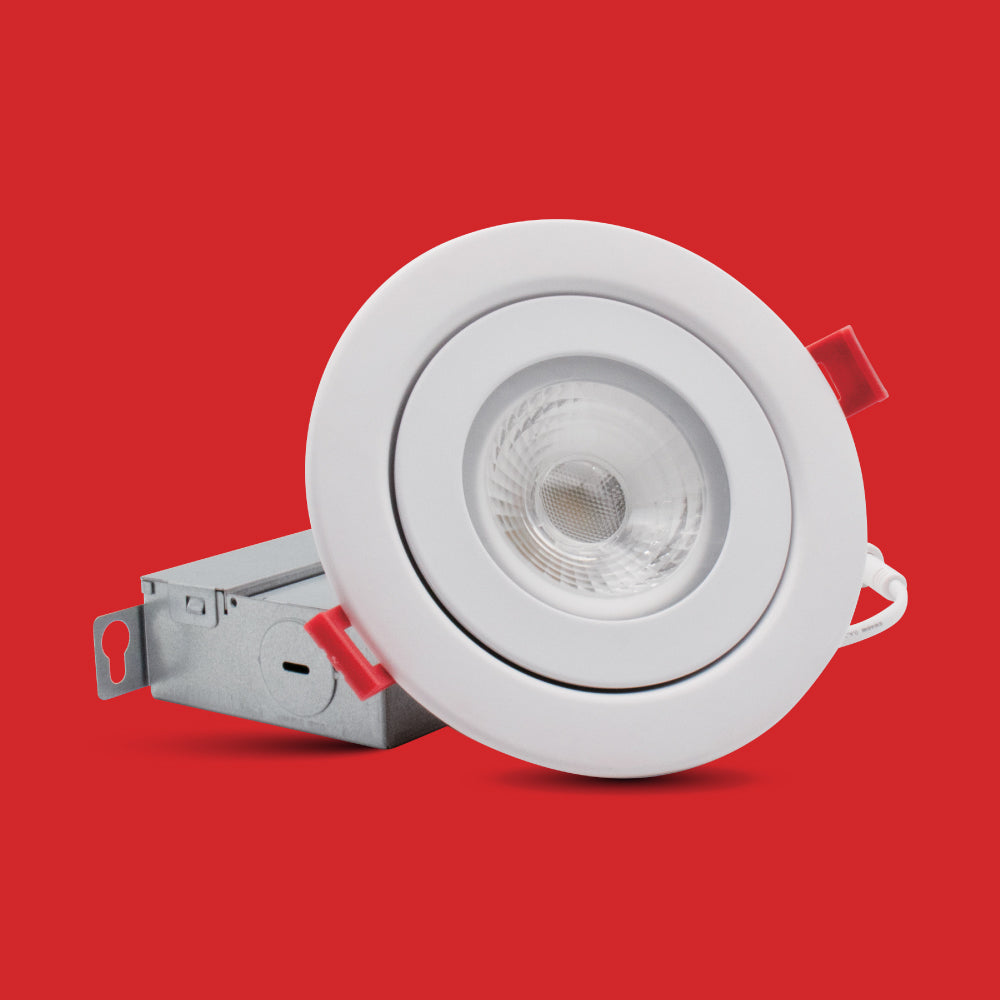

Fire Rated Floating Gimbal LED Recessed Light 5CCT - SLIM FL+FR by Ortech - view 6

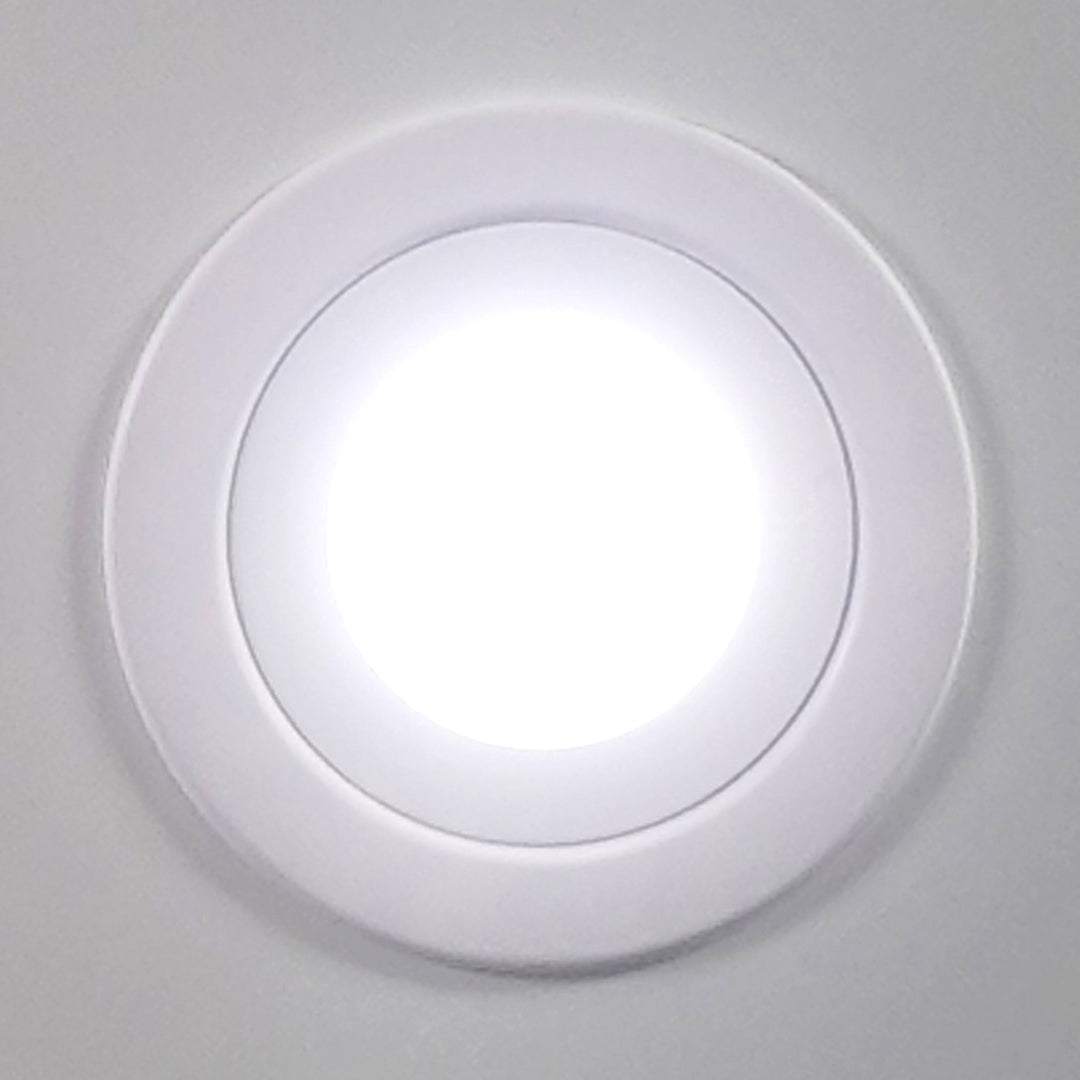

Fire Rated Floating Gimbal LED Recessed Light 5CCT - SLIM FL+FR by Ortech - view 7

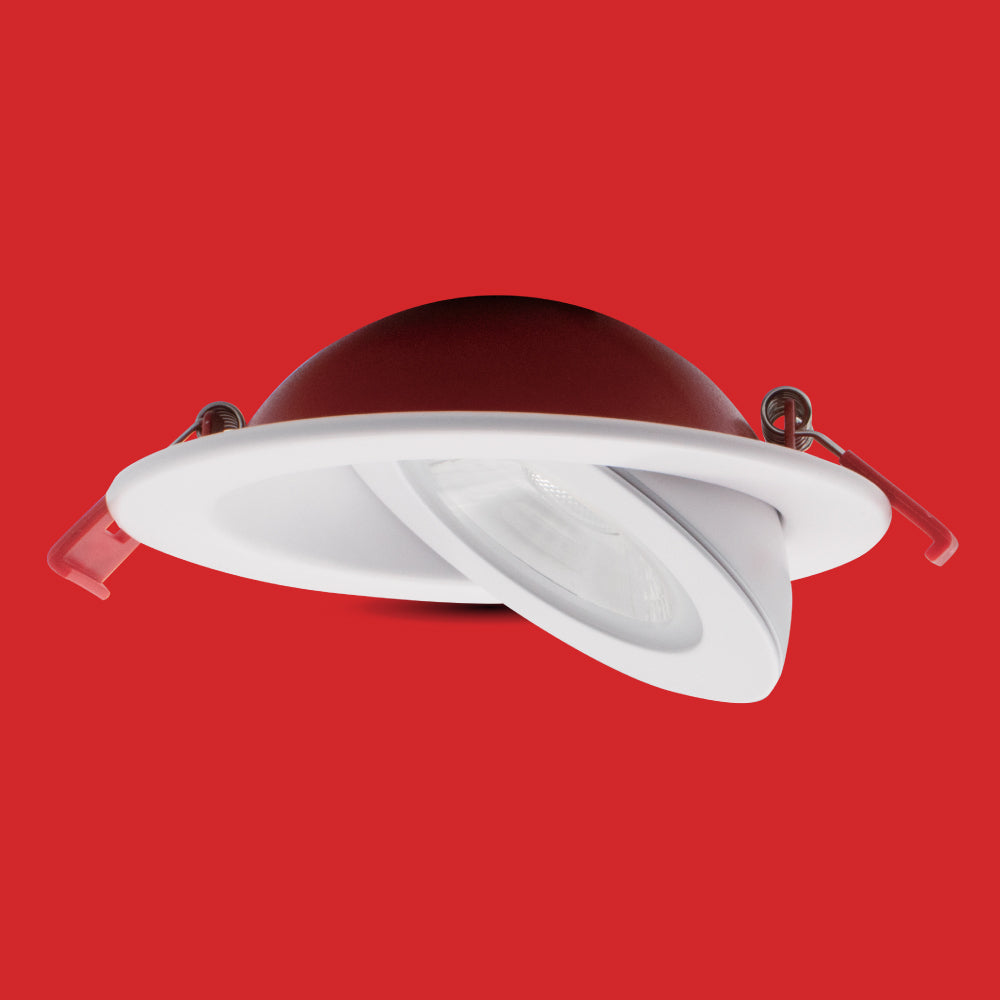

Fire Rated Floating Gimbal LED Recessed Light 5CCT - SLIM FL+FR by Ortech - view 8

Fire Rated Floating Gimbal LED Recessed Light 5CCT - SLIM FL+FR by Ortech - view 9

$40.00

Shipping calculated at checkout.

Size

Matching rough-in plate

Installing before drywall? Add the plate made for this light for a solid mount and a correctly sized cut-out.

Pre-Mounting Plate for Slim Recessed Lights - PLATE13 / PLATE26 13" / Without Lip / 4.5" · PLATE13-4A $3.00

Mounting Plate with 4-Way Hanger Bar for Slim Lights - PLATE-HB 4.5" · PLATE4A-HB $5.00

Pre-Mounting Plate for Slim Recessed Lights - PLATE13 / PLATE26 13" / Without Lip / 6" · PLATE13-6 $3.00

Mounting Plate with 4-Way Hanger Bar for Slim Lights - PLATE-HB 6" · PLATE6-HB $7.00

All rough-in plates →

Free shipping on orders over $199

Questions? Call 604-233-1998

Specifications

Model: SLIM4FL+FR-5CCT

Description: 4" Slim Disc floating gimbal FIRE RATED LED fixture. 5CCT (2700K,3000K,3500K,4000K,5000K) , 9watts, 750lmn, 2HOURS FIRE RATING, IP54, wet rated, White trim

Finish: White

Wattage: 9W

Voltage: 120V AC

Lumens: 850 lmn

Beam Angle: 38°

CRI: 90Ra+

Air Tight: Yes

Dimmable: Yes (TRIAC dimming)

Lifetime: 50,000 hours

Rating: IC rated/ Indoor use/ Damp Location

Grade of Protection: IP44

Application: Recessed ceiling / Balcony / Overhanging eaves

Cutout: Ø4-1/4” (108mm)

Colour Temperature: 5CCT [2700K/3000K/3500K/4000K/5000K]

Operating Temperature: -20°C ~ +40°C

Warranty: 5 Years

Model: SLIM6FL+FR-5CCT

Description: 6" Slim Disc floating gimbal FIRE RATED LED fixture. 5CCT (2700K,3000K,3500K,4000K,5000K) , 15watts, 1000lmn, 2HOURS FIRE RATING, IP54, wet rated, White trim

Finish: White

Wattage: 15W

Voltage: 120V AC

Lumens: 1150 lmn

Beam Angle: 38°

CRI: 90Ra+

Air Tight: Yes

Dimmable: Yes (TRIAC dimming)

Lifetime: 50,000 hours

Rating: IC rated/ Indoor use/ Damp Location

Grade of Protection: IP44

Application: Recessed ceiling / Balcony / Overhanging eaves

Cutout: Ø4-1/4” (108mm)

Colour Temperature: 5CCT [2700K/3000K/3500K/4000K/5000K]

Operating Temperature: -20°C ~ +40°C

Warranty: 5 Years

4" fire-rated floating gimbal recessed LED light with selectable CCT for safe, adjustable directional lighting.

Fire Rating: Reinforced, heat-resistant steel casting provides 2-hour fire protection
Driver: Junction box with commercial-grade driver included
Up to 90° tilt angle
Installation: Easy setup with no additional box required

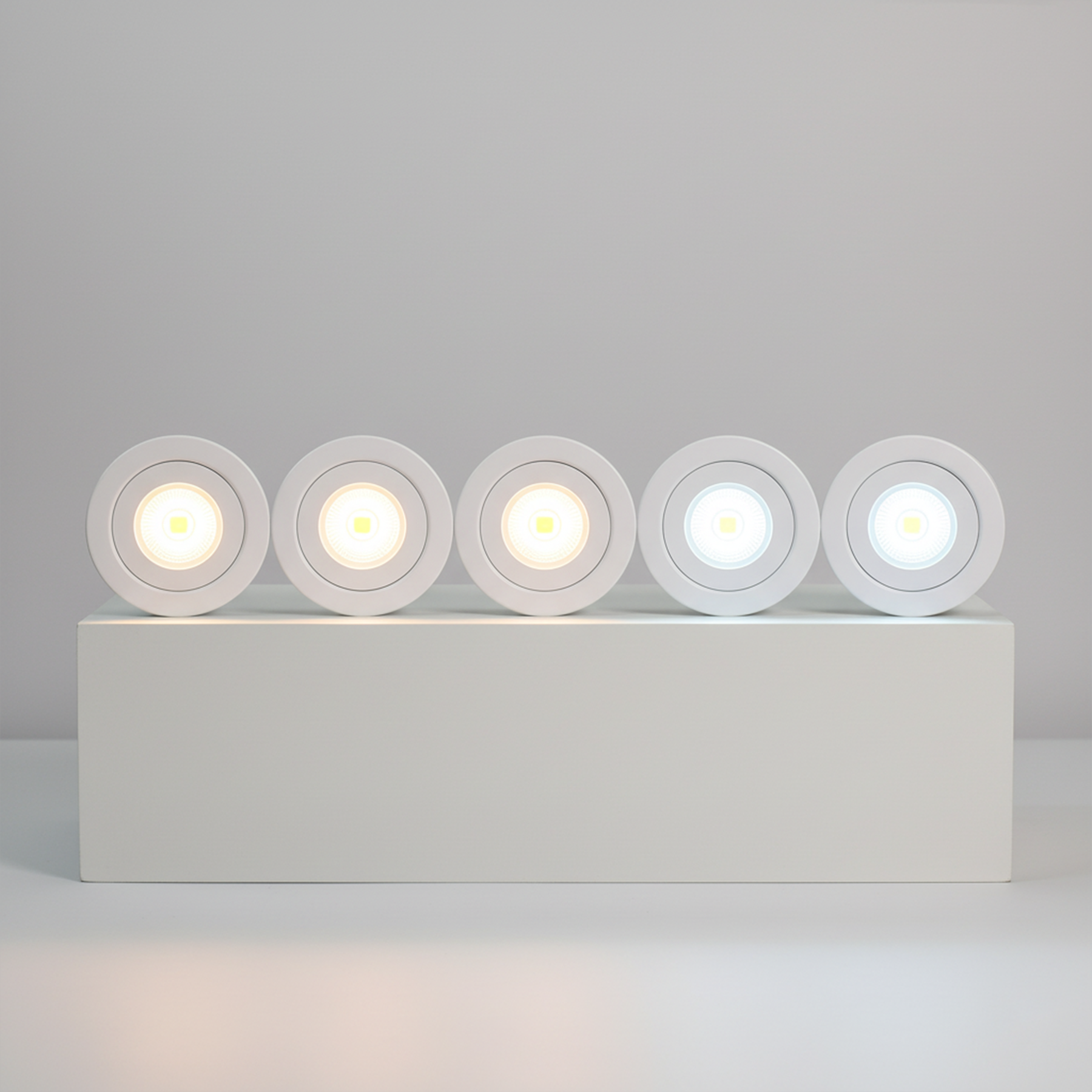

CCT Options: 5-color field selectable—2700K, 3000K, 3500K, 4000K, 5000K
Cable: FT6 plenum-rated cable included
Tested & Certified to comply with UL 263-2011(R2022) & ASTM E119-20 & CAN/ULC-S101-14 (click to see the Test Report)
Rated for ceiling assemblies with up to 2 layers of drywall, each 5/8 inch, for a total of 1-1/4 inches
Tested and certified for the following floor/ceiling assemblies: No. L505 and L556
Must review compliance before installation

Select an option above to see its full specifications.

Downloads: SLIM4FL+FR-5CCT Spec Sheet | SLIM4FL+FR-5CCT Instruction Manual

Free shipping on orders over $199. See our full shipping & return policy.

Need an electrician or install tips? Read our install guide or call us at 604-233-1998.
