Name: LED 4" Recessed Gimbal Light
Brand: CNA
SKU: DGIM-4-3CCT-BK
Price: 17.85 CAD
Availability: InStock

$17.85

Shipping calculated at checkout.

Color Temperature — 3CCT - 3000K / 4000K / 5000K

3CCT - 3000K / 4000K / 5000K

5CCT - 2700K / 3000K / 3500K / 4000K / 5000K

Finish

Black

White

Wattage

12W

Free shipping on orders over $199

Questions? Call 604-233-1998

Specifications

CNA Item #: 1089

Wattage: 9W

Voltage: 120VAC

Lumens: 755 lm / 880 lm / 900 lm

Efficiency: 83.9 - 100 lm/W

Rated Life: 50,000 Hrs.

Base: Hardwire

Colour Temperature: 3CCT - 3000K / 4000K / 5000K

Beam Angle: 40°

CRI: ≥ 80

Dimmable: Yes

Operating Temperature: -20°C to 40°C

Environmental Rating: Damp Location, Type IC Rated

Certifications: cETLus

Height: 40 mm (1-9/16")

Diameter: 131 mm (5-3/16")

Shape: Gimbal

Warranty: 5 Years

Finish: Black

Hole Size Cutout: 3.5" - 4" Diameter

Driver Dimensions (mm): 105 mm L x 69 mm W x 35 mm H

Driver Dimensions (Inches): 4-1/8” L x 2-11/16” W x 1-3/8” H

Size: 4"

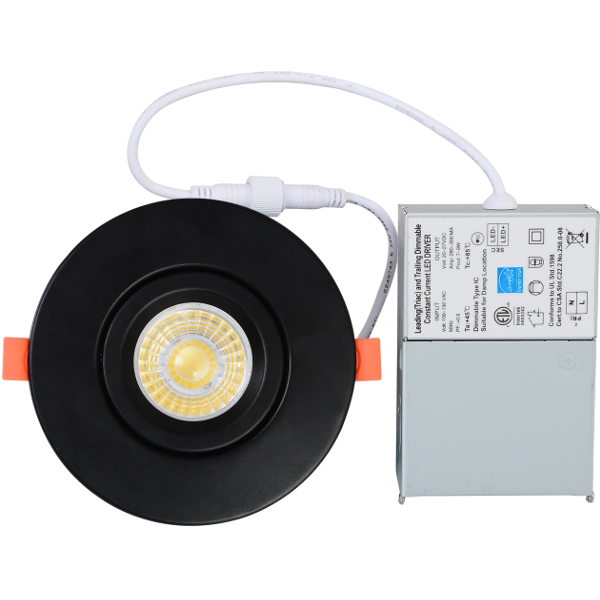

CNA Item #: 1155

Wattage: 9W

Voltage: 120VAC

Lumens: 800 lm

Efficiency: 88.9 lm/W

Rated Life: 50,000 Hrs.

Base: Hardwire

Colour Temperature: 5CCT - 2700K / 3000K / 3500K / 4000K / 5000K

Beam Angle: 40°

CRI: ≥ 80

Dimmable: Yes

Operating Temperature: -20°C to 40°C

Environmental Rating: Damp Location, Type IC Rated

Certifications: cETLus

Height: 40 mm (1-9/16")

Diameter: 132 mm (5-3/16")

Shape: Gimbal

Warranty: 5 Years

Finish: Black

Hole Size Cutout: 3.5" - 4" Diameter

Driver Dimensions (mm): 105 mm L x 69 mm W x 35 mm H

Driver Dimensions (Inches): 4-1/8” L x 2-11/16” W x 1-3/8” H

Size: 4"

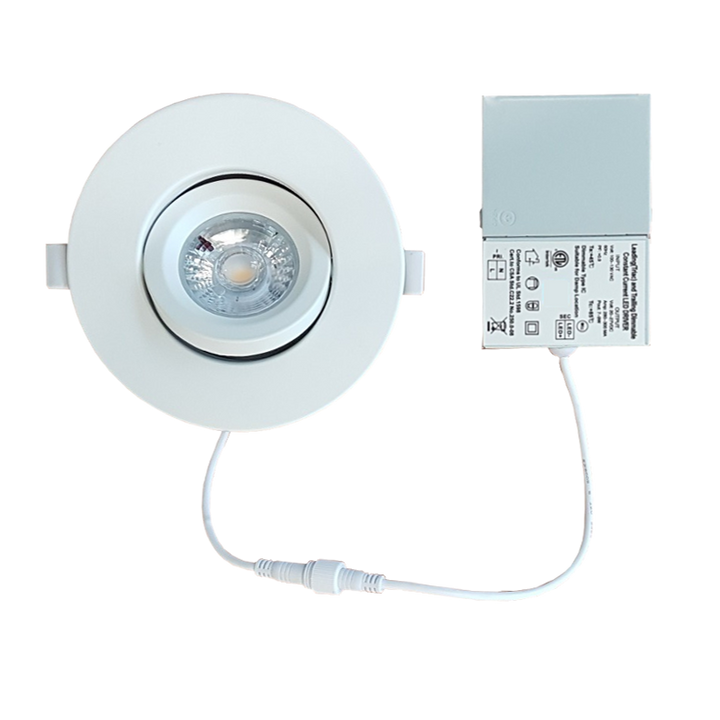

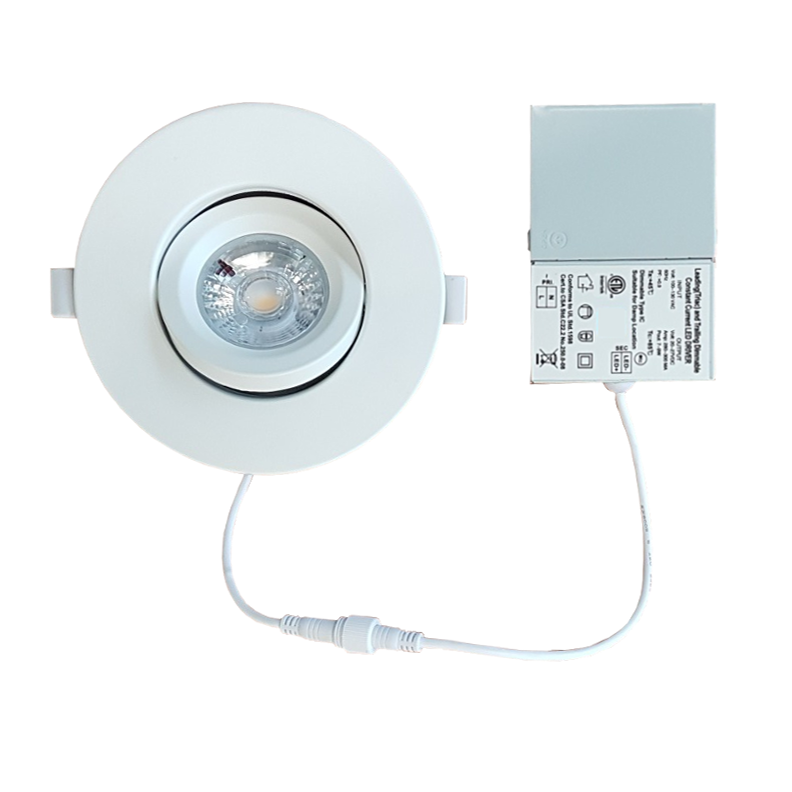

CNA Item #: 1154

Wattage: 9W

Voltage: 120VAC

Lumens: 800 lm

Efficiency: 88.9 lm/W

Rated Life: 50,000 Hrs.

Base: Hardwire

Colour Temperature: 5CCT - 2700K / 3000K / 3500K / 4000K / 5000K

Beam Angle: 40°

CRI: ≥ 80

Dimmable: Yes

Operating Temperature: -20°C to 40°C

Environmental Rating: Damp Location, Type IC Rated

Certifications: cETLus

Height: 40 mm (1-9/16")

Diameter: 132 mm (5-3/16")

Shape: Gimbal

Warranty: 5 Years

Finish: White

Hole Size Cutout: 3.5" - 4" Diameter

Driver Dimensions (mm): 105 mm L x 69 mm W x 35 mm H

Driver Dimensions (Inches): 4-1/8” L x 2-11/16” W x 1-3/8” H

Size: 4"

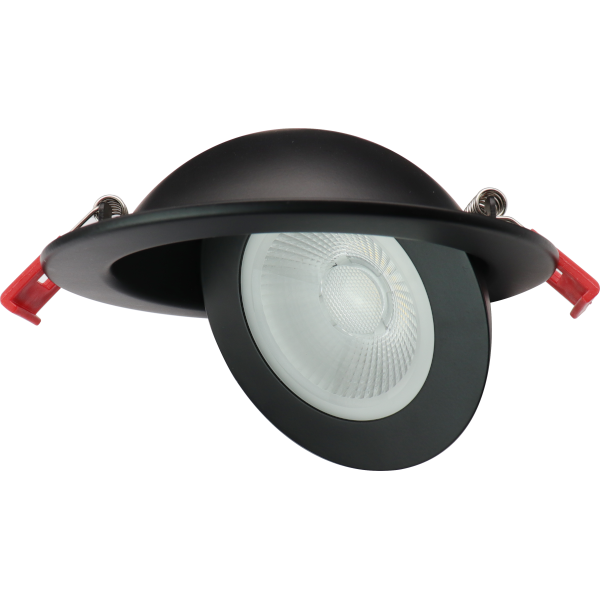

CNA Item #: 1141

Wattage: 12W

Voltage: 120VAC

Lumens: 900 lm

Efficiency: 75 lm/W

Rated Life: 50,000 Hrs.

Base: Hardwire

Colour Temperature: 5CCT - 2700K / 3000K / 3500K / 4000K / 5000K

Beam Angle: 30°

CRI: ≥ 80

Dimmable: Yes

Operating Temperature: -20°C to 45°C

Environmental Rating: Wet Location, Type IC

Certifications: cETLus

Height: 36 mm (1-7/16")

Diameter: 125 mm (4-7/8")

Weight (g): 470

Shape: Gimbal

Warranty: 5 Years

Finish: Black

Hole Size Cutout: 4" Diameter

Size: 4"

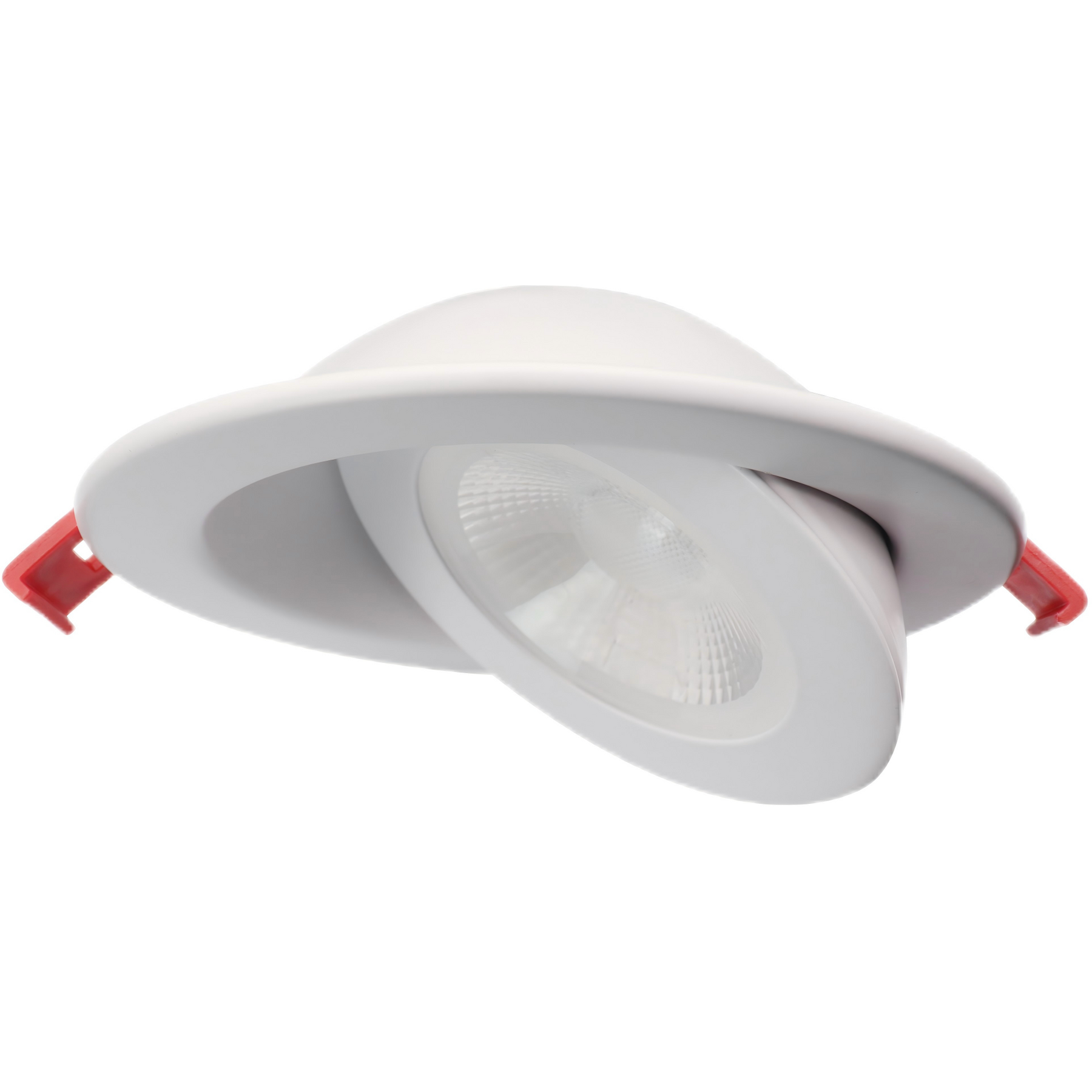

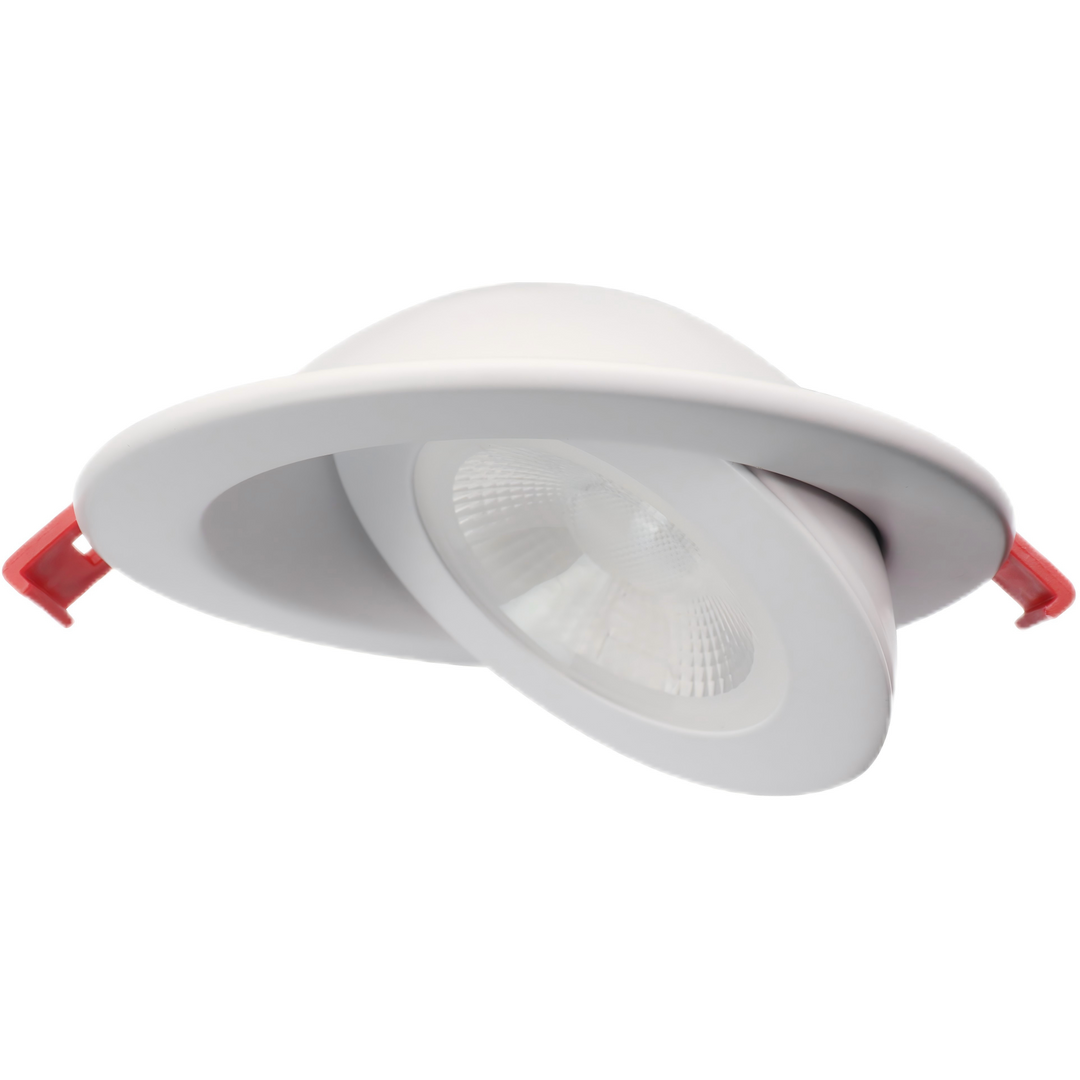

CNA Item #: 1140

Wattage: 12W

Voltage: 120VAC

Lumens: 900 lm

Efficiency: 75 lm/W

Rated Life: 50,000 Hrs.

Base: Hardwire

Colour Temperature: 5CCT - 2700K / 3000K / 3500K / 4000K / 5000K

Beam Angle: 30°

CRI: ≥ 80

Dimmable: Yes

Operating Temperature: -20°C to 45°C

Environmental Rating: Wet Location, Type IC

Certifications: cETLus

Height: 36 mm (1-7/16")

Diameter: 125 mm (4-7/8")

Weight (g): 470

Shape: Gimbal

Warranty: 5 Years

Finish: White

Hole Size Cutout: 4" Diameter

Size: 4"

LED 4" Recessed Gimbal Light from CNA Lighting — dimmable, 50,000 Hrs. rated life.

Specifications

Voltage: 120VAC
Rated Life: 50,000 Hrs.
Base: Hardwire
CRI: ≥ 80
Dimmable: Yes
Certifications: cETLus
Shape: Gimbal
Warranty: 5 Years
Size: 4"

Select an option above to see its full specifications.

Downloads: Spec Sheet 1 | Spec Sheet 2 | Spec Sheet 3 | Spec Sheet 4

Free shipping on orders over $199. See our full shipping & return policy.

Need an electrician or install tips? Read our install guide or call us at 604-233-1998.
