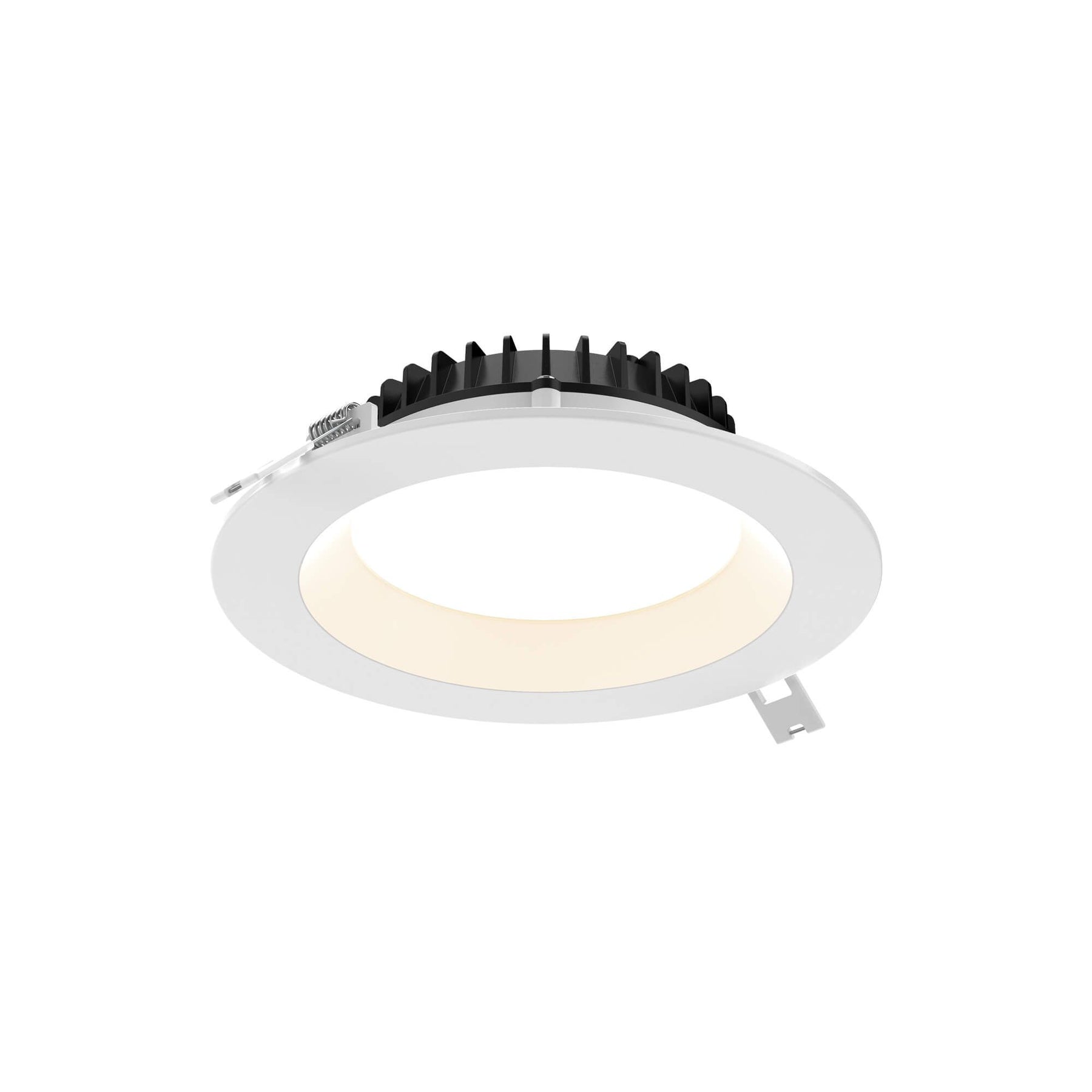

Name: Etch - LED Round Regressed Panel
Brand: Dals
SKU: DDP4-CC-V-WH
Price: 87.0 CAD
Availability: InStock

$87.00

Shipping calculated at checkout.

Size

Voltage

120-347V

120V

Free shipping on orders over $199

Questions? Call 604-233-1998

Specifications

Model: DDP4-CC-V-WH

Collection: Etch

Size: 4"

Finish: White

Wattage: 15W

Delivered Lumens: 1430 lm

Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K (switch-selectable)

CRI: 90+

Voltage: 120V / 277V / 347V

Dimming: 0-10 V

Beam Angle: 125°

Features: 5CCT colour-selectable, Dimmable, Low glare, Multi-voltage

Location Rating: Indoor, Outdoor, Wet location

Certifications: IC rated, ETL listed, Title 24 / JA8 compliant, Airtight, ENERGY STAR

Warranty: 5-year limited

UPC: 775902023838

Model: DDP4-CC-WH

Collection: Etch

Size: 4"

Finish: White

Wattage: 15W

Delivered Lumens: 1430 lm

Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K (switch-selectable)

CRI: 90+

Voltage: 120V

Dimming: ELV, TRIAC

Beam Angle: 125°

Features: 5CCT colour-selectable, Dimmable, Low glare, Multi-voltage

Location Rating: Indoor, Outdoor, Wet location

Certifications: IC rated, ETL listed, Title 24 / JA8 compliant, Airtight, ENERGY STAR

Warranty: 5-year limited

UPC: 775902019855

Model: DDP6-CC-V-WH

Collection: Etch

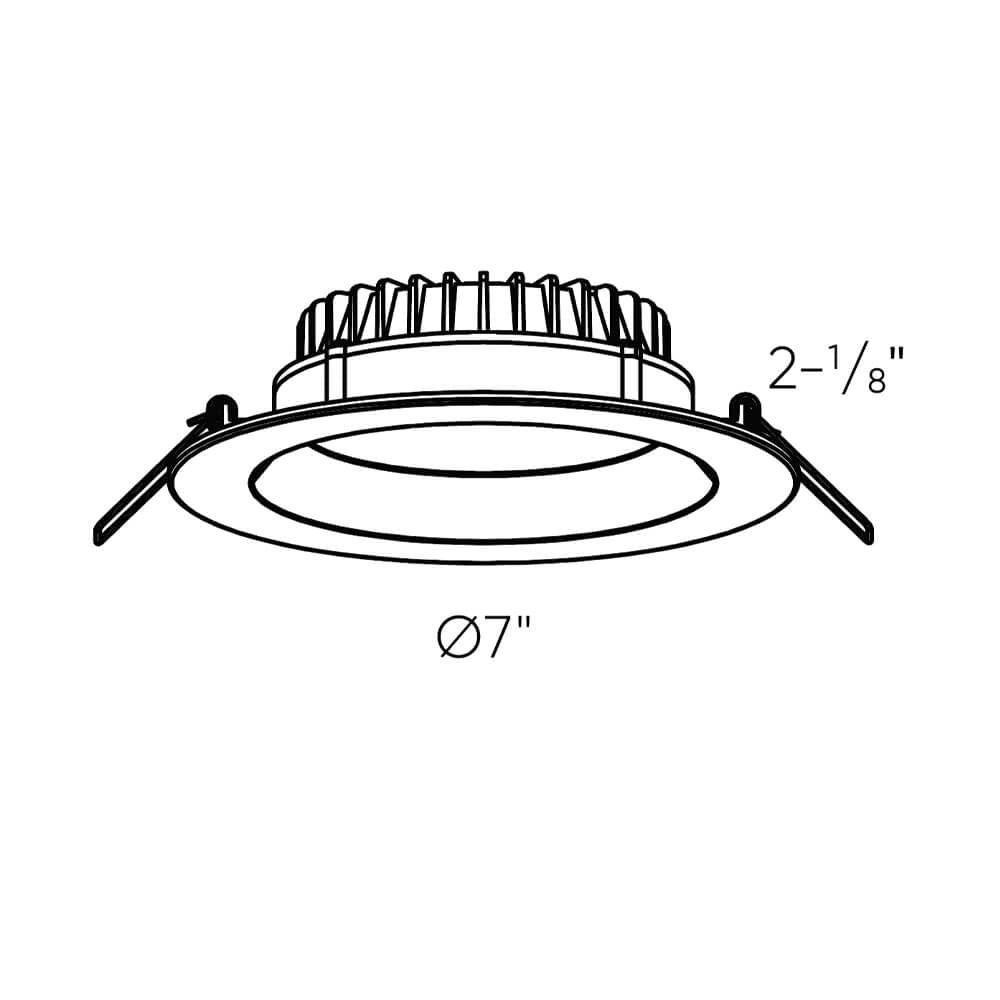

Size: 6"

Finish: White

Wattage: 20W

Delivered Lumens: 2045 lm

Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K (switch-selectable)

CRI: 90+

Voltage: 120V / 277V / 347V

Dimming: 0-10 V

Beam Angle: 125°

Features: 5CCT colour-selectable, Dimmable, Low glare, Multi-voltage

Location Rating: Indoor, Outdoor, Wet location

Certifications: IC rated, ETL listed, Title 24 / JA8 compliant, Airtight

Warranty: 5-year limited

UPC: 775902023845

Model: DDP6-CC-WH

Collection: Etch

Size: 6"

Finish: White

Wattage: 20W

Delivered Lumens: 2045 lm

Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K (switch-selectable)

CRI: 90+

Voltage: 120V

Dimming: ELV, TRIAC

Beam Angle: 125°

Features: 5CCT colour-selectable, Dimmable, Low glare, Multi-voltage

Location Rating: Indoor, Outdoor, Wet location

Certifications: IC rated, ETL listed, Title 24 / JA8 compliant, Airtight

Warranty: 5-year limited

UPC: 775902019862

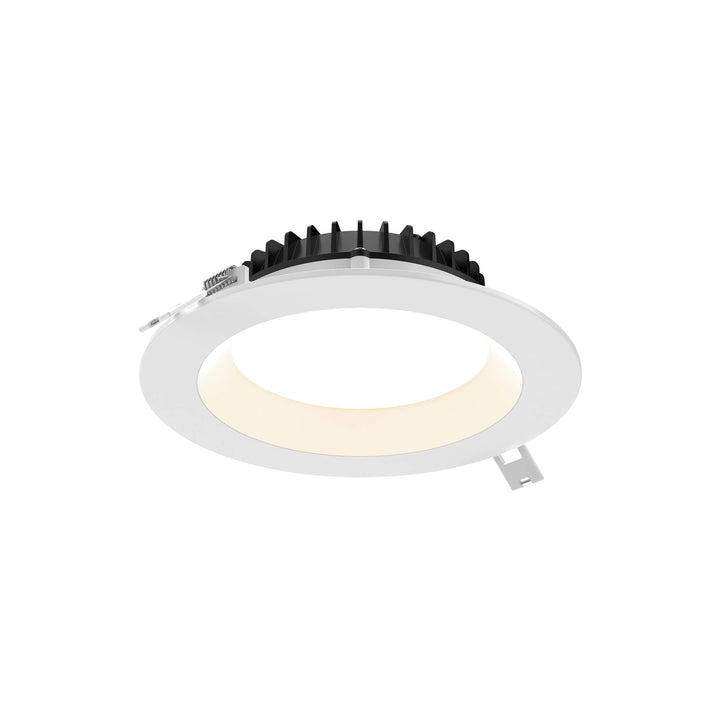

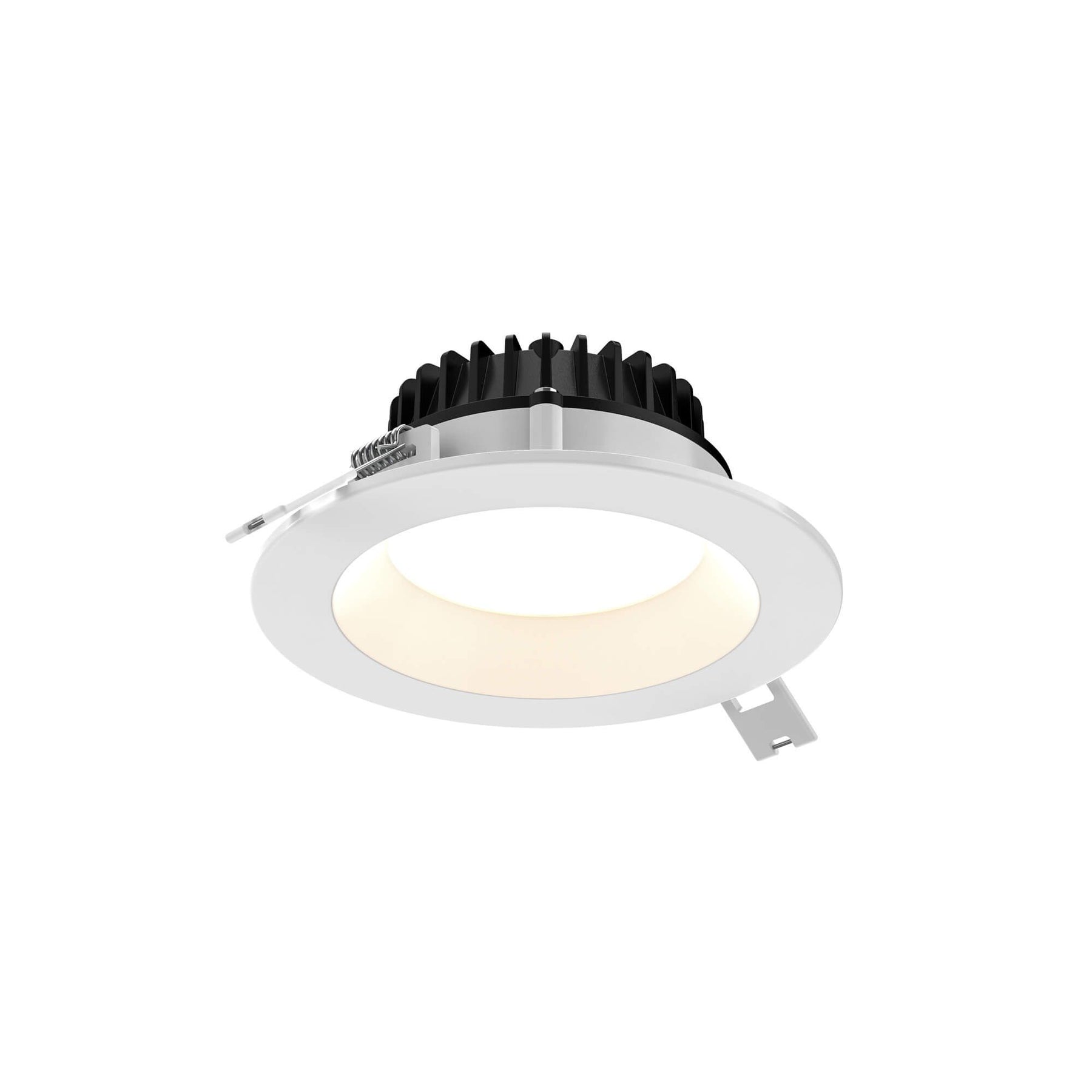

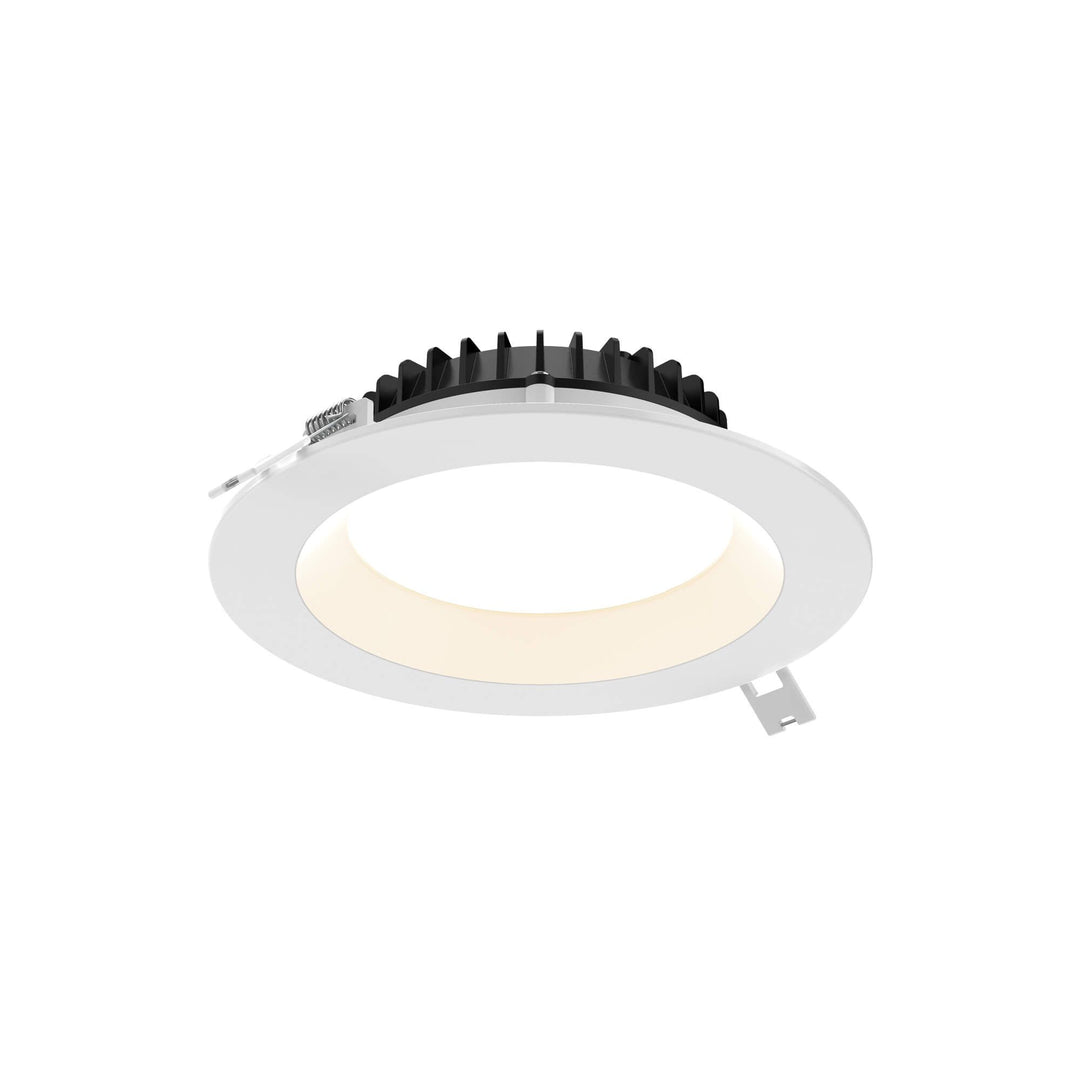

The Etch range of circular recessed downlights, characterised by a deep-set LED position, provides a functional solution to general lighting without the uncomfortable glare.

Features

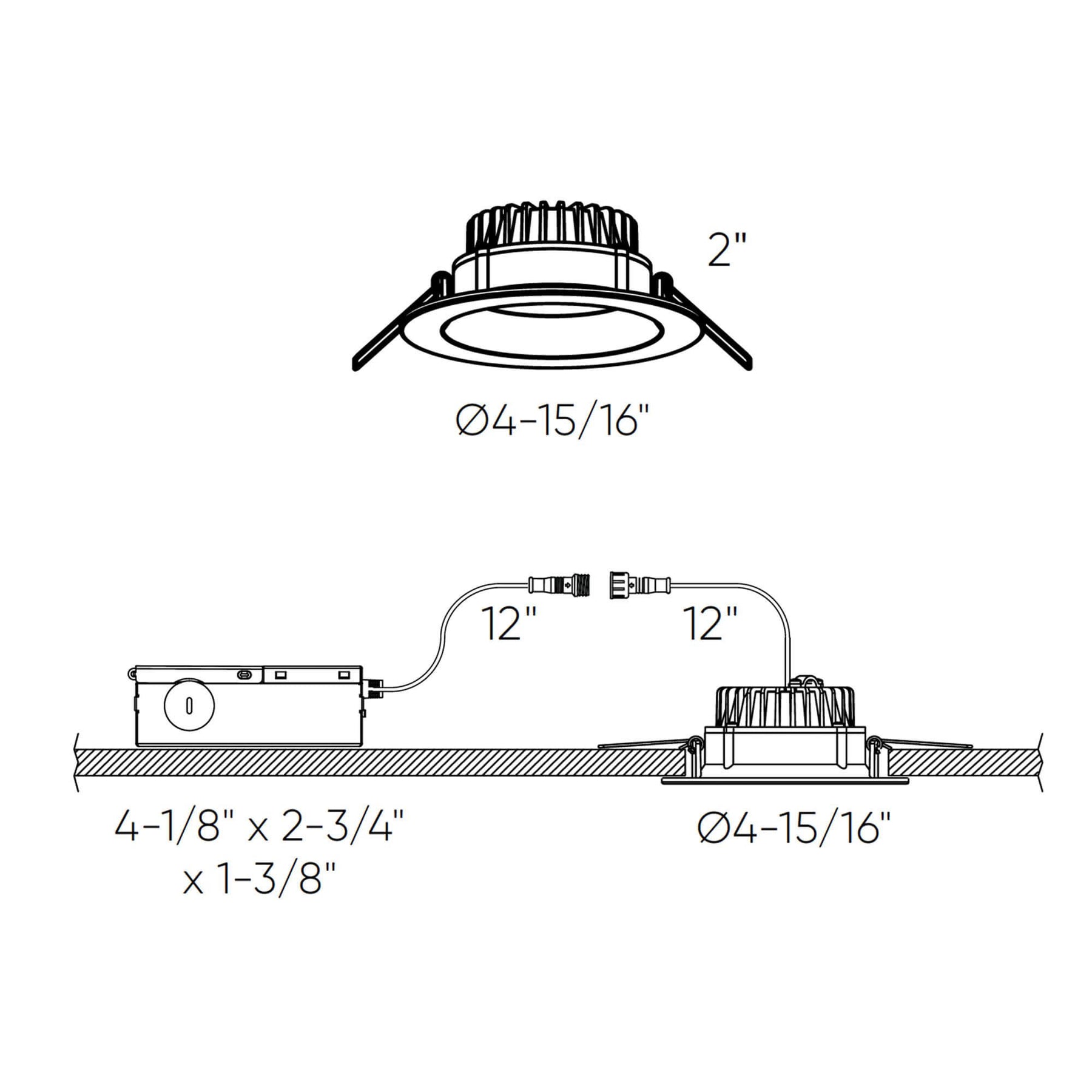

Every fixture includes a junction box with an integrated driver
Can be daisy chained
Smooth 360° wide spread
125° beam angle
Frosted lens
Backlit technology
Cast aluminum construction

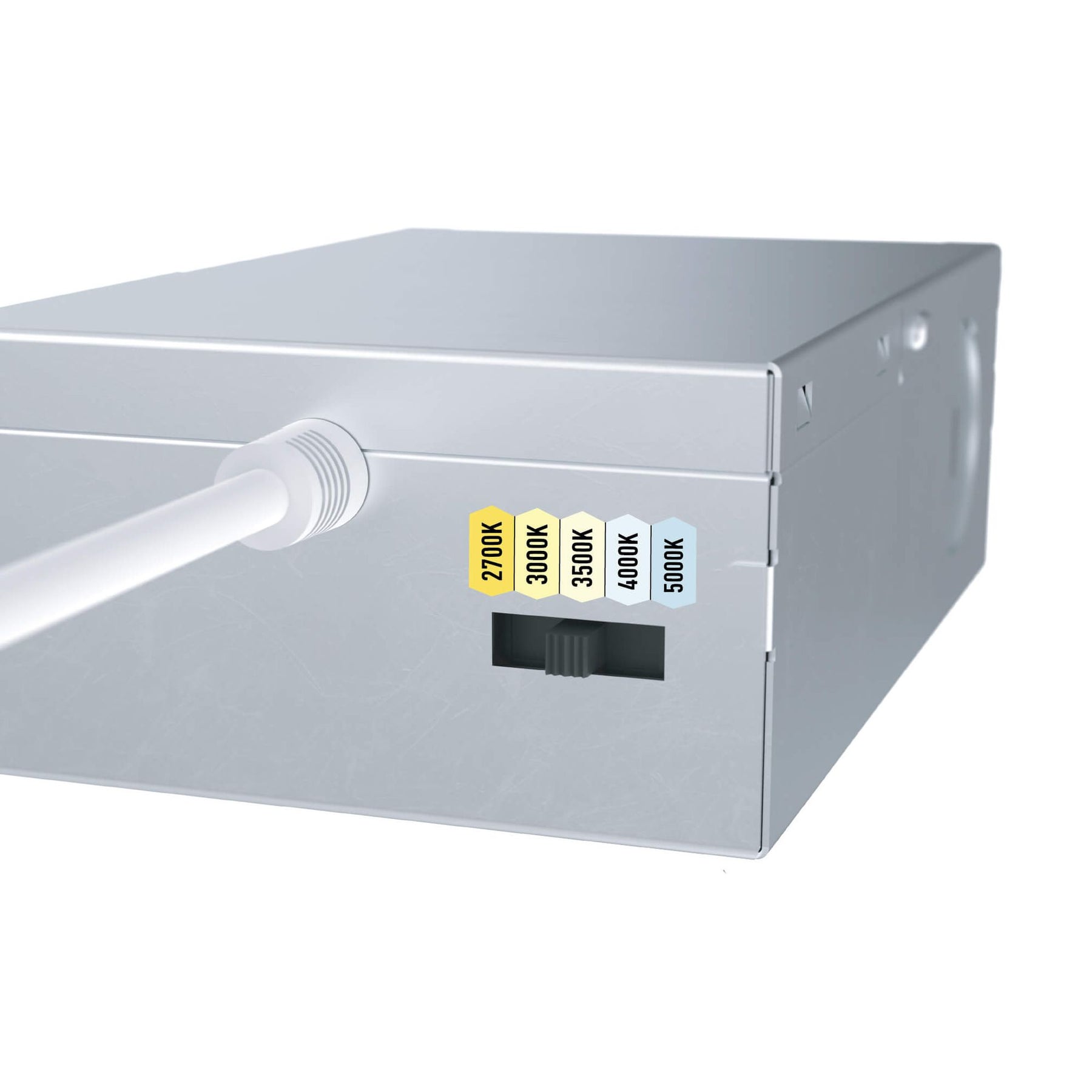

Switch-selectable CCT
5-year warranty

Downloads: Catalog sheet · Installation instructions · Spec sheet

All Dals Lighting products are covered by a 5-year manufacturer warranty.

Free shipping on orders over $199. See our full shipping & return policy.

Need an electrician or install tips? Read our install guide or call us at 604-233-1998.
