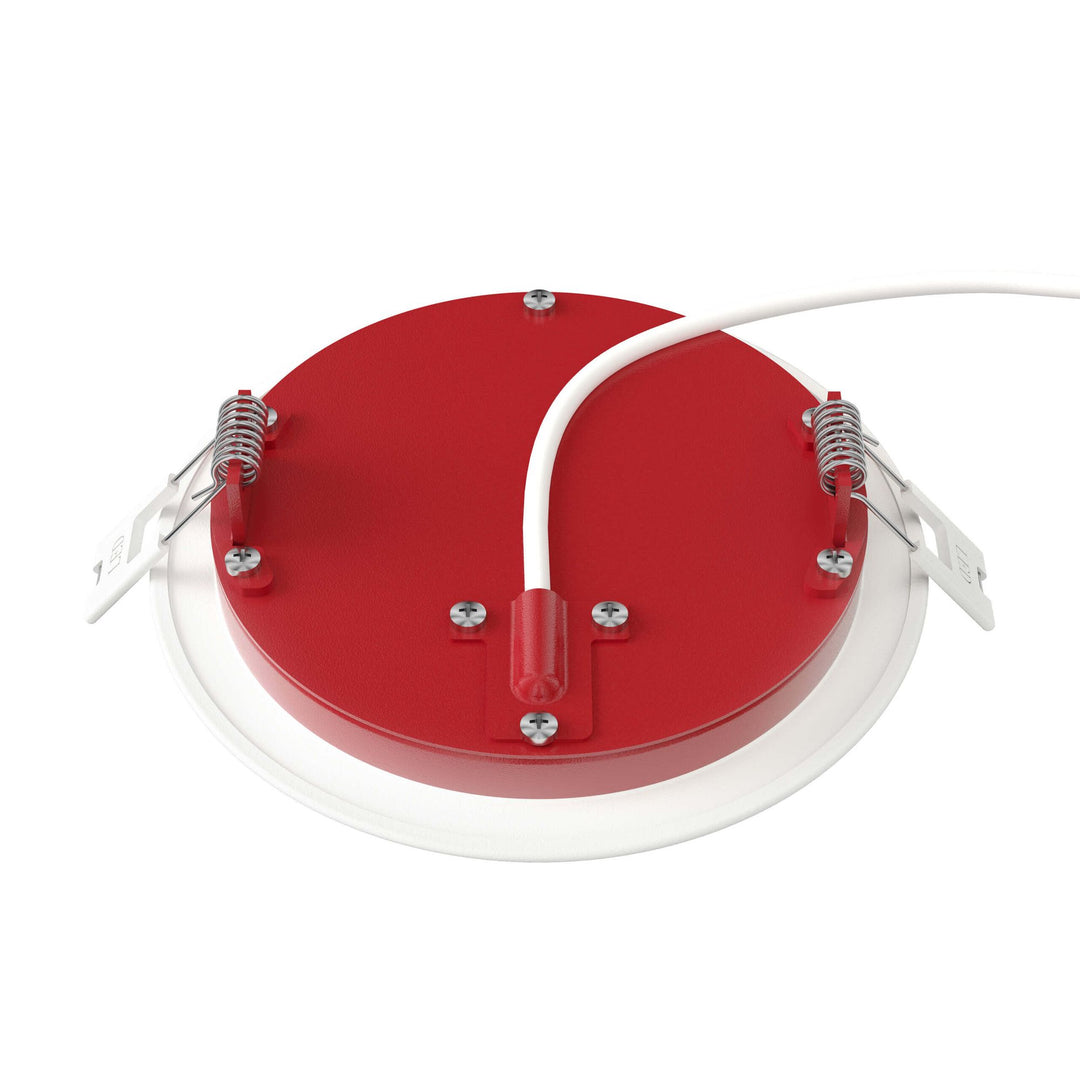

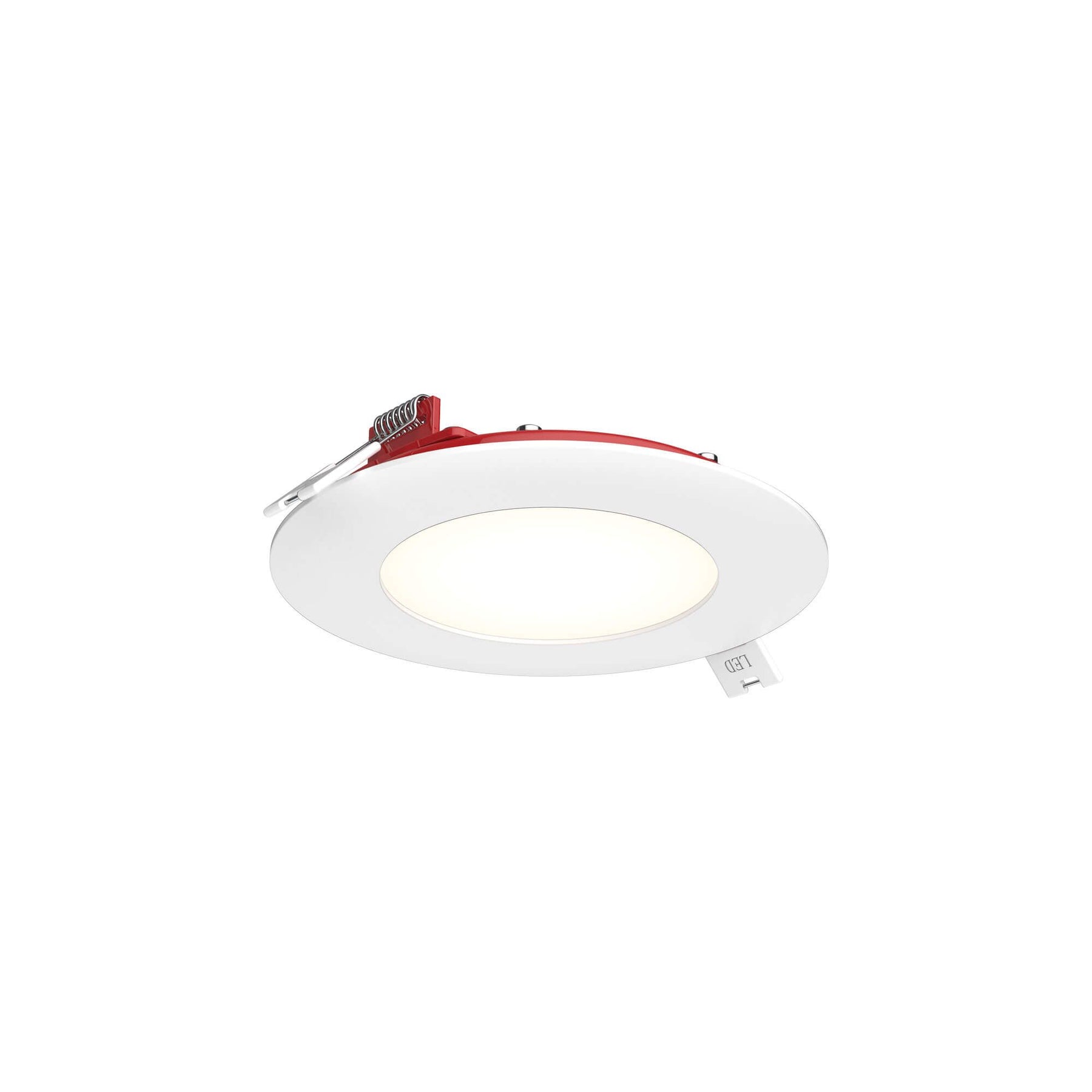

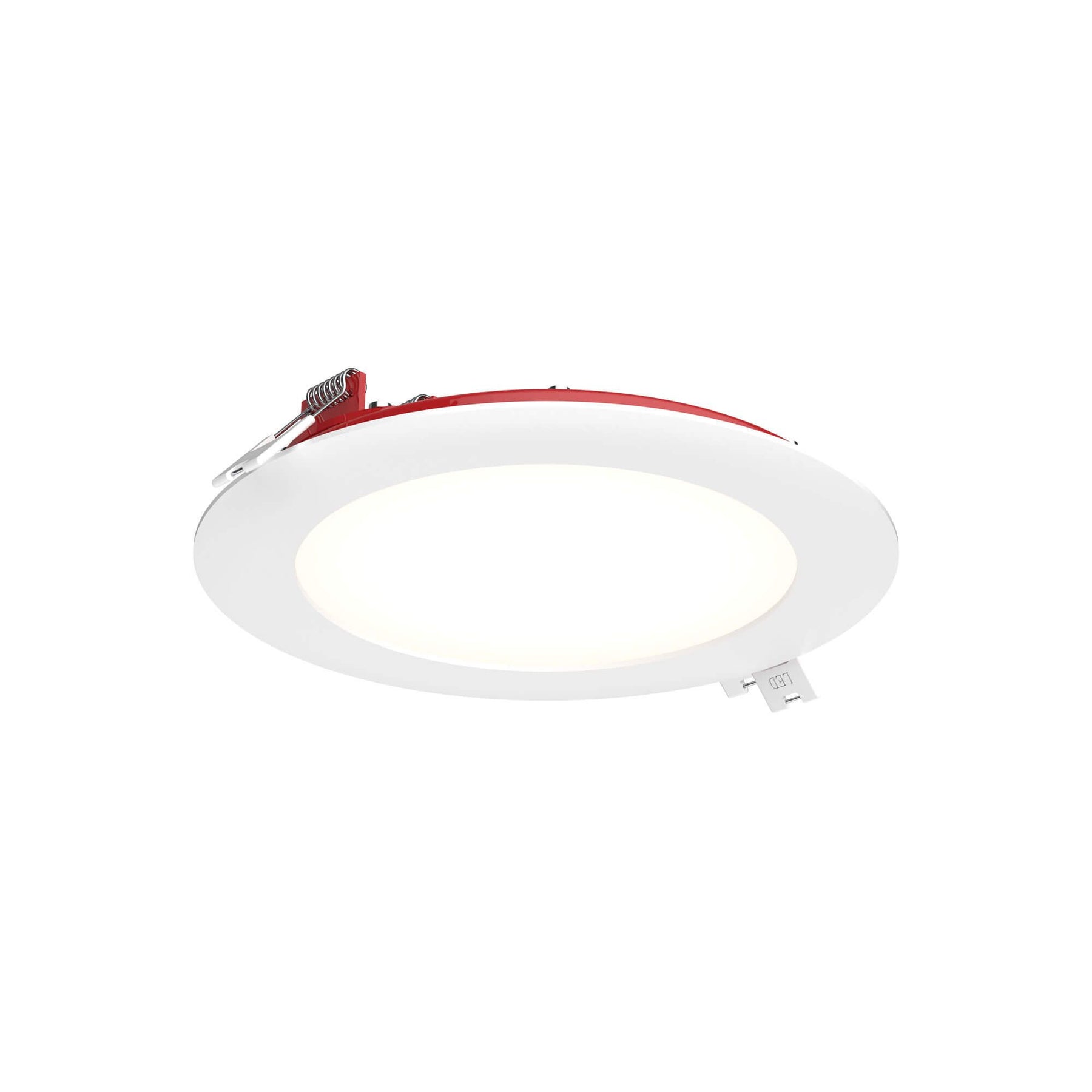

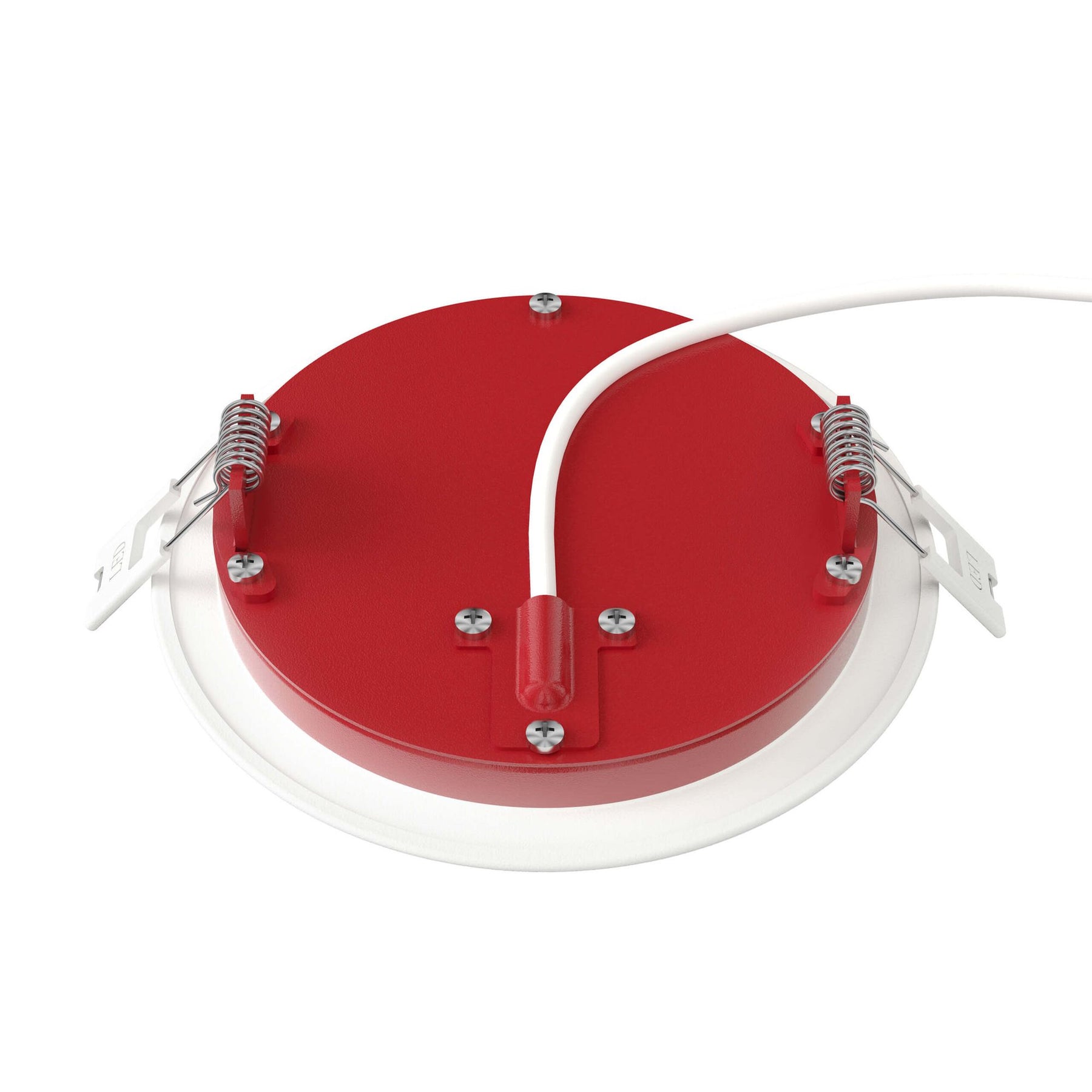

Name: Excel - LED Round Fire-Rated Panel Light
Brand: Dals
SKU: 5004-FR-CC-WH
Price: 47.0 CAD
Availability: InStock

Excel - LED Round Fire-Rated Panel Light

$47.00

Shipping calculated at checkout.

Size

Free shipping on orders over $199

Questions? Call 604-233-1998

Specifications

Model: 5004-FR-CC-WH

Collection: Excel

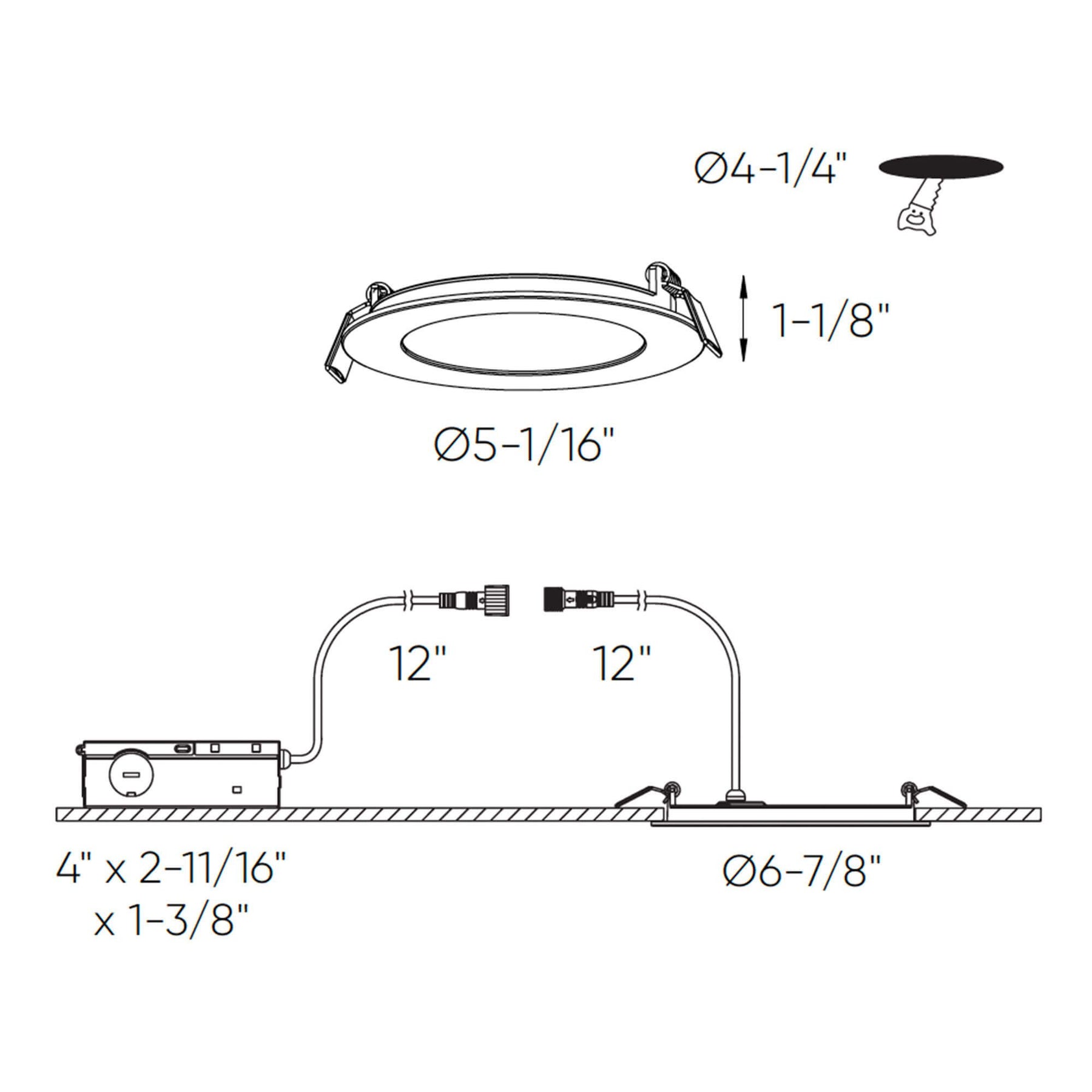

Size: 4"

Finish: White

Wattage: 11W

Delivered Lumens: 960 lm

Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K (switch-selectable)

CRI: 90+

Voltage: 120V

Dimming: ELV, TRIAC

Features: 5CCT colour-selectable, Dimmable, Fire-rated

Location Rating: Indoor, Outdoor, Wet location

Certifications: IC rated, ETL listed, Title 24 / JA8 compliant, Airtight, ENERGY STAR

Warranty: 5-year limited

UPC: 775902022572

Model: 5006-FR-CC-WH

Collection: Excel

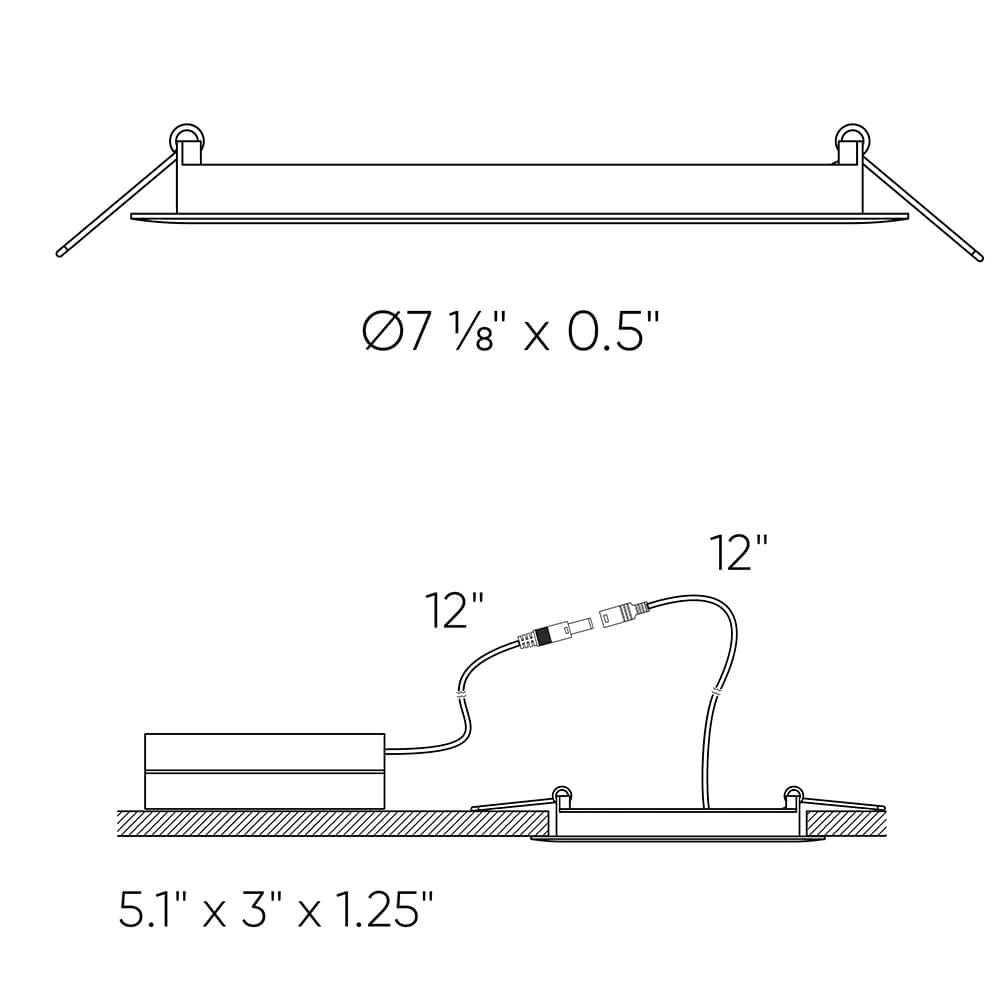

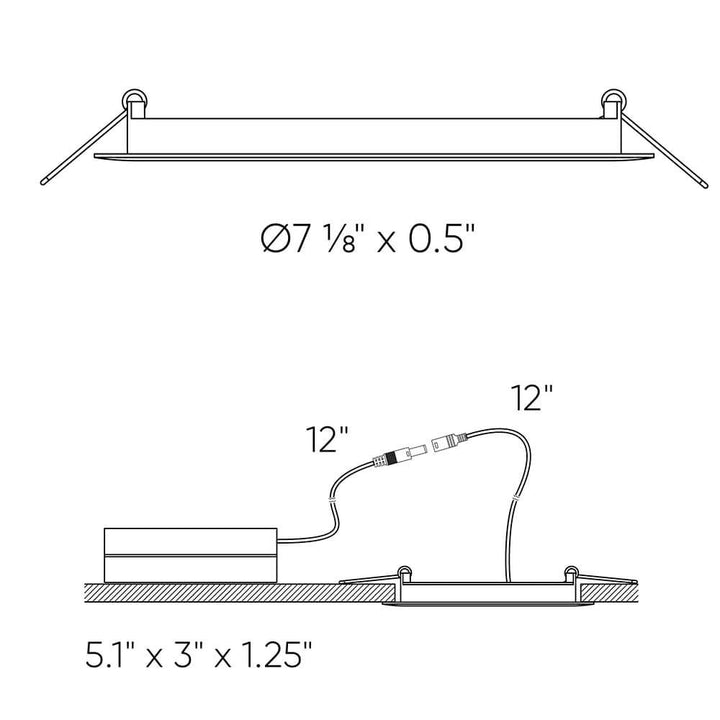

Size: 6"

Finish: White

Wattage: 14W

Delivered Lumens: 1440 lm

Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K (switch-selectable)

CRI: 90+

Voltage: 120V

Dimming: ELV, TRIAC

Features: 5CCT colour-selectable, Dimmable, Fire-rated

Location Rating: Indoor, Outdoor, Wet location

Certifications: IC rated, ETL listed, Title 24 / JA8 compliant, Airtight, ENERGY STAR

Warranty: 5-year limited

UPC: 775902022589

The Excel is an ultra-slim recessed lighting series designed for performance and versatility, available in 3", 4", 5", and 6" sizes with both round and square forms. Featuring 5CCT and multi-voltage capabilities, it adapts seamlessly to a variety of installations. Select models offer a fire-rated construction for added safety or a dim-to-warm effect for a more natural ambiance. Wet-location rated and T24/JA8 compliant, the Excel is ideal for residential and commercial applications where quality and flexibility matter most.

Features

2-hour fire-rated without additional housing or hardware (per UL 263, ASTM E119, and CAN ULC S101) with UL L556 floor-ceiling assembly
Every fixture includes a junction box with an integrated driver
Can be daisy chained
Smooth 360° wide spread
Frosted lens
Edge lit technology
Aluminum construction

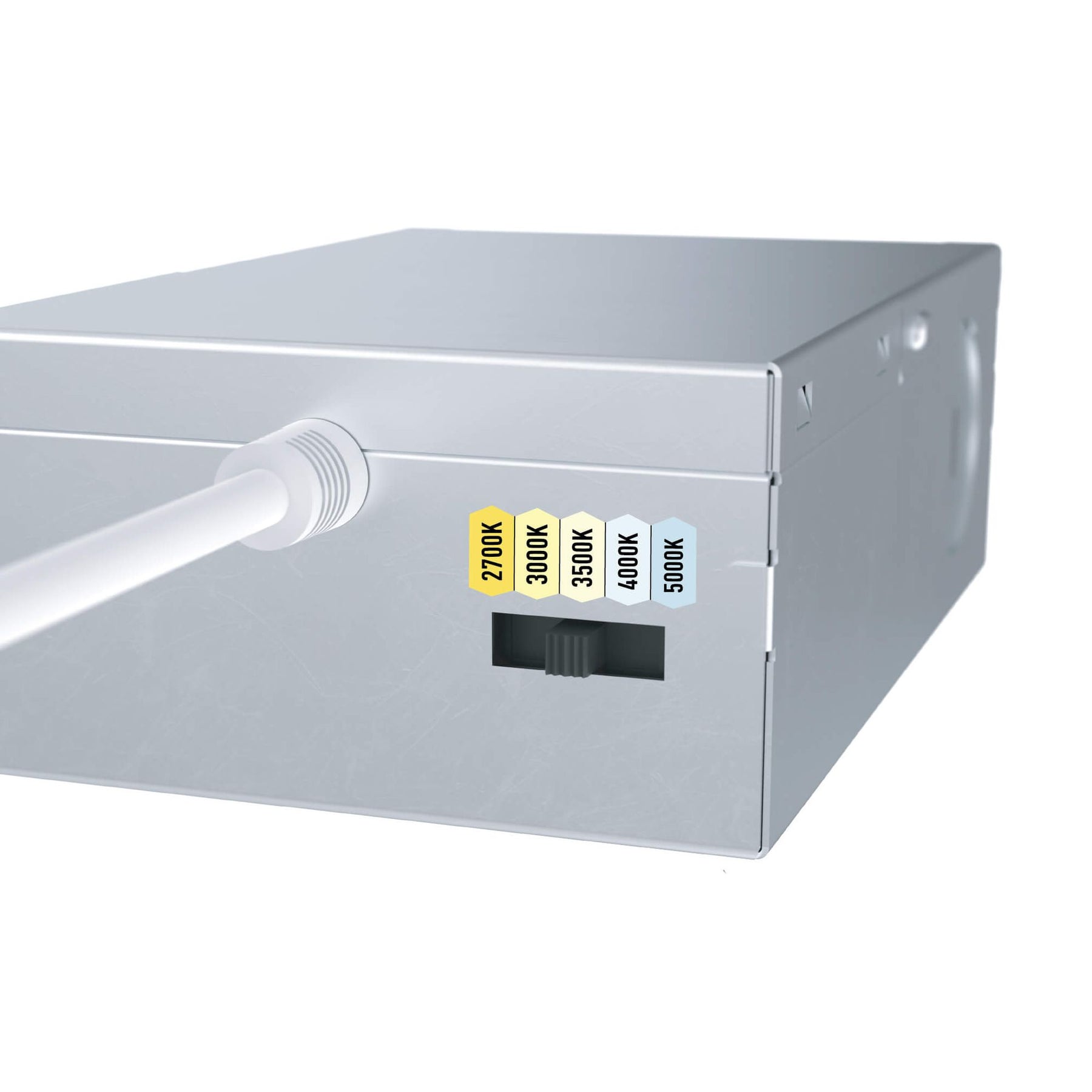

Switch-selectable CCT
Very low profile
5-year warranty

Downloads: Catalog sheet · Installation instructions · Spec sheet

All Dals Lighting products are covered by a 5-year manufacturer warranty.

Free shipping on orders over $199. See our full shipping & return policy.

Need an electrician or install tips? Read our install guide or call us at 604-233-1998.
