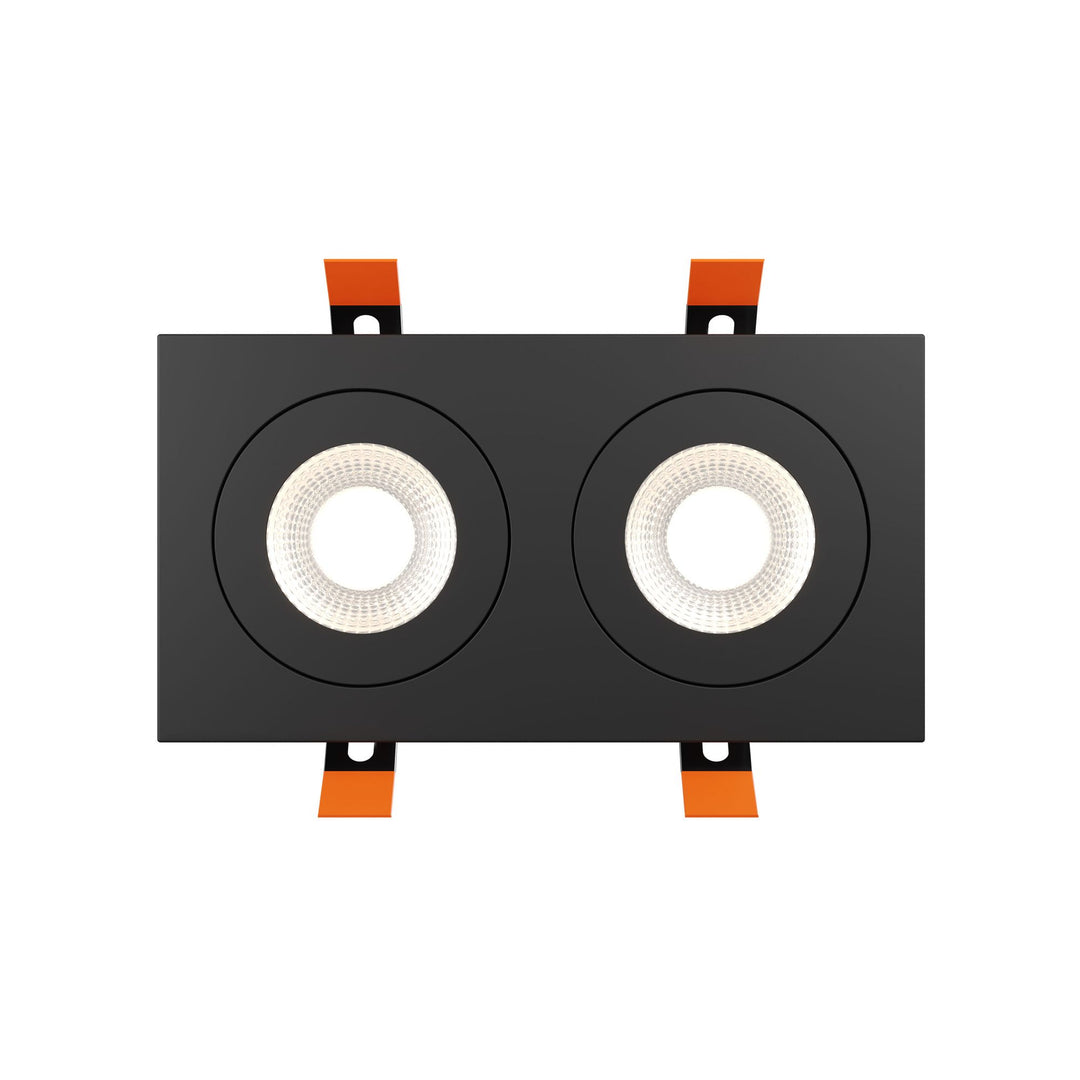

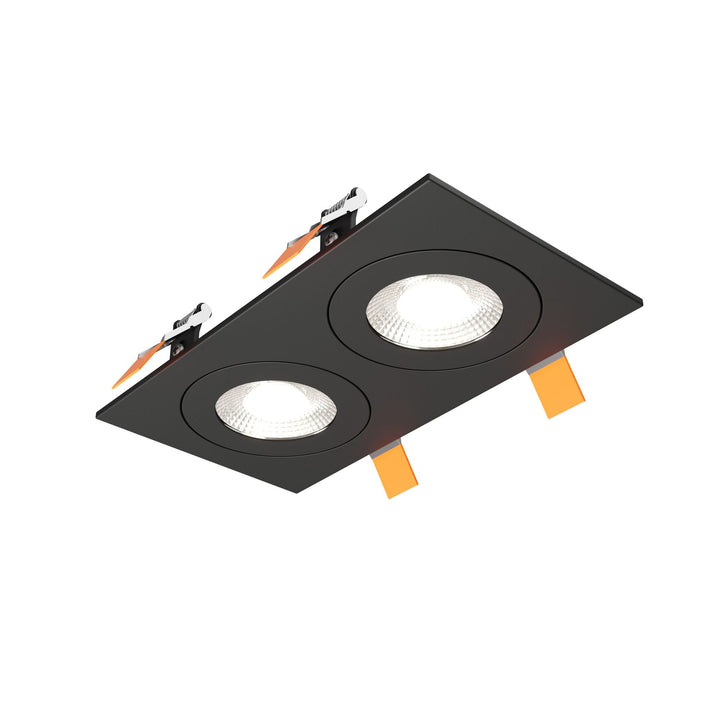

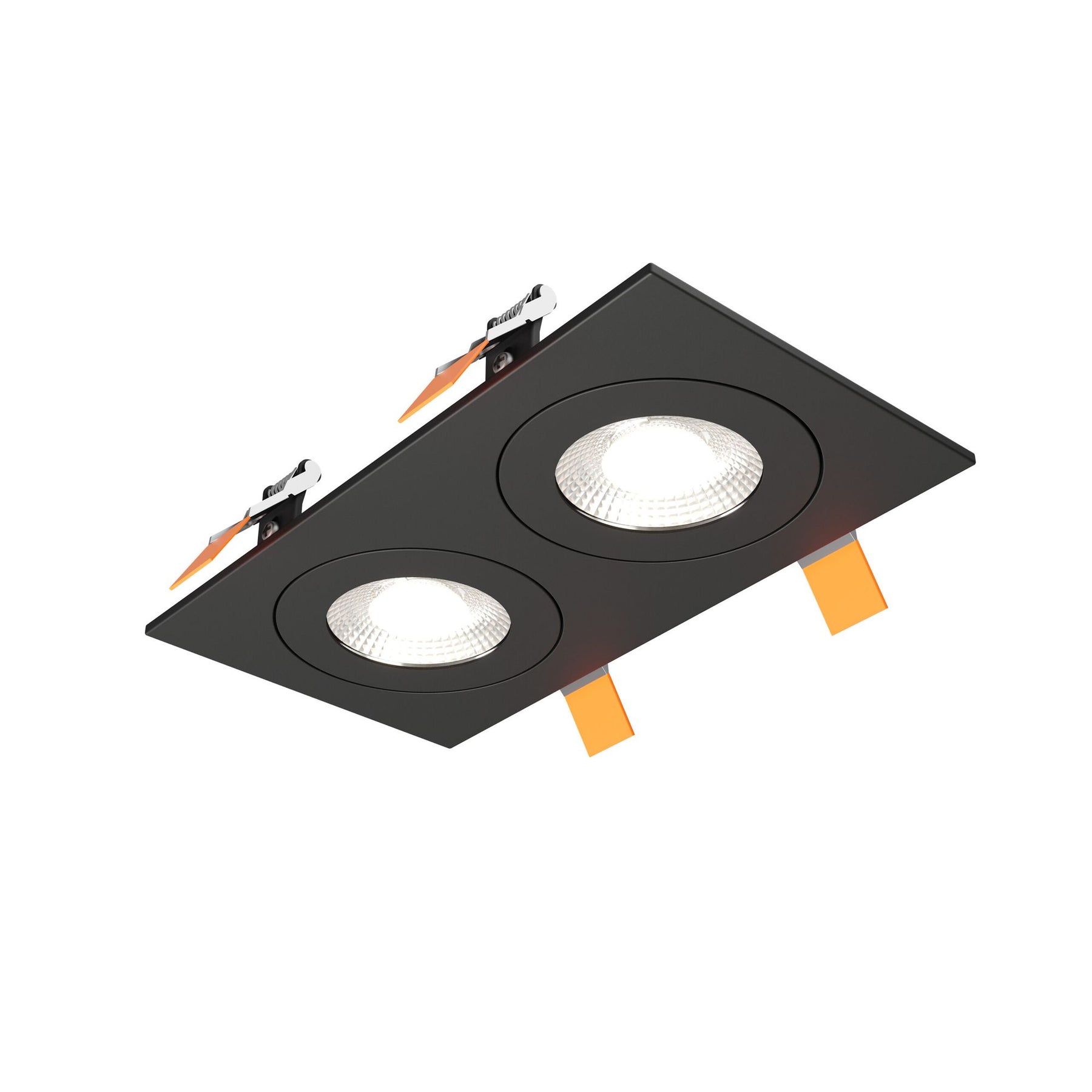

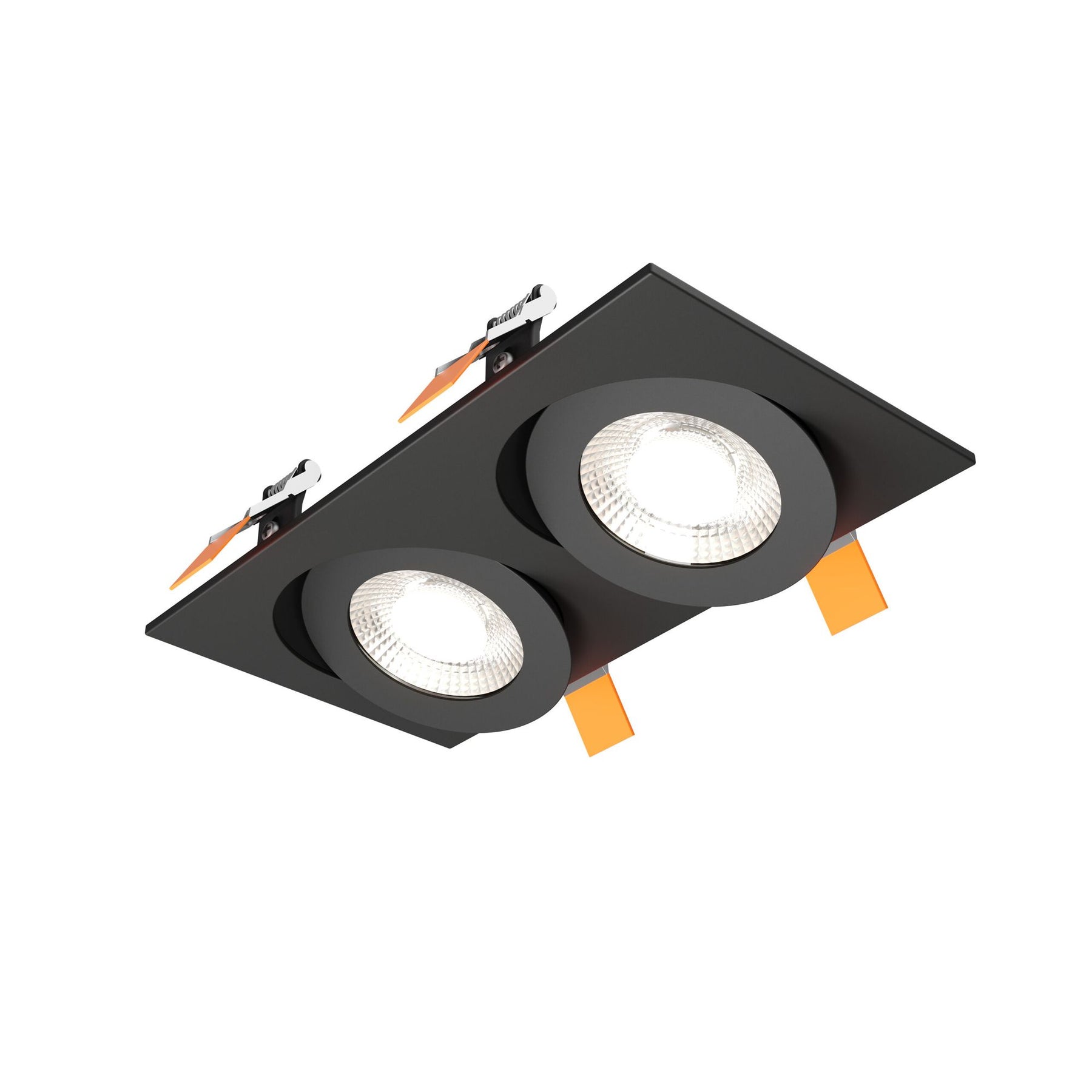

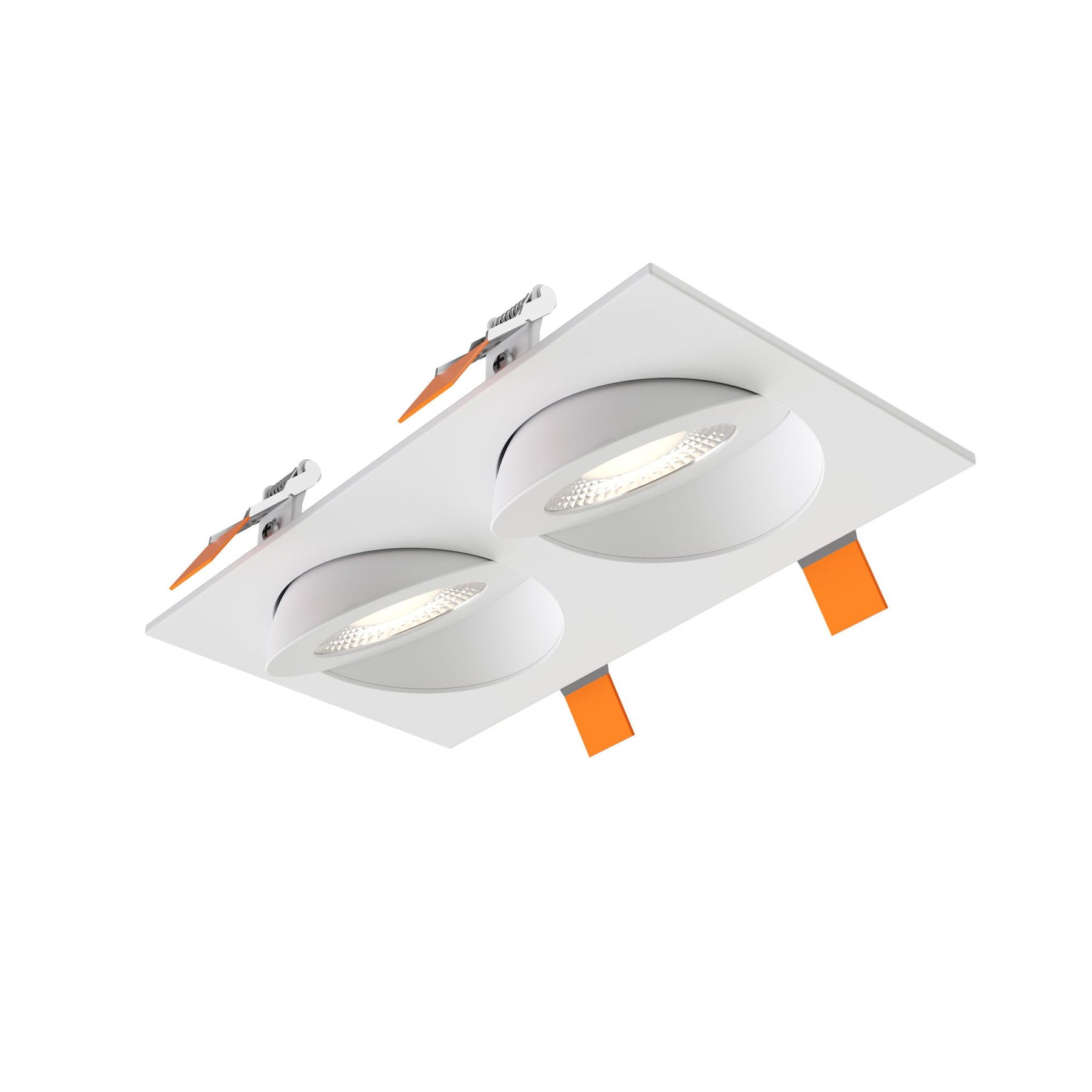

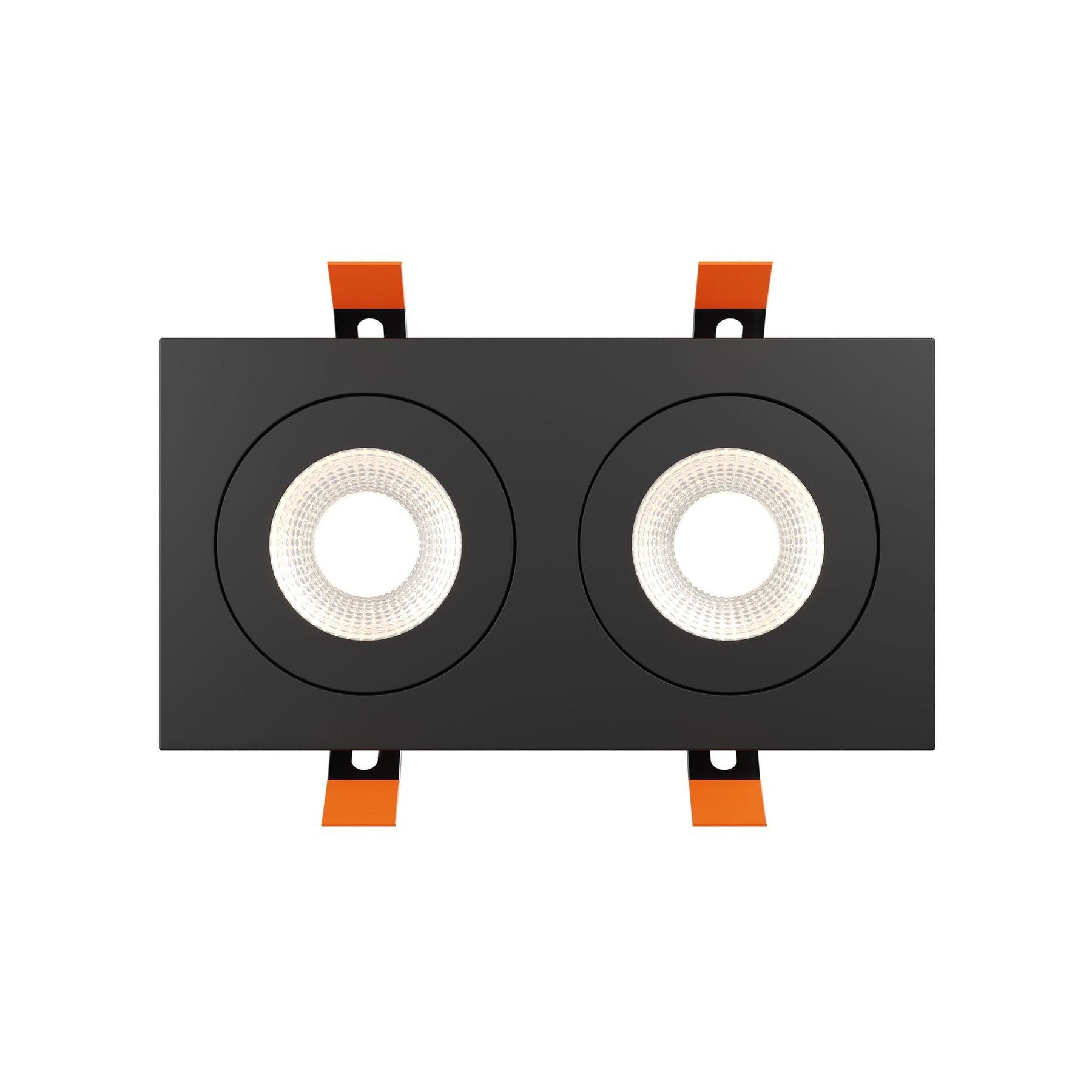

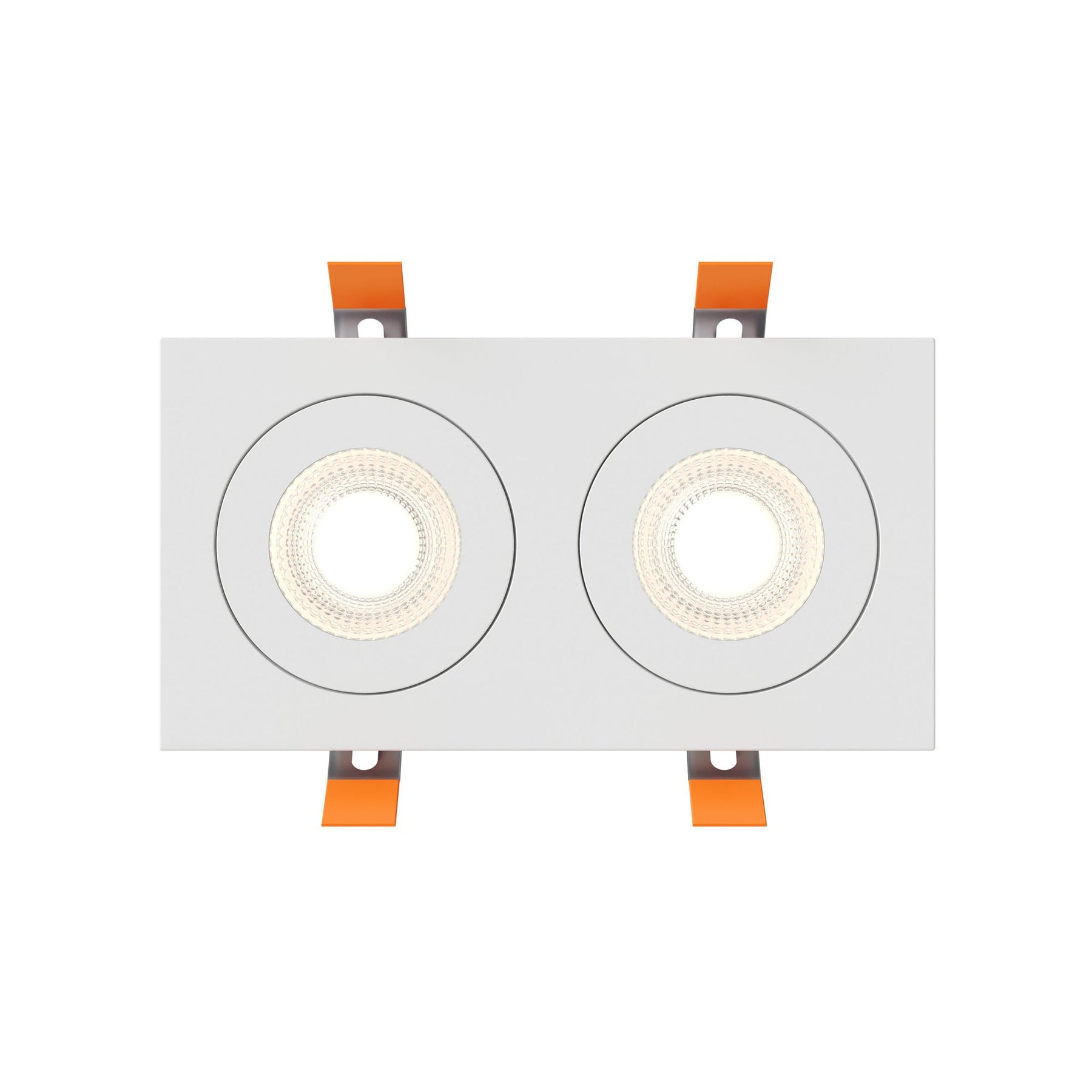

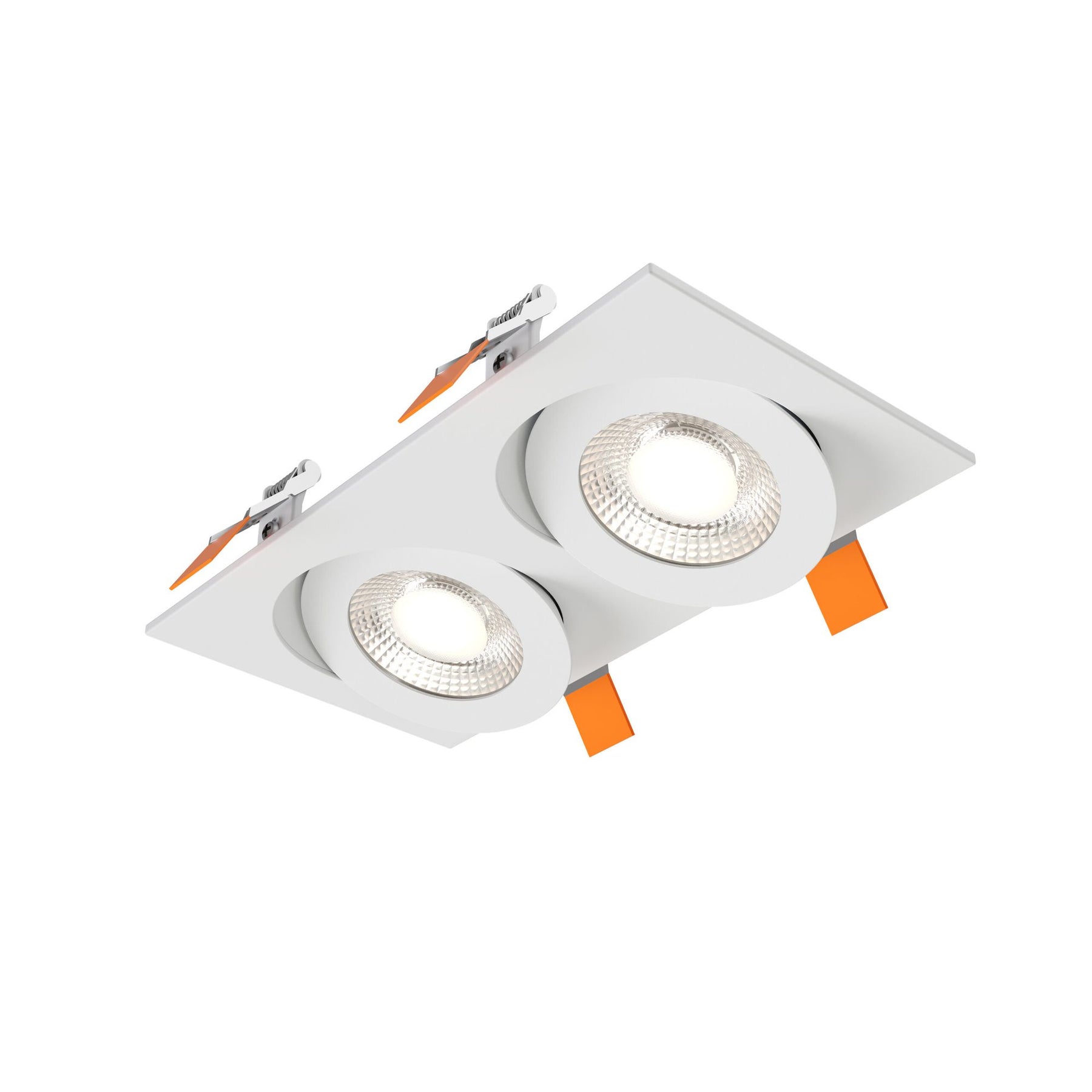

Name: Pivot - LED Double Flat Gimbal Recessed
Brand: Dals
SKU: FGM4-CC-DUO-BK
Price: 83.0 CAD
Availability: InStock

$83.00

Shipping calculated at checkout.

Color — Black

Black

White

Color Temperature — 5CCT

5CCT

5CCT + Dim-to-Warm

Free shipping on orders over $199

Questions? Call 604-233-1998

Specifications

Model: FGM4-CC-DUO-BK

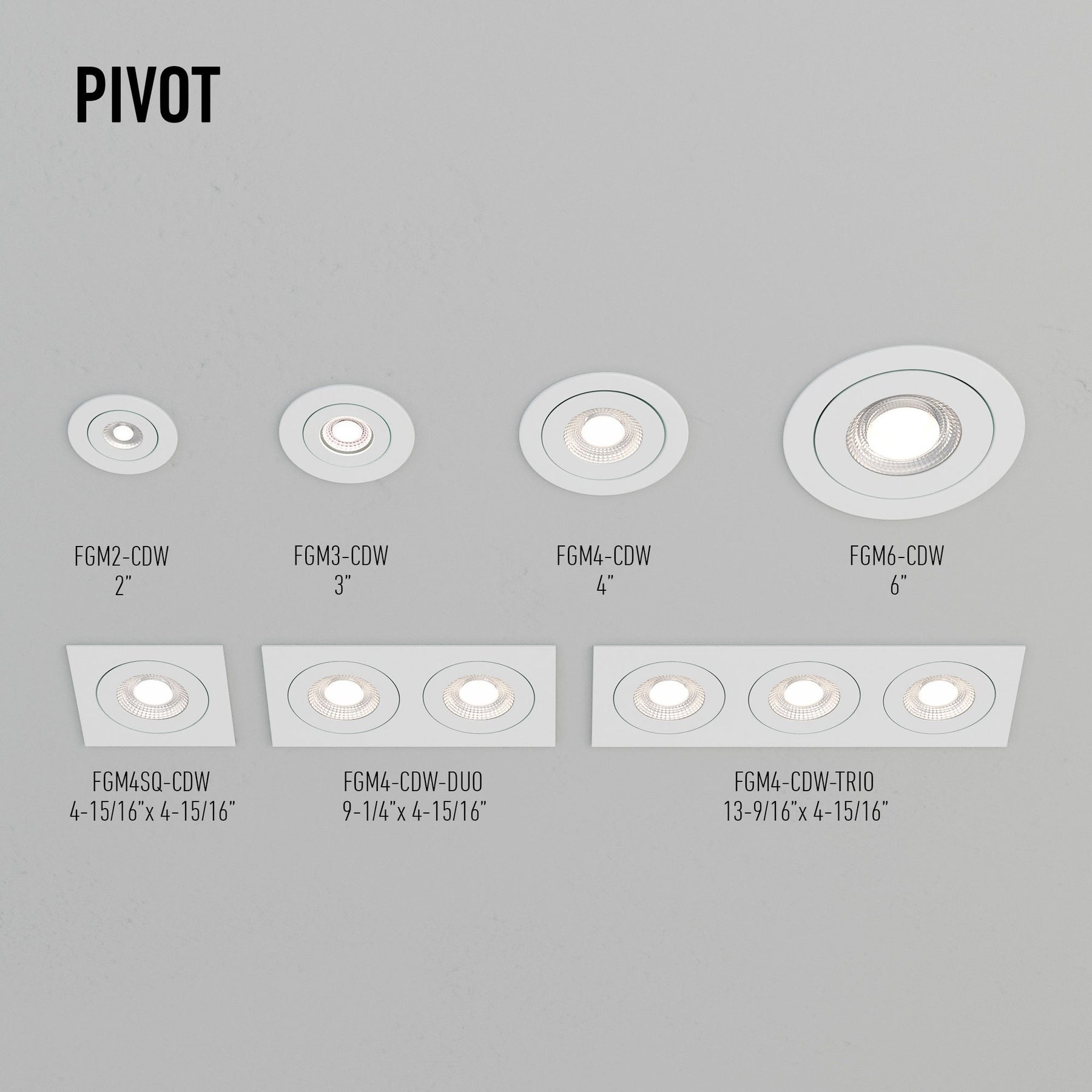

Collection: Pivot

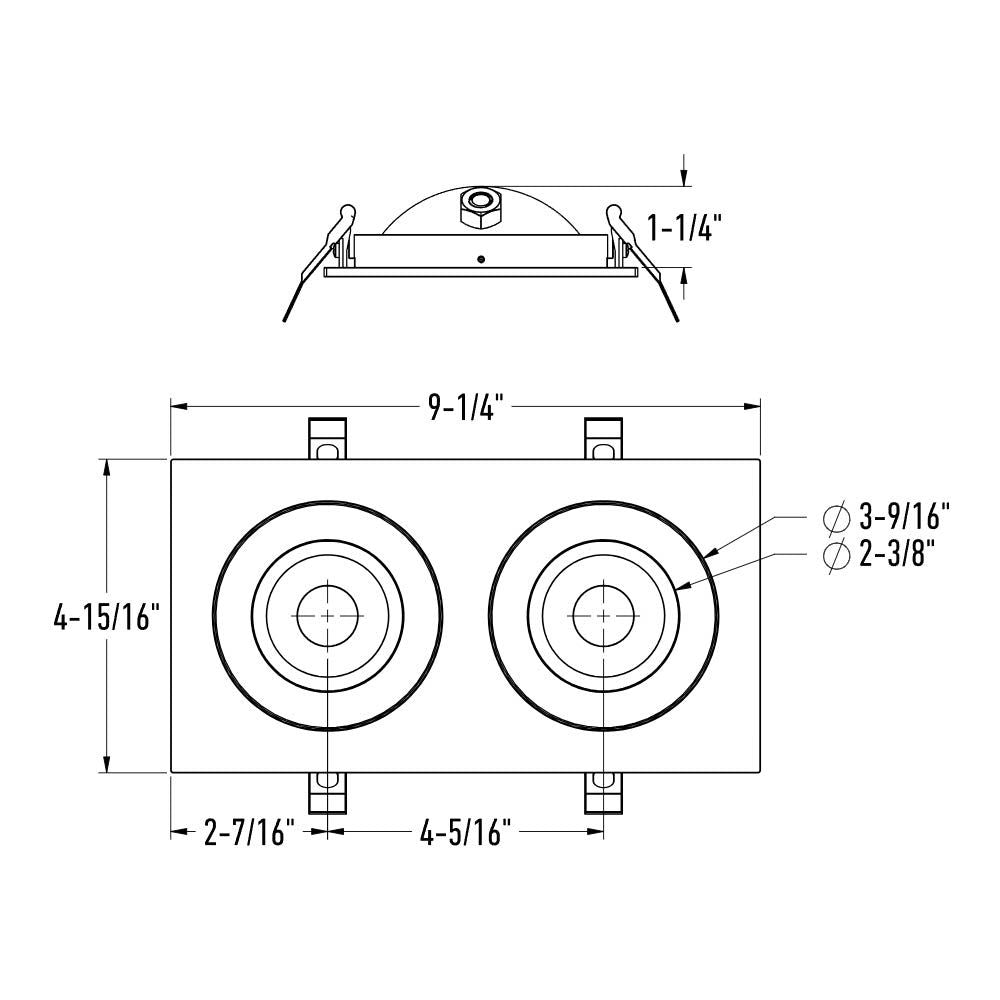

Size: 4"

Finish: Black

Wattage: 18W

Delivered Lumens: 1780 lm

Color Temperature: 2200K / 2700K / 3000K / 3500K / 4000K (switch-selectable)

CRI: 90+

Voltage: 120V

Dimming: ELV, TRIAC

Beam Angle: 40°

Features: 5CCT colour-selectable, Dimmable, Multi-voltage, Swivel / adjustable head

Location Rating: Indoor, Outdoor, Wet location

Certifications: IC rated, ETL listed, Title 24 / JA8 compliant, Airtight

Warranty: 5-year limited

UPC: 775902021735

Model: FGM4-CDW-DUO-BK

Collection: Pivot

Size: 4"

Finish: Black

Wattage: 18W

Delivered Lumens: 1830 lm

Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K (switch-selectable) + dim-to-warm (3000K-2200K)

Voltage: 120V

Beam Angle: 40°

Features: 6CCT colour-selectable, Dimmable, Swivel / adjustable head, Dim-to-warm

Location Rating: Indoor, Outdoor, Wet location

Certifications: IC rated, ETL listed, Title 24 / JA8 compliant, Airtight, ENERGY STAR

Warranty: 5-year limited

UPC: 775902032977

Model: FGM4-CDW-DUO-WH

Collection: Pivot

Size: 4"

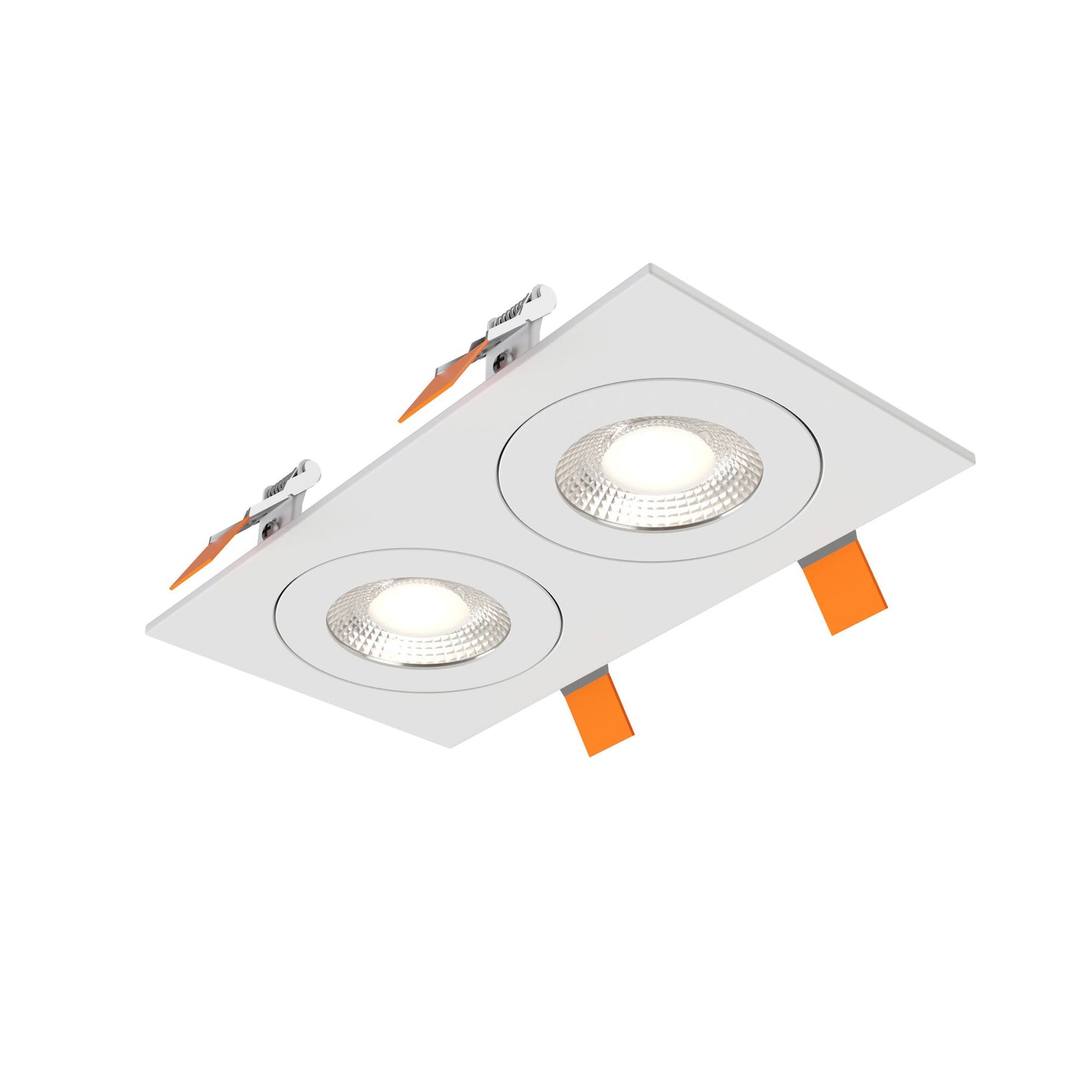

Finish: White

Wattage: 18W

Delivered Lumens: 1830 lm

Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K (switch-selectable) + dim-to-warm (3000K-2200K)

Voltage: 120V

Beam Angle: 40°

Features: 6CCT colour-selectable, Dimmable, Swivel / adjustable head, Dim-to-warm

Location Rating: Indoor, Outdoor, Wet location

Certifications: IC rated, ETL listed, Title 24 / JA8 compliant, Airtight, ENERGY STAR

Warranty: 5-year limited

UPC: 775902032984

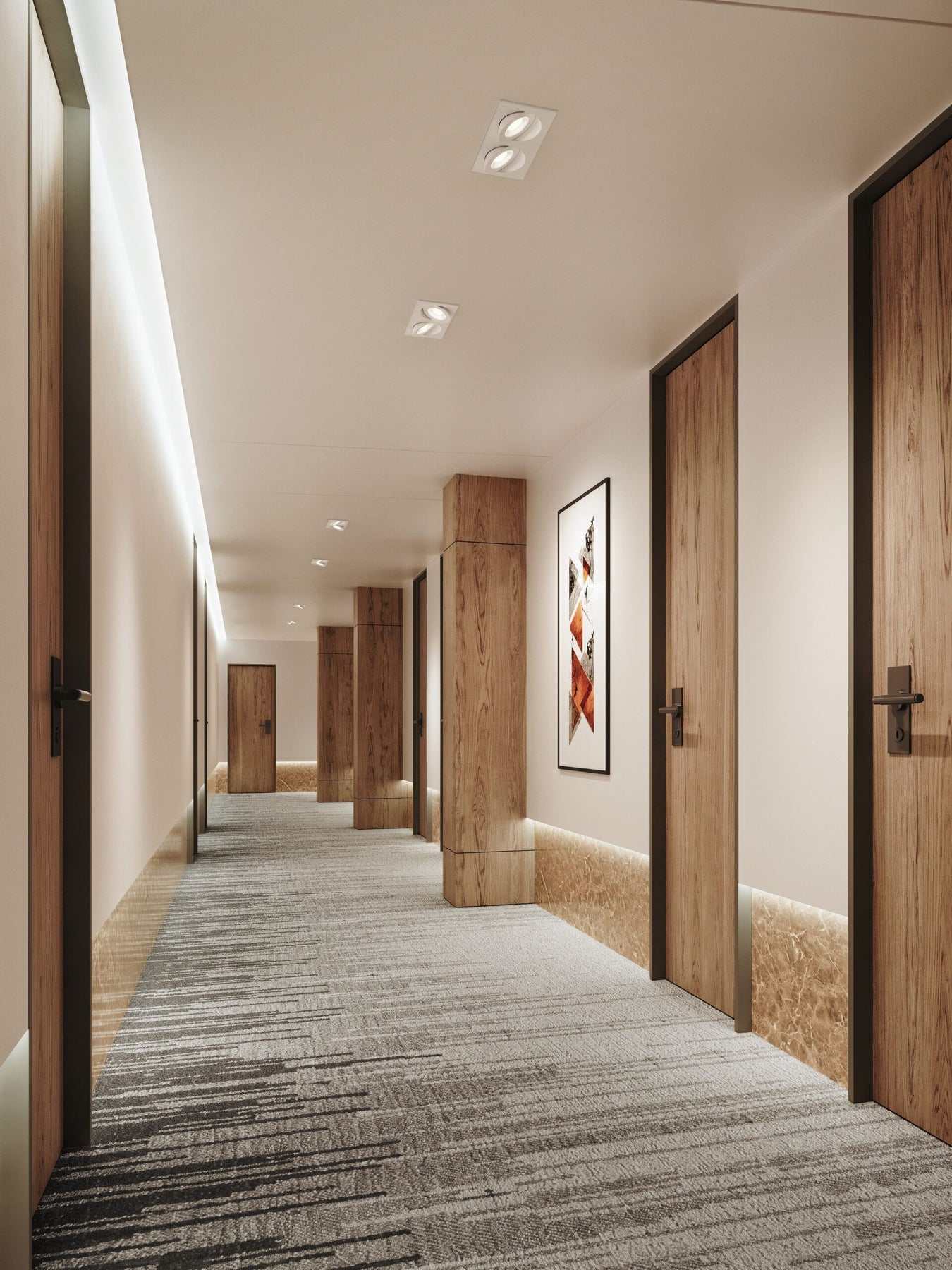

With an infinite choice of beam direction, Pivot Duo provides a discrete yet functional solution to general or accent lighting within your space.

Features

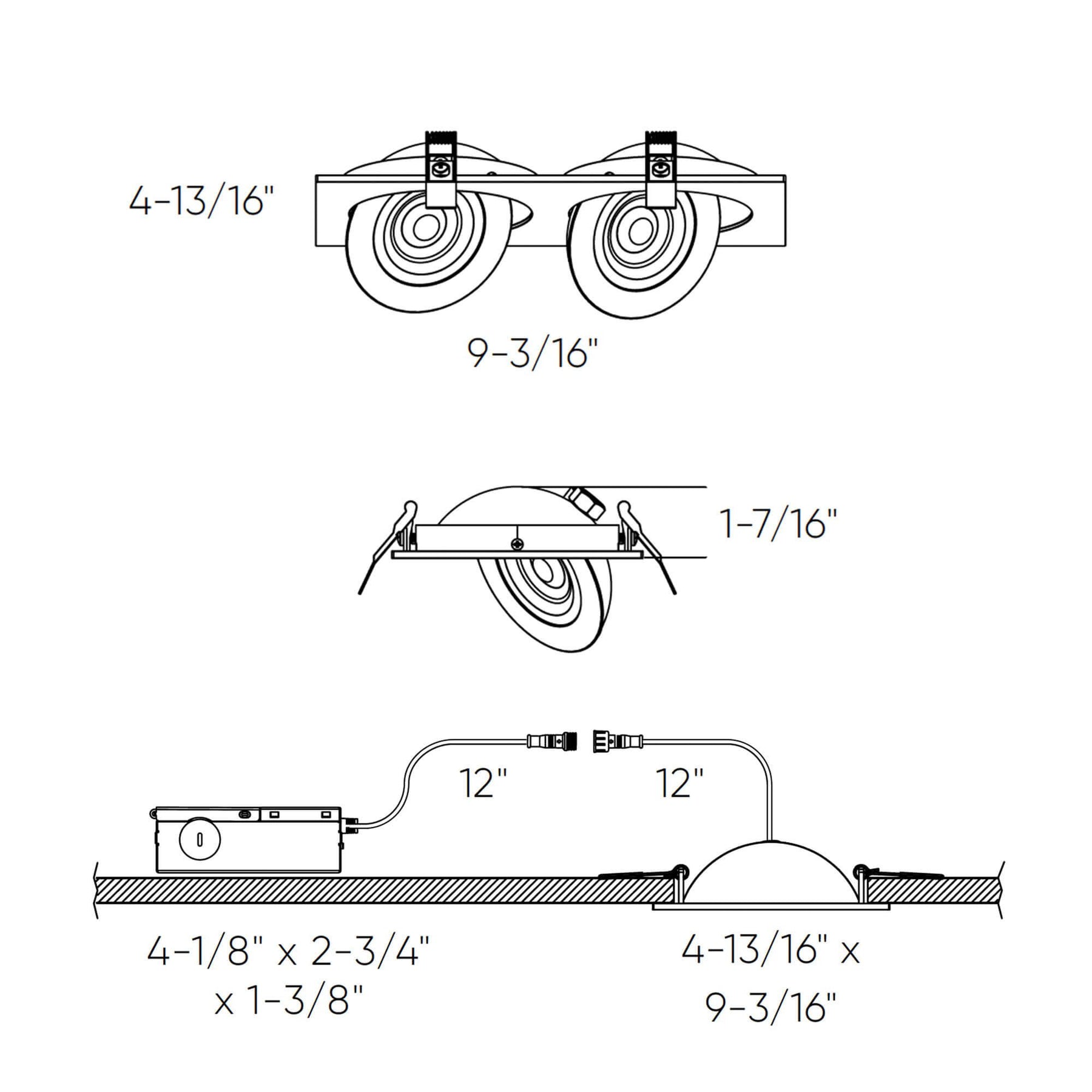

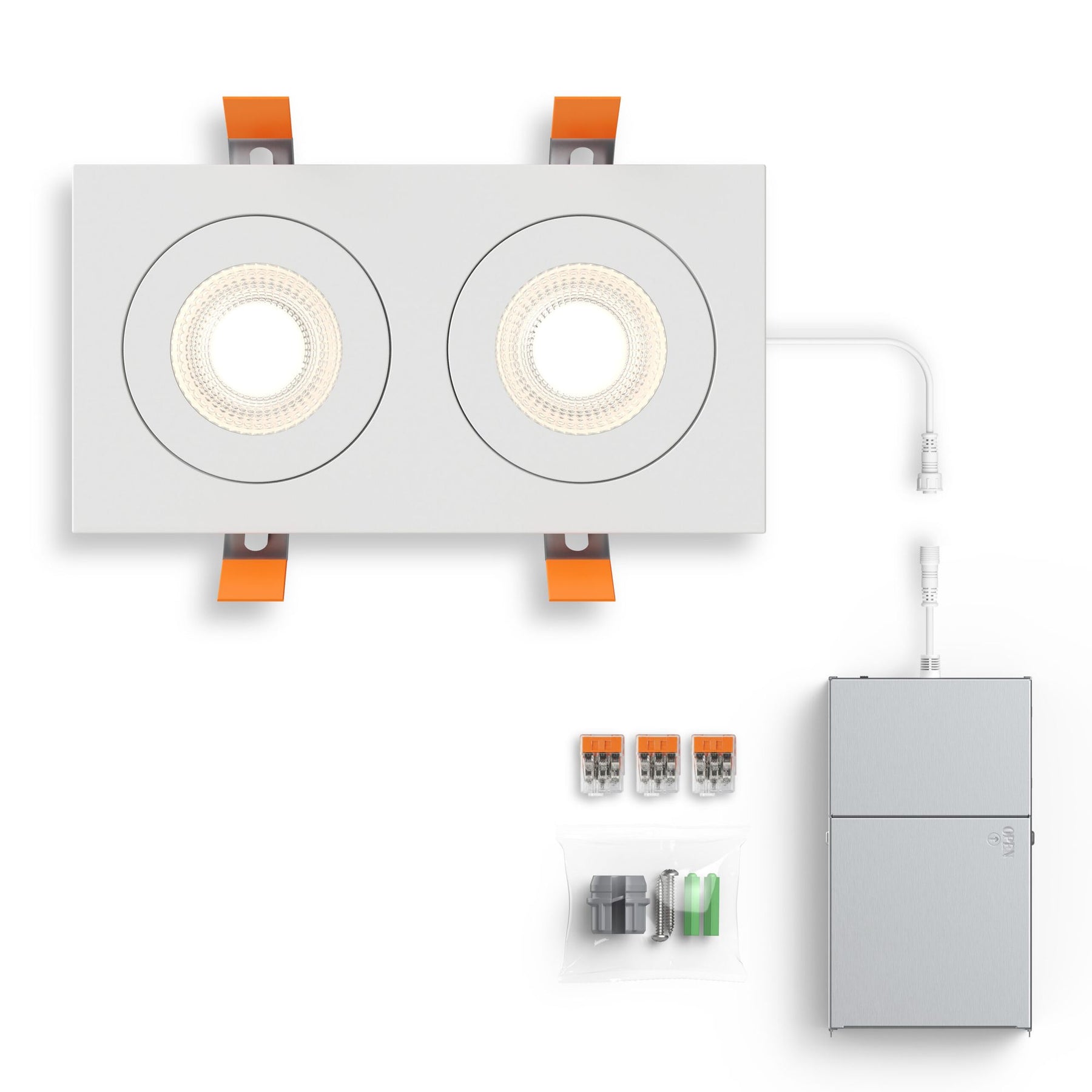

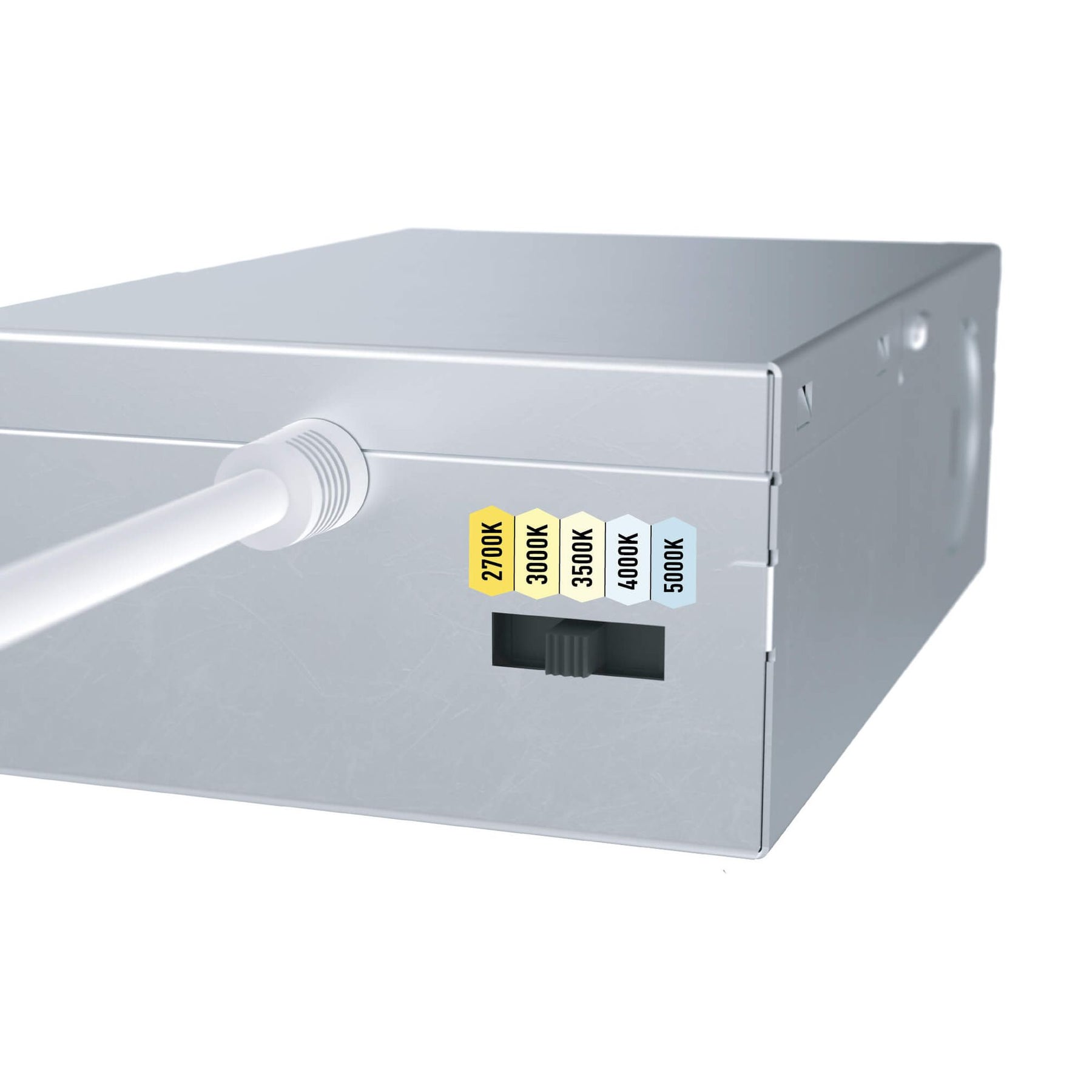

Every fixture includes a junction box with integrated dimmable driver
Can be daisy chained

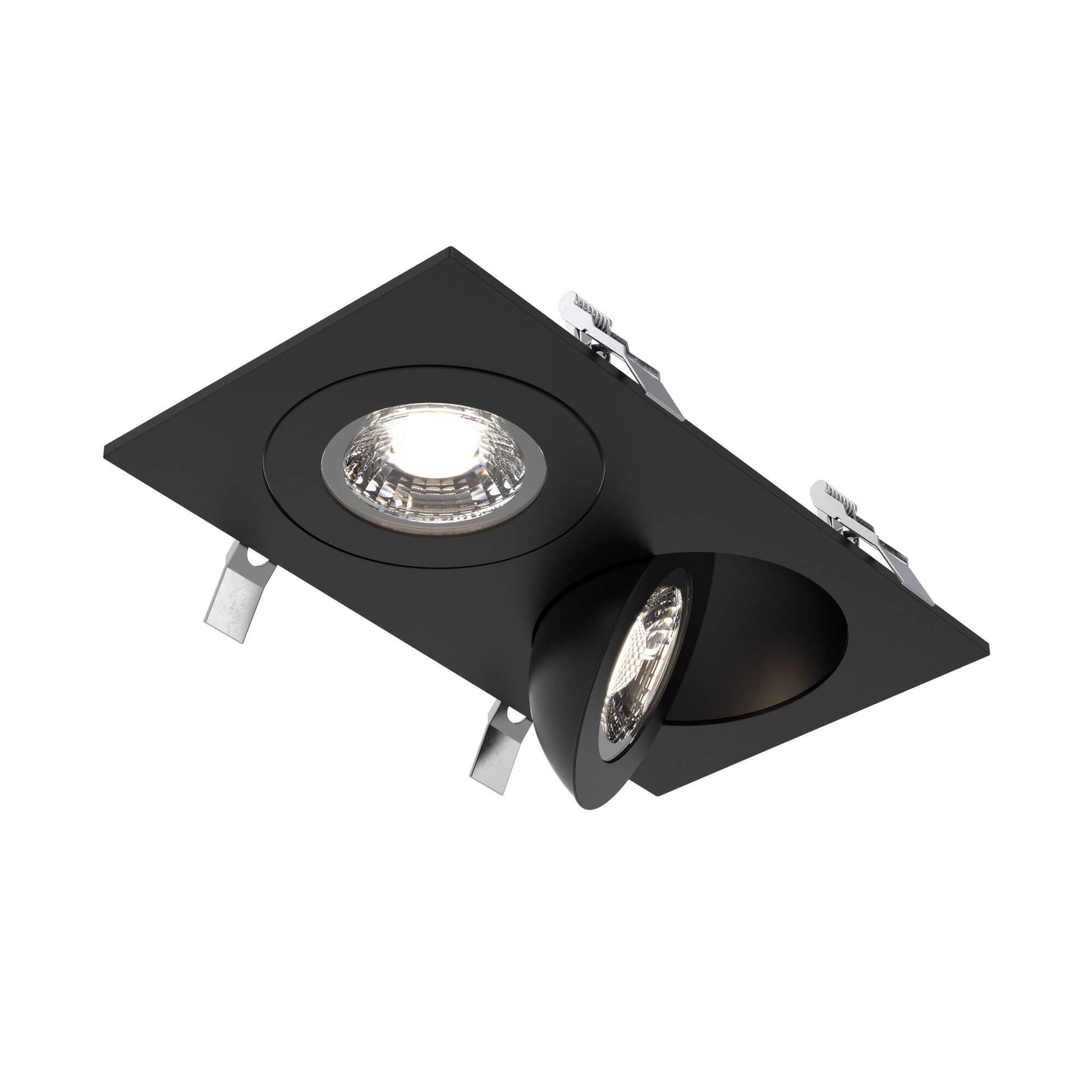

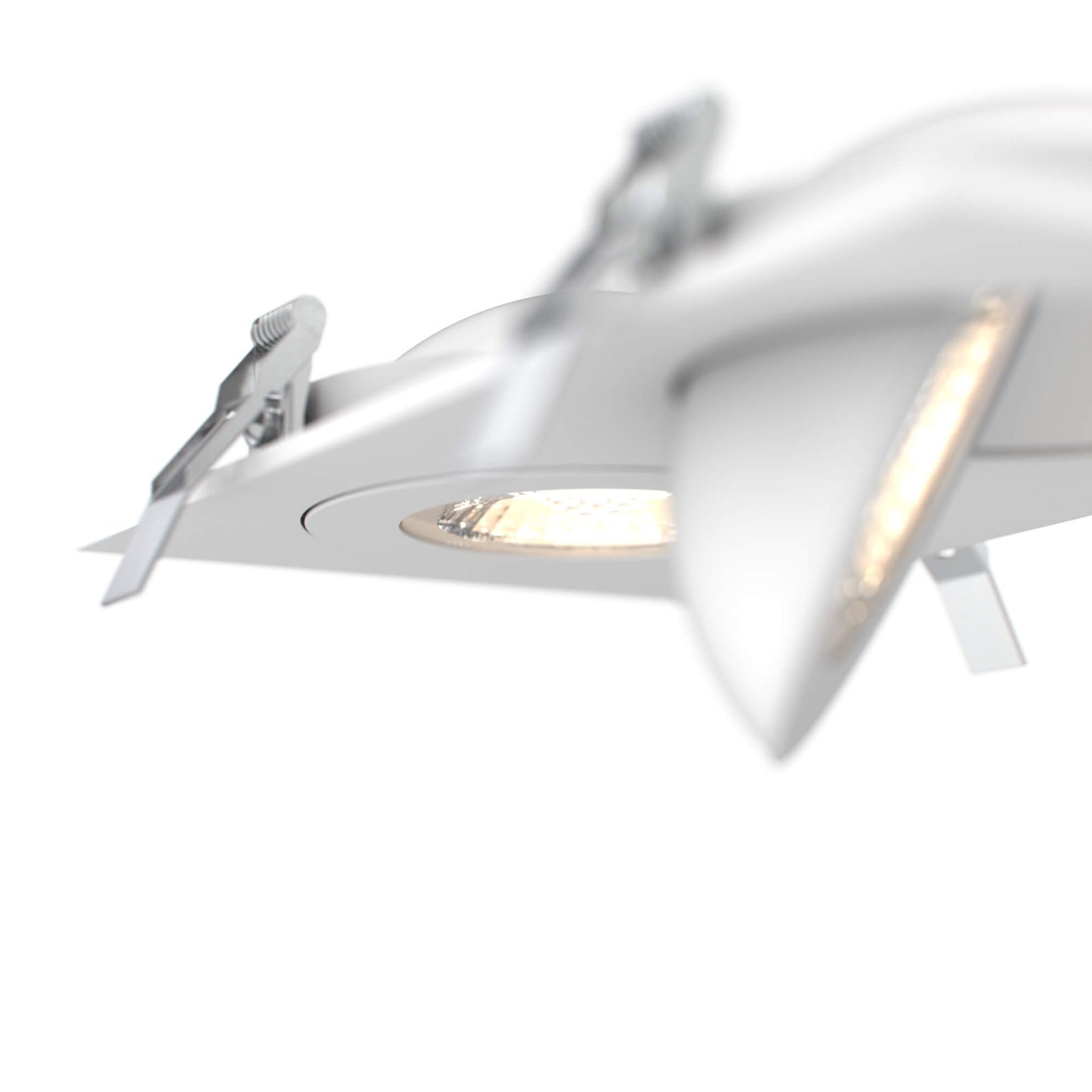

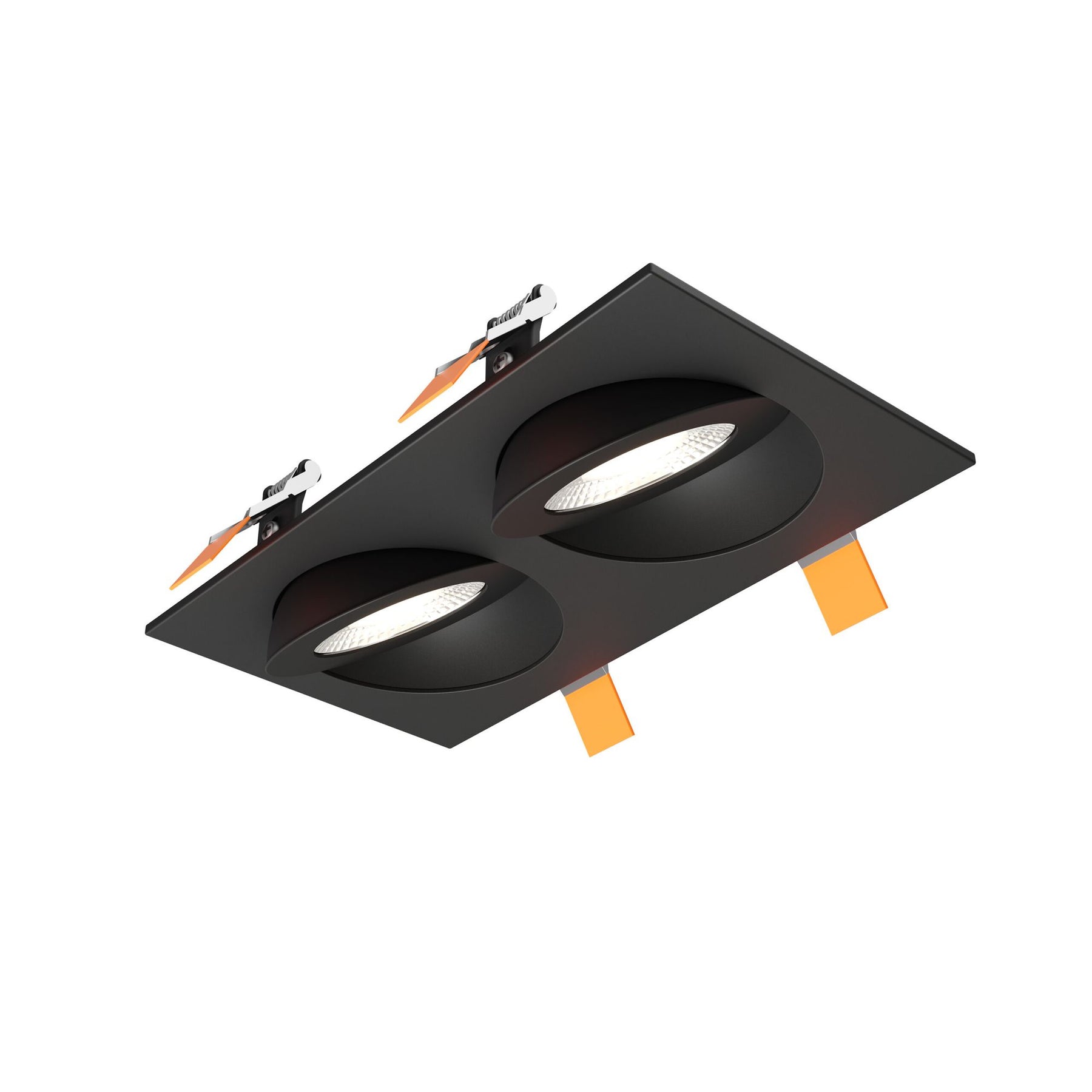

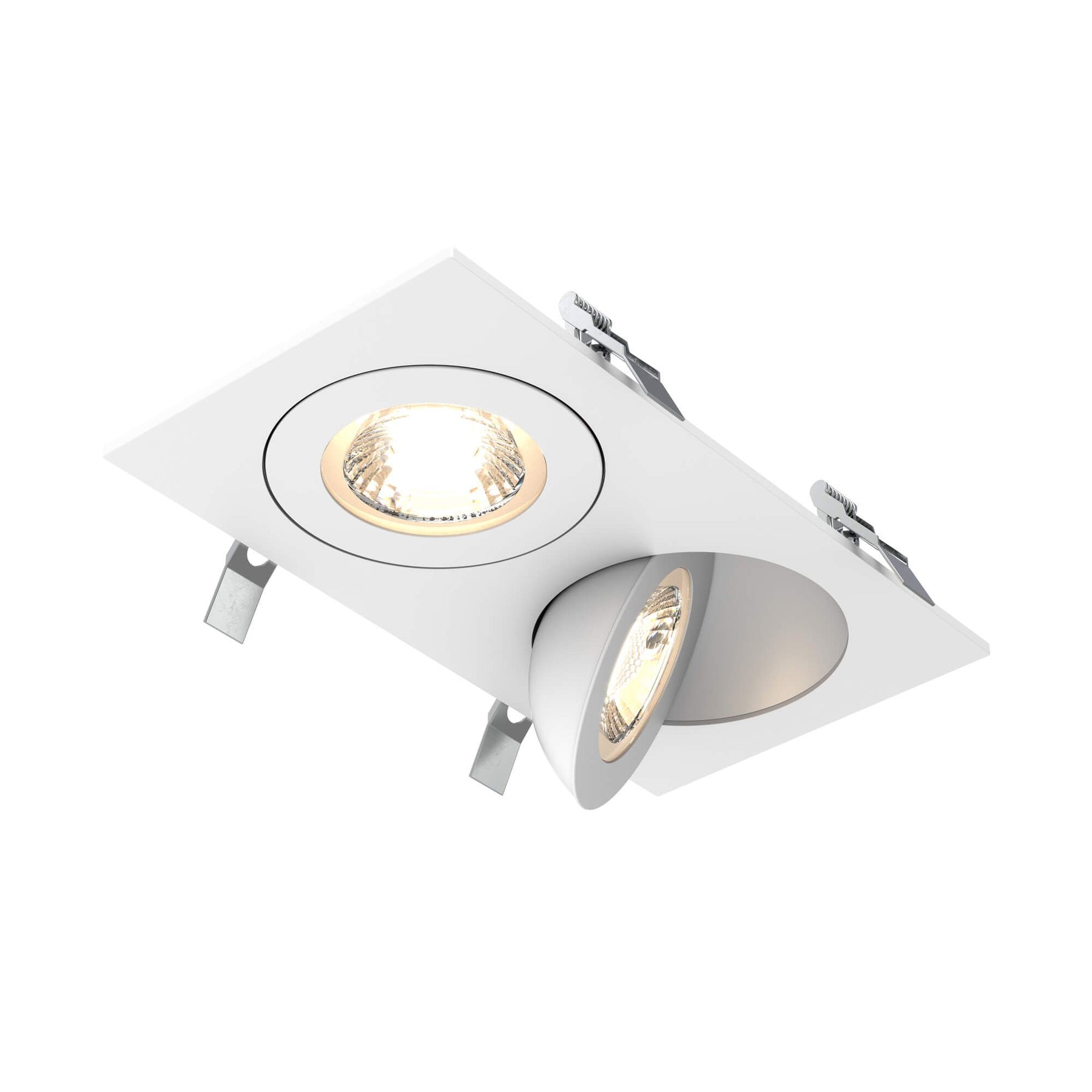

90° tilting, 360° rotation
Aluminum construction
Switch-selectable CCT
Low profile
40° beam spread
5-year warranty

Downloads: Catalog sheet · Installation instructions · Spec sheet

All Dals Lighting products are covered by a 5-year manufacturer warranty.

Free shipping on orders over $199. See our full shipping & return policy.

Need an electrician or install tips? Read our install guide or call us at 604-233-1998.
