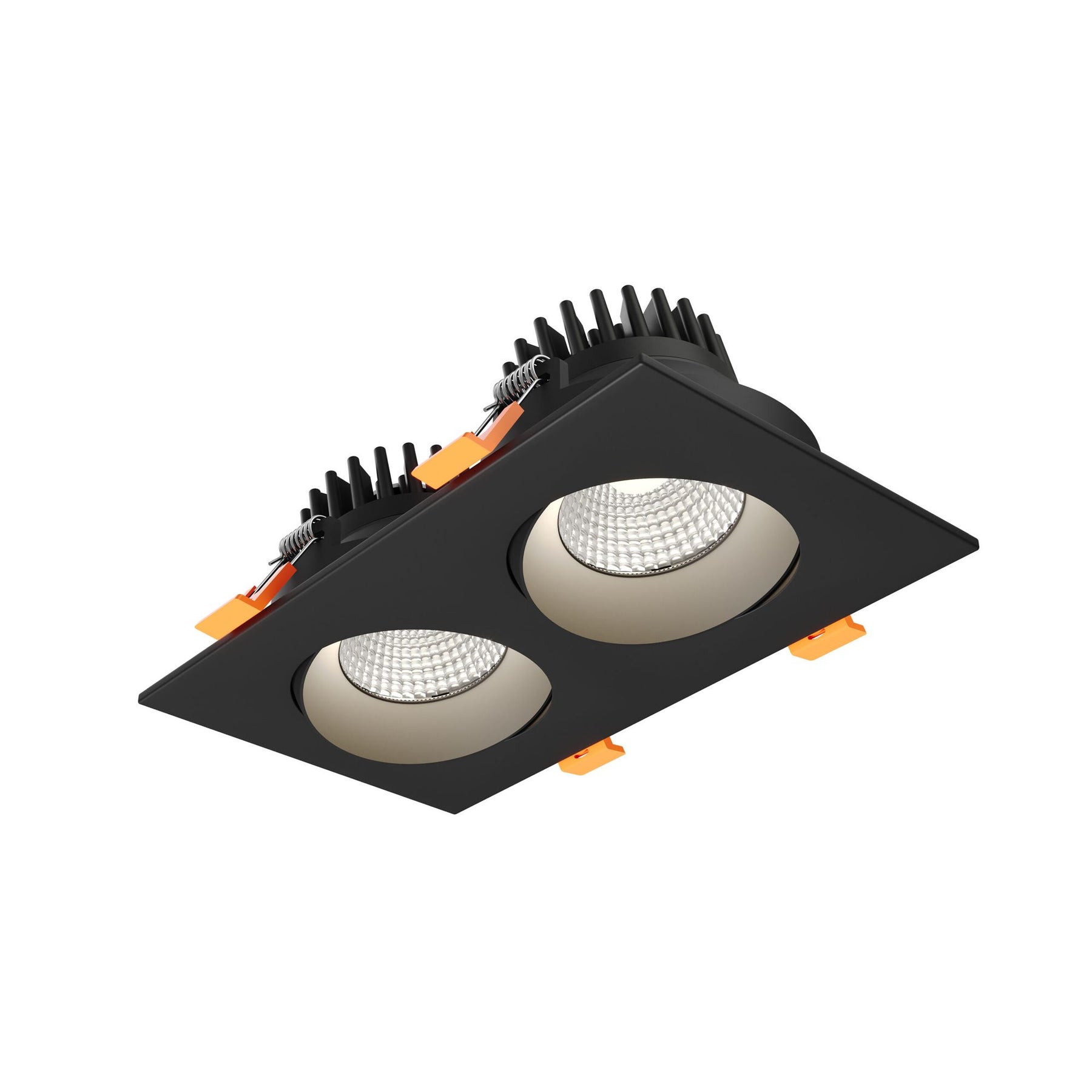

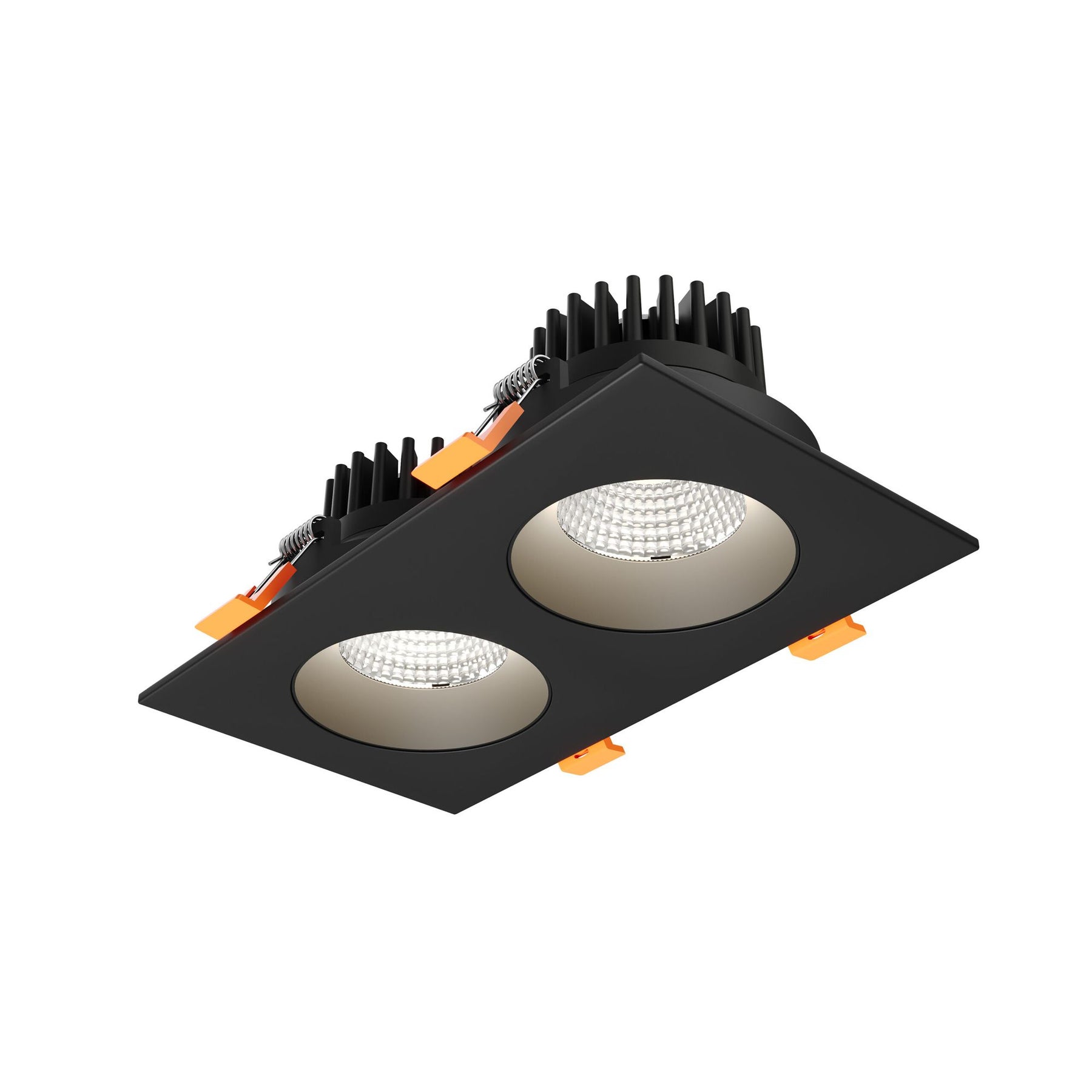

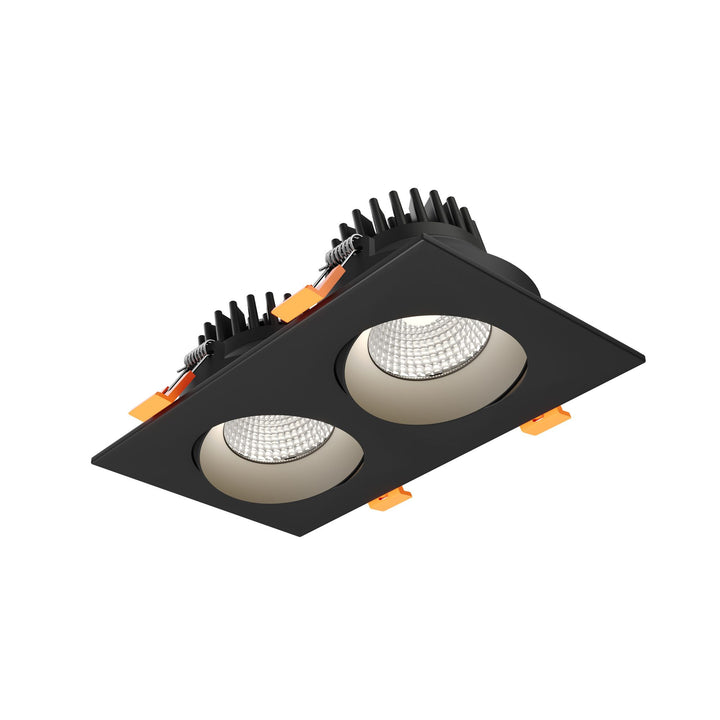

Name: Revolve - LED 3.5" Duo Regressed Gimbal Downlight
Brand: Dals
SKU: GBR35-CDW-DUO-BK
Price: 151.0 CAD
Availability: InStock

Revolve - LED 3.5" Duo Regressed Gimbal Downlight

$151.00

Shipping calculated at checkout.

Color — Black

Black

White

Free shipping on orders over $199

Questions? Call 604-233-1998

Specifications

Model: GBR35-CDW-DUO-BK

Collection: Revolve

Size: 3.5"

Finish: Black

Wattage: 24W

Delivered Lumens: 1970 lm

Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K (switch-selectable) + dim-to-warm (3000K-2200K)

CRI: 90+

Voltage: 120V

Dimming: ELV, TRIAC

Beam Angle: 40°

Features: 6CCT colour-selectable, Dimmable, Low glare, Swivel / adjustable head, Dim-to-warm

Location Rating: Indoor, Outdoor, Wet location

Certifications: IC rated, ETL listed, Title 24 / JA8 compliant, Airtight, ENERGY STAR

Warranty: 5-year limited

UPC: 775902033332

Model: GBR35-CDW-DUO-WH

Collection: Revolve

Size: 3.5"

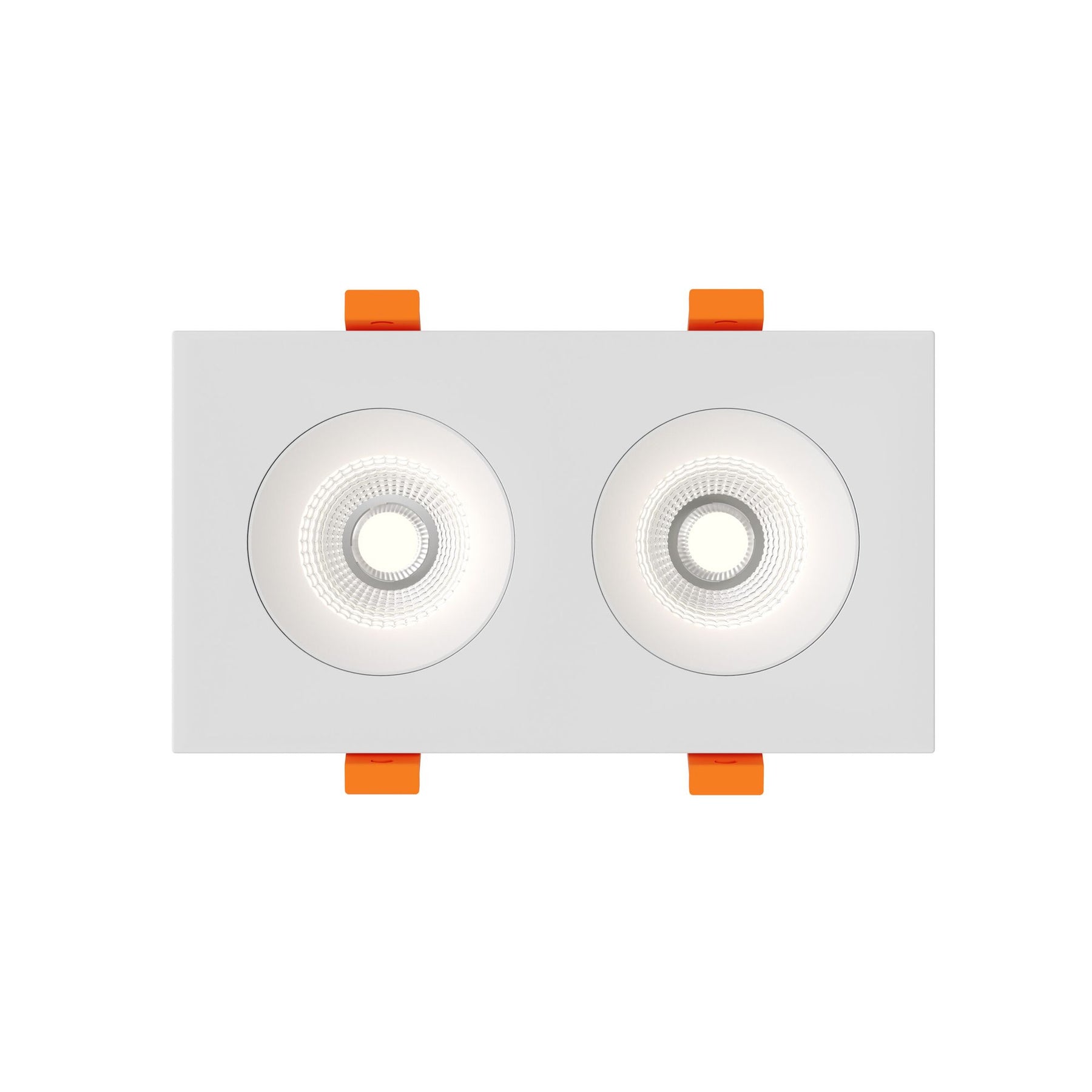

Finish: White

Wattage: 24W

Delivered Lumens: 1970 lm

Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K (switch-selectable) + dim-to-warm (3000K-2200K)

CRI: 90+

Voltage: 120V

Dimming: ELV, TRIAC

Beam Angle: 40°

Features: 6CCT colour-selectable, Dimmable, Low glare, Swivel / adjustable head, Dim-to-warm

Location Rating: Indoor, Outdoor, Wet location

Certifications: IC rated, ETL listed, Title 24 / JA8 compliant, Airtight, ENERGY STAR

Warranty: 5-year limited

UPC: 775902033349

When seeking the perfect balance between flexibility and refined design, look no further than our Revolve adjustable LED downlights. With smooth 360° rotation and a precise tilt mechanism, light can be directed exactly where it's needed, enhancing textures and creating depth within a space. Featuring the new Color Select Plus (6-in-1) technology, ranging from 2700K to 5000K + Dim-to-Warm (3000K–2200K), and a discreet hidden COB lens, it delivers both visual comfort and versatility for sophisticated lighting designs.

Features

NEW field-selectable Color Select Plus (6-in-1): 2700K–5000K + Dim-to-Warm (3000K–2200K)
Hidden COB lens for refined visual comfort

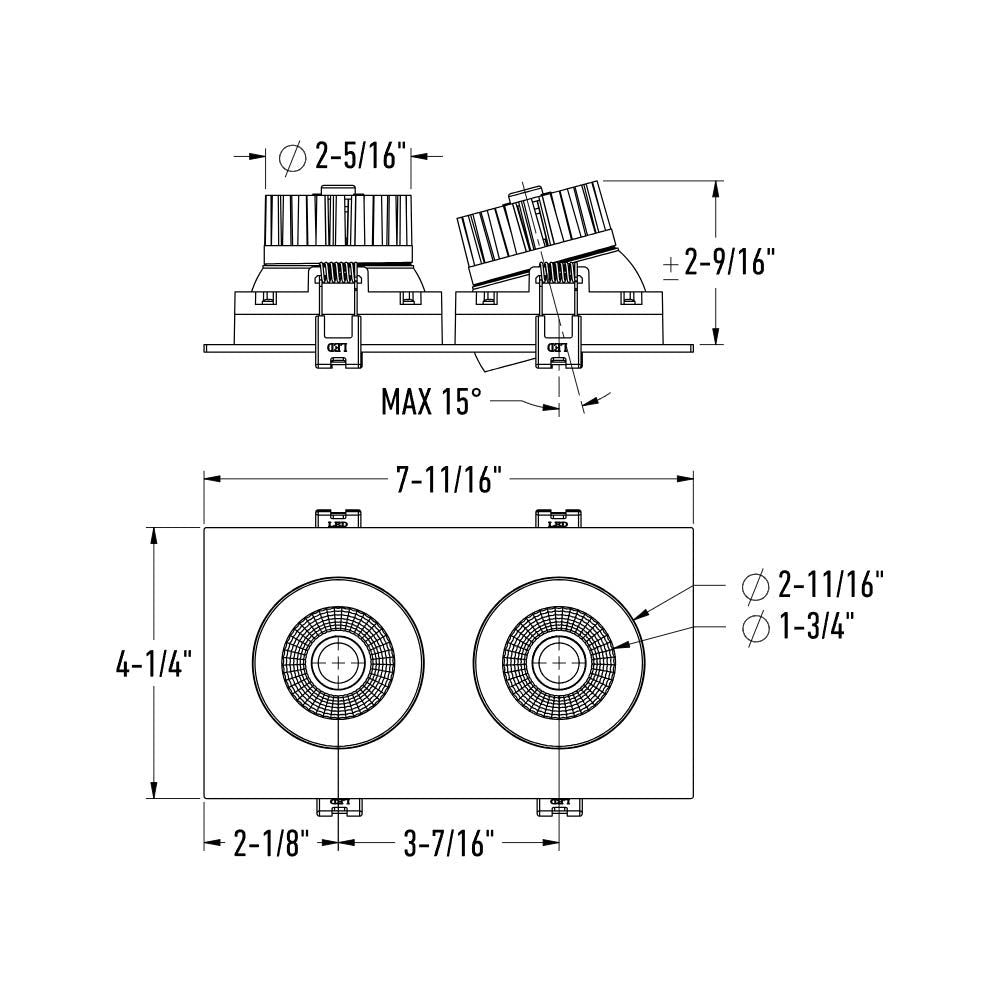

360° rotation + 15° tilt for accent precision
40° beam angle for balanced distribution
ELV & TRIAC dimming
90+ CRI for premium color accuracy

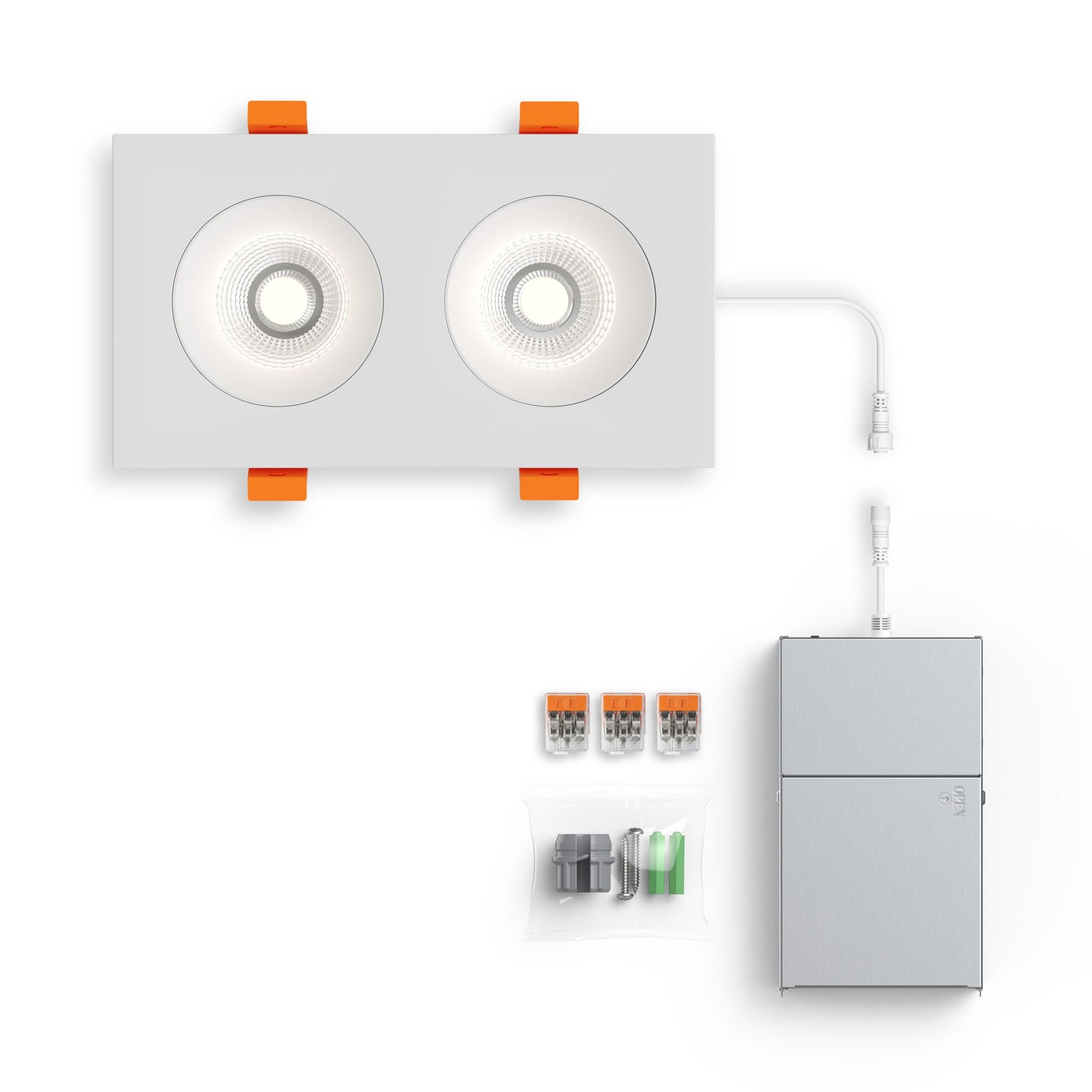

Integrated junction box with driver
Quick connectors included for faster installation
FT6 cable: 12" driver + 6" fixture lead
Designed to the highest standards to exceed 50,000 hours of life (L70) and are covered by a 5-year warranty

Downloads: Catalog sheet · Installation instructions · Spec sheet

All Dals Lighting products are covered by a 5-year manufacturer warranty.

Free shipping on orders over $199. See our full shipping & return policy.

Need an electrician or install tips? Read our install guide or call us at 604-233-1998.
